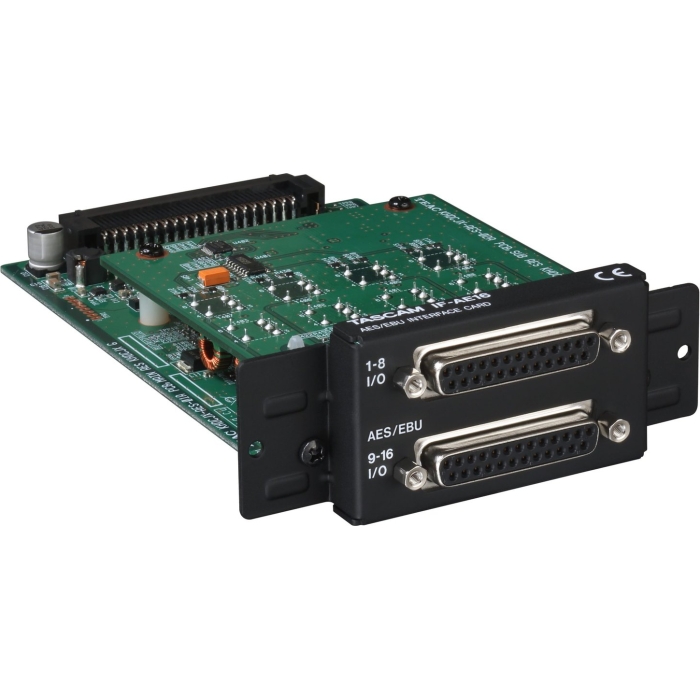

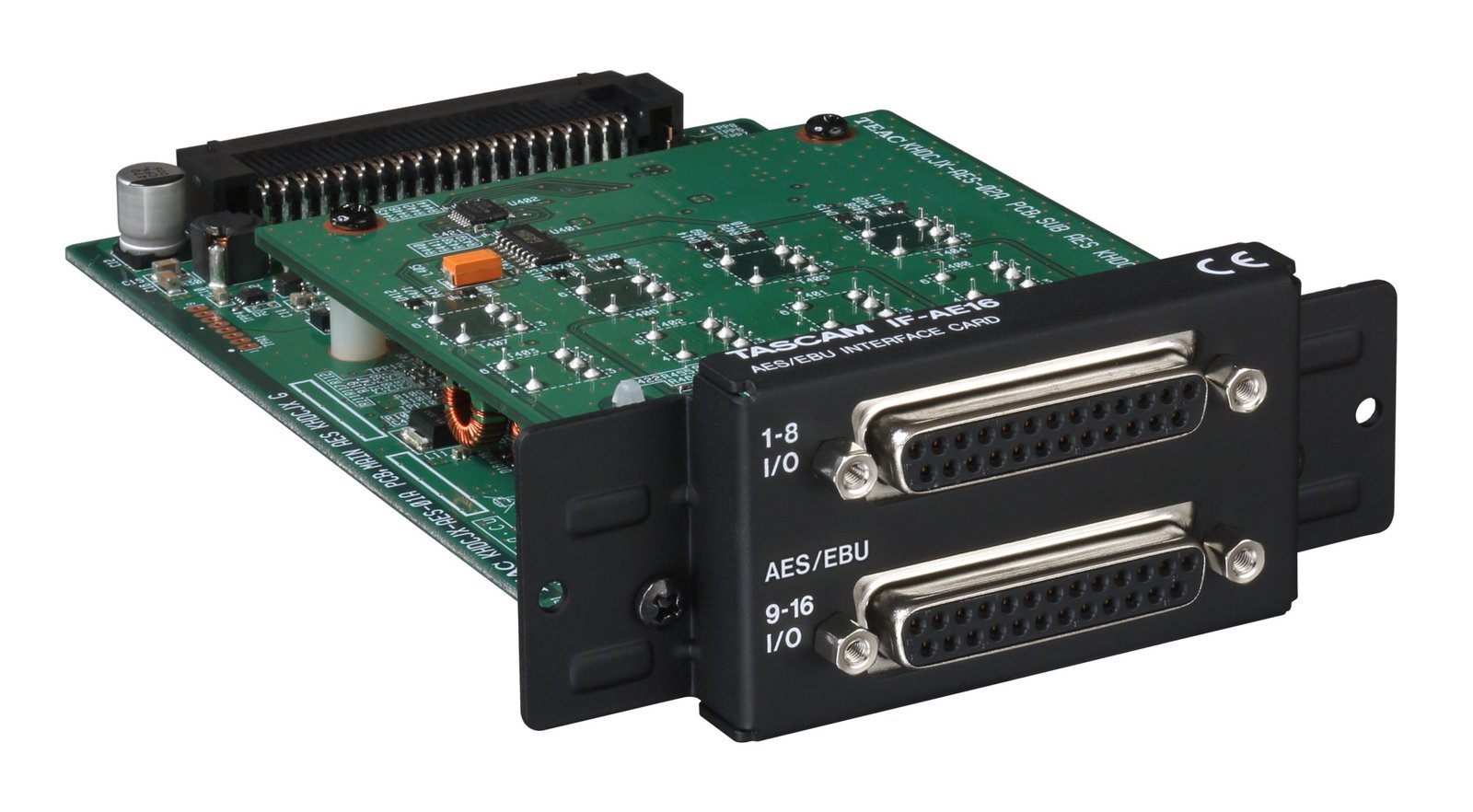

Tascam IF-AE16 AES/EBU Digital Interface Card for DA-6400/DA-6400dp Recorders

Tascam

AED 4258.80 inc VAT.

The IF-AE16 is an AES/EBU interface card designed for the DA-6400 and DA-6400dp digital multitrack recorders, offering 16 inputs and outputs each. Using two cards, the system supports up to 32 channels of input and output, featuring built-in sampling rate converters for diverse format compatibility.

In stock
Request Quote
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: IF-AE16 Categories: , Brand:

Description

IF-AE16 Audio Interface Card for DA-6400/DA-6400dp

The IF-AE16 is a highly efficient AES/EBU input/output interface card designed specifically for the DA-6400 and DA-6400dp digital multitrack recorders. This card provides 16 channels of input and output at a wide range of sampling rates and bit depths, ensuring superior audio quality and flexibility for a variety of professional audio applications.

Key Features

  • Compatible with DA-6400/DA-6400dp digital multitrack recorders
  • 16 channels of 44.1/48/88.2/96 kHz, 16-bit/24-bit audio input and output
  • Expandable to 32 channels using two IF-AE16 cards
  • Built-in sampling rate converter for diverse input frequencies (32-192 kHz)
  • Dual 25-pin D-sub connectors for organized channel management
  • S/PDIF input data format support
  • Adherence to AES59-2012 pin assignments standard

Specifications

Specification Details
Format 44.1k/48k/88.2k/96k Hz, 24-bit
Number of Channels 16
Digital Audio I/O AES/EBU 1-8 I/O, AES/EBU 9-16 I/O

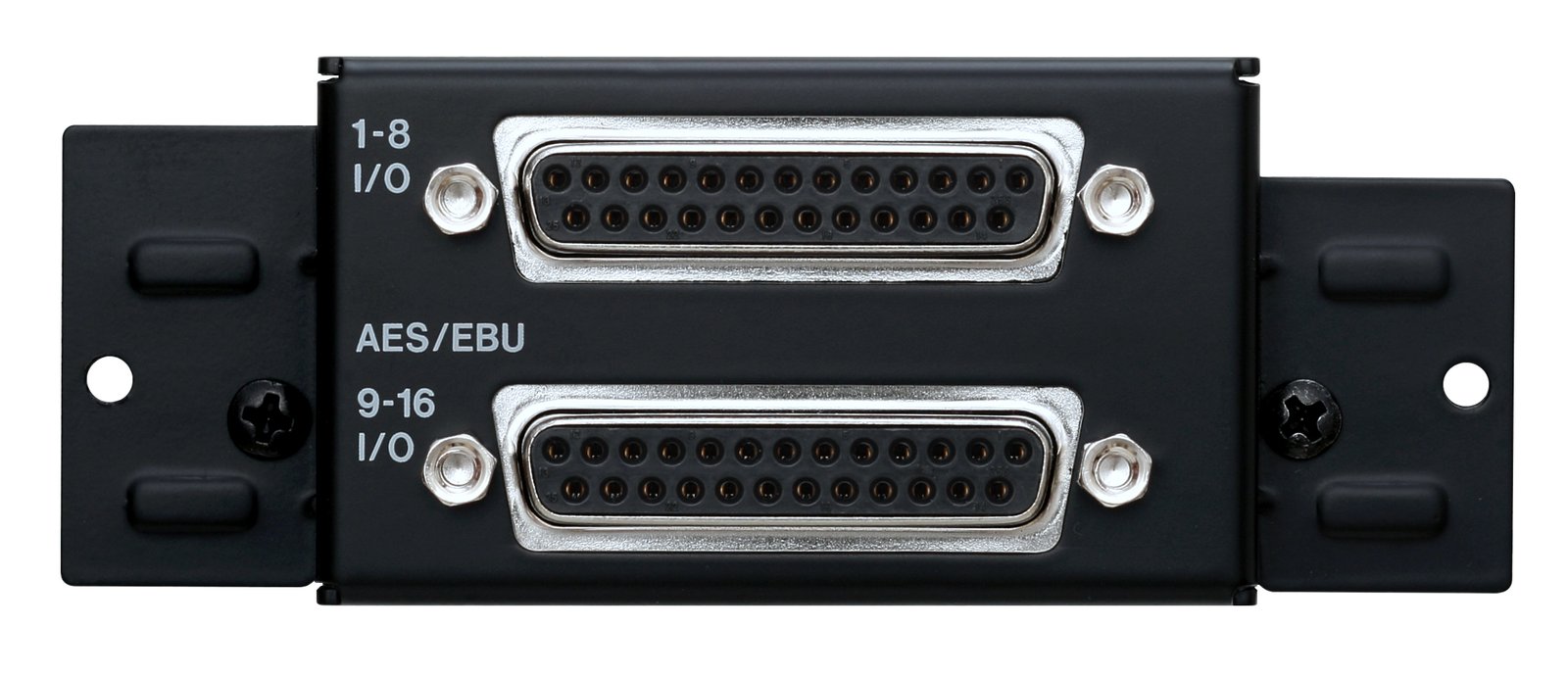

Connectors 2×8-channel 25-pin D-sub (female)
Locking Screws No.4-40 UNC (inch type)
Pin Assignments TASCAM standard
Input Frequencies 44.1k/48k/88.2k/96k Hz (SRC OFF), 32k to 192k Hz (SRC ON)
Input Format AES3-2003/IEC60958-4 (AES/EBU), IEC60958-3 (S/PDIF)
Output Format AES3-2003/IEC60958-4 (AES/EBU)
Dimensions 107(W)×40(H)×161.5(D) mm
Weight 222 g
