Description

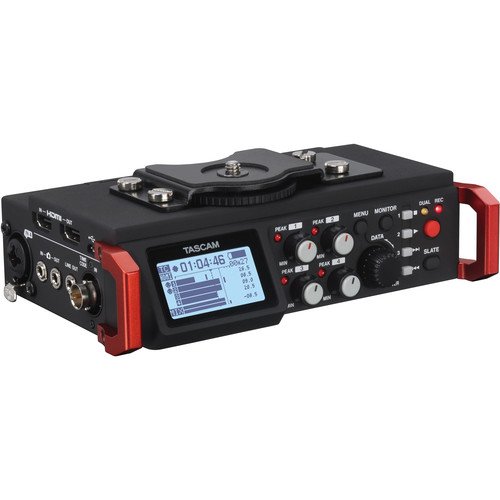

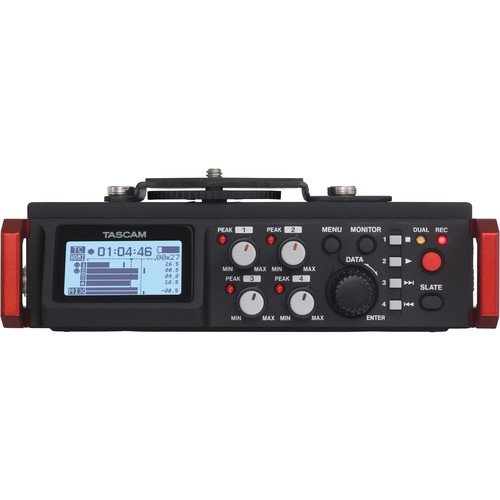

The Tascam DR-701D is a top-tier multitrack field recorder designed to enhance your filmmaking, television, audio-for-VR, and web broadcast projects. As the ultimate companion for DSLR users, this innovative device helps capture pristine, high-resolution audio directly from external sources and onboard omnidirectional microphones. Its versatile mounting options, HDMI input/output, timecode support, and direct camera synchronization make it a seamless addition to any video production setup.
The DR-701D offers the ability to record up to four tracks alongside a stereo mix at a 96 kHz sampling rate, ensuring your audio is always of the highest quality. Additionally, you can route audio to and from your camera, while monitoring comfortably through headphones.
Key Features
- Specifically designed for filmmakers, TV, VR, and web broadcast projects

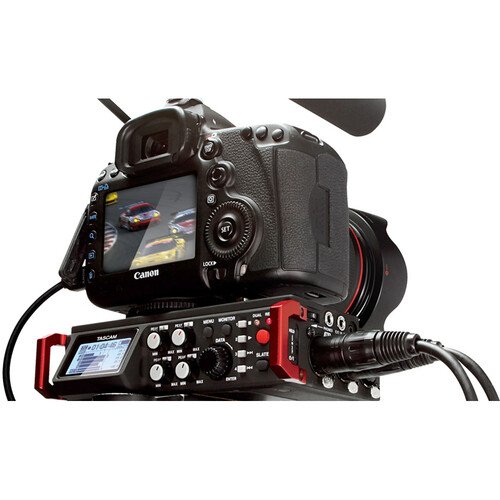

- Optimized capabilities for DSLR users

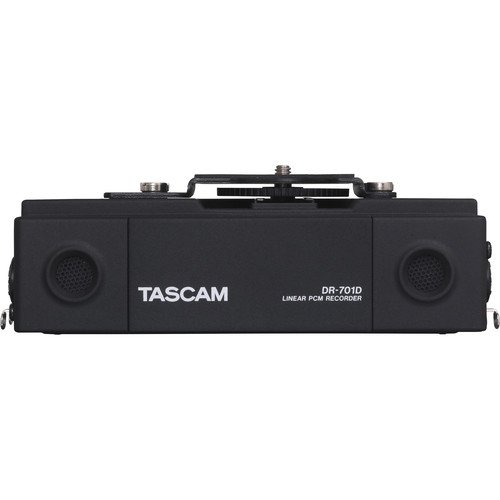

- Equipped with dual onboard omnidirectional microphones

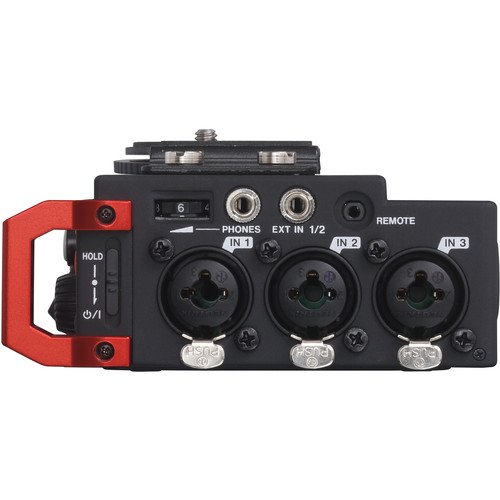

- Four XLR-1/4″ inputs with phantom power capability
- 3.5mm mic/line input with plug-in power

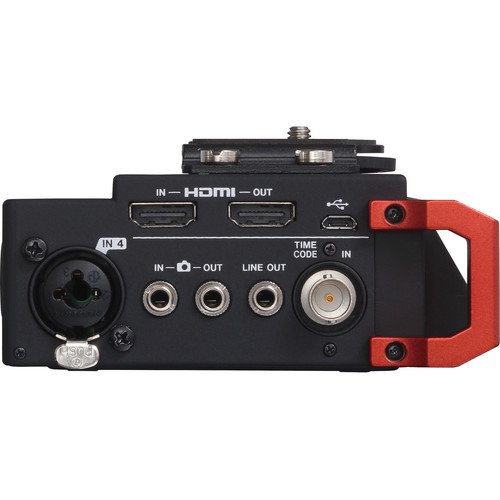

- HDMI I/O, camera, line, and headphone outputs for seamless integration
- Multiple powering options (battery, AC, USB)
- Supports SDXC cards up to 128GB

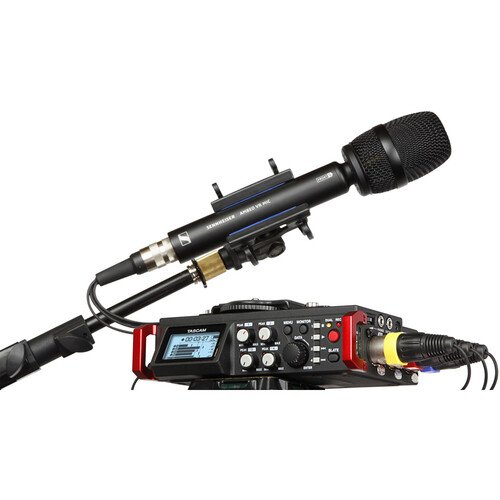

- Advanced ambisonics mode with stereo monitoring
Specifications
Portable Recorder
| Number of Tracks |
6 (4 Inputs + Stereo Mix) |
| Maximum Sampling Rate |
192 kHz / 24-Bit |
| Microphone |
Built-In Omnidirectional Electret Condenser Stereo Pair, A/B Configuration |
| Display |
Monochrome LCD (Backlit) |
| Memory Card Support |
SD (64 MB to 2 GB), SDHC (4 GB to 32 GB), SDXC (48 GB to 128 GB) |
Recording
| Audio File Formats |
BWF, WAV |
| Sample Rates |
44.1 / 48 / 96 / 192 kHz |
| Bit Depth |
16 / 24-Bit |
| Timecode Support |
Yes |
| Clock Accuracy |
2 ppm |
Connectivity
| Analog I/O |
4 x Combo XLR-1/4″ TRS Female Balanced Line/Mic Input, 1 x 3.5 mm TRS Female Unbalanced Mic Input, 1 x 3.5 mm TRS Female Unbalanced Camera Input, and more |
| Phantom Power |
+24 / 48 V ± 4 V (Selectable on Individual Inputs) |
| Digital I/O |
1 x HDMI Type-A Input, 1 x HDMI Type-A Cascade/Timecode/Video Output |
| Host Connection |
1 x Micro-USB (USB 2.0) |
Performance
| Frequency Response |
Line Inputs, Line Outputs:
20 Hz to 20 kHz +0.5/-1 dB (at 48 kHz, JEITA) |
| SNR |
≥ 100 dB |
| THD |
≤ 0.007% |
Power
| Power Options |
Batteries, USB Bus Power, AC/DC Power Adapter |
| Battery Type |
4 x AA (Not Included) |
Physical Properties
| Mounting Options |
1/4″-20 Female, Shoe Mount |
| Dimensions |
6.7 x 2.3 x 4.5″ / 169 x 57.3 x 113.5 mm (with Adapter Attached) |
| Weight |
1.2 lb / 561 g (without Batteries) |
