Description

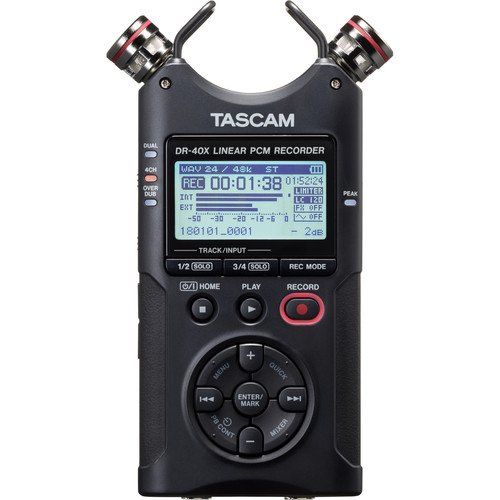

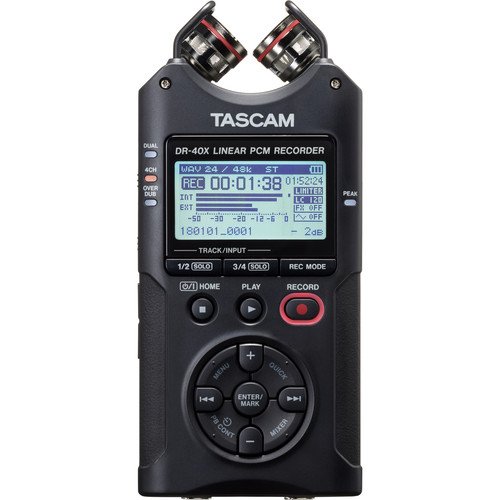

Introducing the Tascam DR-40X, a versatile portable handheld recorder designed for professional-grade audio recording. Whether you’re capturing a live concert, conducting an interview, or making a podcast, this recorder meets all your needs with its high-resolution four-track recording capabilities and built-in unidirectional condenser microphones that can be adjusted for various stereo configurations.
Perfect for both novice and professional users, the Tascam DR-40X offers a range of features that enhance your recording experience. Utilize its dual XLR-1/4″ inputs with phantom power to connect external mics or instruments or record independently using the built-in mics. Additional recording modes such as stereo safety track and auto-record functions ensure you never miss a moment.
Key Features
- Designed for podcasting, music recording, and sound effects.
- Unidirectional adjustable condenser microphones for varied stereo imaging.

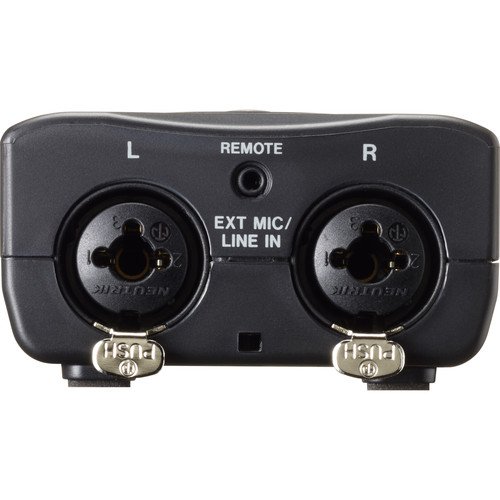

- Dual XLR-1/4″ inputs with selectable phantom power.
- Supports WAV recording up to 96 kHz.
- 3.5 mm headphone/line output for real-time monitoring.
- Auto-level, limiter, and low-cut filter options.
- Internal battery lasting up to 18 hours per charge.
- Supports up to 128GB SD cards.
Specifications
| Specification |
Details |
| Number of Tracks |
4 |
| Maximum Sampling Rate |
96 kHz / 24-Bit |
| Microphone |
Built-In Cardioid Condenser Stereo Pair, A/B or X/Y Configuration |
| Built-In Speaker |
Yes, 0.3 W Mono |
| Display |
Monochrome LCD (Backlit) |
| Memory Card Support |
SD (64 MB to 2 GB), SDHC (4 GB to 32 GB), SDXC (48 GB to 128 GB) |
| Internal Storage |
None |
| Specification |
Details |
| Audio File Formats |
BWF, MP3, WAV |
| Sample Rates |
WAV: 44.1/48/96 kHz, MP3: 44.1/48 kHz |
| Bit Depth |
16/24-Bit |
| Bit Rates |
32 to 320 kb/s (Record), 32 to 320 kb/s + VBR (Playback) |
| Signal Processing & FX |
Auto Gain, EQ, Limiter, Low-Cut Filter, Reverb |
| Timecode Support |
No |
| Recording Time |
Varies by format and bit rate |
| Specification |
Details |
| Analog I/O |
2 x Combo XLR-1/4″ TRS Female Balanced Line/Mic Input (Lockable), 1 x 1/8″ / 3.5 mm TRS Female Unbalanced Headphone/Line Output |
| Digital I/O |
None |
| Phantom Power |
+24/48 V, Selectable On/Off |
| Phantom Power Current |
3 mA per Channel |
| Plug-In Power |
No |
| Host Connection |
1 x Micro-USB (USB 2.0) |
| Specification |
Details |
| Frequency Response |
20 Hz to 40 kHz +1/-3 dB (varies by sampling rate) |
| Max Input Level |
Mic Inputs: -3 dBV; Line Inputs: +20 dBu |
| Max Output Level |
+2 dBV |
| Headphone Output Power |
20 mW per Channel into 32 Ohms |
| Impedance |
Mic Inputs: 2.2 kΩ, Line Inputs: 10 kΩ, Line Outputs: 12 Ω |
| SNR |
>92 dB |
| THD |
≤0.05% |
| Microphone Max SPL |
125 dB SPL |
| Specification |
Details |
| Power Options |
Battery, USB Bus Power, AC/DC Power Adapter |
| Battery Type |
3 x AA (Included) |
| Approximate Battery Life |
Up to 18 hours (varies by settings) |
| AC/DC Power Adapter |
Not Included |
| AC Input Power |
100 to 240 VAC, 50/60 Hz |
| Specification |
Details |
| Mounting Options |
1/4″-20 Female |
| Operating Temperature |
32 to 104°F / 0 to 40°C |
| Dimensions |
2.8 x 6.1 x 1.4″ (mics closed), 3.5 x 6.1 x 1.4″ (mics open) |
| Weight |
7.5 oz (without batteries), 9.9 oz (with batteries) |
