Description

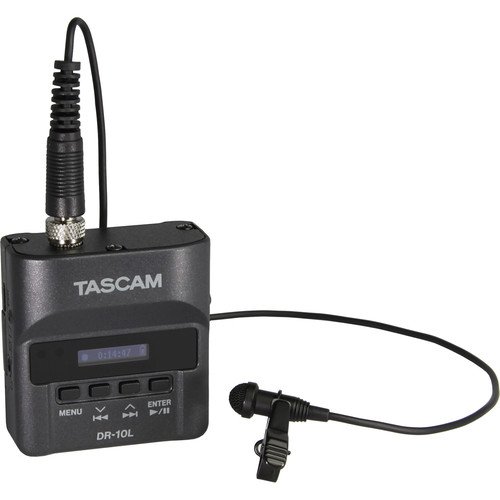

Tascam DR-10L Micro Portable Audio Recorder with Lavalier Microphone
The Tascam DR-10L is a compact, professional-grade audio recorder equipped with a lavalier microphone, perfect for capturing high-quality audio in interviews, weddings, vlogs, and lectures. Its small size, just over 2 x 2 inches and only 1 inch deep, ensures it remains discreet while delivering broadcast-quality recording.
Features
- Designed for videography, interviews, weddings, vlogs
- Omnidirectional lavalier microphone included
- Limiter and auto-level functionality to prevent distortion
- Records in broadcast WAV format with safety track
- Locking 3.5mm mic input with plug-in power support
- Adjustable volume for 3.5mm headphone output
- Up to 10 hours of operation on a single AAA battery
- Supports microSDHC cards up to 32GB
- Compatible with most Sennheiser lav mics
- Belt-mount and pocket-friendly housing design
Specifications
Portable Recorder
Number of Tracks |
1 |
Maximum Sampling Rate |
48 kHz / 24-Bit |
Microphone |
Interchangeable Omnidirectional Condenser Lavalier |
Built-In Speaker |
No |
Display |
OLED |
Memory Card Support |
microSD (64 MB to 2 GB), microSDHC (4 to 32 GB) |
Internal Storage |
None |
Recording
Audio File Formats |
BWF, MP3, WAV |
Sample Rates |
WAV: 44.1 / 48 kHz |
Bit Depth |
16 / 24-Bit |
Bit Rates |
128 to 192 kb/s (Record), 32 to 320 kb/s (Playback) |
Signal Processing & FX |
Auto Gain, Limiter, Low-Cut Filter |
Timecode Support |
No |
Recording Time |
WAV 48 kHz/24-Bit: 2 Hrs 4 Mins per GB (Mono) |
Connectivity
Analog I/O |
1 x 1/8″ / 3.5 mm TRS Female Unbalanced Mic Input (Lockable), 1 x 1/8″ / 3.5 mm TRS Female Unbalanced Headphone Output |
Digital I/O |
None |
Phantom Power |
None |
Plug-In Power |
Yes, 2 V |
Host Connection |
1 x Micro-USB (USB 2.0) |
Performance
Frequency Response |
20 Hz to 22 kHz +1/-2 dB |
Gain/Trim Range |
Mic Inputs: +14 to +38 dB |
Max Input Level |
Inputs: -15 dBu (Low Gain), -55 dBu (High Gain) |
Impedance |
Mic Inputs: 33 Kilohms (Plug-In Power Off), 2 Kilohms (Plug-In Power On) |
SNR |
Headphone Outputs: ≥88 dB |
Microphone Sensitivity |
-42 dBV/Pa |
Microphone Max SPL |
115 dB SPL |
Power
Power Options |
Batteries or USB Bus Power |
Battery Type |
1 x AAA (Not Included) |
Approximate Battery Life |
WAV 48 kHz/24-Bit: 10 Hours (Alkaline, Mono, without Headphones), 9.5 Hours (Alkaline, Mono, Plug-In Power On, without Headphones), 8 Hours (NiMH, Mono, without Headphones), 7.5 Hours (NiMH, Mono, Plug-In Power On, without Headphones), 15.5 Hours (Lithium, Mono, without Headphones), 14.5 Hours (Lithium, Mono, Plug-In Power On, without Headphones) |
Physical
Operating Temperature |
32 to 104°F / 0 to 40°C |
Dimensions |
2 x 2.2 x 1″ / 52 x 55.6 x 24.4 mm |
Weight |
2.2 oz / 63 g (with Batteries), 1.8 oz / 51 g (without Batteries) |
Packaging Info
Package Weight |
0.45 lb |
Box Dimensions (LxWxH) |
5.8 x 4.6 x 2.2″ |
