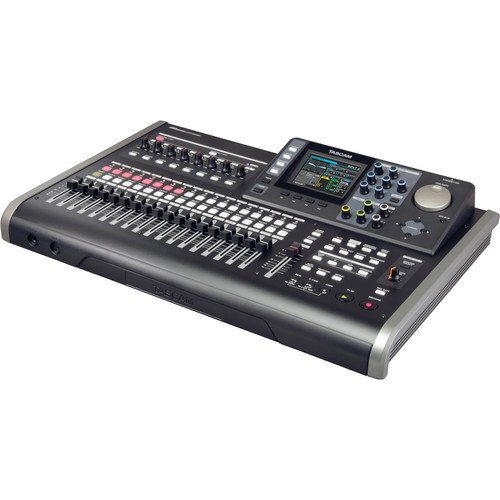

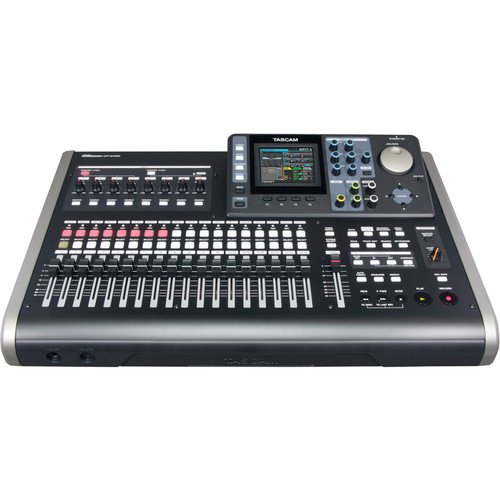

Tascam DP-24SD 24-Track Digital Portastudio

The Tascam DP-24SD 24-Track Digital Portastudio allows for independent and comprehensive recording without the need for external computer support. With capabilities to record up to 8 tracks simultaneously and playback of 24 tracks, this versatile unit is ideal for extensive music projects. Featuring 8 combo XLR/TRS mic preamplifier inputs, one of which supports Hi-Z sources, this Portastudio is perfect for both vocal and instrumental recordings.

Main Features

• Record up to 8 tracks simultaneously
• Supports SD/SDHC cards for storage
• Equipped with 19 faders including the master fader
• 24-track playback capability
• 24-bit/48 kHz audio resolution
• 8 combo XLR/TRS mic inputs
• Built-in mixing and mastering effects
• USB connectivity for file sharing

Specifications

Form Factor	Rackmount
Number of Tracks	24
Maximum Simultaneous Tracks	8 recording
Maximum Sampling Rate	48 kHz / 24-bit

Connectivity

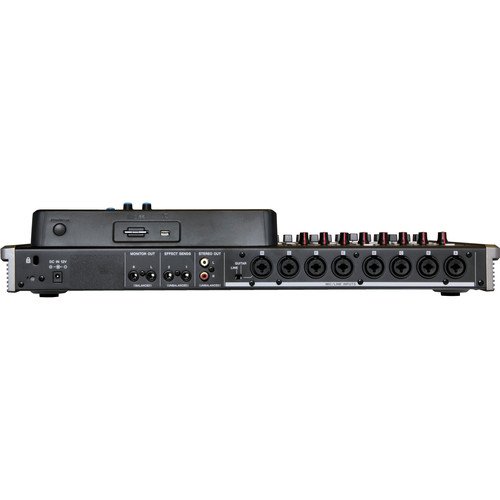

Analog Audio I/O	1 x stereo RCA coaxial unbalanced output 2 x 1/4″ TRS balanced monitor output 2 x 1/4″ TRS headphone output 2 x 1/4″ TS unbalanced FX send 7 x combo XLR-1/4″ TRS balanced mic/line input 1 x combo XLR-1/4″ TRS balanced/unbalanced line/Hi-Z input
USB (Non-Host)	1 x mini-USB (USB 2.0, external storage)
Other I/O	1 x 2.5 mm TRS remote input

Performance

Frequency Response	20 Hz to 20 kHz ±1 dB
Maximum Input Level	XLR Inputs: +2 dBu 1/4″ Inputs: +20 dBu
Maximum Output Level	FX Send: +6 dBV Monitor Outputs: +14 dBV RCA Outputs: +6 dBV
Headphone Output Power	70 mW per channel into 32 Ohms (Max, 0.1% THD)
Impedance	1/4″ FX Send: 200 Ohms Monitor Outputs: 200 Ohms (Balanced) RCA Outputs: 200 Ohms XLR Inputs: 2.4 Kilohms 1/4″ Inputs: ≥ 22 Kilohms Hi-Z Inputs: 1 Megohm
SNR	≥ 90 dB
THD	≤ 0.01%

Audio Storage & Playback

Supported Media	SD Card, SDHC
Memory Card Slot	1 x SDHC
Supported Media Capacity	SD: 512 MB Minimum to 2 GB Maximum SDHC: 4 GB Minimum to 32 GB Maximum
File System Support	SD: FAT16 SDHC: FAT32

Compatibility

OS Compatibility	Windows XP, Windows Vista, Windows 7, Windows 8, macOS 10.6 or Later
Processor Requirement	PC: 300 MHz Intel Pentium or Better Mac: 266 MHz PowerPC G3 or Better
RAM Requirements	PC: 128 MB Mac: 64 MB
Required Hardware	Available USB 2.0 Port

Power

Power Requirements	AC/DC power adapter (included)
Power Consumption	12 W

Physical

Operating Temperature	41 to 95°F / 5 to 35°C
Dimensions	20.2 x 4.1 x 13.4″ / 514 x 104 x 340 mm
Weight	13.7 lb / 6.2 kg

Packaging

Package Weight	16 lb
Box Dimensions (LxWxH)	23.7 x 17.5 x 7.2″
