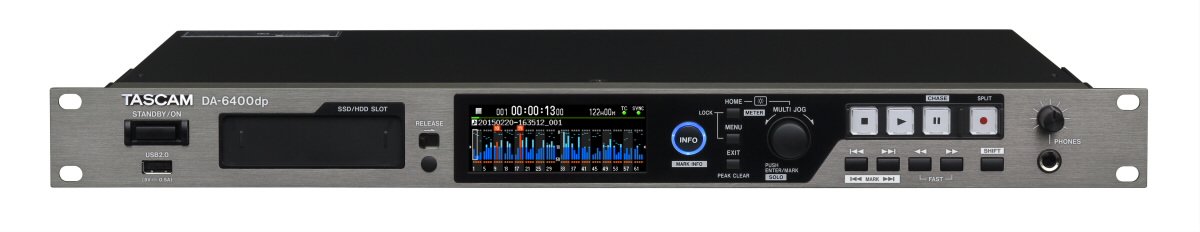

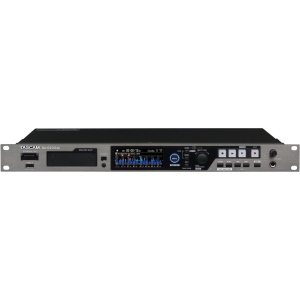

Tascam DA-6400DP 64-Channel Digital Multitrack Recorder

The Tascam DA-6400DP 64-Track Universal Backup Audio Recorder is designed for professional live and event recording, featuring an internal SSD drive caddy and redundant power supply. With versatile I/O options including MADI and DANTE, it ensures reliable backup for critical DAW sessions.
- Estimated Delivery: 2–3 business days across the UAE
- Free Shipping & Returns : On all orders over AED 1000
Description
Tascam DA-6400DP: 64-Track Backup Audio Recorder
The Tascam DA-6400DP is a high-performance, 64-track universal backup audio recorder designed for professional environments where reliable audio recording is critical. With support for multiple professional input/output options and a redundant power supply, the DA-6400DP is perfect for live recording, event capture, and essential DAW session backup.
Overview

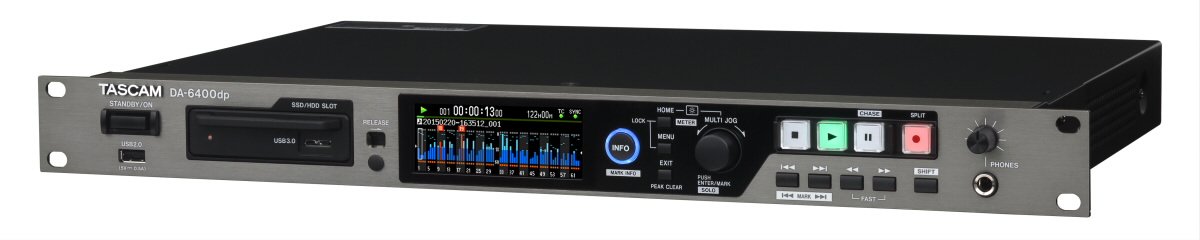

This innovative audio recorder features an internal SSD drive caddy, ensuring robust and stable performance even in demanding conditions. The included AK-CC25 caddy equipped with a high-performance 240GB TASCAM solid-state drive is hot-swappable for quick data transfer, making it highly user-friendly for clients and professionals alike.
The DA-6400DP supports up to 64 tracks at 48kHz/24-bit resolution or up to 32 tracks at 96kHz/24-bit, offering flexibility and high-quality sound for various recording needs. Advanced connectivity features include SMPTE timecode, RS-422, parallel remote control, and Ethernet, ensuring seamless integration into any professional audio setup.
Key Features
- 64 channels at 48kHz/24-bit or 32 channels at 96kHz/24-bit recording/playback
- Hot-swappable TASCAM SSD provides excellent vibration resistance and maintenance-free operation
- Compatible with MADI and Dante for various professional audio setups
- Supports BWF file format for precise time information
- Color LCD screen (320×120 pixels) for clear, easy operation
- Redundant power supply ensures uninterrupted operation
- iPad and computer applications for intuitive remote control

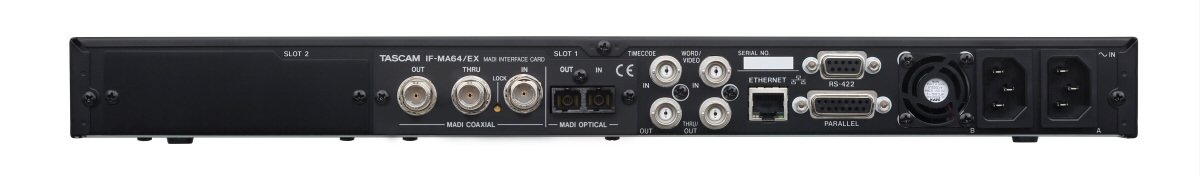

Professional Interfaces
- IF-MA64/EX 64-channel redundant MADI interface (optical/coaxial)
- IF-DA64 64-channel Dante interface
- IF-AE16 16-channel AES/EBU interface
- Word clock, SMPTE timecode, and video reference inputs and outputs
Specifications
Specification | Details |
---|---|
Recording Media | SSD |
File System | FAT32 |
File Formats | BWF (.wav) |
Number of Channels | 64 (1xFs), 32 (2xFs) |
Sampling Frequencies | 44.1k/48k/88.2k/96kHz |
Quantization Bit Rate | 16bit/24bit |
Clock Reference | Internal, Word In, Video In |
Timecode Frame | 23.976 / 24 / 25 / 29.97DF / 29.97NDF / 30DF / 30NDF |
Time Code In Connector | BNC |
Signal Voltage Amplitude | 0.5V to 5Vp-p |
Input Impedance | 10kΩ |
Format | SMPTE 12M-1999 Compliant |
Word/Video In Connector | BNC |
Input Voltage Amplitude (WORD) | 0.5V to 5Vp-p TTL Equivalent |
Signal Voltage Amplitude (VIDEO) | 1Vp-p |
Input Impedance | 75Ω +/-10% |
Input Frequency (WORD) | 48kHz |
Signal Frequency (VIDEO) | 23.976/24/25/29.97/30 Frame (NTSC/PAL Black Burst, HDTV Tri-Level) |
Word/Video Thru/Out Connector | BNC |
Output Voltage Amplitude | 5V TTL Equivalent |
Output Frequency (WORD) | 48kHz |
Ethernet Connector | RJ-45 |
Protocol | 100BASE-TX, 1000BASE-T |
RS-422 Connector | D-sub 9 pin (female, inch-standard) |
Parallel Connector | D-sub 15 pin (female, inch-standard) |
USB Connector | USB2.0 A-type |
USB Protocol | USB 2.0 HIGH SPEED(480Mbps) |
Phones Connector | 6.3mm (1/4′) Standard Stereo Jack |
Maximum Output Level | 45mW+45mW or higher |
Power | AC100V-240V, 50/60Hz (DA-6400dp with dual power supply inlets) |
Power Consumption | 21W (using IF-MA64/EX) |
Dimensions | 482.6(W)×44.7(H)×304.8(D)mm |
Weight | DA-6400dp 4.0kg |
Operating Temperature | 0 to +40° C |
