Tascam CG-2000 Video Sync and Master Clock Generator

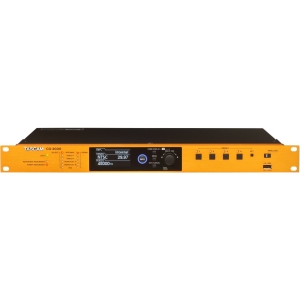

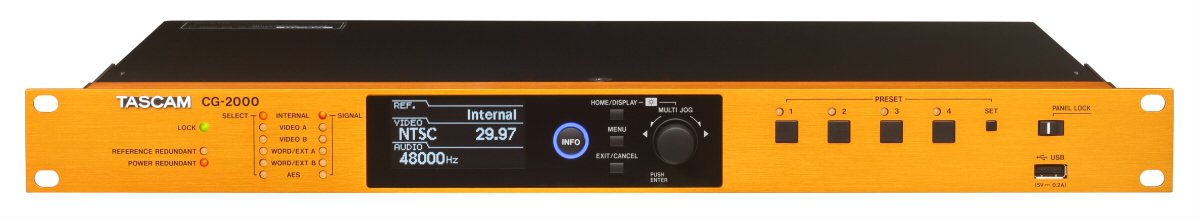

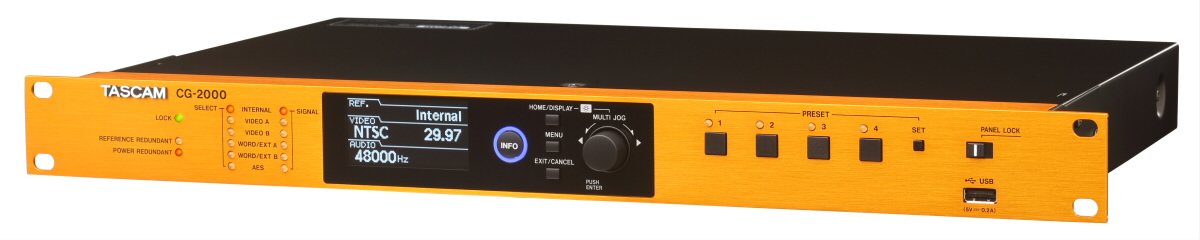

Tascam CG-2000

The CG-2000 from Tascam is specifically designed for the sophisticated needs of broadcasting and post-production environments. Utilizing an OCXO (oven-controlled crystal oscillator), it maintains high precision unaffected by environmental temperature variations. The CG-2000 delivers synchronization with exceptional accuracy, featuring a clock frequency precision of 0.01 ppm and a frequency stability of +/-0.005 ppm per day.

Equipped with an external input connector that supports 10MHz signals, the CG-2000 can interface with rubidium or GPS clocks for enhanced precision. Its innovative design, featuring a high-performance video clock generator and a PLL circuit with a discrete filter, remarkably reduces external clock jitter, ensuring a stable output to the video/word outputs.

Features

• Dual power supply circuits for redundancy
• OCXO for consistent performance under varying temperatures
• Support for 10 MHz external input for advanced precision setups
• Glitch-free relocking circuit
• 12 Wordclock outputs for large-scale synchronization
• Multiple video signal format support, including NTSC, PAL, and HD Tri-level
• Self-calibration using external oscillators (requires separate PPS-output 10 MHz oscillator with built-in GPS antenna)
• 0.1% pull-up/down for 24F and 29.97F; 4% pull-up/down for 24F and 25F
• 128 x 64-pixel organic EL display for clear visibility
• Firmware updates via USB

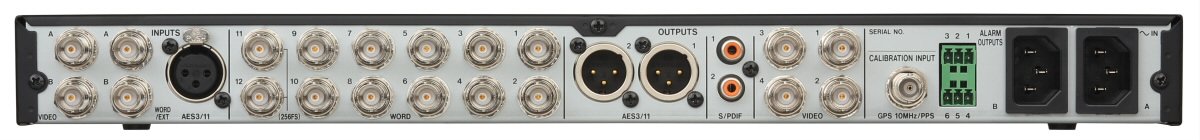

• Durable BNC connectors by Amphenol
• 1U rackmount, RoHS-compliant design
