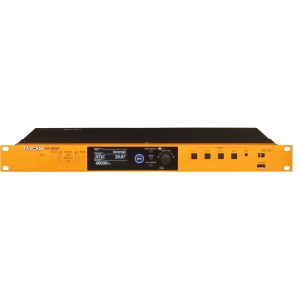

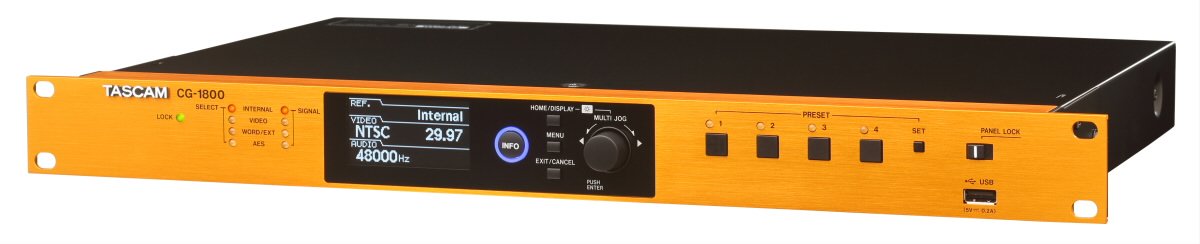

Tascam CG-1800 Video Sync and Master Clock Generator

Tascam CG-1800 Video/Audio Synchronization System

The Tascam CG-1800 is precisely engineered for small to large-scale video and audio synchronization systems. Utilizing an OCXO (oven-controlled crystal oscillator), the CG-1800 achieves remarkable precision and is immune to environmental temperature variations. The unit boasts a clock frequency precision of 0.01 ppm and delivers stable synchronization with a frequency stability of +/-0.005 ppm per day.

An innovative circuit design, incorporating a high-performance video clock generator with FPGA and a PLL circuit, effectively reduces external clock jitter. This ensures a stable clock signal for the video and word outputs, thereby enhancing overall system stability.

Features

• High-precision internal OCXO unaffected by environmental temperature.
• External input connector supports 10 MHz for enhanced precision.
• Glitch-free relocking circuit preventing noise and issues during signal dropouts.

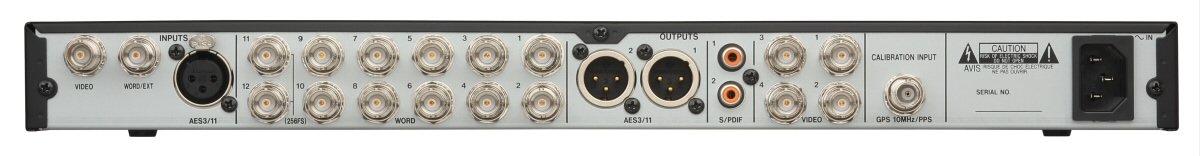

• Twelve Wordclock outputs for expansive audio synchronization systems.
• Compatibility with numerous video signal formats including NTSC, PAL, and HD Tri-level.
• Support for AES3 and AES11 external master clock input sources.
• Analyzer function for measuring device termination.
• Adjustable Wordclock output levels for optimal device performance.
• Self-calibration capability using an external oscillator (requires specific equipment).
• Wordclock performance up to 192 kHz.
• Support for various pull-up/down rates for different frame standards.
• Memory for up to four system settings with USB import/export capability.
• Sturdy Amphenol nut-coupling BNC connectors.
• Individual circuit boards for each connector to prevent twist-induced failures.
• Panel-lock switch for preventing accidental operation changes.

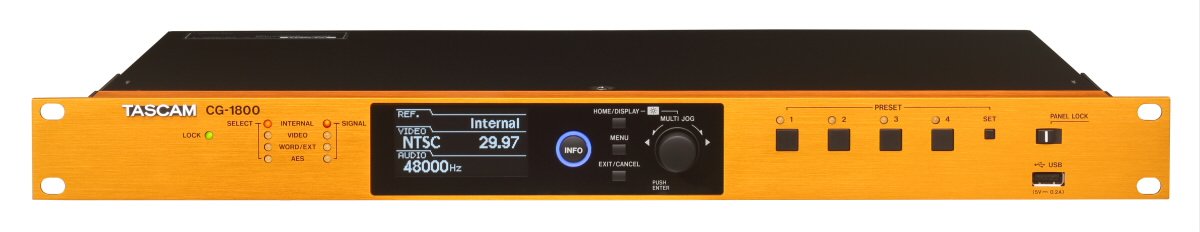

• 128 x 64-pixel OLED display with a wide viewing angle.
• Firmware updates via USB port.
• 1U rackmount design.
• RoHS-compliant.
