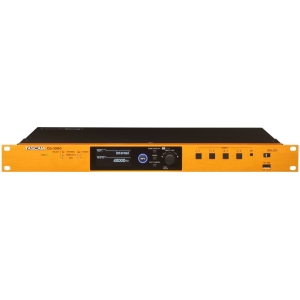

Tascam CG-1000 Video Sync Master Clock Generator

Tascam

AED 5947.20 inc VAT.

The Tascam CG-1000 is designed for recording studios, live sound, and professional musicians, featuring an OCXO for high precision unaffected by environmental temperatures, and provides 0.01 ppm clock frequency precision with a +/-0.005 ppm frequency stability per day.

In stock
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: CG-1000 Categories: , Brand:

Description

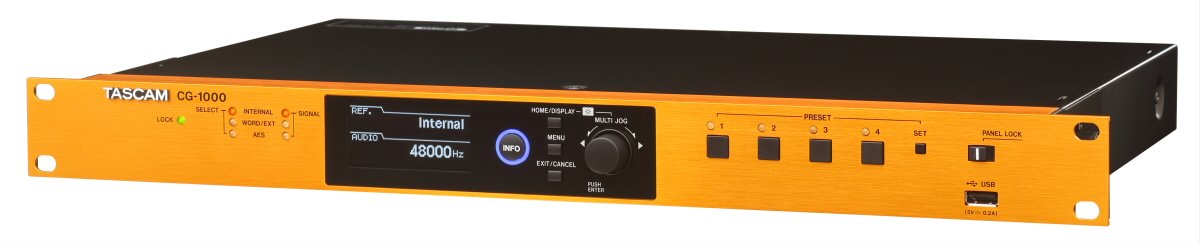

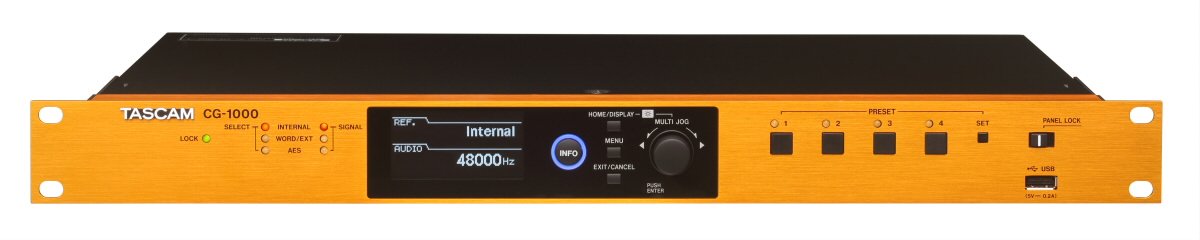

Tascam CG-1000 Master Clock Generator

The CG-1000 from Tascam is specifically designed for recording studios, live sound applications, and professional musicians. It utilizes an OCXO (oven-controlled crystal oscillator) for high precision, unaffected by environmental temperature. With a clock frequency precision of 0.01 ppm, this unit delivers high-precision synchronization with a frequency stability of ±0.005 ppm or less per day.

In addition to twelve Wordclock outputs, the digital outputs include two AES3/AES11 and two S/PDIF outputs, making this unit useful for large-scale audio synchronization systems and a wide variety of other applications. Of the twelve Wordclock outputs, two support x2 Fs, x4 Fs, and 256 Fs output, enabling them to be used in systems with Pro Tools and other DAW software.

Features

  • High-precision OCXO internal clock for stable operation
  • Supports external 10 MHz input for higher precision systems
  • Jitter management circuit for stable clock distribution
  • Glitch-free relocking circuit preventing noise during dropouts
  • Comprehensive output options including twelve Wordclock outputs
  • Analyzer function to measure input frequencies
  • Adjustable Wordclock output levels for optimum performance
  • Self-calibration function with external oscillator
  • Wordclock performance up to 192 kHz
  • Settings can be saved and recalled via USB
  • Durable and reliable connectors
  • Panel-lock switch prevents accidental operation changes
  • 128 x 64-pixel wide-angle OLED display
  • Firmware updates through the USB port
  • 1U rackmount design
  • RoHS compliant

Specifications

Clock Type Master Clock & Distribution
Oscillator OCXO (Oven-Controlled Crystal Oscillator)
Clock Frequency and Supported Sample Rates AES3/AES11 Input: 32/44.1/48/88.2/96/176.4/192 kHz
Word Clock Input: 32/44.1/48/88.2/96/176.4/192 kHz
Word Clock Output: 32/44.1/48/88.2/96/176.4/192 kHz
Atomic Clock Input: 10.0 MHz
GPS Clock Input: 10.0 MHz

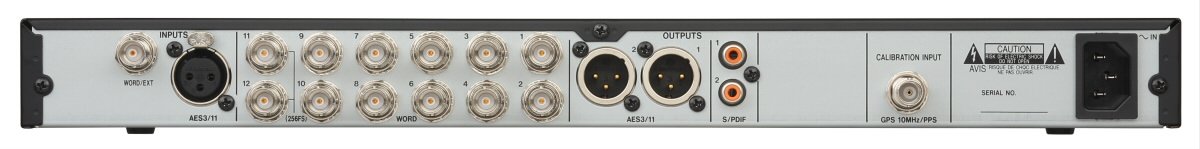

Connectivity

Inputs 1 x XLR 3-Pin AES3/AES11, 1 x BNC Word Clock
Outputs 12 x BNC Word Clock, 2 x RCA Coaxial S/PDIF, 2 x XLR 3-Pin AES3/AES11
USB 1 x USB Type-A (USB 2.0, External Storage, Update)

Performance

Clock Accuracy Internal: ±0.01 ppm, AES3/AES11: ±50 ppm, Word Clock: ±50 ppm
Clock/Oscillator Stability ±0.005 ppm per day
Input Level AES3/AES11: 0.2 to 10 Vpp, Word Clock: 0.5 to 5 Vpp
Output Level AES3/AES11: 2.5 Vpp, S/PDIF: 0.5 Vpp, Word Clock: 1 to 3.5 Vpp
Impedance AES3/AES11 Input: 110 Ohms, AES3/AES11 Output: 110 Ohms, S/PDIF: 75 Ohms, Word Clock Input: 75/50 Ohms (Selectable), Word Clock Output: 75 Ohms

Power

AC Input Power 100 to 240 VAC, 50/60 Hz
Power Consumption 10 W

Physical

Rackmount Size 1 RU
Operating Temperature 32 to 104°F / 0 to 40°C
Dimensions 19 x 12.2 x 1.75″ / 483 x 310 x 45 mm
Weight 6.8 lb / 3.1 kg

Packaging Info

Package Weight 9.35 lb
Box Dimensions (LxWxH) 21.6 x 16.3 x 5.1″
