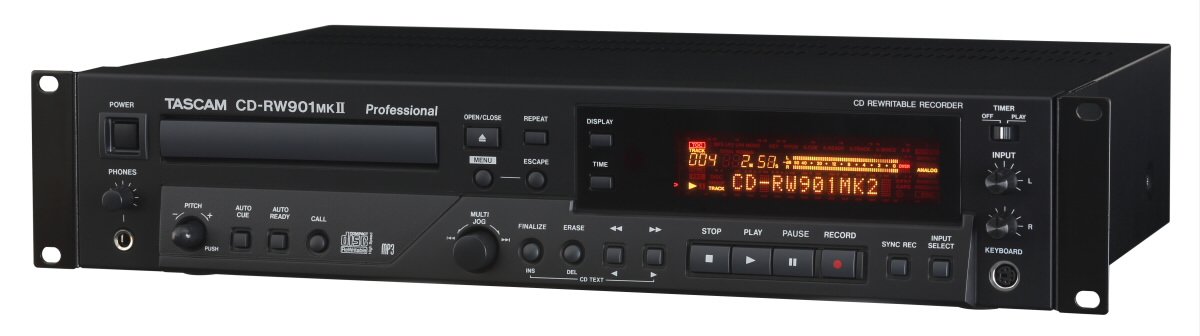

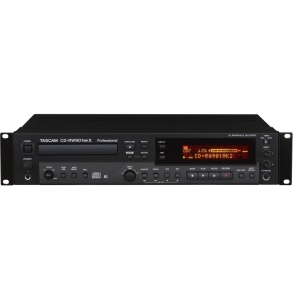

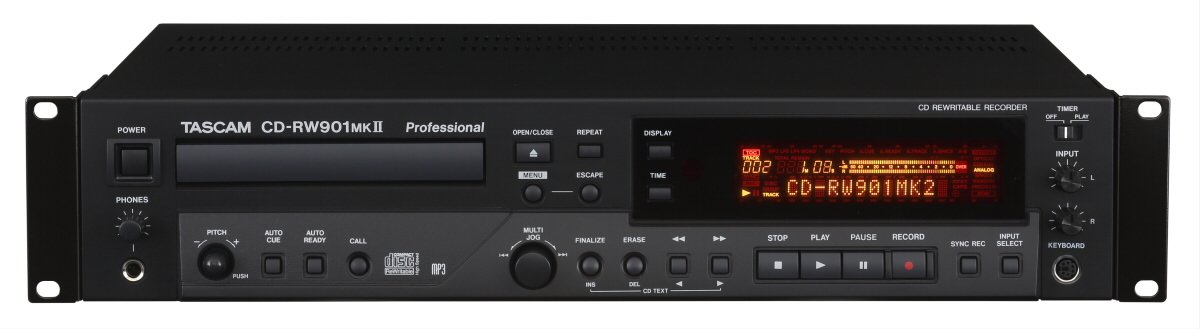

Tascam CD-RW901MKII – Professional CD Recorder

The Tascam CD-RW901MKII is designed for professional environments where high-quality CD recording is essential. It employs the AKM AK4528VM audio codec for exceptional sound clarity, featuring 24-bit AD/DA conversion. This model supports various media types and offers a range of advanced recording functionalities, including gapless recording and precise level control.

Product Highlights

• 24-bit AD/DA conversion using AKM AK4528VM codec
• Supports CD-R, CD-R-DA, CD-RW, and CD-RW-DA media
• Fade-in/Fade-out recording and playback functions
• Analog and digital input leveling for accurate level control
• Proprietary TEAC tray drive for reliable performance
• Automatic track division and sync recording functions
• XLR balanced and unbalanced inputs/outputs

Key Specifications

Specification	Details
Frequency Response	20 Hz to 20 kHz ±0.8 dB (Playback), 20 Hz to 20 kHz ±1 dB (Recording)
Dynamic Range	>90 dBA (Recording), >95 dBA (Playback)
Max Input Level	-10 dBV (Unbalanced), -4 dBu (Balanced)
Max Output Level	+6 dBV (Unbalanced), +20 dBu (Balanced)
I/O Impedance	Input: 14 kOhms (Balanced), 22 kOhms (Unbalanced), Output: 200 Ohms (Unbalanced), 75 Ohms (Balanced)
Signal to Noise Ratio	95 dB (Playback), 90 dB (Recording)
Maximum Sampling Rate	44.1 kHz / 16-Bit
Total Harmonic Distortion (THD)	0.006% (Playback), 0.008% (Recording)
Wow & Flutter	<0.001%
Power Consumption	17 W
AC Input Power	120 VAC, 60 Hz
Dimensions	19.0 x 3.7 x 12.2″ / 482.6 x 94.0 x 309.0 mm
Weight	9.9 lb / 4.5 kg

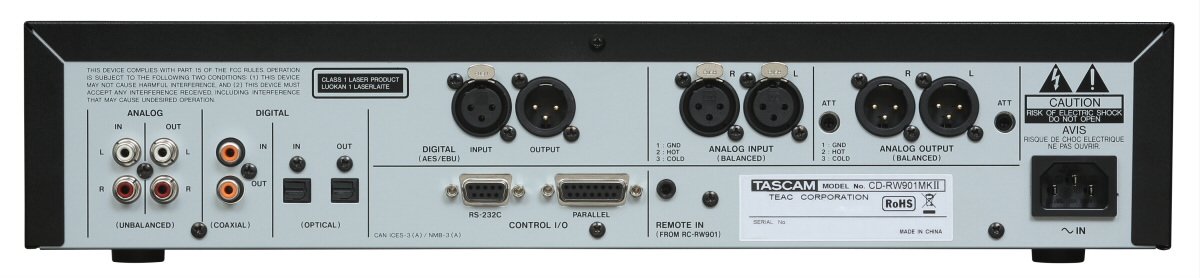

Connectivity Options

Port Type	Details
Audio Ports	RCA Input/Output, TOSLINK Optical Input/Output, XLR Input/Output

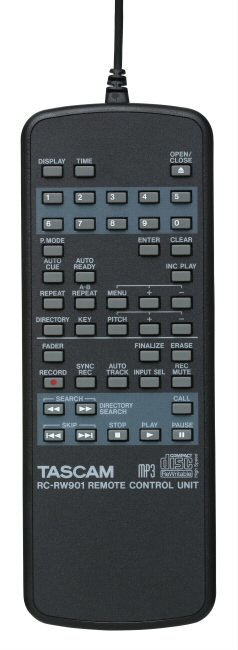

Control Ports	1/8″ (Remote), DE-9/DB-9RS-232C, DB-15, PS/2

Compatibility

Type	Details
Supported Disc Types	CD-DA, CD-R, CD-ROM, CD-RW, CD-TEXT
Audio File Formats	MP3

Packaging Information

Packaging Spec	Details
Package Weight	13.35 lb
Box Dimensions (LxWxH)	21.5 x 15 x 7.2″
