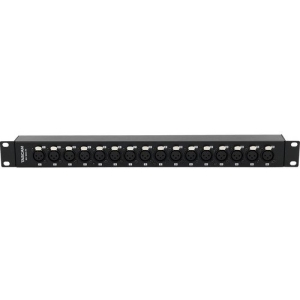

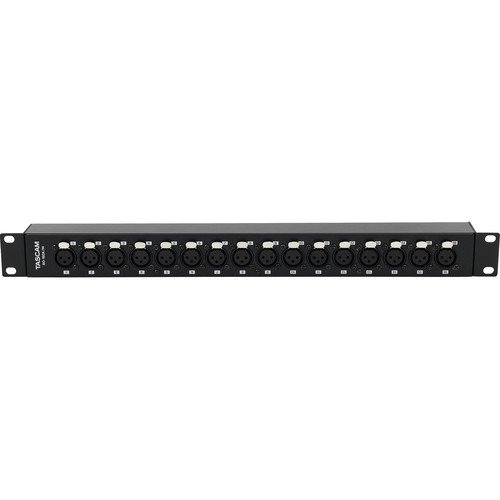

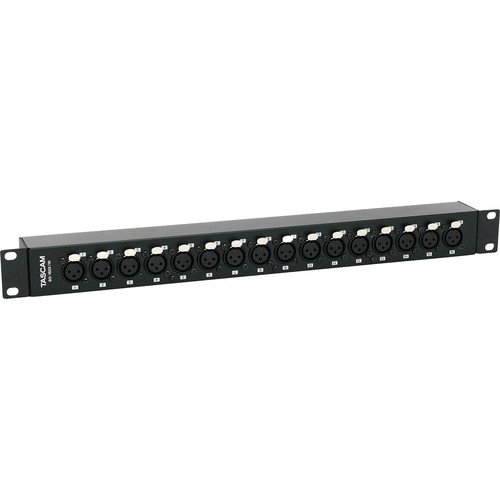

Tascam BO-16DX/IN 16-Channel XLR Female to DB25 Rackmount Adapter

The Tascam BO-16DX/IN is a high-quality, 16-channel XLR female to DB25 converter. This professional, rackmount device is ideal for seamless integration into various audio and video systems including those used in houses of worship, clubs, restaurants, live stage setups, and more. Unmatched in versatility, it provides 16 XLR 3-pin female connectors along with two DB25 female connectors to manage your multi-channel conversion needs with ease.

Designed with a user-friendly structure, the 1 RU enclosure of the BO-16DX/IN allows for the rotatable orientation to minimize stress on cables and ensure a tidy setup. Its reversible rack ears make it adaptable to different installation requirements by allowing either the XLR or DB25 connectors to face forward. The unit’s passive design means it requires no external power source, delivering reliable performance without additional power needs. Installation is straightforward thanks to the included rackmount screw kit.

Features

• Interfaces efficiently between stage boxes, FOH, monitor mixing consoles, and audio over IP converters

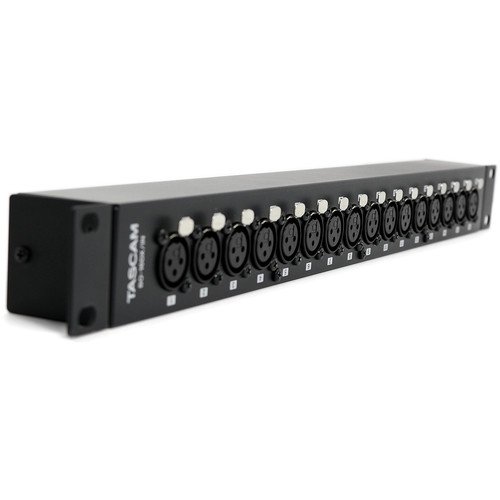

• 16 analog input channels via XLR 3-pin female connectors

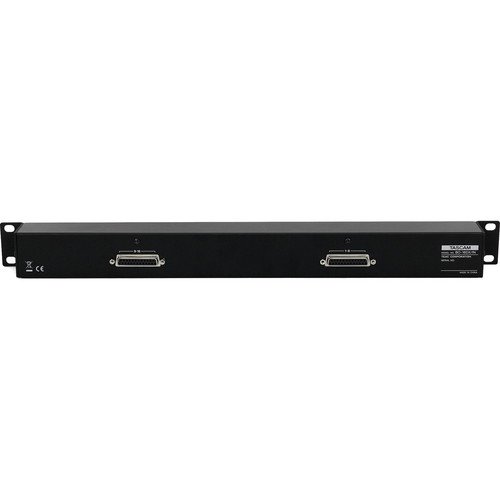

• 16 analog output channels through two DB25 female connectors
• Mounts in two 180° orientations to optimize cable management
• Reversible rack ears enable flexible installation with forward-facing XLR or DB25 connectors
• Compact design fits comfortably in minimal rack space
• Passive operation with no power source required
• Supplied with rackmount screw kit

Specifications

Packaging Info
