Tascam AE-4D 4-Channel AES/EBU Dante Converter with DSP Mixer 96kHz

Tascam

AED 2,711.10 inc VAT.

In stock
Enquiry On Whatsapp
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: AE-4D Categories: , Brand:

The AE-4D is a versatile converter for AES/EBU and 4-channel Dante signals, fitting into smaller setups at half the size of a 1U rack. It’s an ideal input/output unit for different Dante configurations, featuring a built-in DSP mixer for enhanced performance. The AE-4D supports up to 96kHz/24bit audio and includes XLR connectors for AES/EBU output, aligning with the TASCAM Dante Compact Processor Series standards.

Description

The AE-4D is a compact converter that mutually converts AES/EBU signals and 4-channel Dante signals. With half the size of a standard 1U rack, the AE-4D is suitable for different Dante systems as an exquisite AES/EBU input/output unit. The built-in DSP mixer enables small scale systems to fully perform with a variety of input/output models the TASCAM Dante Compact Processor Series offers. AE-4D supports up to 96kHz/24bit and uses XLR connectors for AES/EBU output.

Key Features

Specification Details
Input/Output 4 AES/EBU input/output, 4 Dante input/output
Sampling Rate Up to 24bit/96kHz
PoE Support Yes, Power over Ethernet
Control Software Available for Windows, Mac, iOS, Android
Scene Preset Function Up to 50 presets
Timer Event Function Planned for future update
Remote Control Via Dante

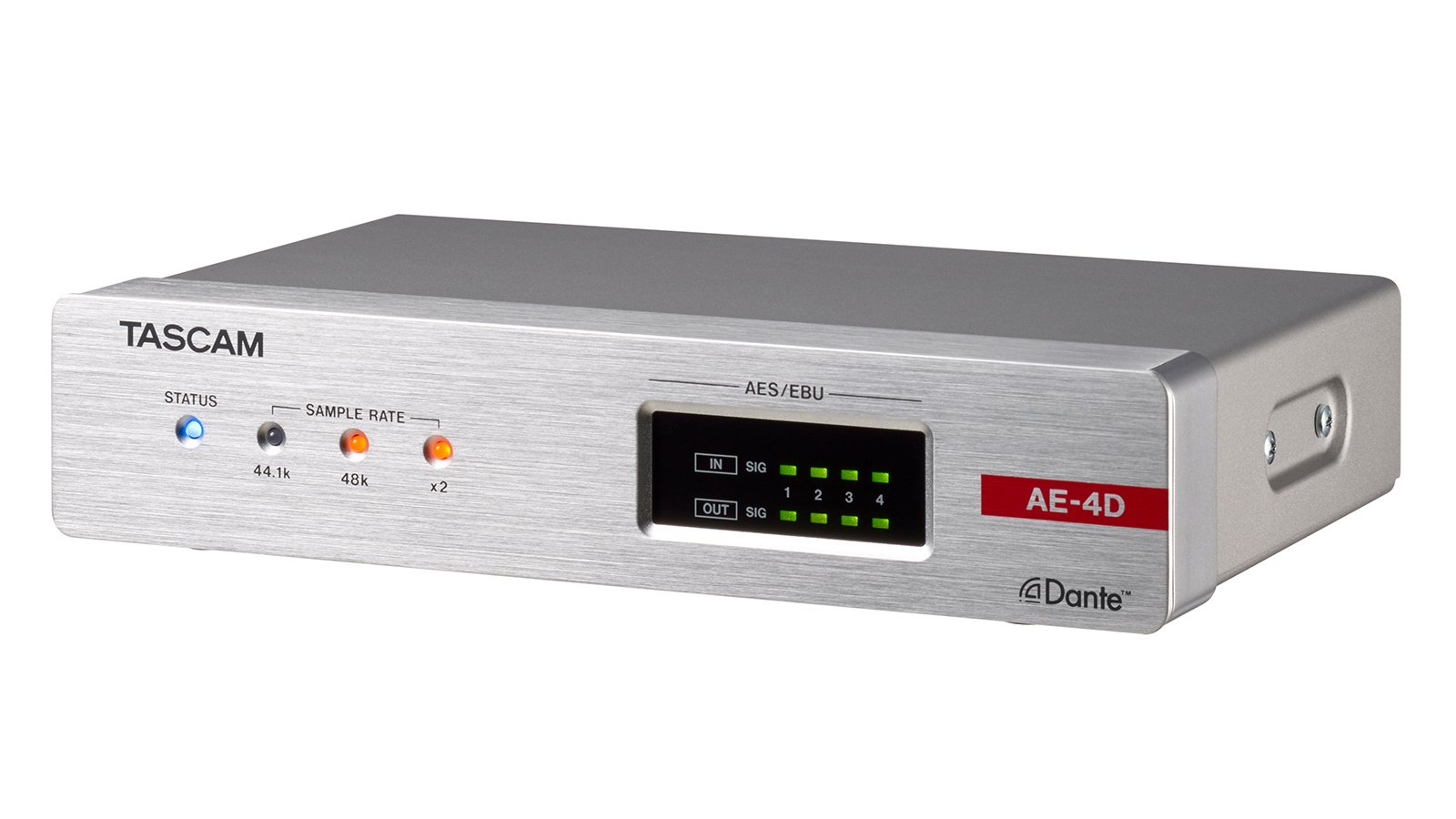

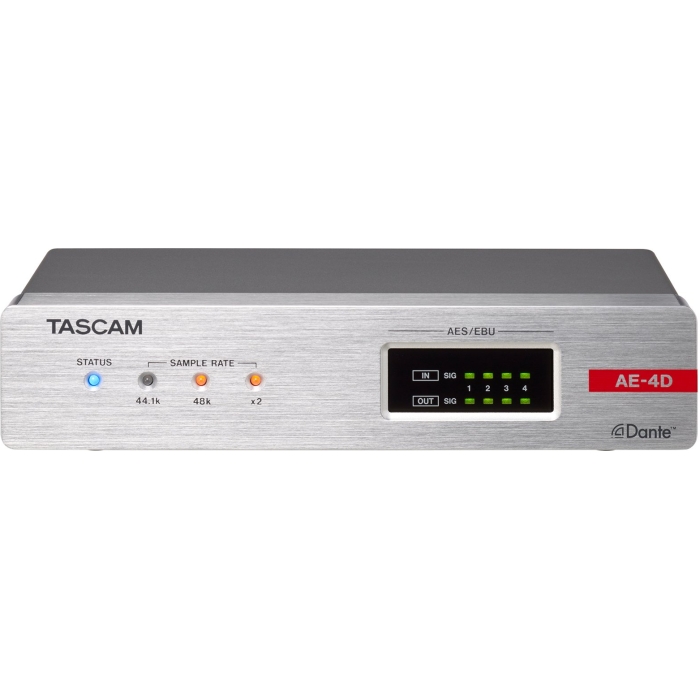

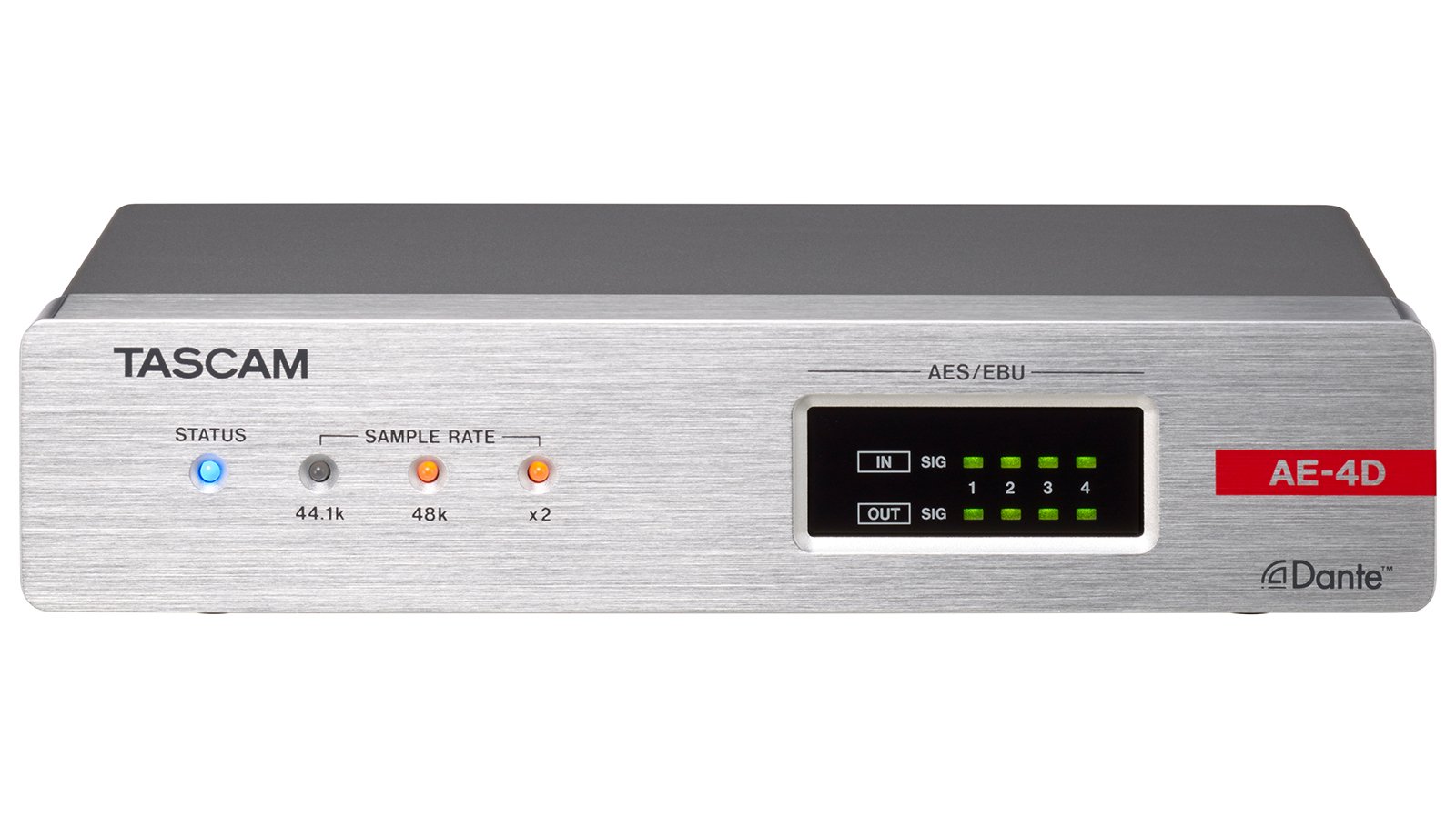

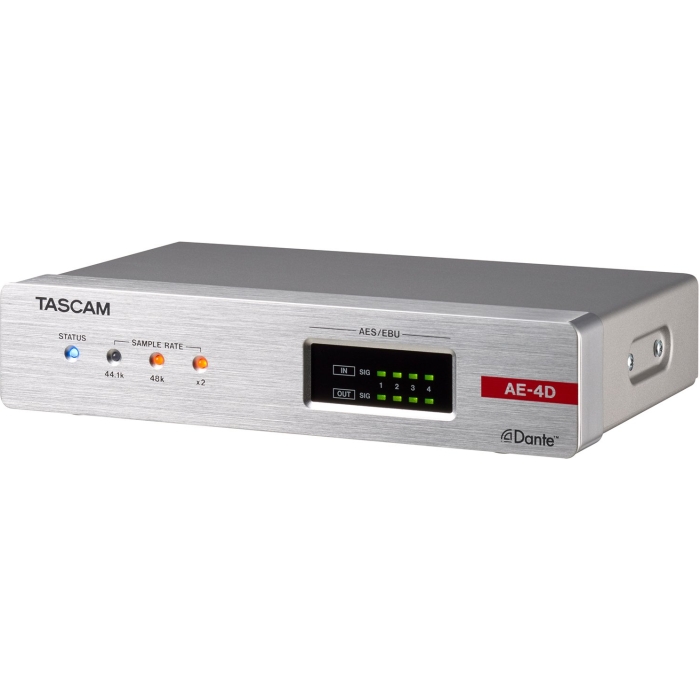

Indicators LAN/Dante connection status, sample rate, digital input/output signals
Included Accessories Installation brackets, Owner’s manual

Specifications

Category Details
Formats and Channels 44.1/48kHz, 16/24-bit, 4 channels; 88.2/96kHz, 16/24-bit, 2 channels (double speed)

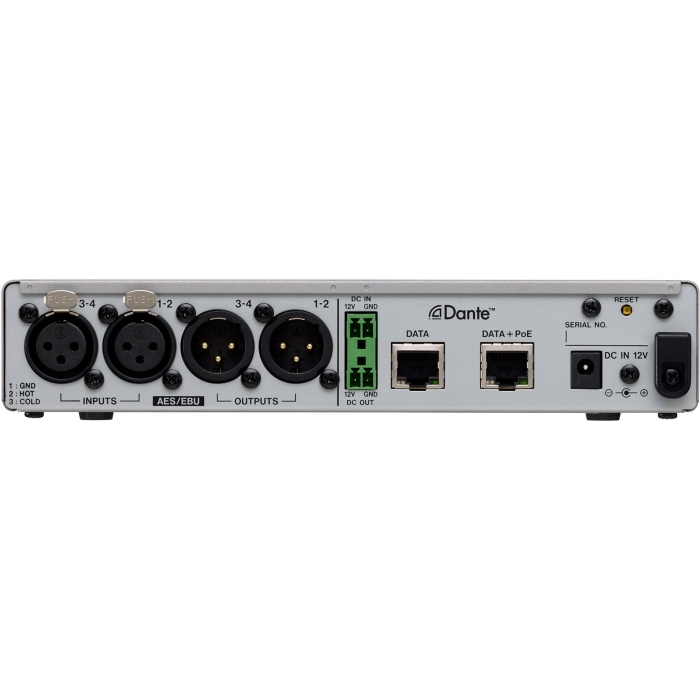

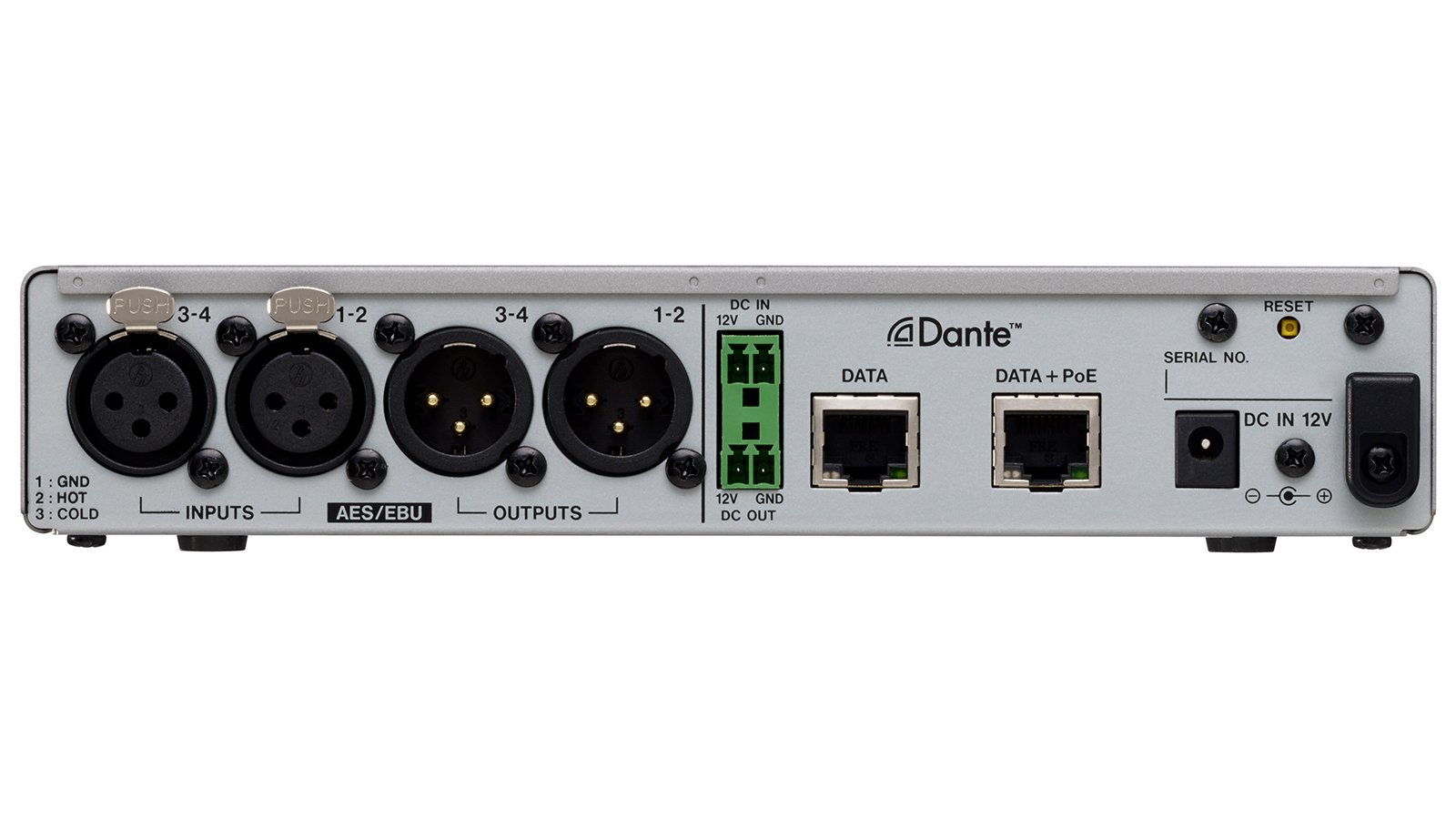

Connector RJ-45, XLR-3-31 for input, XLR-3-32 for output
Ethernet Standard 1000BASE-T (IEEE 802.3ab)
Digital Input Impedance 110 Ω
Digital Output Impedance 110 Ω
Power PoE class 0, TASCAM PS-P1220E AC adapter (sold separately)
Power Consumption 3W
Dimension 214 x 44.45 x 136.1 mm (W x H x D, including protrusions)
Weight 795 g
Operating Temperature 0°C-40°C
