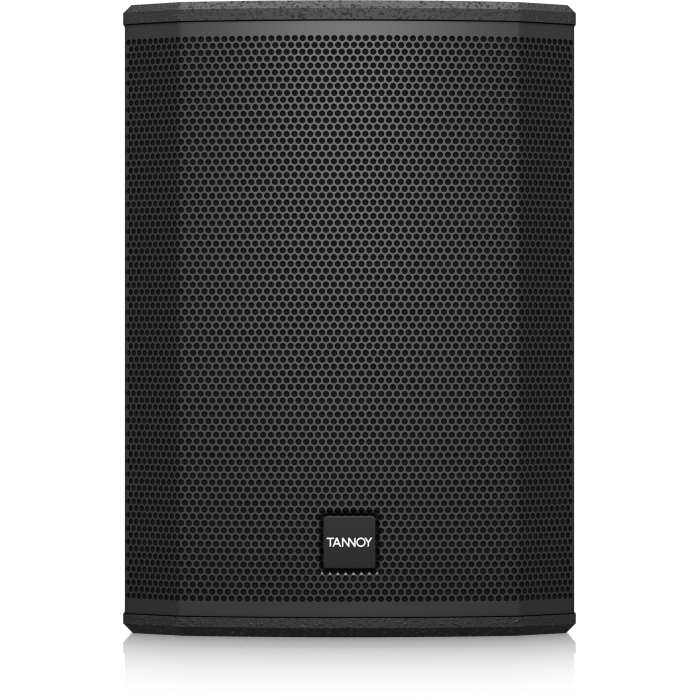

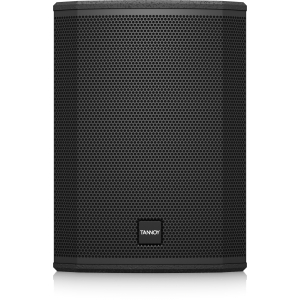

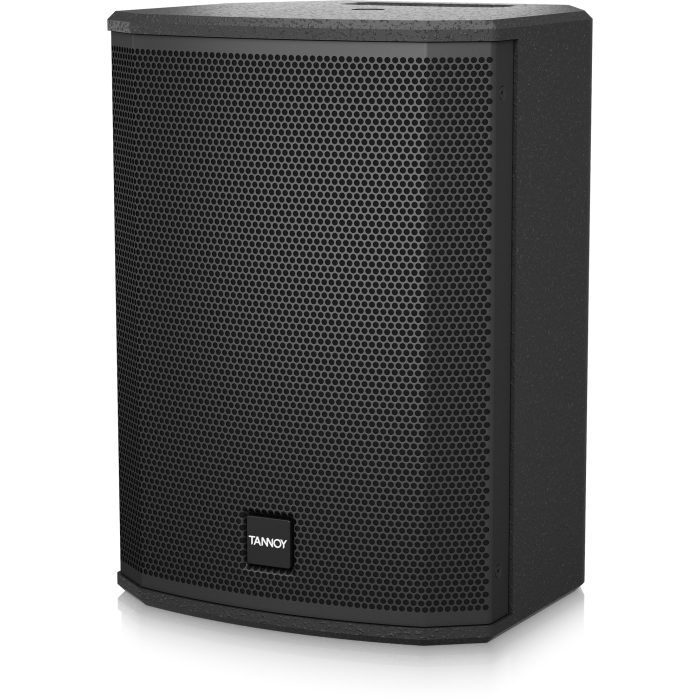

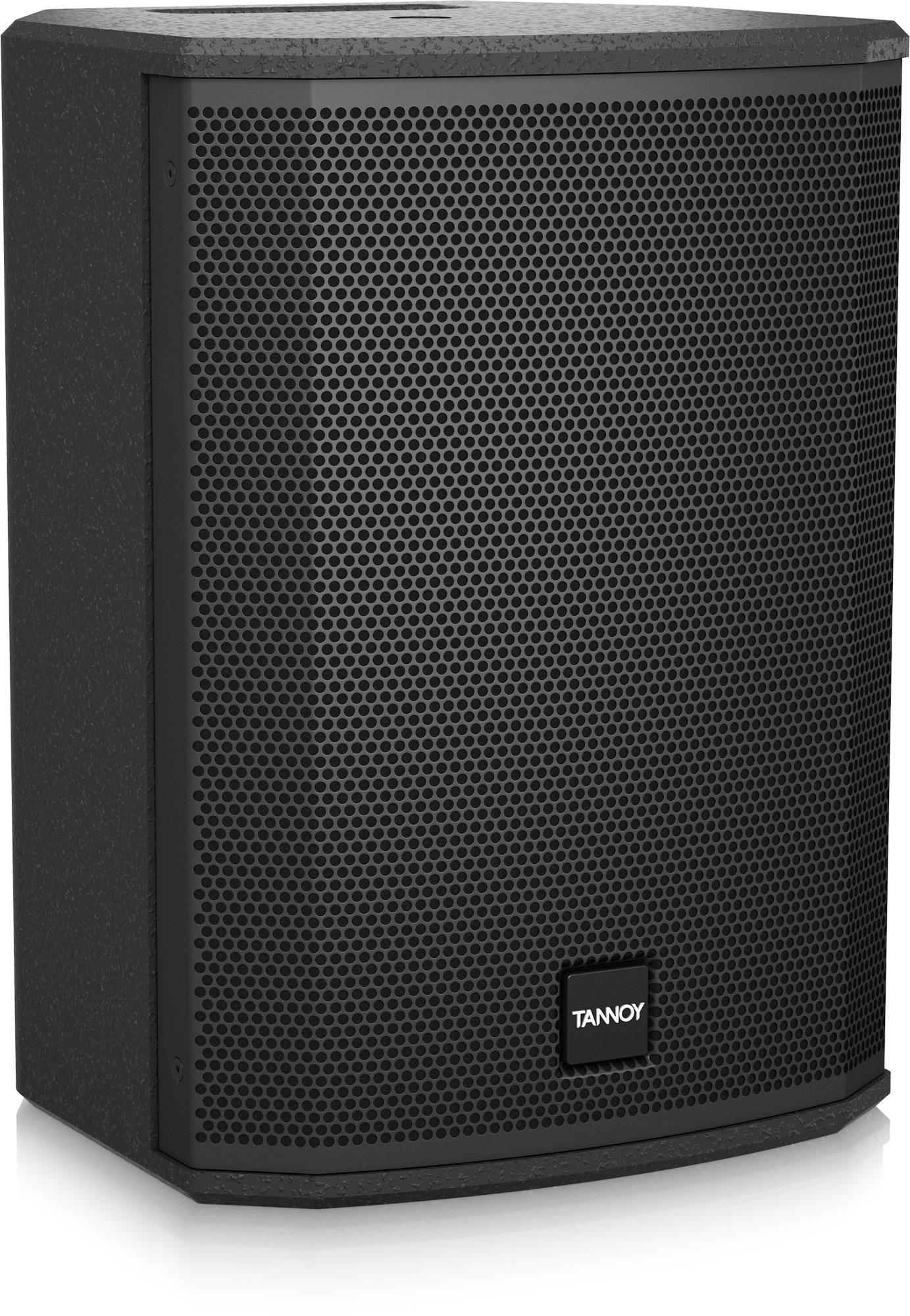

Tannoy VXP 8 1600 Watt 8″ Dual Concentric Powered Sound Reinforcement Loudspeaker

Tannoy

AED 4,105.50 inc VAT.

In stock
Enquiry On Whatsapp
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: VXP 8 Category: Brand:

The VXP 8 may be one of the smaller Dual Concentric full range loudspeakers in the VXP range, but it boasts an exceptional performance-to-size ratio – plus includes LAB GRUPPEN IDEEA Class-D amplification. VXP 8 provides a compact, yet punchy and sonically articulate solution for small-scale performance sound reinforcement, as well as more demanding background music and high-intelligibility speech applications where clarity and natural vocal reproduction are paramount. The VXP 8 is also ideally suited for use complimenting much larger systems, making it an excellent choice for both installed and portable applications.

Description

The VXP 8 may be one of the smaller Dual Concentric full range loudspeakers in the VXP range, but it boasts an exceptional performance-to-size ratio – plus includes LAB GRUPPEN IDEEA Class-D amplification. VXP 8 provides a compact, yet punchy and sonically articulate solution for small-scale performance sound reinforcement, as well as more demanding background music and high-intelligibility speech applications where clarity and natural vocal reproduction are paramount. The VXP 8 is also ideally suited for use complimenting much larger systems, making it an excellent choice for both installed and portable applications.



Features

  • Full range multi-purpose powered sound reinforcement loudspeaker for portable and installation applications
  • 1,600 Watt power featuring Lab Gruppen IDEEA electronics Class-D amplification

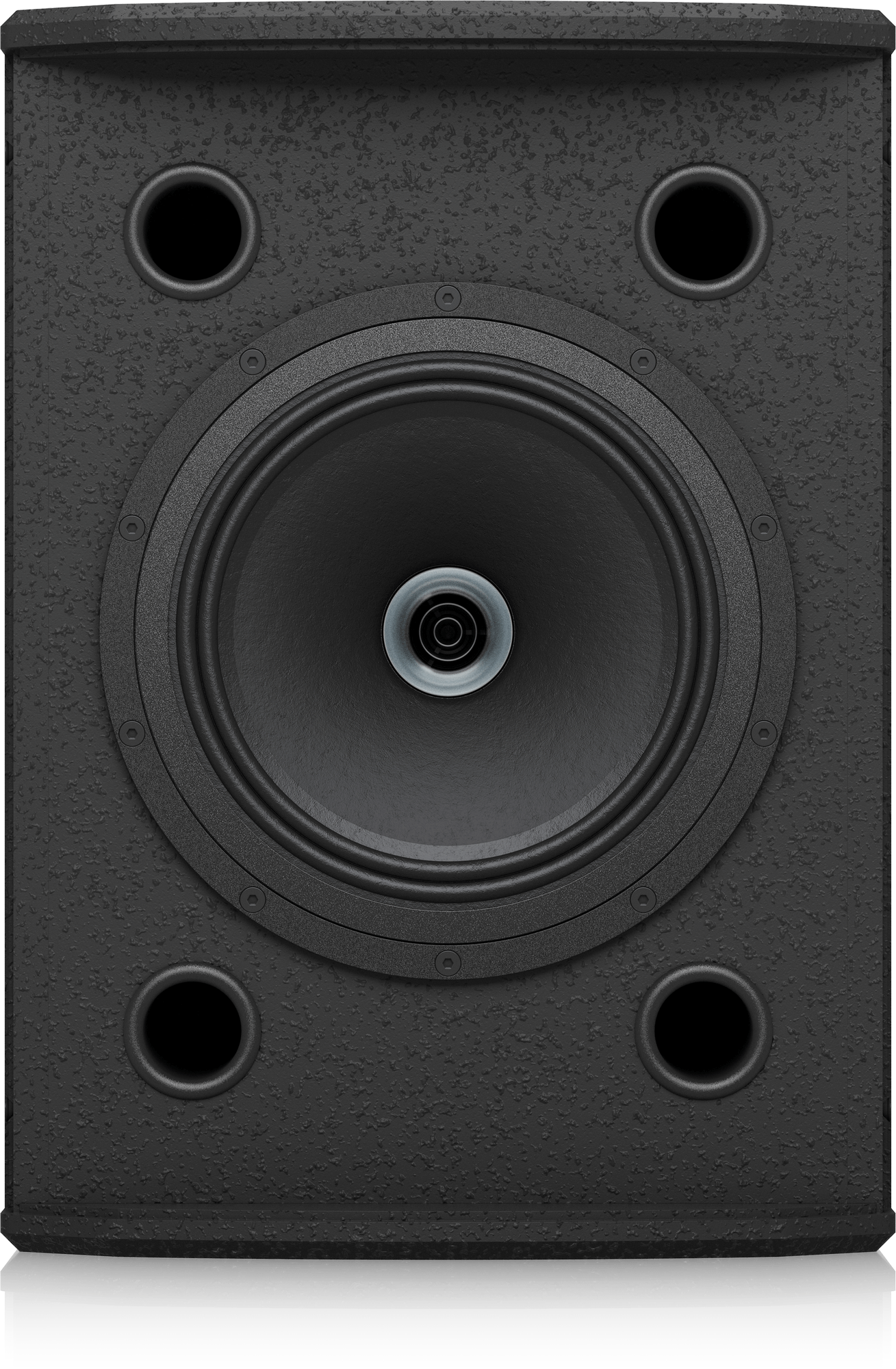

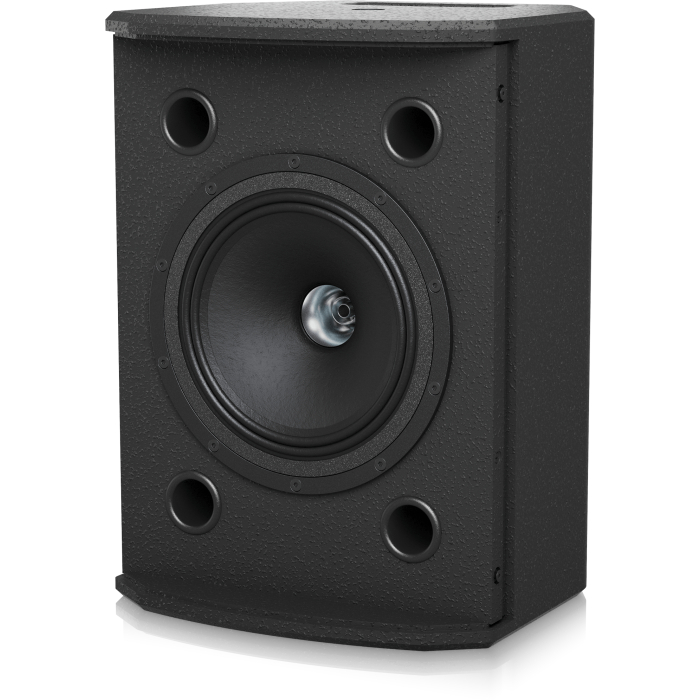

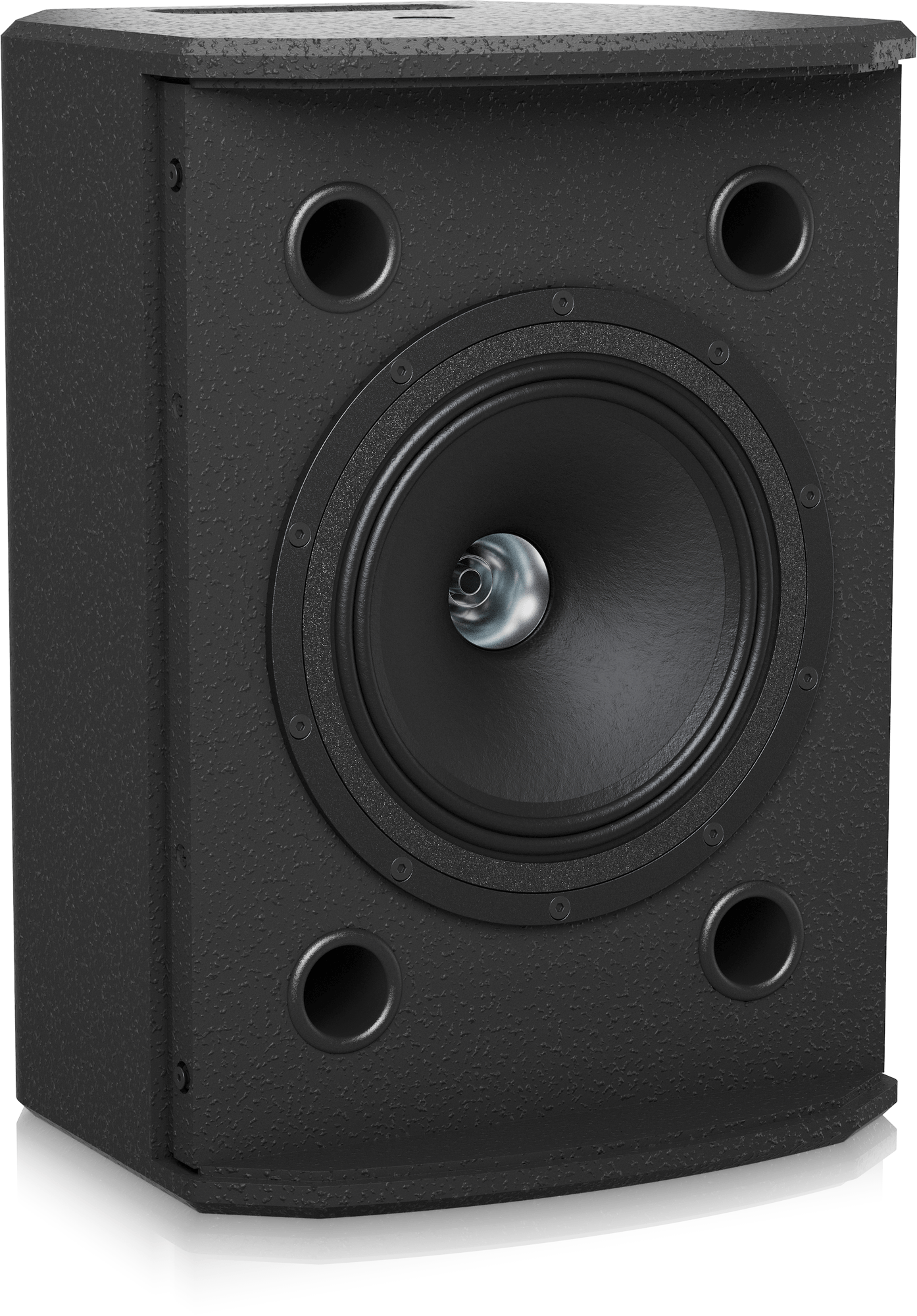

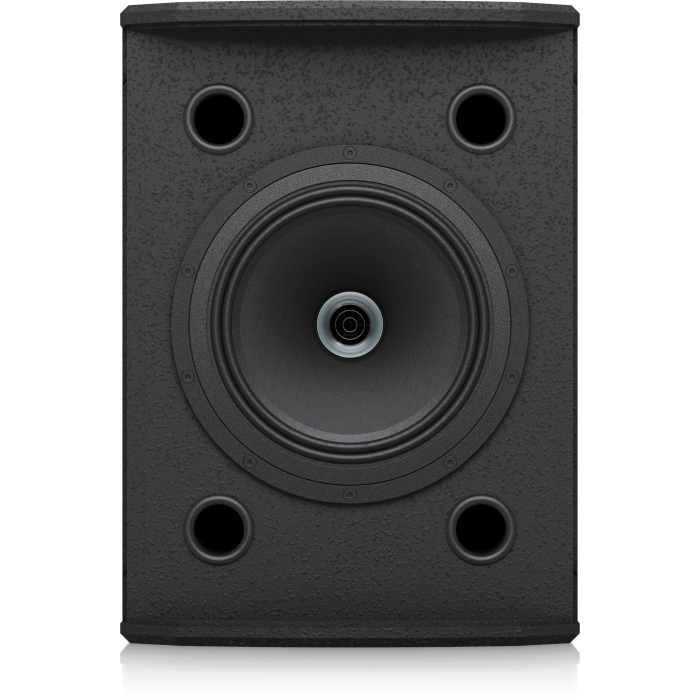

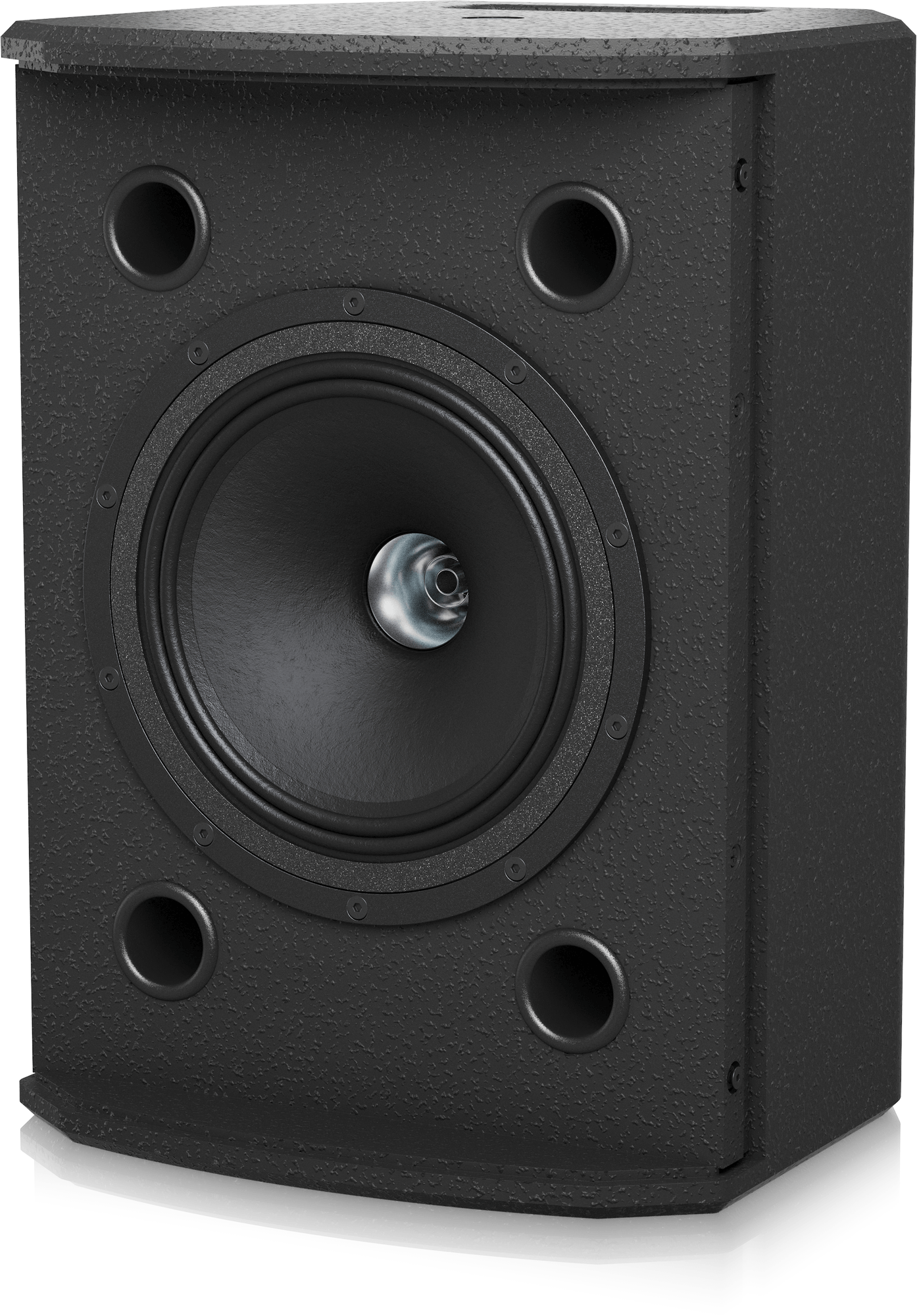

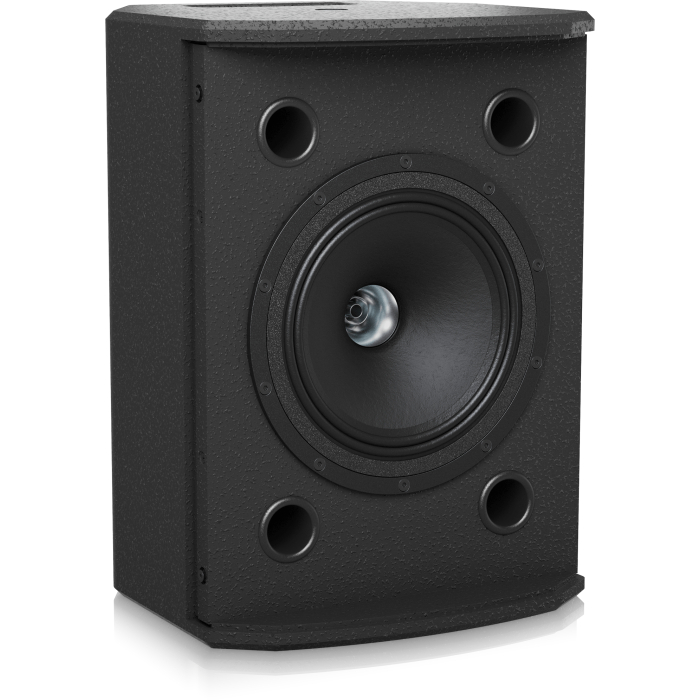

  • 8″ Dual Concentric full range driver for point source phase coherence
  • Tightly controlled 90º dispersion for optimum coverage and forward projection
  • Ideal for FOH, floor monitor, delay and stage front fill applications
  • Switchable full range or high pass filter operation
  • Vented and internally braced plywood enclosure
  • Finished with hard wearing semi matt black paint

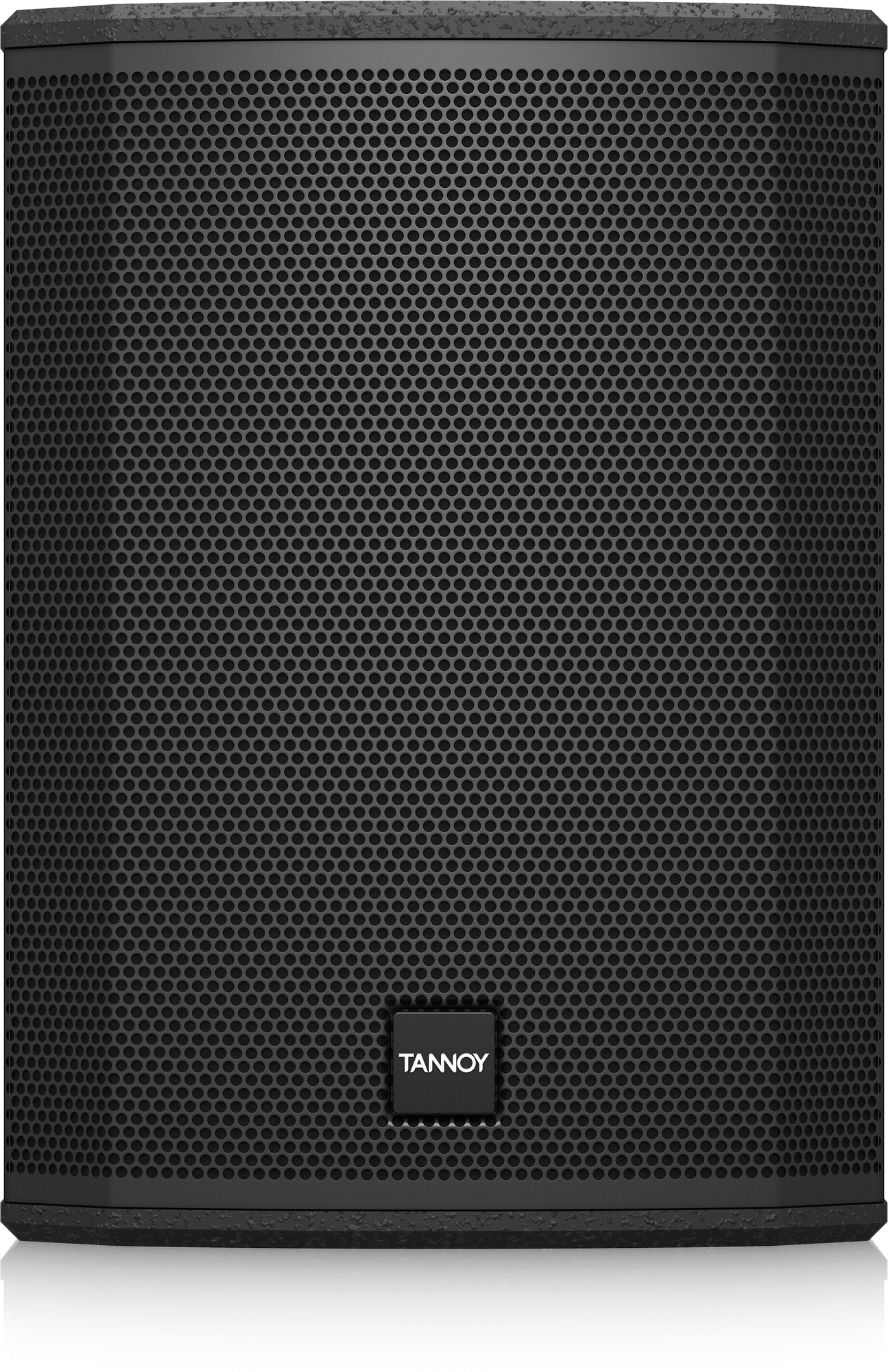

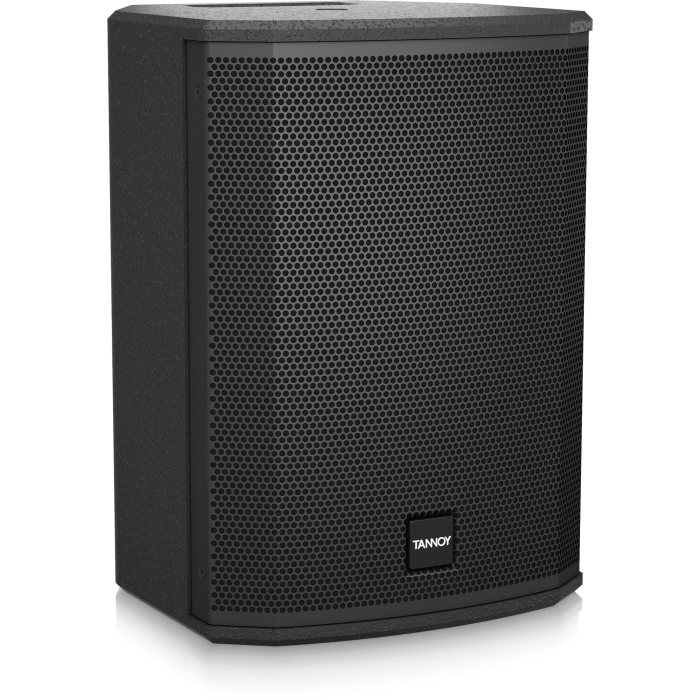

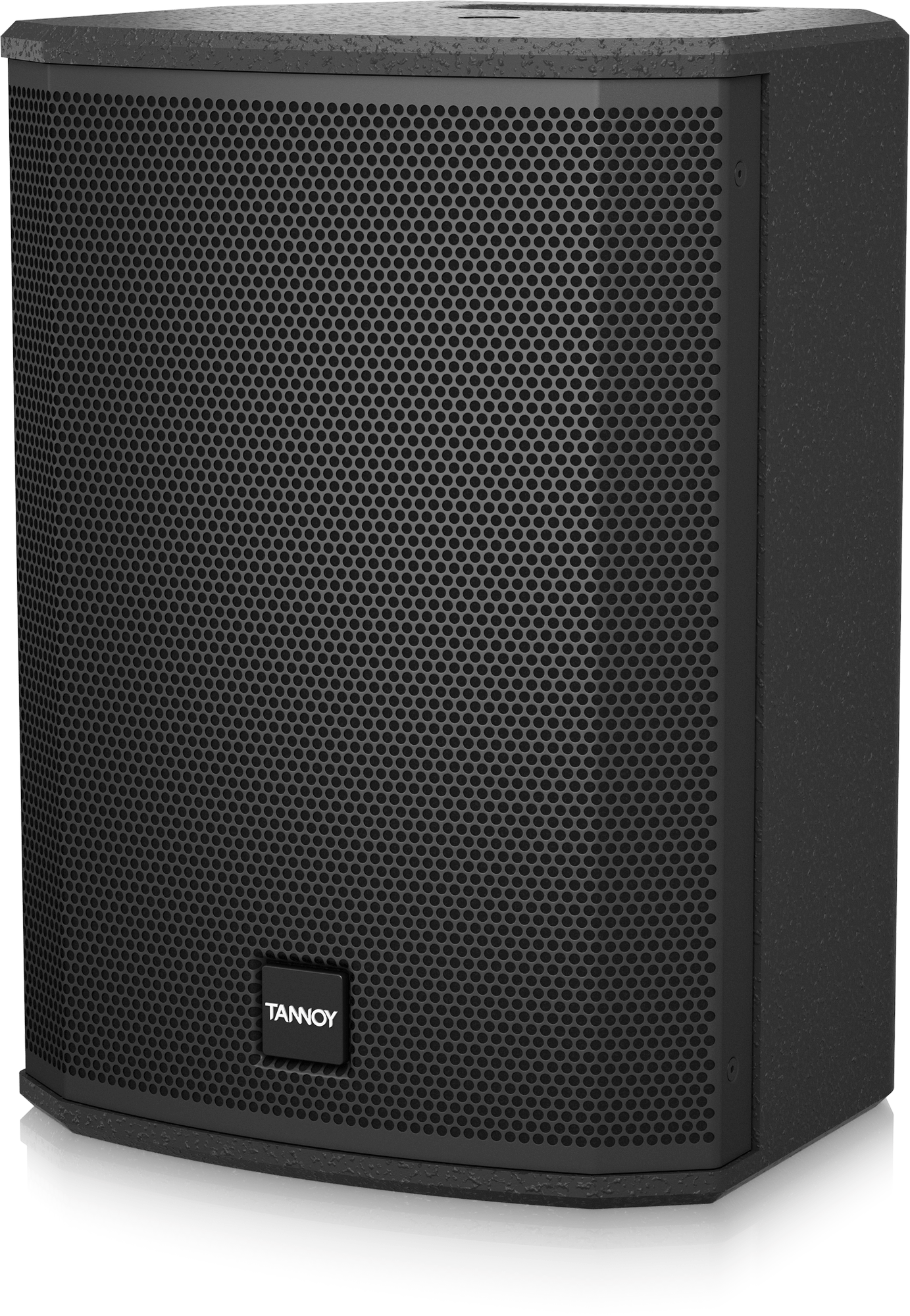

  • Rugged powder coated perforated steel mesh grille
  • Blanking plate for optional VTH pole mount
  • Versatile mounting via optional custom designed hardware

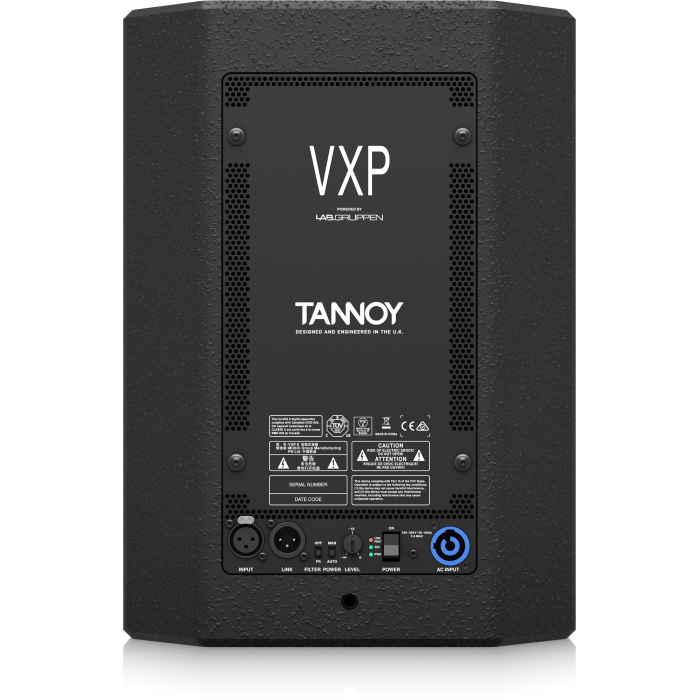

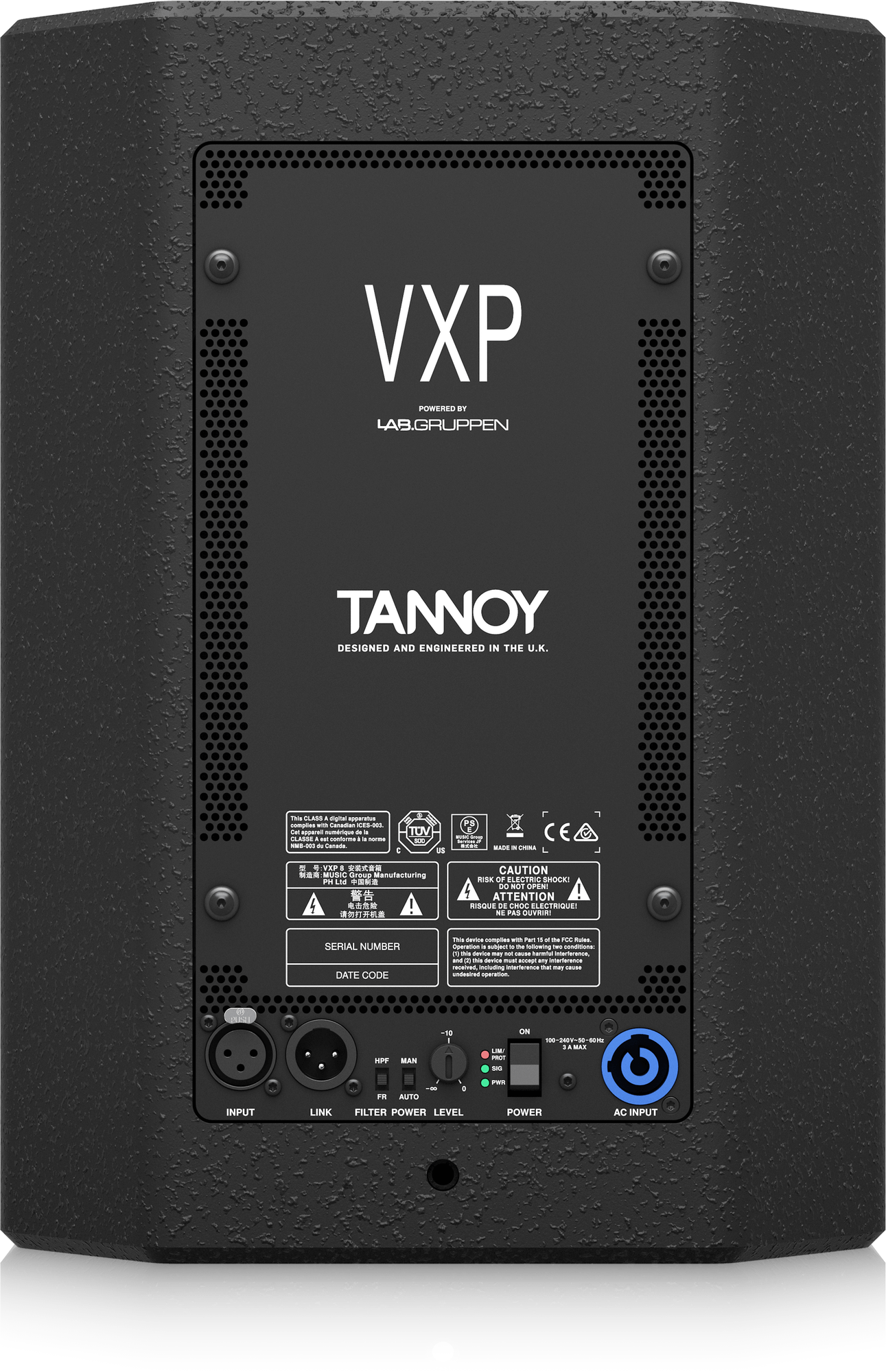

  • Fully balanced input and link output on Neutrik* XLR connectors
  • Neutrik powerCON* for a secure locking mains power connection



Specifications

System
Frequency response (Full range mode)

80 Hz – 35 kHz ±3 dB
67 Hz – 45 kHz -10 dB
Frequency response (Hi-pass mode)

120 Hz – 35 kHz ±3 dB
100 Hz – 45 kHz -10 dB
Nominal dispersion

90° conical @ -6dB point
Directivity factor (Q)

6.8
Directivity index (DI)

7.9
Dynamic range

106 dB
Maximum SPL

125 dB peak
Crossover type

Passive 1.7 kHz with dynamic HF protection
Transducers

200 mm (1 x 8″) constant directivity
Dual Concentric™
Amplifier
Maximum output power*

1600 W
Type

Class-D
Protection

Output current limiter, clip limiter, brownout protection and recovery, thermal
Connectors
Input

1 x XLR, balanced
Input impedance

10 kO unbalanced,
20 kO balanced
Maximum input level for clip

+4.5 dBu
+14.5 dBu
Link

1 x XLR
Mains Supply

Neutrik powerCON 20A†
Controls
Level

Recessed potentiometer
Filter

Hi-pass (HPF)/ full range (FR), switchable
Power mode

Manual (MAN)/ auto (AUTO), switchable
Power Supply
Type

Switch-mode autorange power supply
Mains voltage

100-240 V~, 50/60 Hz
Power consumption

75 W @ 1/8 max power
Enclosure
Dimensions (HWD)

389 x 281 x 276 mm (15.3 x 11.1 x 10.9″)
Net weight

10.1 kg (22.2 lbs)
Construction

15 mm (5/8″) plywood, vented and internally braced
Finish

Semi matt black paint (white optional)
Grille

Powder coated perforated steel
Flying hardware

2 x M10 flying inserts 2 x M10 yoke bracket inserts (6 mm allen key)
Blanking plate for optional VTH pole mount
