Description
The VX 8.2-WH is a pioneering addition to the realm of audio devices, offering unparalleled acoustic clarity, definition, and overall performance. This loudspeaker stands out with its impressive performance-to-size ratio, delivering a compact yet powerful solution for medium-scale performance sound reinforcement. The VX 8.2-WH also excels in high-performance speech reproduction, providing exceptional clarity and vocal character. Its versatile twin driver design and mounting options make it suitable for a wide range of applications, including larger installations.
Features
- Full range multi-purpose sound reinforcement loudspeaker for portable and installation applications
- 200 Watts continuous, 800 Watts peak power

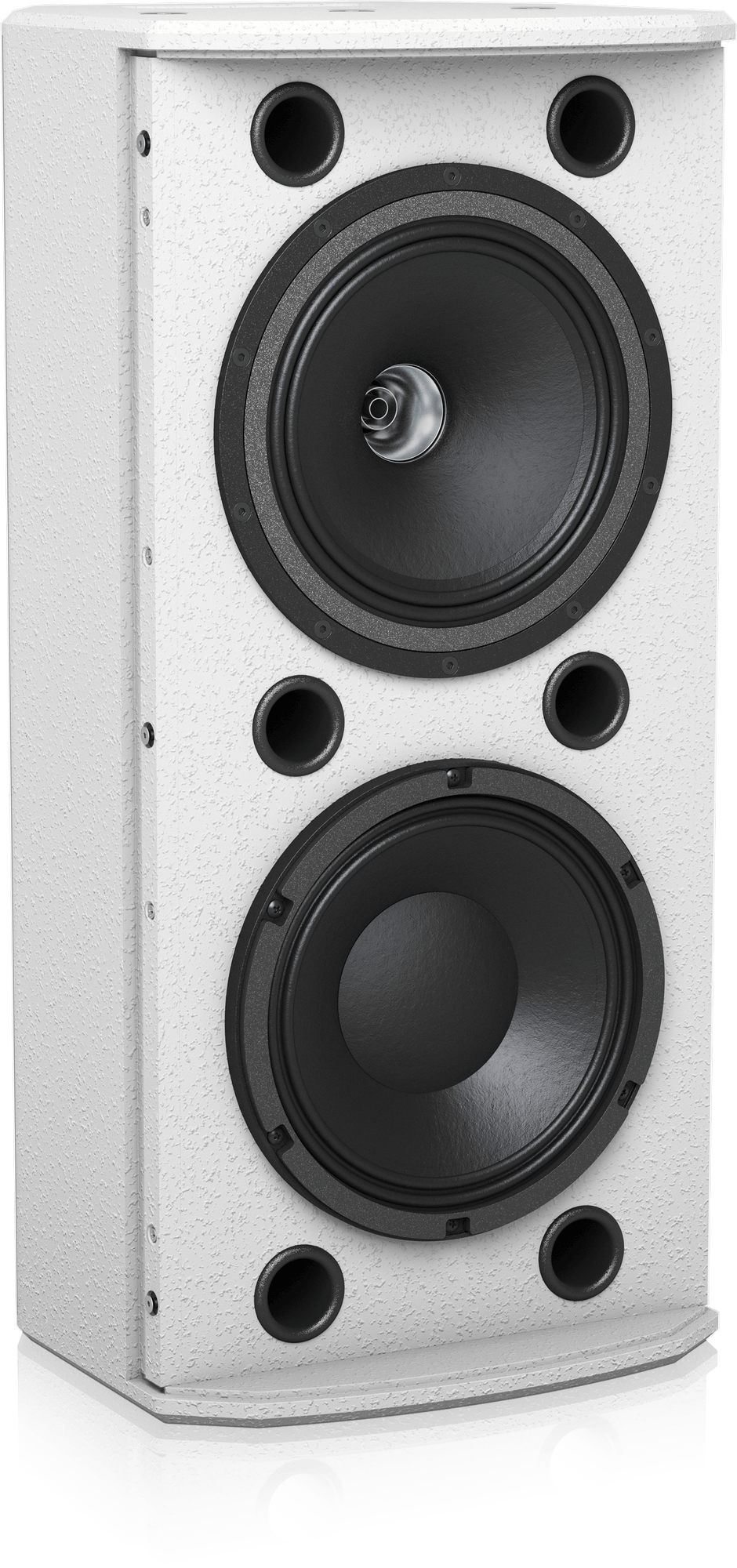

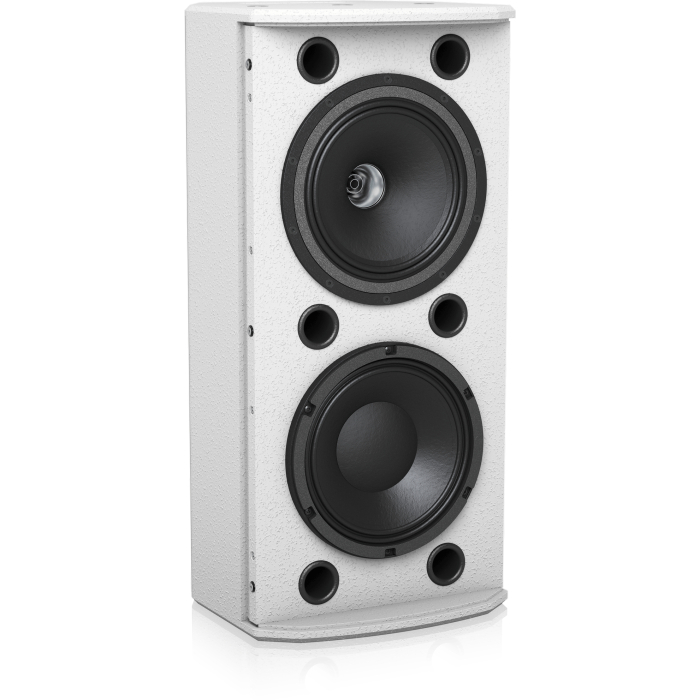

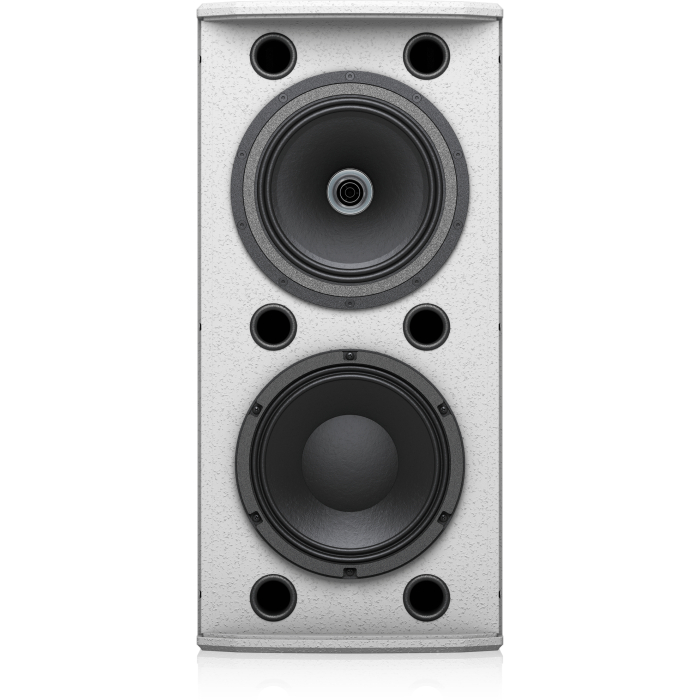

- 8″ Dual Concentric full range driver for point source phase coherence
- 8″ low frequency driver for extended bass response
- Precise 90° dispersion for optimum coverage and forward projection
- Ideal for FOH, floor monitor, and side fill applications

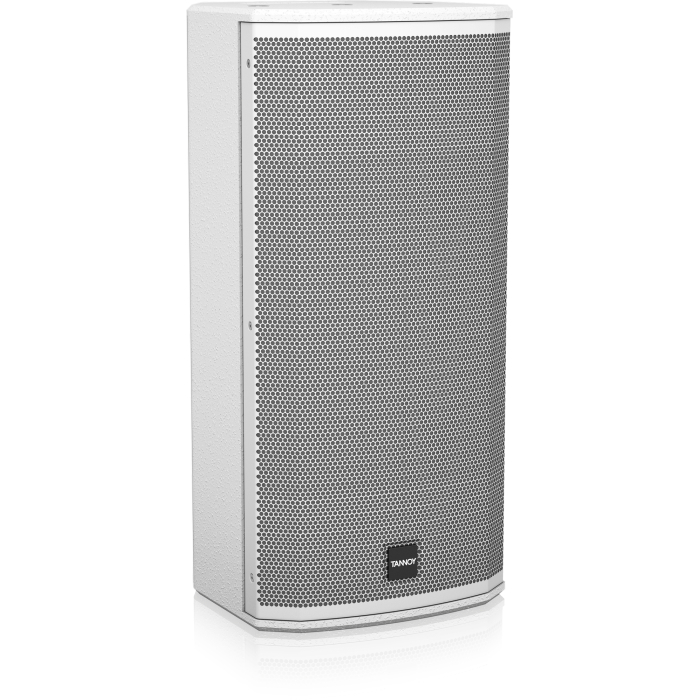

- Vented and internally braced plywood enclosure
- Finished with hard-wearing semi matt white paint

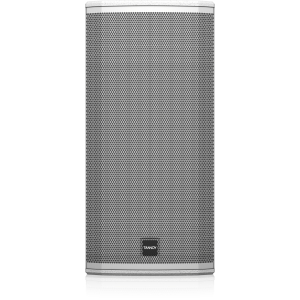

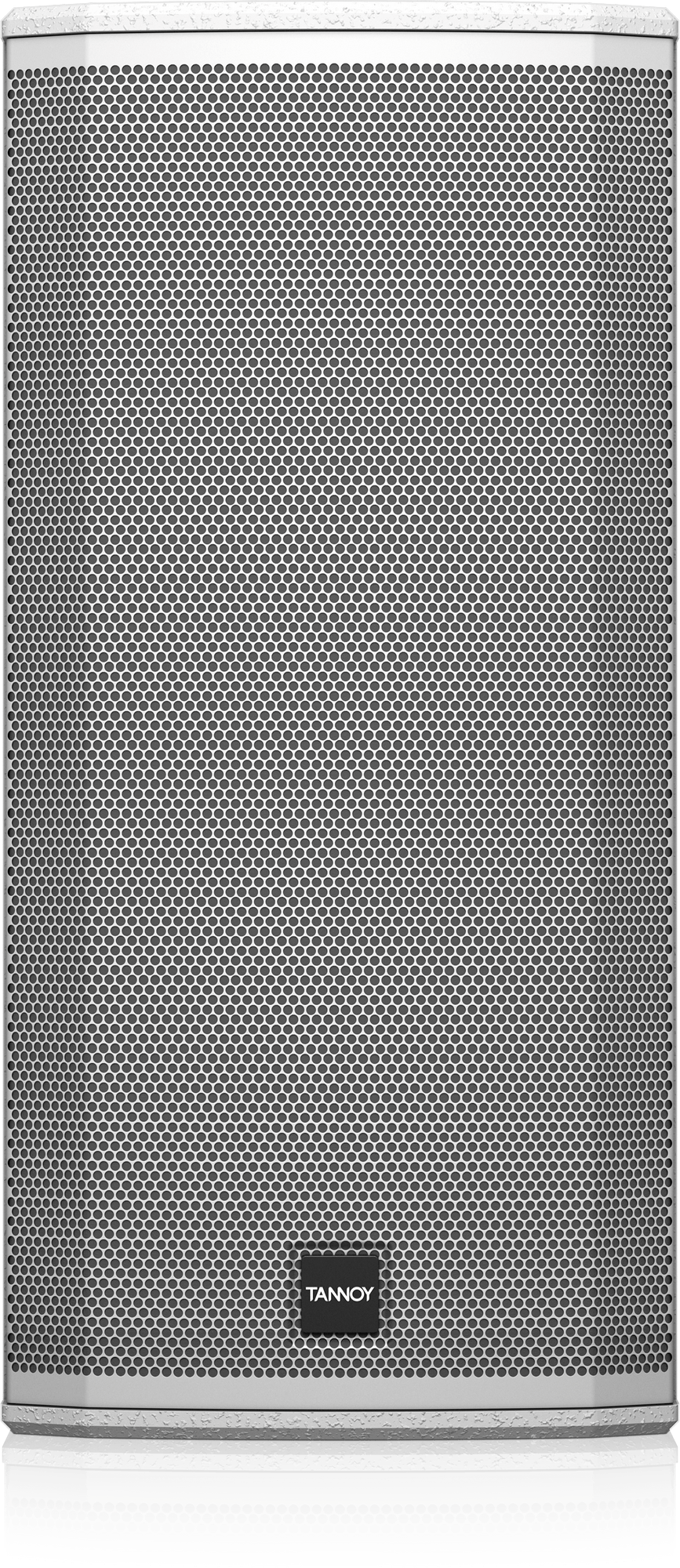

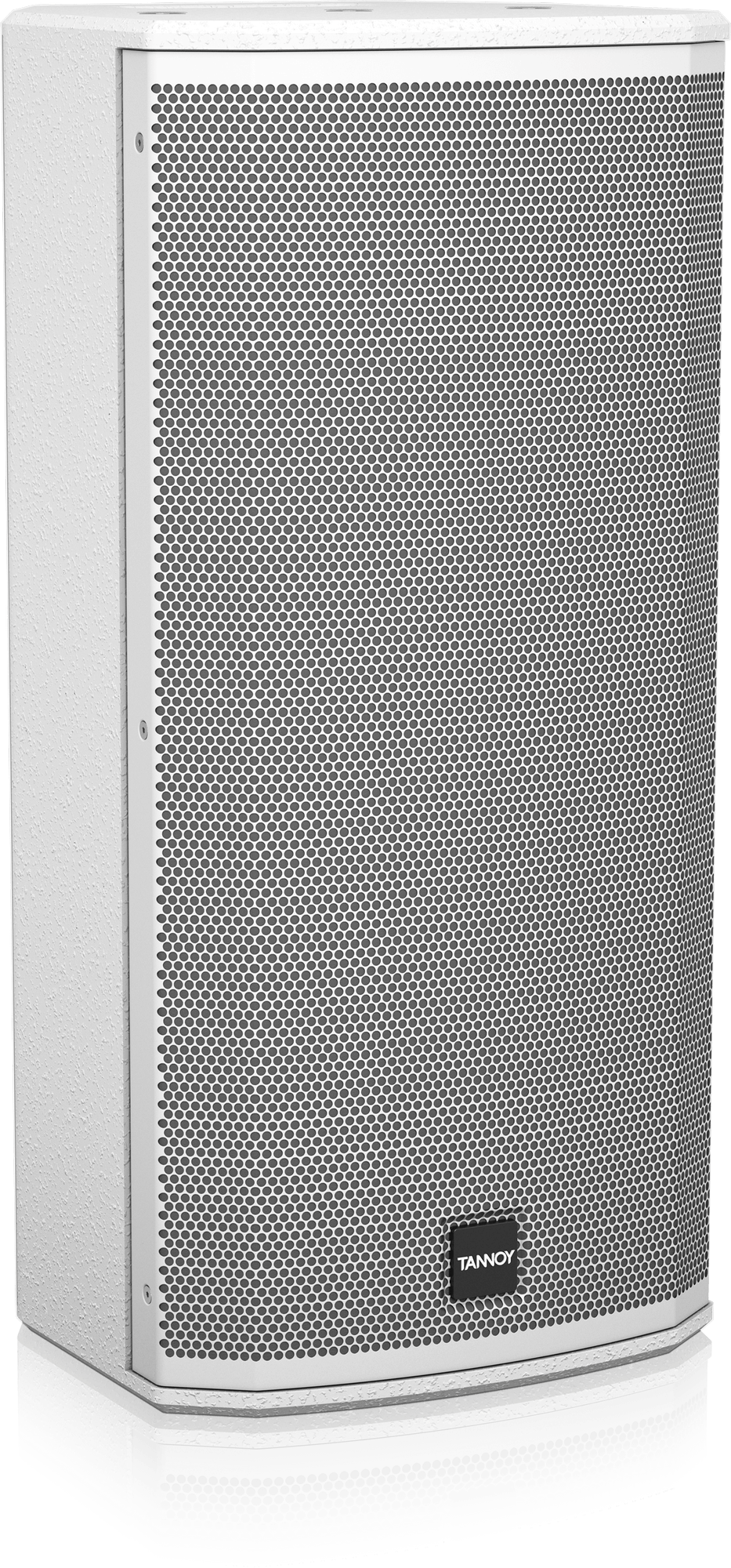

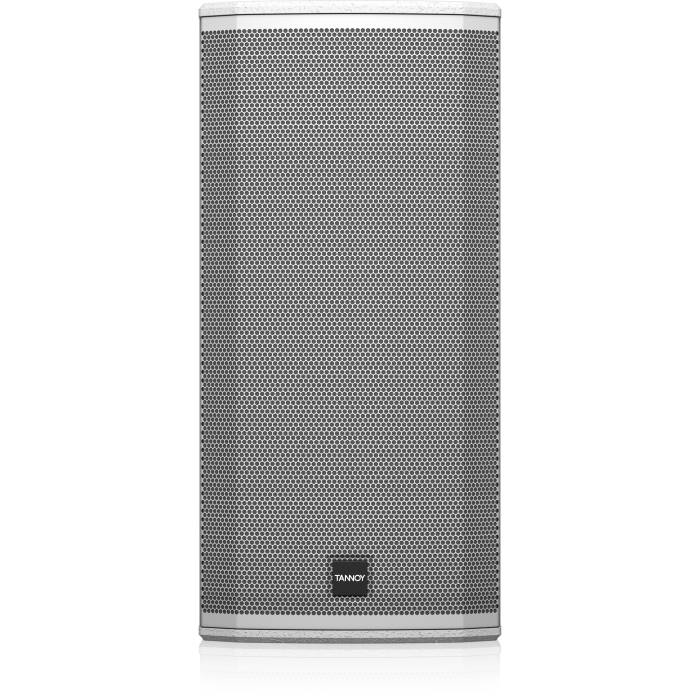

- Rugged powder coated perforated steel mesh grille
- Blanking plate for optional VTH pole mount
- Optional horizontal mounting yoke (available separately)
- Integrip handles ergonomically integrated into top and bottom of cabinet

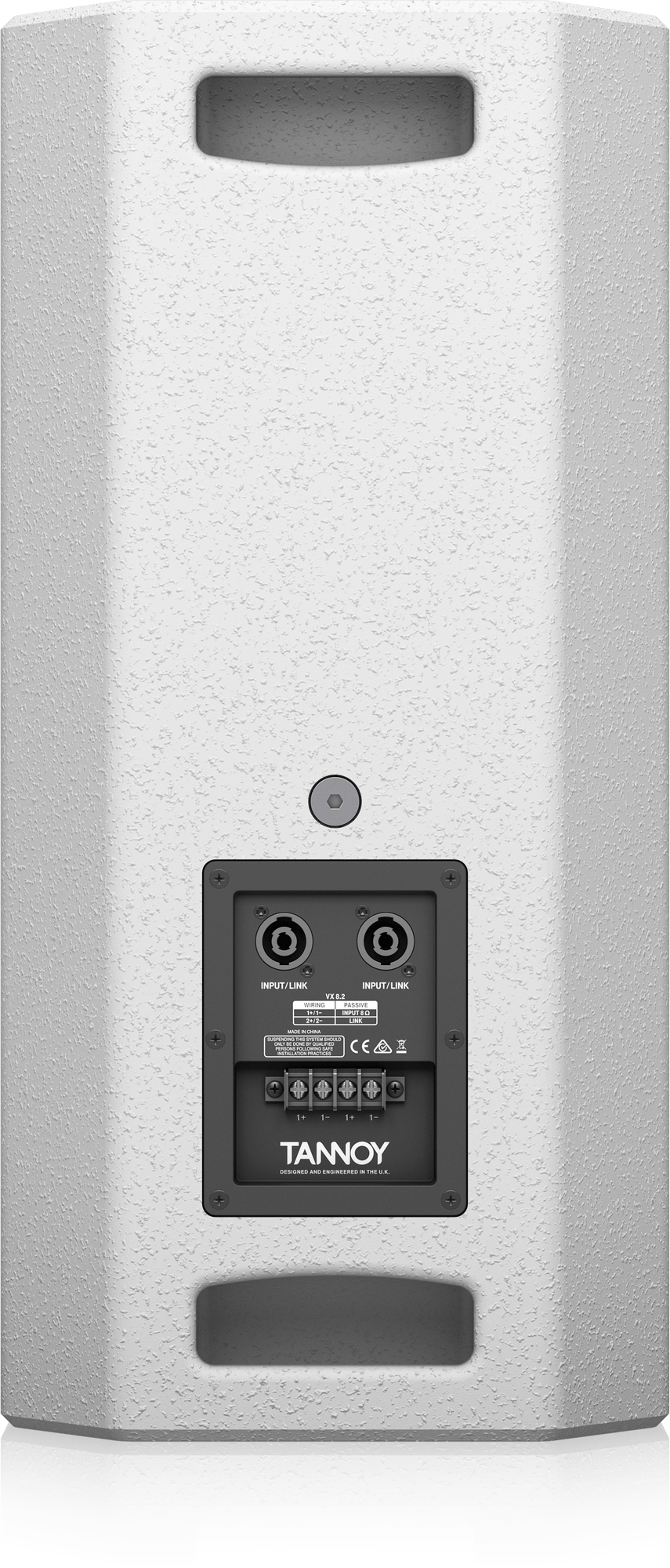

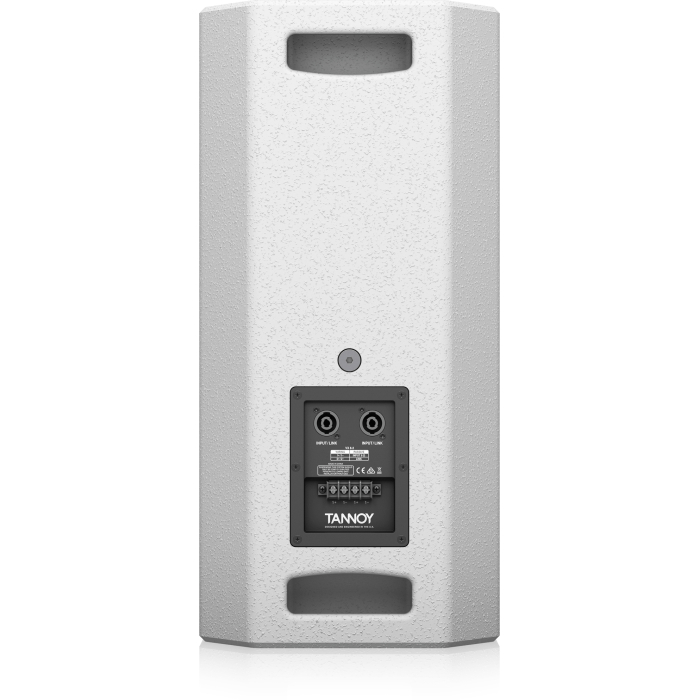

- Neutrik* speakON NL4 and barrier strip connectors for input and link output
Specifications
Performance
| Frequency Response (-3 dB) |
80 Hz – 35 Hz |
| Frequency Range (-10 dB) |
60 Hz – 45 kHz |
| System Sensitivity (1 W @1 m) |
93 dB (1 W = 2.83 V for 8 ohms) |
| Dispersion (degrees conical) |
90 degrees conical |
| Driver Complement |

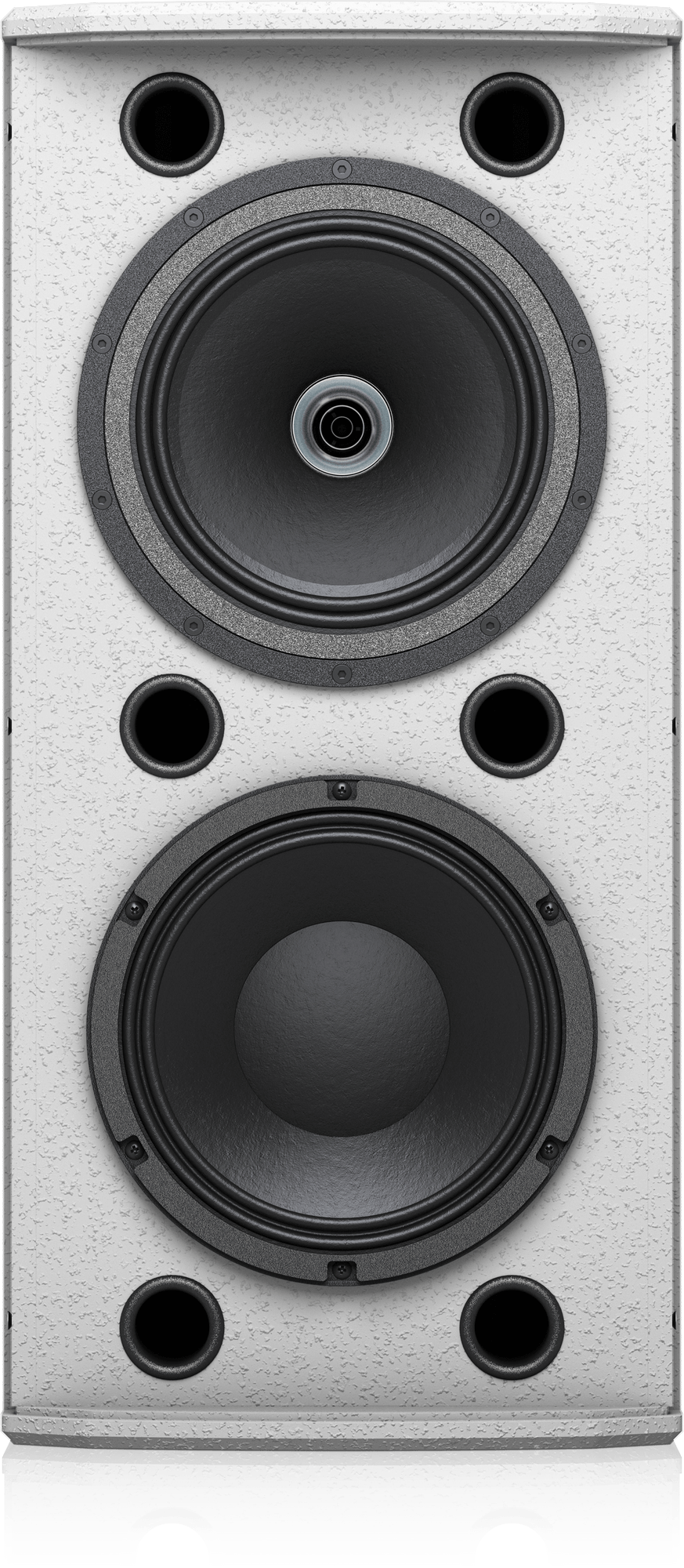

1 x 200 mm (8.00”) constant directivity Dual Concentric, 1 x 200 mm (8.00”) bass driver |
| Crossover |
Passive 360 Hz and 1.5 kHz with dynamic HF protection |
| Directivity Factor (Q) |
8.1 (averaged 1 kHz to 8 kHz) |
| Directivity Index (DI) |
9.2 (averaged 1 kHz to 8 kHz) |
| Rated Maximum SPL |
Average: 116 dB, Peak: 122 dB |
| Power Handling |
Average: 200 W, Programme: 400 W, Peak: 800 W |
| Recommended Amplifier Power |
400 W @ 8 ohms |
| Nominal Impedance |
8 ohms |
Distortion
| 10% Full Power (10.2 V) 2nd Harmonic, 250 Hz |
0.58% |
| 10% Full Power (10.2 V) 2nd Harmonic, 1 kHz |
0.34% |
| 10% Full Power (10.2 V) 2nd Harmonic, 10 kHz |
1.73% |
Distortion
| 10% Full Power (10.2 V) 2nd Harmonic, 250 Hz |
0.15% |
| 10% Full Power (10.2 V) 2nd Harmonic, 1 kHz |
0.11% |
| 10% Full Power (10.2 V) 2nd Harmonic, 10 kHz |
0.74% |
Distortion
| 10% Full Power (10.2 V) 3rd Harmonic, 250 Hz |
0.34% |
| 10% Full Power (10.2 V) 3rd Harmonic, 1 kHz |
0.69% |
| 10% Full Power (10.2 V) 3rd Harmonic, 10 kHz |
0.15% |
