Description

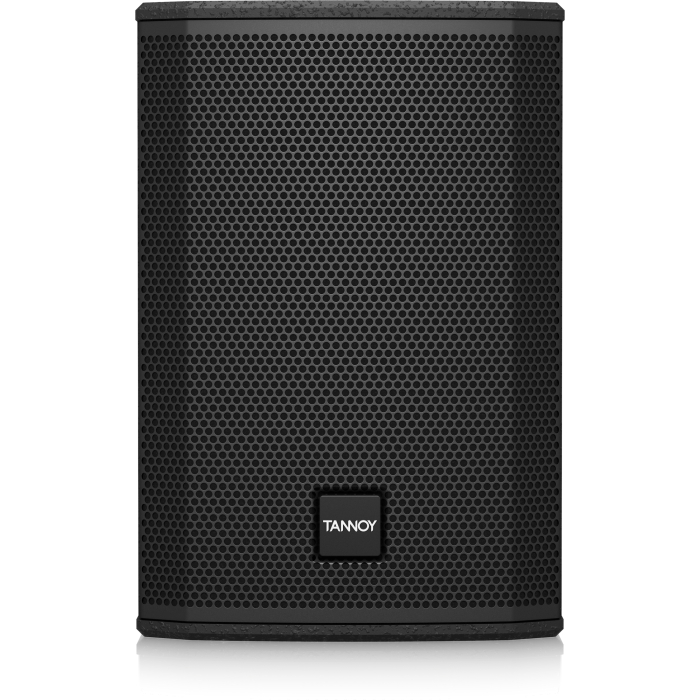

The VX 6 may be one of the smaller Dual Concentric full range loudspeakers in the VX range, but it boasts an exceptional performance-to-size ratio. VX 6 provides a compact, yet punchy and sonically articulate solution for small-scale performance sound reinforcement, as well as more demanding background music and high-intelligibility speech applications where clarity and natural vocal reproduction are paramount. The VX 6 is also ideally suited for use complimenting much larger systems, making it an excellent choice for both installed and portable applications.
Features
- Full range multi-purpose sound reinforcement loudspeaker for portable and installation applications
- 100 Watts continuous, 400 Watts peak power

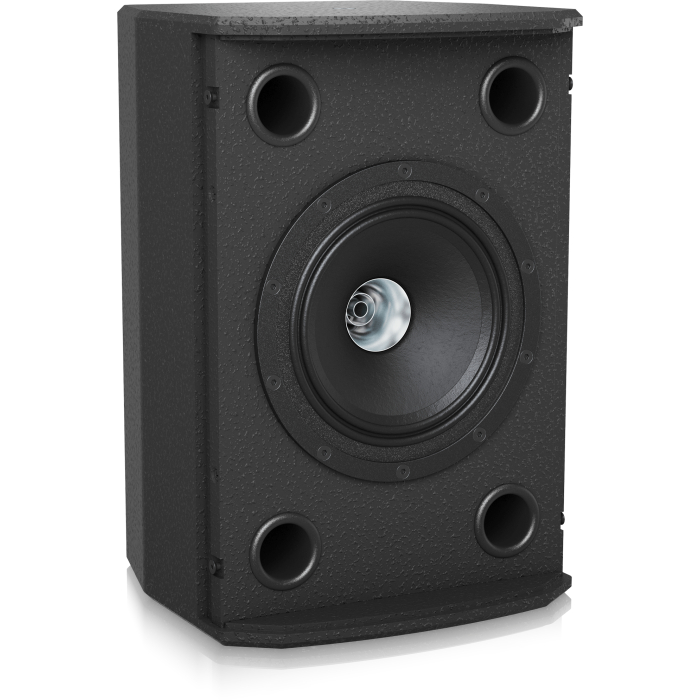

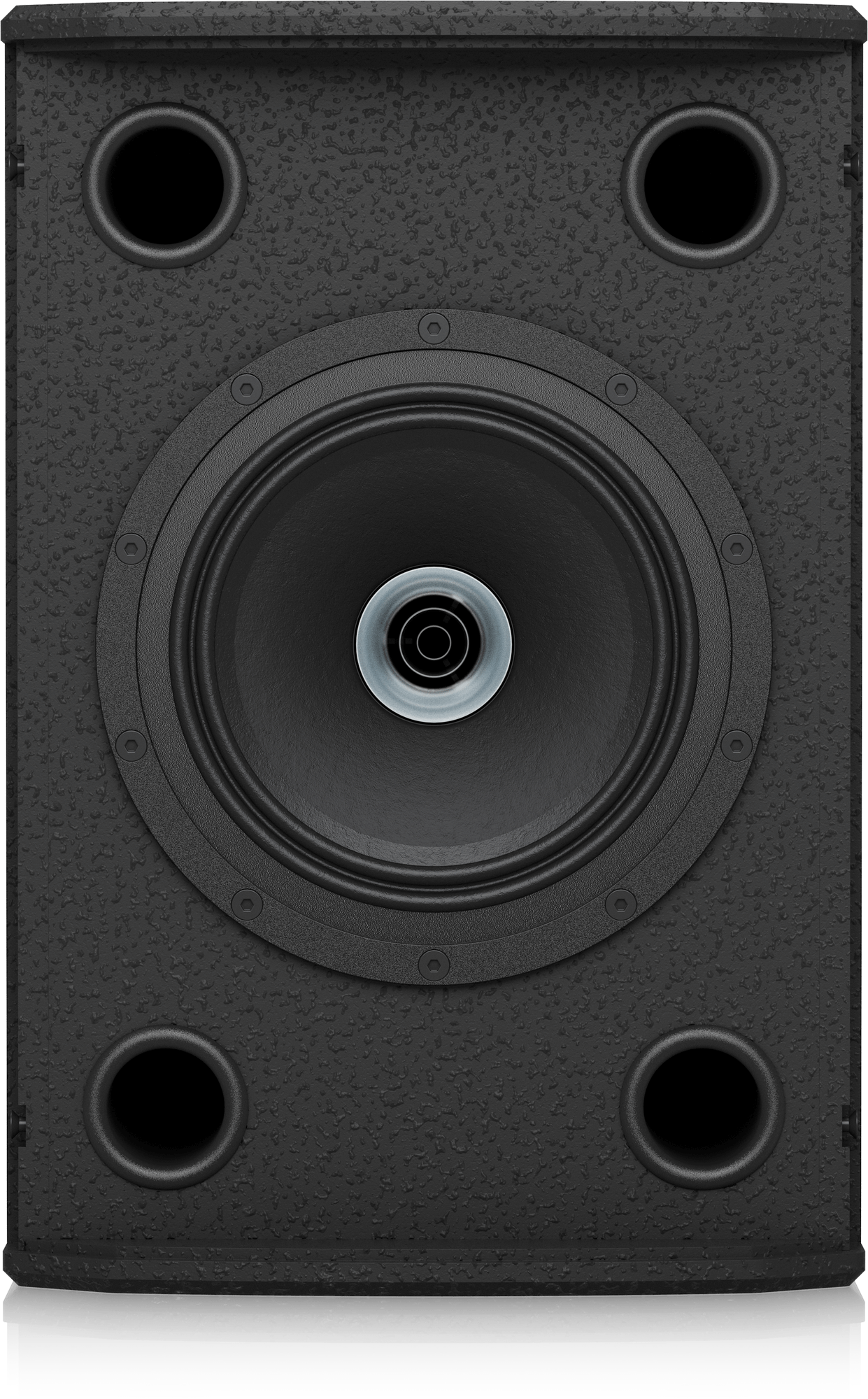

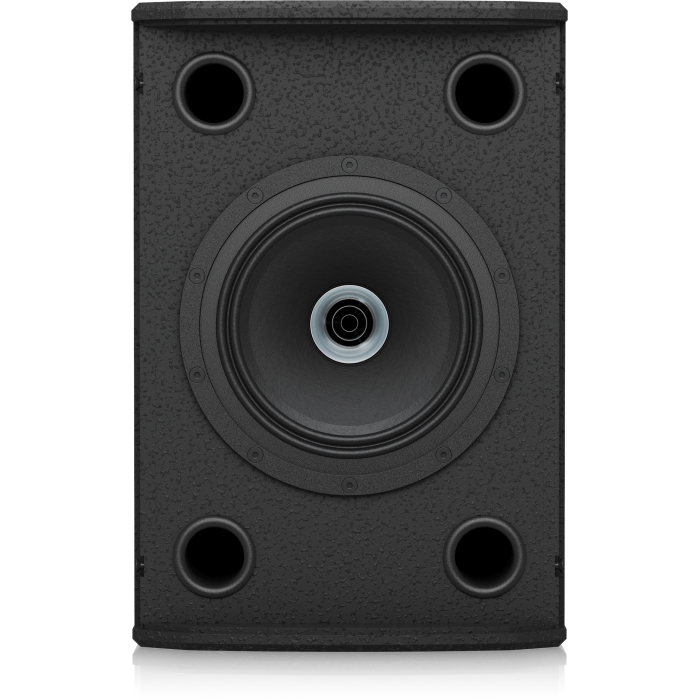

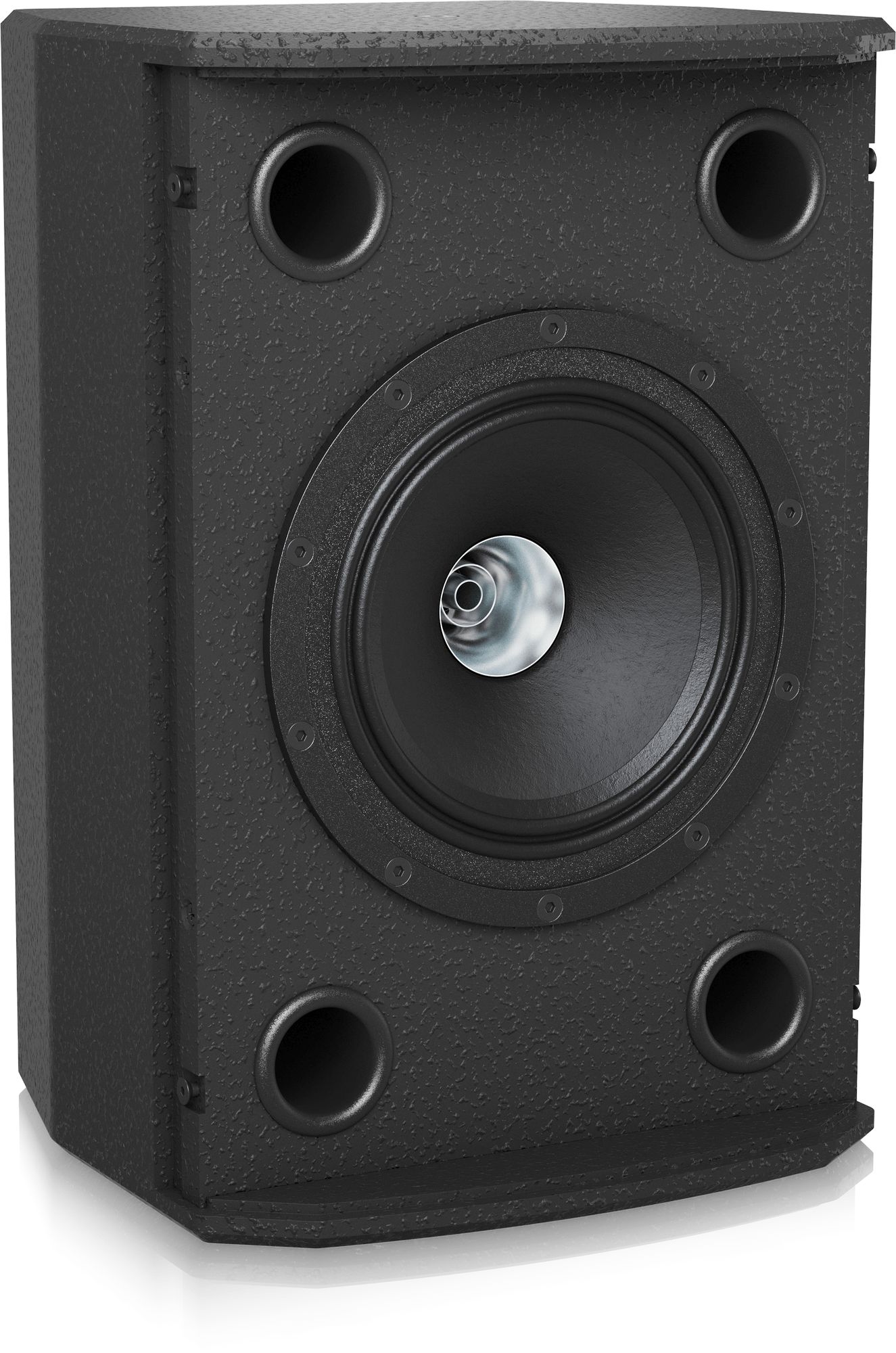

- 6″ Dual Concentric full range driver for point source phase coherence
- Precise 90° dispersion for optimum coverage and forward projection
- Ideal for FOH, floor monitor, delay and stage front fill applications
- Vented and internally braced plywood enclosure
- Finished with hard wearing semi matt black paint

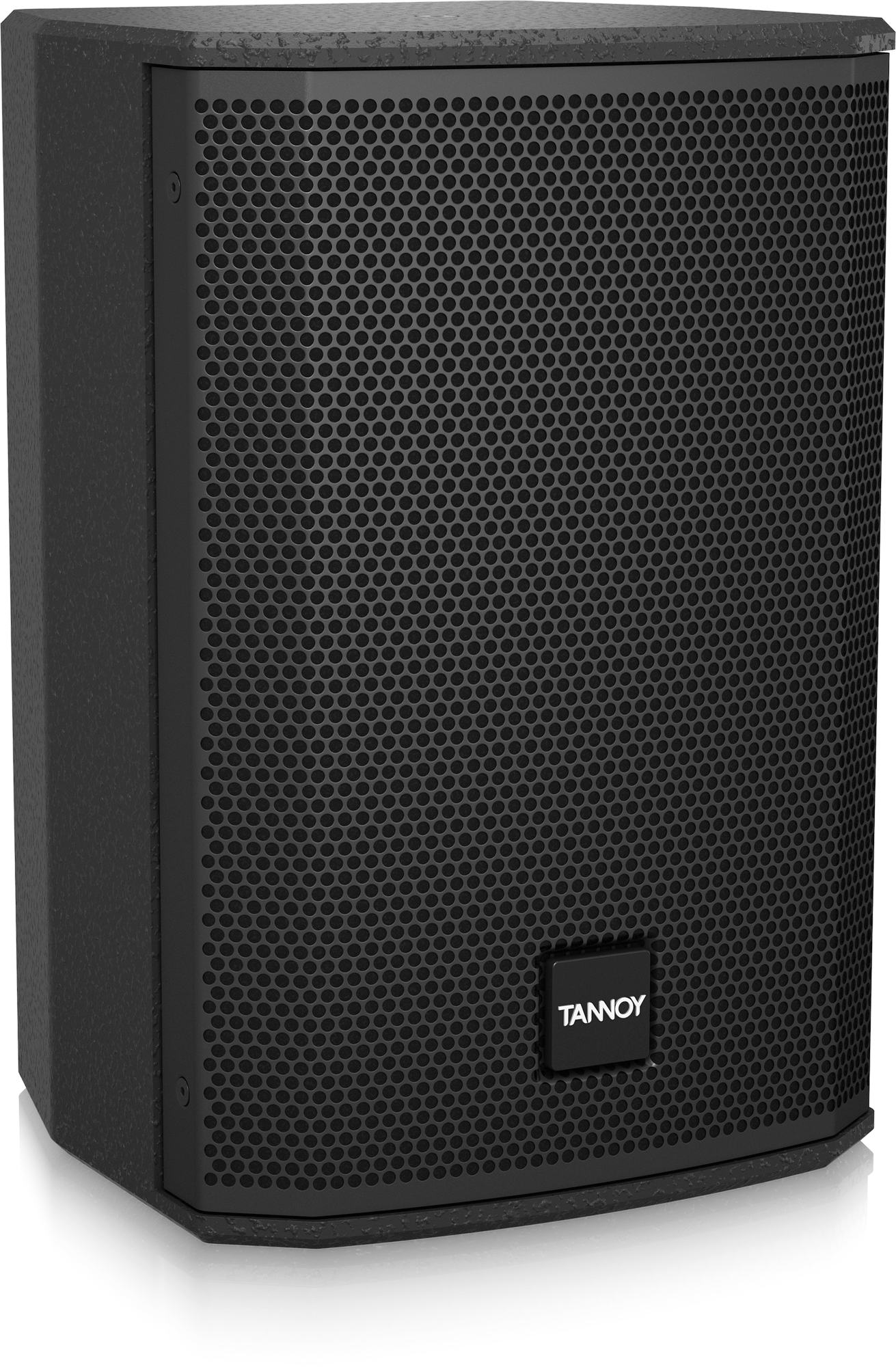

- Rugged powder coated perforated steel mesh grille
- Blanking plate for optional VTH pole mount
- Optional horizontal mounting yoke (available separately)
- Neutrik speakON* NL4 and barrier strip connectors for input and link output
Specifications
System
| Frequency response (Full range mode) |
92 Hz – 35 kHz ±3 dB |
| Nominal dispersion |
90° conical @ -6 dB point |
| Directivity factor (Q) |
5.6 |
| Directivity index (DI) |
7 |
| Power handling (IEC) |
100 W continuous, 400 W |
| Sensitivity |
91 dB (1 W @ 1 m) |
| Maximum SPL |
111 dB continuous, 117 dB peak |
| Impedance |
8 Ω |
| Crossover Type |
Passive / Bi-amp switchable |
| Components |
1 x 6″ (150 mm) constant directivity PowerDual |
Enclosure

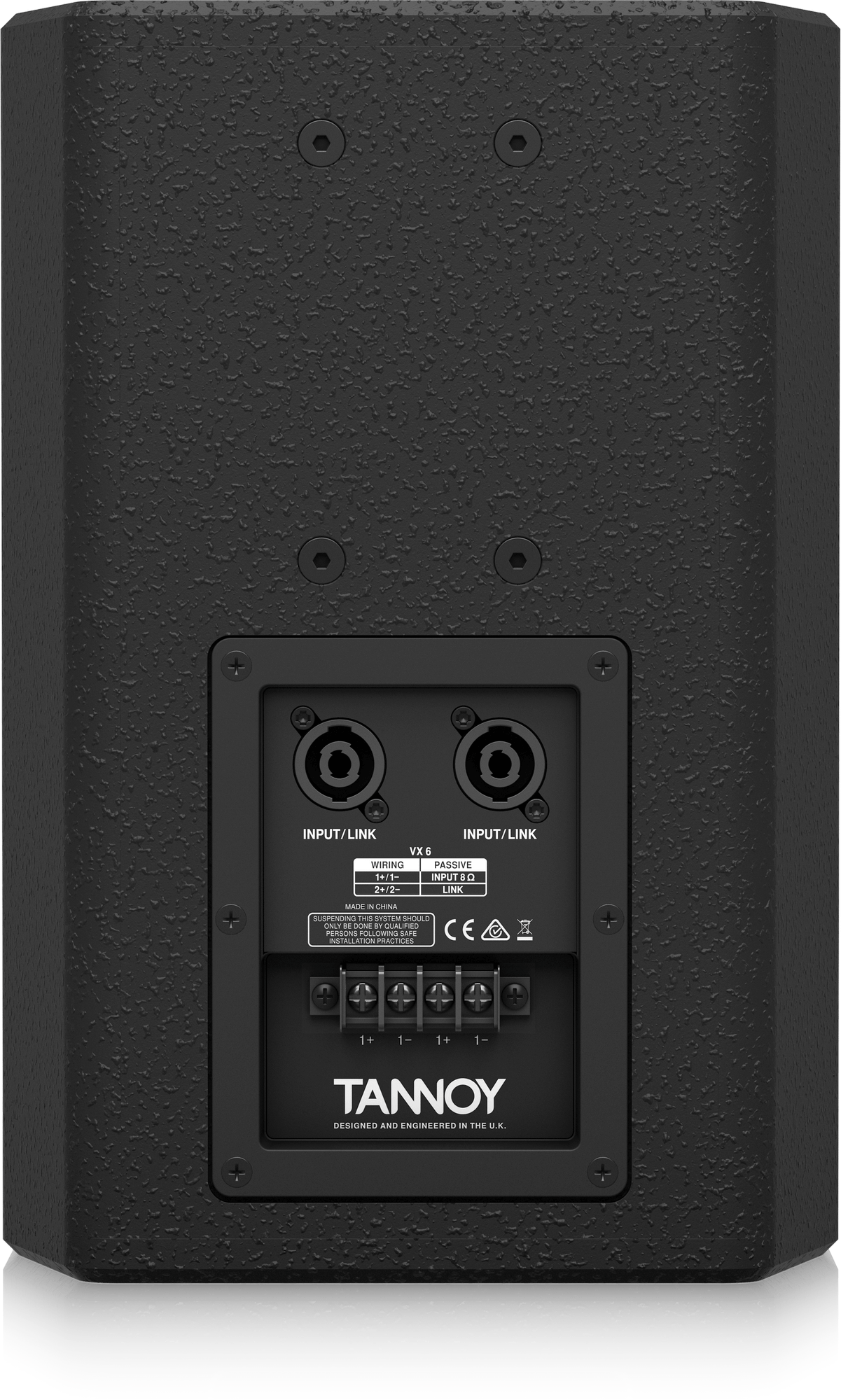

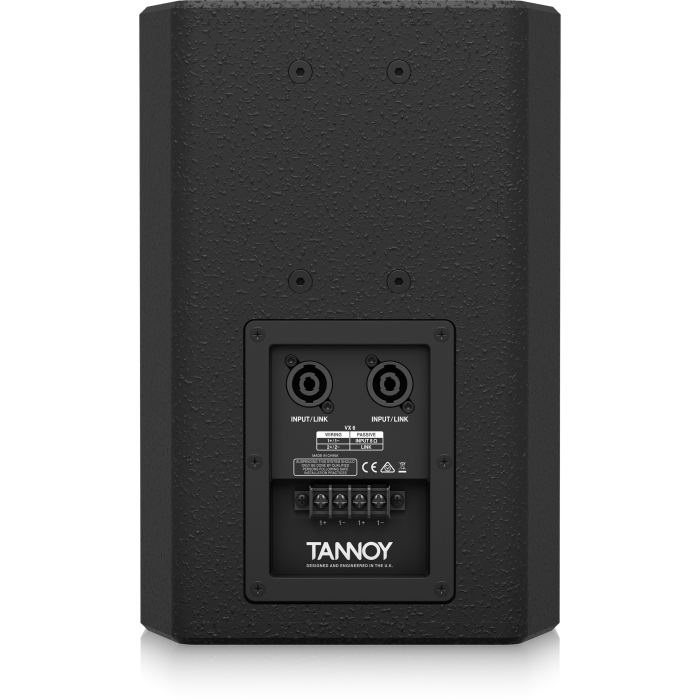

| Connectors |
2x Neutrik speakON* NL4, 1 x barrier strip terminals |
| Wiring |
Pins 1+ / 1- Input, Pins 2+ / 2- Link |
| Dimensions H x W x D |
334 x 226 x 216 mm (13.1 x 8.9 x 8.5″) |
| Net weight |
5.0 kg (11.0 lbs) |
| Construction |
12 mm (1/2″) plywood, vented and internally braced |
| Finish |
Semi matt black paint (white optional) |

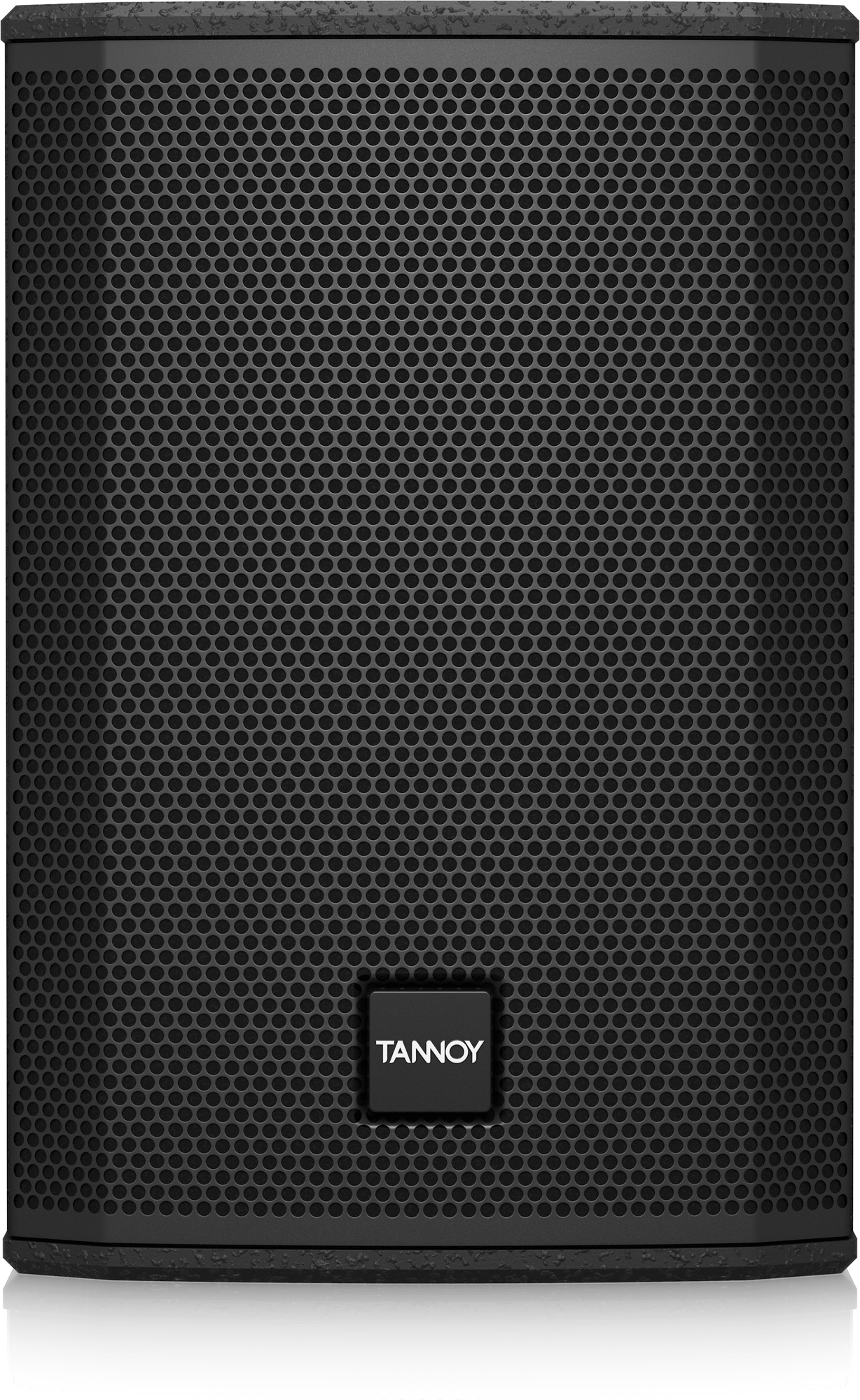

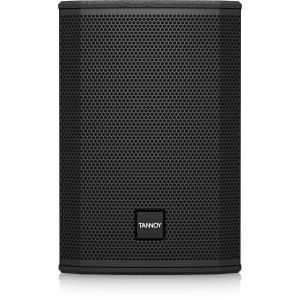

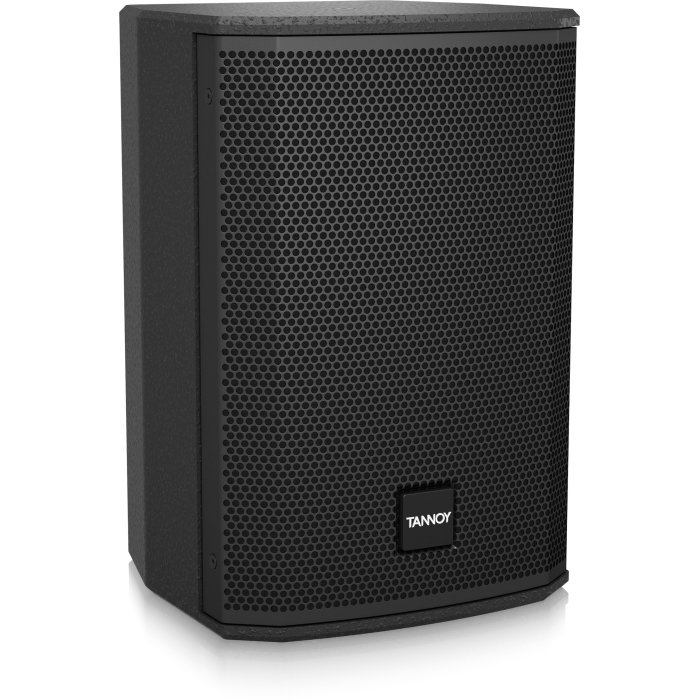

| Grille |
Powder coated perforated steel |
| Flying hardware |
M6 x 2 yoke bracket insert (4 mm allen key), M6 x 4 inserts, Compatible with industry standard brackets, Blanking plate for optional VTH pole mount |
