Tannoy VX 15HP 15″ Full Range PowerDual Loudspeaker

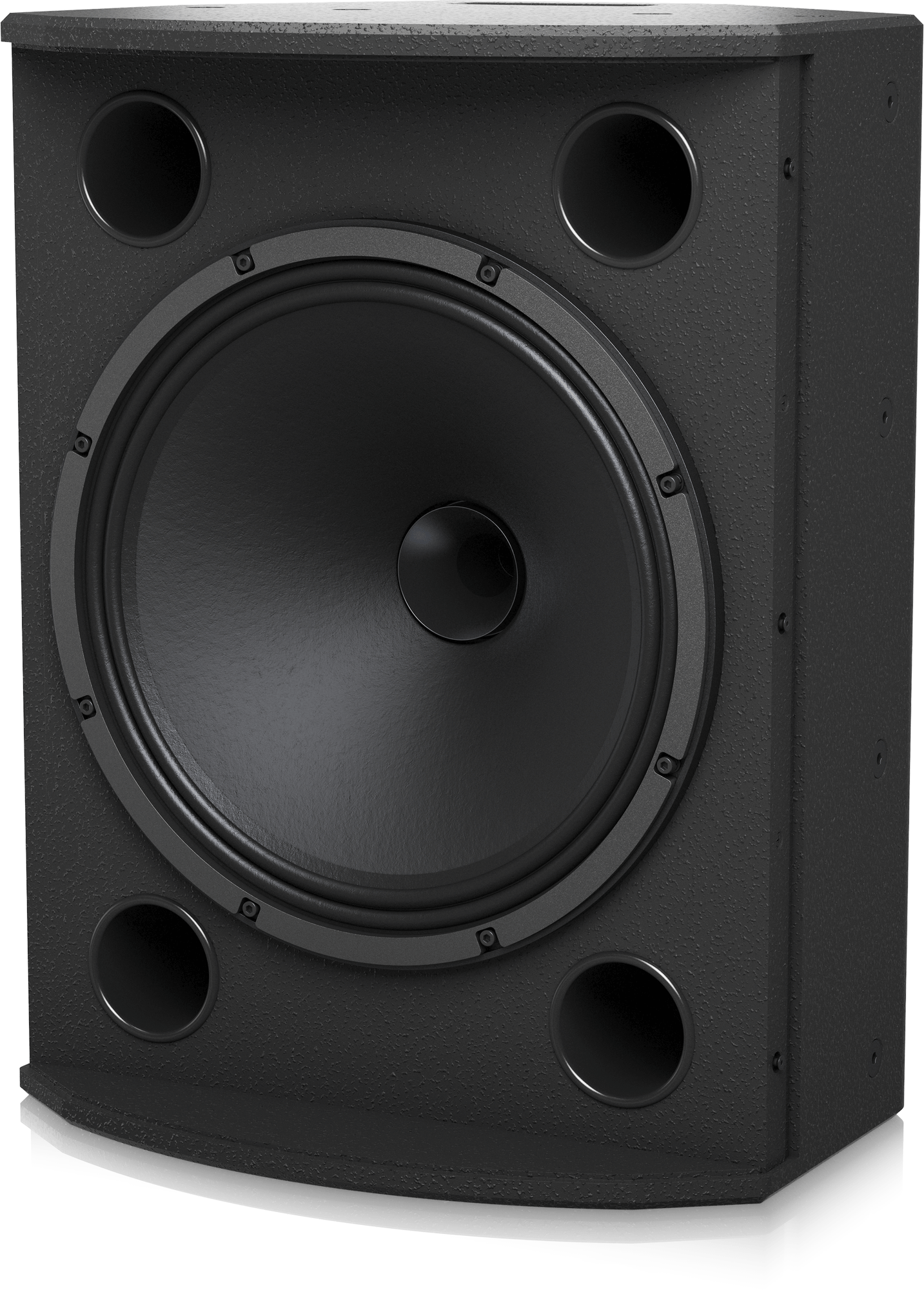

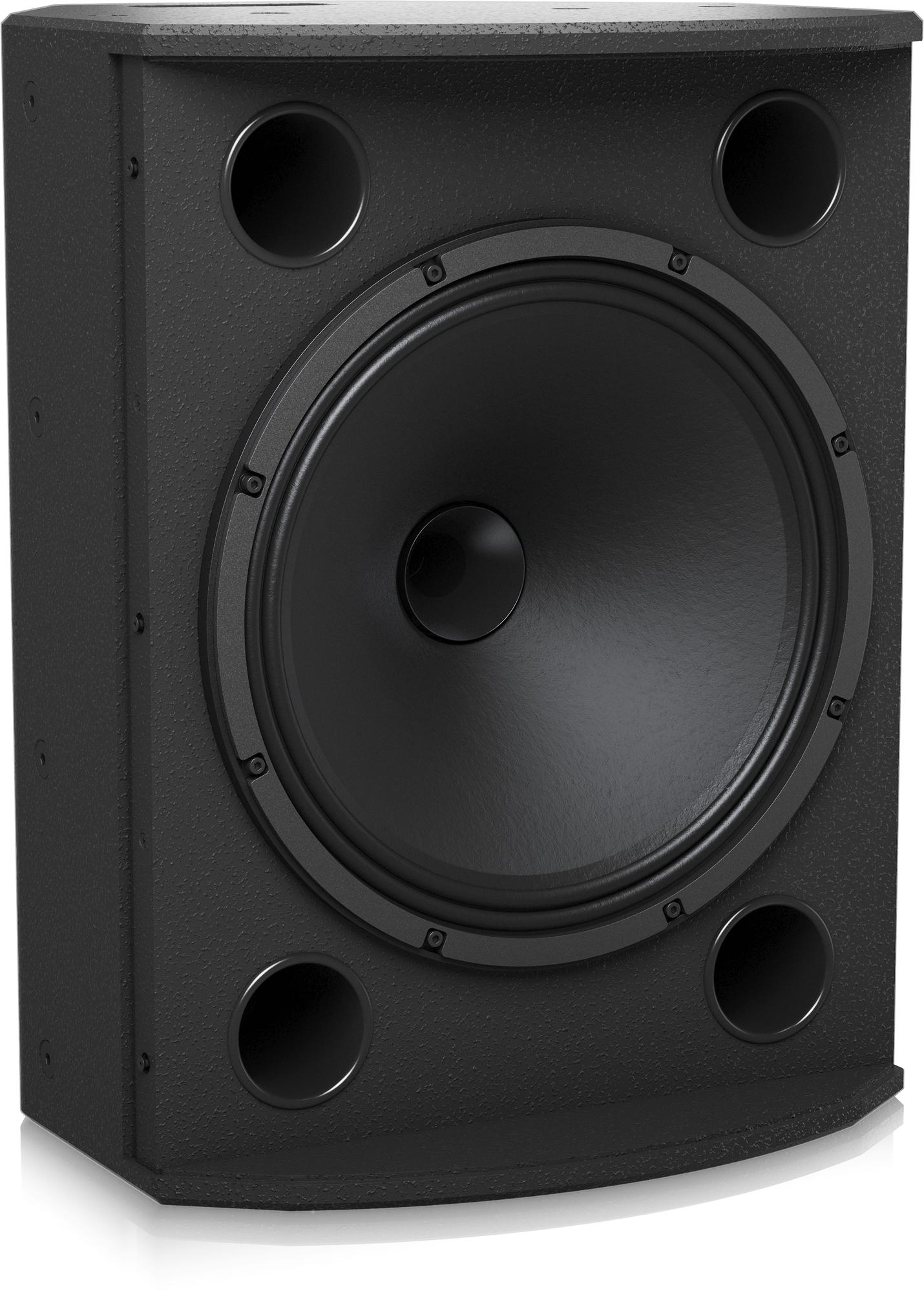

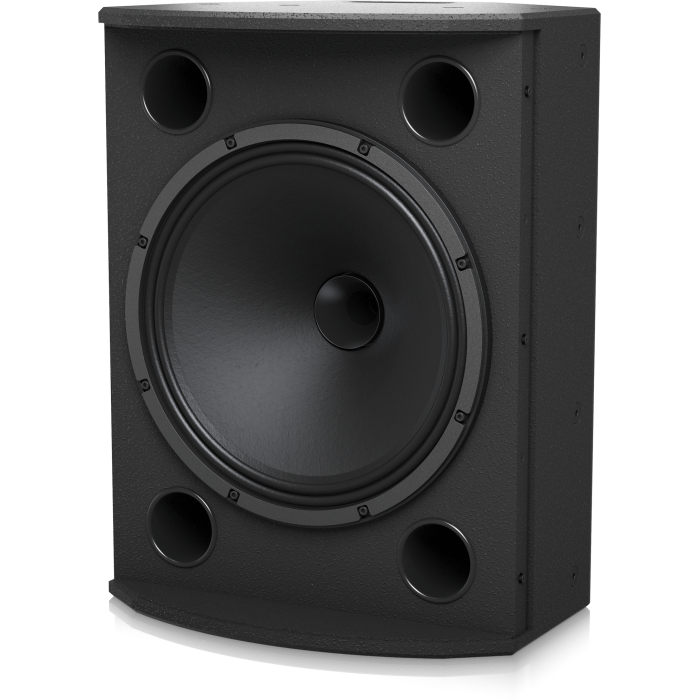

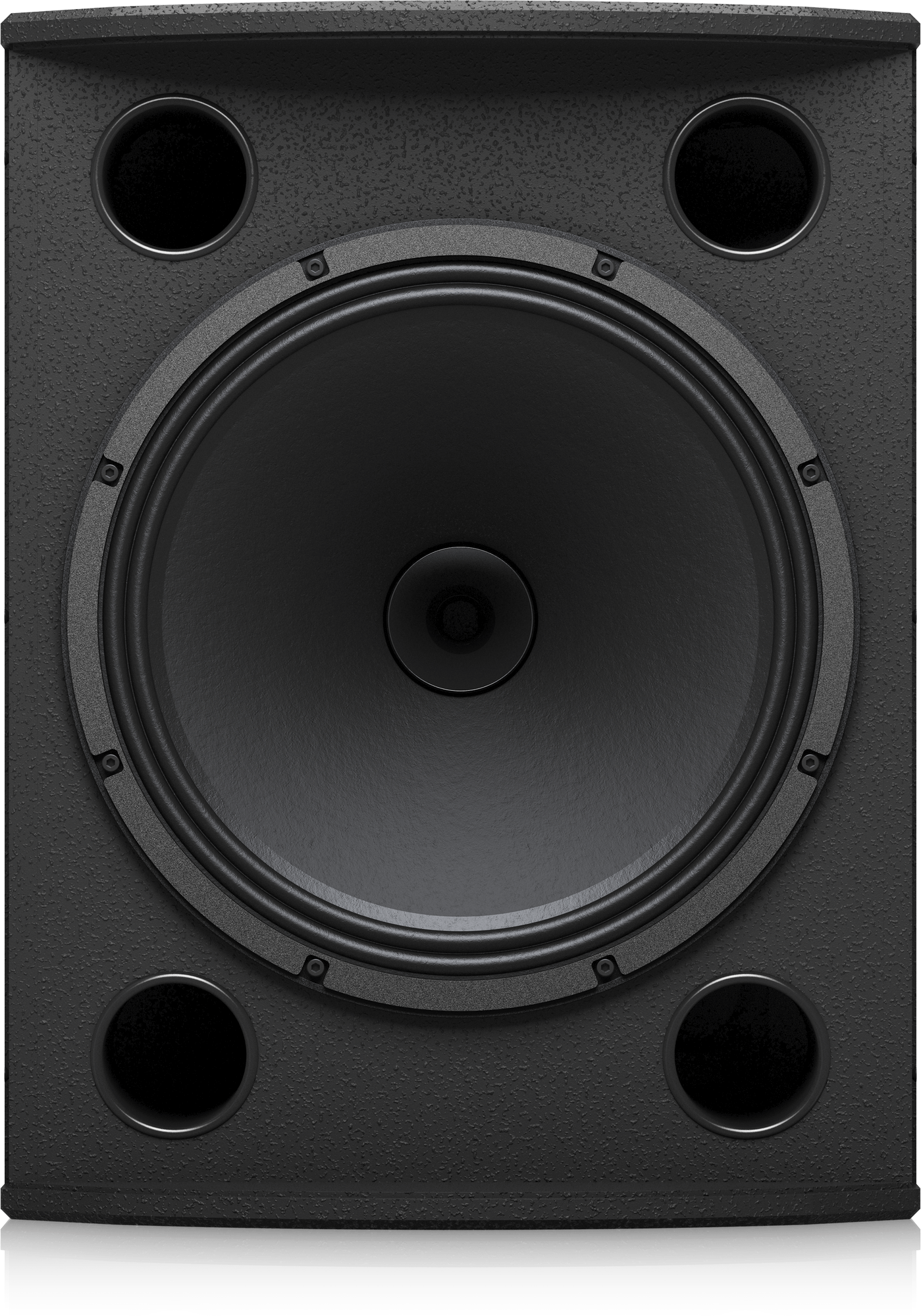

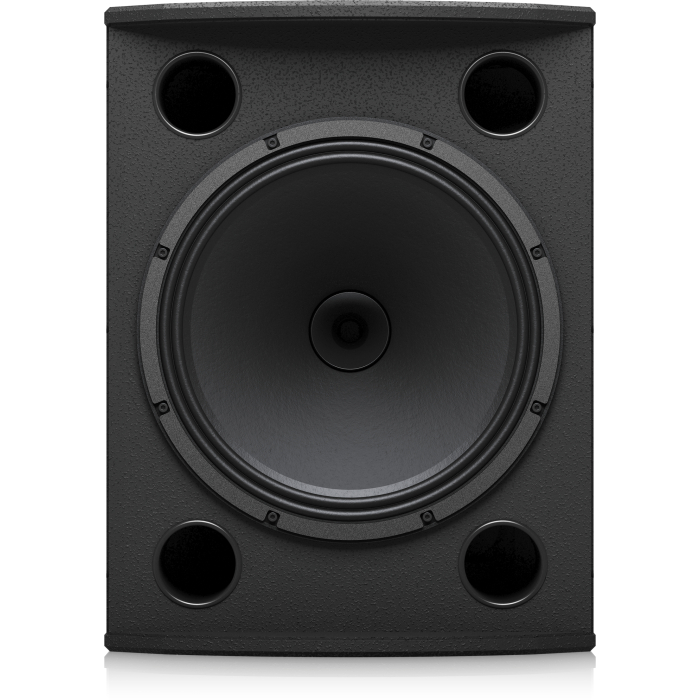

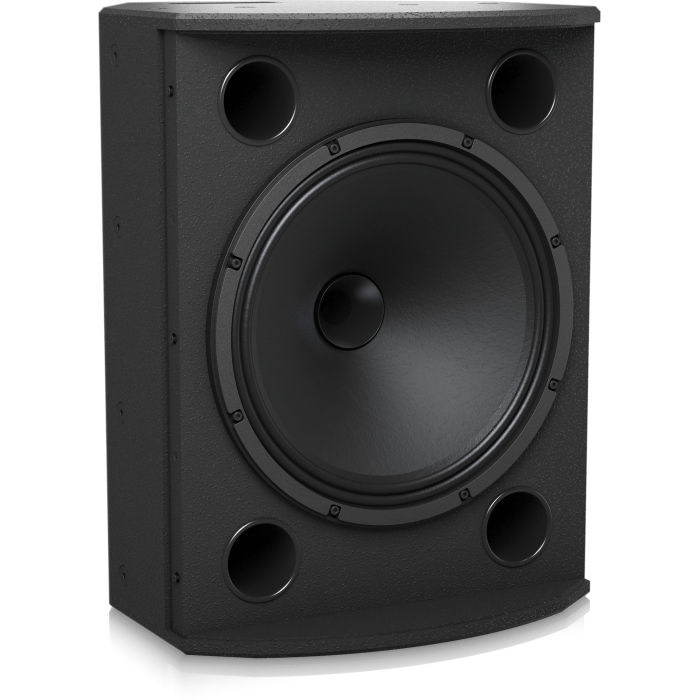

The VX 15HP features a single 380 mm (15″) PowerDual driver housed in a compact, durable plywood cabinet, known for its high power output, sensitivity, and efficiency. Utilizing TANNOY’s point source, constant directivity PowerDual technology, it ensures smooth beam-width characteristics for even coverage and predictable system design. Its symmetrical dispersion allows for flexible vertical or horizontal mounting, making it ideal for both installed and portable applications. The VX 15HP also supports bi-amp operation and seamlessly complements larger systems.
- Estimated Delivery: 2–3 business days across the UAE
- Free Shipping & Returns : On all orders over AED 1000
Description
TANNOY VX 15HP Multi-purpose Sound Reinforcement Loudspeaker
The TANNOY VX 15HP is expertly crafted with a single 380 mm (15″) PowerDual driver within a robust plywood cabinet, promising versatile and exceptional performance. This high power-handling version incorporates TANNOY’s exclusive point source, constant directivity PowerDual technology, ensuring superior power output, high sensitivity, and remarkable efficiency. The driver configuration delivers smooth beam-width characteristics for uniform coverage, aiding in reliable system design. Whether mounted vertically or horizontally, the symmetrical dispersion ensures premium sound quality, making the VX 15HP suitable for larger systems, installed, or portable applications. It can also be configured for bi-amp operation.
Features
- Full range multi-purpose loudspeaker for both portable and installation applications
- 400 Watts continuous, 1,600 Watts peak power
- 15″ PowerDual full-range driver for point-source phase coherence
- Precision 75° dispersion for optimal coverage and forward projection
- Ideal for FOH, floor monitor, and side-fill applications
- Configurable for bi-amp operation
- Vented and internally braced plywood enclosure
- Finished with durable semi-matt black paint

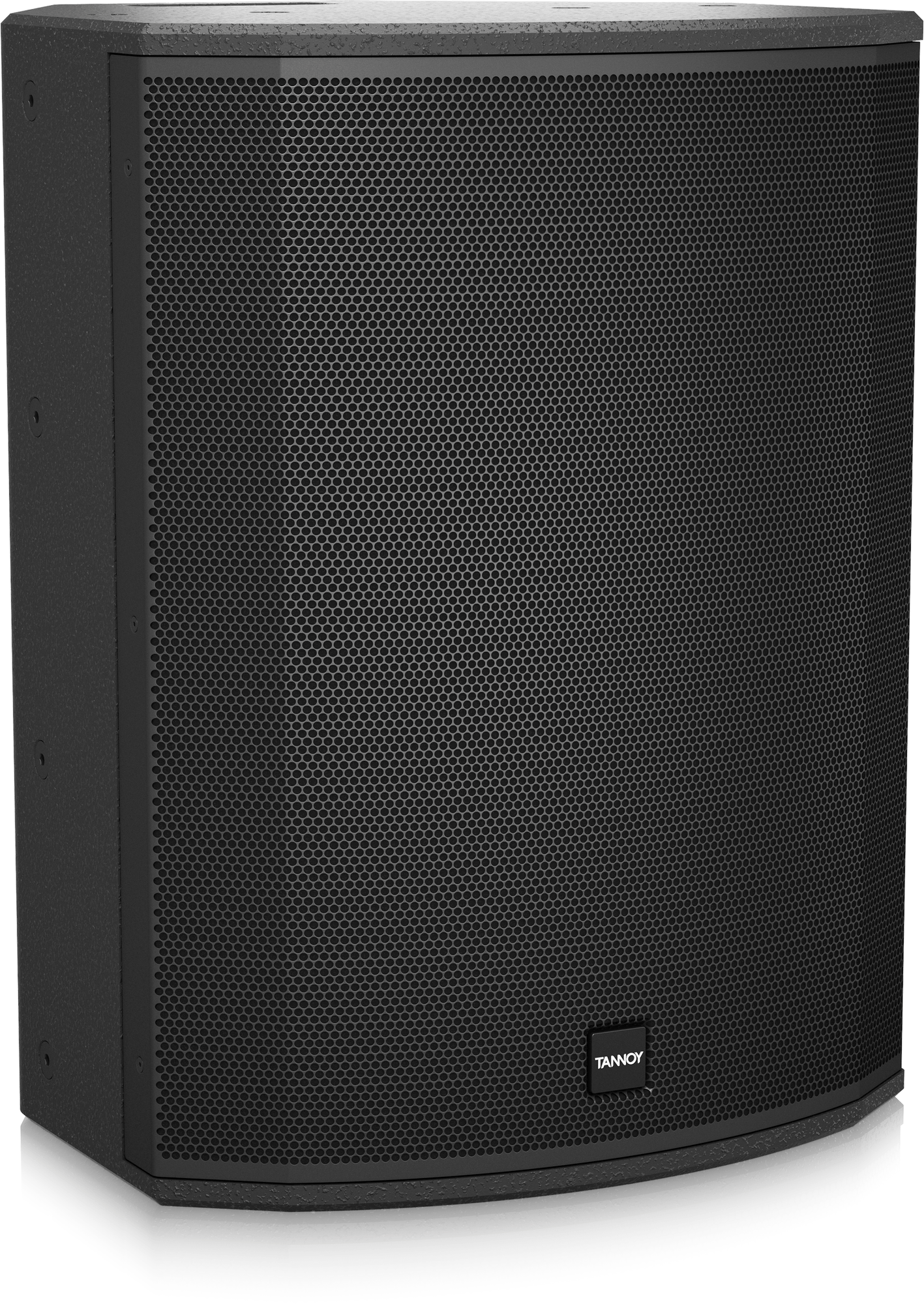

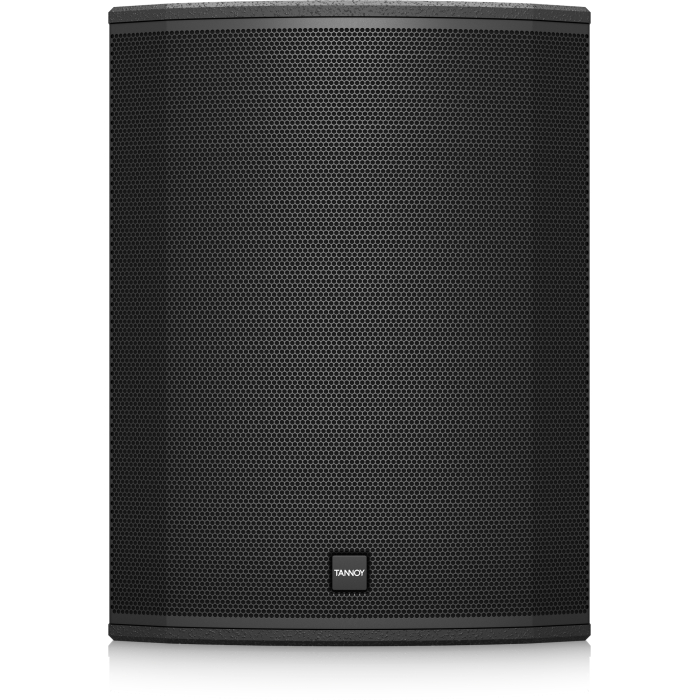

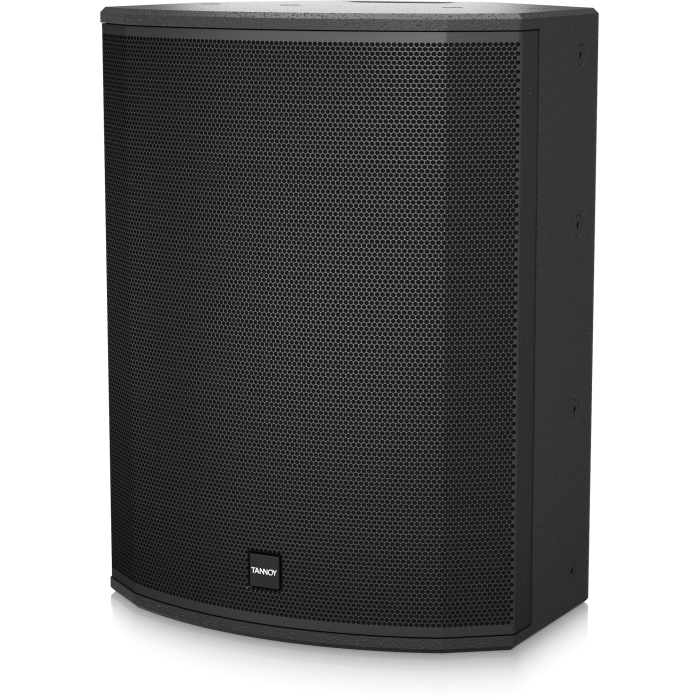

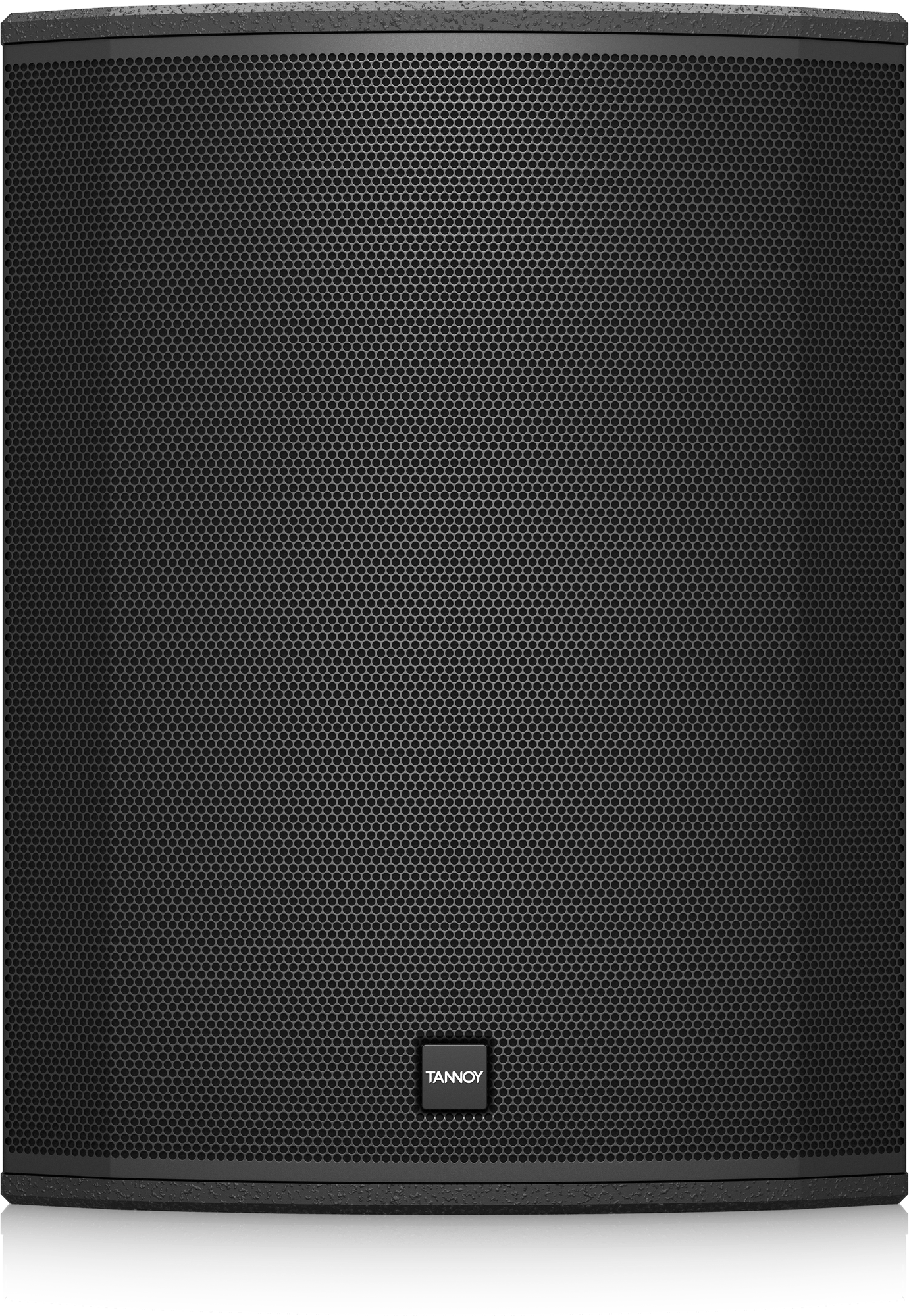

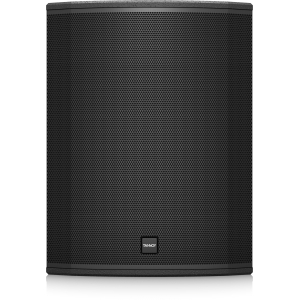

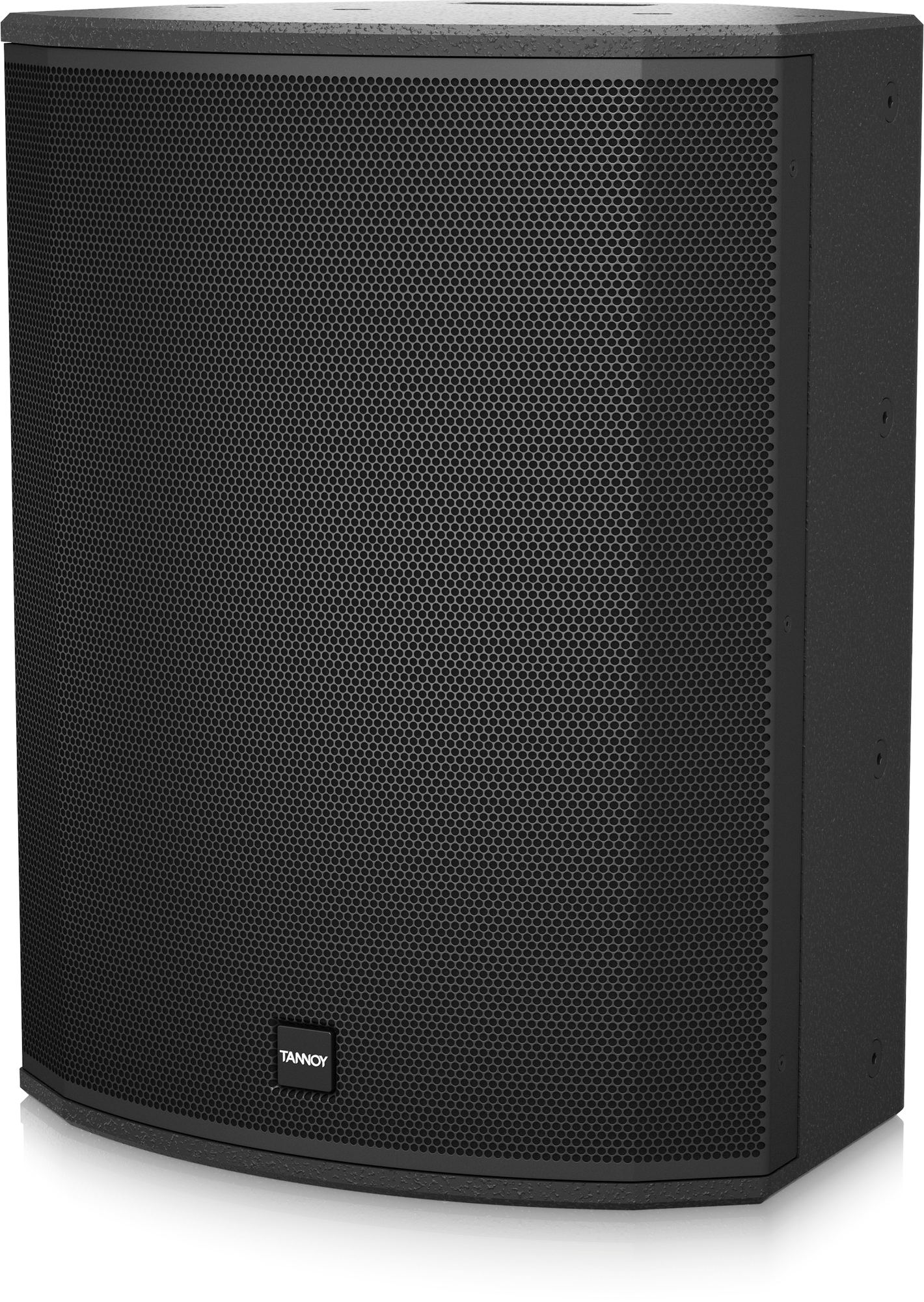

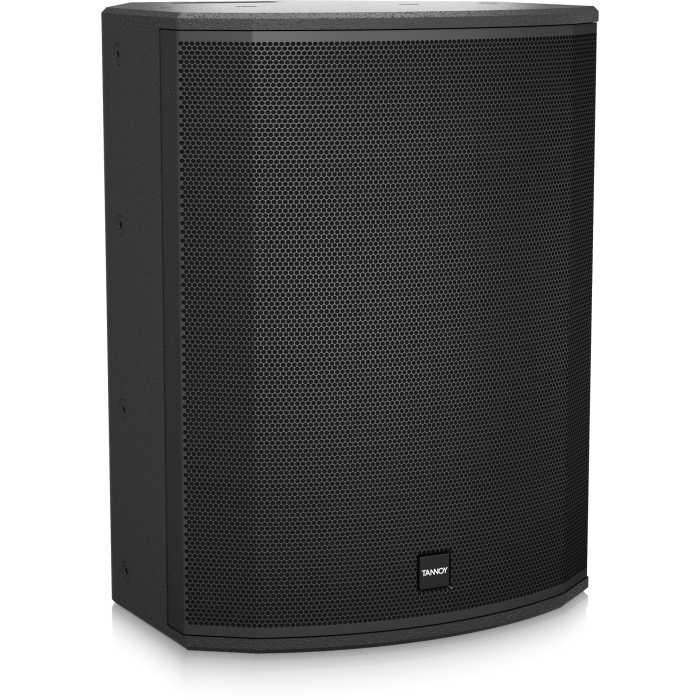

- Rugged powder-coated perforated steel mesh grille
- Blanking plate available for optional VTH pole mount
- Optional horizontal and vertical mounting yokes (sold separately)
- Ergonomic Integrip handles on top and bottom of the cabinet

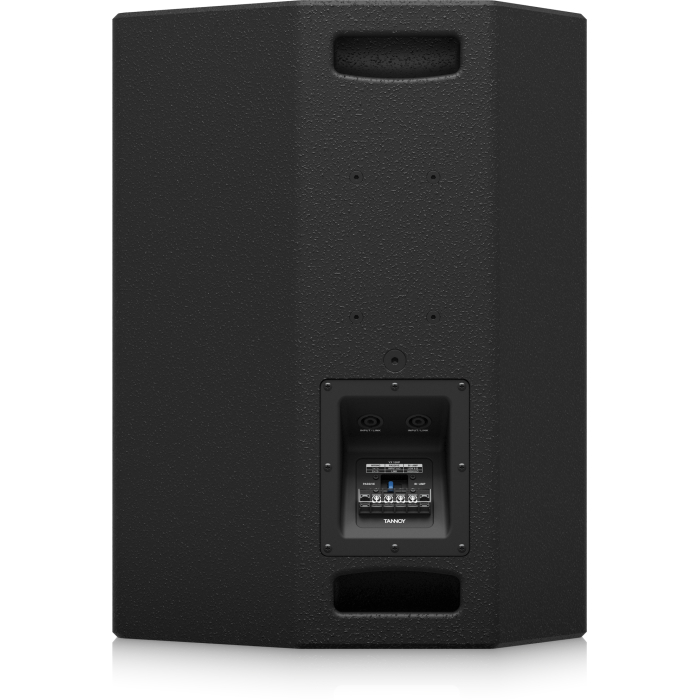

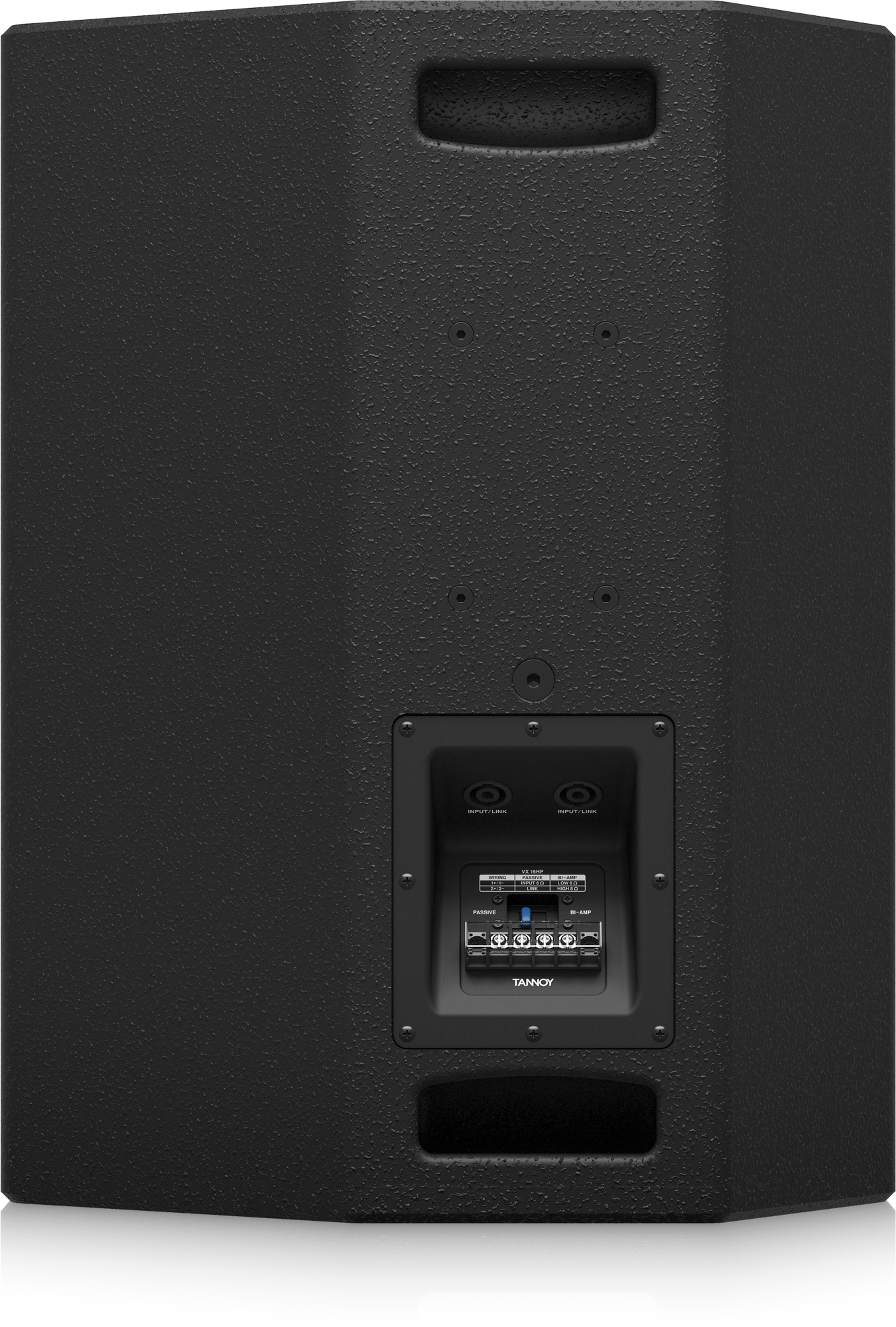

- Neutrik speakON NL4 and barrier strip connectors for input and link output
Specifications
Specification | Details |
---|---|
Frequency Response | 70 Hz – 25 kHz ±3 dB 58 Hz – 30 kHz -10 dB |
Nominal Dispersion | 75° conical @ -6 dB points |
Directivity Factor (Q) | 9.7 |
Directivity Index (DI) | 9.9 |
Power Handling (Passive) | 400 W continuous, 1,600 W peak |
Power Handling (Bi-Amp) | LF: 400 W continuous, 1,600 W peak HF: 80 W continuous, 320 W peak |
Sensitivity | 99 dB (1 W @ 1 m) |
Maximum SPL (Passive) | 125 dB continuous, 131 dB peak |
Maximum SPL (Bi-Amp) | LF: 126 dB continuous, 132 dB peak HF: 125 dB continuous, 131 dB peak |
Impedance | Passive: 8 Ω Bi-Amp: 8 Ω (LF), 8 Ω (HF) |
Crossover Type | Passive / Bi-amp switchable |
Components | 1 x 15″ (380 mm) constant directivity PowerDual |
Connectors | 2 x Neutrik speakON NL4 1 x barrier strip terminals |
Wiring (Passive) | Pins 1+ / 1- Input, Pins 2+ / 2- Link |
Wiring (Bi-Amp) | Pins 1+ / 1- LF, Pins 2+ / 2- HF |
Dimensions (HxWxD) | 591 x 451 x 421 mm (23.3 x 17.8 x 16.6″) |
Net Weight | 25.5 kg (56.2 lbs) |
Construction | 18 mm (3/4″) enclosure / 18 mm (3/4″) front, plywood, vented and internally braced |
Finish | Semi-matt black paint (white optional) |
Grille | Powder-coated perforated steel |
Flying Hardware | M10 x 8 flying inserts (portrait or landscape mounting) M10 x 8 yoke bracket inserts 2 x Integrip carrying handles Blanking plate for optional VTH pole mount Compatible with industry-standard brackets M6 x 4 inserts |
