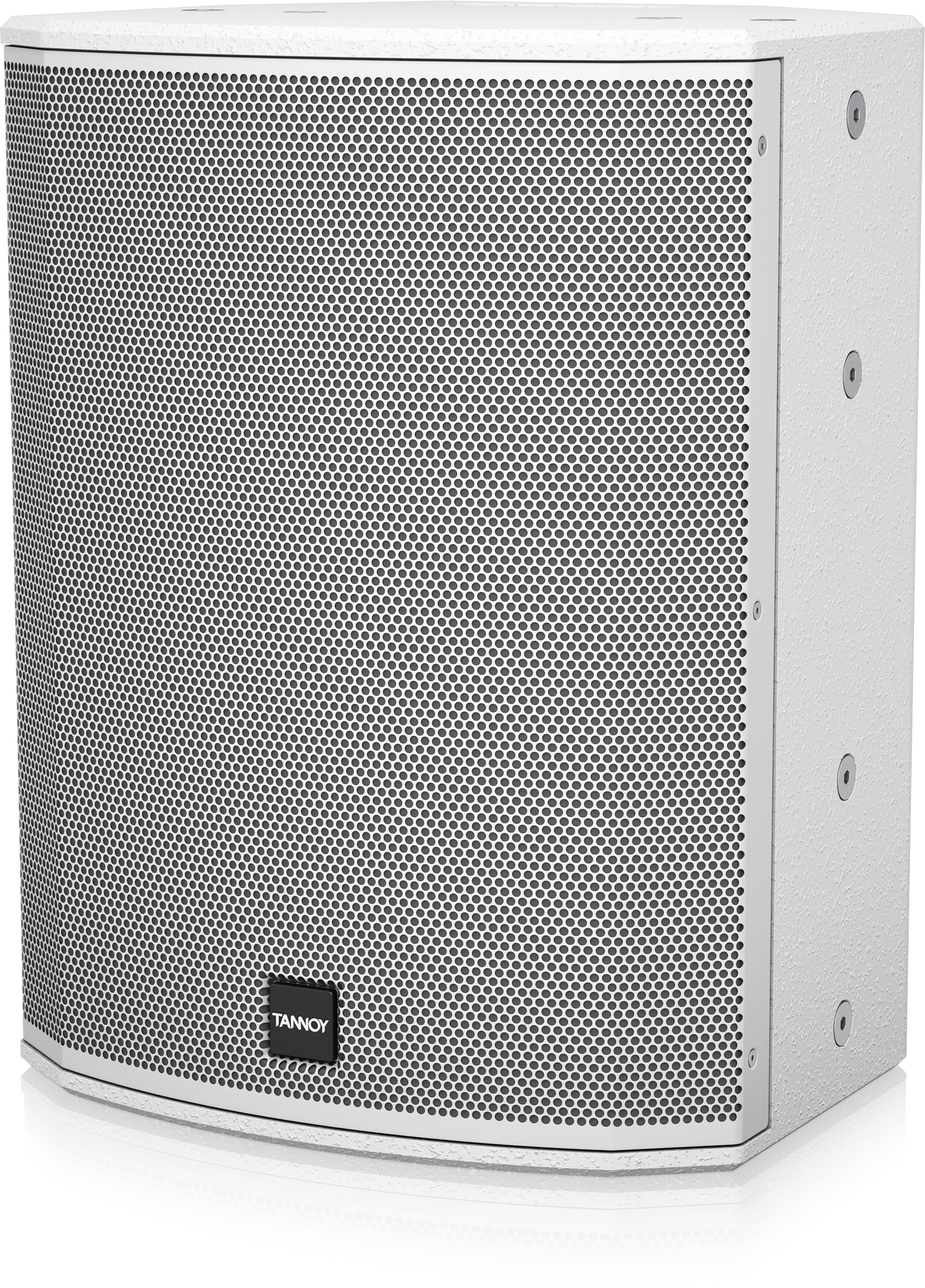

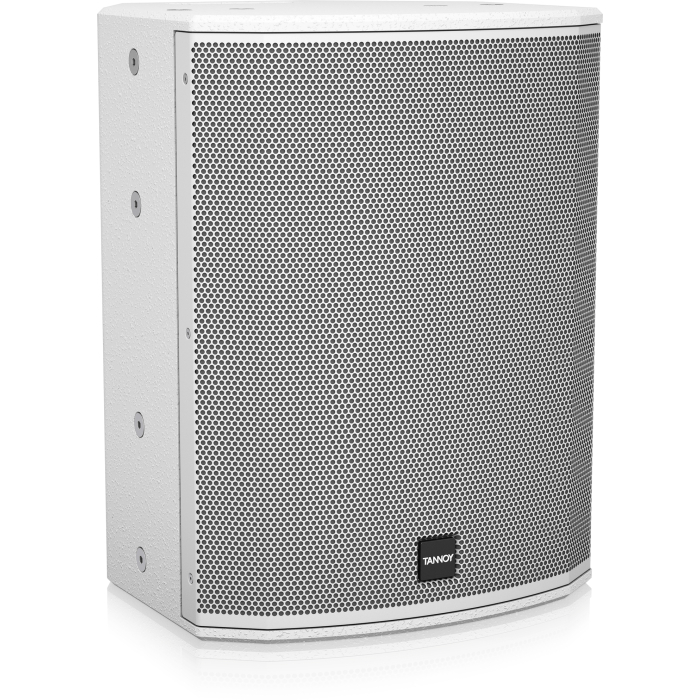

Tannoy VX 12-WH 12-Inch Dual Concentric Full Range Loudspeaker – White

AED 3549 inc VAT.

The VX 12-WH Dual Concentric Full Range Loudspeaker delivers exceptional performance in a compact form, ideal for small-scale sound reinforcement, background music, and high-intelligibility speech applications. Its twin driver design and versatile mounting options make it a perfect complement to larger sound systems, suitable for both installed and portable use.

In stock

Estimated Delivery: 2–3 business days across the UAE
Free Shipping & Returns : On all orders over AED 1000

Guaranteed Safe And Secure Checkout

Description

VX 12-WH Dual Concentric Full Range Loudspeaker

The VX 12-WH Dual Concentric Full Range Loudspeaker offers a unique blend of powerful performance and compact design. Ideal for a variety of applications, from small-scale sound reinforcement to more complex background music and speech projection, this loudspeaker ensures clarity and natural voice reproduction. The VX 12-WH can seamlessly integrate with larger systems, making it versatile for both installation and portable use.

Key Features

Full range multi-purpose loudspeaker for both portable and installed applications
200 Watts continuous, 800 Watts peak power handling

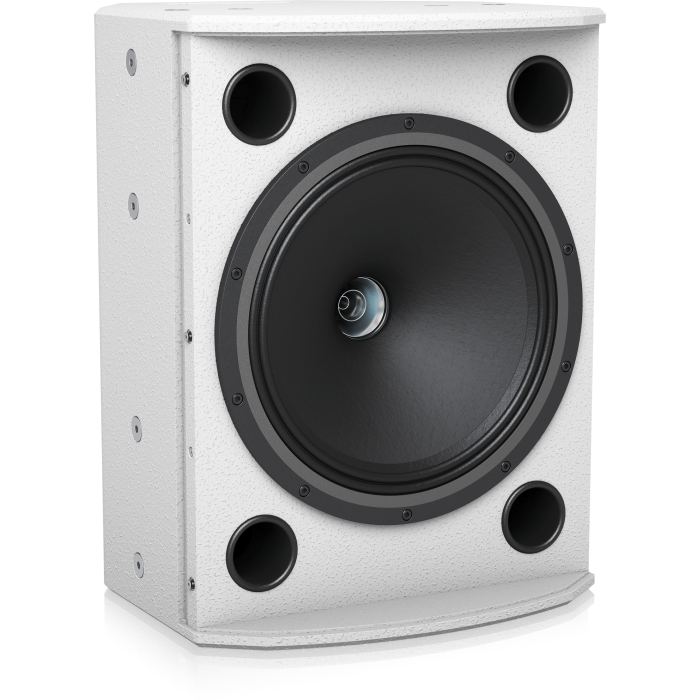

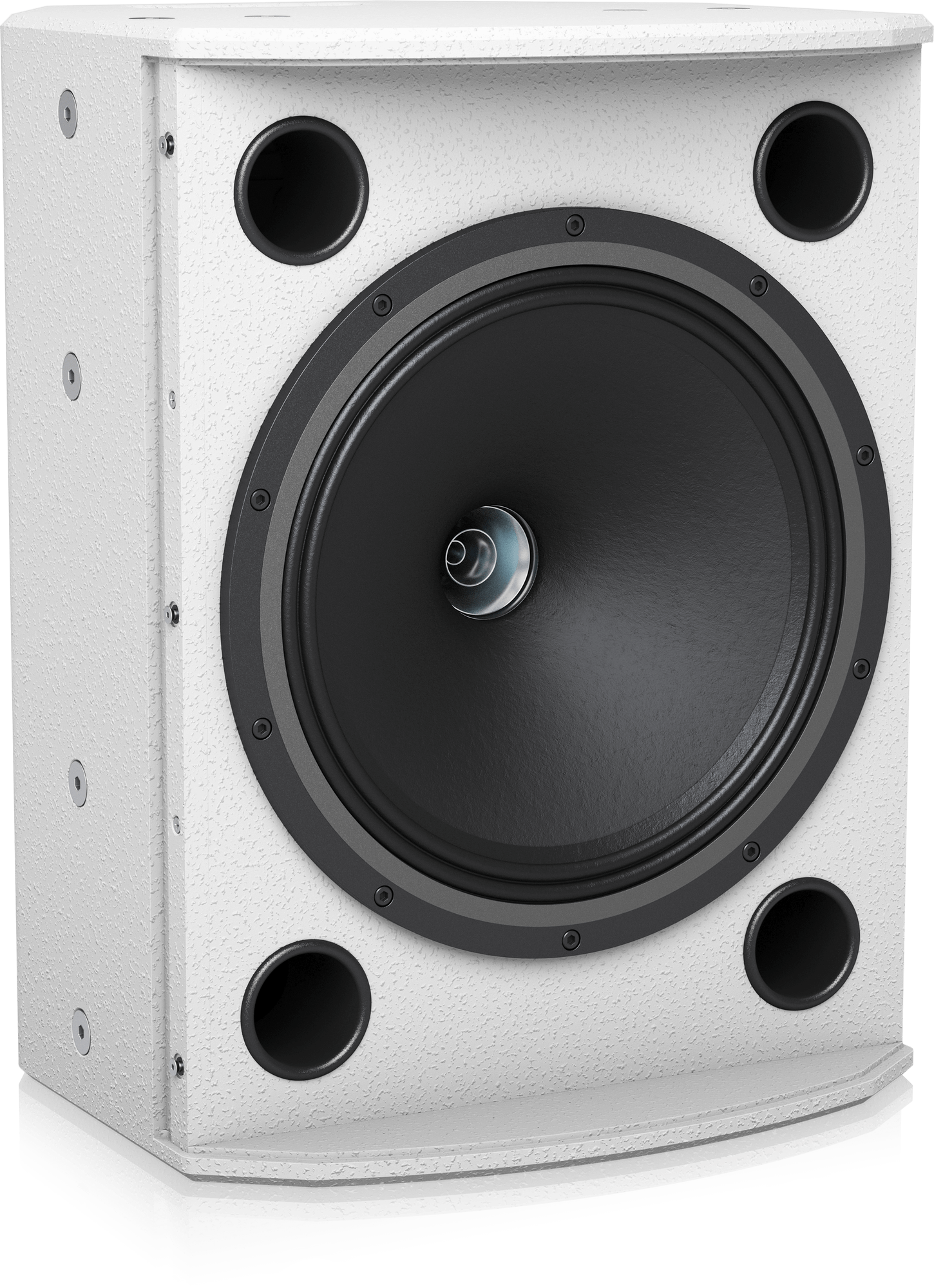

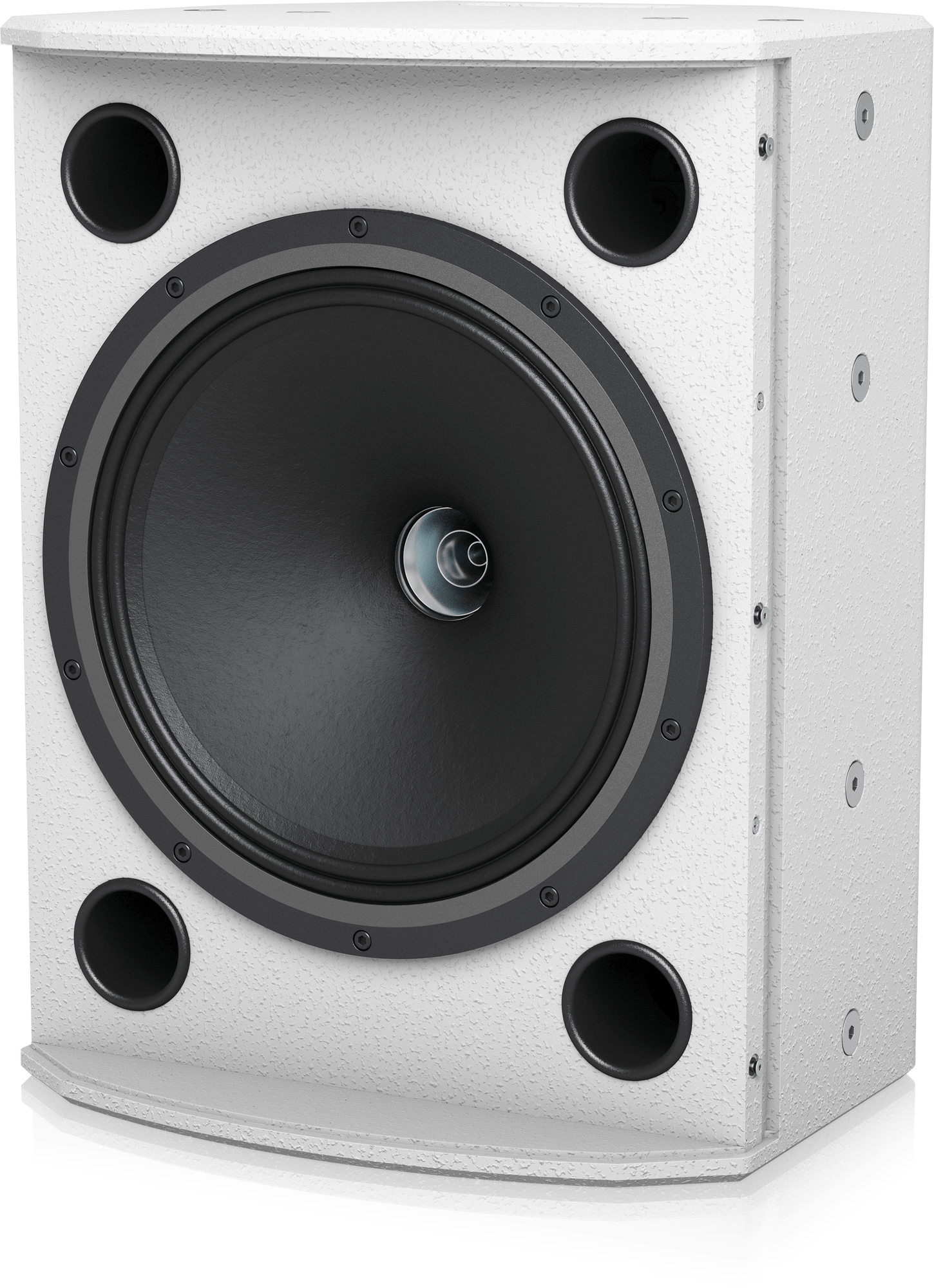

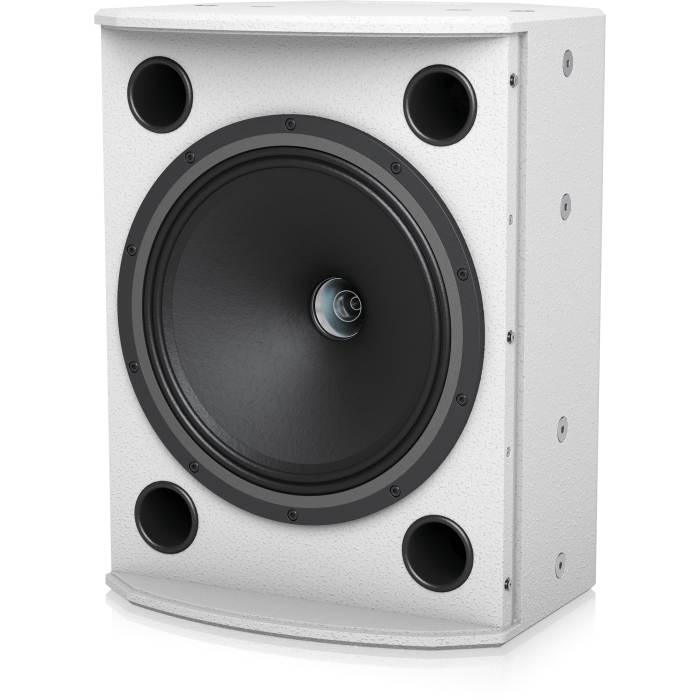

12″ Dual Concentric driver for phase coherent sound
90° conical dispersion for optimal sound coverage
Suited for front of house, floor monitor, and side fill use
Vented plywood enclosure with internal bracing
Durable semi-matt white finish

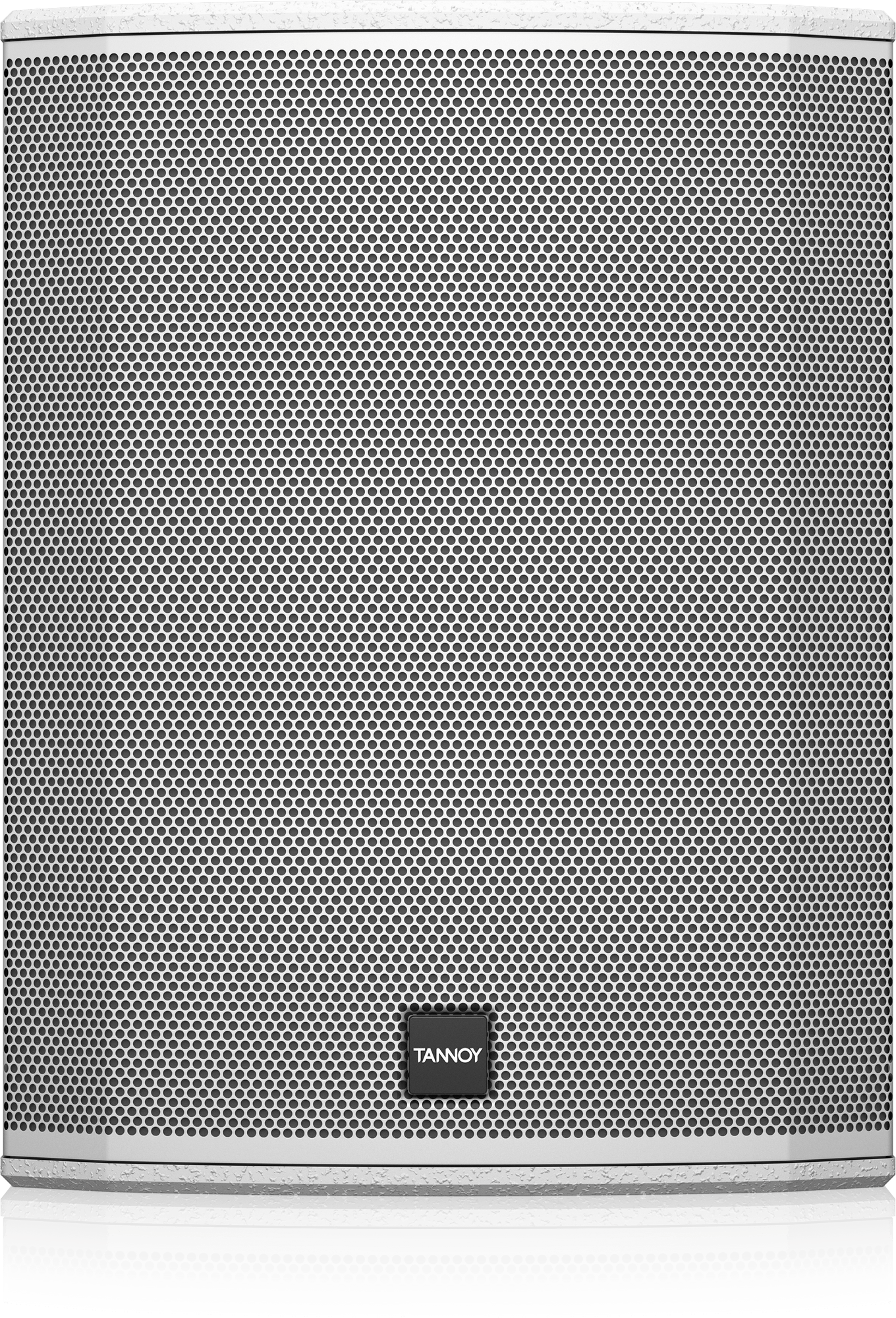

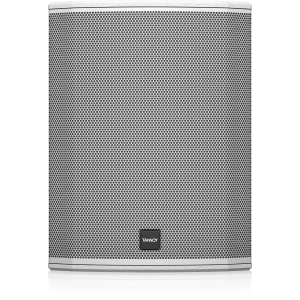

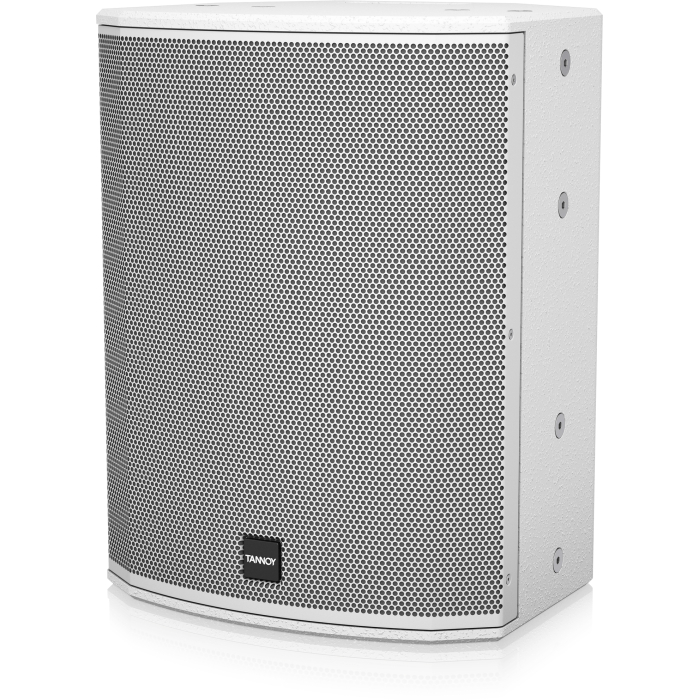

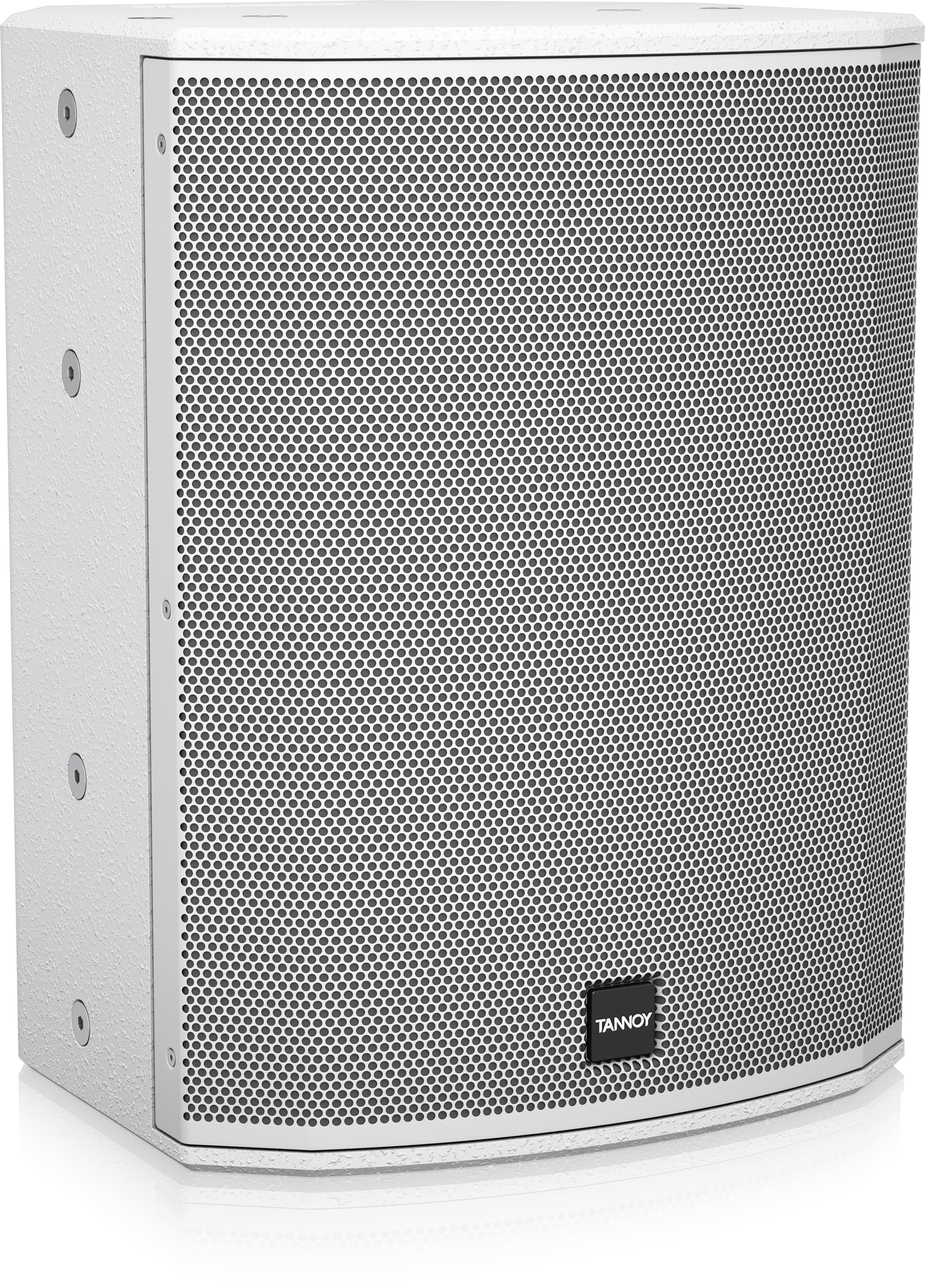

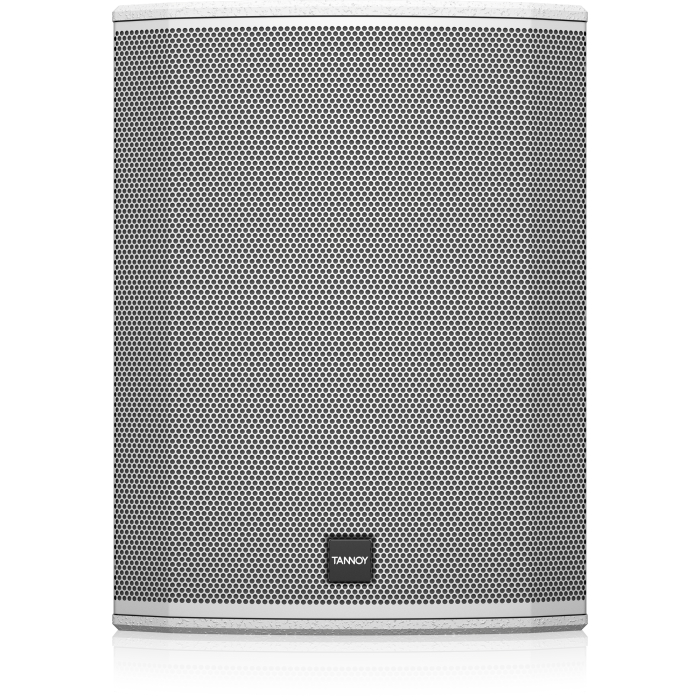

Sturdy perforated steel grille
Optional pole mount and mounting yokes
Integrated ergonomic handles

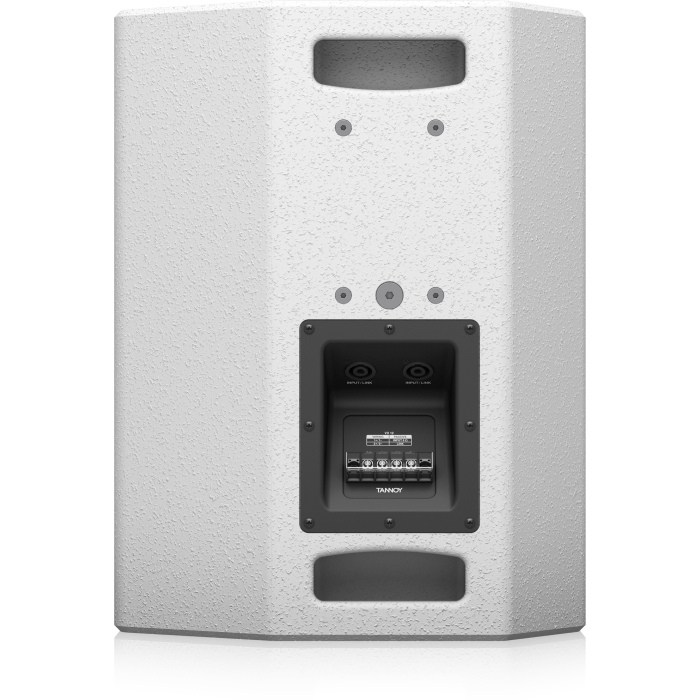

Neutrik speakON NL4 and barrier strip connectors

Specifications

Specification	Details
Frequency Response	70 Hz – 25 kHz (±3 dB) 55 Hz – 38 kHz (-10 dB)
Nominal Dispersion	90° conical at -6 dB point
Directivity Factor (Q)	9.6
Directivity Index (DI)	9.8
Power Handling (IEC)	200 W continuous, 800 W peak
Sensitivity	97 dB (1 W @ 1 m)
Maximum SPL	120 dB continuous, 126 dB peak
Impedance	8 Ω
Crossover Type	Passive with HF protection
Components	1 x 12″ (305 mm) constant directivity Dual Concentric

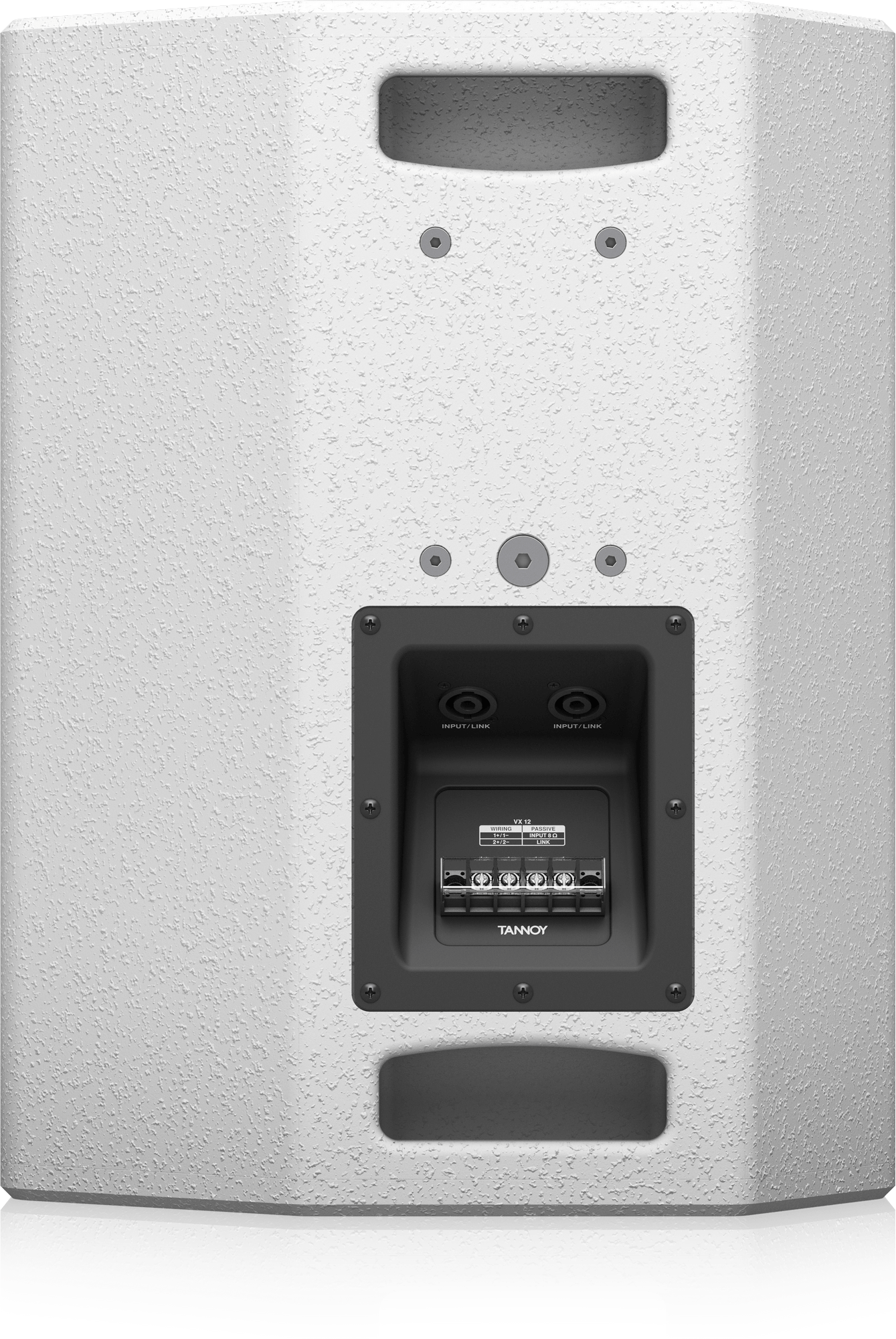

Connectors	2x Neutrik speakON NL4 1 x barrier strip terminals
Wiring	Pins 1+ / 1- Input, Pins 2+ / 2- Link
Dimensions (H x W x D)	487 x 371 x 361 mm (19.2 x 14.6 x 14.2″)
Net Weight	16.5 kg (36.3 lbs)
Construction	15 mm (5/8″) enclosure, 18 mm (3/4″) front, plywood, vented and internally braced
Finish	Semi matt black paint (white optional)
Grille	Powder coated perforated steel
Flying Hardware	M10 x 8 flying inserts for portrait or landscape mounting M10 x 8 yoke bracket inserts 2 x Intergrip carrying handles Blanking plate for optional VTH pole mount Compatible with industry standard brackets M6 x 4 inserts
