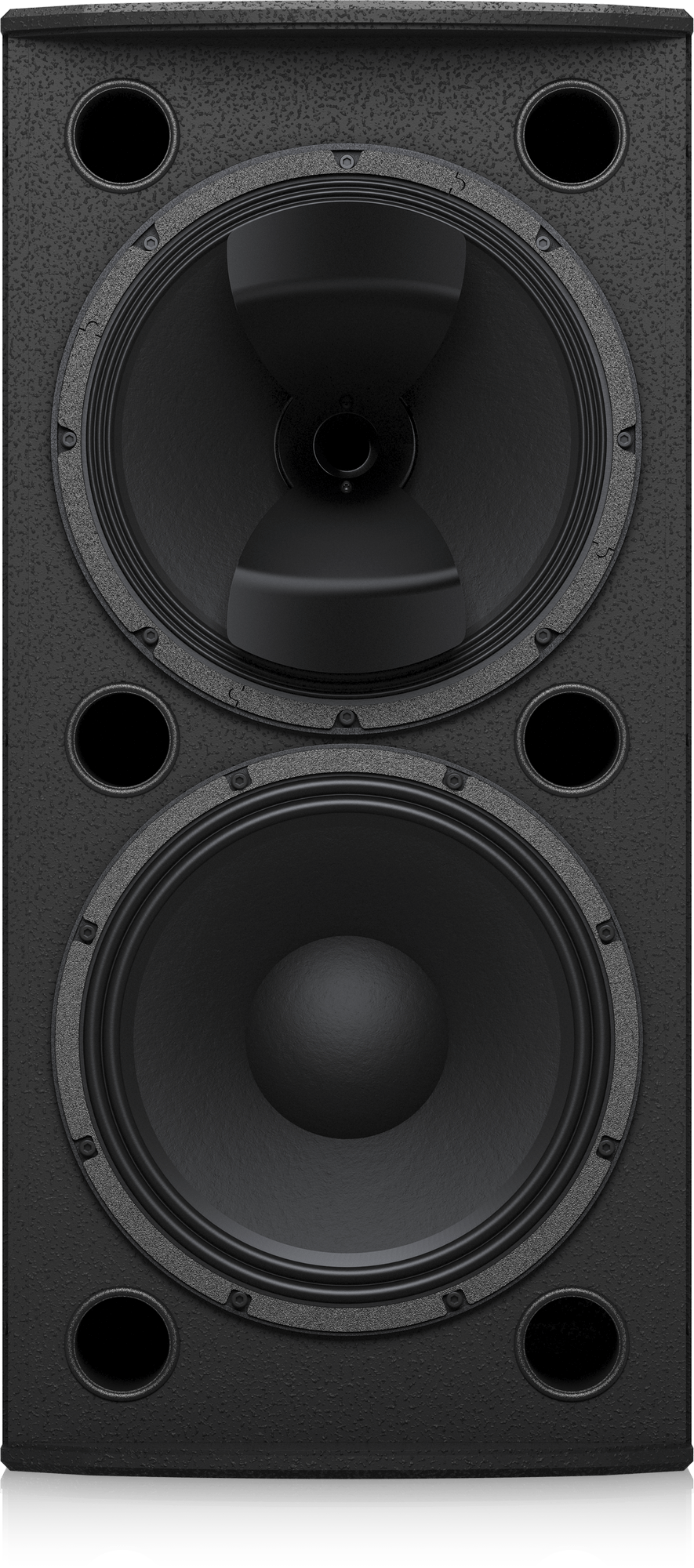

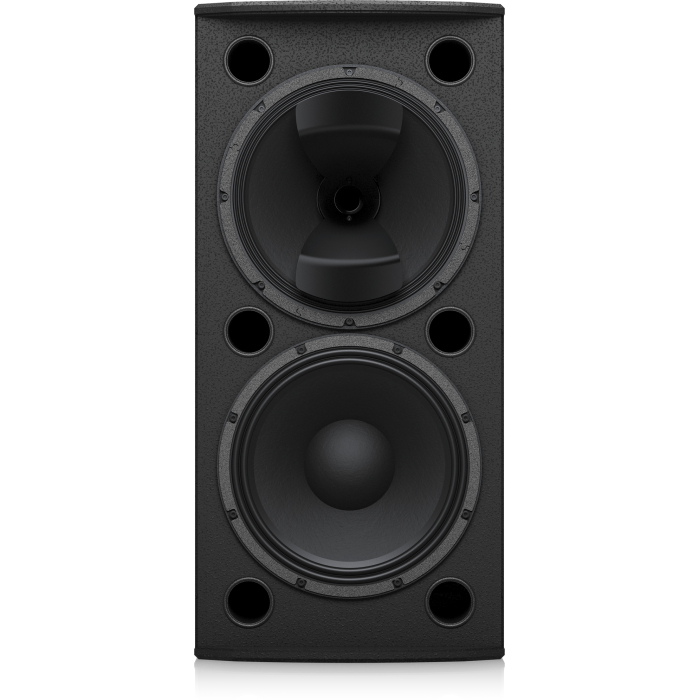

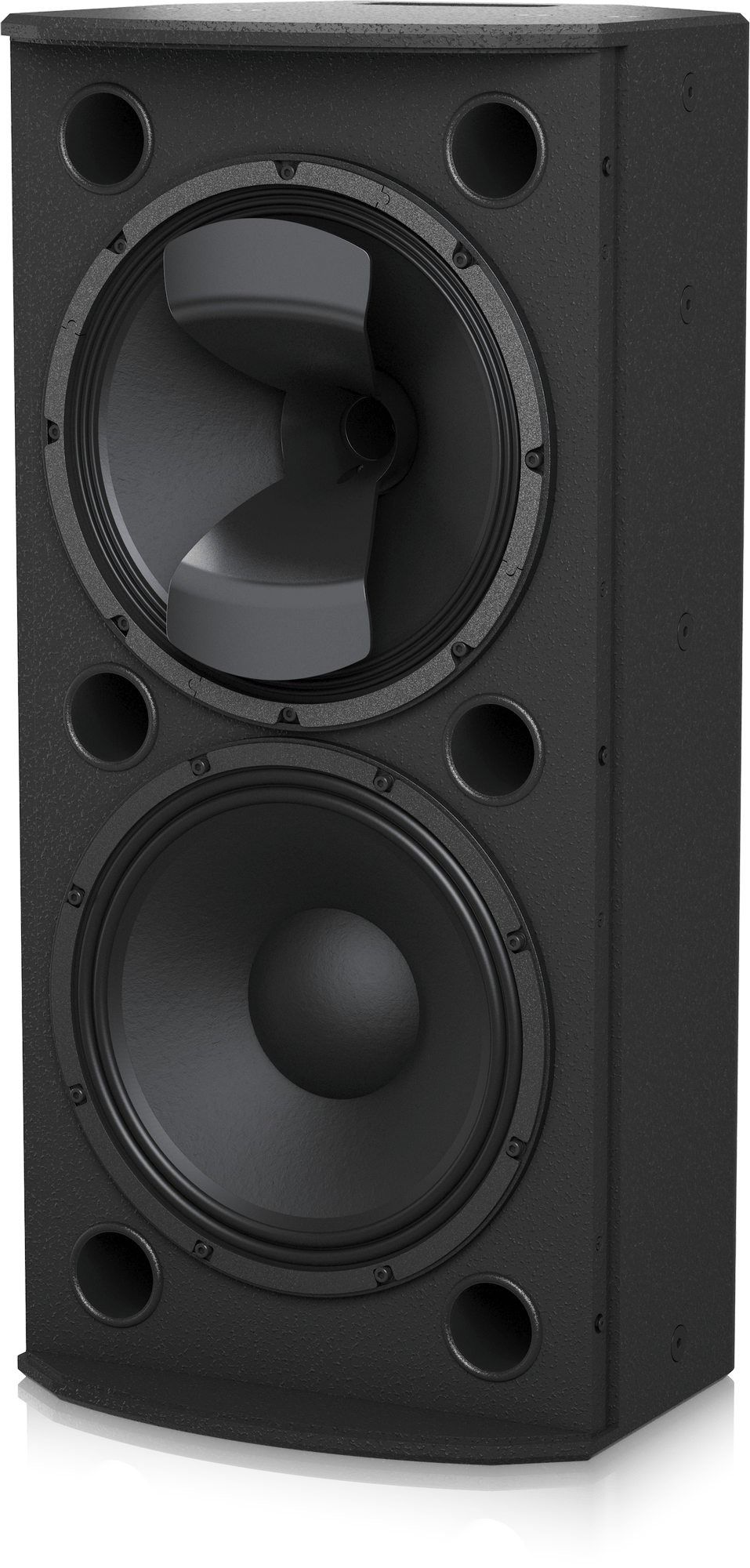

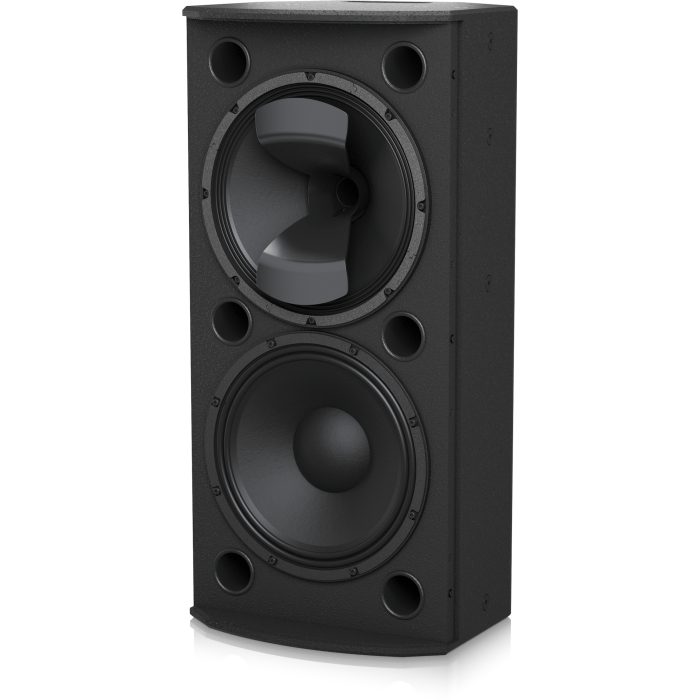

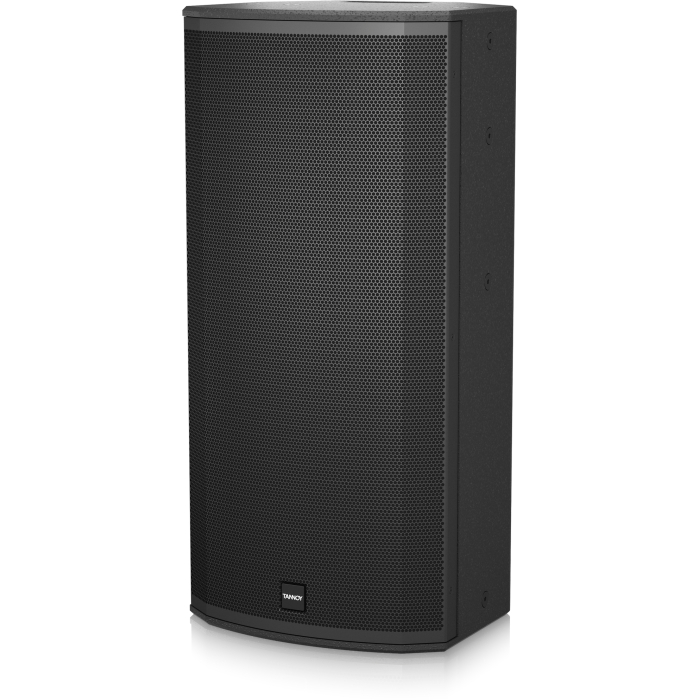

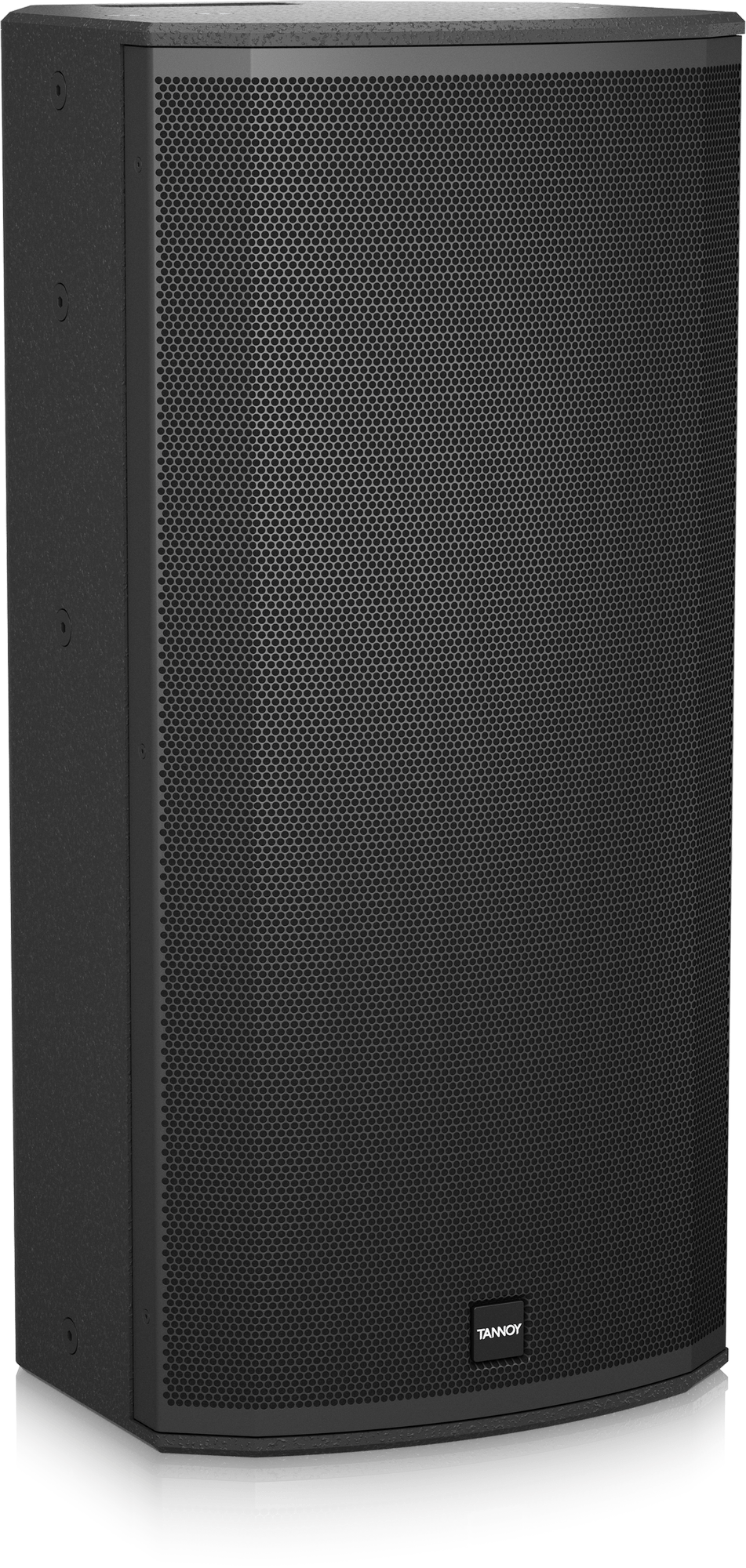

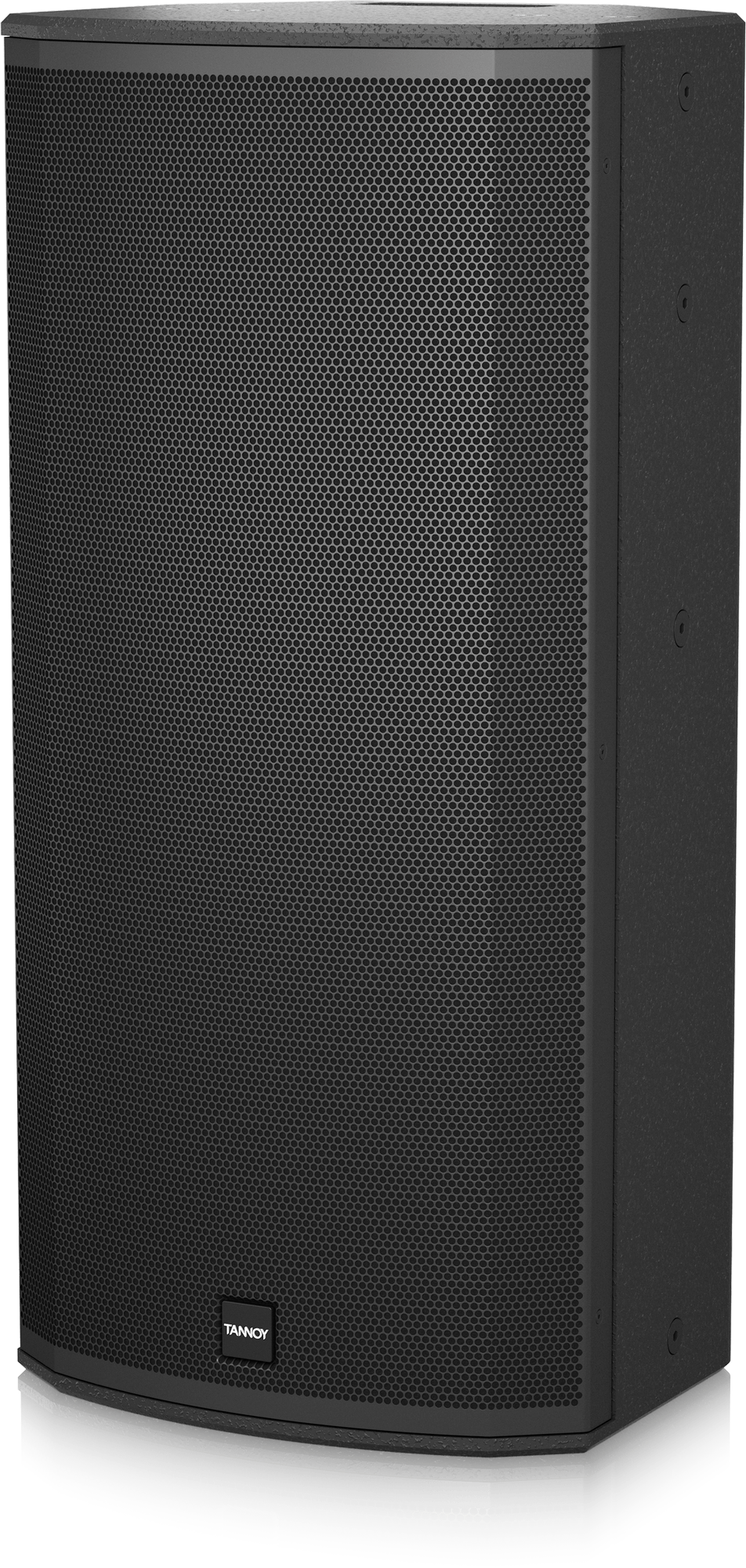

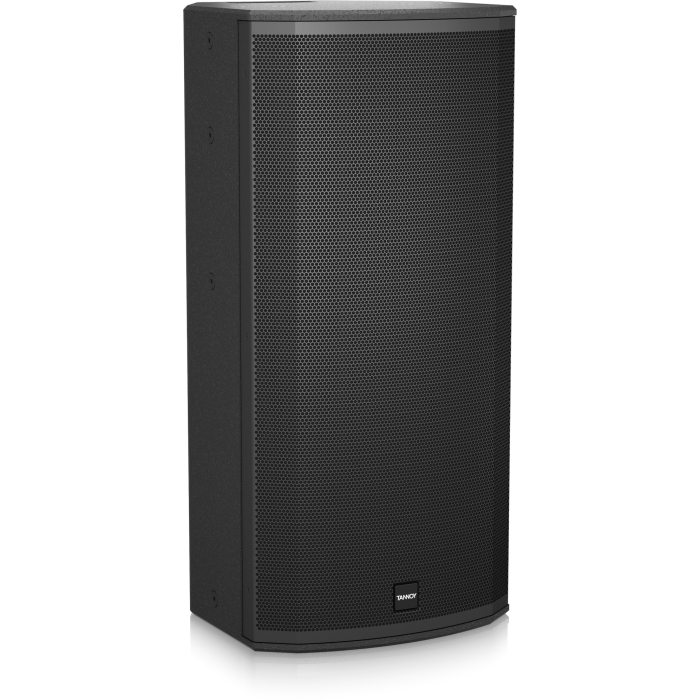

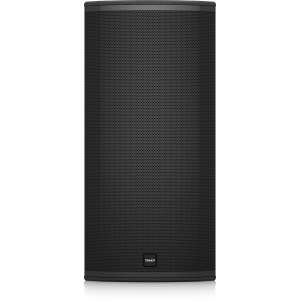

Tannoy VX 12.2Q 12-Inch PowerDual Full Range Loudspeaker

Tannoy

AED 6087.90 inc VAT.

The VX 12.2Q is a high-performance loudspeaker that delivers impressive high SPL and low distortion audio, ideal for medium-to-large sound reinforcement in venues like bars and clubs, as well as for mid-scale live events. Featuring twin driver design for extended low frequency reproduction and versatile mounting options, it excels in both portable and installed setups and supports bi-amp configuration.

In stock
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: VX 12.2Q Categories: , , Brand:

Description

VX 12.2Q Loudspeaker

The VX 12.2Q is a powerful and versatile loudspeaker designed for high SPL applications such as clubs, bars, and live PA setups. Its twin driver design and multiple mounting options offer excellent flexibility, making it suitable for both portable and installed systems. With the ability to switch to bi-amp operation, the VX 12.2Q delivers exceptional audio performance.

Key Features

  • Full range multi-purpose sound reinforcement loudspeaker
  • 500 Watts continuous, 2,000 Watts peak power

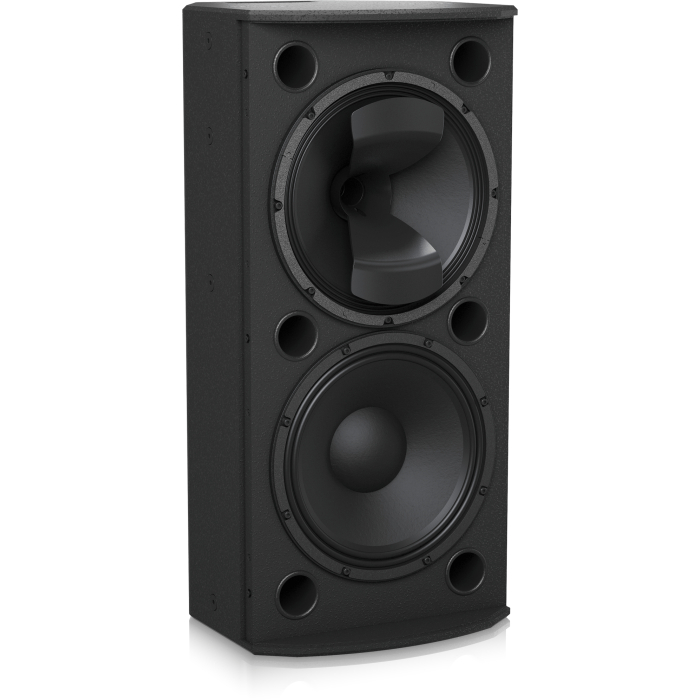

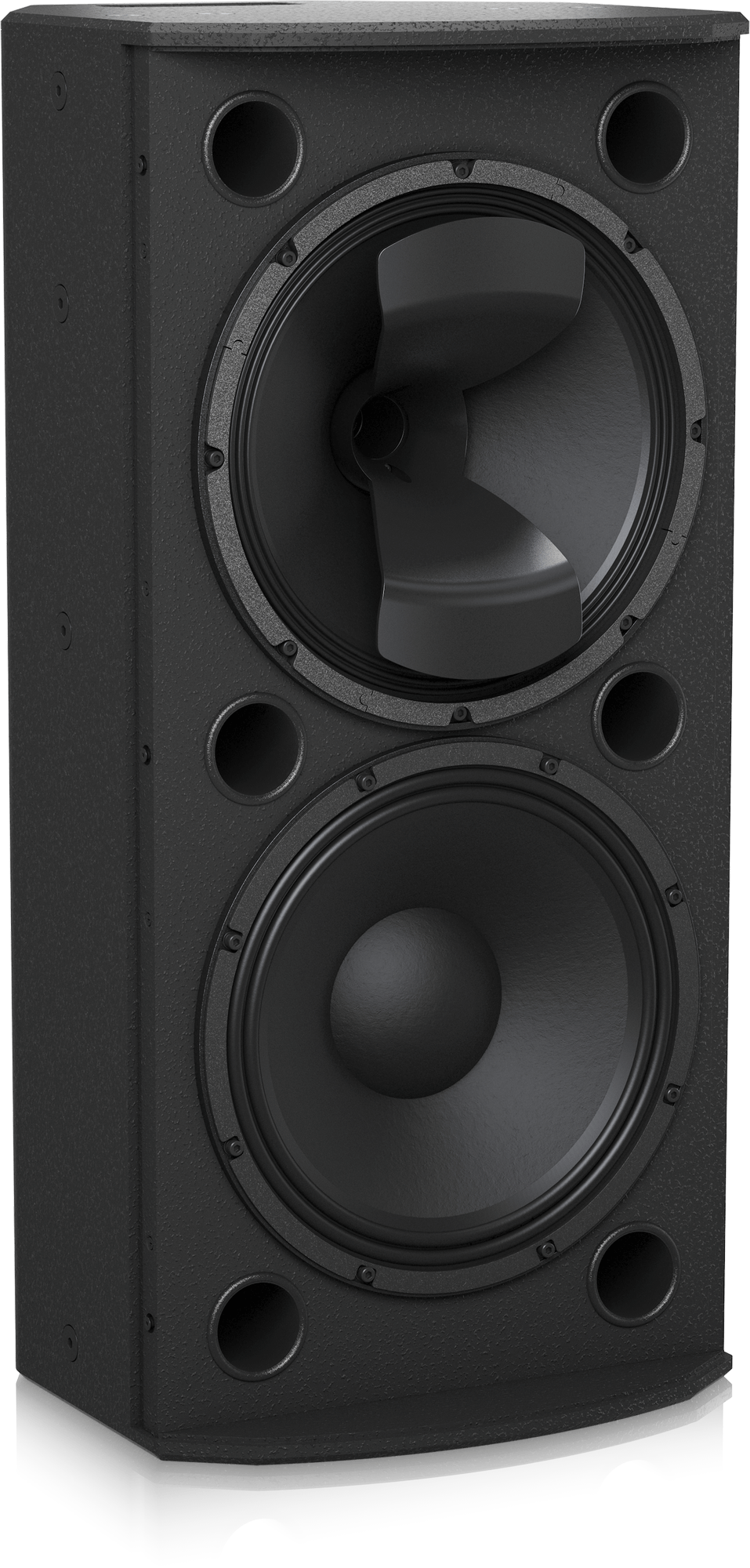

  • 12″ PowerDual full range driver for point source phase coherence
  • 12″ low frequency driver for extended bass response
  • Q-Centric waveguide for tighter vertical or horizontal pattern control
  • Precise 75° H x 40° V dispersion for optimum coverage
  • Configurable for bi-amp operation
  • Durable plywood enclosure with semi-matt black paint finish

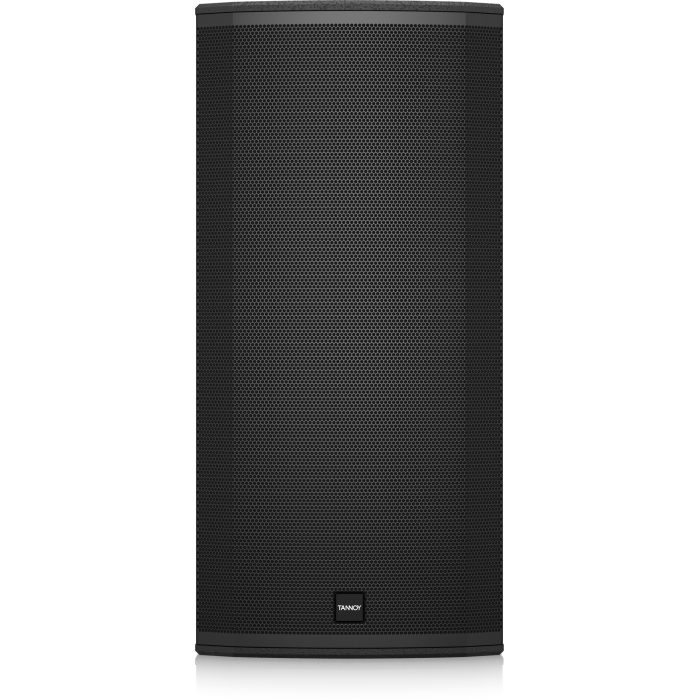

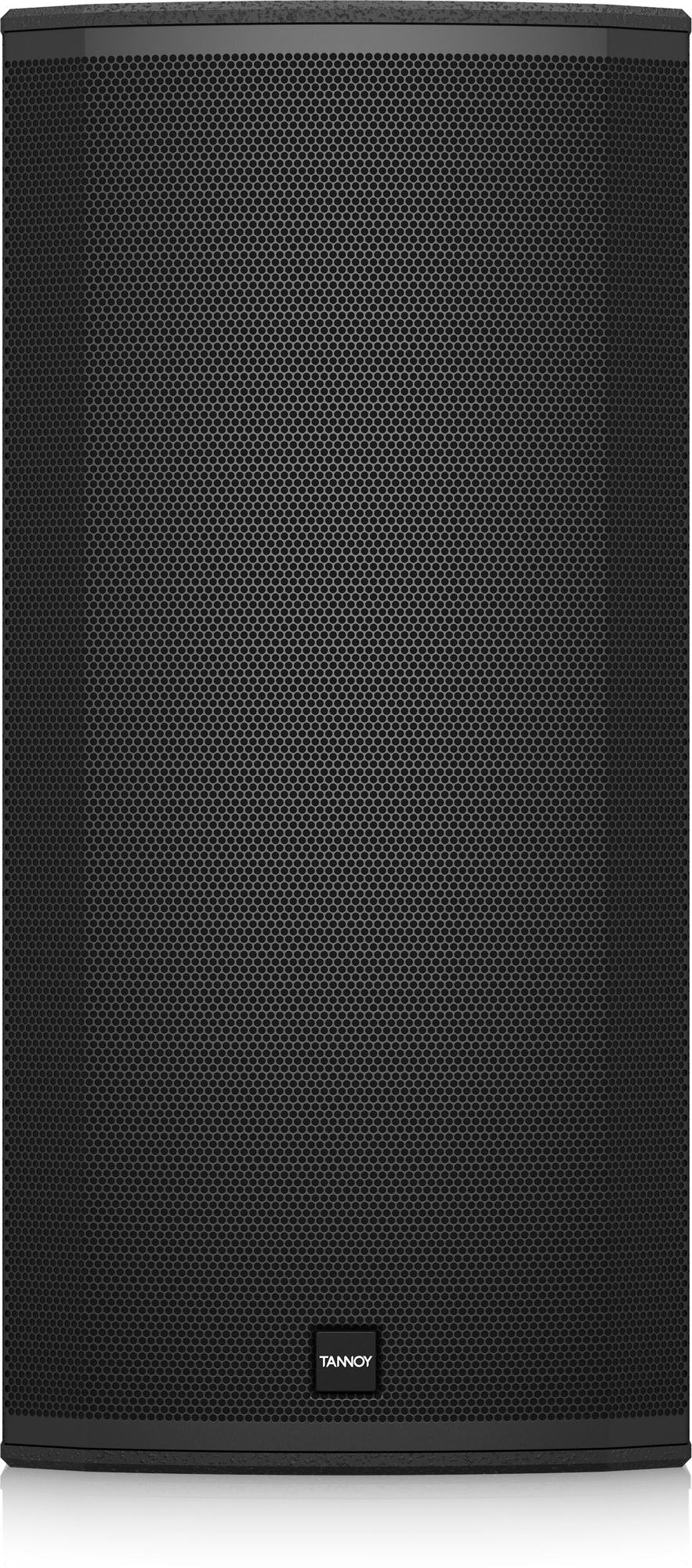

  • Rugged powder-coated perforated steel mesh grille
  • Neutrik speakON NL4 and barrier strip connectors
  • Optional horizontal and vertical mounting yokes

Specifications

Specification Details
Frequency Response 70 Hz – 25 kHz ±3 dB, 55 Hz – 30 kHz -10 dB
Nominal Dispersion 75° H x 40° V @ -6 dB points
Directivity Factor (Q) 13
Directivity Index (DI) 11.1
Power Handling (Passive) 500 W continuous, 2,000 W peak
Power Handling (Bi-amp) LF: 350 W continuous, 1,400 W peak; MF/HF: 350 W continuous, 1,400 W peak
Sensitivity 99 dB (1 W @ 1 m)
Maximum SPL (Passive) 126 dB continuous, 132 dB peak
Maximum SPL (Bi-amp) LF: 123 dB continuous, 129 dB peak; HF: 127 dB continuous, 133 dB peak
Impedance Passive: 8 Ω; Bi-amp: 8 Ω LF, 8 Ω HF
Crossover Type Passive / Bi-amp switchable
Components 1 x 12″ PowerDual, 1 x 12″ LF driver

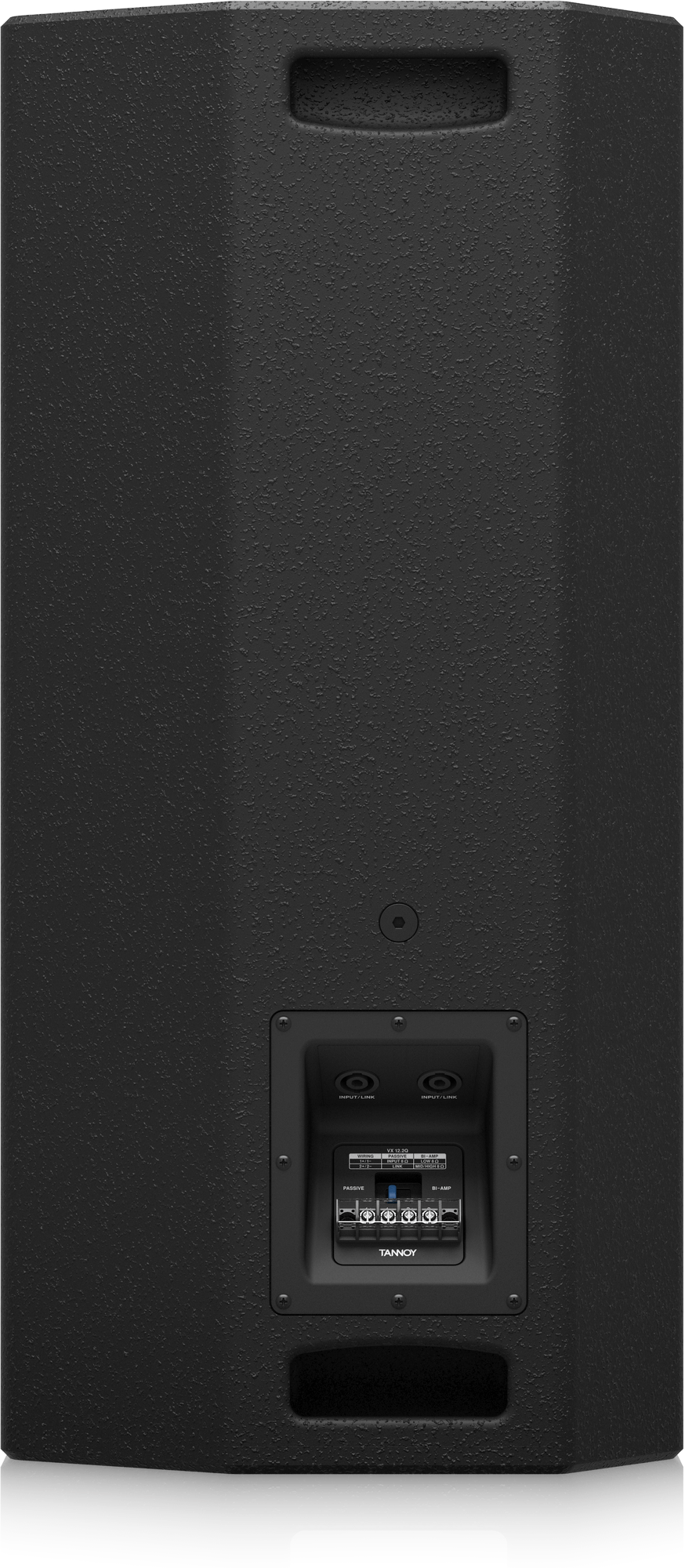

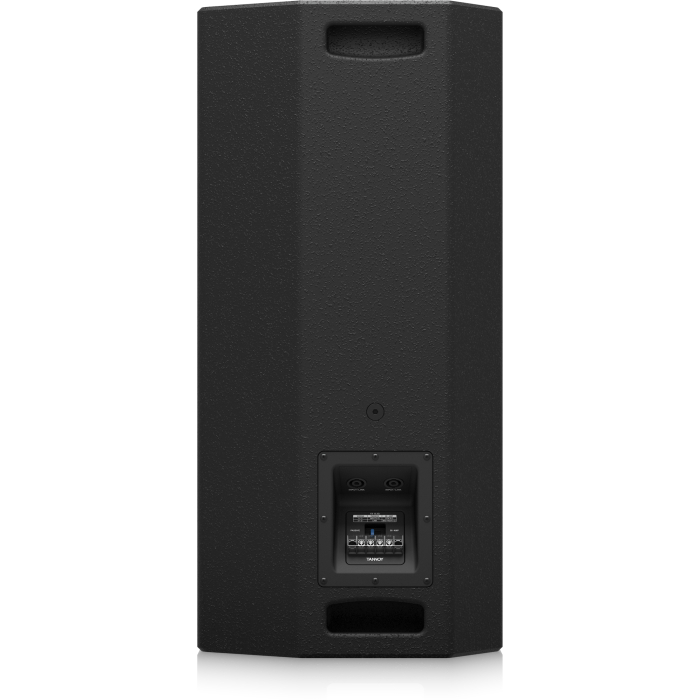

Connectors 2x Neutrik speakON NL4, 1 x barrier strip terminals
Wiring (Passive) Pins 1+ / 1- Input, Pins 2+ / 2- Link
Wiring (Bi-amp) Pins 1+ / 1- LF, Pins 2+ / 2- HF
Dimensions (H x W x D) 781 x 371 x 361 mm (30.7 x 14.6 x 14.2″)
Net Weight 30.5 kg (67.2 lbs)
Construction 15 mm (5/8″) plywood enclosure, 18 mm (3/4″) front, vented and internally braced
Finish Semi matt black paint
Grille Powder coated perforated steel
Flying Hardware M10 x 8 inserts, yoke bracket inserts, 2 Integrip handles
Accessories Optional yokes for horizontal and vertical mounting
