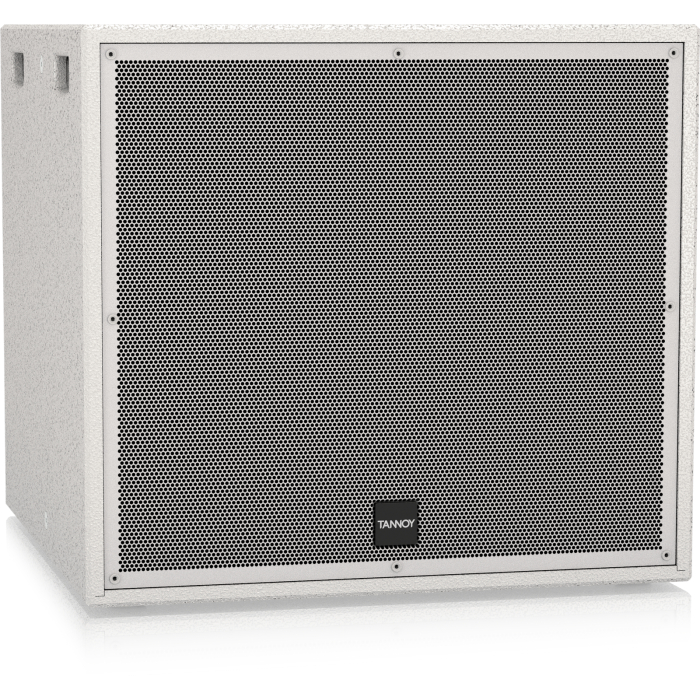

Tannoy VSX118B-WH 18″ Direct Radiating Passive Subwoofer

Description

The 4,000-Watt VSX118B-WH is a direct radiating passive 18″ subwoofer that is ideally suited for a broad range of speech and music sound reinforcement applications in both fixed, portable, and touring audio systems. VSX118B-WH’s superb low frequency reproduction makes it the perfect choice for deployment in clubs, bars, theatres and AV applications.

Features

• Compact direct radiating subwoofer for portable and installation applications
• 1,000 Watts continuous, 4,000 Watts peak power
• 18″ driver for extended low frequency response to below 40 Hz
• Low distortion dual port design for maximum sound pressure levels
• Ideal for background music playback in clubs, bars, theatres and AV applications
• Internally braced plywood enclosure
• Finished with a hard wearing semi matt white paint finish
• Rugged powder coated perforated steel mesh grille
• Blanking plate for optional VTH pole mount
• Integral M10 rigging points for ease of installation
• Integrip handles ergonomically integrated into top of cabinet
• Neutrik speakON* NL4 and barrier strip connectors for input and link output

Specifications

System

Frequency response

40 Hz – 3 kHz, +/-3 dB
32 Hz – 4 kHz, -10 dB

Recommended low pass crossover

80 – 300 Hz, 24 dB/Oct

Nominal dispersion

Half space

Power handling (IEC)

1000 W continuous, 4000 W peak

Sensitivity

99 dB (1 W @ 1 m)

Maximum SPL

129 dB continuous, 135 dB peak

Impedance

8 Ohm

Components

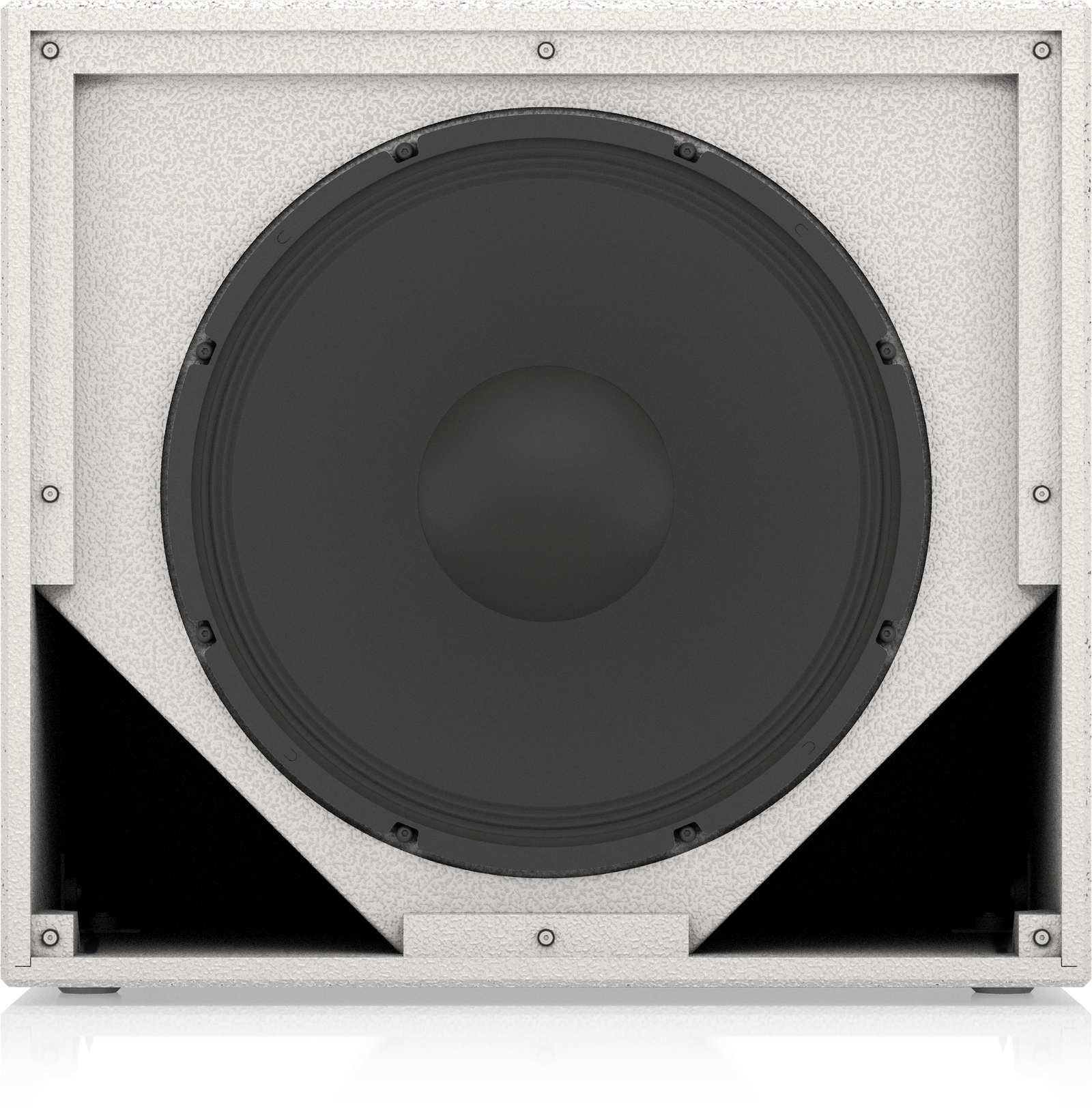

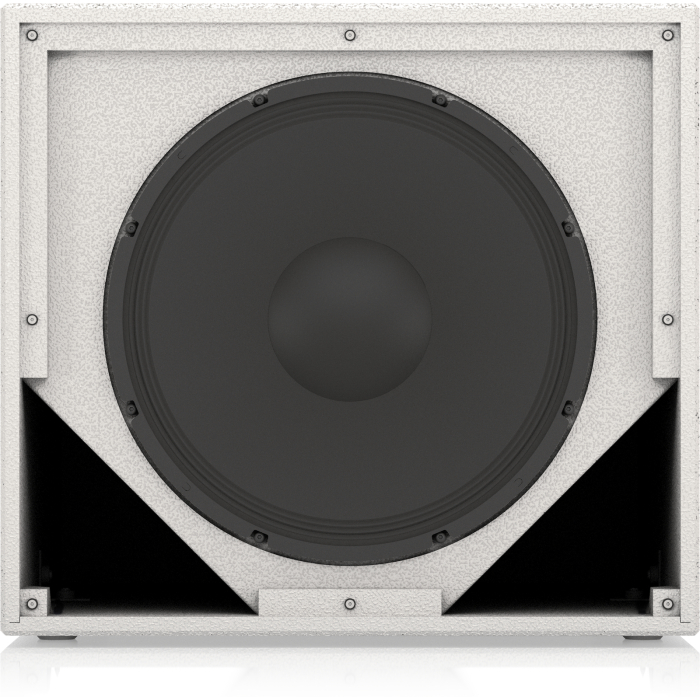

1x 18″ (460 mm) LF driver

Enclosure

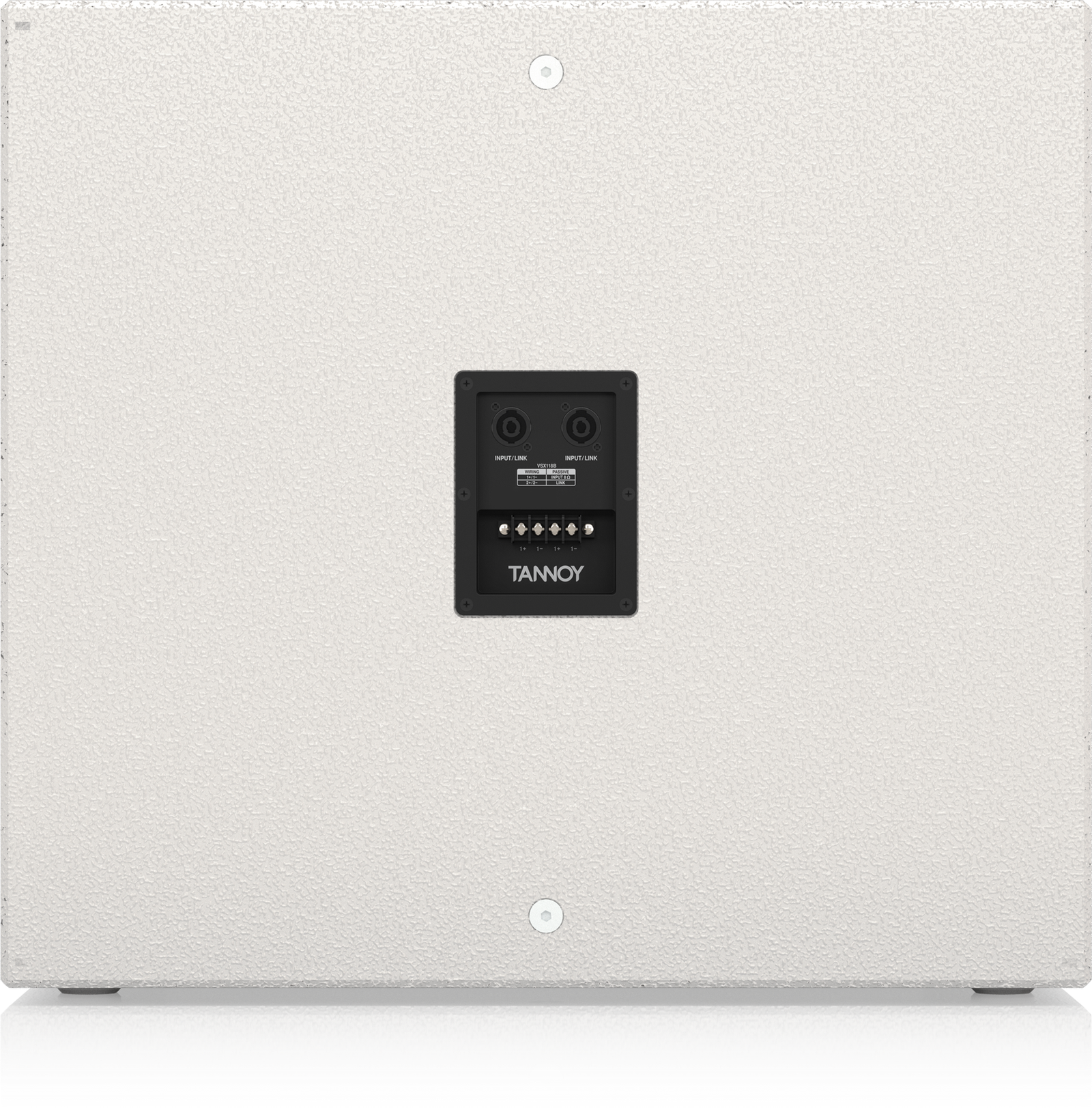

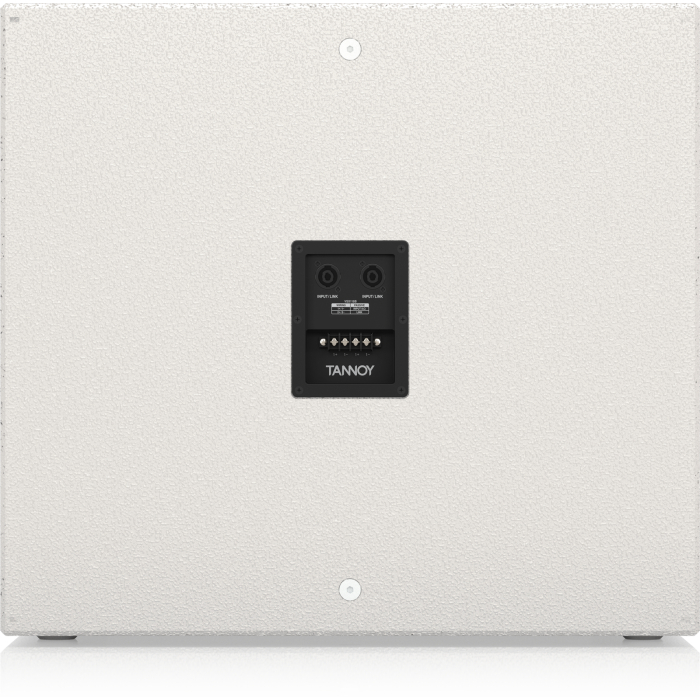

Connectors

2x Neutrik speakON NL4
1 x barrier strip terminals

Wiring

Pins 1+ / 1- input, pins 2+ / 2- link

Construction

18 mm (3/4″) plywood

Finish

Semi matt black paint (white optional)

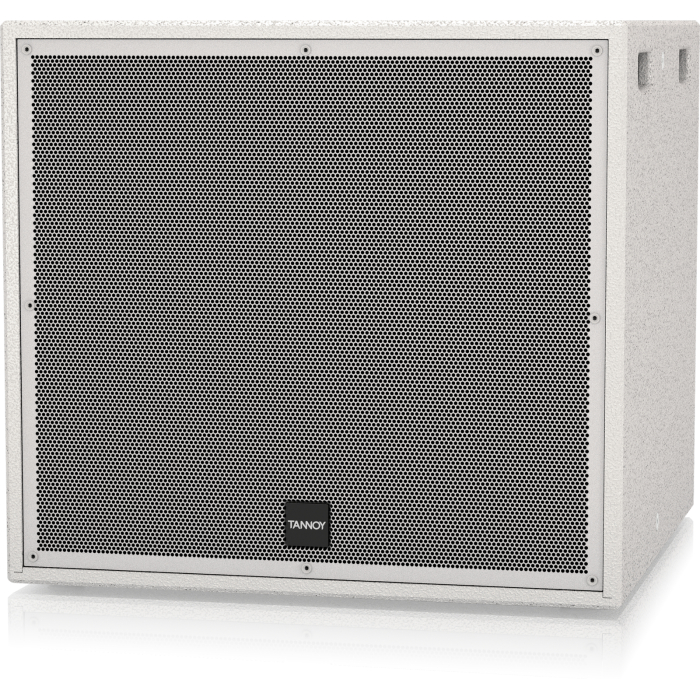

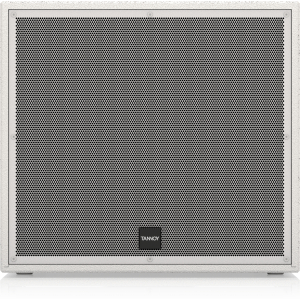

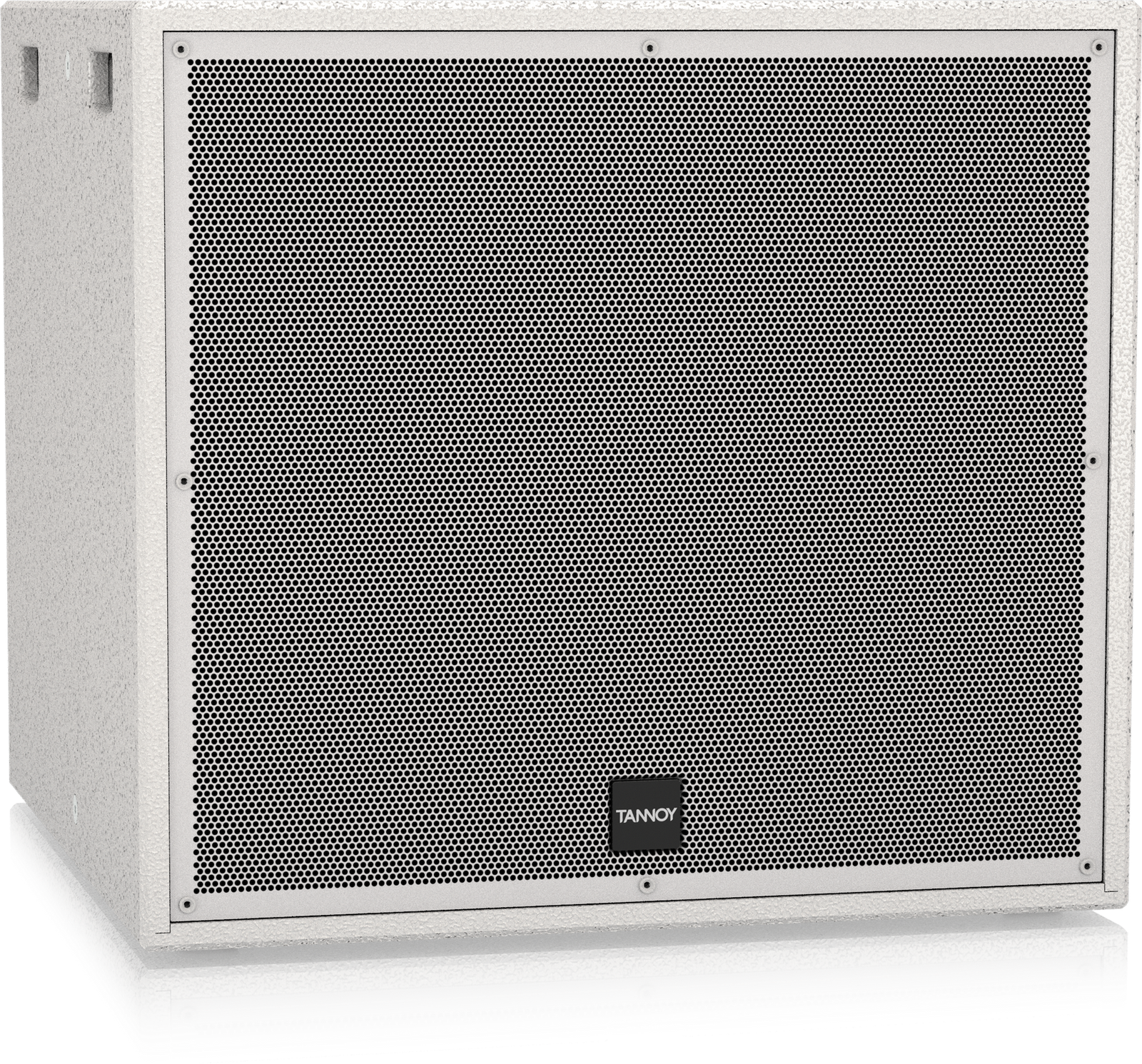

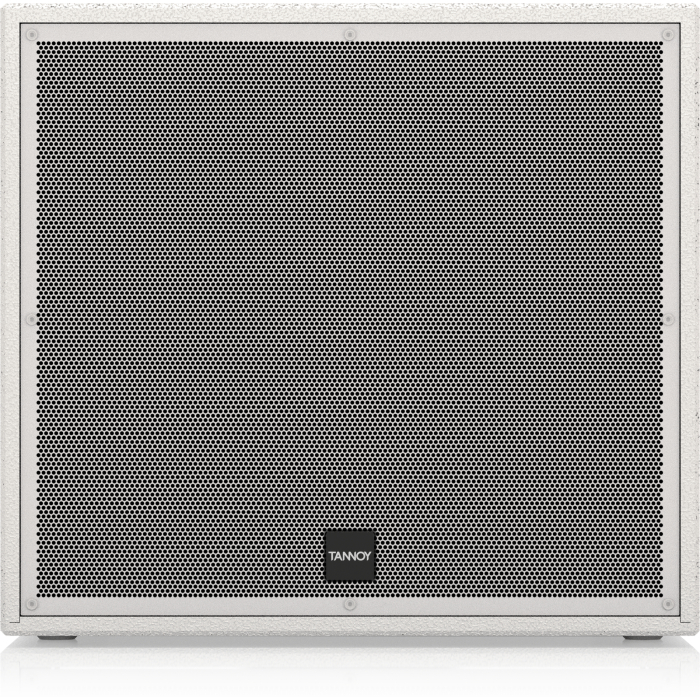

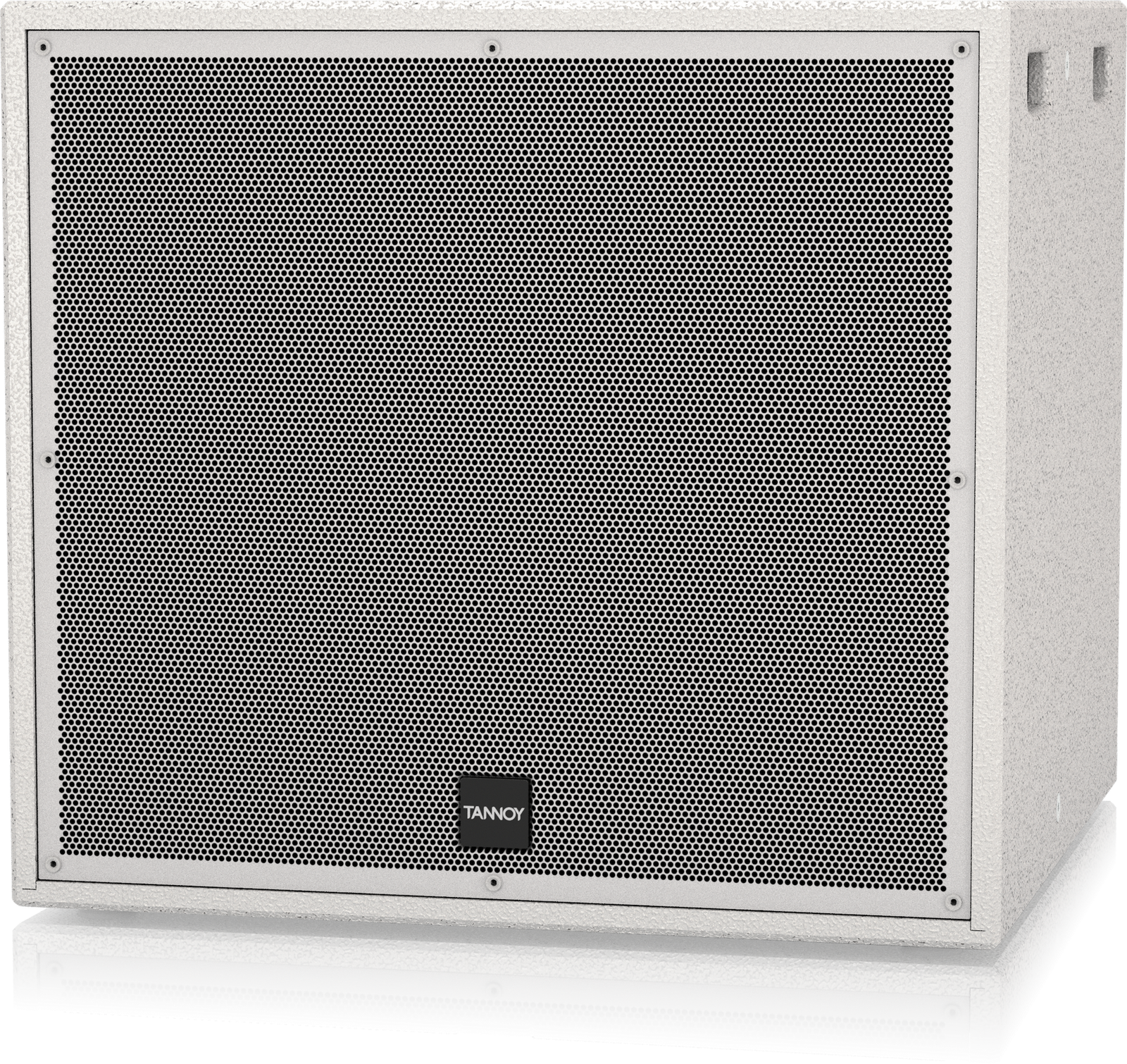

Grille

Powder coated perforated steel

Color

Black

Dimensions (H x W x D)

23.4 x 25.6 x 25.6″ (594 x 650 x 650mm)

Net weight

94.9 lb (43.1kg)
