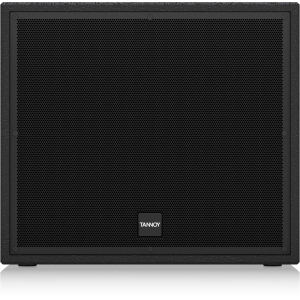

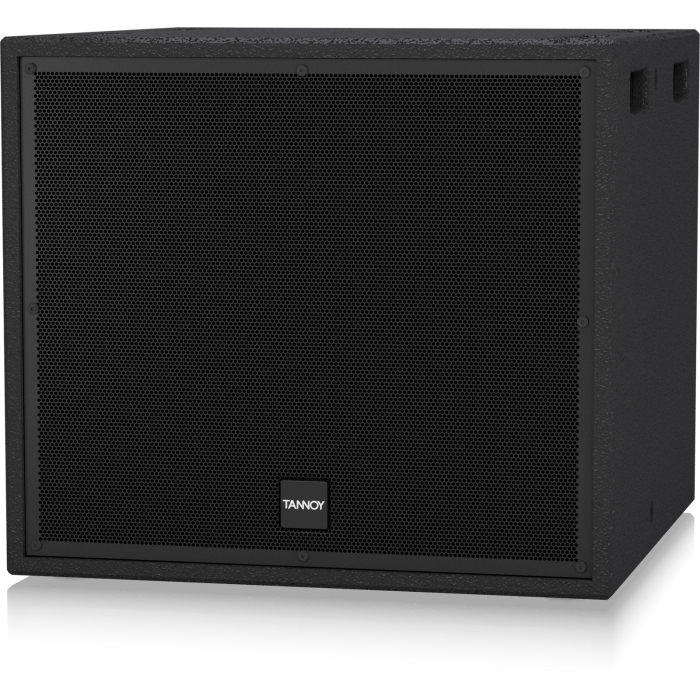

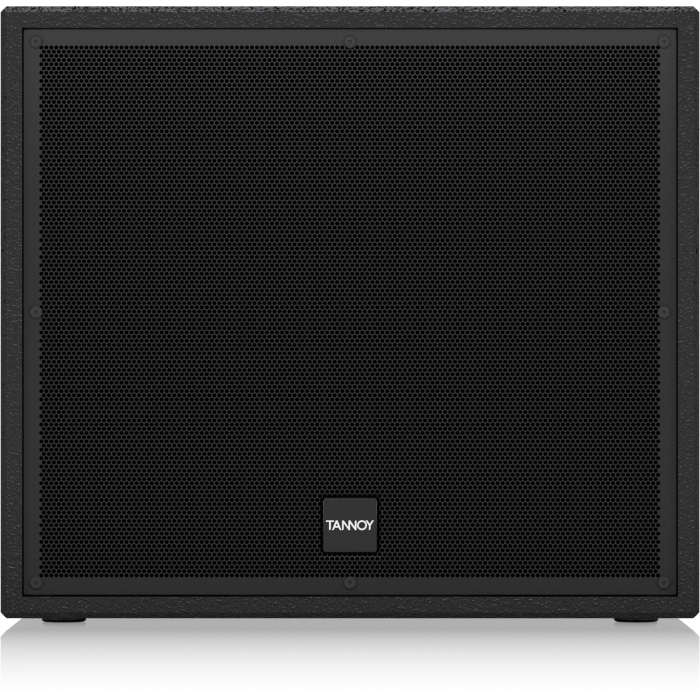

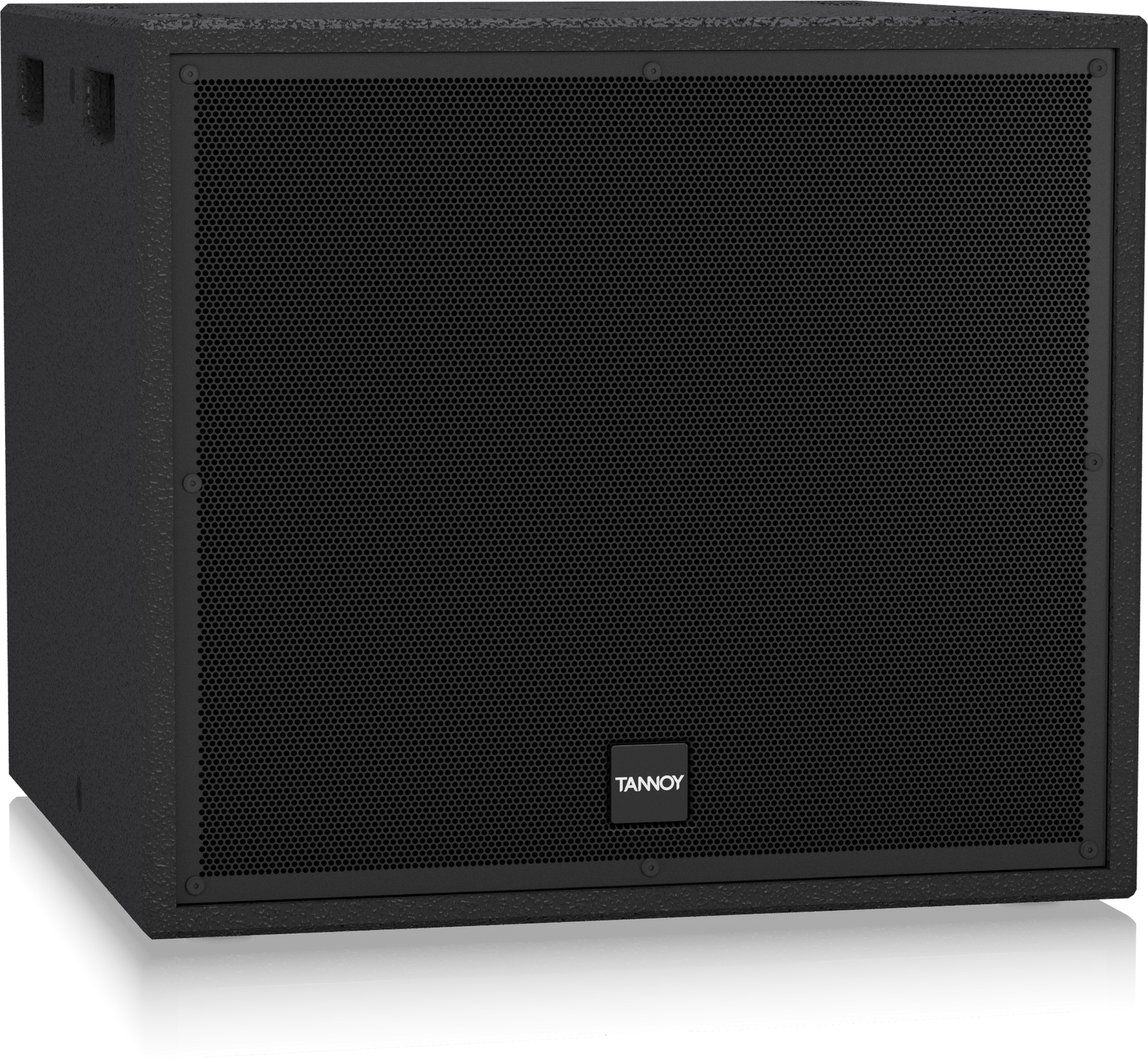

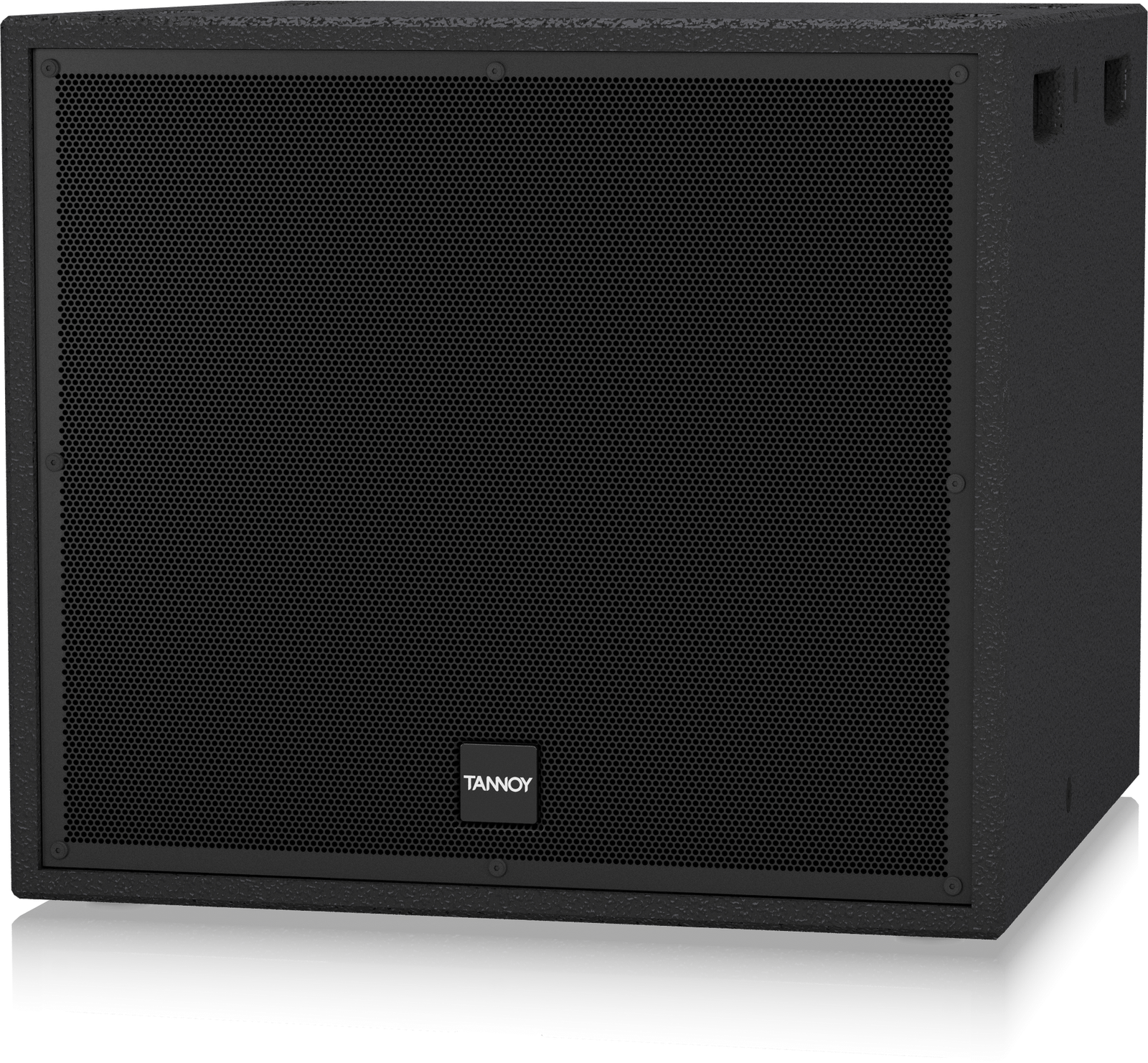

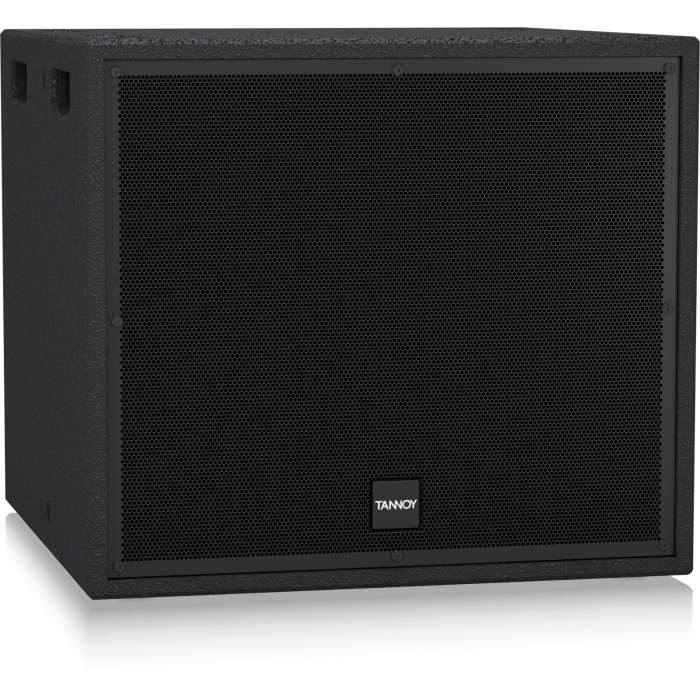

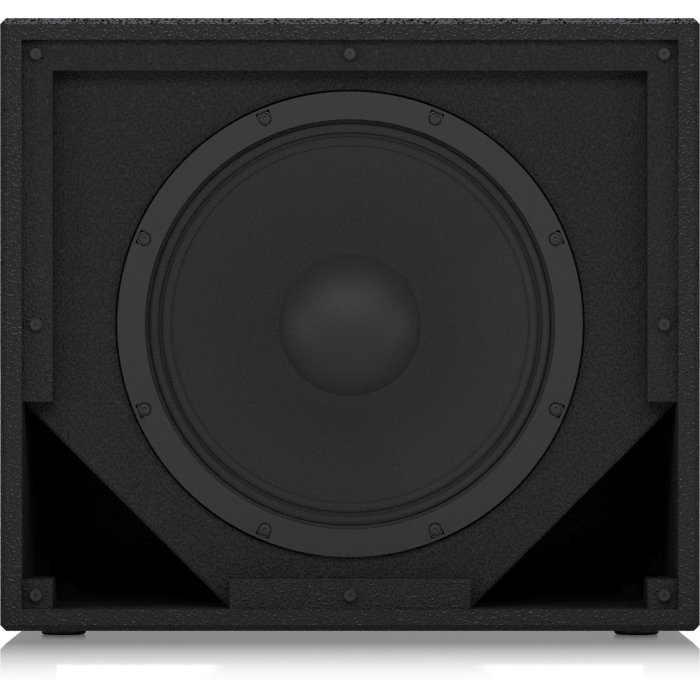

Tannoy VSX115B 15″ Direct Radiating Passive Subwoofer

Description

The 3,200-Watt VSX115B is a direct radiating passive 15″ subwoofer that is ideally suited for a broad range of speech and music sound reinforcement applications in both fixed, portable, and touring audio systems. VSX115B’s superb low frequency reproduction makes it the perfect choice for deployment in clubs, bars, theatres and AV applications.

Features

• Compact direct radiating subwoofer for portable and installation applications
• 800 Watts continuous, 3,200 Watts peak power
• 15″ driver for extended low frequency response to below 40 Hz
• Low distortion dual port design for maximum sound pressure levels
• Ideal for background music playback in clubs, bars, theatres and AV applications
• Internally braced plywood enclosure
• Finished with a hard wearing semi matt black paint finish

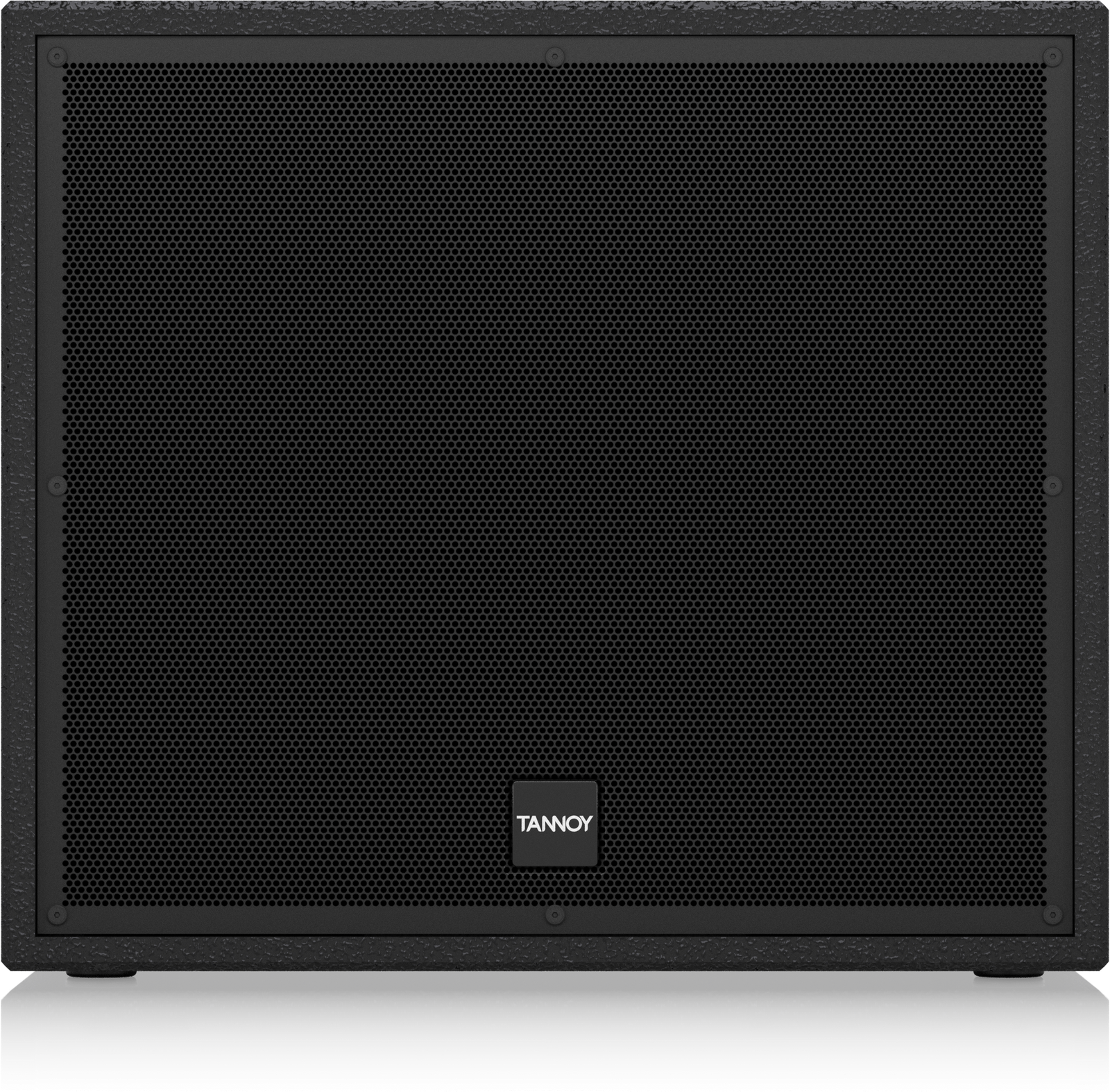

• Rugged powder coated perforated steel mesh grille
• Blanking plate for optional VTH pole mount
• Integral M10 rigging points for ease of installation
• Integrip handles ergonomically integrated into top of cabinet
• Neutrik speakON* NL4 and barrier strip connectors for input and link output

Specifications

System

Frequency response

45 Hz – 3 kHz +/-3 dB
36 Hz – 4 kHz -10 dB

Recommended low pass crossover

80 – 500 Hz 24 dB/Oct

Power handling (IEC)

800W continuous, 3200W peak

Sensitivity

97 dB (1W at 1m)

Maximum SPL

126 dB continuous, 132 dB peak

Impedance

8Ohms

Components

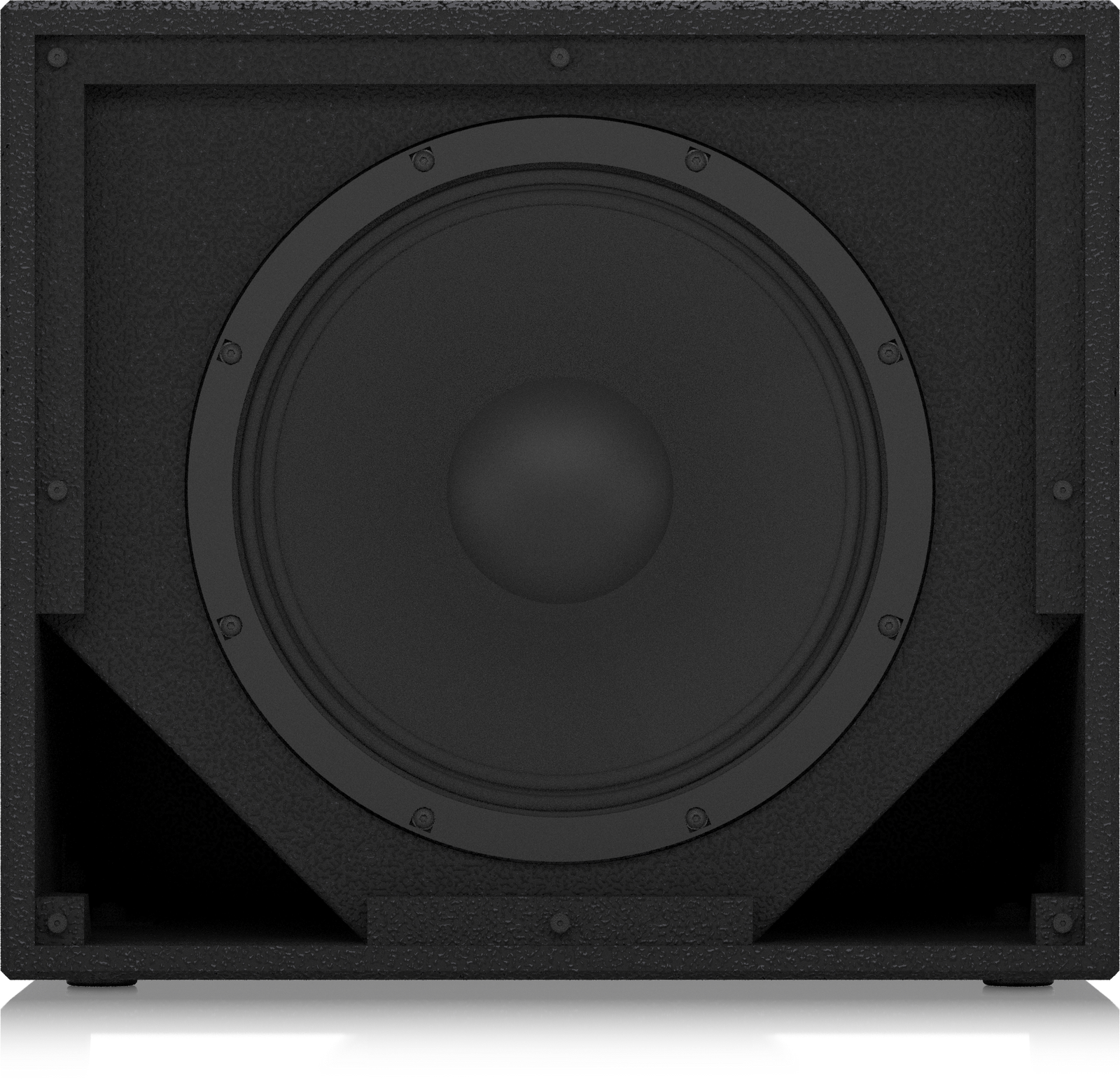

1x 15″ (387mm) LF driver

Enclosure

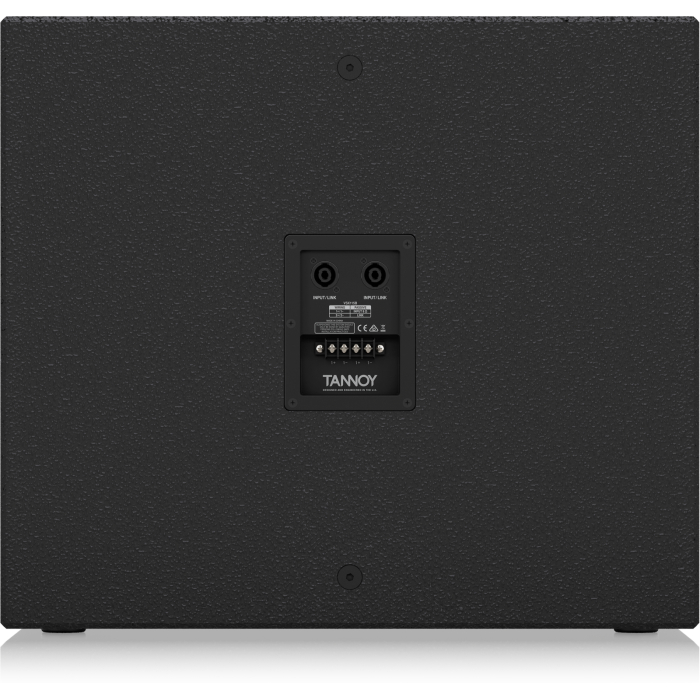

Connectors

2x Neutrik speakON NL4
1x barrier strip terminals

Wiring Pins

Pins 1+ / 1- input, pins 2+ / 2- link

Construction

18mm (3/4″) birch plywood

Grille

Powder coated perforated steel

Flying hardware

M10 x 8 points

General

Dimensions (HxWxD)

514 x 580 x 580mm (20.24 x 22.83 x 22.83″)

Weight

33.3kg (73.41 lbs)
