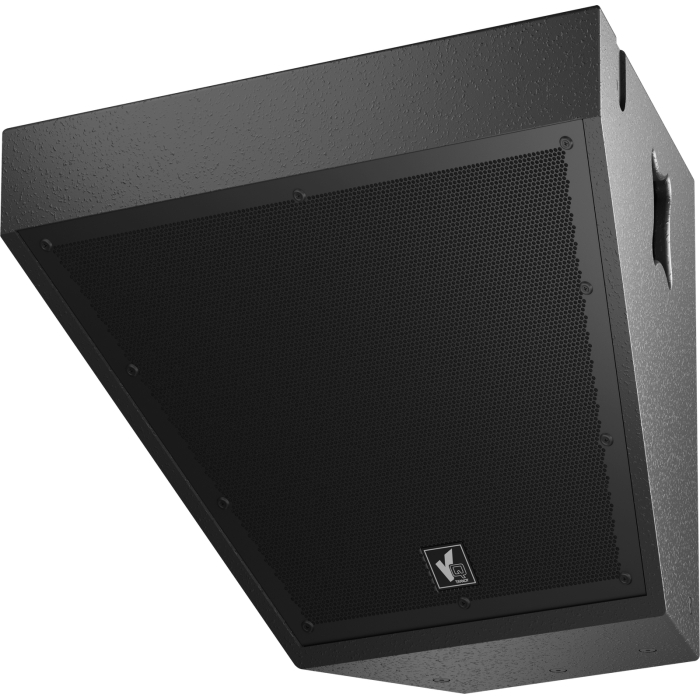

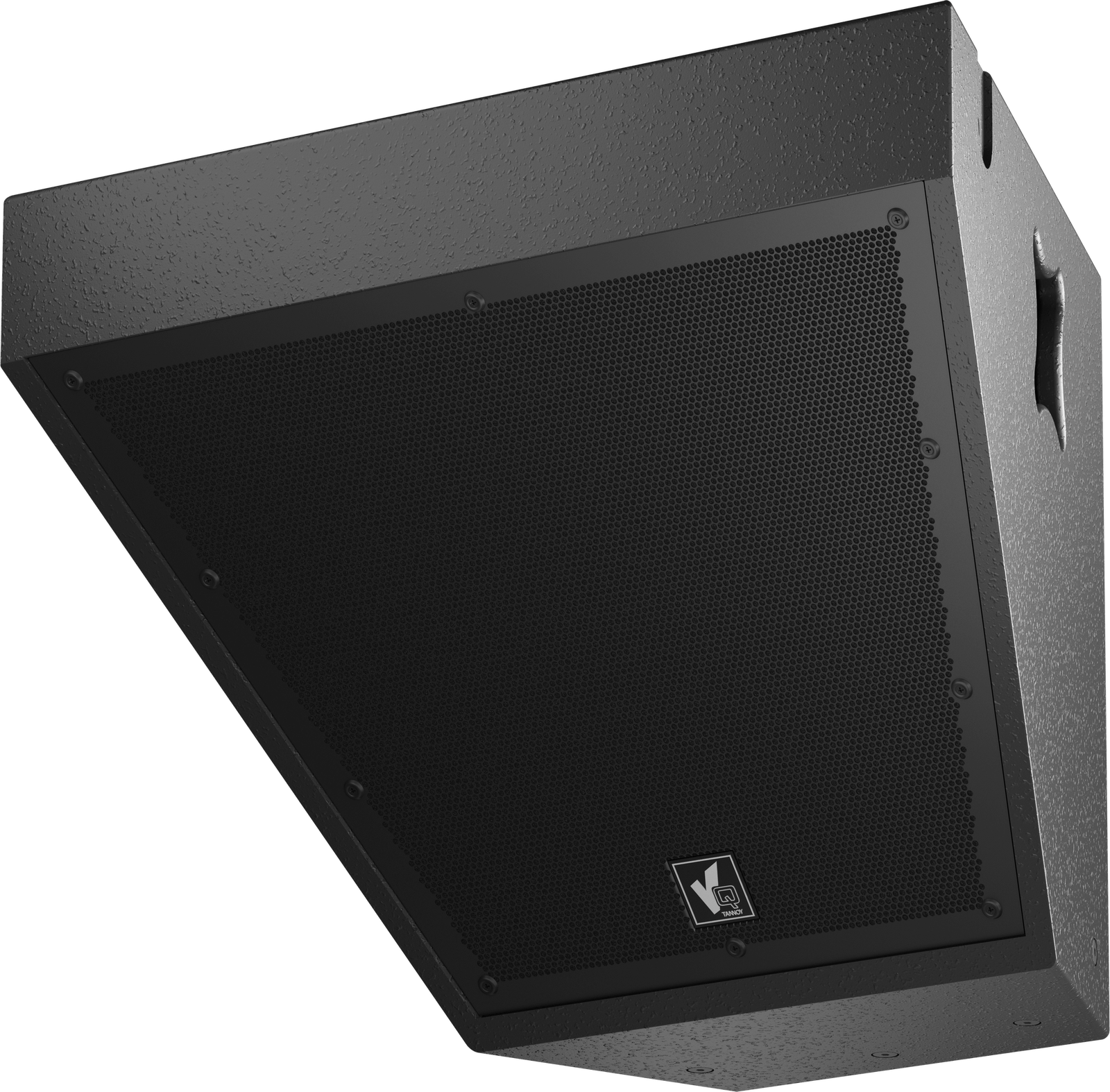

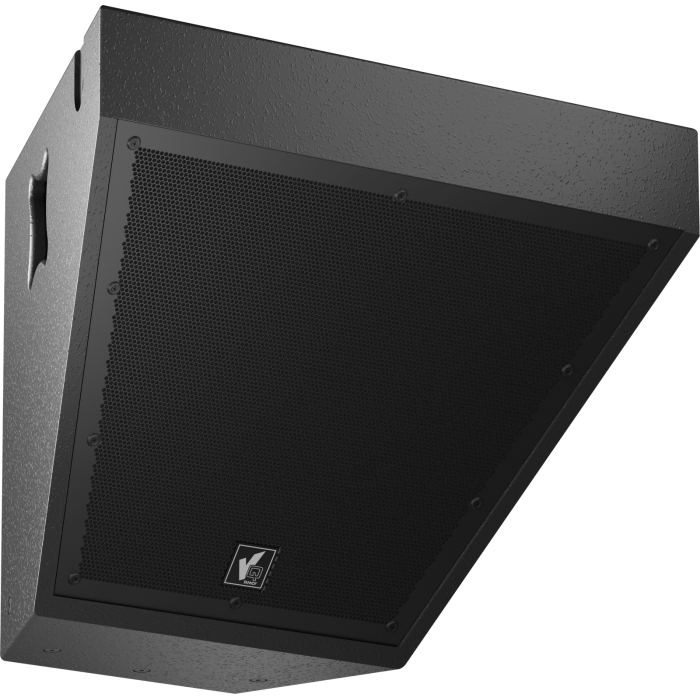

Tannoy VQ 64DF 2-Way Down-Firing Dual Concentric Mid-High Loudspeaker

Tannoy

AED 12670.35 inc VAT.

The VQ 64DF features a modular design, enabling seamless, predictable arrays with tight-packed cabinets to eliminate gaps. Ideal for large distributed systems or single use, this compact unit maintains high performance, allowing array configurations with MH horns, DF horns, and MB enclosures, perfect for large sports arenas and stadia.

In stock
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: VQ 64DF Categories: , , Brand:

Description

VQ 64DF: Compact and High-Performance Loudspeaker

The VQ 64DF loudspeaker employs a modular design, enabling system designers to create seamless and predictable arrays that avoid unsightly spaces. Ideal for large distributed systems or as individual units, the VQ 64DF maintains compact dimensions without compromising performance.

Perfect for large sports arenas and stadiums, the VQ 64DF can be incorporated into configurations with multiple mid-high horns, down-firing horns, and mid-bass enclosures.

Features

  • High-performance dual concentric mid-high loudspeaker
  • Power handling: 200 Watts continuous, 800 Watts peak
  • Two-way dual concentric compression drivers

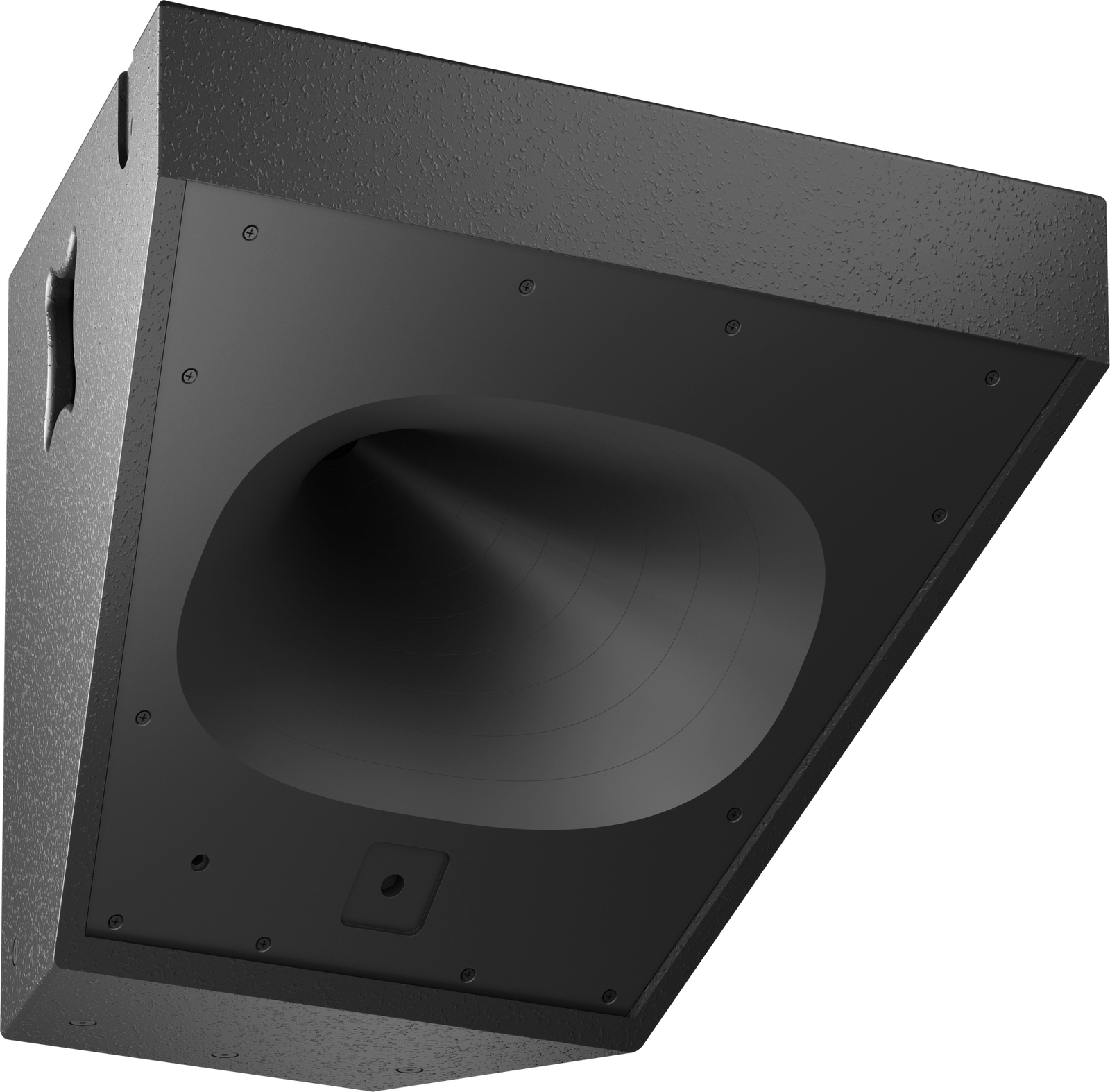

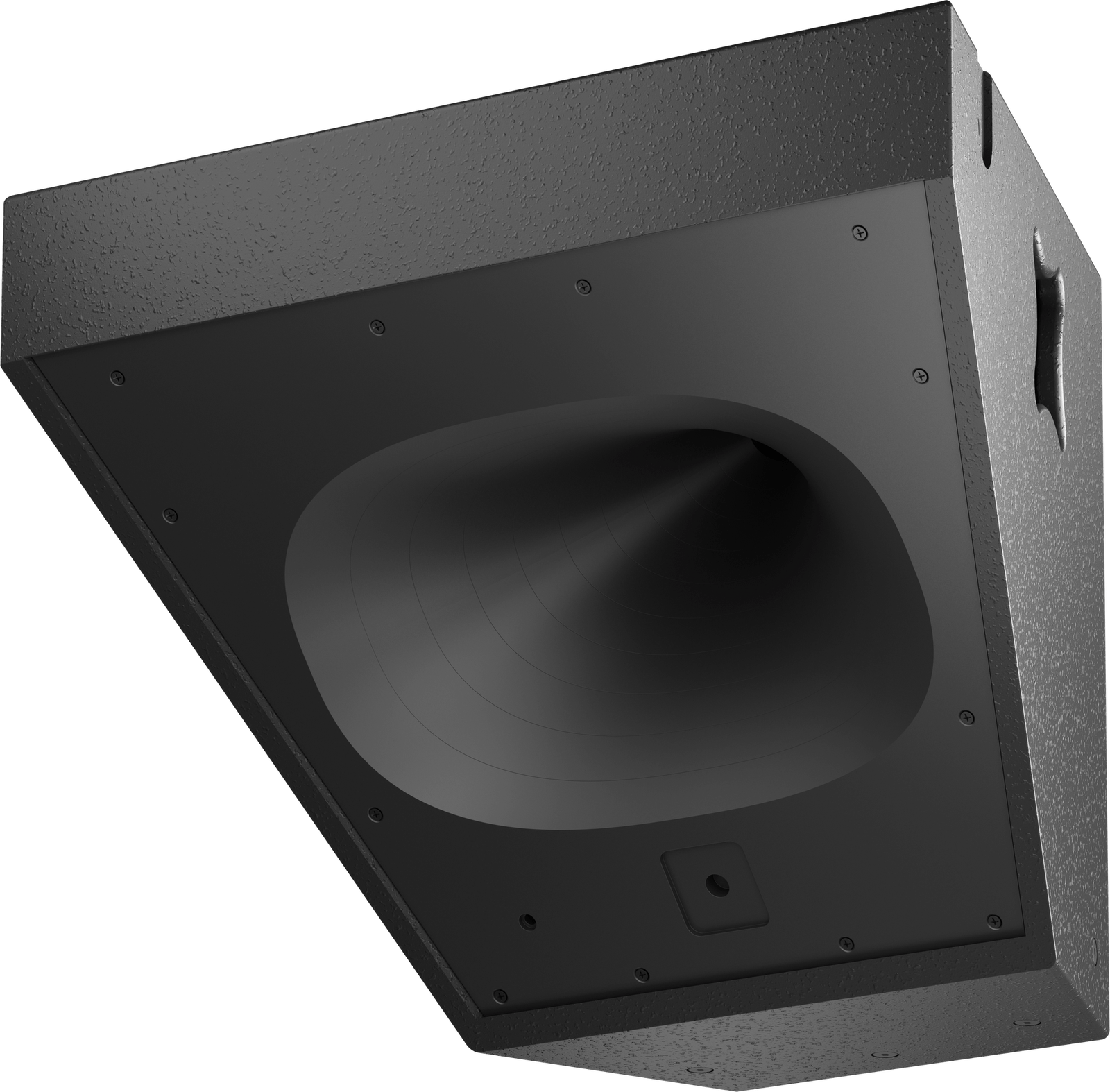

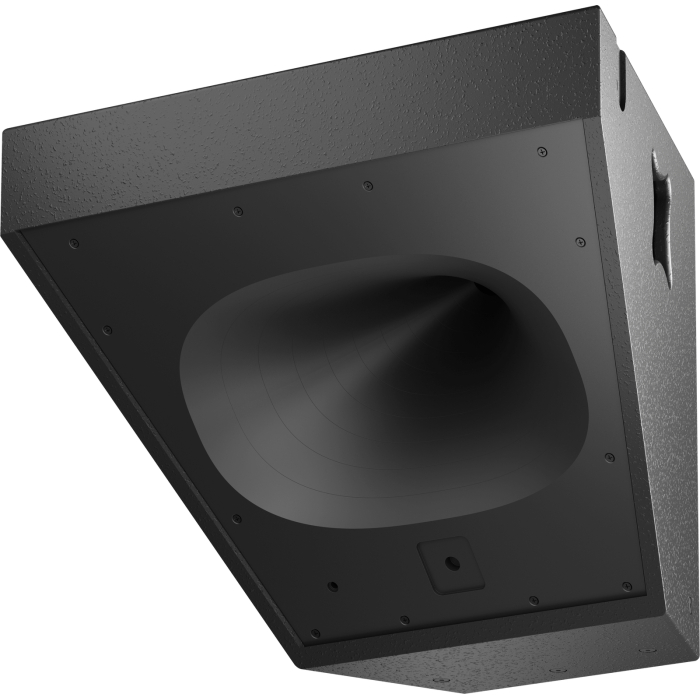

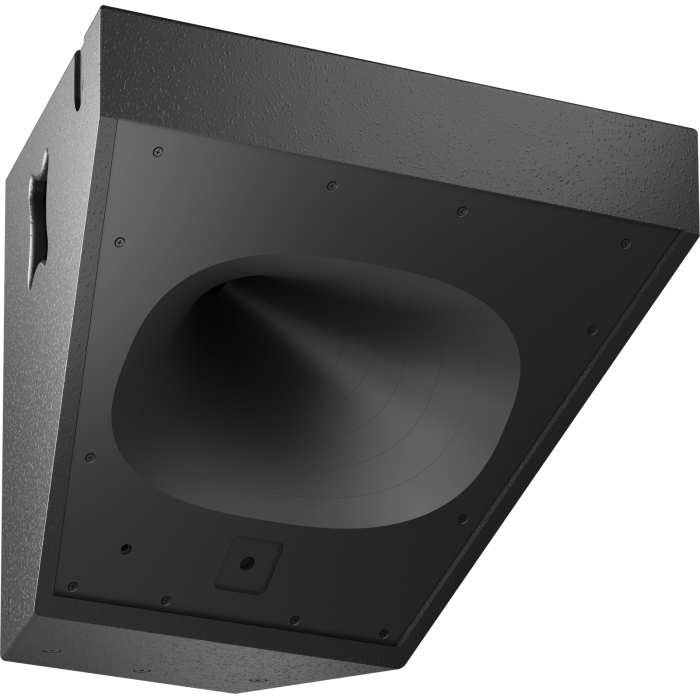

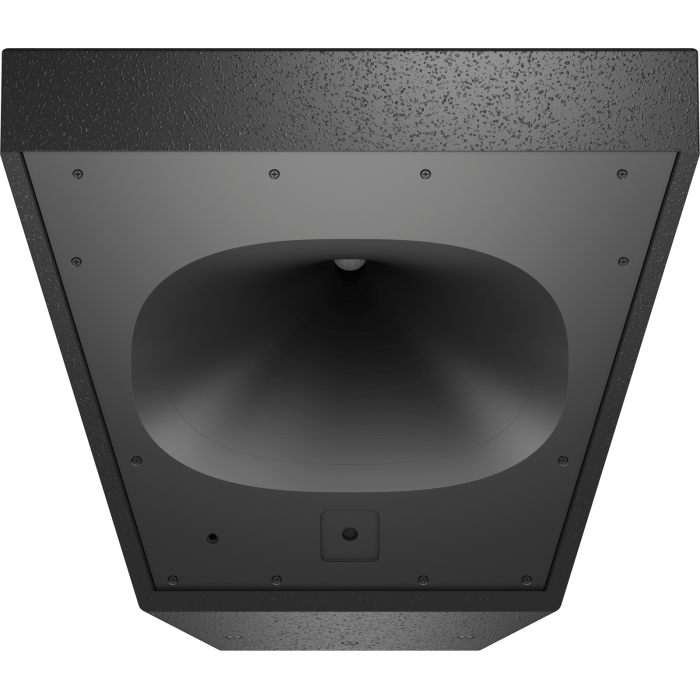

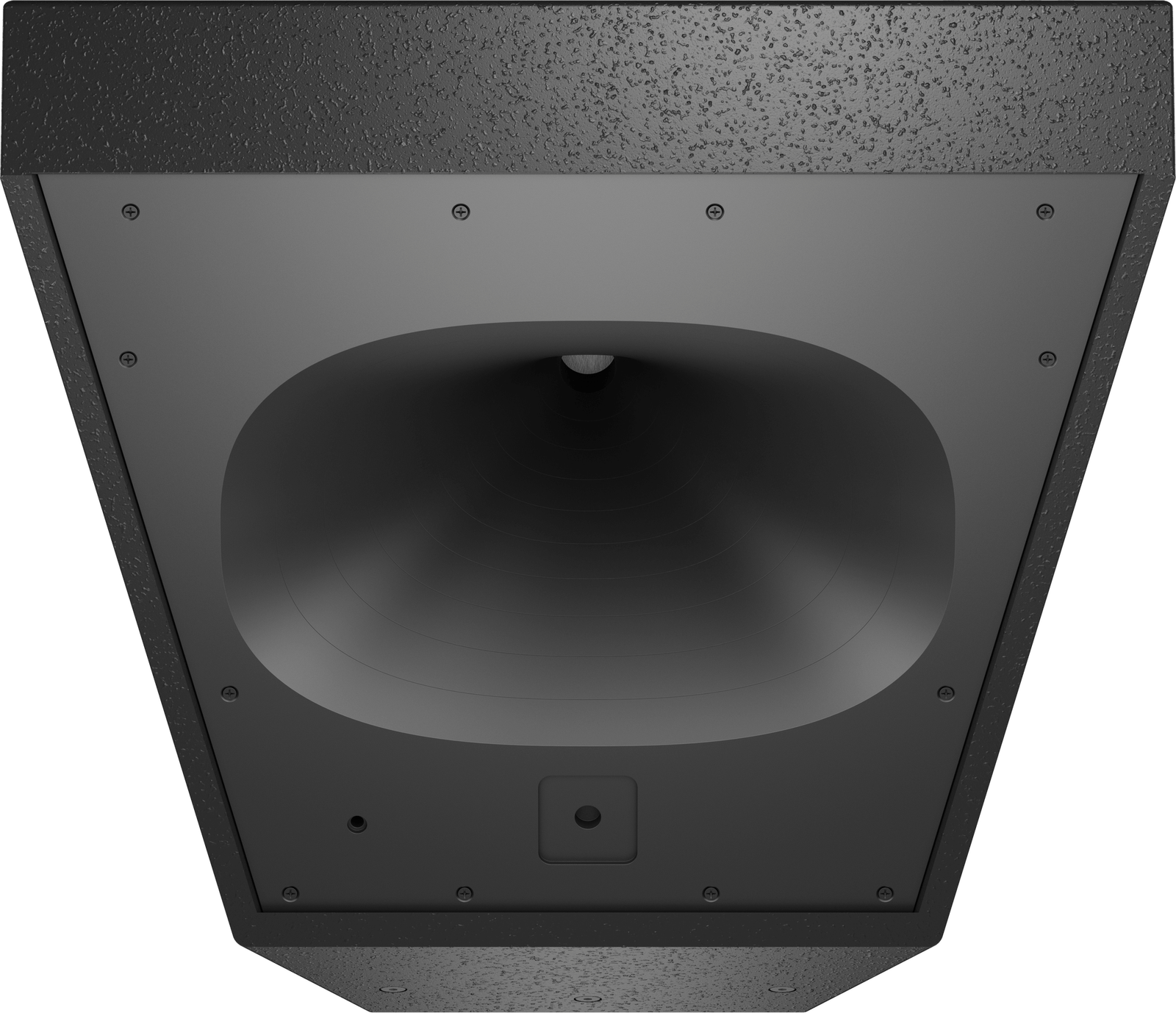

  • Patented PSW waveguide technology
  • Phase-coherent point source for exceptional response and control
  • Uniform coverage for areas below main loudspeakers
  • 60 x 40-degree dispersion for tight cluster installations
  • Configurable for passive or bi-amp operation
  • High efficiency, providing high SPL with modest power input
  • Internally braced birch plywood enclosure
  • Durable semi-matte black finish

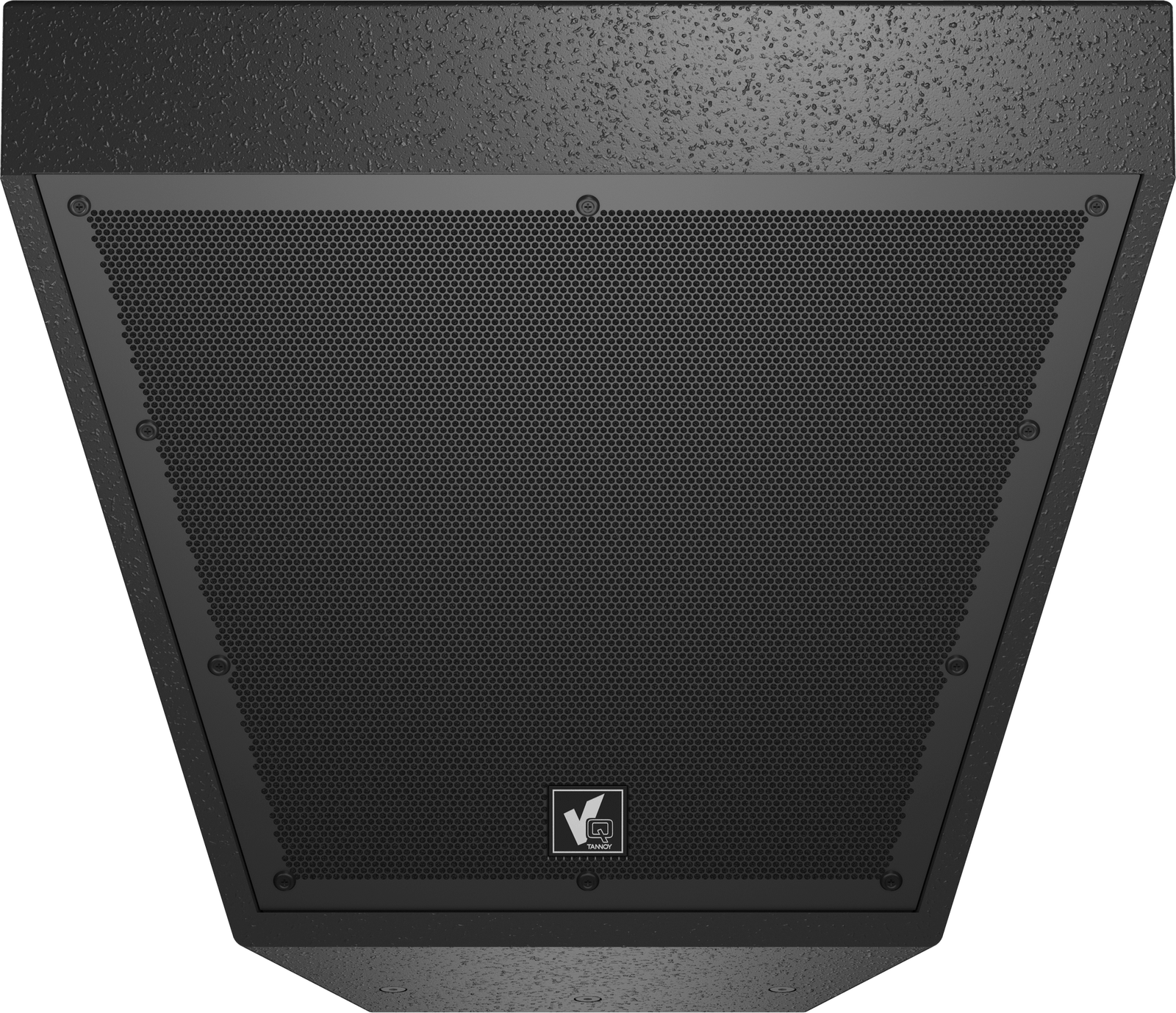

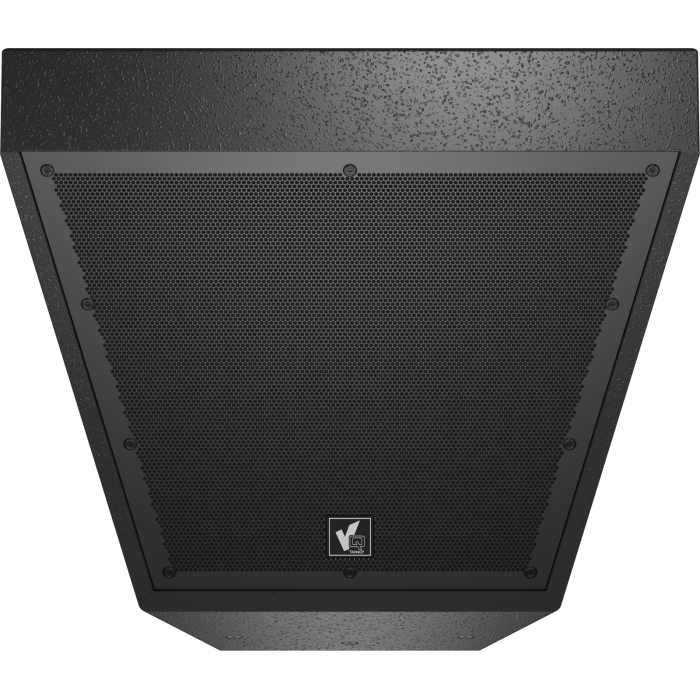

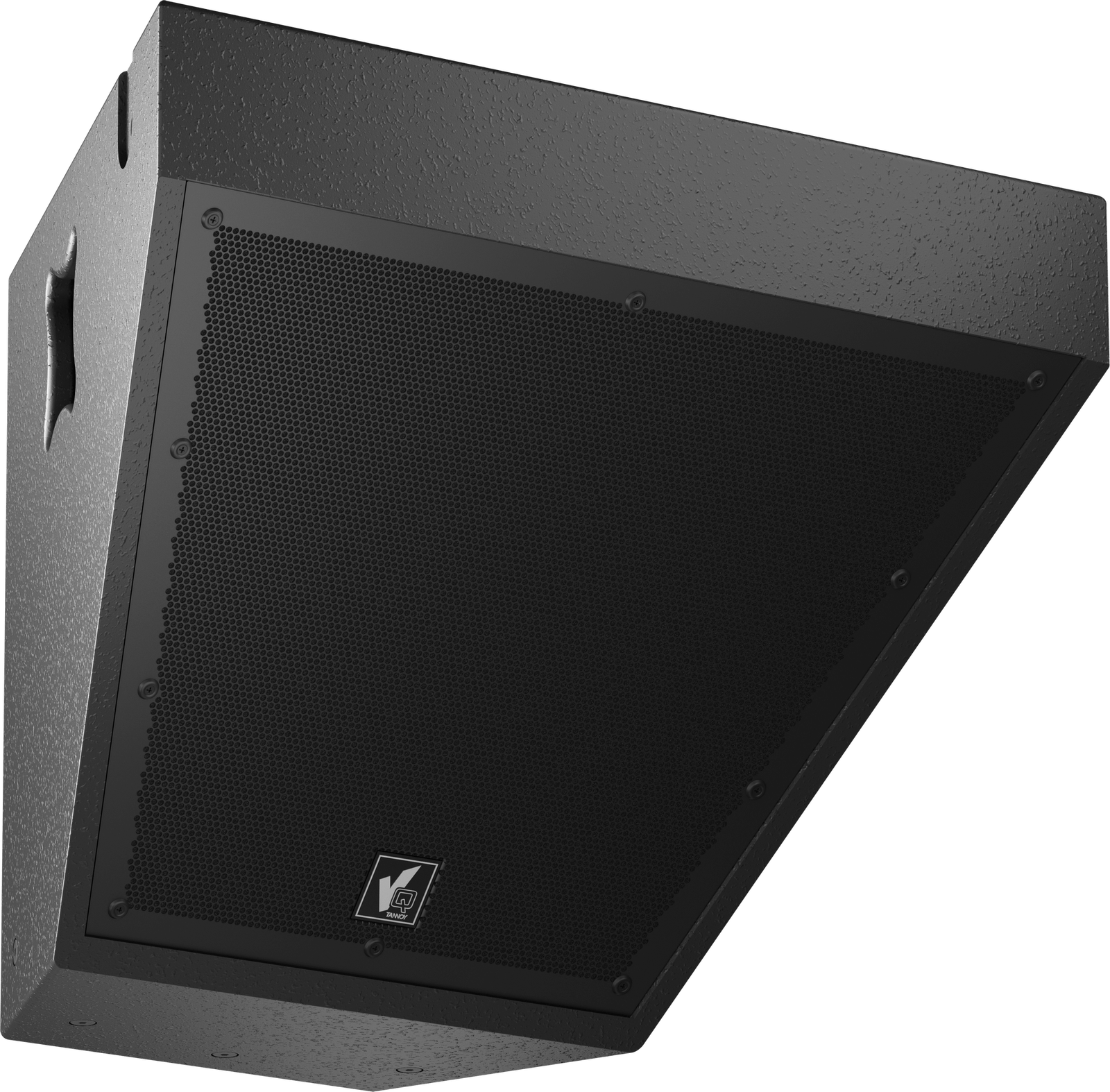

  • Rugged powder-coated perforated steel grille
  • Integral M10 rigging points for easy installation

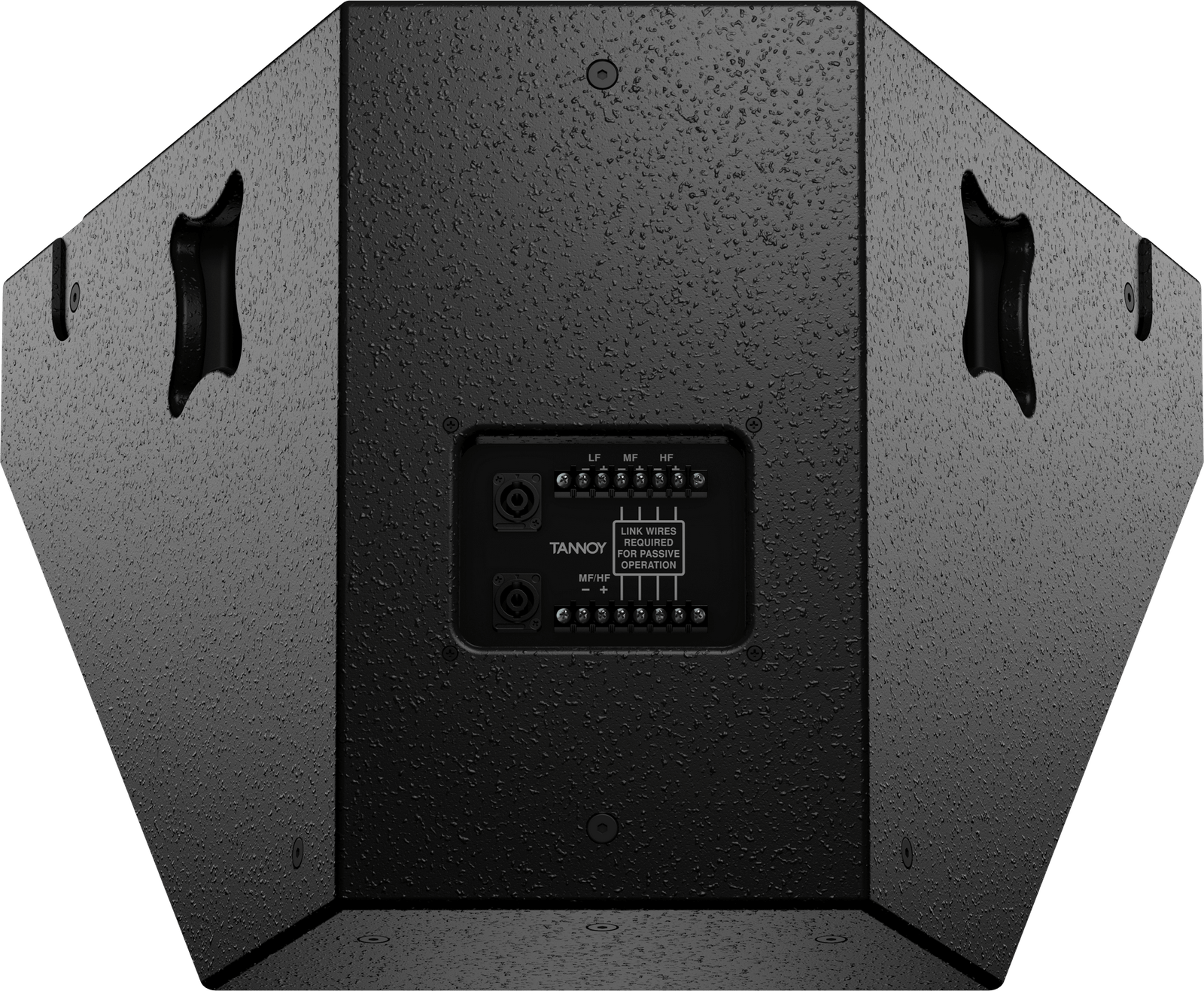

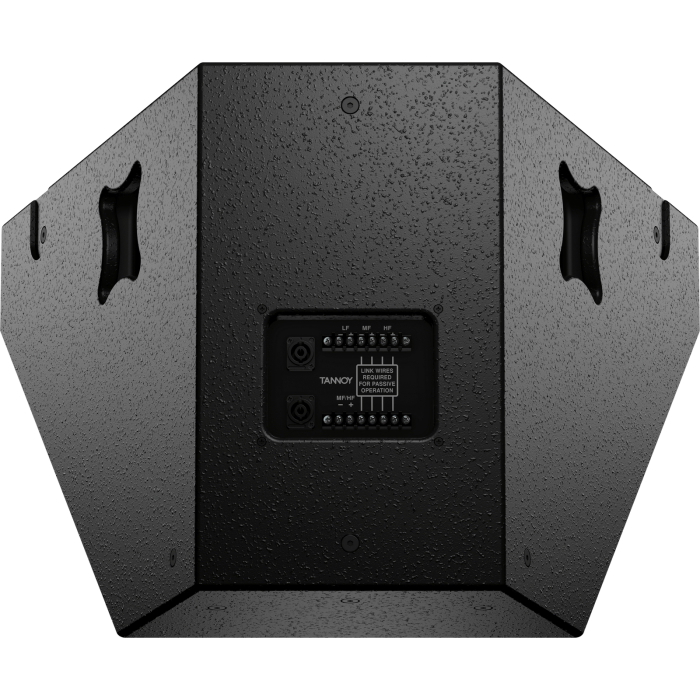

  • Neutrik speakON NL4 and barrier strip connectors

Specifications

Category Specification
Frequency Response (-3 dB) 400 Hz – 23 kHz
Frequency Range (-10 dB) 350 Hz – 27 kHz
Sensitivity (1 W @ 1 m) 114 dB
Dispersion (-6 dB) 60 x 40 degrees
Driver Components Dual concentric compression driver
Crossover Single amplified – 7 kHz (passive), Bi-amp – 7 kHz (active)
Directivity Factor (Q) 19.3
Directivity Index (DI) 12.9
Maximum SPL 137 dB average, 143 dB peak
Power Handling MF: 200 W cont, 400 W peak; HF: 90 W cont, 180 W peak
Nominal Impedance MF – 8 Ω, HF – 8 Ω
Weight 29.5 kg (64.9 lbs)

Enclosure Details

Category Specification
Construction 18 mm birch plywood, internally braced
Grille Powder-coated perforated steel
Finish Textured black or white paint
Connectors Barrier strip and speakON connector
Fittings 2 recessed carrying handles, 12 M10 flying inserts
Dimensions 500 x 694 x 515 mm (19.7 x 27.3 x 20.3″)
