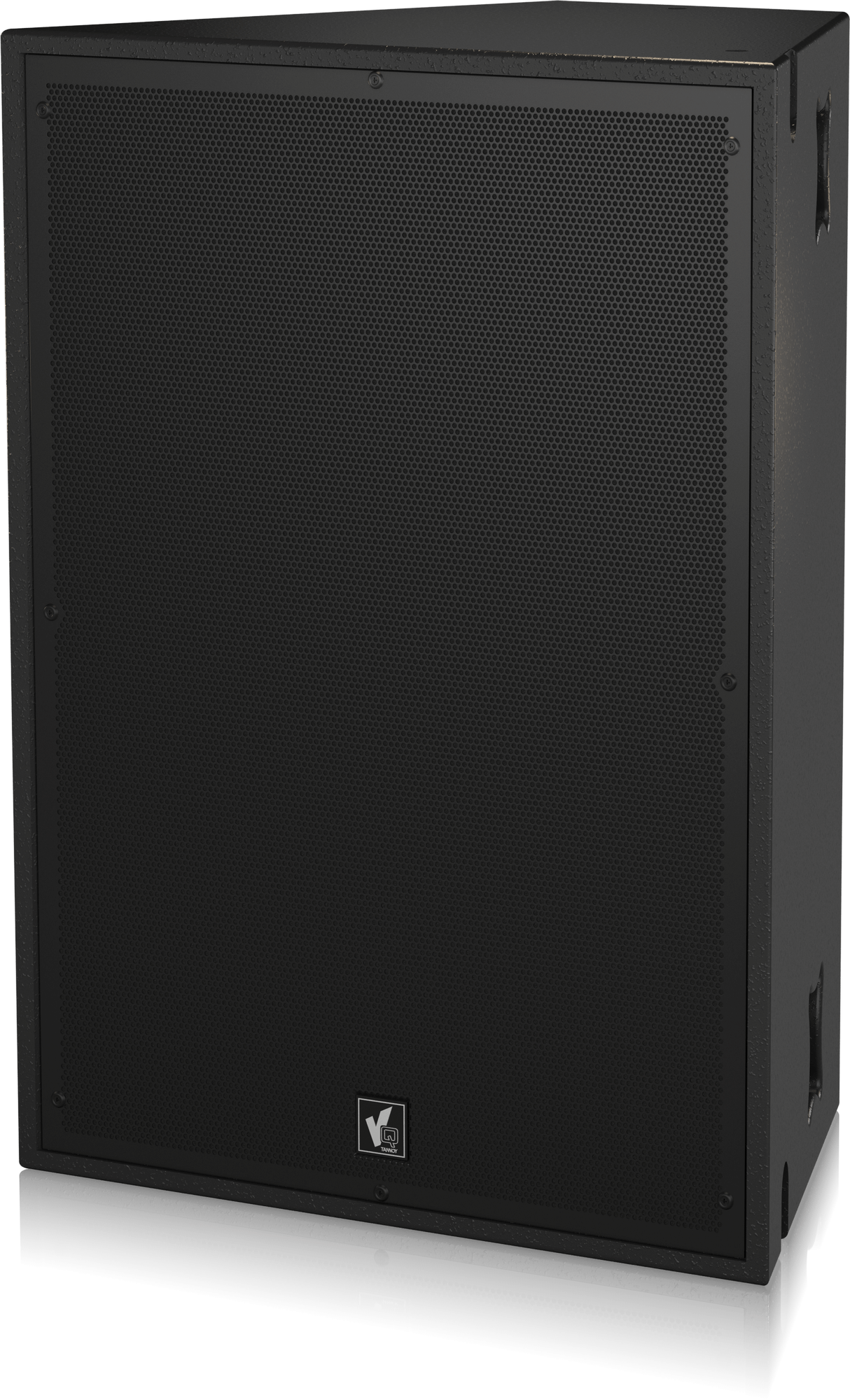

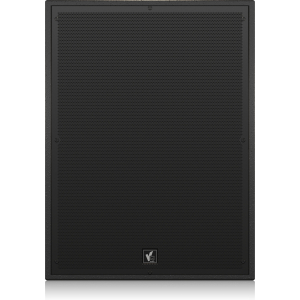

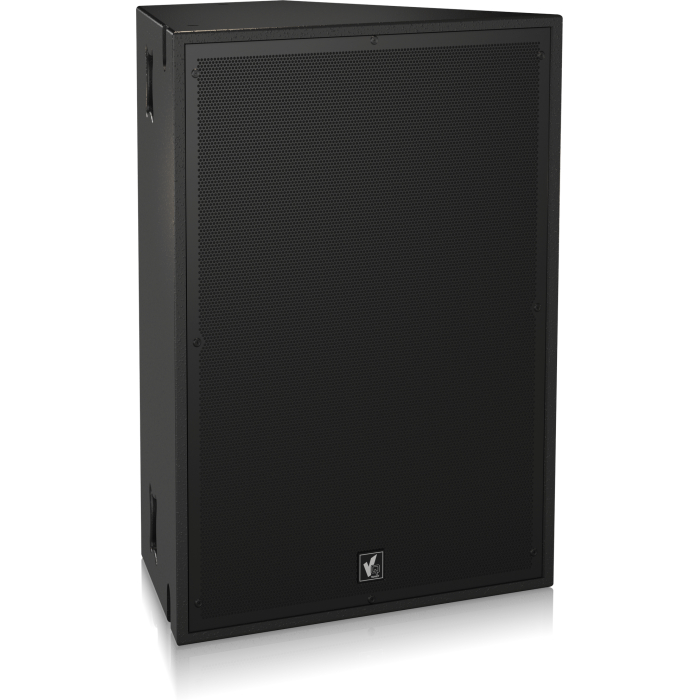

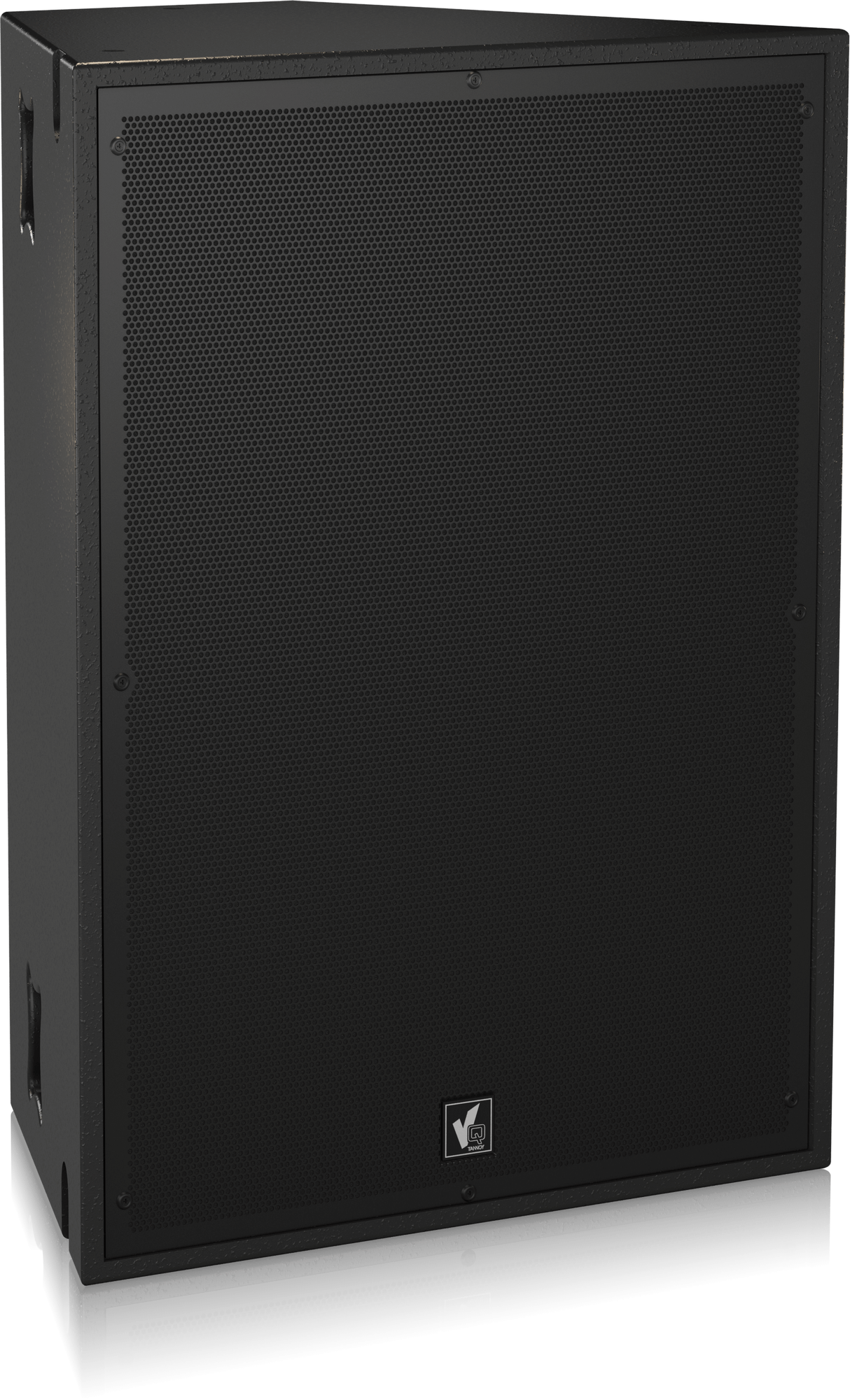

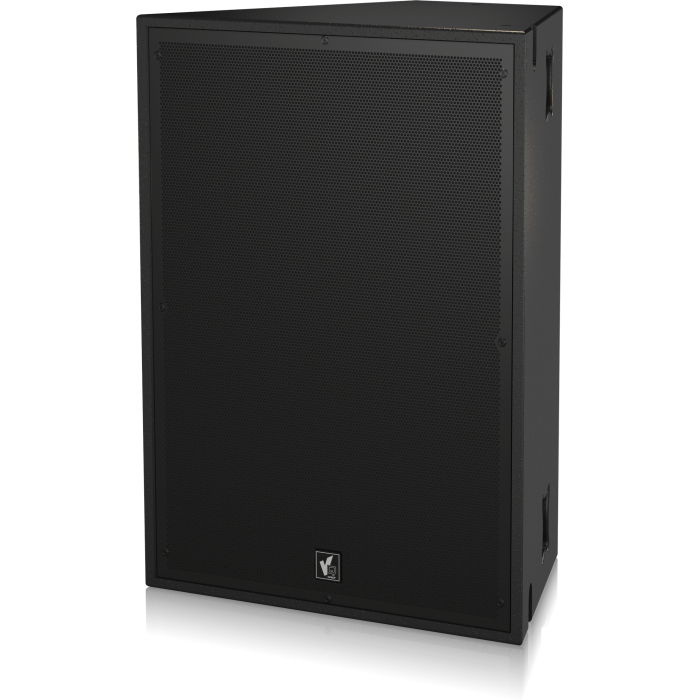

Tannoy VQ 60 3-Way Dual 12″ Loudspeaker 1300W 60° Dispersion

Tannoy

AED 14007 inc VAT.

In stock
Enquiry On Whatsapp
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: VQ 60 Categories: , , Brand:

The VQ 60 is a high-output, self-powered, three-way loudspeaker system with exceptional pattern control, ideal for applications requiring superior sound clarity and versatility. Suitable for both arrayed setups and standalone use, the VQ 60 delivers powerful audio performance, keeping the integrity of venue aesthetics intact. Its low-frequency reach to 90 Hz allows seamless integration with VSX series subwoofers for extended sound range.

Description

VQ 60 Three-Way Loudspeaker System

The VQ 60 is a full range, self-powered, three-way loudspeaker system designed for applications requiring exceptionally high output with excellent pattern control. Ideal for use individually or in paired clusters, the VQ 60 maintains aesthetic integrity while delivering unparalleled sound quality. With a low-frequency extension to 90 Hz, it can also be paired with VSX series subwoofers for extended bandwidth.

Features

  • High performance 3-way full range large format loudspeaker
  • 1,300 Watts continuous, 5,200 Watts peak power

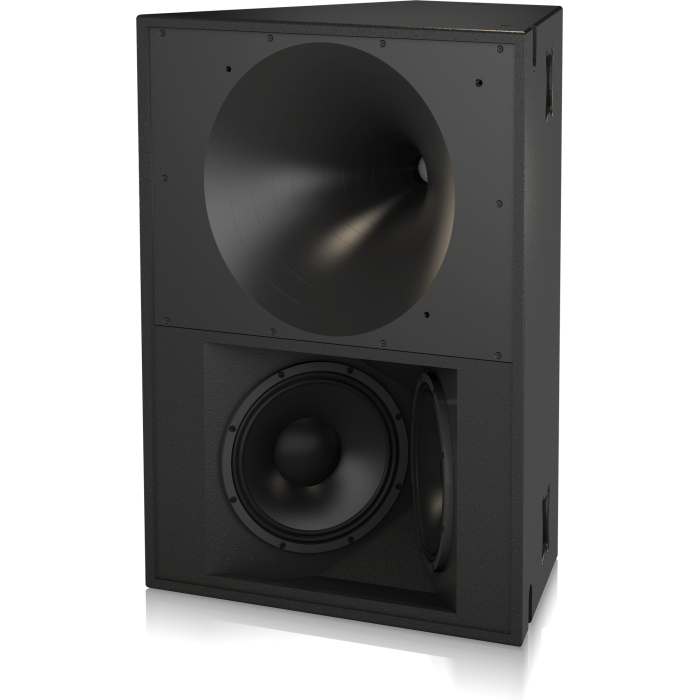

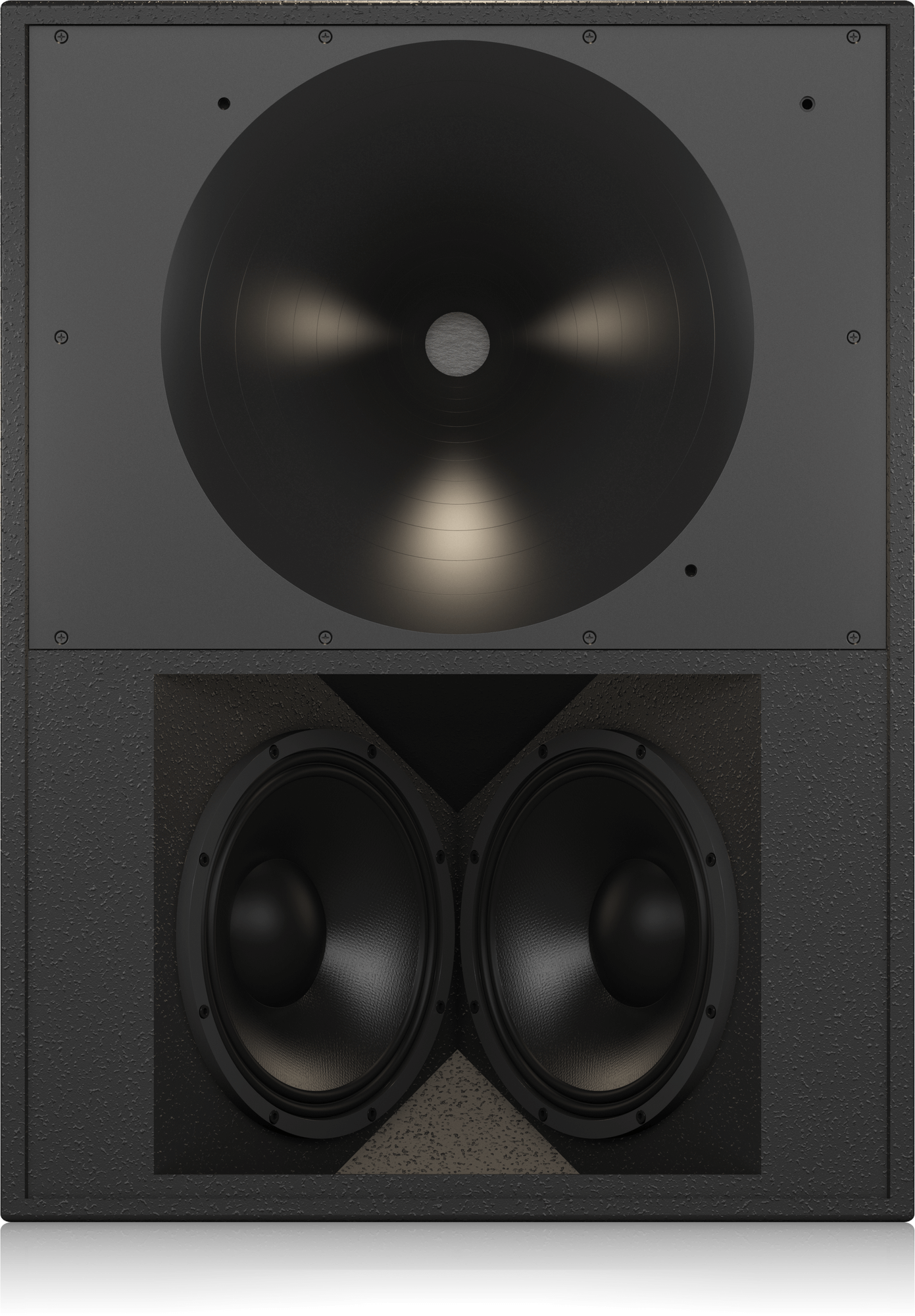

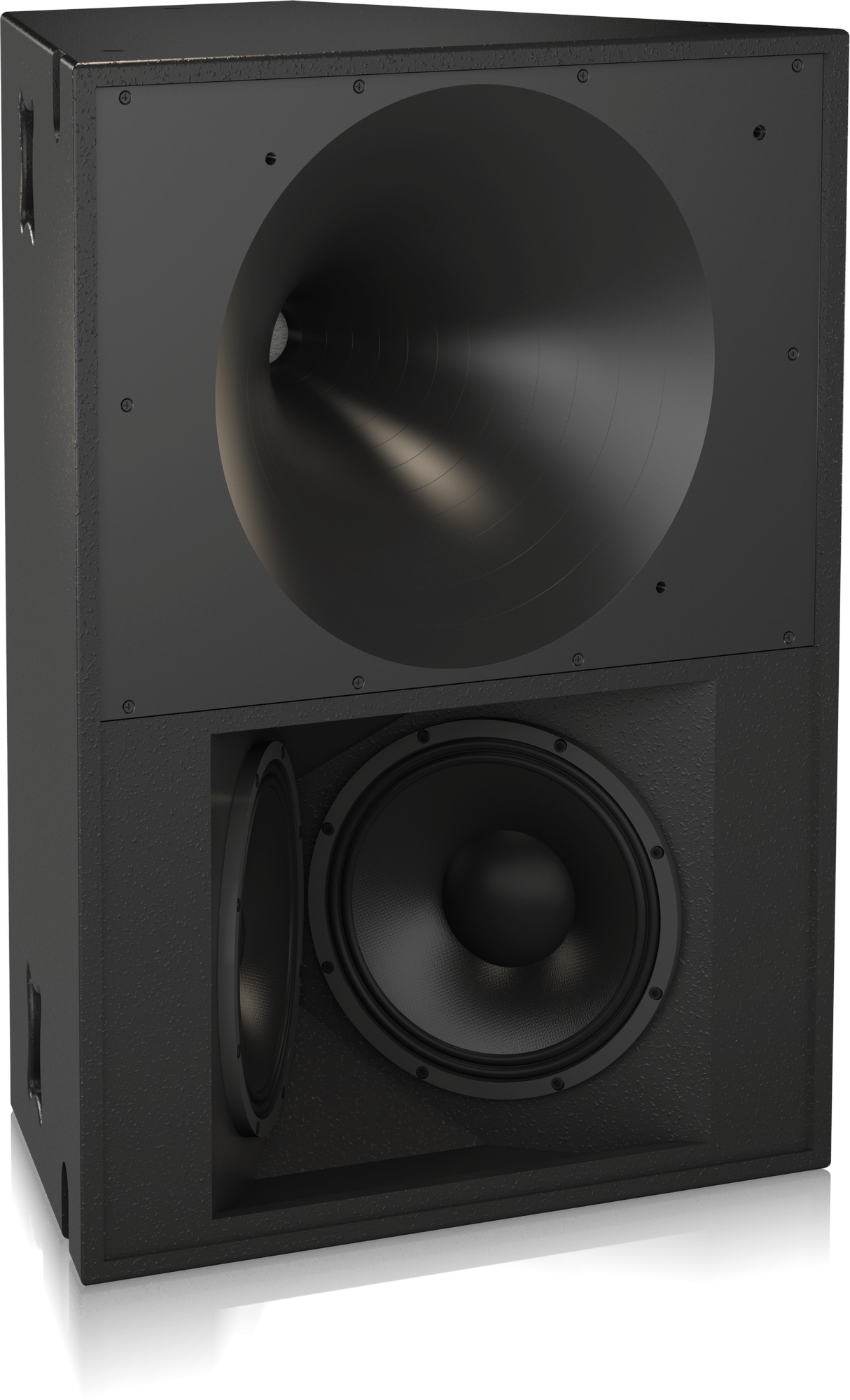

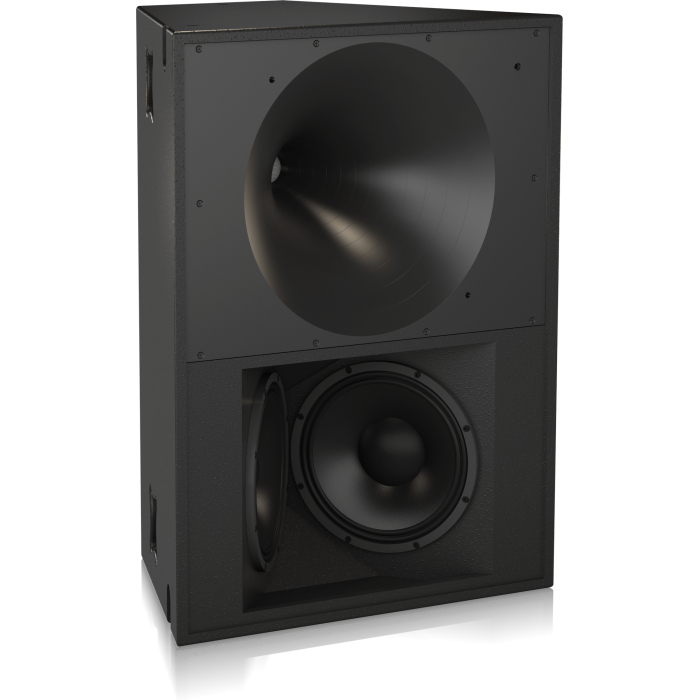

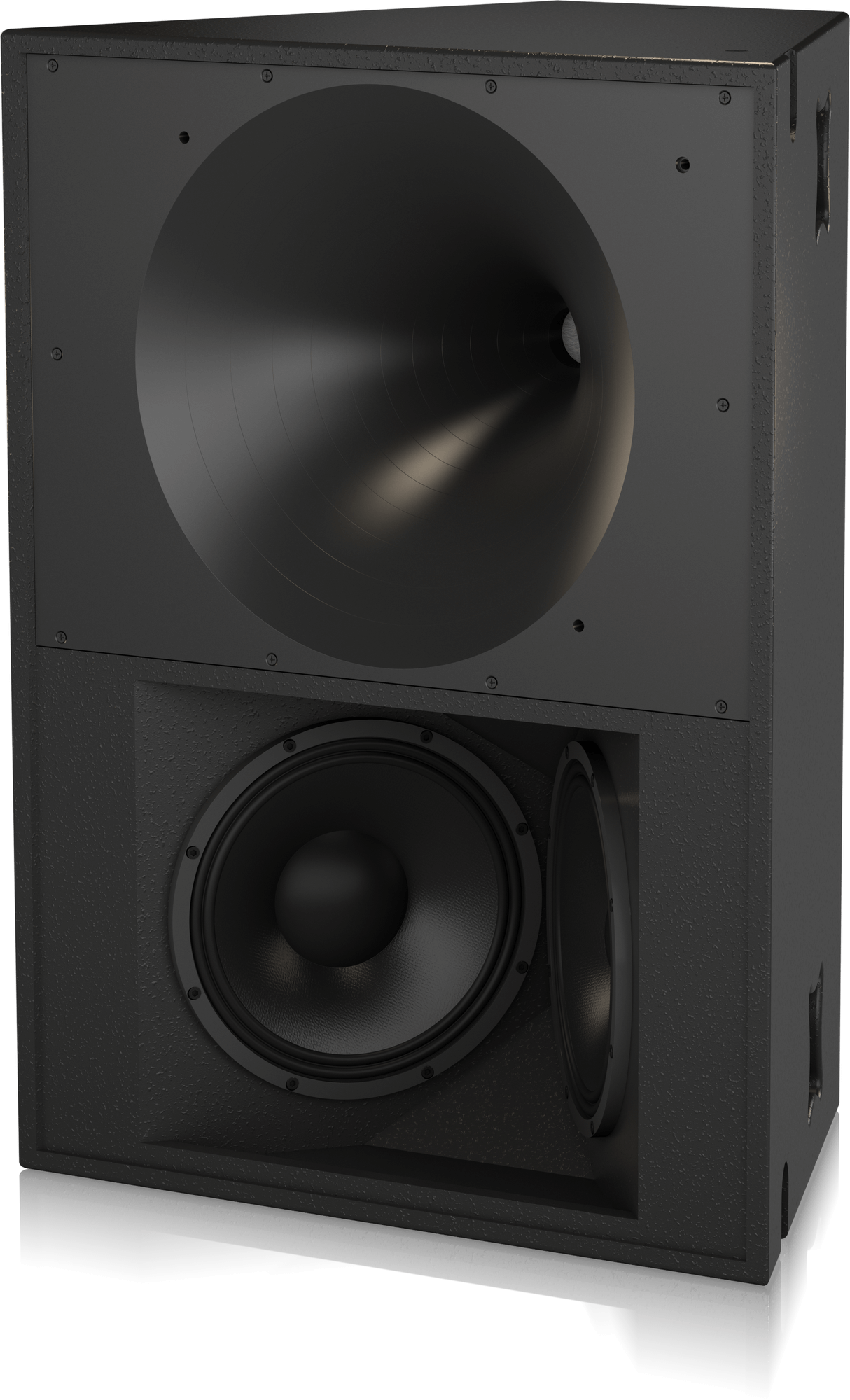

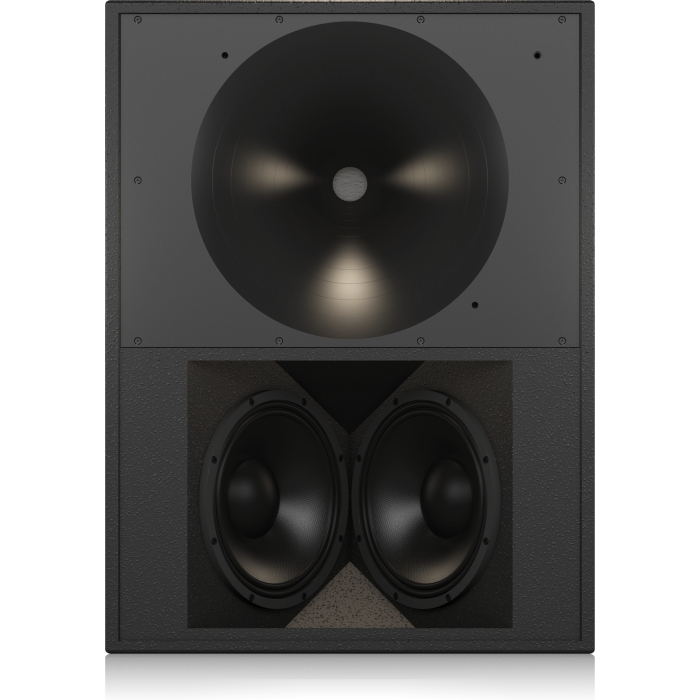

  • Dual 12″ low frequency drivers in a semi horn-loaded configuration
  • Dual Concentric 3.5″ and 1.75″ diaphragm compression drivers for mid and high frequencies
  • Patented PSW waveguide technology for coherent wavefront alignment
  • 60° conical dispersion for tightly packed point-source clusters
  • Phase coherent point source with exceptional transient response
  • User configurable for bi-amp and tri-amp operation
  • Internally braced birch plywood enclosure
  • Hard-wearing semi-matt black finish

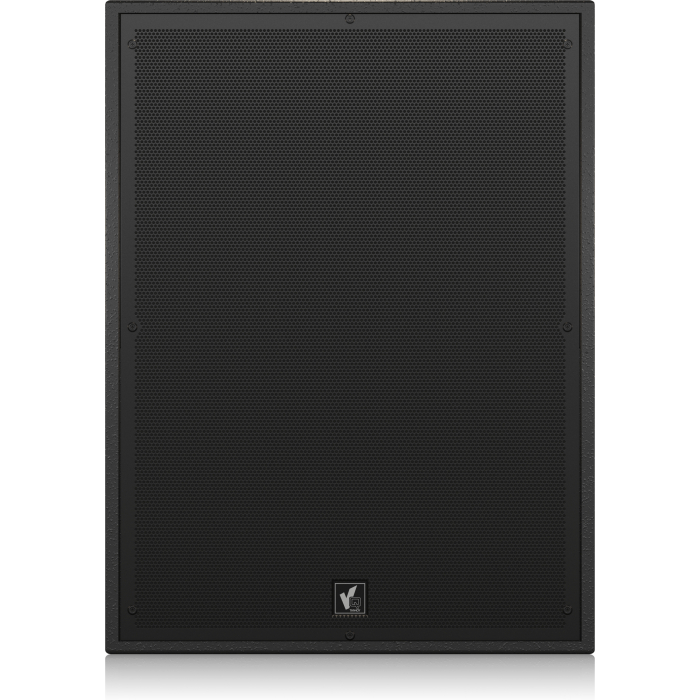

  • Rugged powder-coated perforated steel grille
  • Integral M10 rigging points for installation ease
  • Ergonomically integrated handles
  • Barrier strip and speakON NL4 connectors

Specifications

Attribute Details
Frequency Response (-3 dB) 115 Hz – 23 kHz
Frequency Range (-10 dB) 90 Hz – 27 kHz
Sensitivity (1 W @ 1m) 115 dB
Dispersion (-6 dB) 60° conical
Driver Components LF: 2 x 300 mm (12″) low frequency transducers, semi horn-loaded, MF/HF: Dual concentric compression driver loaded into single PSW waveguide
Crossover Biamp: 450 Hz (active), 7 kHz (passive); Triamp: 450 Hz, 7 kHz (active)
Directivity Factor (Q) 21.2
Directivity Index (DI) 13.3
Maximum SPL 138 dB (averaged), 144 dB (peak)
Power Handling LF: 1000 W continuous, 2000 W peak; MF: 200 W continuous, 400 W peak; HF: 90 W continuous, 180 W peak; Passive MF/HF: 200 W continuous, 400 W peak
Nominal Impedance LF: 4 Ω, MF: 8 Ω, HF: 8 Ω

Enclosure

Element Details
Construction 18 mm (0.71″) birch plywood, internally braced

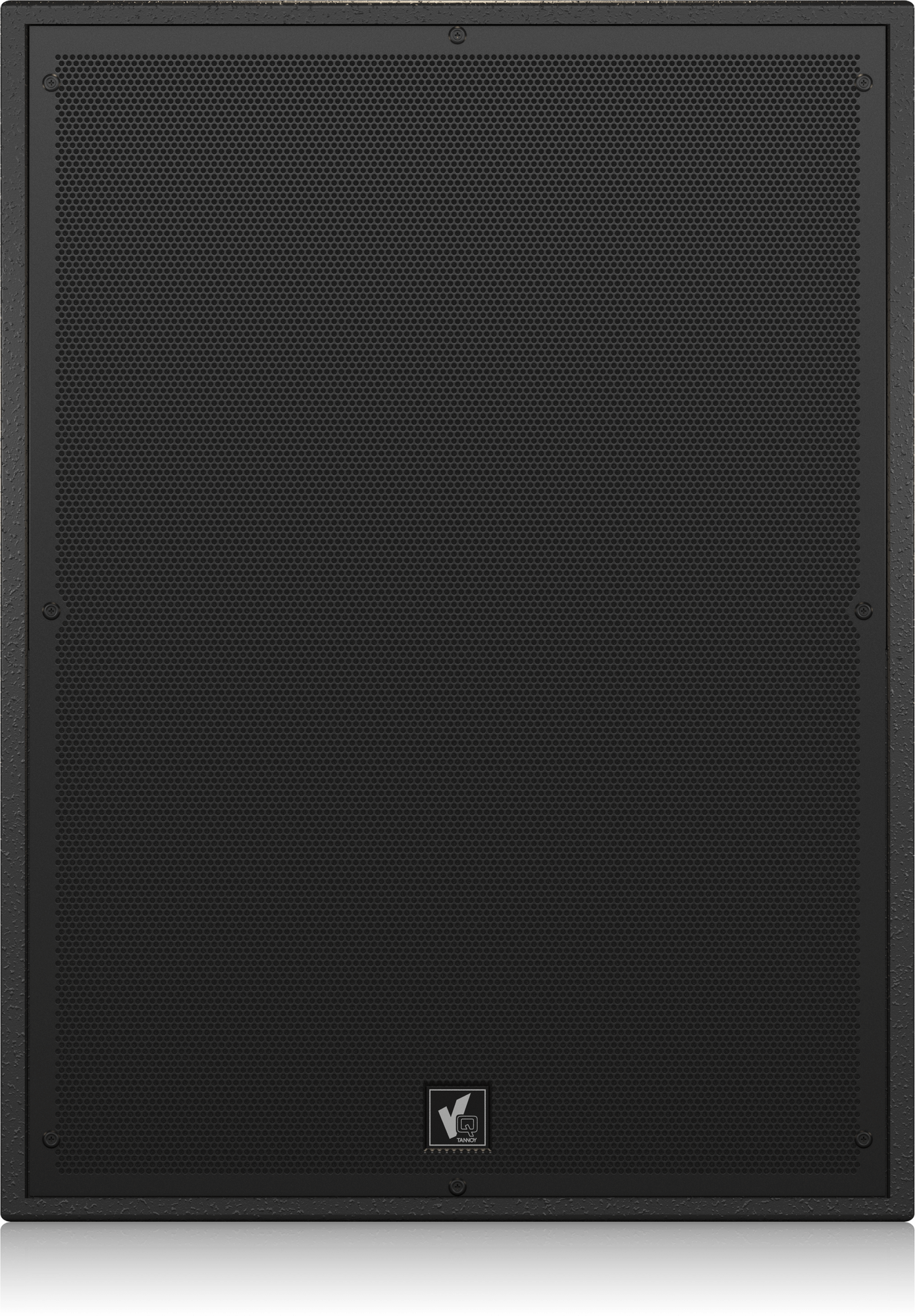

Grille Powder-coated perforated steel
Finish Textured black or white paint

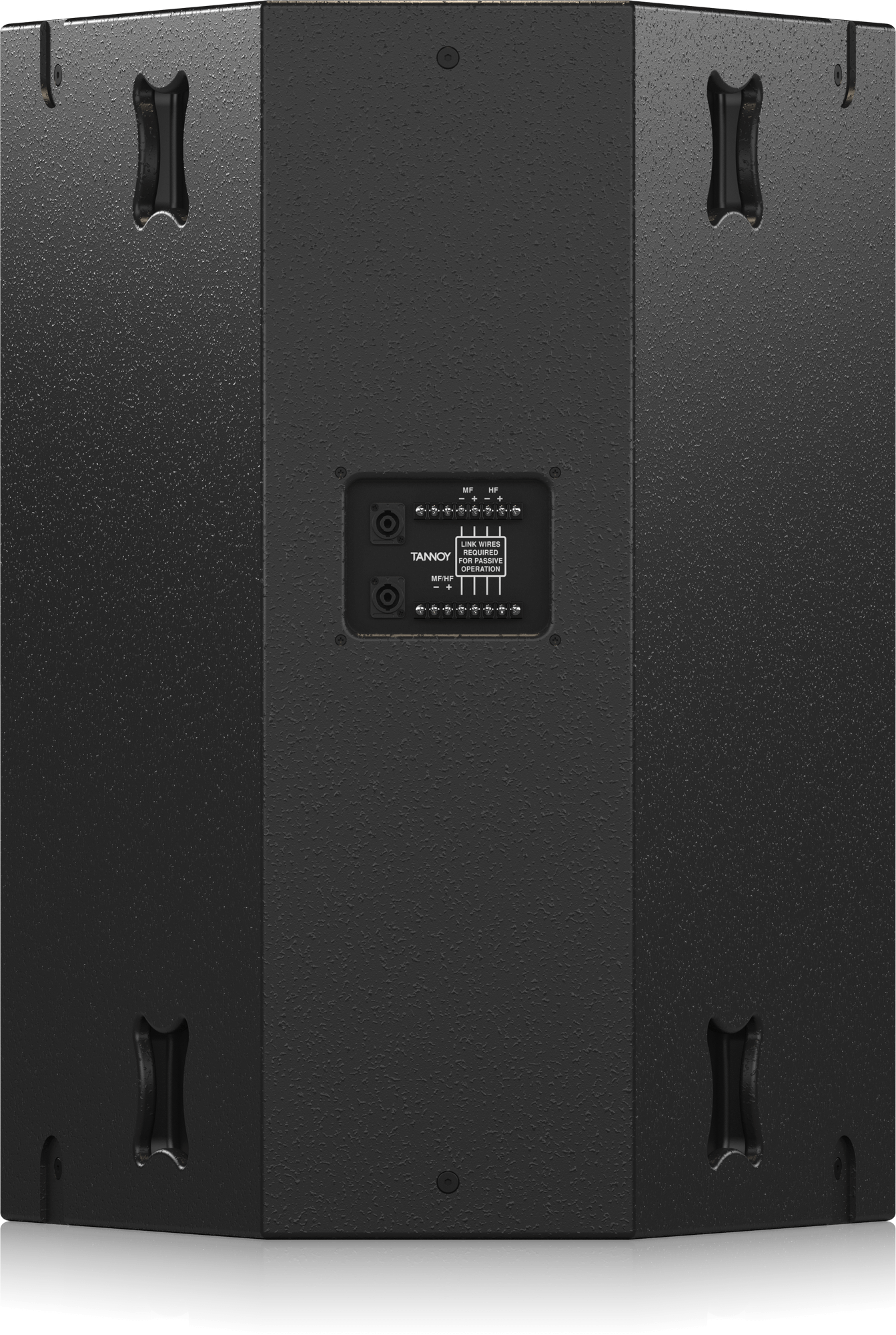

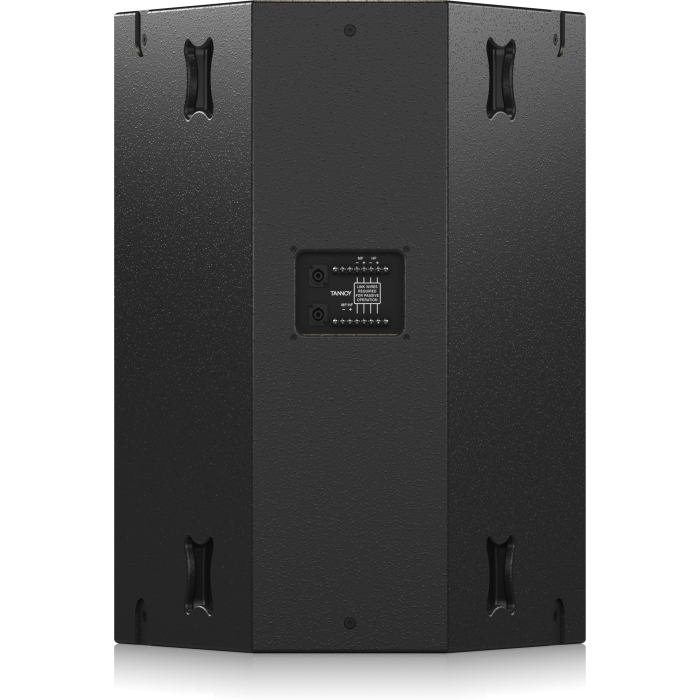

Connectors Barrier strip and speakON connector
Fittings 8 x recessed handles, 12 x M10 flying inserts
Dimensions 925 x 694 x 515 mm (36.4 x 27.3 x 20.3″)
Weight 77 kg (169 lbs)
