Description

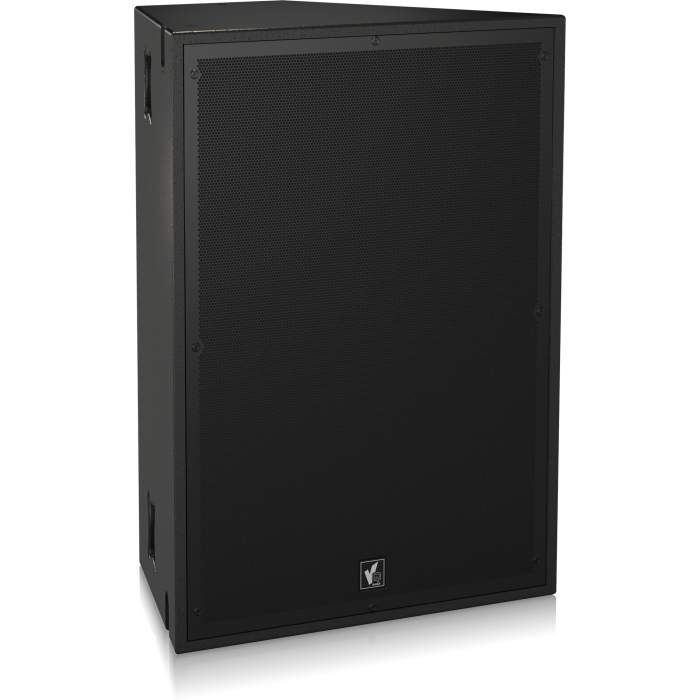

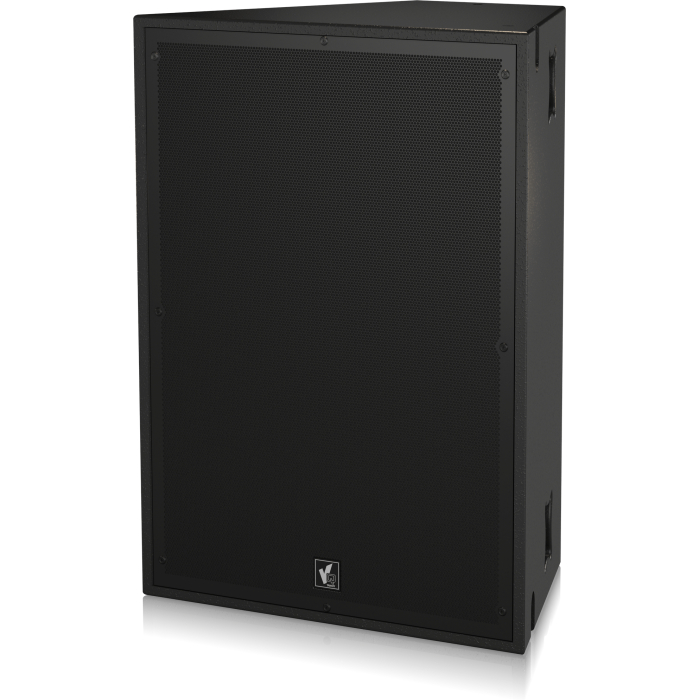

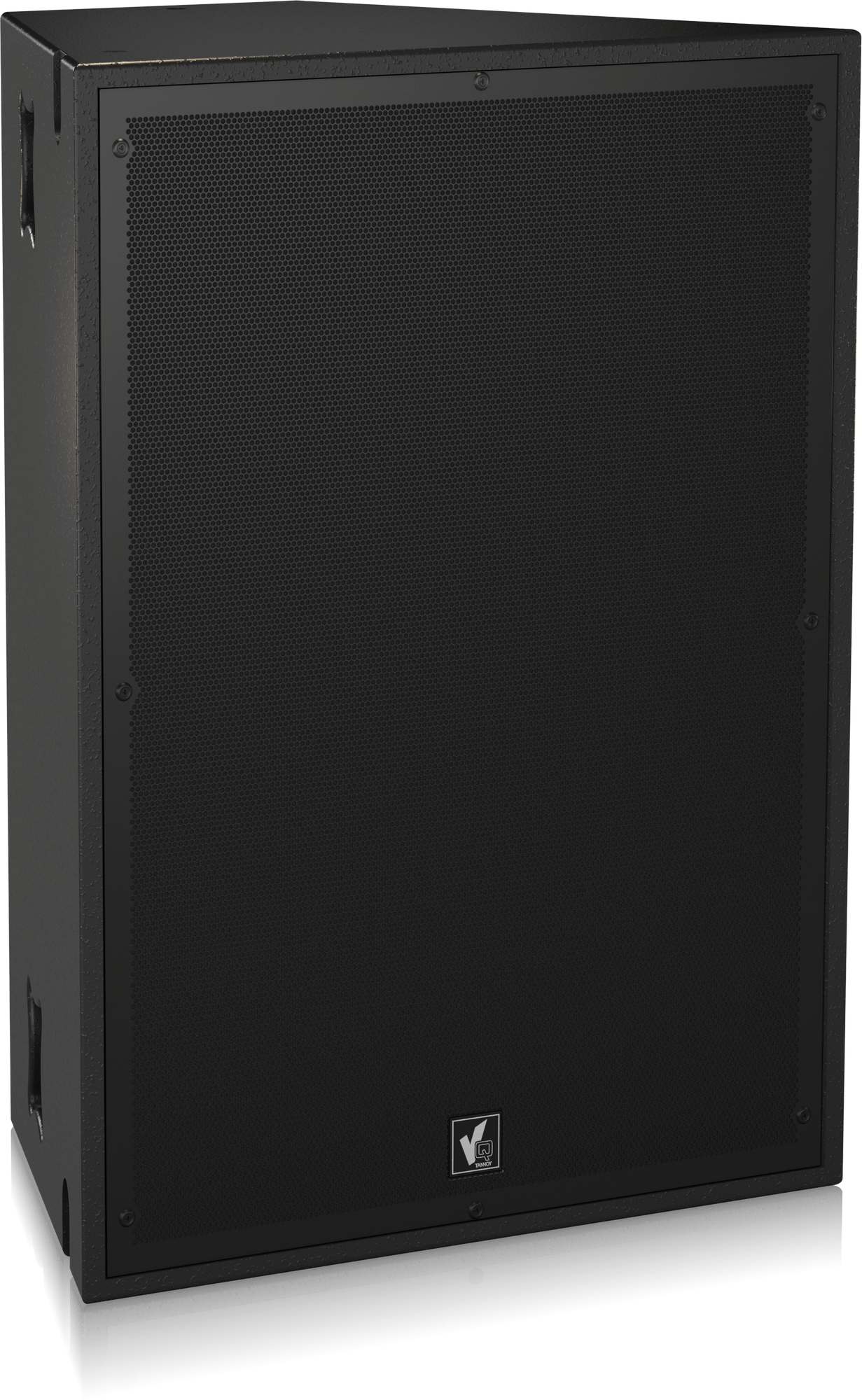

The VQ 100 is a full range, self-powered, three-way loudspeaker system designed for applications which require very high output capability with class leading pattern control. The VQ 100 is perfectly suited for use in arrays or singly in demanding applications. Unlike line array solutions, the VQ 100 can produce enough power and clarity to be used individually, or in paired clusters for wider coverage, maintaining your building’s aesthetics and sight lines. With low frequency extension to 90 Hz, the VQ 100 can be combined with various subwoofers from the VSX series for extended bandwidth.
Features
- 3-way full range large format loudspeaker for high performance installation applications
- 1,300 Watts continuous, 5,200 Watts peak power

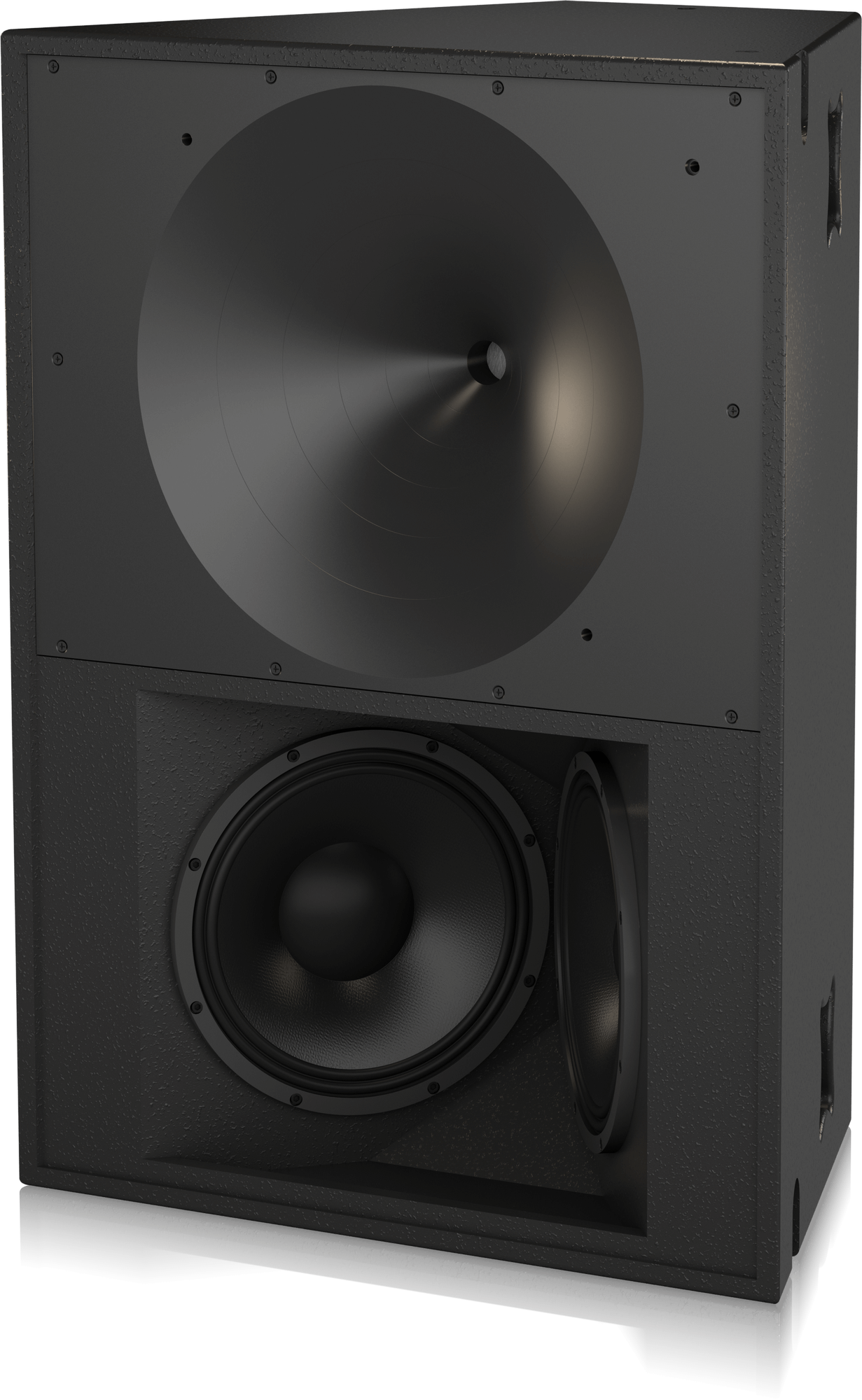

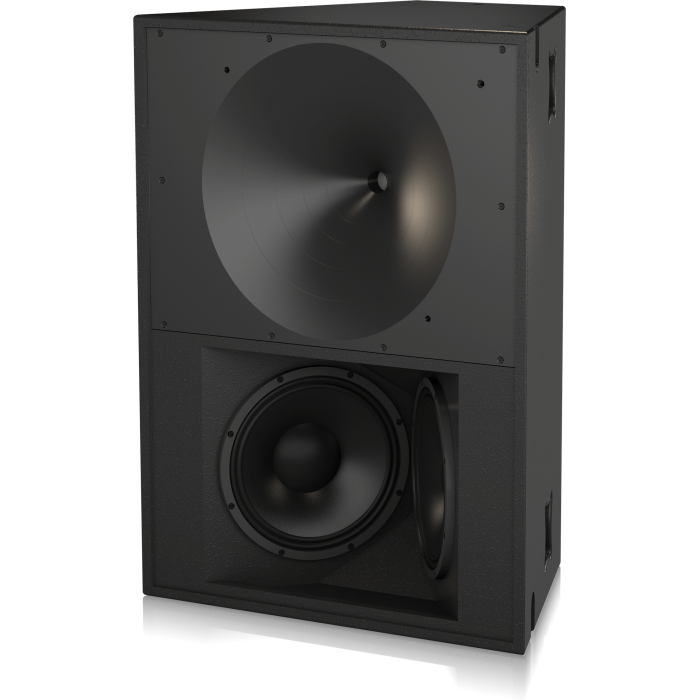

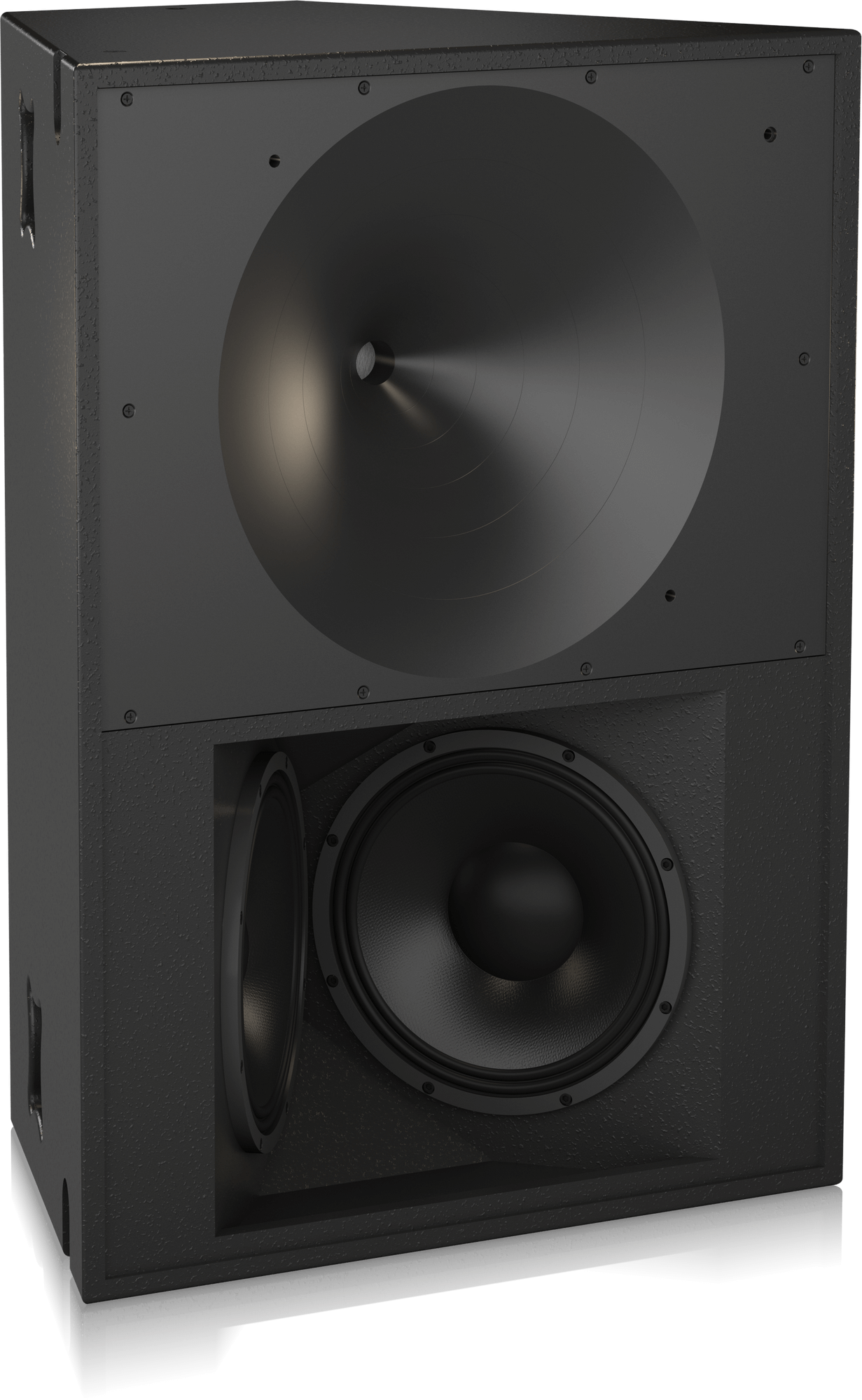

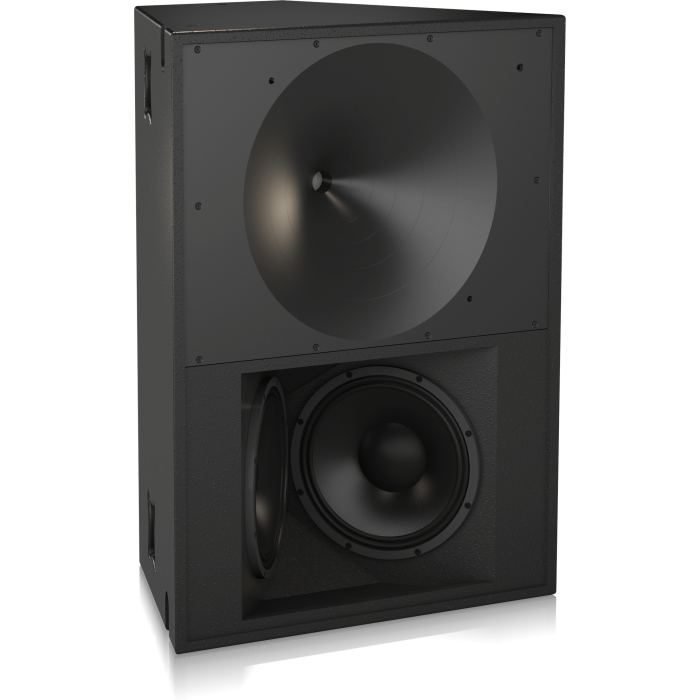

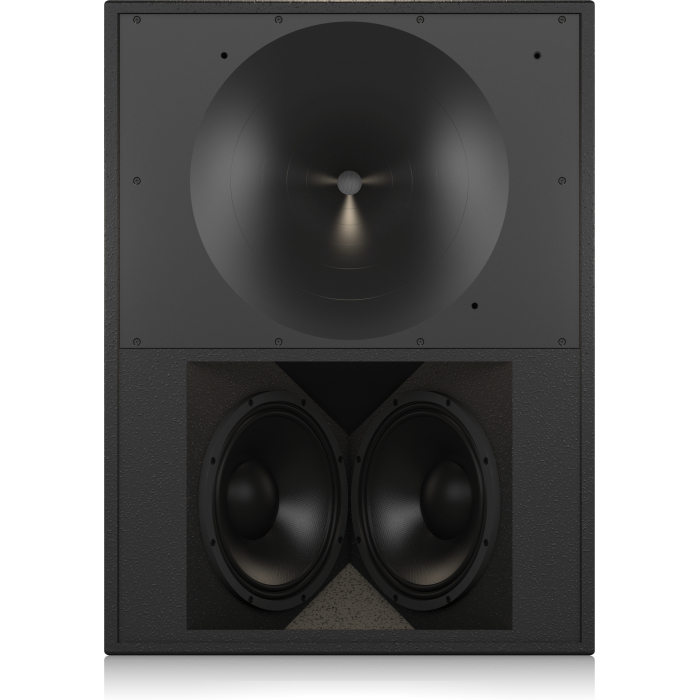

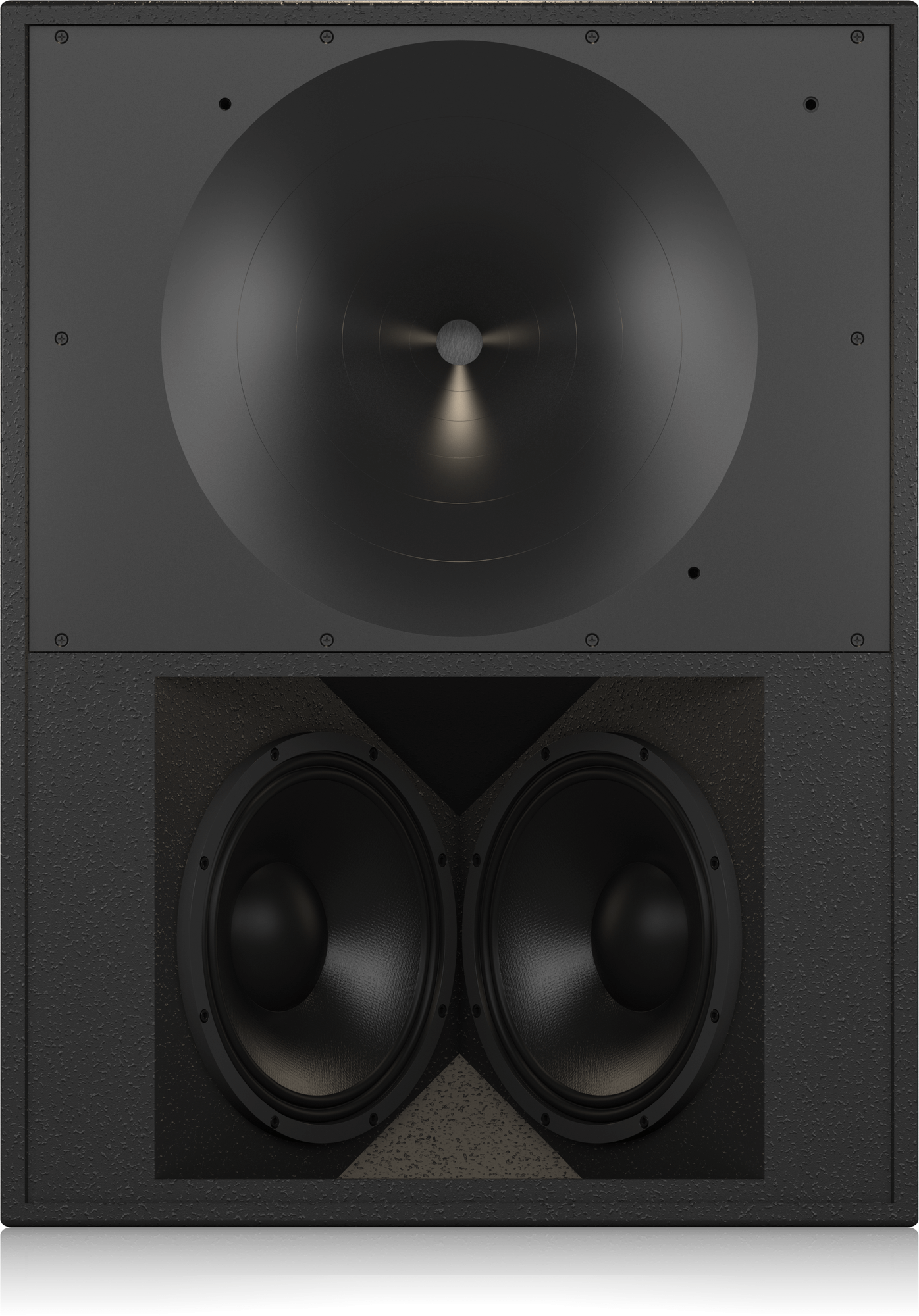

- Dual 12″ low frequency drivers in semi horn-loaded configuration
- Dual Concentric 3.5″ and 1.75″ diaphragm compression drivers for mid and high frequency reproduction
- Patented PSW waveguide technology provides acoustic center alignment for coherent wavefront at horn throat
- Phase coherent point source provides exceptional transient response and dispersion control
- 100° conical dispersion allows installation of tightly packed point-source clusters
- Precise time alignment eliminates interference from multiple driver sources
- User configurable for bi-amp and tri-amp operation
- Extremely high efficiency design provides high SPL for modest power input
- Modular design for versatile and compact cluster configurations
- Internally braced birch plywood enclosure
- Finished with hard wearing semi-matt black paint

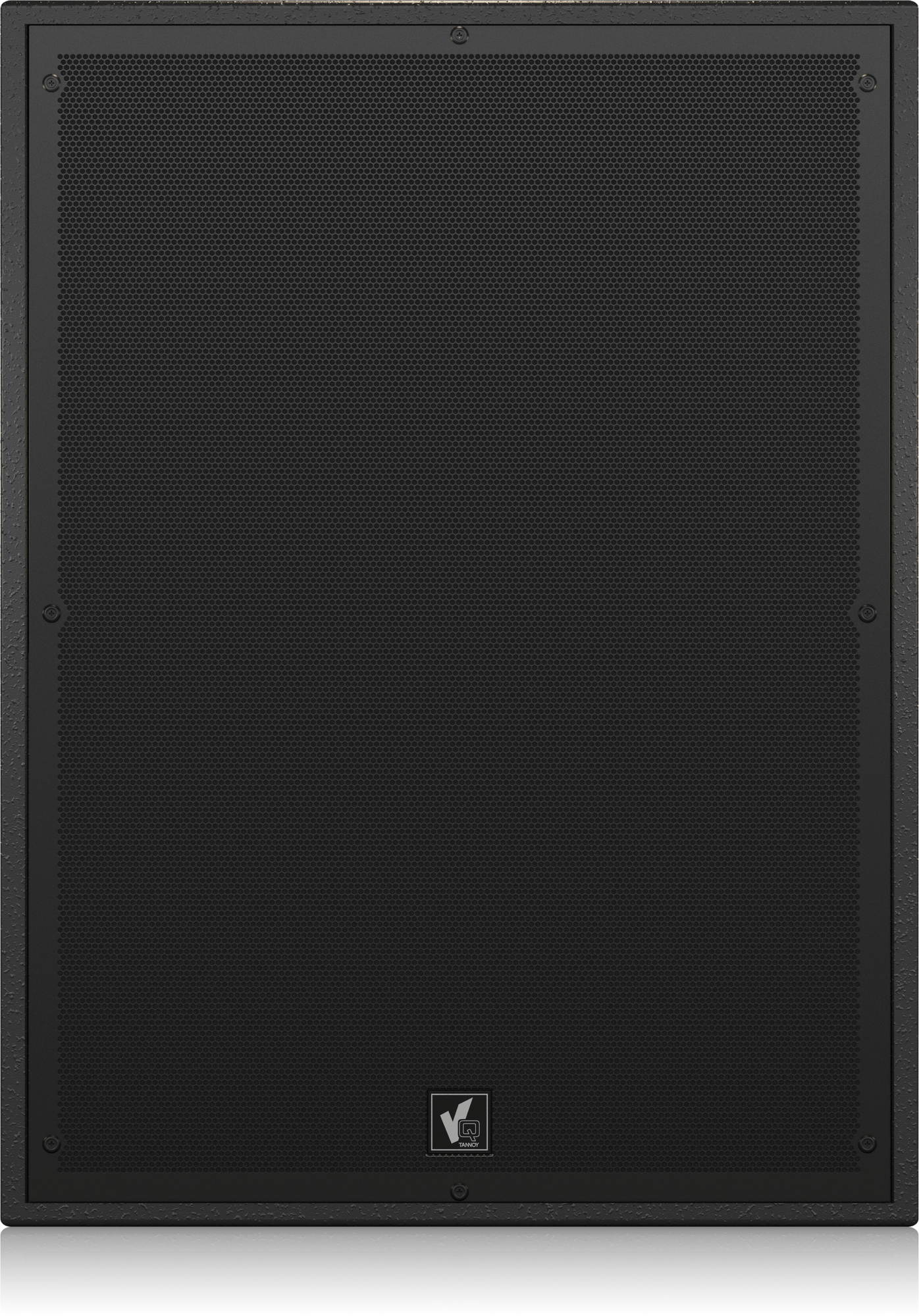

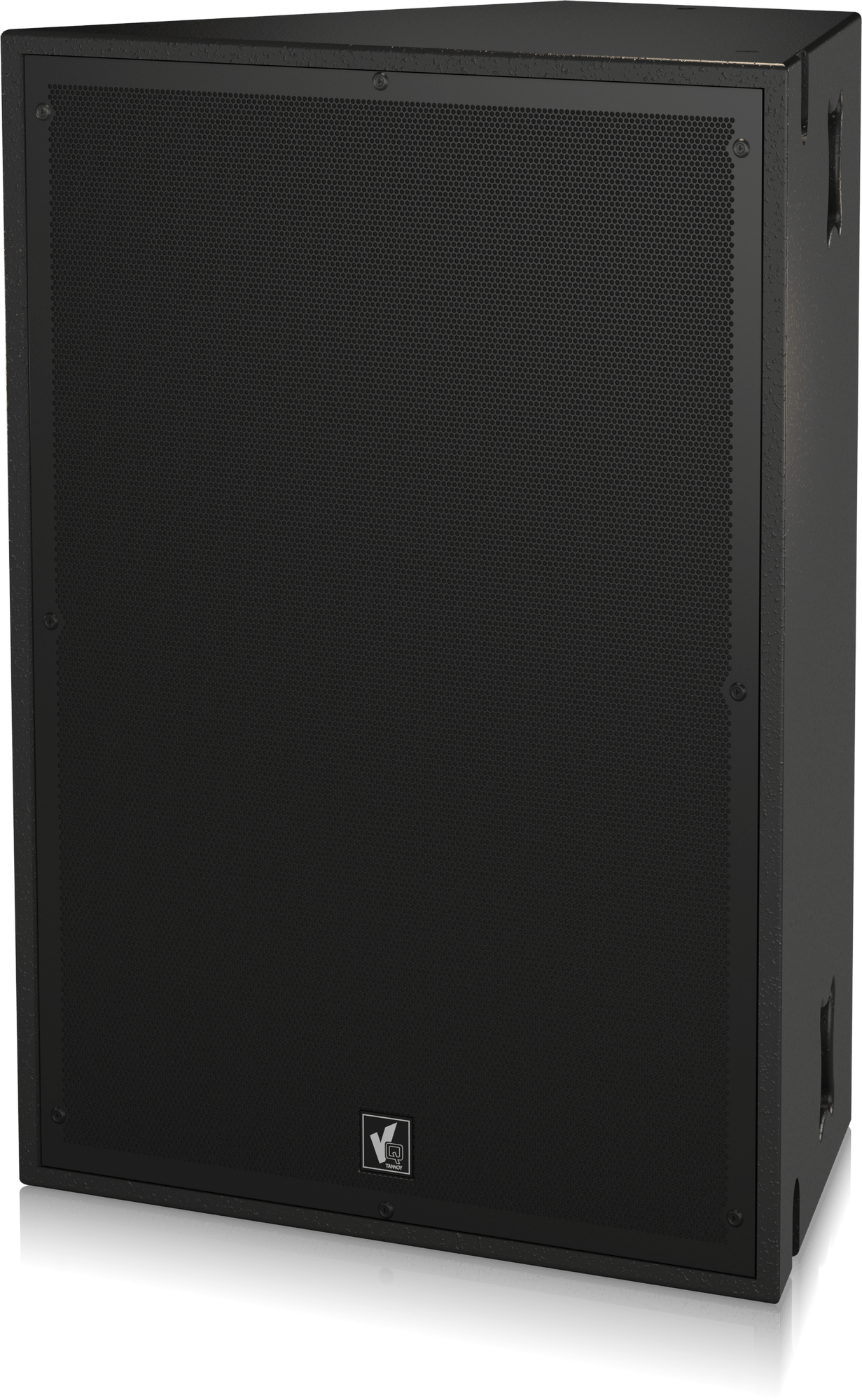

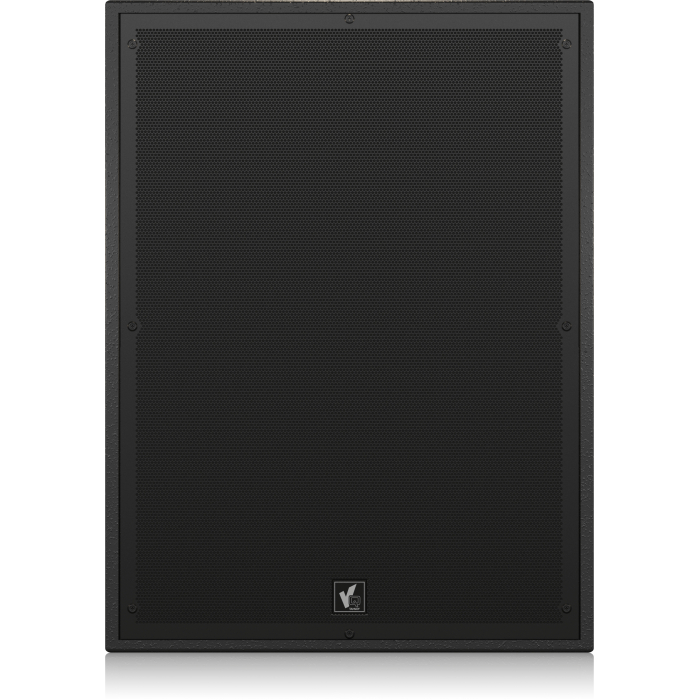

- Rugged powder-coated perforated steel mesh grille
- Integral M10 rigging points for ease of installation
- 8 handles ergonomically integrated into cabinet
- Optional vertical flyware with 10:1 safety ratio (available separately)

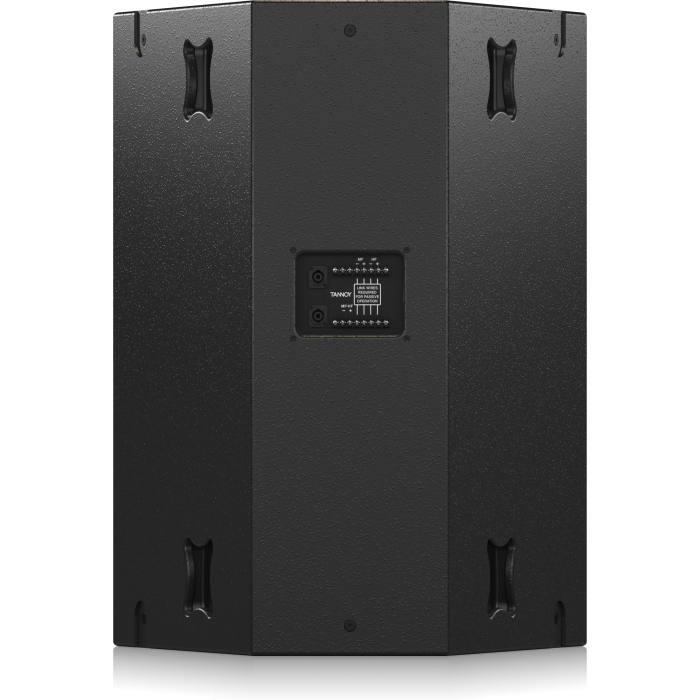

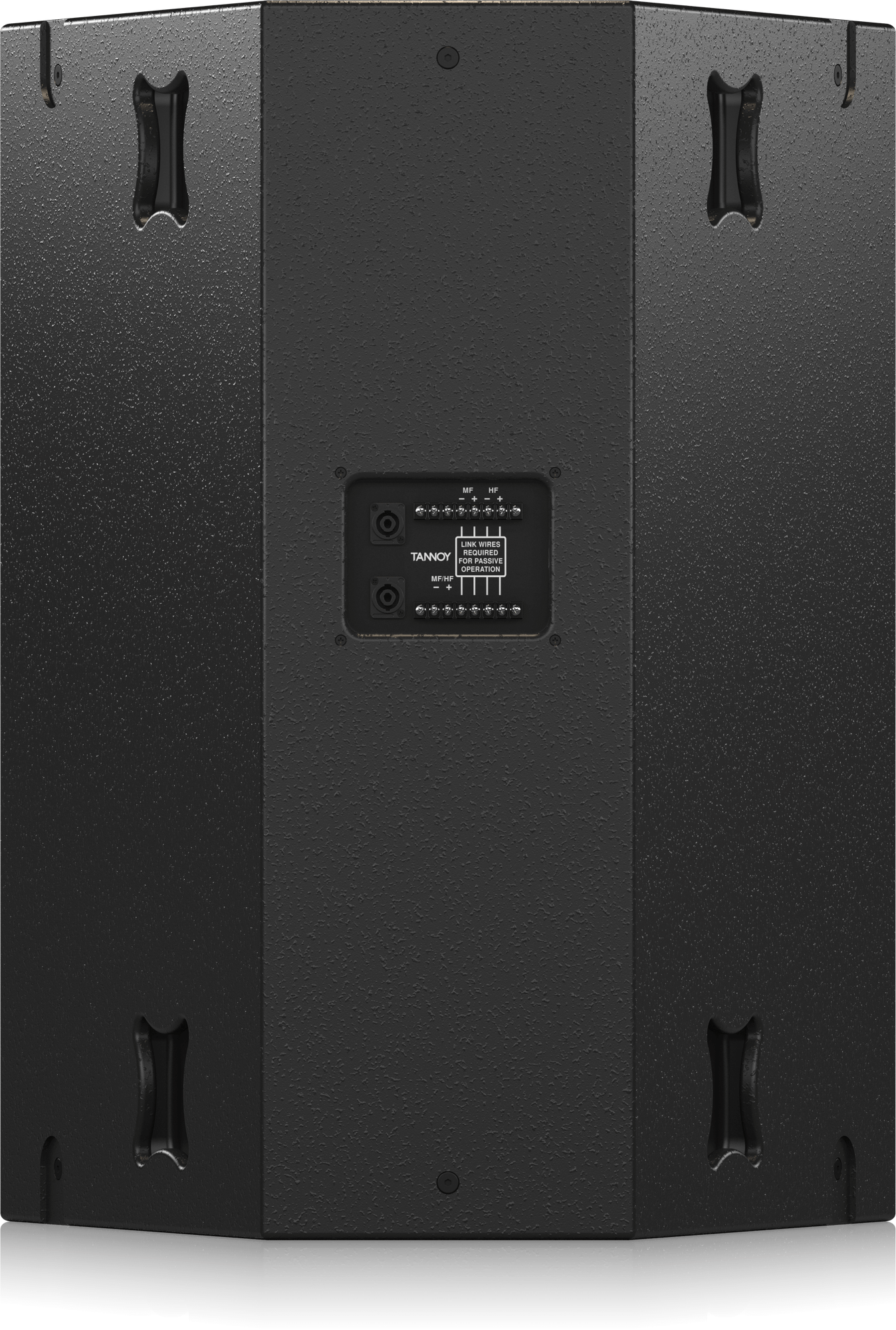

- SpeakON NL4 and barrier strip connectors for input and link output
Specifications
| Specification |
Details |
| Frequency response (-3 dB) |
115 Hz – 23 kHz |
| Frequency range (-10 dB) |
90 Hz – 27 kHz |
| Sensitivity (1 W @ 1 m) |
111 dB |
| Dispersion (-6 dB) |
100 degrees conical |
| Driver components |
LF: 2 x 300 mm (12″) low frequency transducers, semi horn loaded; MF/HF: dual concentric compression driver loaded into single PSW waveguide |
| Crossover |
N/A |
| Directivity factor (Q) |
8.5 |
| Directivity index (DI) |
9.3 |
| Maximum SPL |
135 dB averaged, 141 peak |
| LF power handling @ 4 Ω |
1000 W cont, 2000 W peak |
| MF power handling @ 8 Ω |
200 W cont, 400 W peak |
| HF power handling @ 8 Ω |
90 W cont, 180 W peak |
| Passive MF/HF power handling @ 8 Ω |
200 W cont, 400 W peak |
| Nominal Impedance |
LF: 4 Ω, MF: 8 Ω, HF: 8 Ω |
Enclosure
| Specification |
Details |
| Construction |
18 mm (0.71″) birch plywood, internally braced |
| Grille |
Powder coated perforated steel grille |
| Finish |
Textured black or white paint |
| Connectors |
Barrier strip and speakON connector |
| Fittings |
8 x recessed carrying handles, 12 x M10 flying inserts |
| Dimensions |
925 x 694 x 515 mm (36.4 x 27.3 x 20.3″) |
| Weight |
65 kg (143 lbs) |
