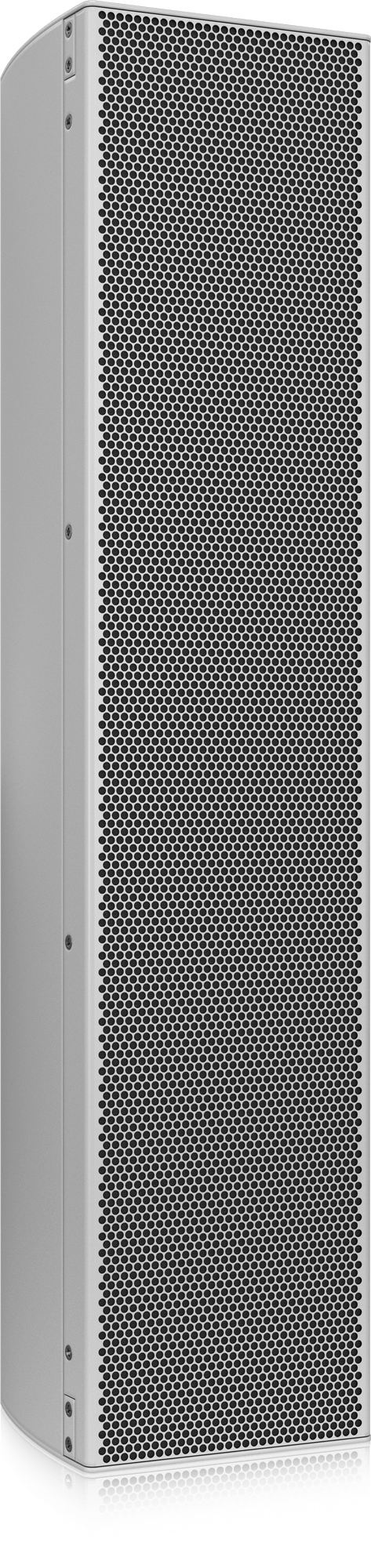

Tannoy QFLEX 16-WP Digitally Steerable Column Array Speaker IP54 Weatherproof

Tannoy

AED 17899.35 inc VAT.

In stock
Enquiry On Whatsapp
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: QFLEX 16-WP Categories: , Brand:

The QFLEX 16-WP is a powered, digitally steerable multi-channel column array loudspeaker designed for challenging acoustic environments such as houses of worship, transportation hubs, and convention centres. It meets IP54 certification for water and dust protection, making it suitable for locations with high moisture or dust levels, as well as moderate outdoor conditions. Featuring the proprietary VNET loudspeaker networking platform, it offers high speech intelligibility, robust music reinforcement, and comprehensive system diagnostics and monitoring.

Description

The QFLEX 16-WP is a powered, digitally steerable multi-channel, column array loudspeaker designed as a complete solution for installed applications with challenging acoustics, such as houses of worship, transportation hubs, convention centres, conference facilities, shopping malls, performing arts centres and museums. Certified for water and dust ingress protection to IP54 standard, QFLEX 16-WP is an exceptional choice for indoor swimming pools or work areas with unusually high levels of dust or moisture, as well as outdoor applications where weather conditions are moderate. The heart of the system is our proprietary VNET loudspeaker networking platform, which comprises both software and hardware DSP components that produce extremely-high speech intelligibility, impactful music reinforcement, and complete loudspeaker system diagnostics and monitoring.

Key Features

  • Digitally steerable column array speaker system provides high intelligibility speech and music reproduction

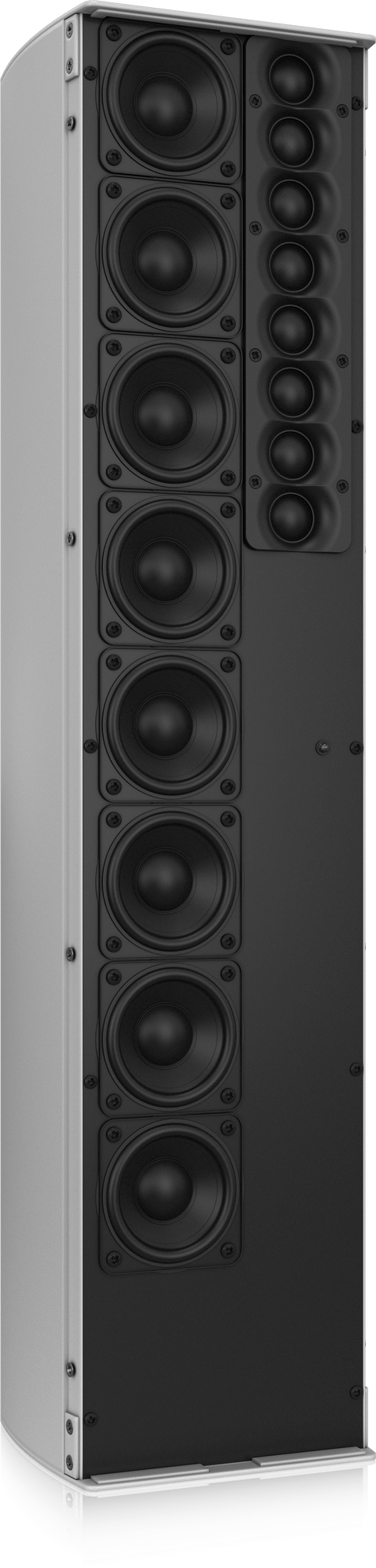

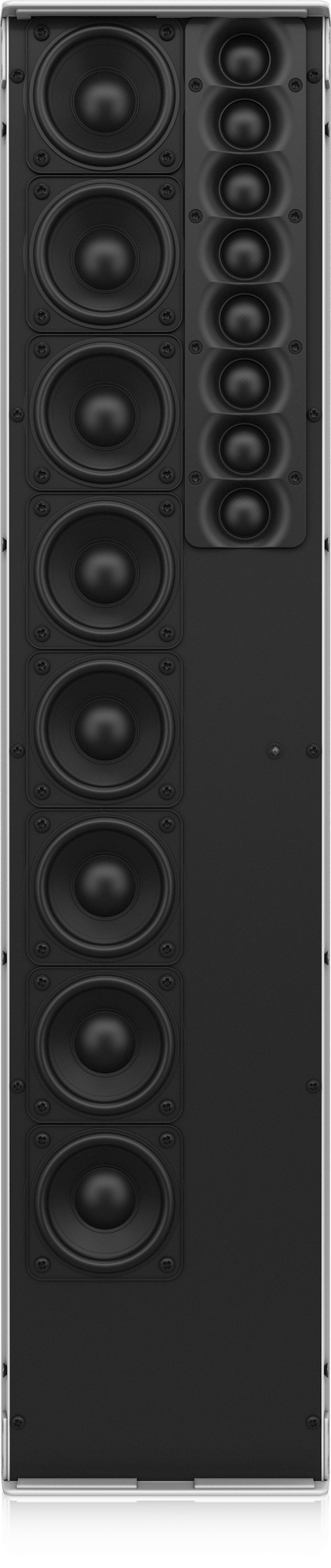

  • 8 3″ low frequency drivers and 8 1″ high frequency drivers with individual 100 Watt Class D amplifiers
  • Class leading ±70° steering control with 16 channels of integrated DSP and amplification
  • Intuitive BeamEngine GUI for asymmetric pattern creation and even near and far field SPL coverage
  • High density array of transducers with proportional frequency spacing prevents aliasing artefacts
  • Ideal for the most challenging acoustic environments due to extended frequency range steering control
  • For installation applications with coverage distances up to 25 m (82′)
  • Fully PA/VA compliant
  • Fully integrated amplified speaker system connects to other Tannoy products via VNET
  • Input accessory options for constant voltage systems and Audinate Dante* digital audio networks
  • All components weather and dust resistant to IP54
  • Architecturally styled aluminium enclosure with a semi matt white painted finish
  • Corrosion resistant aluminium perforated grille
  • Included custom brackets allow quick and accurate installation
  • AES3 input and link connections on RJ-45 connectors with internal sample rate conversion up to 96 kHz

Specifications

Specification Details
Application Traditional houses of worship, transportation hubs, museums, shopping malls, theatres and auditoria, government buildings, conference facilities, hotel ballrooms, corporate HQ atria
Driver configuration 8x 3″ LF, 8x 1″ HF
Amplifier channels 16x 100W rms at 4Ohms
Amplifier type Class D
Horizontal dispersion 120 degrees
Vertical dispersion Variable 10 – 100 degrees (Asymmetric & multiple beams may also be generated)
Aiming Angle Limit +/- 70 degrees
LF Beam Control Limit 700Hz
Frequency Range 130Hz-20kHz (-10dB)
Maximum SPL 94dB at 30m (98.42′)
Application Distance 25m (82.02′) typical
Sampling Rate 96kHz
Network VNET monitoring and control standard (optional Dante)
Analogue audio inputs 2 inputs (A & B), Phoenix 6-pin connectors
VNET Dual RJ45 connectors In/Link (for Cat-5 cable)
AES/EBU RJ45 (same Cat-5 as VNET) via AES/VNET interface
Power connector GST18 3-pole female power connector
Enclosure Material Extruded Aluminum
Protective Grille Painted Aluminum
Power Supply Universal 100 – 230V / 50-60Hz
Power Consumption STIPA Noise: 80W, 1/3rd Full power: 170W, 1/8th Full power: 112W, Idling: 39W, Quiescent: 26W
Current Draw at 230Vac STIPA Noise: 0.75A, 1/3rd Full power: 1.14A, 1/8th Full power: 0.76A, Idling: 0.39A, Quiescent: 0.3A, In Rush: 4.9A
Current Draw at 115Vac STIPA Noise: 1.2A, 1/3rd Full power: 1.8A, 1/8th Full power: 1.2A, Idling: 0.52A, Quiescent: 0.4A, In Rush: 2.5A
Weather Protected IP54 Water and Dust Resistance Certification
Dimensions (HxWxD) 744 x 171.5 x 150mm (29.29 x 6.75 x 5.91″)
Weight 31.5 lbs (14.29kg)
