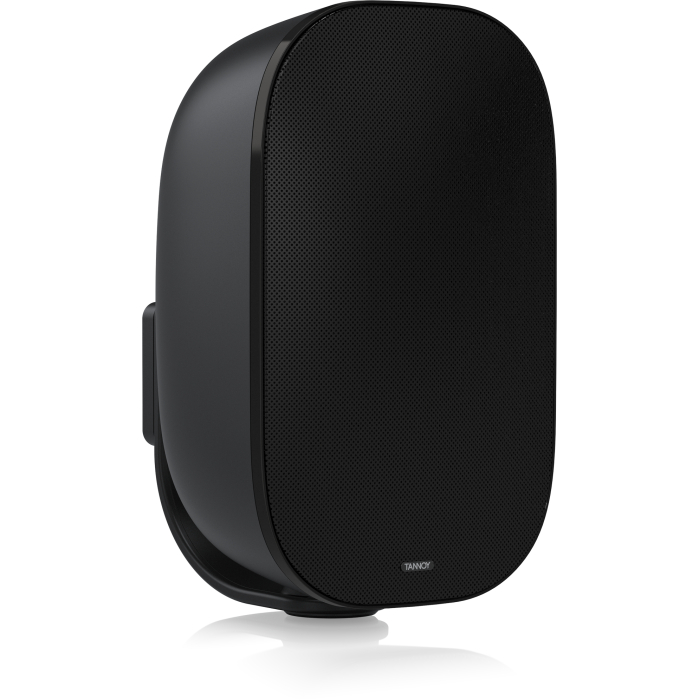

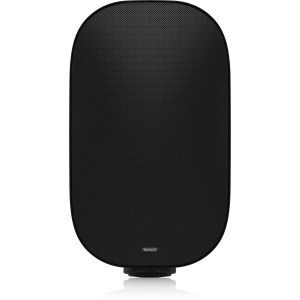

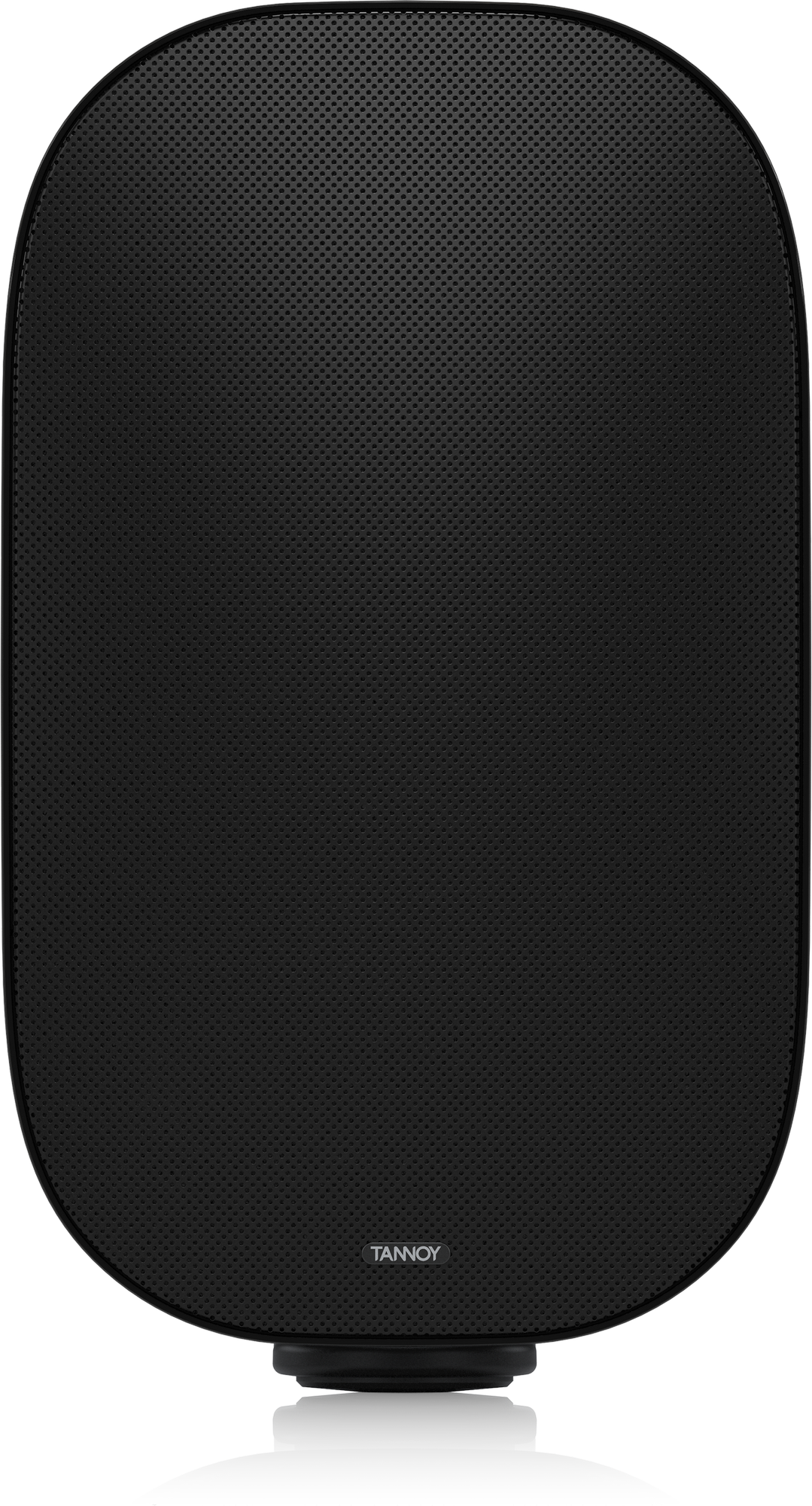

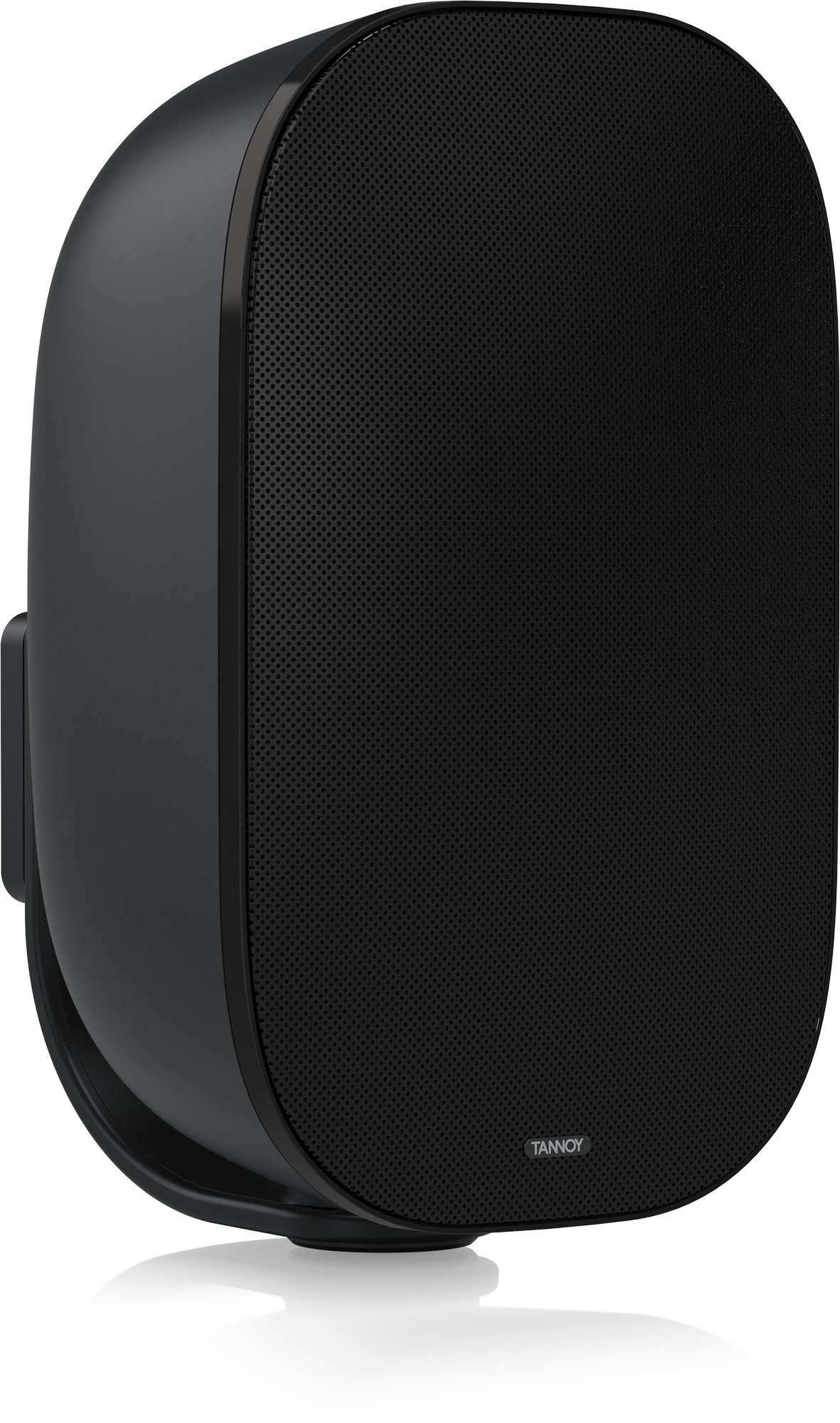

Tannoy QCI A1-BL 5″ Dual Concentric On-Wall Loudspeaker 240W Black

Tannoy

AED 1150.80 inc VAT.

In stock
Enquiry On Whatsapp
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: QCI A1-BL Categories: , Brand:

The QCI A1-BL, designed and engineered in the UK, features a single 5″ Glass Fibre driver with high-excursion rubber surround, capable of handling up to 240 Watts. Its Tannoy Dual Concentric Driver technology, refined over seven decades, ensures outstanding tonal accuracy, controlled dispersion, and a natural sound with a wide listening sweet-spot, making it suitable for various amplifiers and applications.

Description

Tannoy QCI A1-BL Loudspeaker

Designed and engineered in the UK, the Tannoy QCI A1-BL loudspeaker features a single 5″ Glass Fibre driver with a high-excursion rubber surround. With a power handling capacity of up to 240 Watts, this loudspeaker is highly versatile and easily driven by a variety of amplifiers.
The Dual Concentric driver technology, refined over seven decades, is central to its design, offering superb tonal accuracy and wider listening sweet-spot through point-source technology.

Features

  • High-performance durable loudspeaker for on-wall installation applications

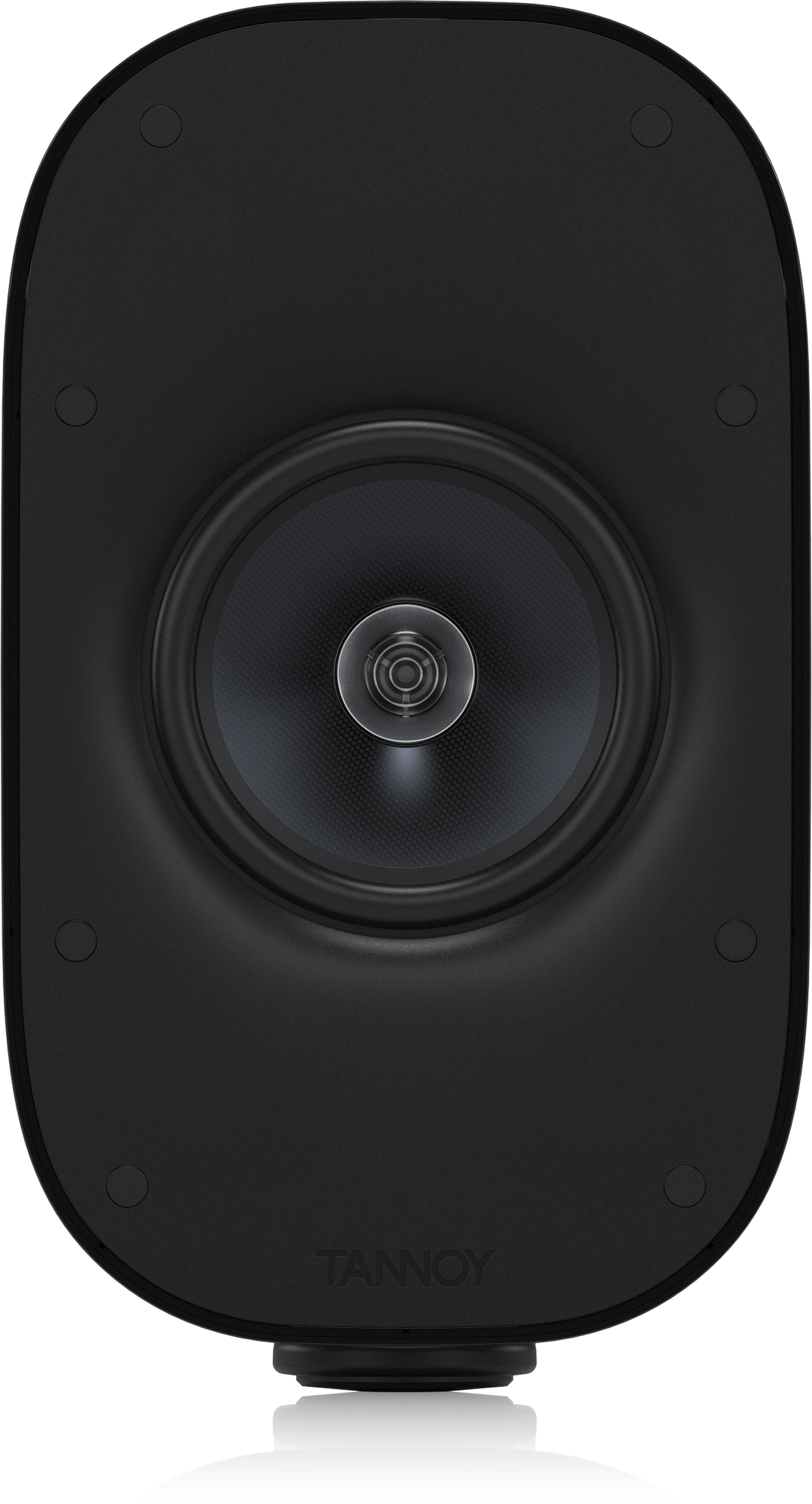

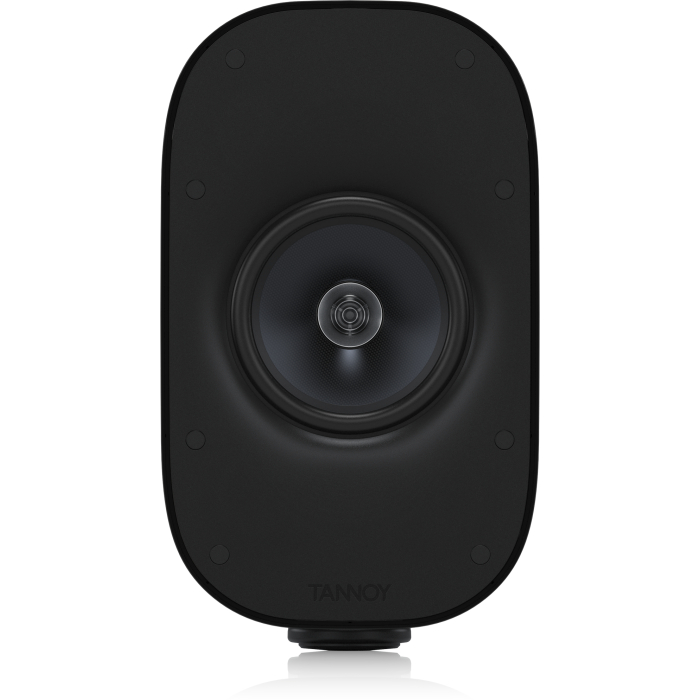

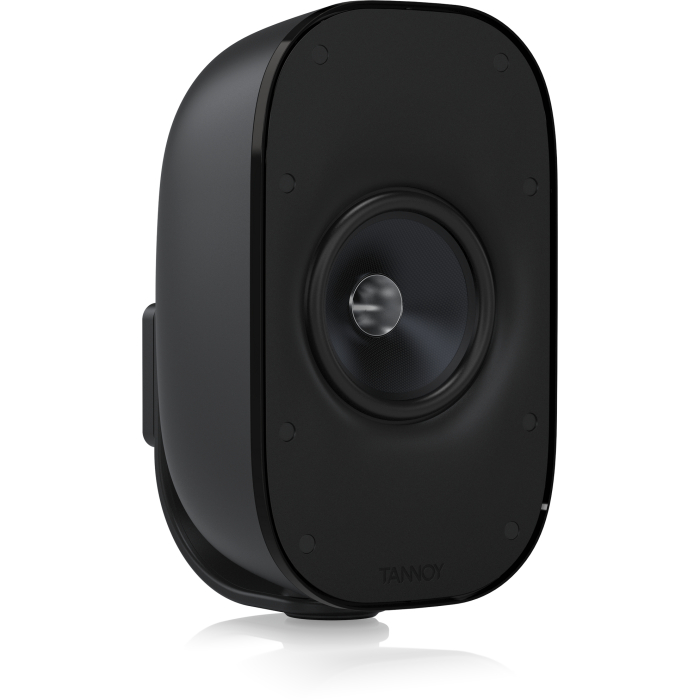

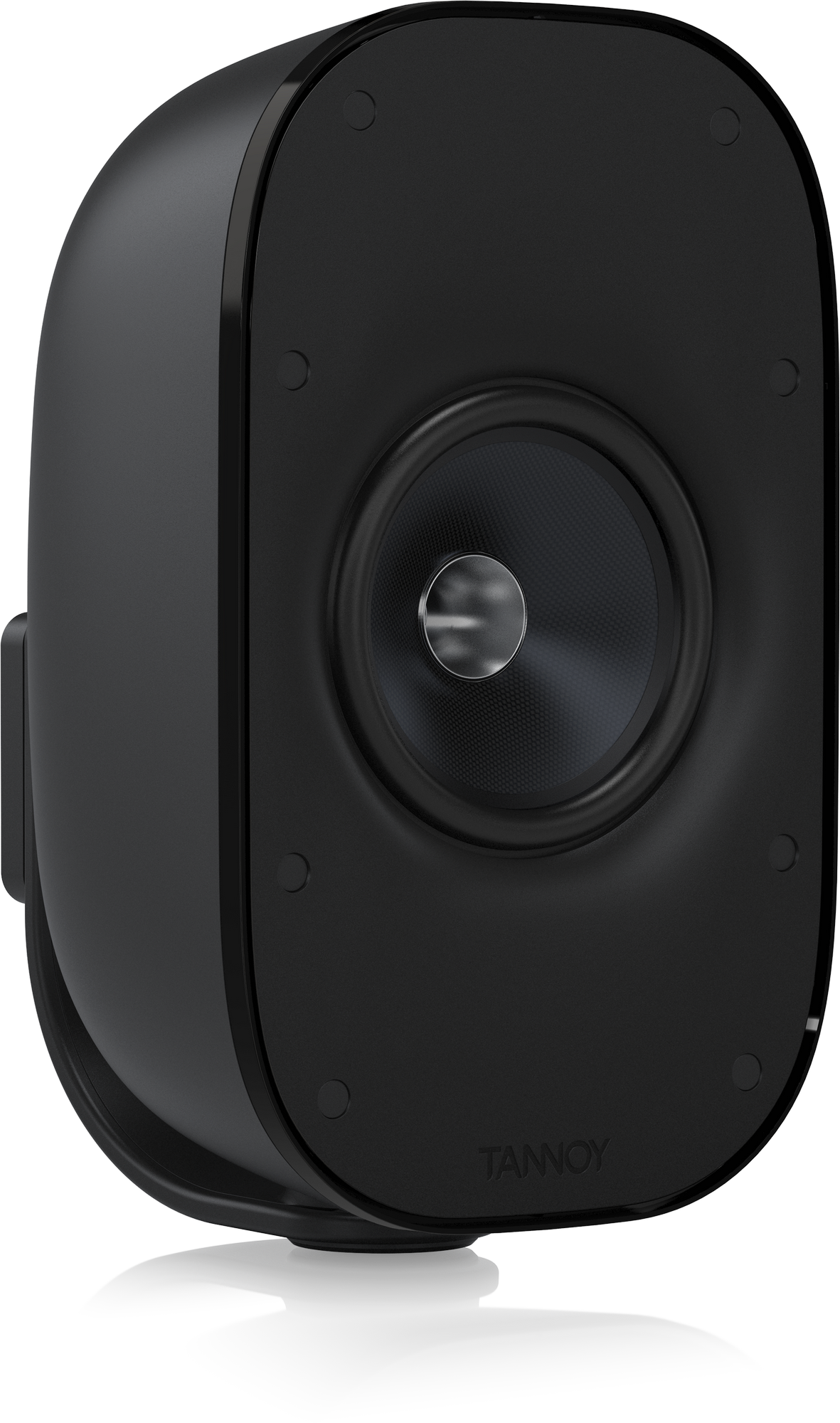

  • 5” Dual Concentric driver with Tannoy point-source symmetrical dispersion technology
  • Tulip Waveguide for enhanced high frequency clarity

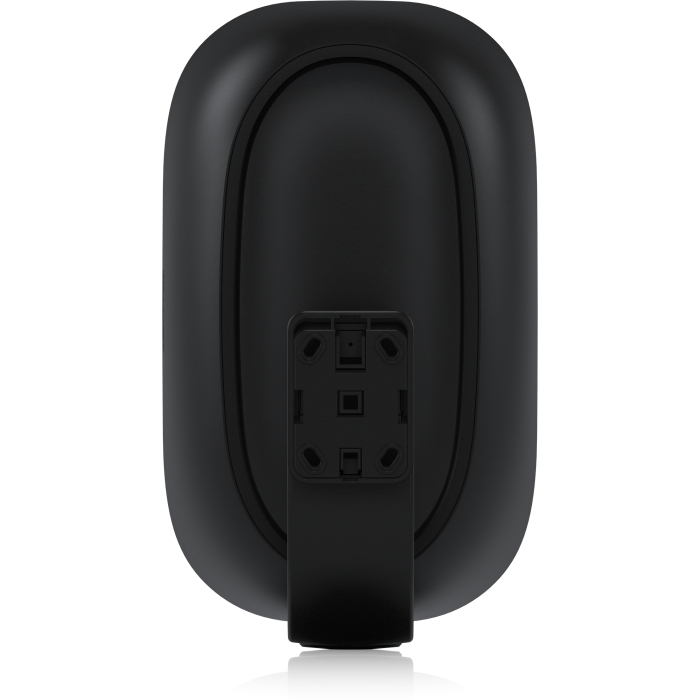

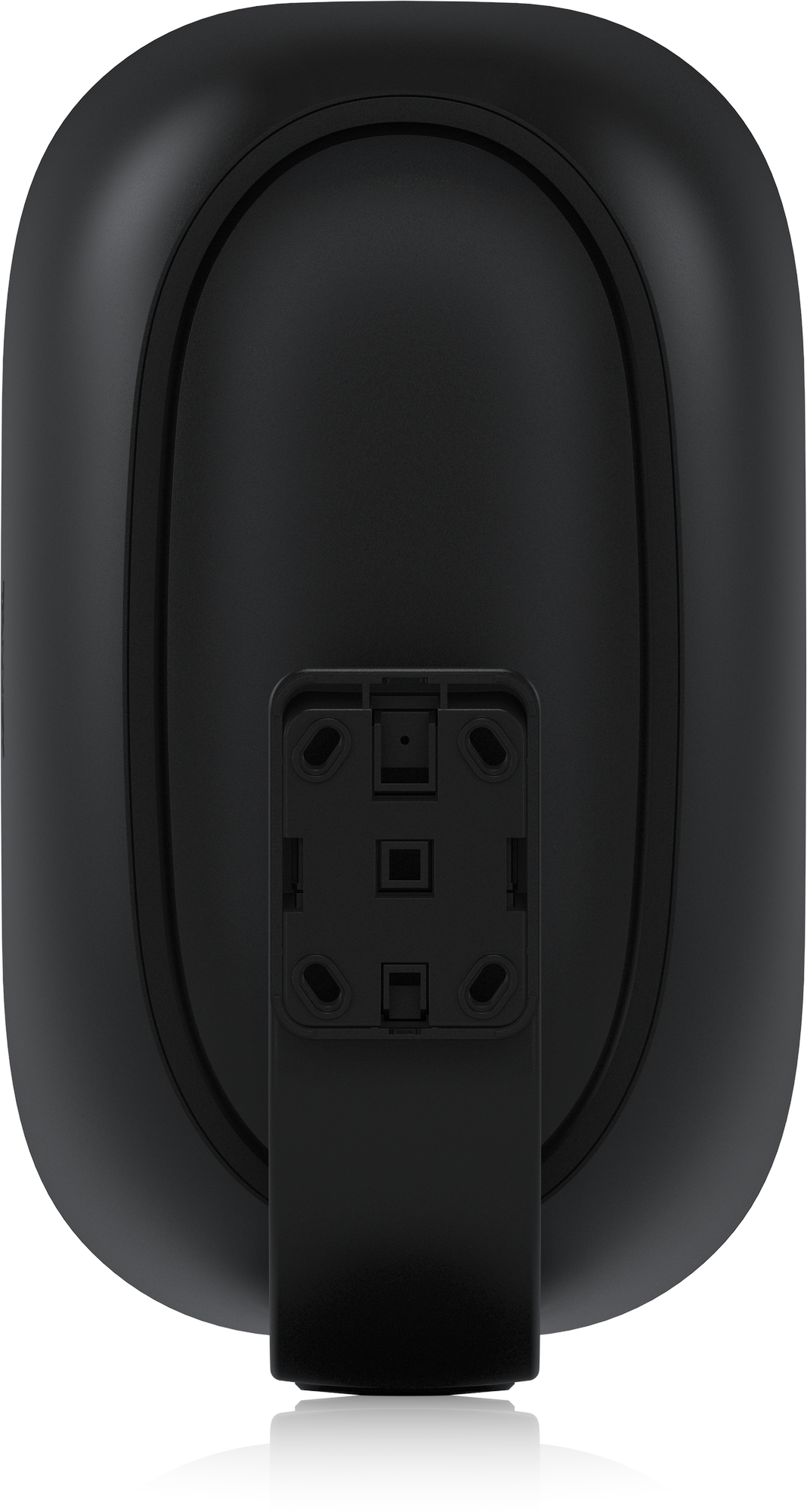

  • Integrated wall-fixing for easy installation
  • 70 Watts continuous, 280 Watts peak power
  • All-weather cabinet and grille for indoor & outdoor use
  • Glass fibre cone and rubber surround for excellent sound and high excursion linearity
  • Rigid die-cast chassis for low coloration
  • Compact and minimalistic design for discreet installation
  • All-black finish fits unobtrusively in any environment

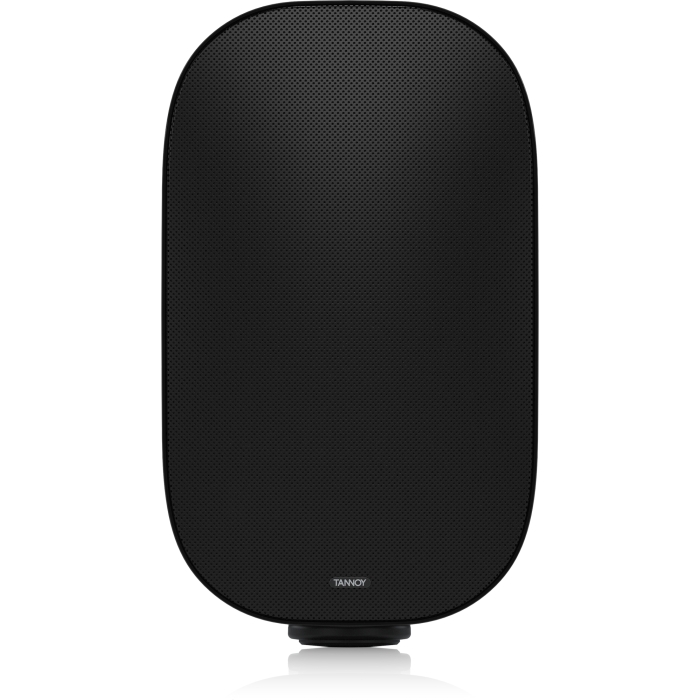

  • UV-resistant mesh grille with dust protection
  • Tannoy’s 90-year legacy of British sound heritage and innovation

Specifications

Frequency response (±3 dB) 55 Hz – 20 kHz
Frequency response (-10 dB) 40 Hz – 20 kHz
Sensitivity (1 W @ 1m) 85 dB
Nominal dispersion 90° conical @ -6 dB point
Power handling (IEC)
Average 60 W
Programme 120 W
Peak 240 W
Recommended amplifier power 180 W @ 8 Ω
Nominal Impedance 8 Ω
Rated maximum SPL (1 m)
Average 102 dB
Peak 108 dB
Crossover point 2.3 kHz

Transducers

Low frequency diameter 125 mm (5″)
High frequency diameter 25.4 mm (1″)

Physical

Enclosure PC (type of plastic) and UV stable (ASTM G155-13)
Baffle PC (type of plastic) and UV stable (ASTM G155-13)
Grille Aluminium alloy, Powder coating
Safety features Ingress protection dust test (IPX4); Water test (IP5X)
Connectors Terminal post
Dimensions (HxWxD) 313 x 182 x 228 mm (12.3 x 7.2 x 9.0”)
Net weight 3.7 kg (8.2 lbs)
Included accessories Wall mount bracket
Packed quantity 1
