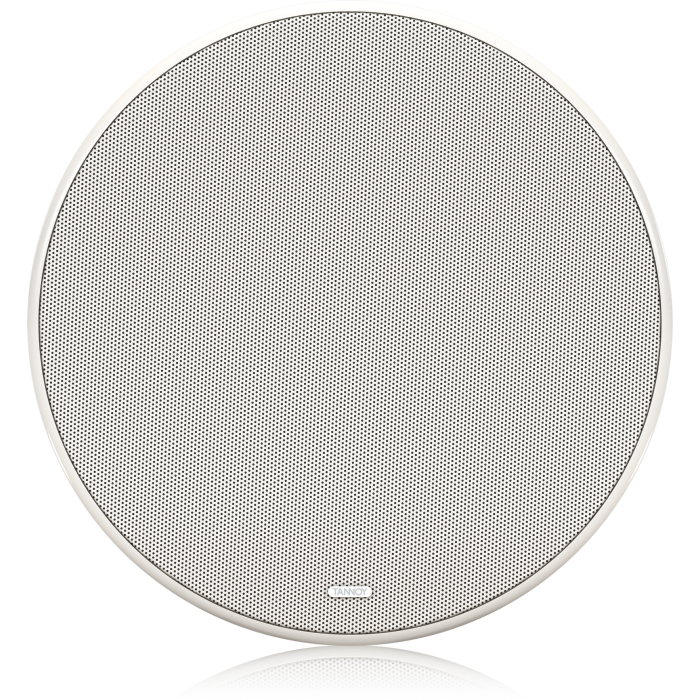

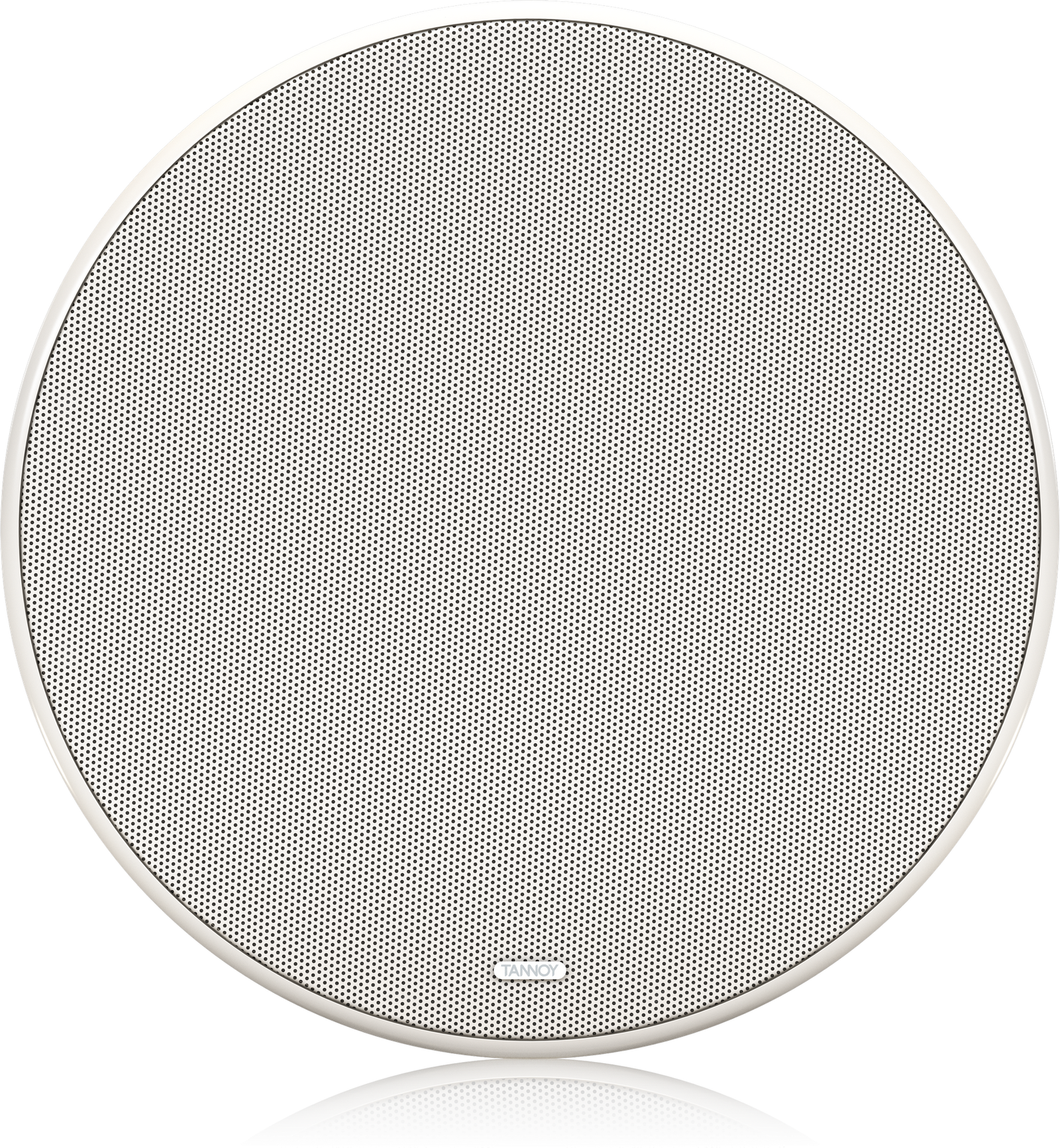

Tannoy QCI 8DC 8″ Dual Concentric Ceiling Speaker 320W
- Estimated Delivery: 2–3 business days across the UAE
- Free Shipping & Returns : On all orders over AED 1000
Designed and engineered in the UK, the QCI 8DC speaker features a single 200mm glass fibre cone driver with a high-excursion rubber surround, handling up to 320 Watts for higher SPL and greater bass authority, while remaining easy to drive and compatible with diverse amplifiers and applications.
Description
QCI 8DC Ceiling Speaker
Designed and engineered in the UK, the full range QCI 8DC comprises a single 200mm (8.00″) driver with a glass fibre cone and high-excursion rubber surround. Capable of handling up to an impressive 320 Watts, the QCI 8DC offers higher SPL and greater bass authority than its smaller variants. Despite its power, it remains extremely easy to drive and suitable for a wide variety of amplifiers and applications.

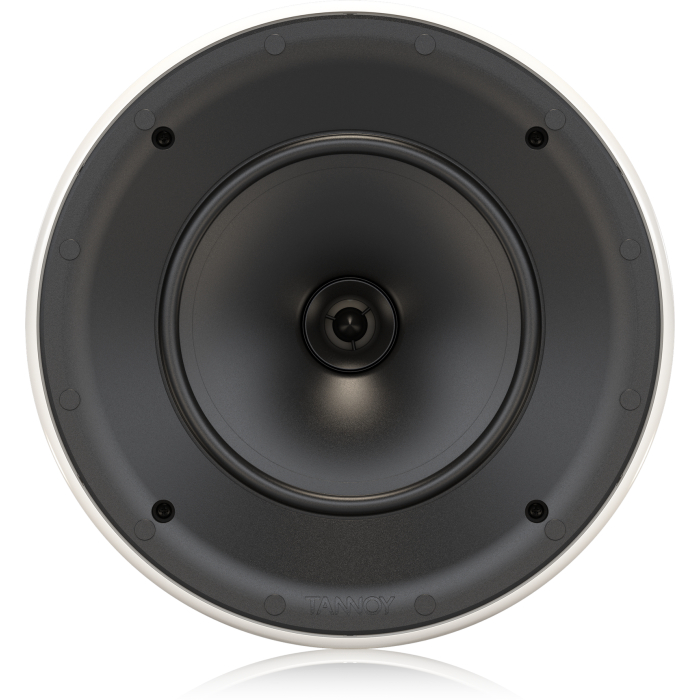

The QCI 8DC features the legendary and exclusive Tannoy Dual Concentric Driver with Omnimagnet technology. With over seven decades of continuous refinement, the Dual Concentric driver delivers a near-perfect point source, providing an incredibly accurate and natural sound reproduction.
Features
- High-performance loudspeaker for ceiling installation applications

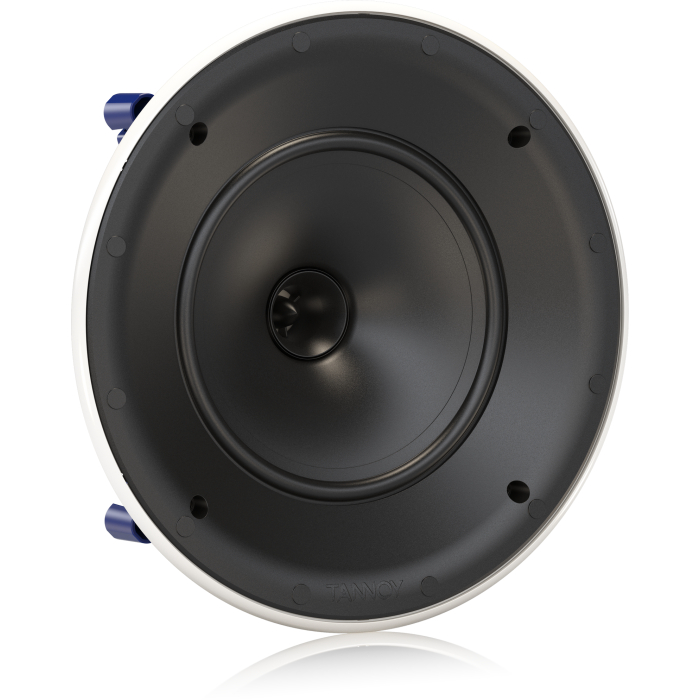

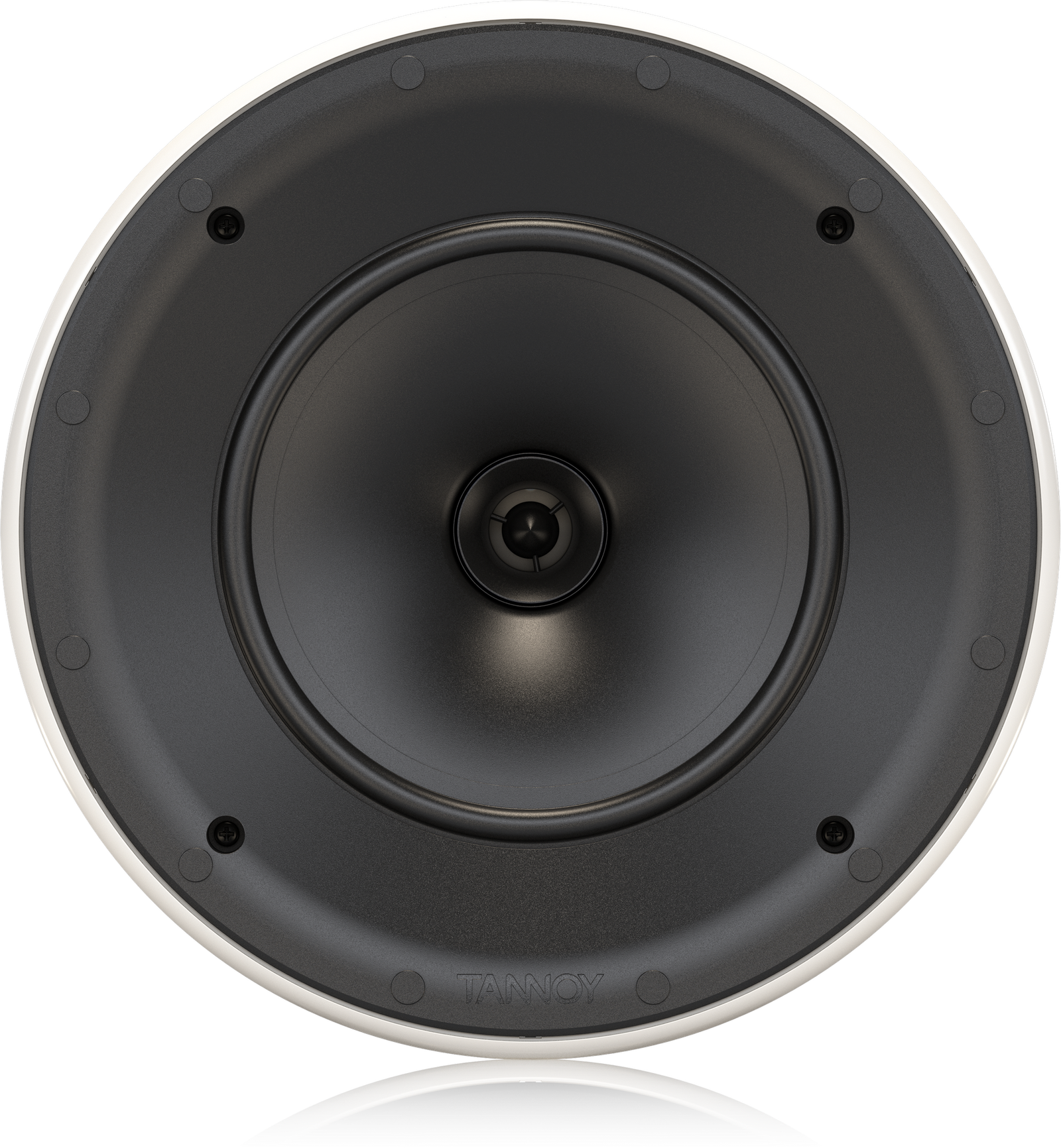

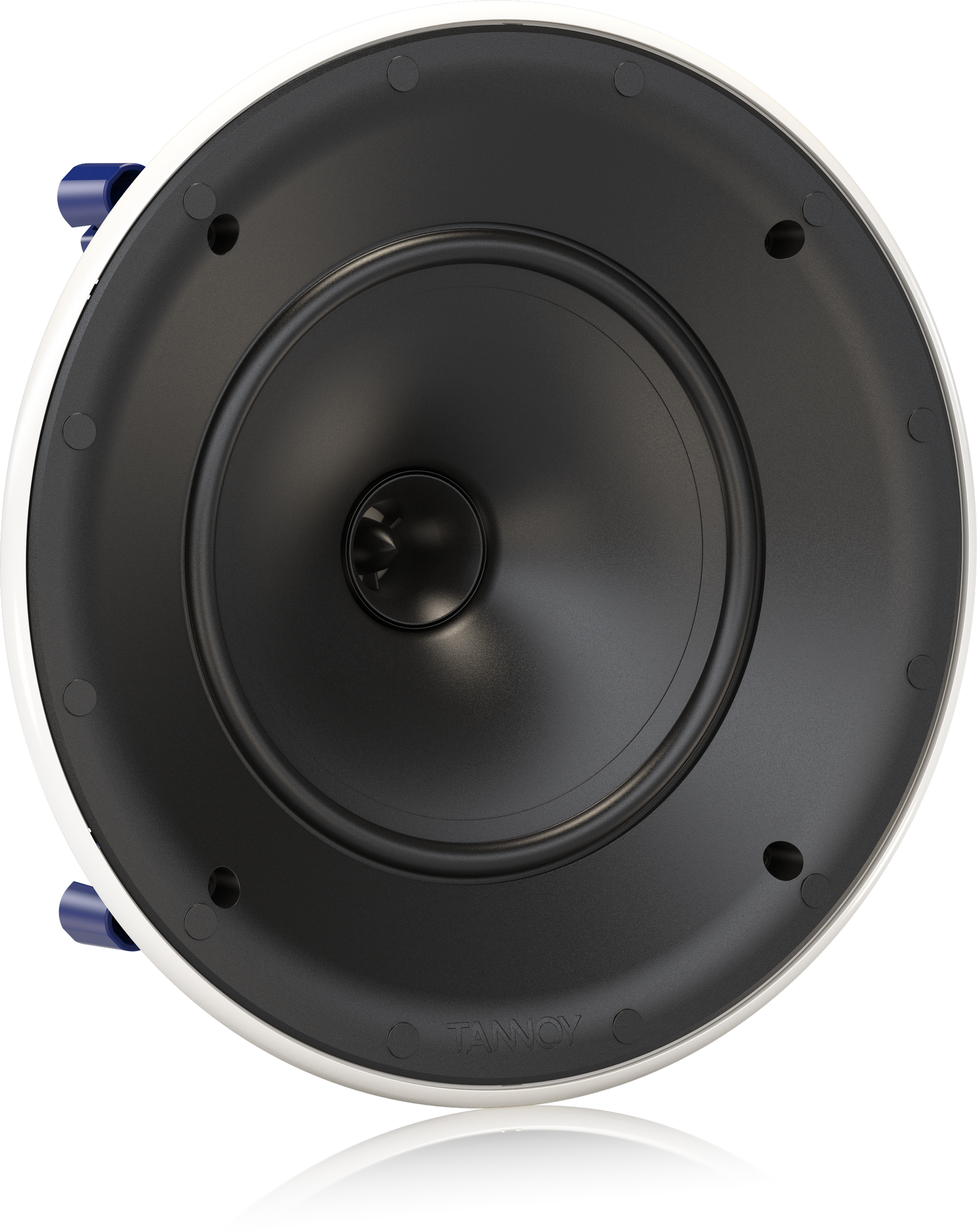

- 8″ Dual Concentric driver featuring Tannoy Omnimagnet technology
- Torus Ogive waveguide for improved directivity
- Polypropylene cone with rubber surround for high-excursion linearity
- 80 Watts continuous, 320 Watts peak power
- Extremely thin bezel for discreet installation
- Includes round & square baffles for versatile applications
- Integrated single unit construction for easy installation
- Semi-matt white finish fits unobtrusively in any environment

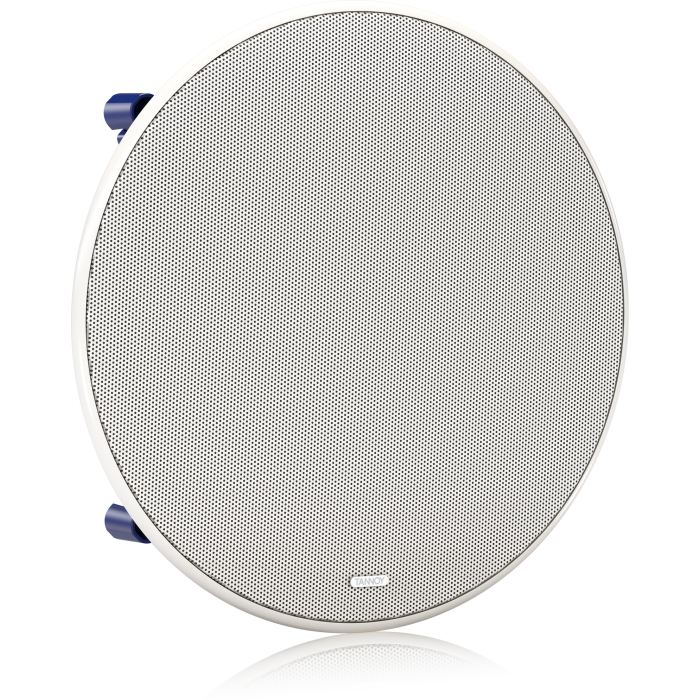

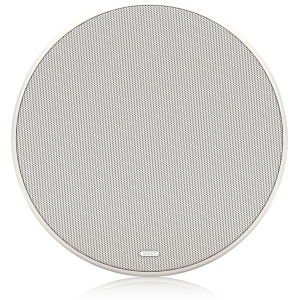

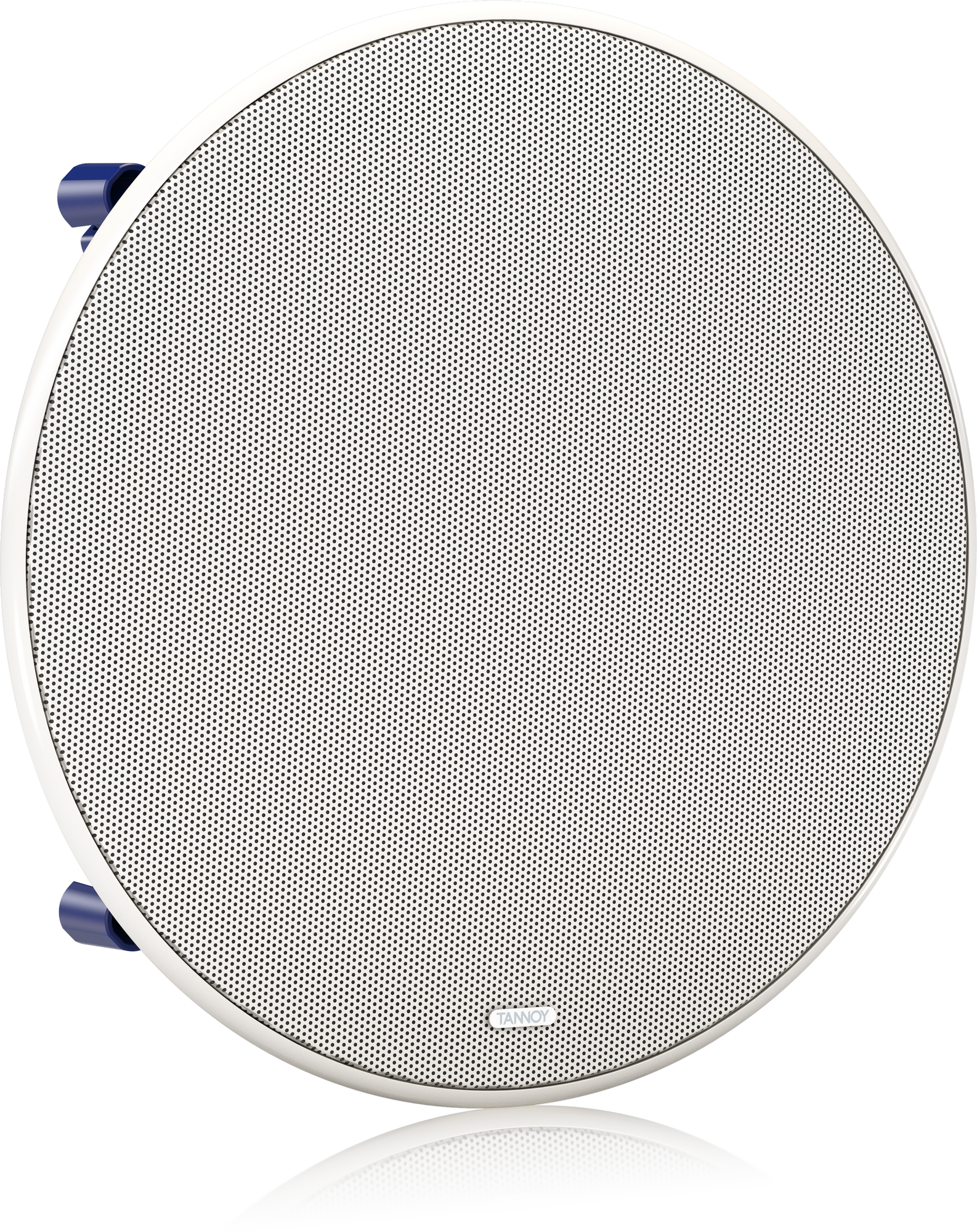

- Powder-coated UV resistant perforated steel mesh grilles with dust protection
- Removable grilles for custom painting
- Self-aligning clamp mounting system
- Removable Tannoy grille badge
- Tannoy – Over 90 years of British sound heritage and innovation
Specifications
| Specification | Details |
|---|---|
| Frequency response (±3 dB) | 35 Hz – 20 kHz |
| Frequency response (-10 dB) | 25 Hz – 20 kHz |
| Sensitivity (1 W @ 1m) | 87 dB |
| Directivity factor (Q) | 6.8 averaged 1 kHz to 10 kHz |
| Directivity index (DI) | 8.3 averaged 1 kHz to 10 kHz |
| Average power handling | 80 W |
| Programme power | 160 W |
| Peak power | 320 W |
| Recommended amplifier power | 240 W @ 8 Ω |
| Nominal Impedance (Lo Z) | 8 Ω |
| Rated maximum SPL (1 m, Lo Z) | 109 dB |
| Average SPL | 106 dB |
| Peak SPL | 112 dB |
| Crossover point | 1.6 kHz |
| Coverage angles | 500 Hz: 180° horizontal, 180° vertical 1 kHz: 117° horizontal, 117° vertical 2 kHz: 108° horizontal, 108° vertical 4 kHz: 121° horizontal, 121° vertical |
| Low frequency diameter/material/type | 219 mm (8″) |
| High frequency diameter/material/type | 25.4 mm (1″) |
| Back can | Option 1 (BACK CAN S): Steel, with powder coating Option 2 (BACK CAN C1): High density expandable polystyrene (EPS) |
| Baffle | Reflex loaded UL94 V-0 rated ABS |
| Grille | Steel, with weather resistant coating |
| Clamping design | Security toggle clamp |
| Connectors | Phoenix Contact terminal block |
| Dimensions (HxWxD) | 290 x 290 x 114 mm (11.4 x 11.4 x 4.5″) |
| Bezel dimensions | Circular: φ289 mm (11.4″) Square: 290 x 290 mm (11.4 x 11.4″) |
| Mounting depth | 106 mm (4.2″) |
| Hole cutout dimensions | φ250 mm (9.8″) |
| Net weight | 3.1 kg (6.8 lbs) |
| Packed quantity | 1 |
| Included accessories | Square grille, square baffle, circular grille, circular baffle, circular paint mask, square paint mask, cutout template, screw |
| Optional accessories | Option 1: BACK CAN S Option 2: BACK CAN C1 Option 3: PMK 8 |
