Tannoy Ceiling Loudspeaker PCI 8DC 8-Inch Dual Concentric 320W

Tannoy

AED 1935.15 inc VAT.

In stock
Enquiry On Whatsapp
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: PCI 8DC Category: Brand:

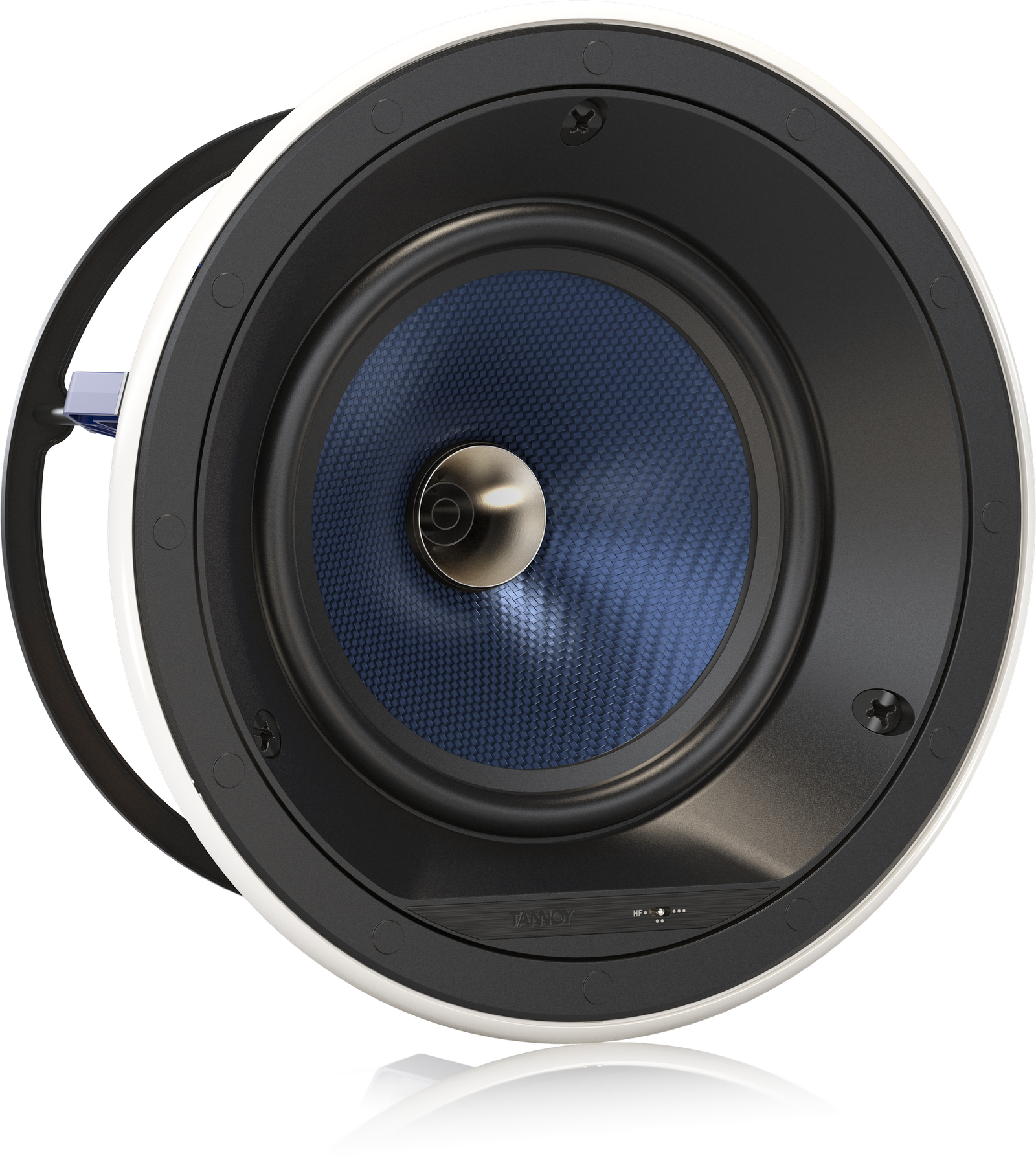

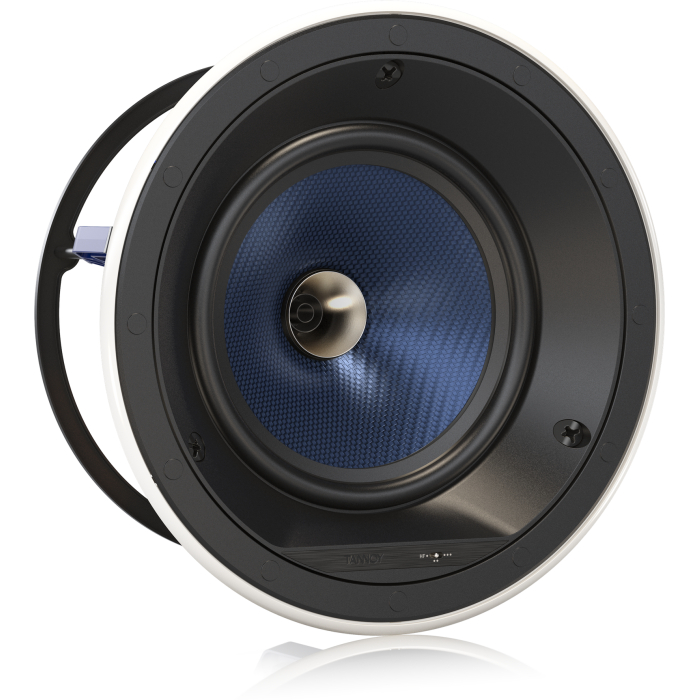

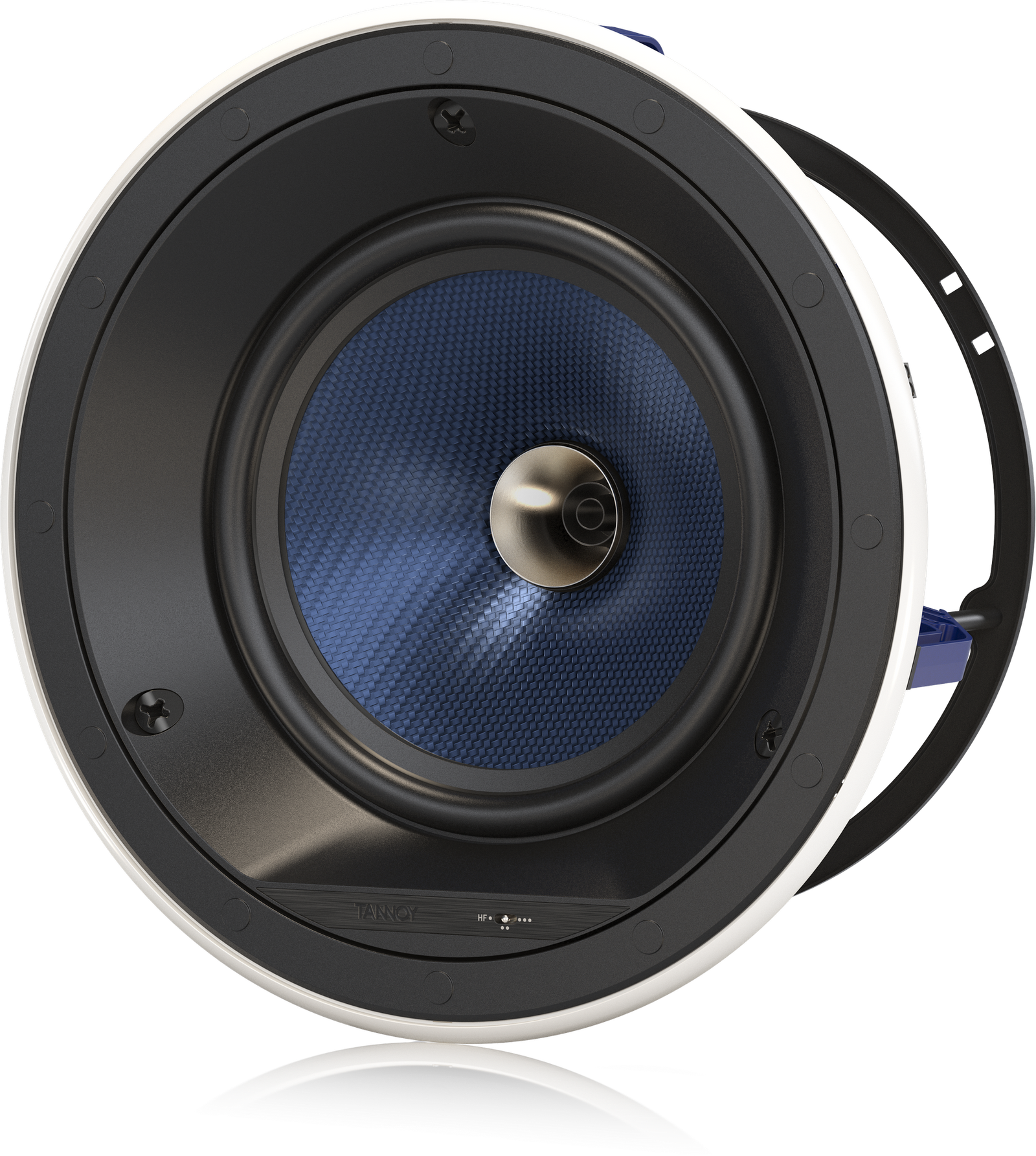

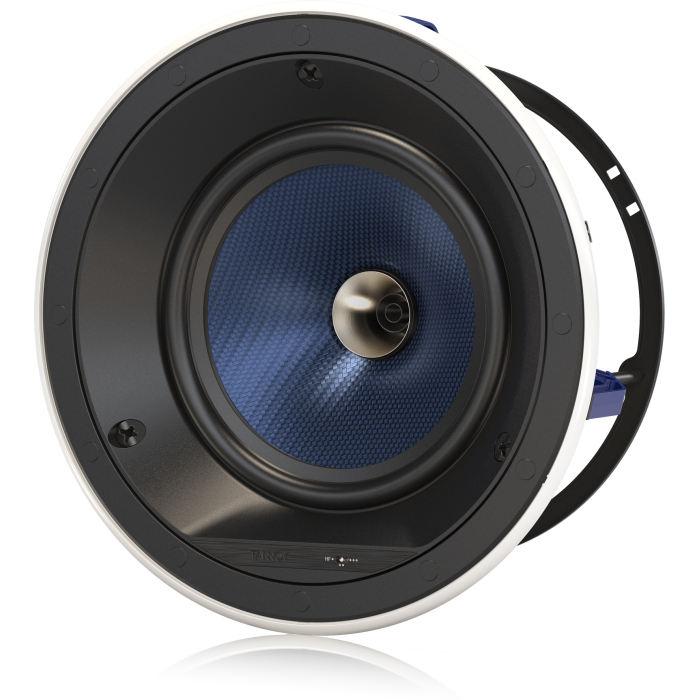

The PCI 8 DC features advanced Dual Concentric driver technology, housing a 200mm LF/MF driver with a blue Kevlar cone and high-excursion rubber surround, coupled with a centrally located HF driver. Engineered in the UK to handle up to 320 Watts, this compact and stylish design ensures enhanced sound dispersion for a well-balanced audio experience throughout the listening area.

Description

At the heart of the PCI 8 DC’s incredible performance is an all-new development of our legendary and exclusive Dual Concentric driver technology. Designed and engineered in the UK, this listener-focused new driver handles up to 320 Watts and is extremely easy to drive. The compact, stylish, state-of-the-art design features a single 200 mm (8.00″) LF/MF driver with a blue Kevlar cone and high-excursion rubber surround, along with a centrally located HF driver. This new Dual Concentric driver offers enhanced dispersion, creating an even more balanced spread of sound around the listening area.

Features

  • Premium high-definition loudspeaker for ceiling installation applications
  • 8″ Dual Concentric driver featuring TANNOY point-source constant directivity
  • Tulip Waveguide ensures smooth, uniform frequency response over a wide coverage area
  • Blue Kevlar cone with high-excursion rubber surround for high power handling
  • 3-way variable high-frequency level switch for customized performance preferences
  • 80 Watts continuous, 320 Watts peak power
  • Extremely thin bezel for discreet installation

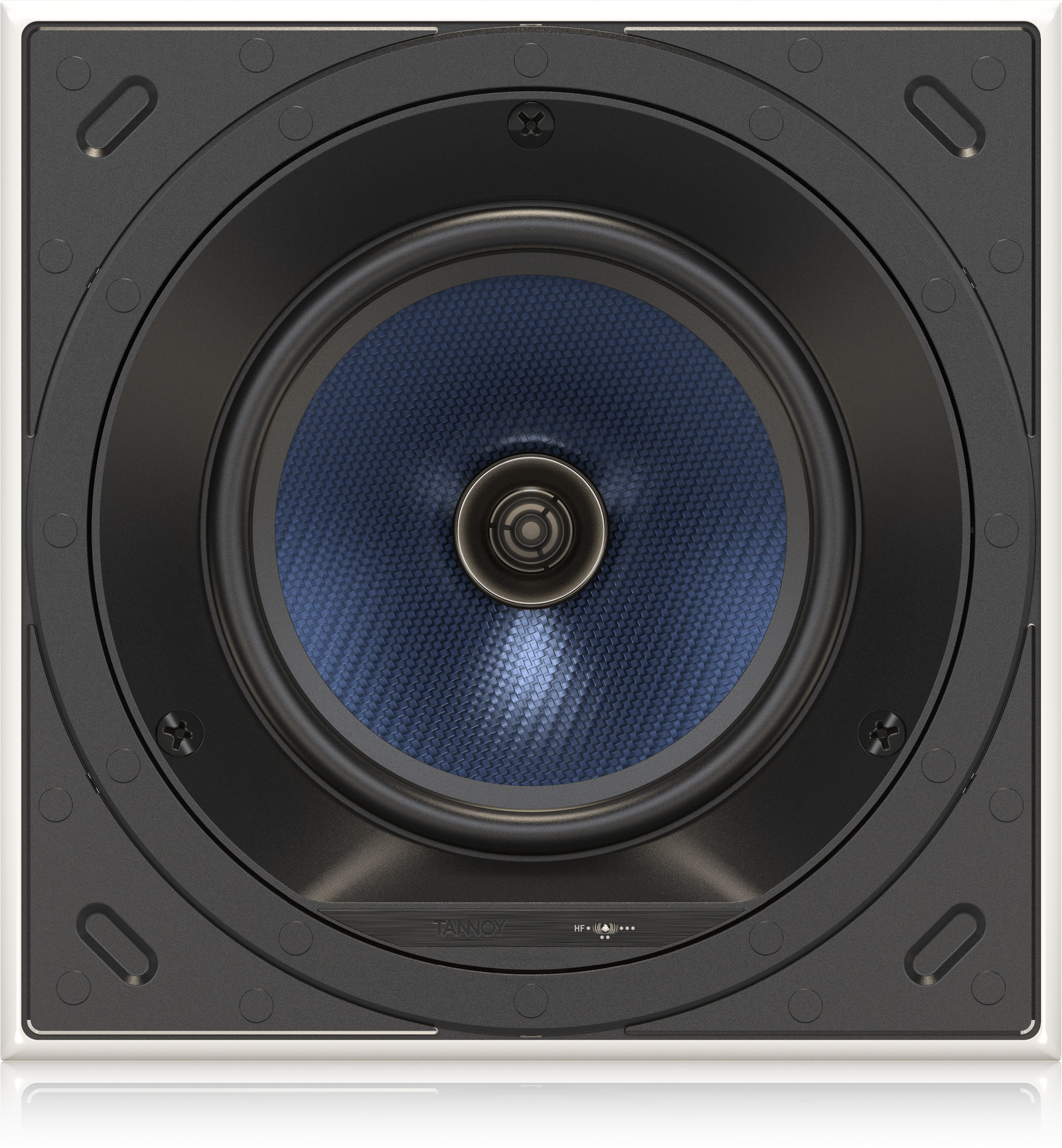

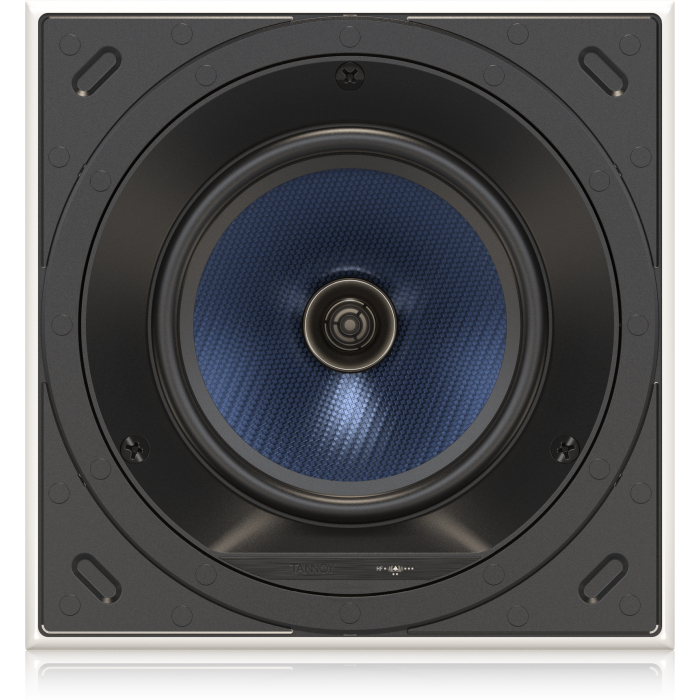

  • Includes round and square baffles for versatile applications

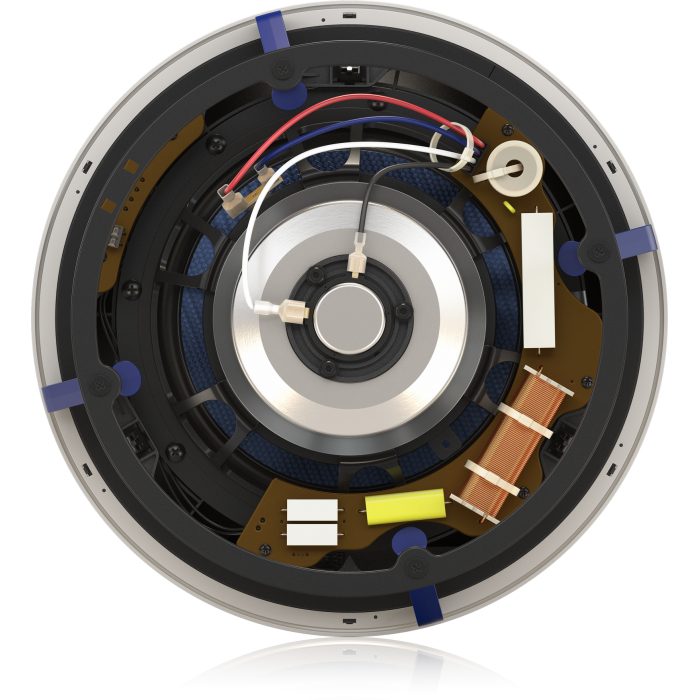

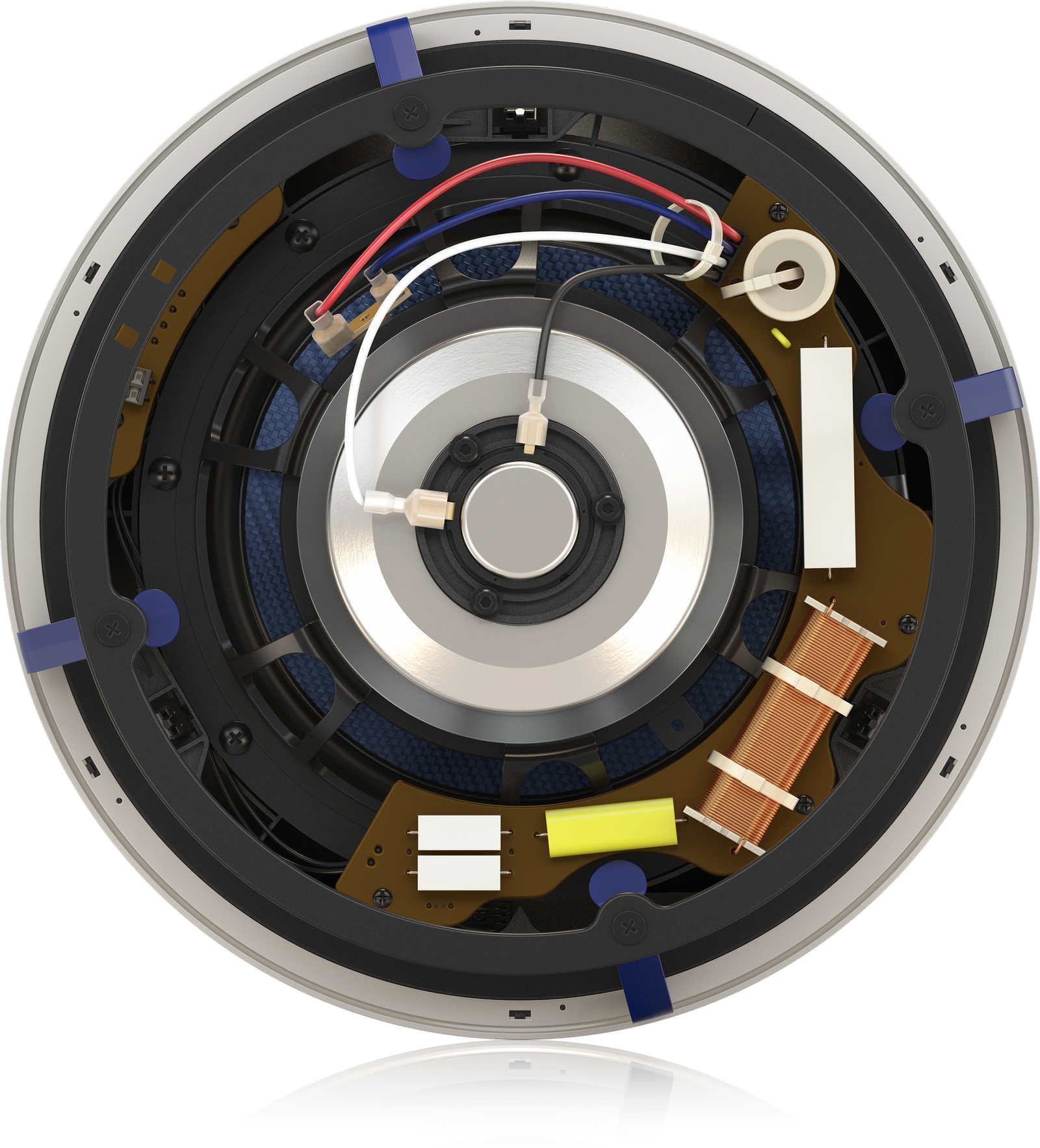

  • Rigid diecast chassis for improved bass performance and durable application
  • Integrated single unit construction for easy installation
  • Semi-matt white finish fits unobtrusively in any environment

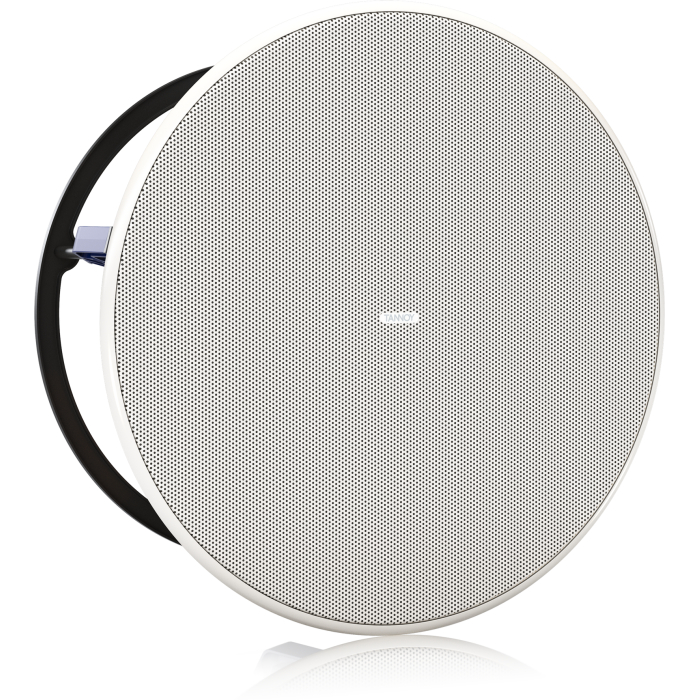

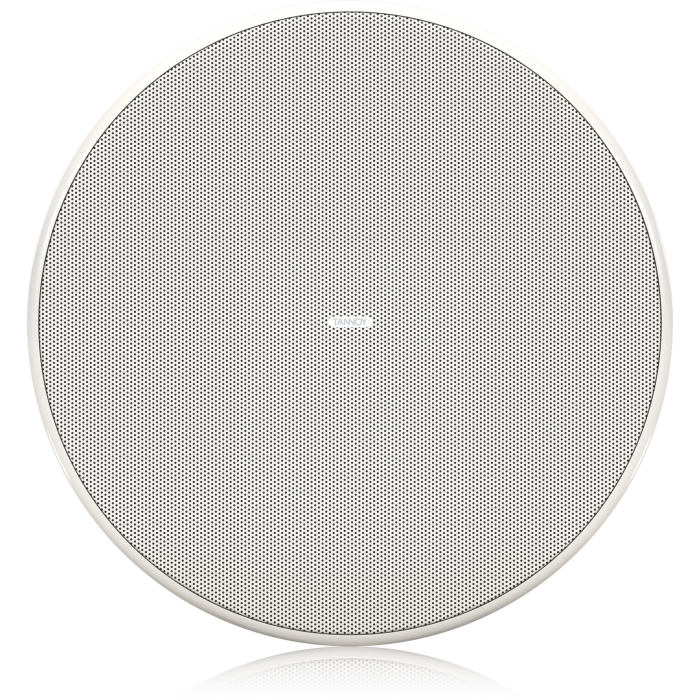

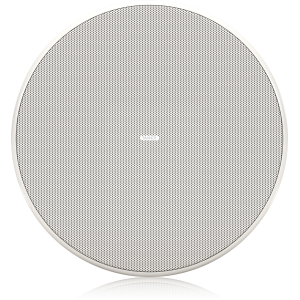

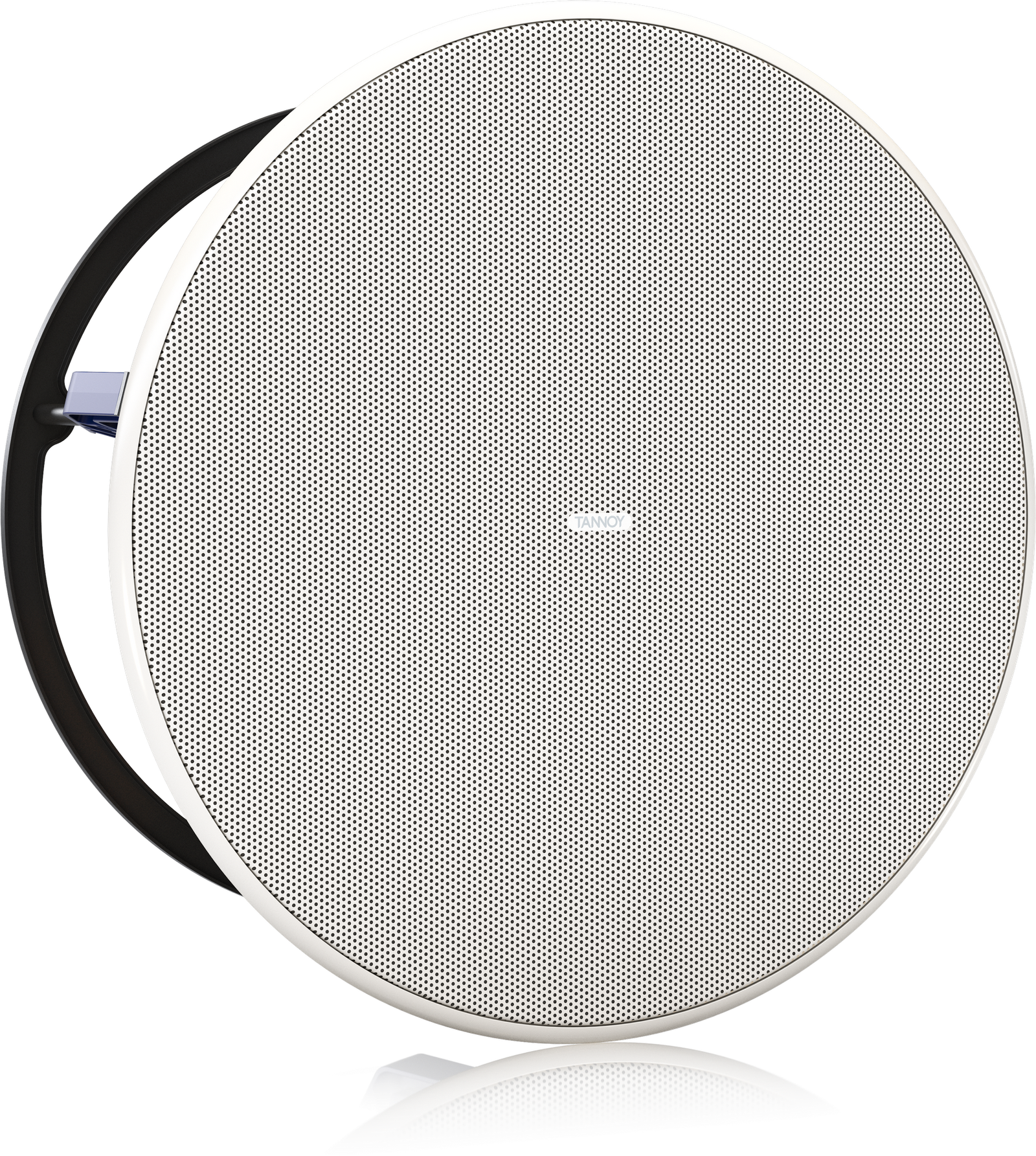

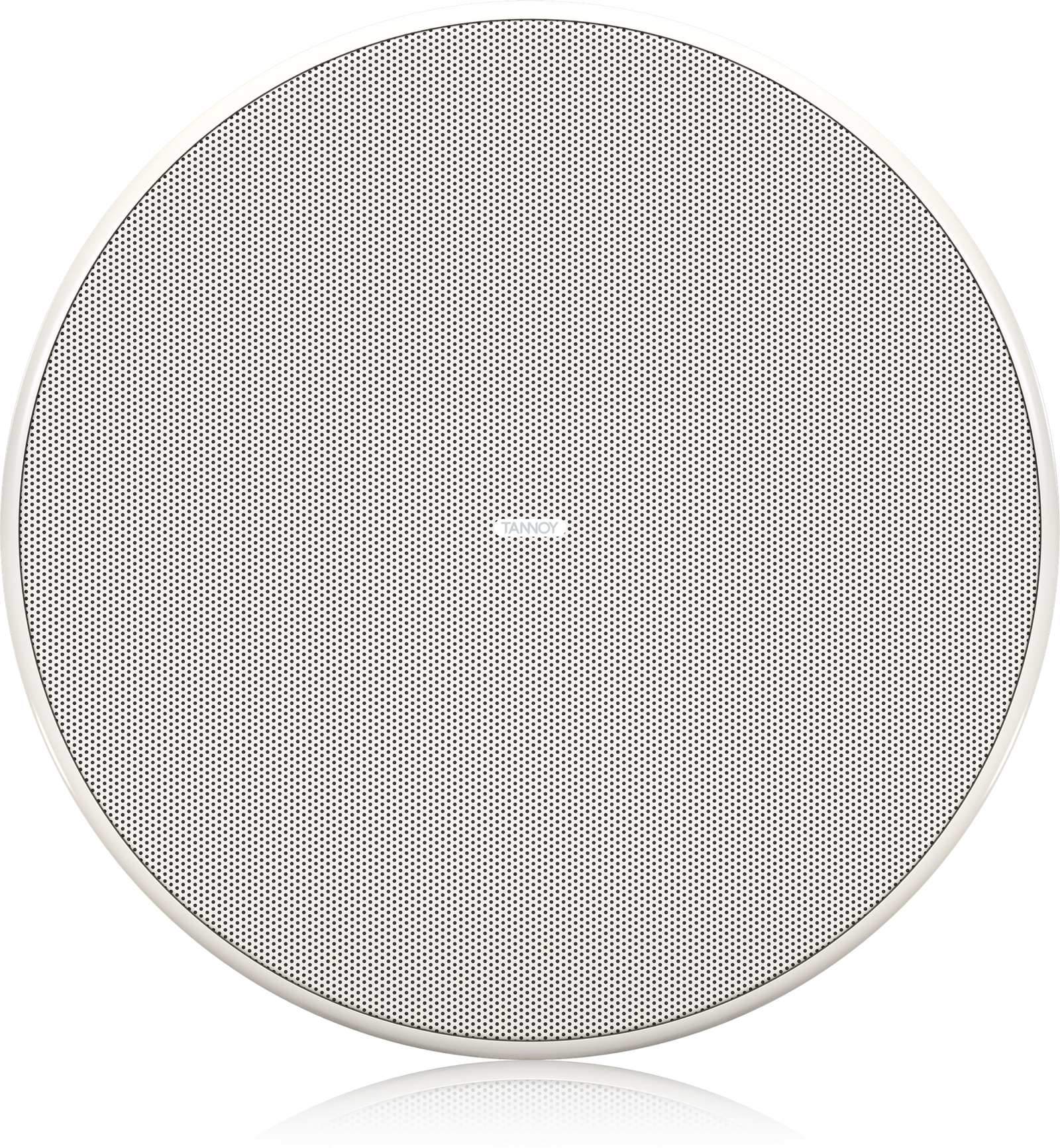

  • Powder coated UV-resistant perforated steel mesh grille with dust protection
  • Removable grilles for custom painting
  • Self-aligning clamp mounting system
  • Removable TANNOY grille badge
  • Tannoy – Over 90 years of British sound heritage and innovation

Specifications

Frequency Response (±3 dB) 50 Hz – 20 kHz
Frequency Response (-10 dB) 30 Hz – 20 kHz
Sensitivity (1 W @ 1m) 87 dB
Directivity Factor (Q) 6.6 averaged 1 kHz to 10 kHz
Directivity Index (DI) 8.2 averaged 1 kHz to 10 kHz
Average Power Handling (IEC) 80 W
Programme Power Handling 160 W
Peak Power Handling 320 W
Recommended Amplifier Power 240 W @ 8 Ω
Nominal Impedance (Lo Z) 8 Ω
Rated Maximum SPL (1 m, Lo Z) 109 dB
Crossover Point 1.6 kHz
Coverage Angles (500 Hz) 180° horizontal, 145° vertical
Coverage Angles (1 kHz) 117° horizontal, 135° vertical
Coverage Angles (2 kHz) 85° horizontal, 99° vertical
Coverage Angles (4 kHz) 124° horizontal, 141° vertical
Low Frequency Diameter/Material/Type 210 mm (8″)
High Frequency Diameter/Material/Type 25.4 mm (1″)
Back Can Option 1: Steel with powder coating, Option 2: High density expandable polystyrene (EPS)
Baffle Reflex loaded UL94 V-0 rated ABS
Grille Steel with weather-resistant coating
Clamping Design Security toggle clamp
Connectors Phoenix Contact terminal block
Dimensions (HxWxD) 290 x 290 x 143 mm (11.4 x 11.4 x 5.6″)
Bezel Dimensions Circular: φ289 mm (11.4″), Square: 290 x 290 mm (11.4 x 11.4″)
Hole Cutout Dimensions φ250 mm (9.8″)
Net Weight 3.9 kg (8.6 lbs)
Packed Quantity 1
Included Accessories Square grille, square baffle, circular grille, circular baffle, circular paint mask, square paint mask, cutout template, screw
Optional Accessories Option 1: BACK CAN S, Option 2: BACK CAN C2, Option 3: PMK 8
