Tannoy In-Wall Speaker PCI 6DC 6″ Dual Concentric 70W Kevlar Cone

Tannoy

AED 1083.60 inc VAT.

In stock
Enquiry On Whatsapp
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: PCI 6DC IW Categories: , , Brand:

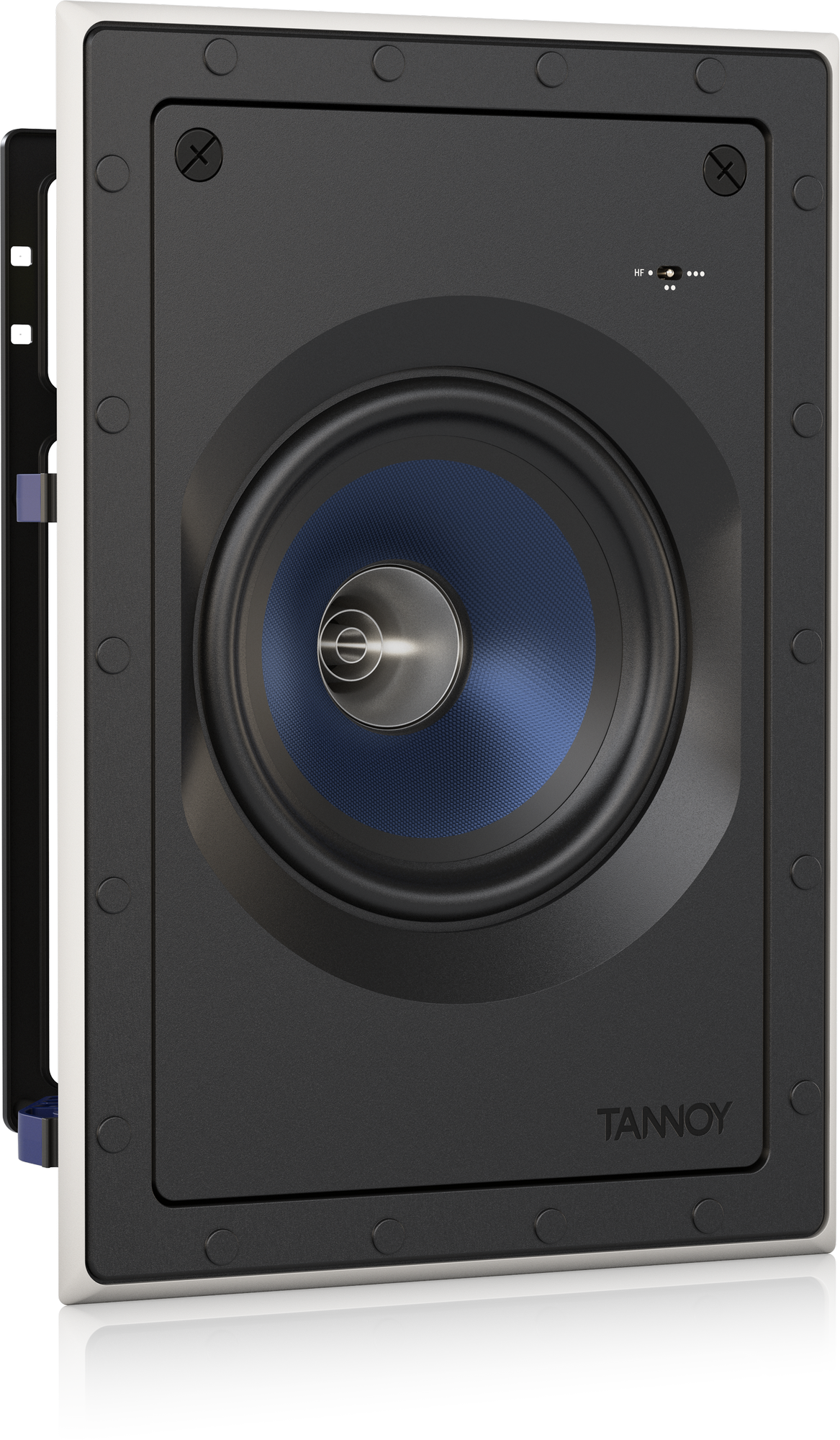

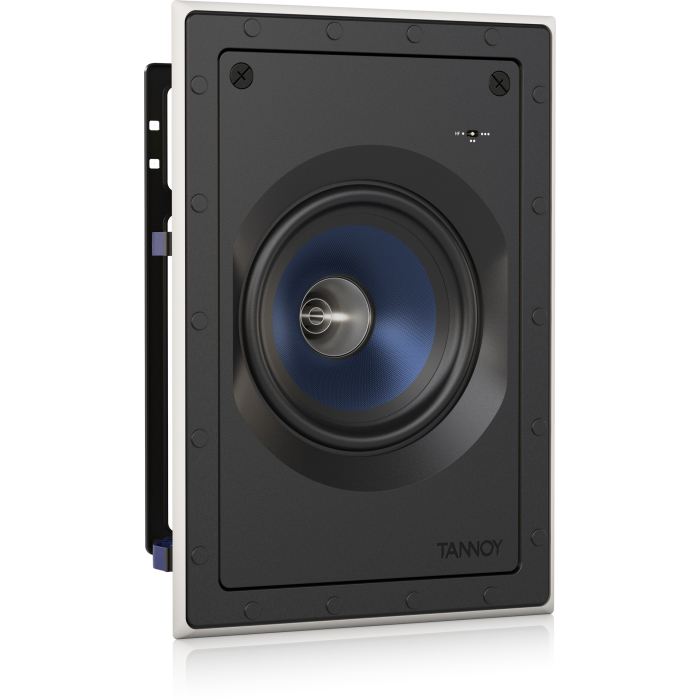

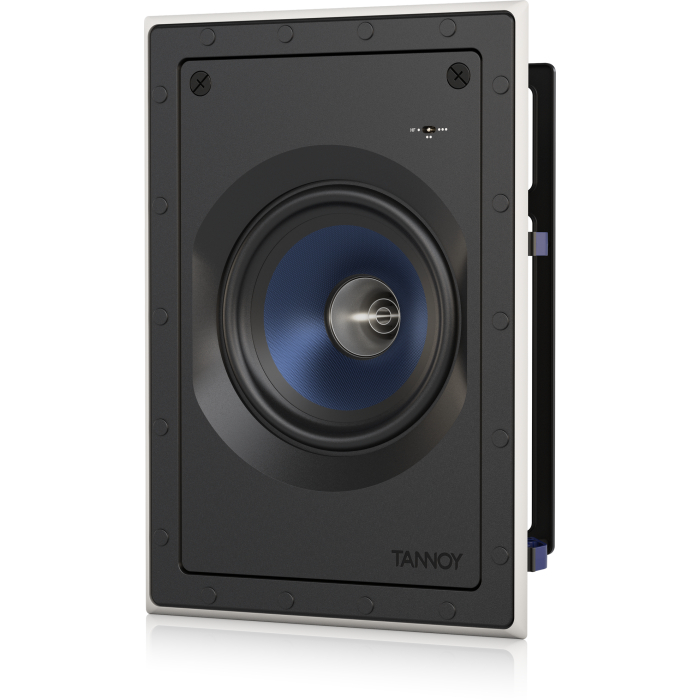

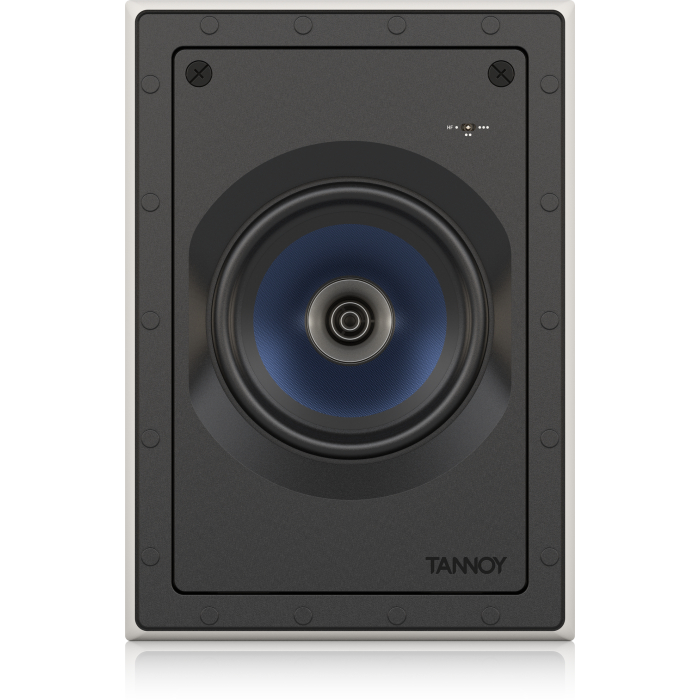

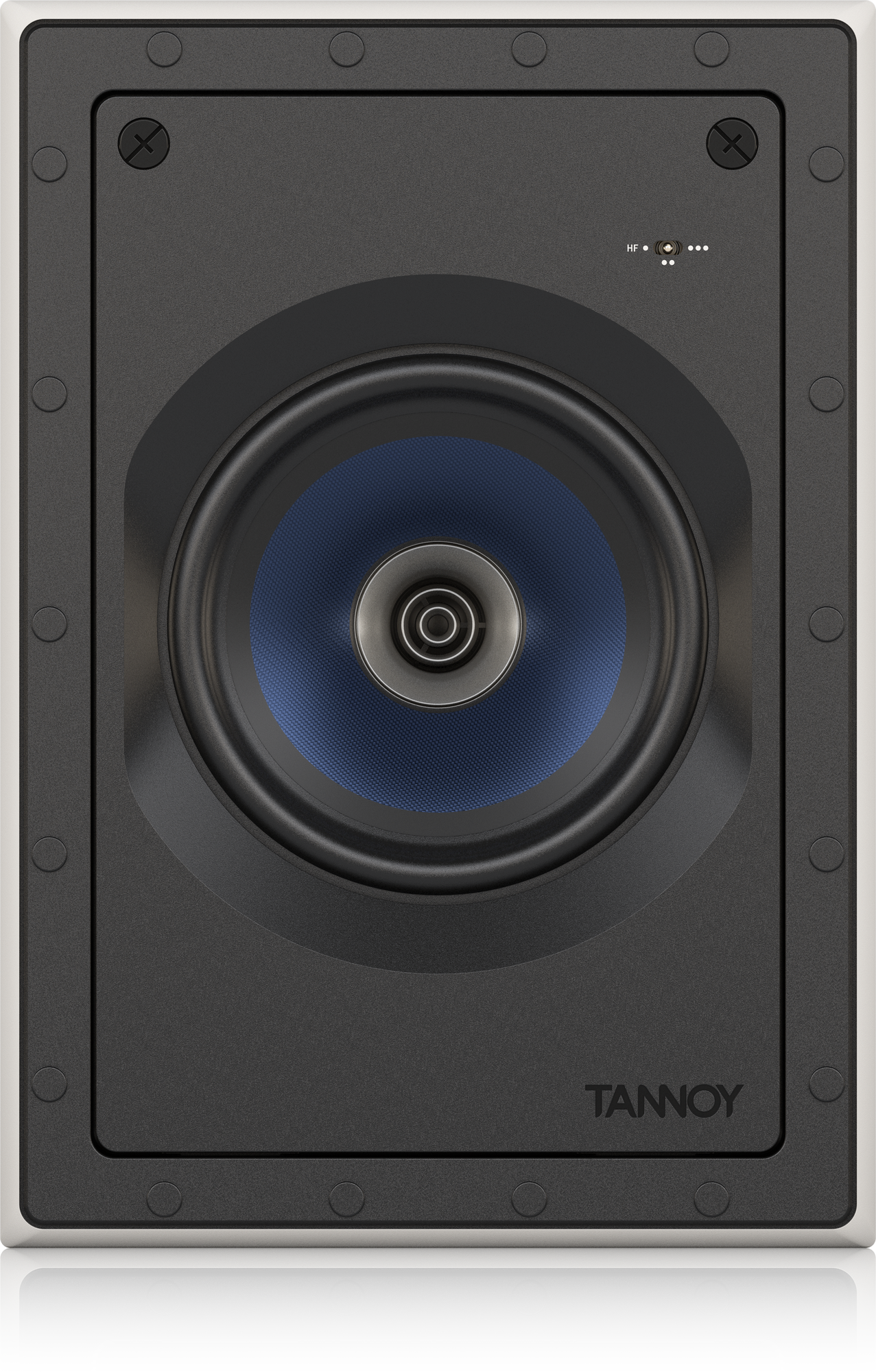

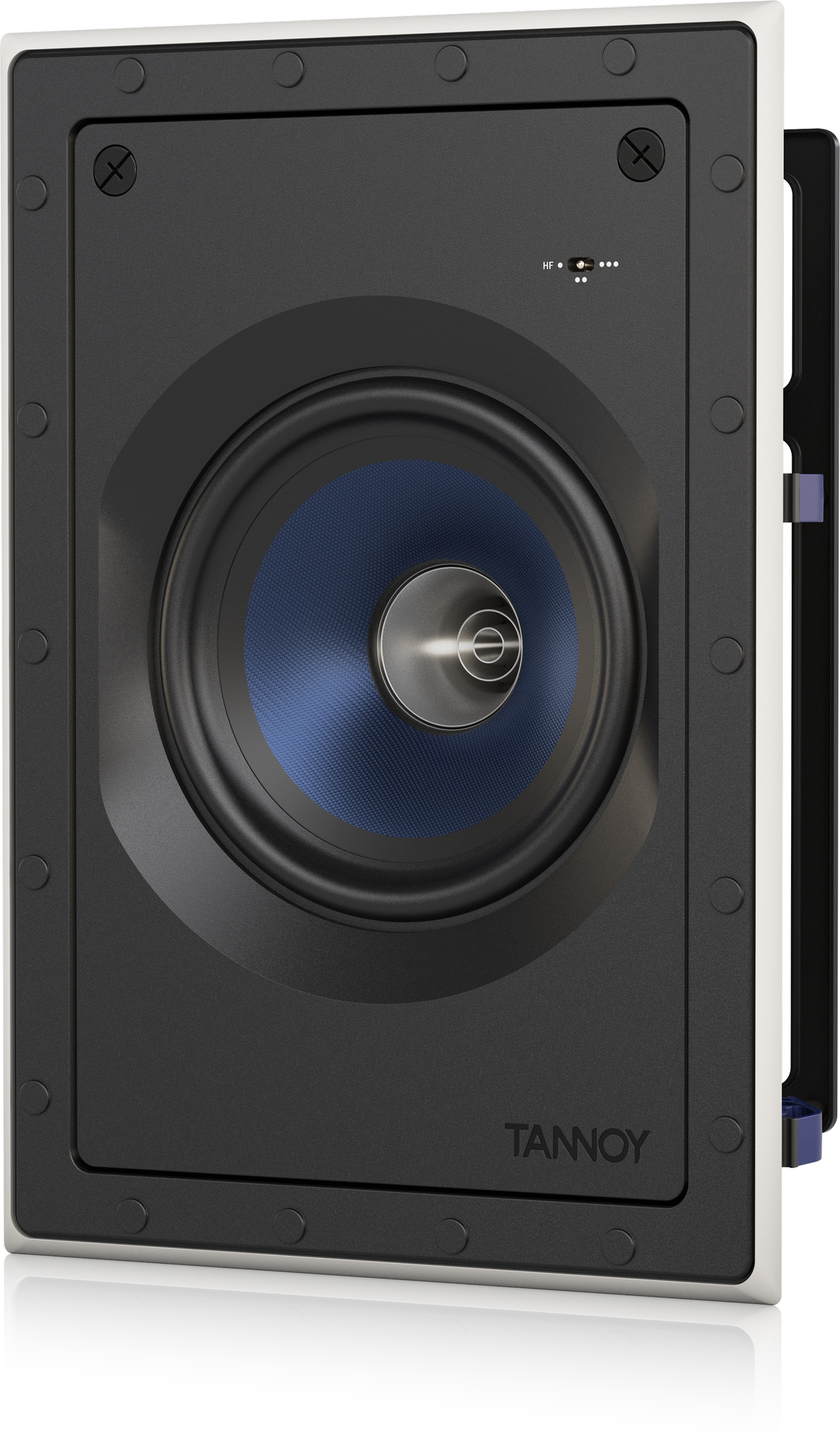

The PCI 6DC IW features a state-of-the-art Dual Concentric driver, designed in the UK, comprising a 165 mm LF/MF driver with a blue Kevlar cone, high-excursion rubber surround, and a centrally located HF driver. This compact unit handles up to 280 Watts, offering enhanced dispersion for a balanced sound experience throughout the listening area.

Description

The PCI 6DC IW speaker delivers exceptional performance by integrating the next generation Dual Concentric driver technology exclusive to its design. This high-definition in-wall loudspeaker is meticulously engineered in the UK, featuring a unique 165 mm (6.00″) LF/MF driver with a blue Kevlar cone and a high-excursion rubber surround. It ensures superior audio clarity and a balanced sound dispersion, enhanced by the centrally located HF drive.

Features

  • 6″ Dual Concentric driver with TANNOY point-source constant directivity
  • Smooth frequency response with Tulip Waveguide
  • Robust blue Kevlar cone for high power handling
  • Customizable performance with 3-way variable high-frequency level switch
  • Continuous power handling of 70 Watts and peak power of 280 Watts

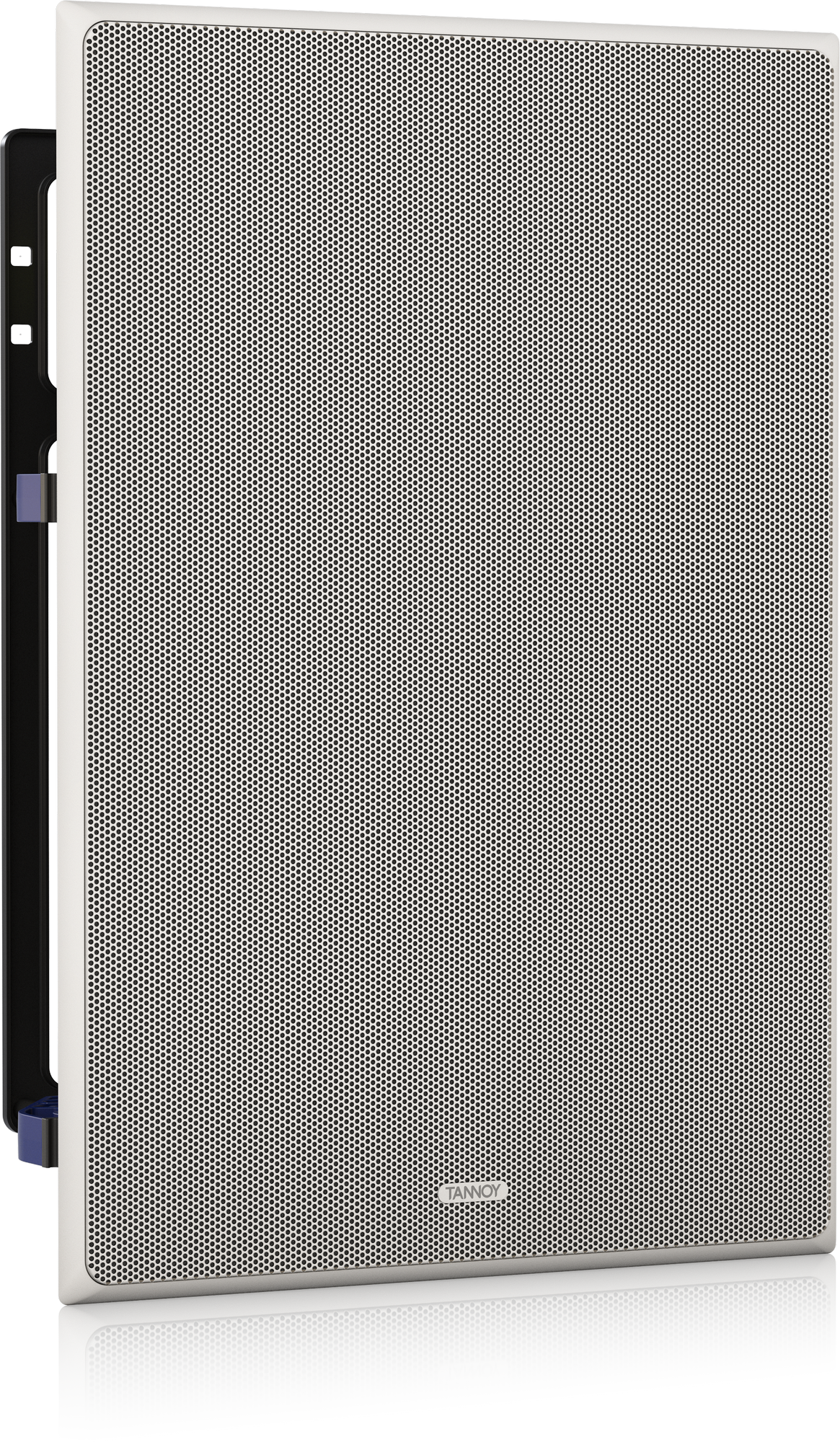

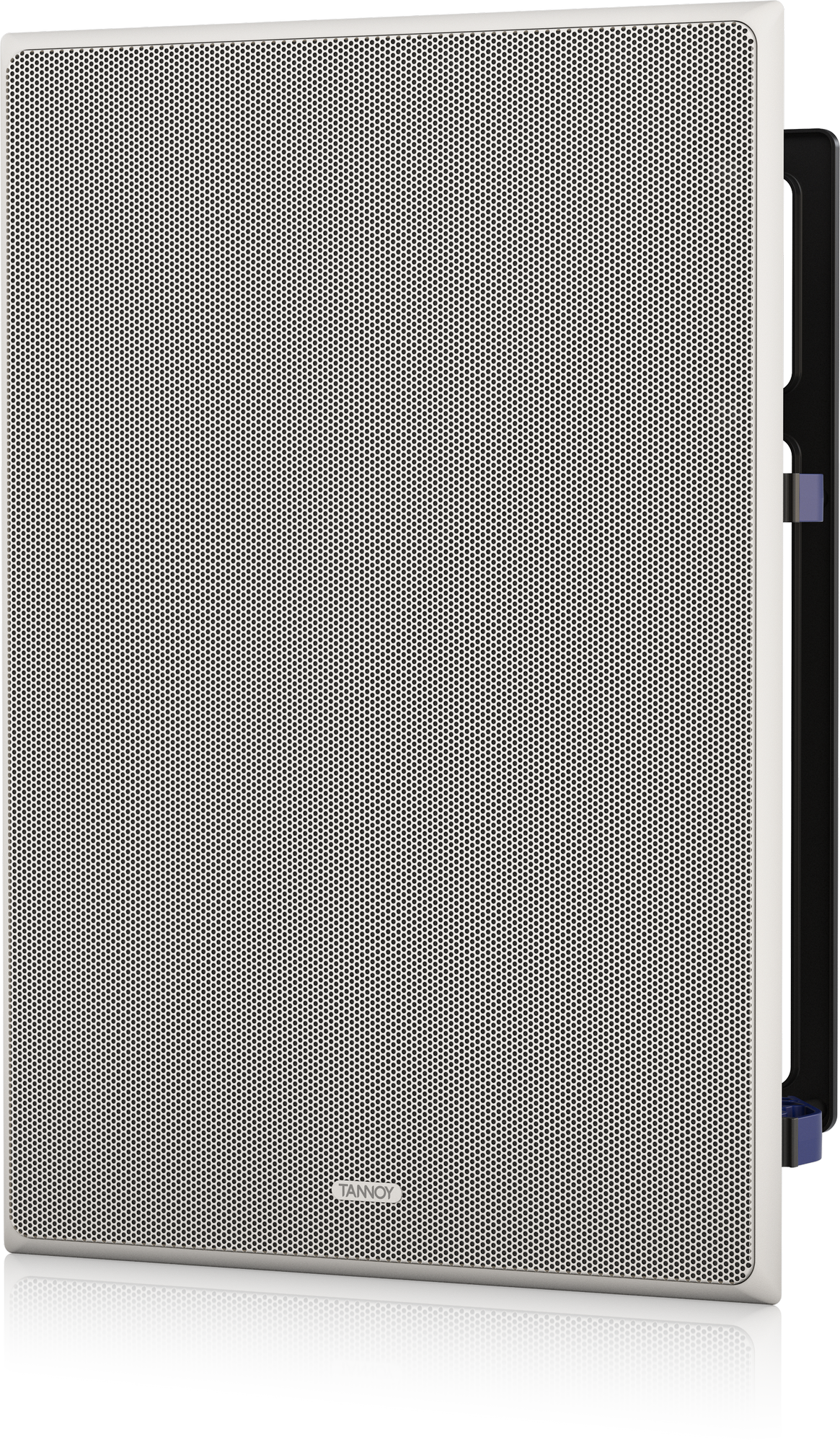

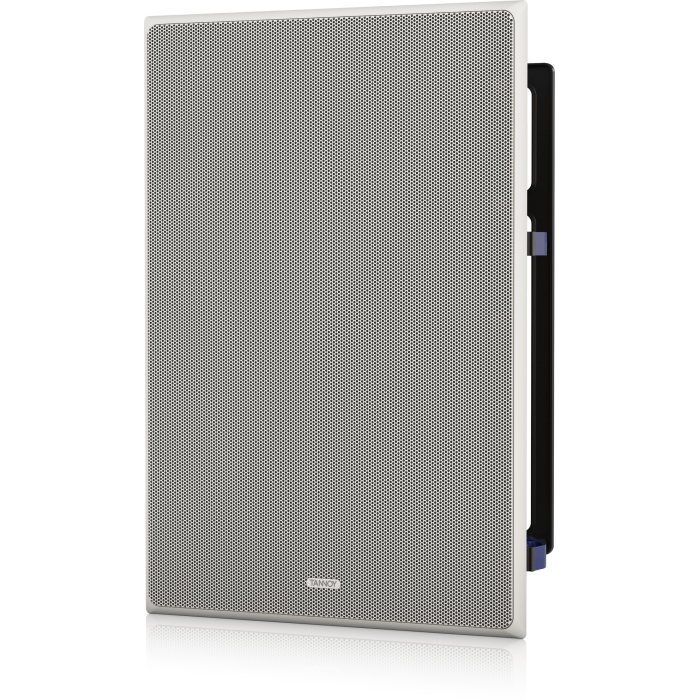

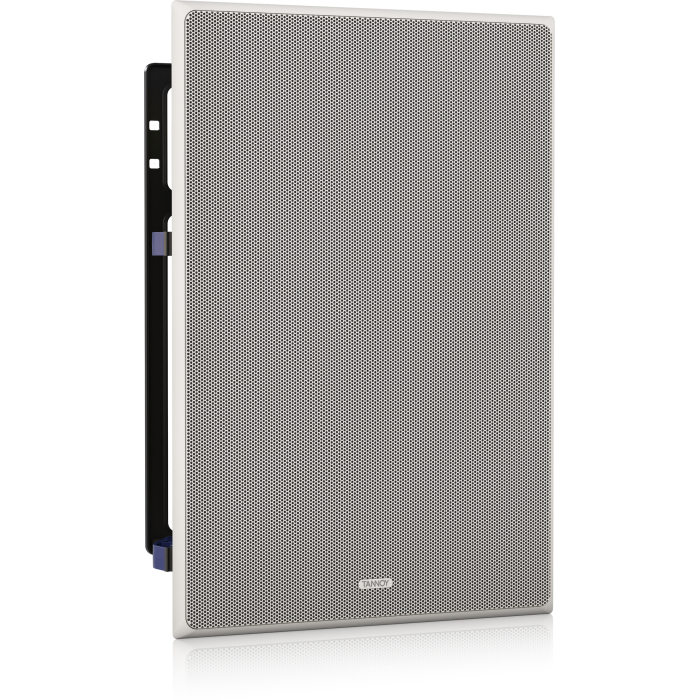

  • Semi matt white finish and ultra-thin bezel for discreet integration

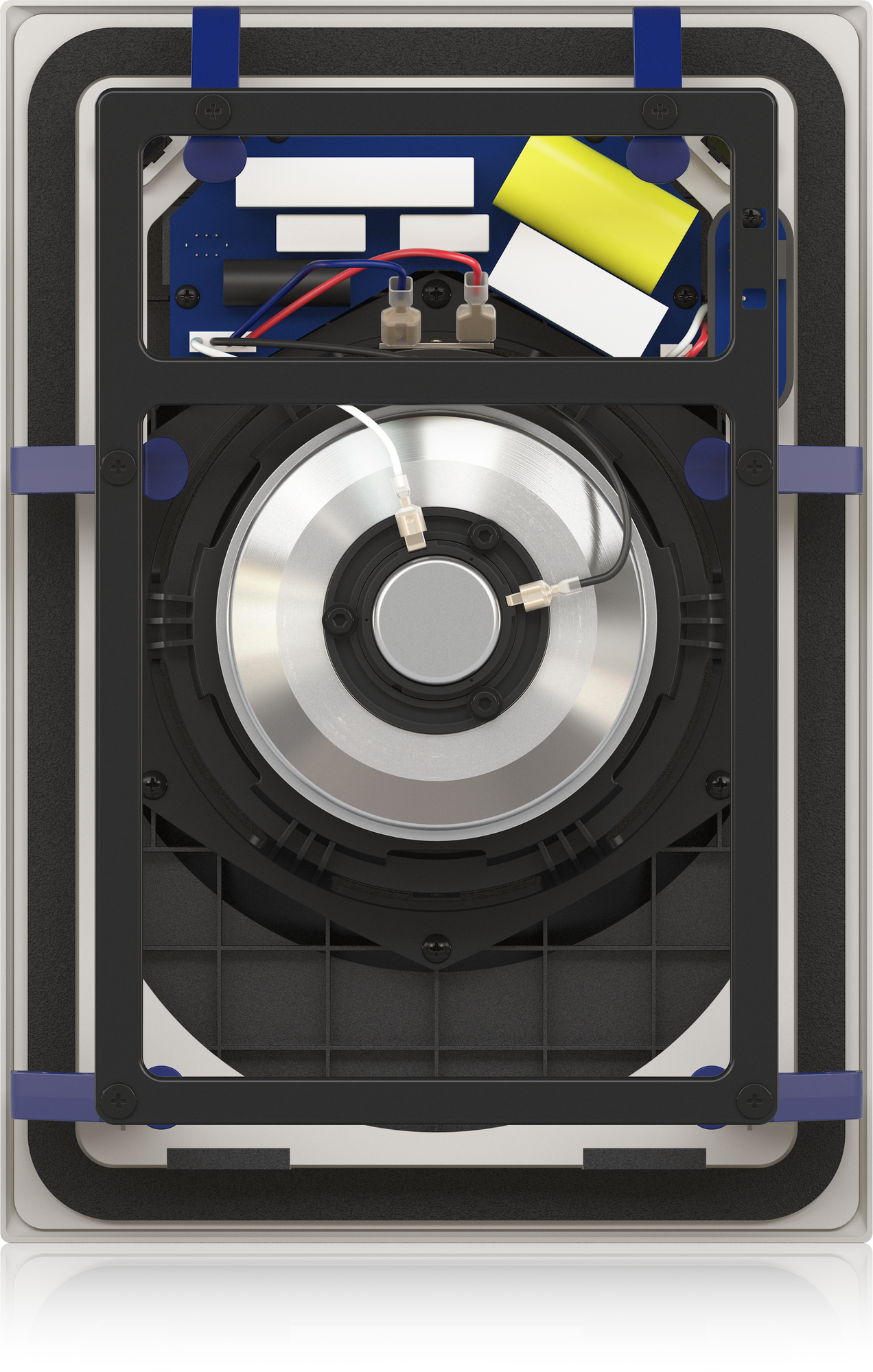

  • Installation-friendly with integrated construction and self-aligning clamp mounting system

Specifications

Specification Details
Frequency response (±3dB) 50 Hz – 20 kHz
Frequency response (-10dB) 30 Hz – 20 kHz
Sensitivity (1W @ 1m) 85 dB
Directivity factor (Q) 4.8 averaged 1 kHz to 10 kHz
Directivity index (DI) 6.8 averaged 1 kHz to 10 kHz
Power handling (Average) 70 W
Power handling (Programme) 140 W
Power handling (Peak) 280 W
Recommended amplifier power 210 W @ 8 Ω
Nominal Impedance (Lo Z) 8 Ω
Rated maximum SPL (1 m, Lo Z) 107 dB
Average SPL 104 dB
Peak SPL 110 dB
Crossover point 1.6 kHz
Coverage angles (500 Hz) 180° horizontal, 160° vertical
Coverage angles (1 kHz) 141° horizontal, 144° vertical
Coverage angles (2 kHz) 119° horizontal, 134° vertical
Coverage angles (4 kHz) 92° horizontal, 87° vertical
LF driver diameter/material/type 165.5 mm (6″)
HF driver diameter/material/type 25.4 mm (1″)

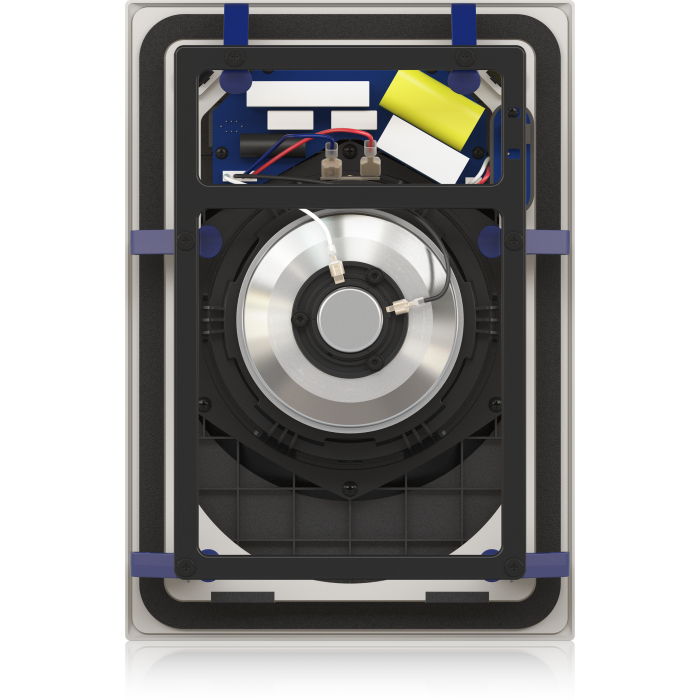

Back can Option 1: BACK CAN IW: Steel, powder coating
Baffle Reflex-loaded UL94 V-0 rated ABS

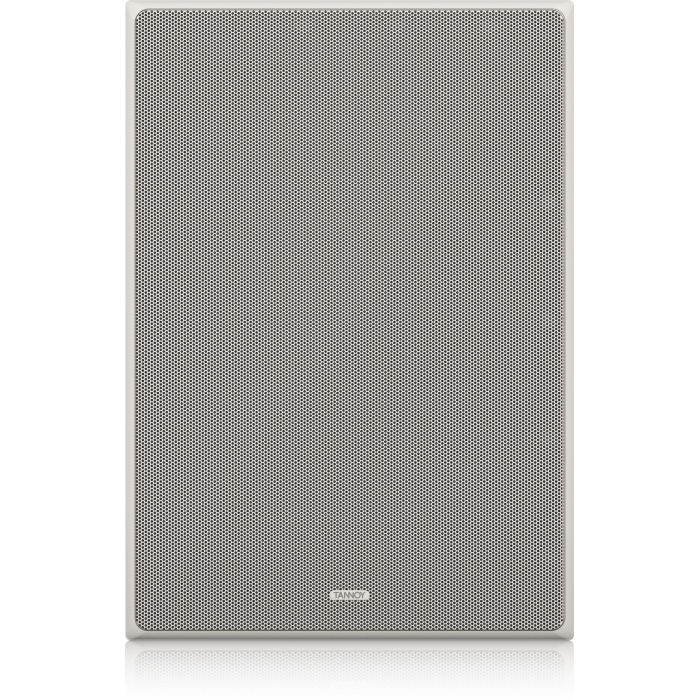

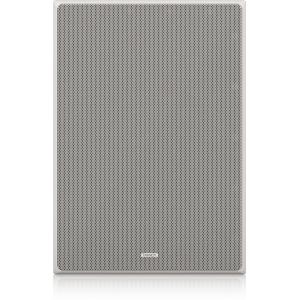

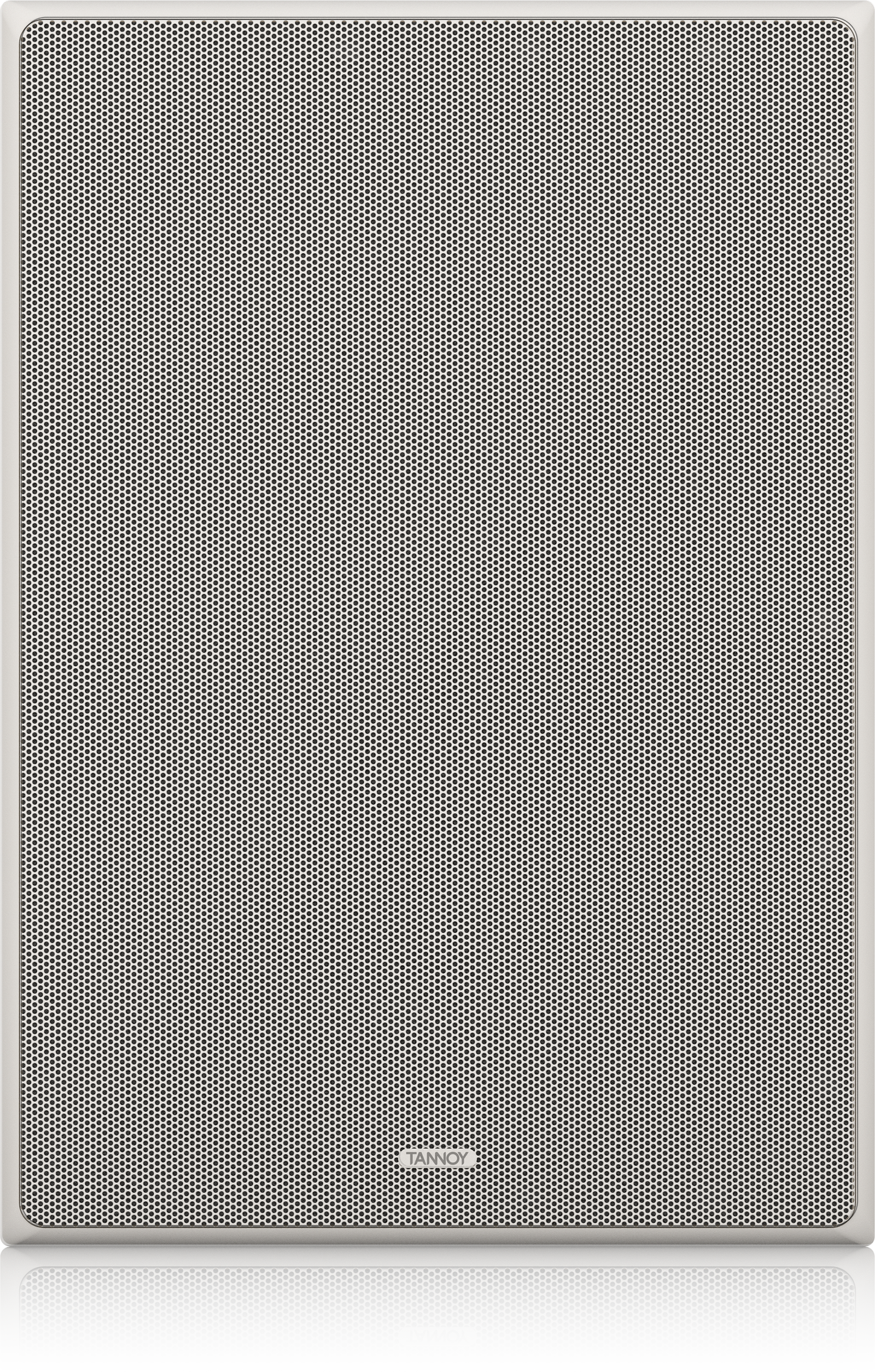

Grille Steel, with weather-resistant coating
Safety features N/A
Clamping design Security toggle clamp
Connectors Phoenix Contact terminal block
Dimensions (HxWxD) 315 x 221 x 105 mm (12.4 x 8.7 x 4.1″)
Bezel dimensions Square: 315 x 221 mm (12.4 x 8.7″)
Mounting depth 91.7 mm (3.6″)
Hole cutout dimensions 299 x 203 mm (11.8 x 8″)
Net weight 2.9 kg (6.4 lbs)
Packed quantity 1
Included accessories Grille, paint mask, cutout template
Optional accessories Option 1: BACK CAN IW
Option 2: PMK 6 IW
