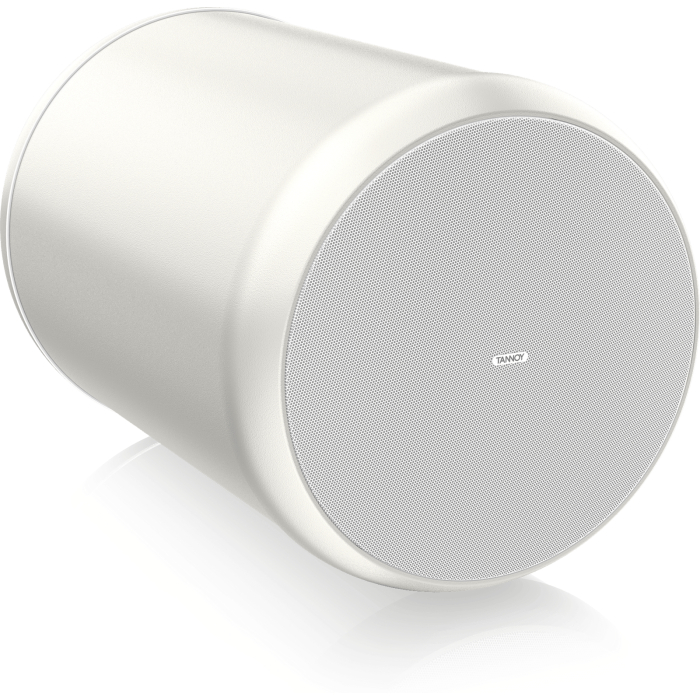

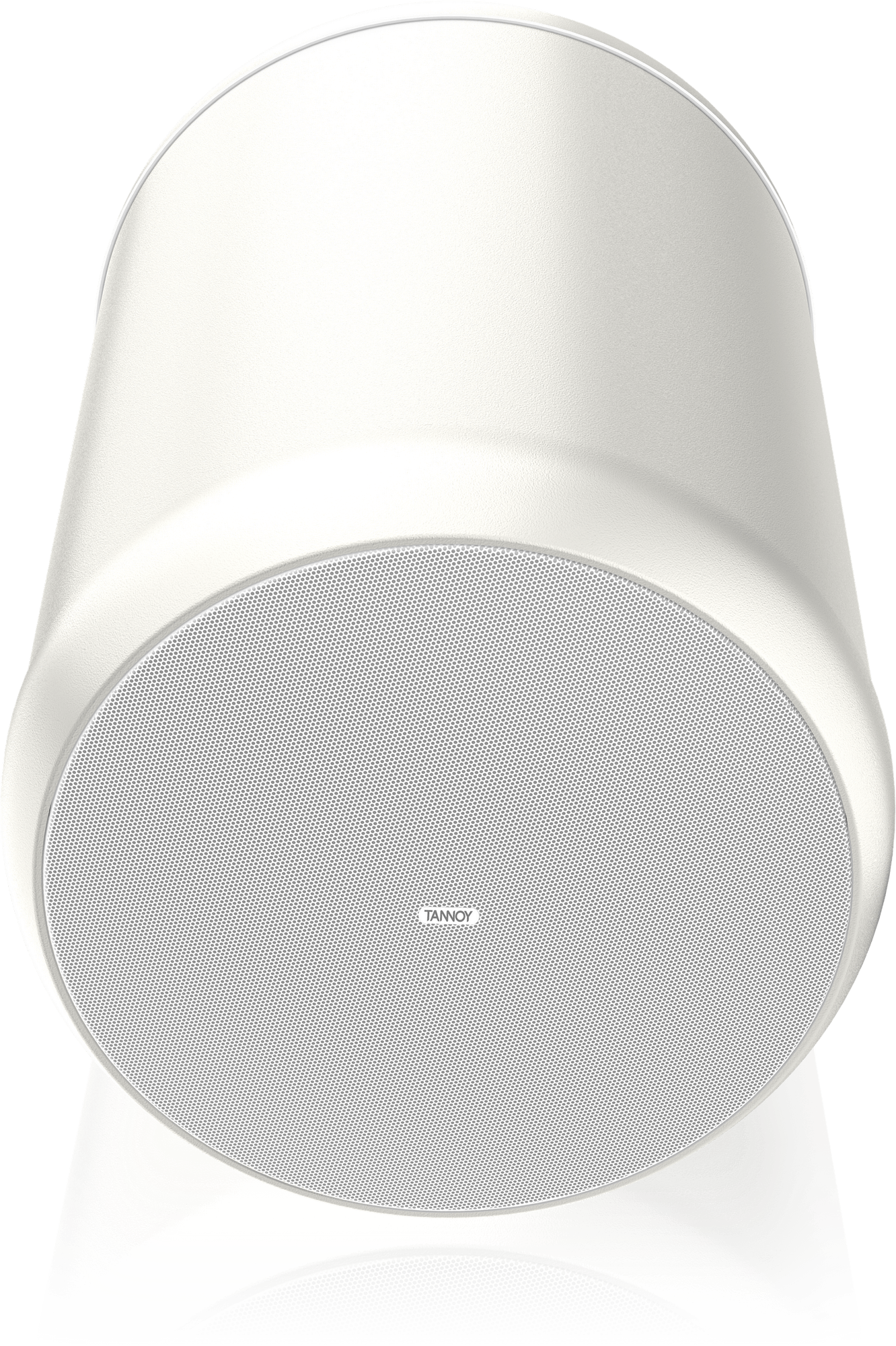

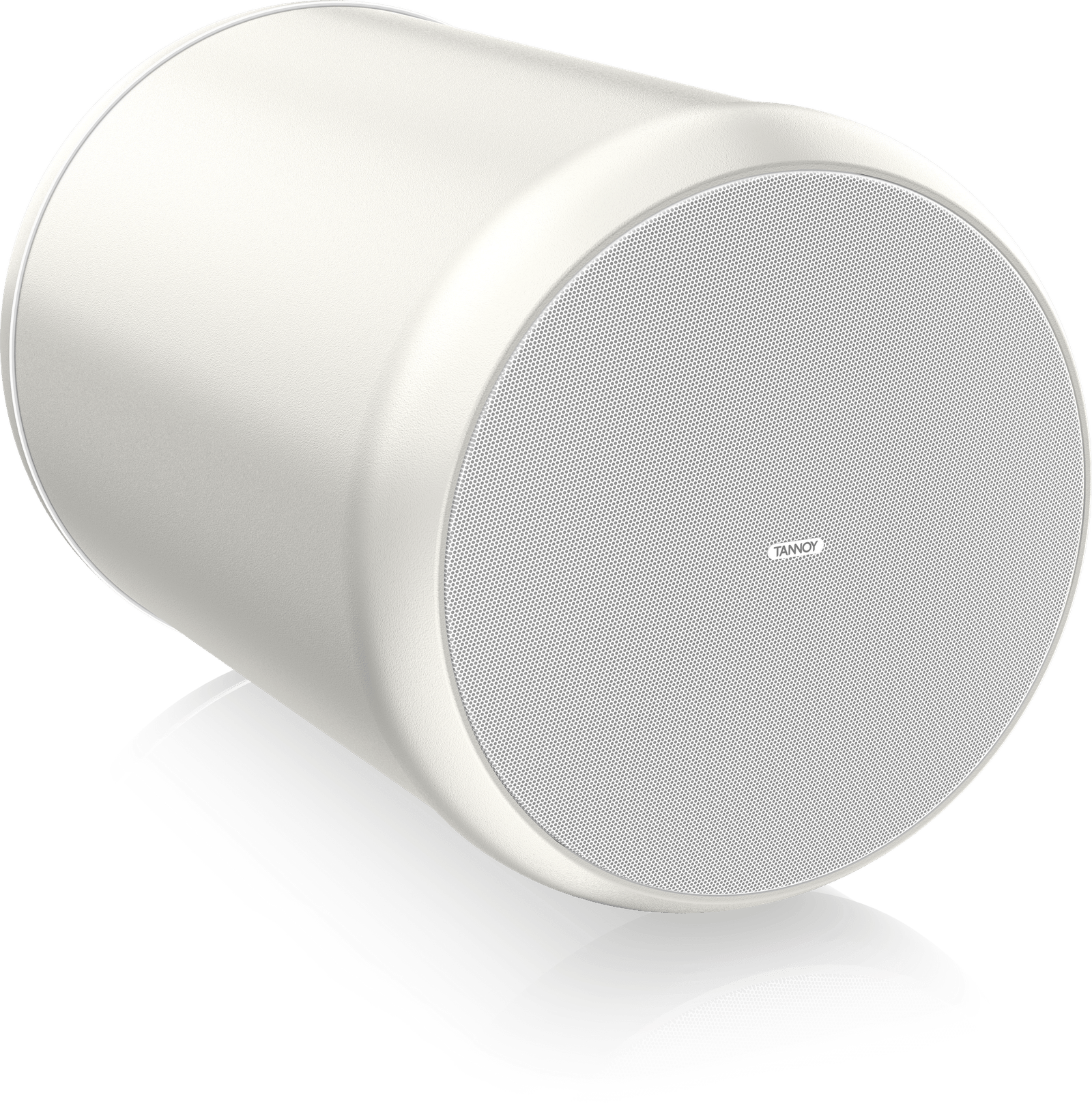

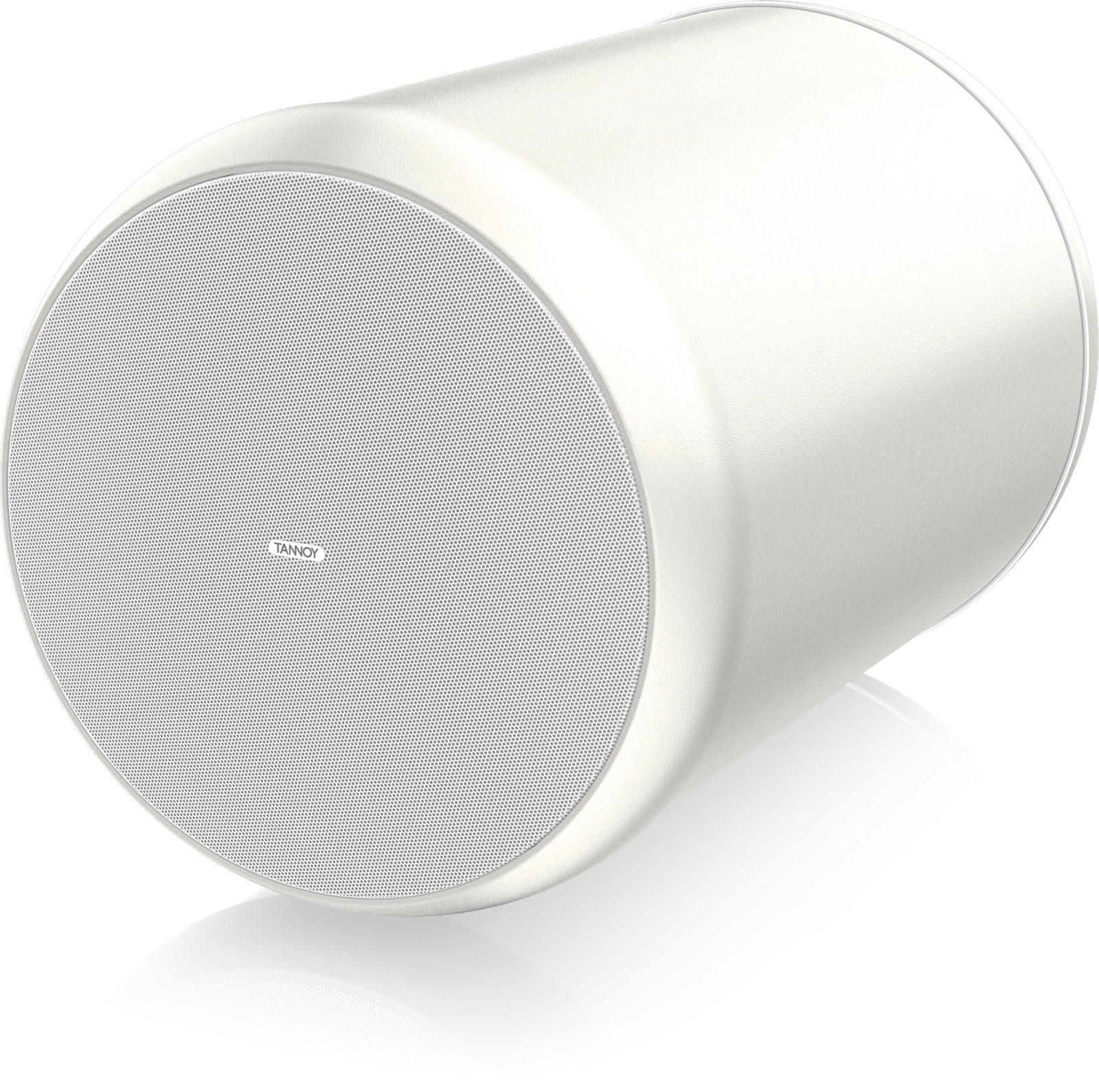

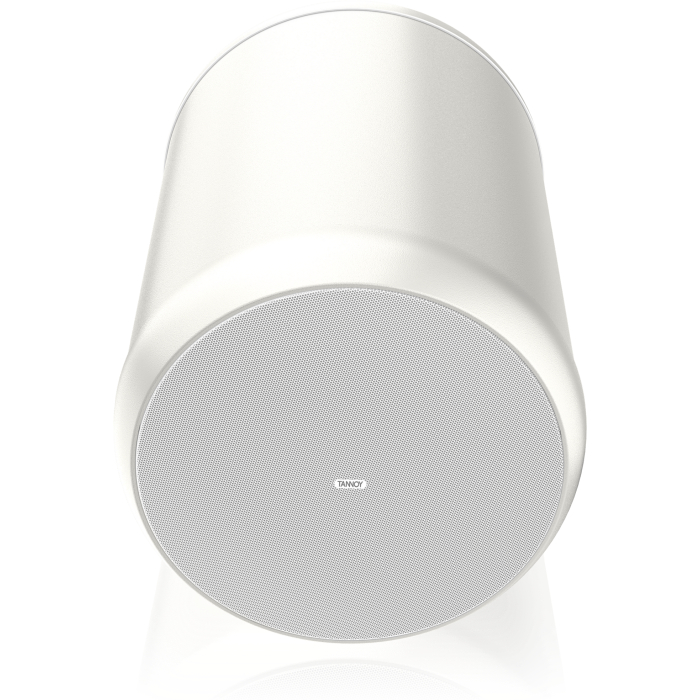

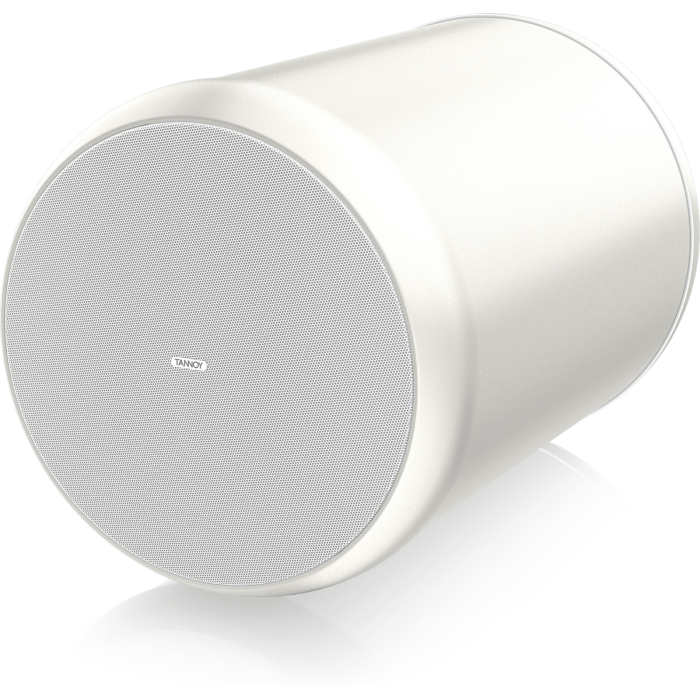

OCV 8-WH Pendant Loudspeaker

The OCV 8-WH is a 280-Watt high sensitivity pendant loudspeaker that delivers wide and consistent broadband directivity with enhanced intelligibility – plus the linear response of our legendary studio monitors. Engineered specifically for aesthetically sensitive applications where consistent high quality audio coverage is required, the OCV 8-WH is ideally suited for airport and ground transportation terminals, shopping malls, and large double or triple height commercial floors – without compromising clarity, intelligibility or Sound Pressure Level (SPL). OCV 8-WH loudspeakers provide a seamless sound signature within a multi-zoned environment that benefits from additional TANNOY installation loudspeakers.

Features

• Coaxial full range pendant loudspeaker for installation applications
• 70 Watts continuous, 280 Watts peak power

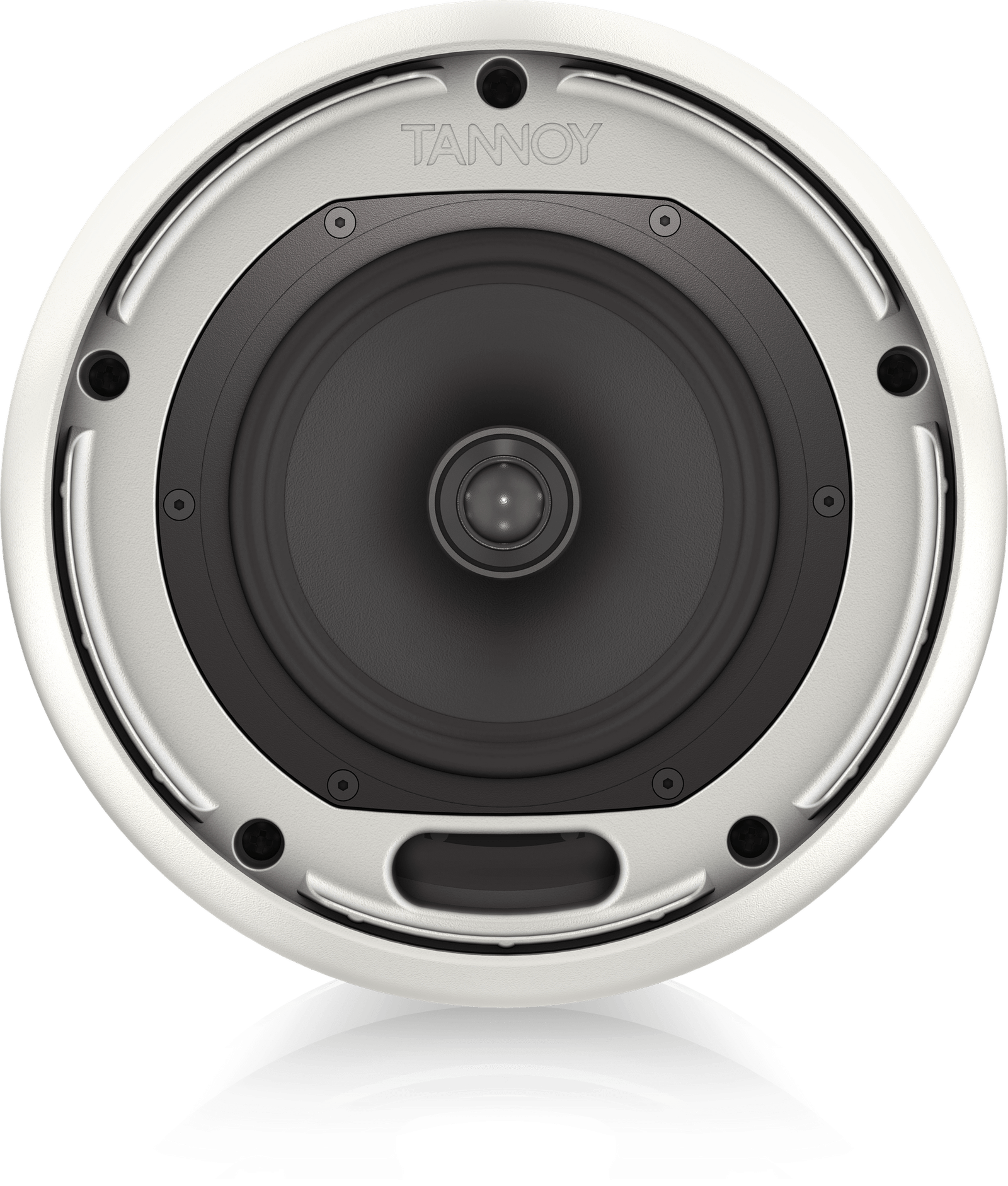

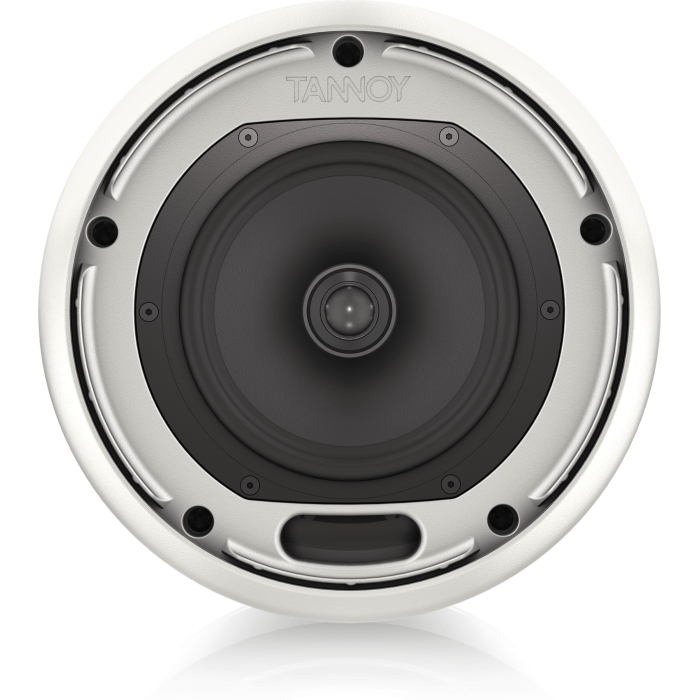

• 8″ mineral loaded polypropylene driver with nitrile rubber surround for enhanced durability and long-term reliability
• 1″ ferrofluid cooled soft dome neodymium high frequency driver
• Wide constant directivity dispersion for optimum coverage
• UL 1480 certified for general signalling systems
• UV and weather resistant UL 94 V-0 ABS front with plated steel fire can enclosure
• Multiple transformer taps for 70 V and 100 V line systems or 16 Ohm direct input
• Low insertion loss 60 W line transformer with easily accessible tapping switch
• Optimised for Lab Gruppen low impedance LUCIA amplifiers with up to 8 OCV series loudspeakers per channel
• All components weather resistant to IP64 for outdoor use
• Semi matt white finish fits unobtrusively in any environment

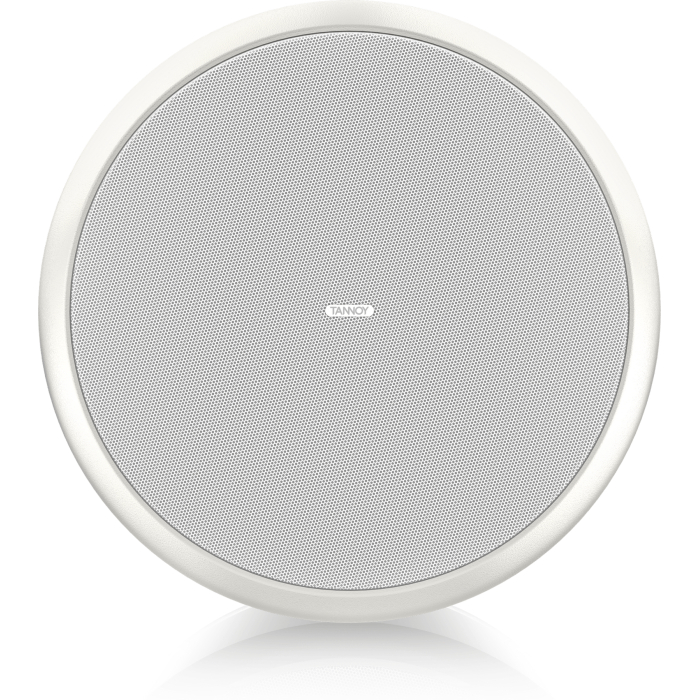

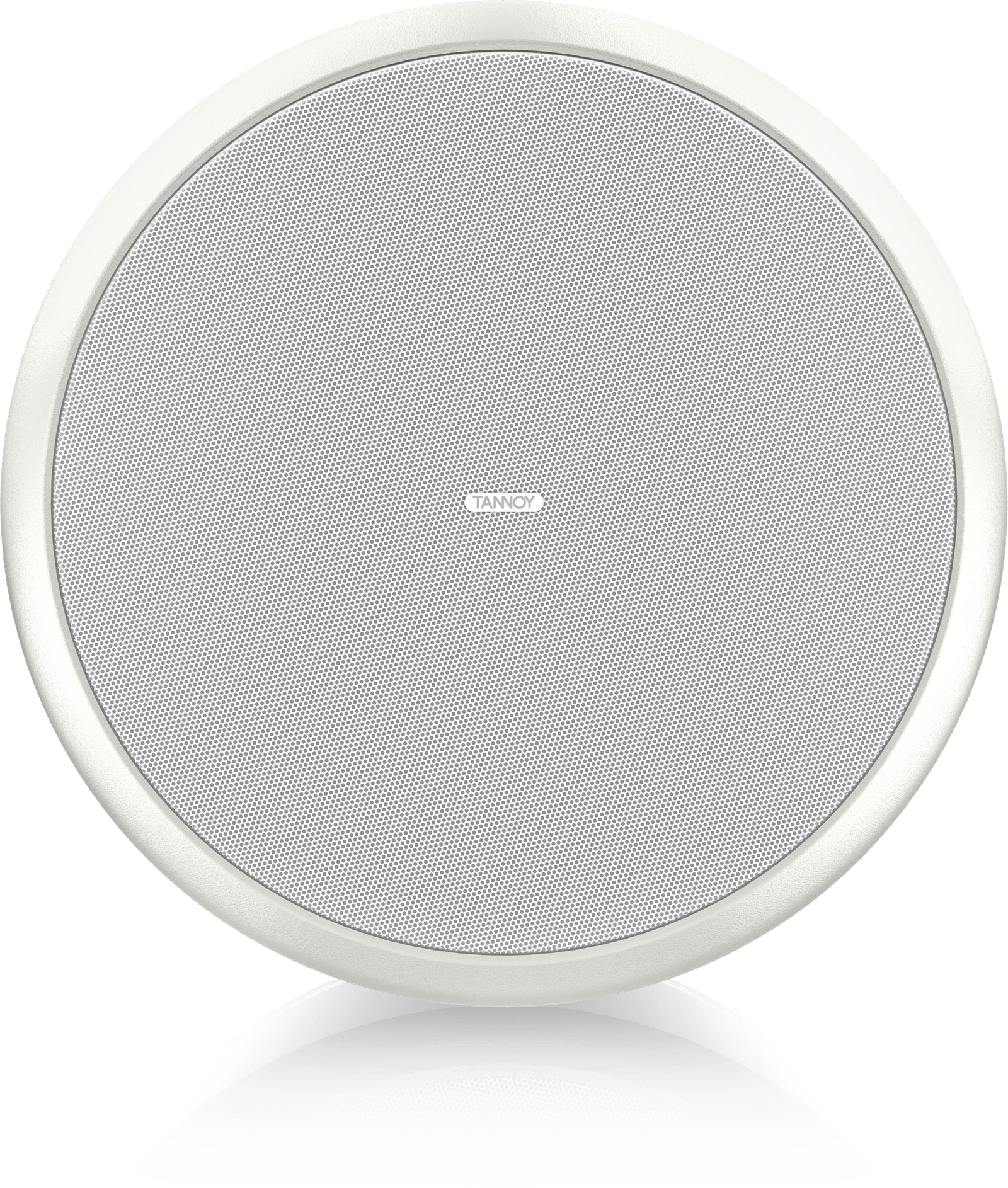

• Powder coated perforated steel mesh grille with dust protection
• Quick and easy hanging system included for reduced installation time and cost

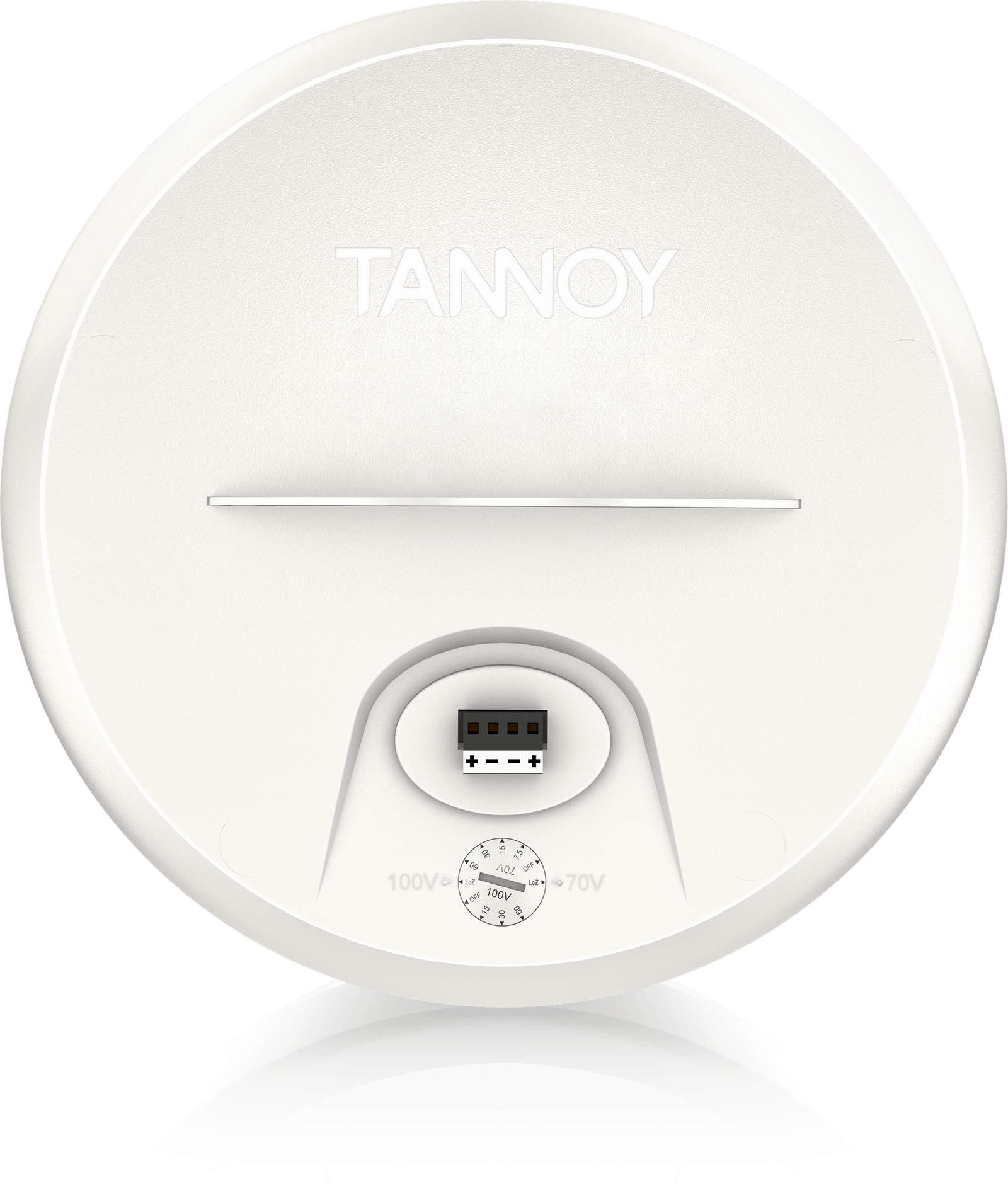

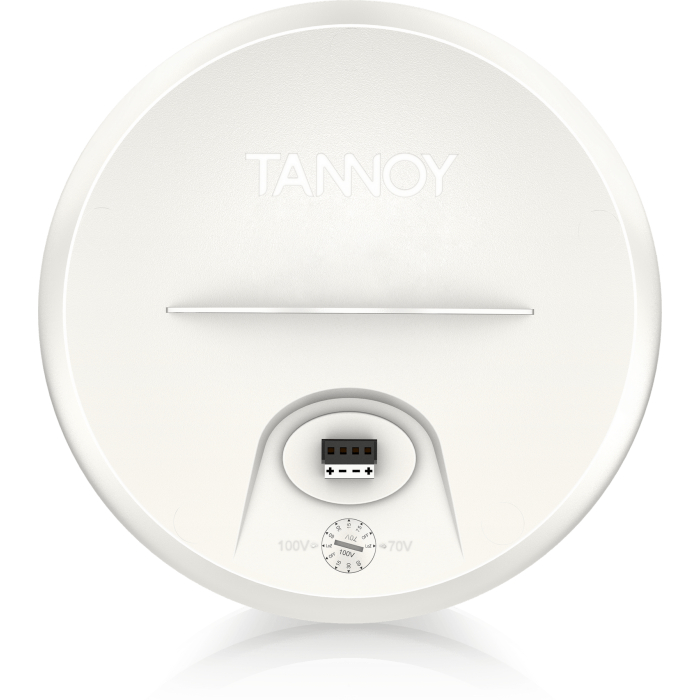

• Weatherproof cable gland cover to protect Phoenix connectors and tap selector switch
