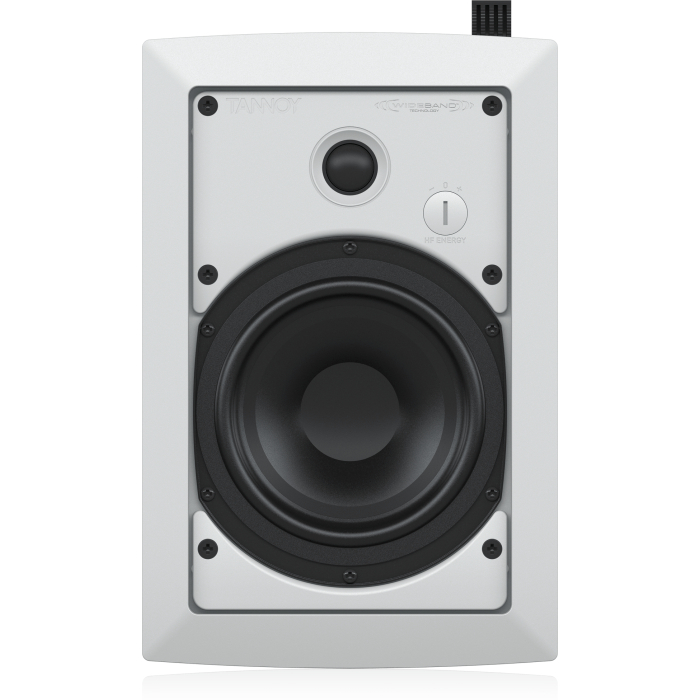

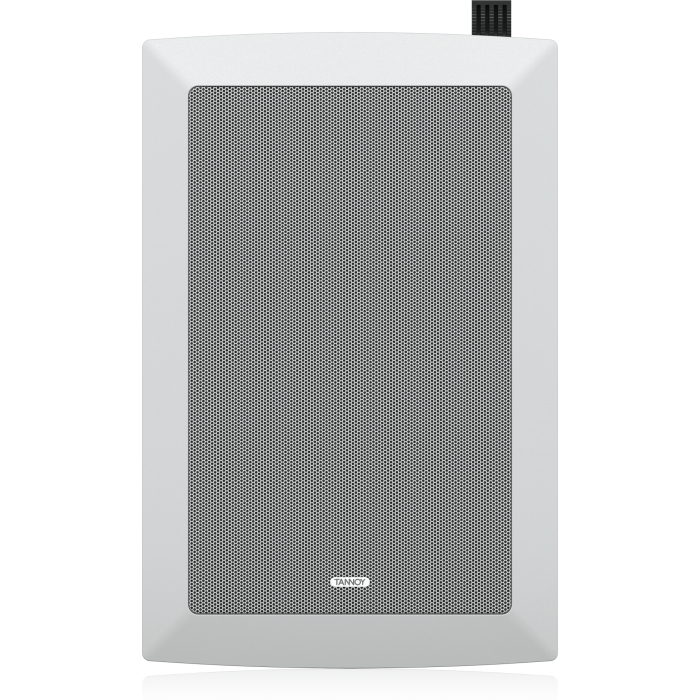

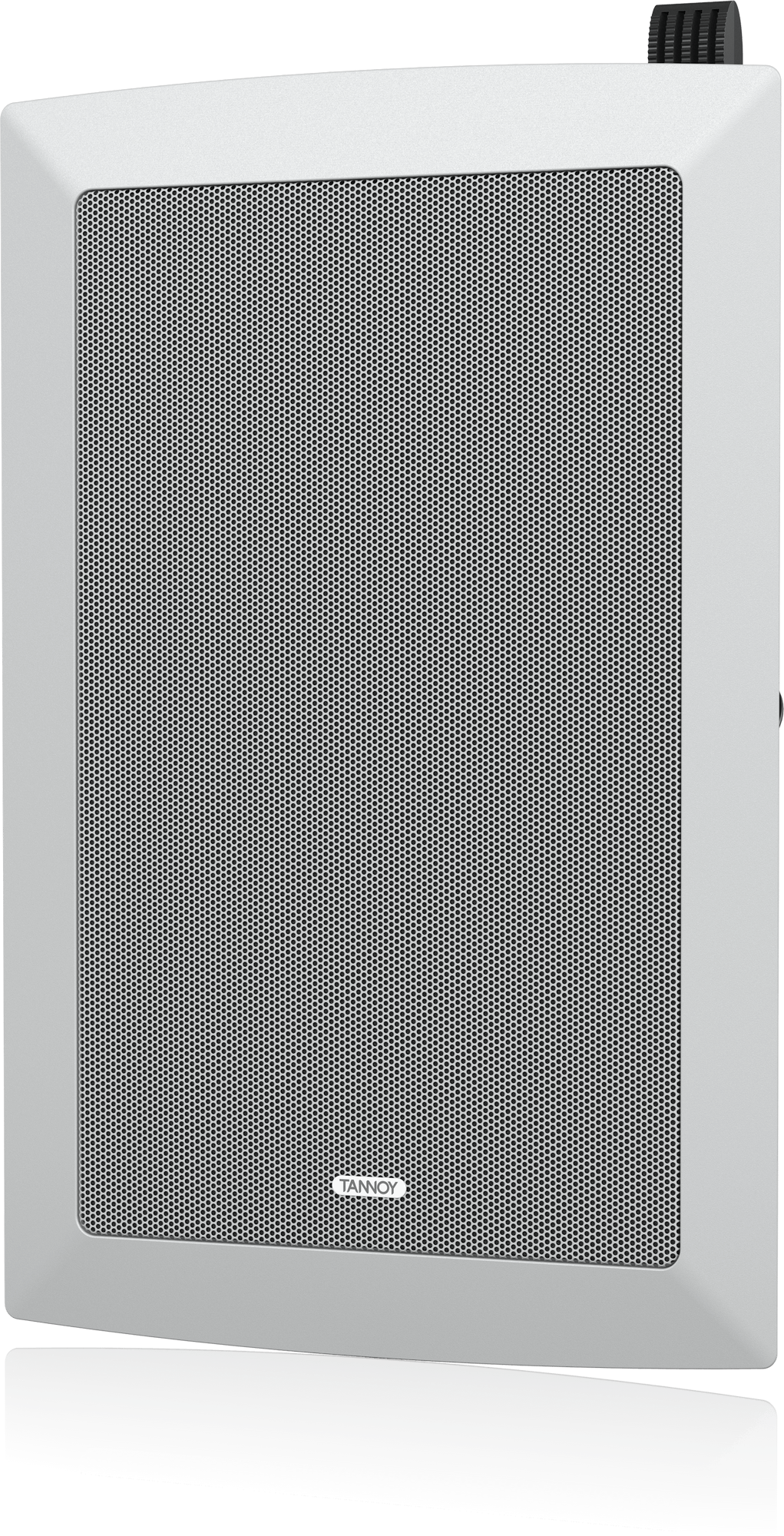

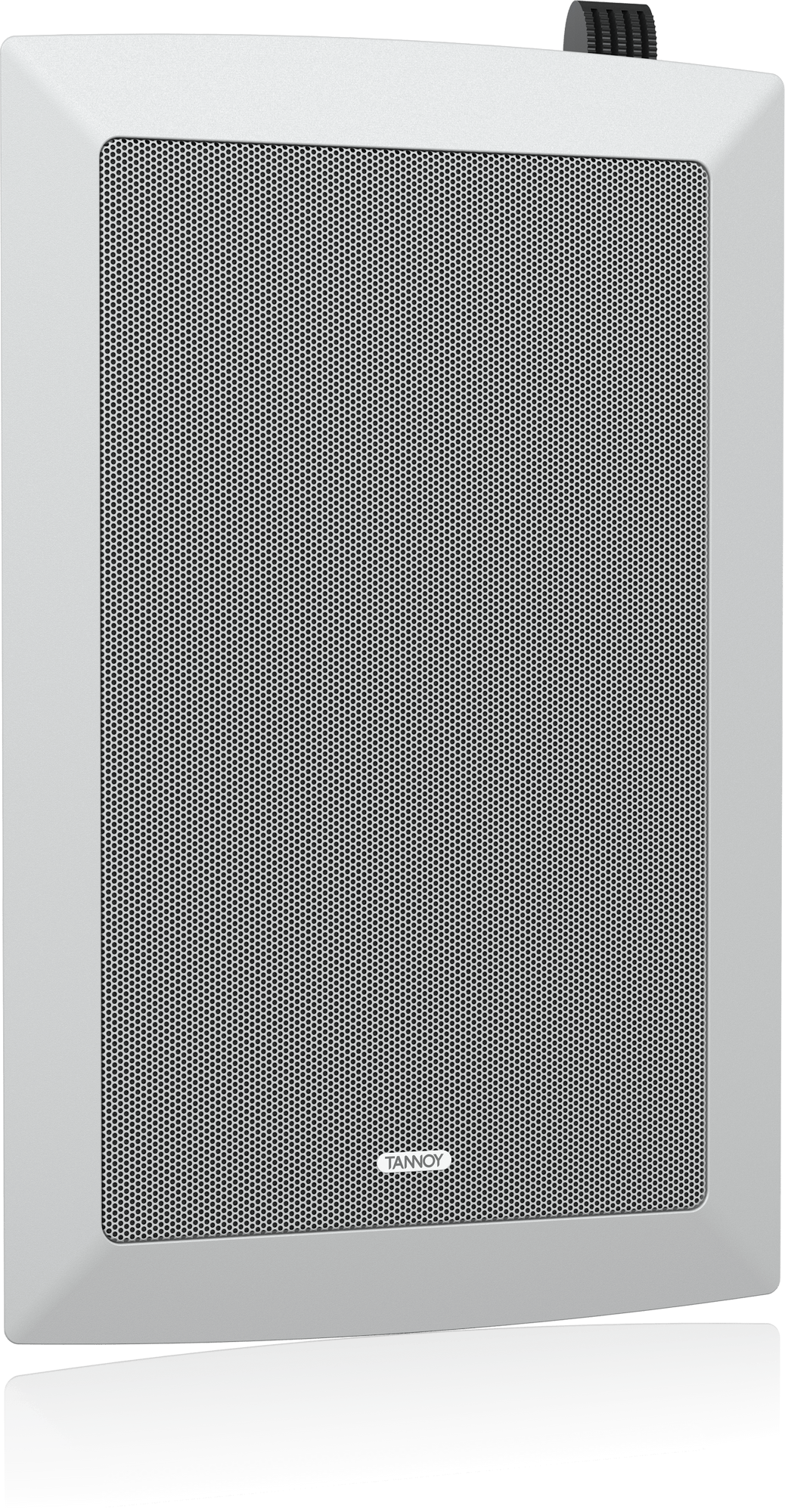

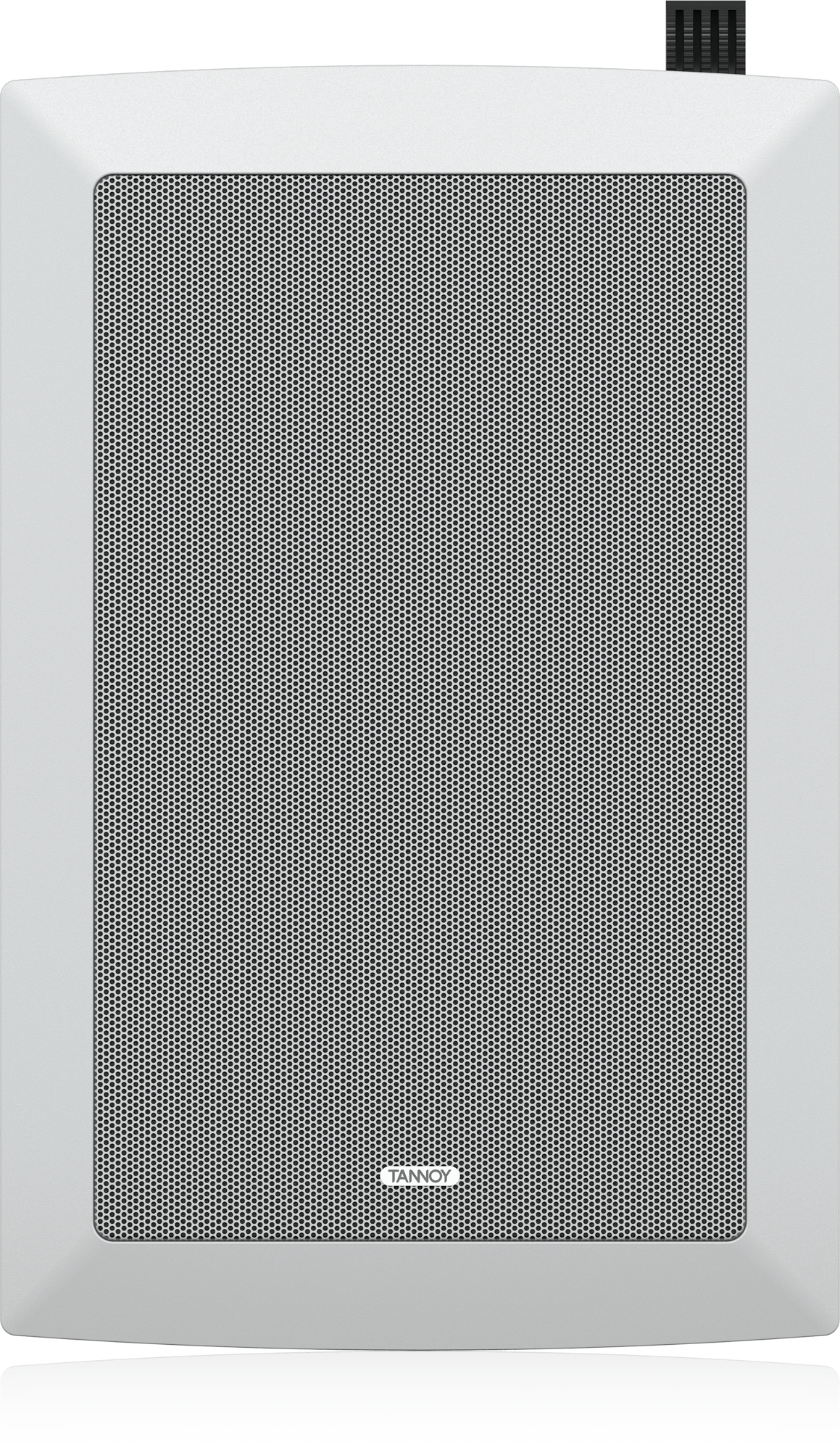

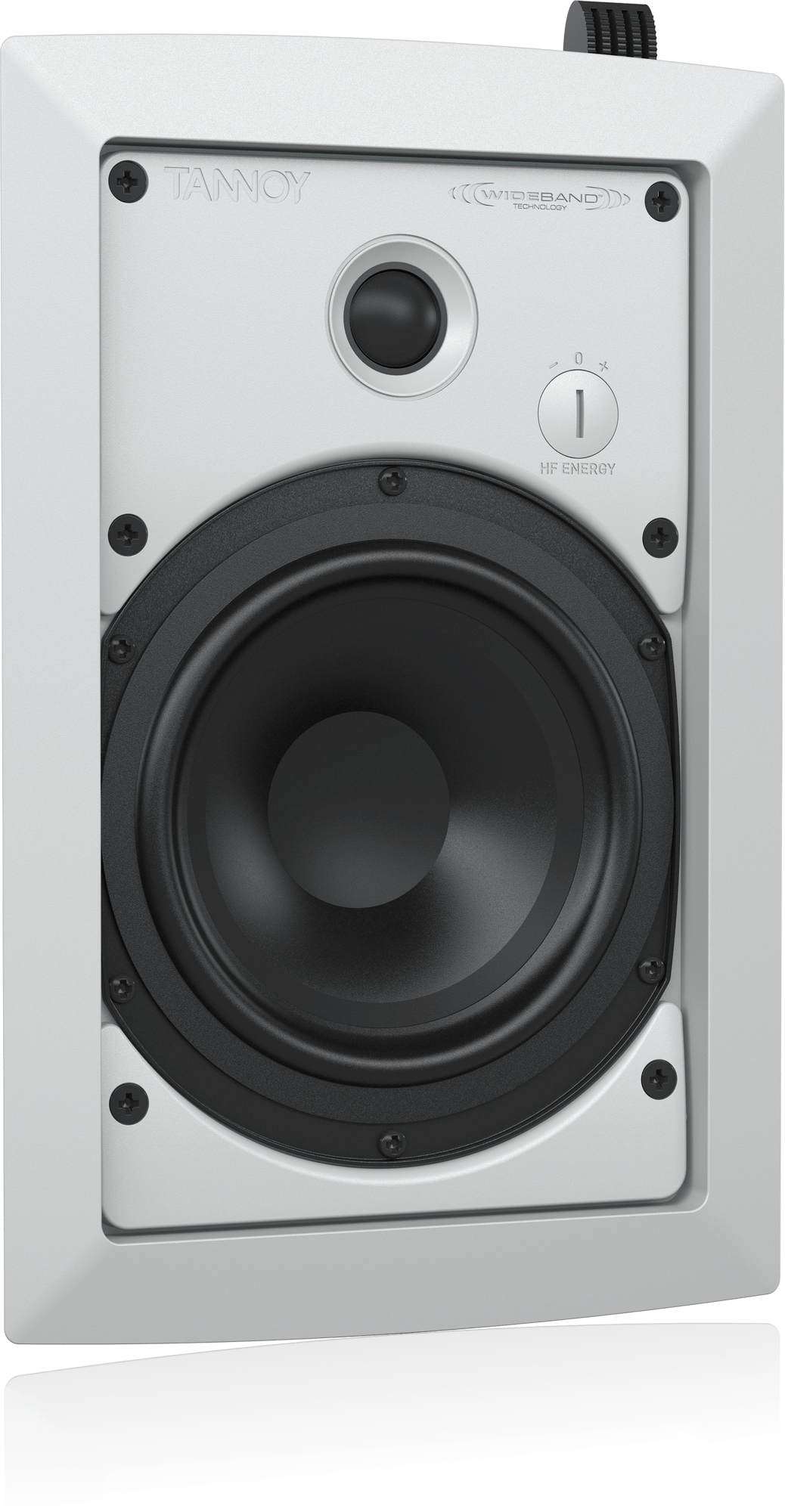

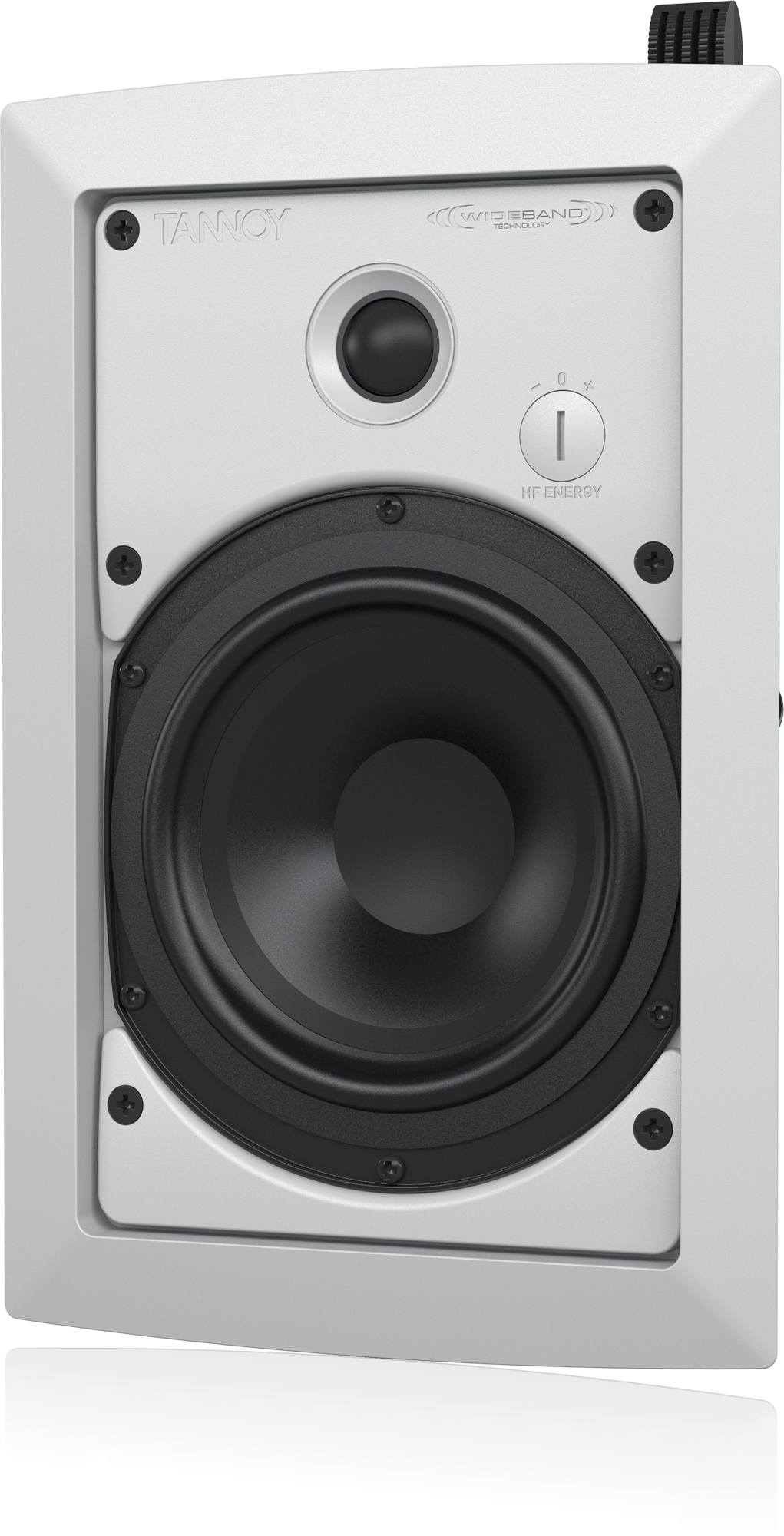

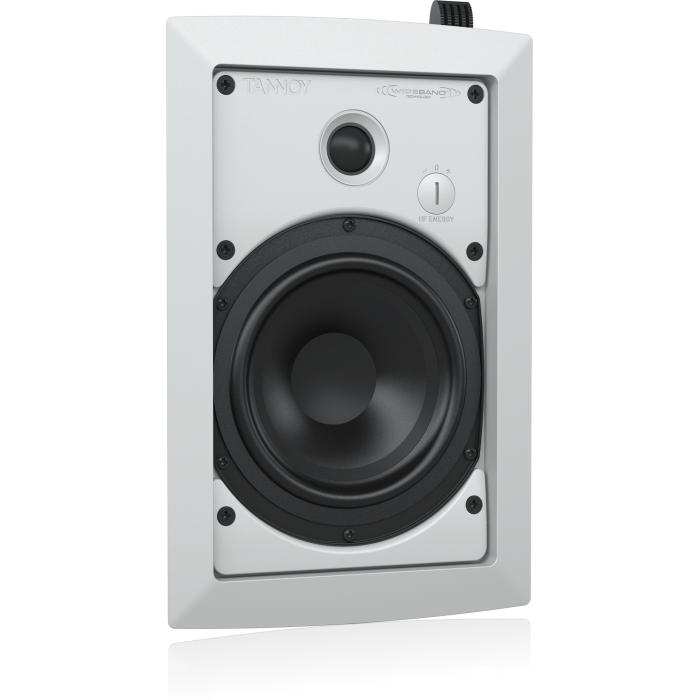

Tannoy In-Wall Speaker iW 6DS-WH 2-Way 6″ 280W White

Tannoy

AED 399 inc VAT.

In stock
Enquiry On Whatsapp
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: iW 6DS-WH Categories: , , Brand:

The iW 6DS-WH is a versatile 280-Watt wall mount loudspeaker delivering high-quality sound with exceptional clarity, perfect for sound reinforcement in paging systems, boardrooms, offices, business music systems, reception areas, houses of worship, retail spaces, shopping centers, and bars.

Description

Designed to excel in a wide variety of sound reinforcement applications, the full range iW 6DS-WH is a compact 280-Watt wall mount loudspeaker that provides inspiring acoustic performance with exceptional clarity and articulation. The iW 6DS-WH is ideally suited for paging systems, boardrooms, offices, business music systems, reception rooms, houses of worship, retail outlets, shopping malls and bars.



Features

  • 2 way compact wall mount loudspeaker for multi-zone music and AV systems

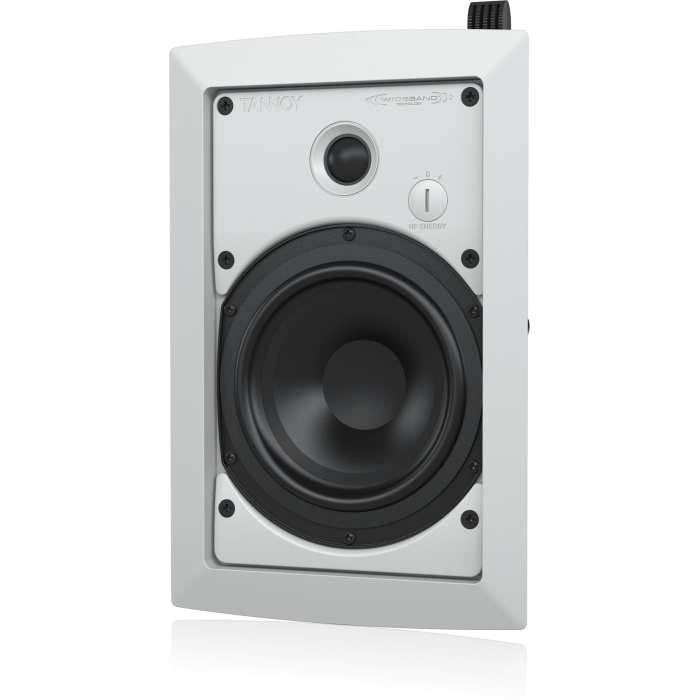

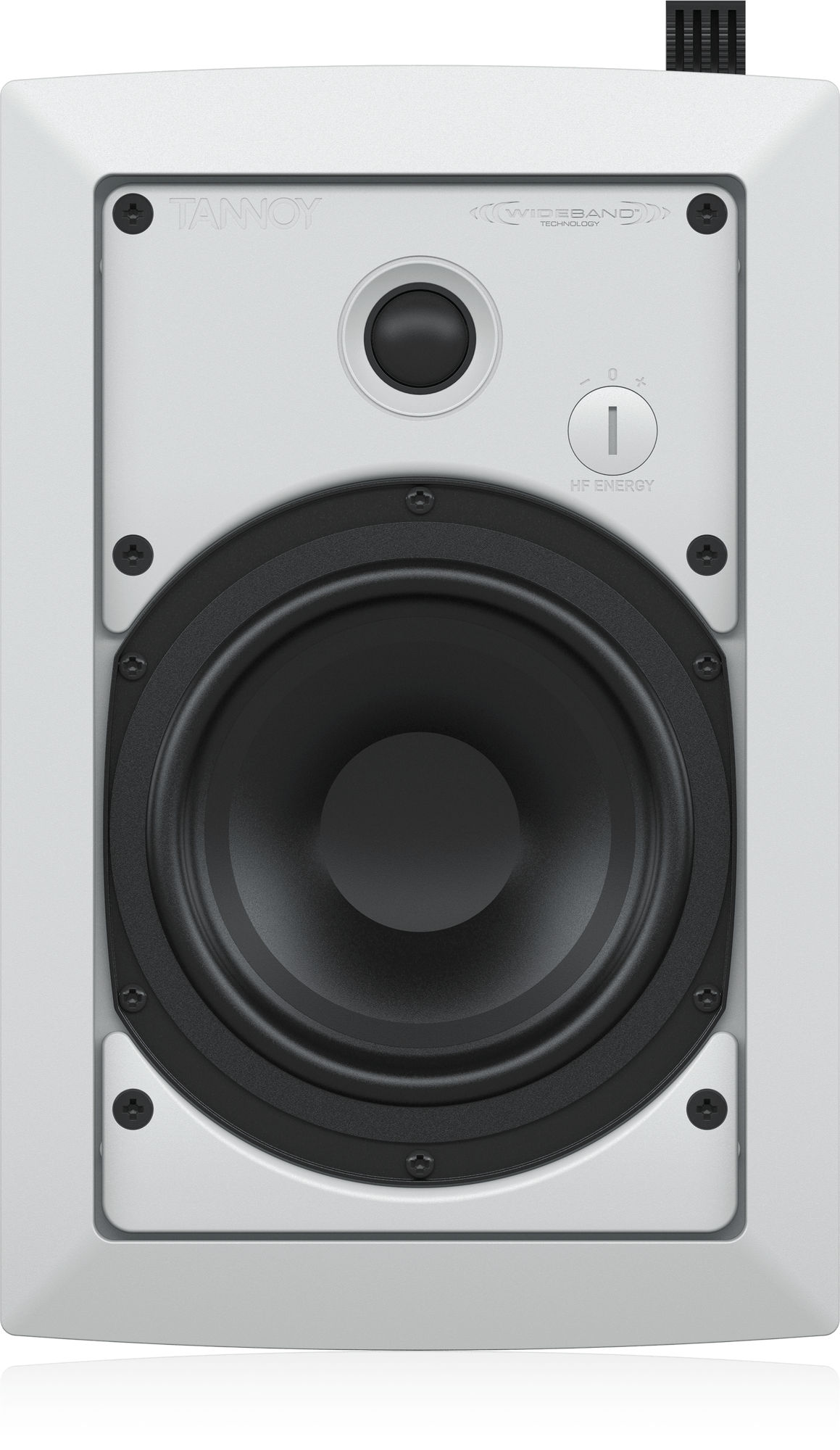

  • 25 mm titanium diaphragm high frequency unit delivers exceptional clarity and articulation throughout the high frequency range
  • 6″ bass driver provides exceptional low frequency performance
  • 70 Watts continuous, 280 Watts peak power handling delivers exceptional dynamics and realism
  • Highly efficient 89 dB/Watt sensitivity
  • WideBand™ tweeter technology to enhance reproduction of wide band digital audio formats
  • Robust construction and performance allows use within commercial environments
  • Ideal for paging systems, boardrooms, offices, business music systems, reception rooms, houses of worship, retail outlets, shopping malls and bars

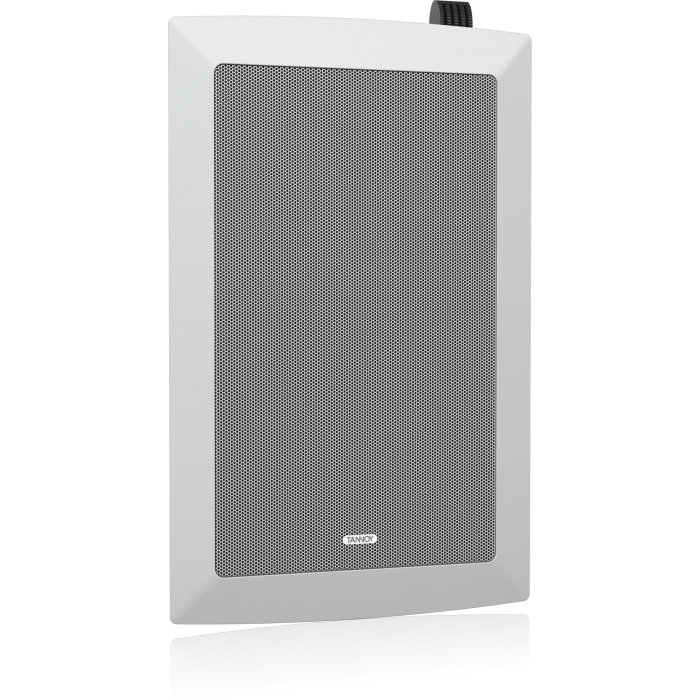

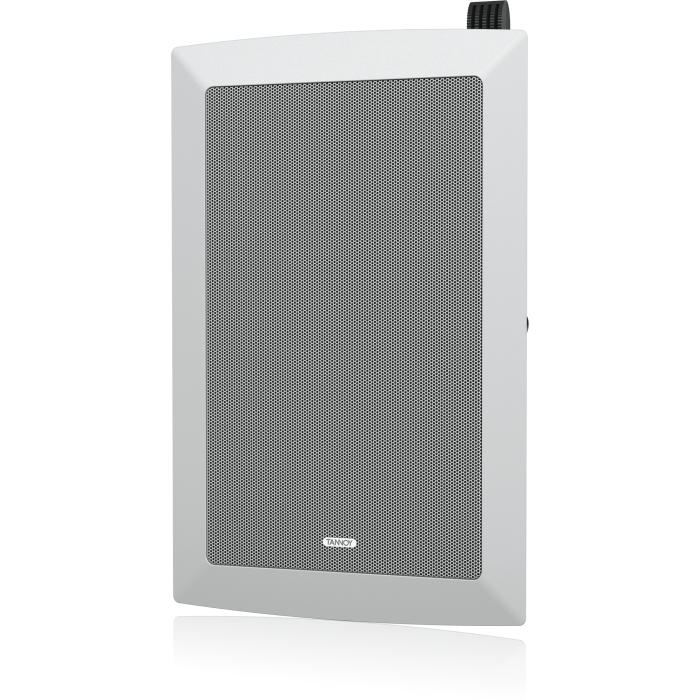

  • Weather resistant steel mesh grille to protect driver
  • Semi matt white finish fits unobtrusively in any environment
  • Both baffle and grille may be painted to match décor
  • Innovative self-aligning clamping system for easy installation into standard stud partition wall
  • Dynamic high frequency protection
  • Tannoy – Over 90 years of British sound heritage and innovation



Specifications

Performance
System Type

In-wall loudspeaker

Frequency Response (1)

75Hz – 51kHz ( /-3dB)

Low Frequency Alignment (2)

36Hz (-6dB)

Recommended Amplifier Power

20 – 180W @ 8 Ohms

Power Handling (3)

Average: 90W
Programme: 180W
Peak: 360W

Sensitivity 2.38 Volts @ 1 metre (1)

Anechoic: 91dB
Half space: 94dB

Maximum SPL @ 1 metre (4)

Average: 110dB
Peak: 116dB

Impedance

8 Ohms

Drive Units
Dispersion

90 degrees

Driver Complement

Supertweeter™: 25mm (1.00”) titanium dome
Dual Concentric™: 25mm (1.00”) titanium dome Bass driver: 165mm (6.50”)

Crossover
Frequency

1.8kHz, 16kHz

Type

Passive

Optional THP 60 Transformer
Maximum SPL (4)

107dB

Wattage Tap Selections

60, 30, 15, 7.5 Watts

Construction
Finish

White – paintable

Connectors

Gold plated spring terminals

Dimensions (H x W)

Front baffle: 320 x 209mm (12.60 x 8.23”)
Maximum wall thickness: 25mm (1.00”)

Cut-out Dimensions (H x W)

271.50 x 168.50
(10.68 x 6.63″)

Rec. in-wall Mounting Volume

20 litres
(0.7 cu.ft.)

Mounting Depth

98.9mm
(3.89”)

Weight (each)

3kg
(6lbs 6oz)

Accessories

Pre-installation ring
Back can
Back can with 60W transformer
