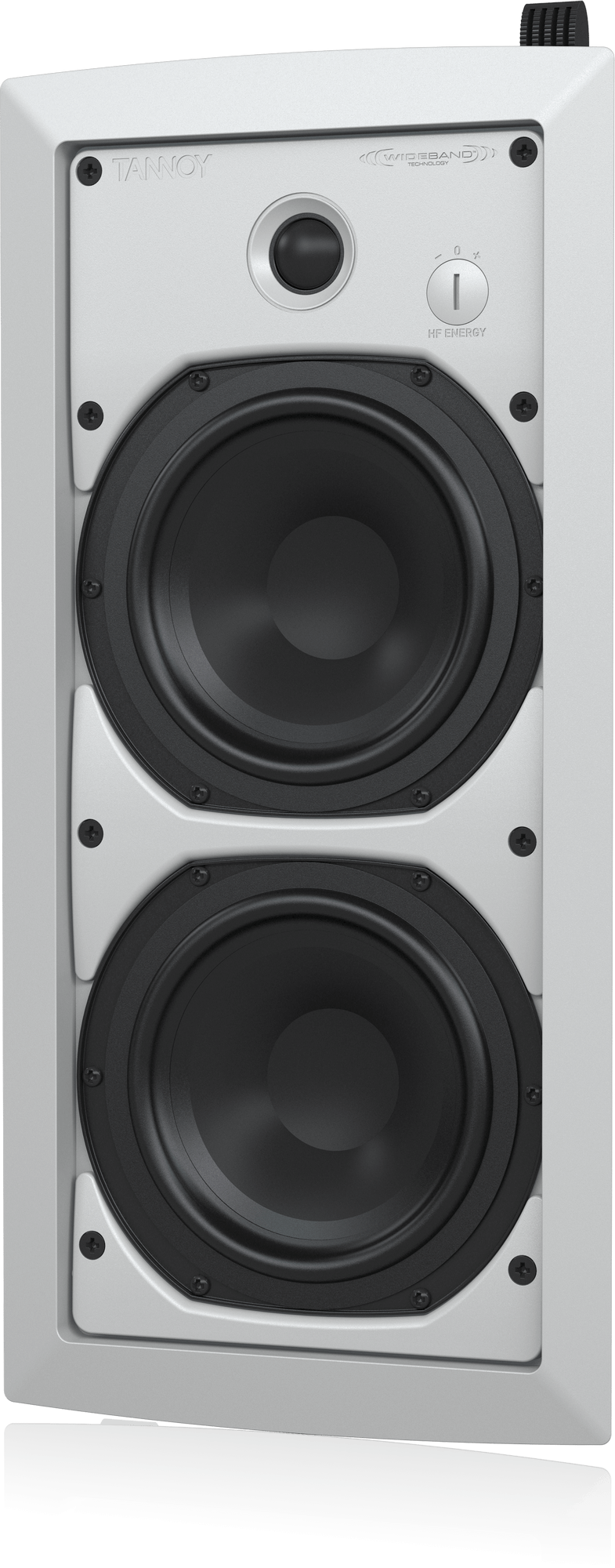

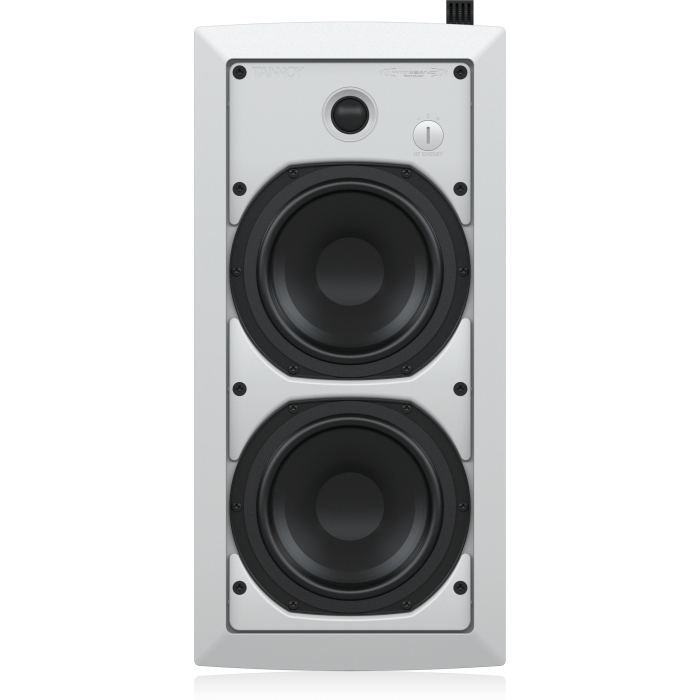

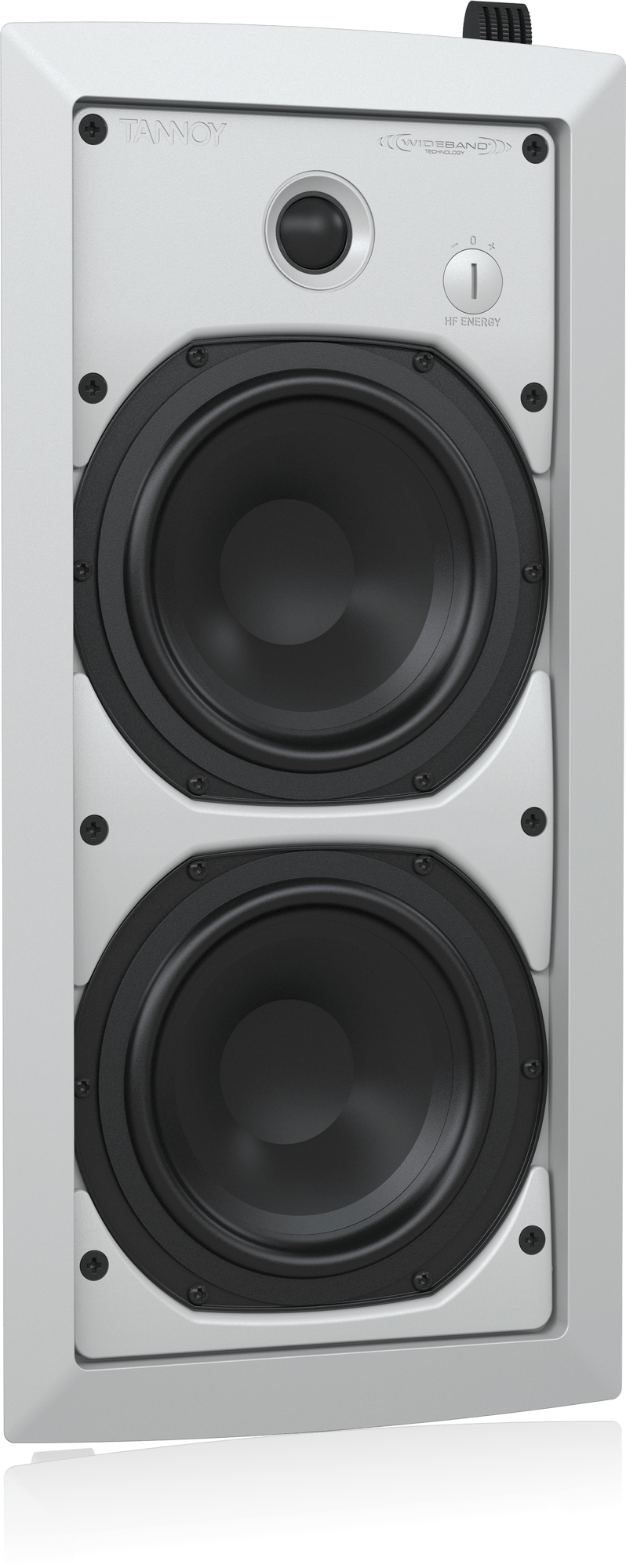

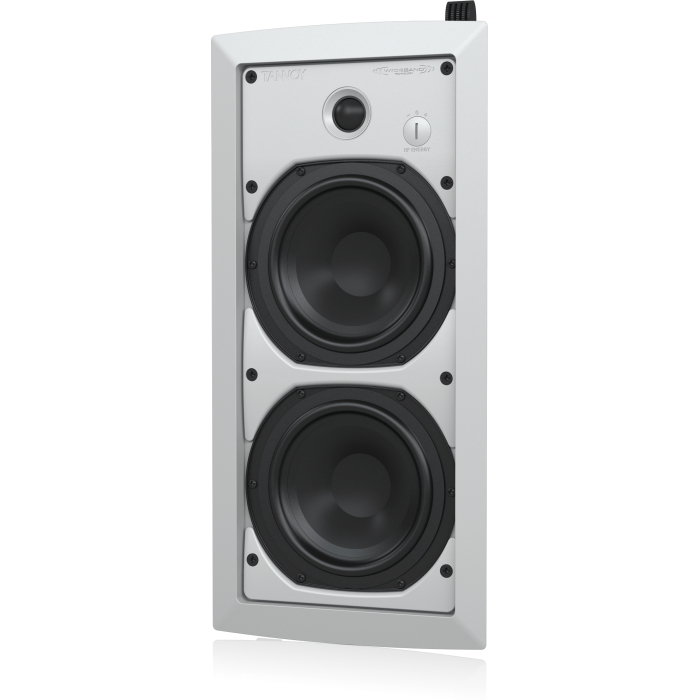

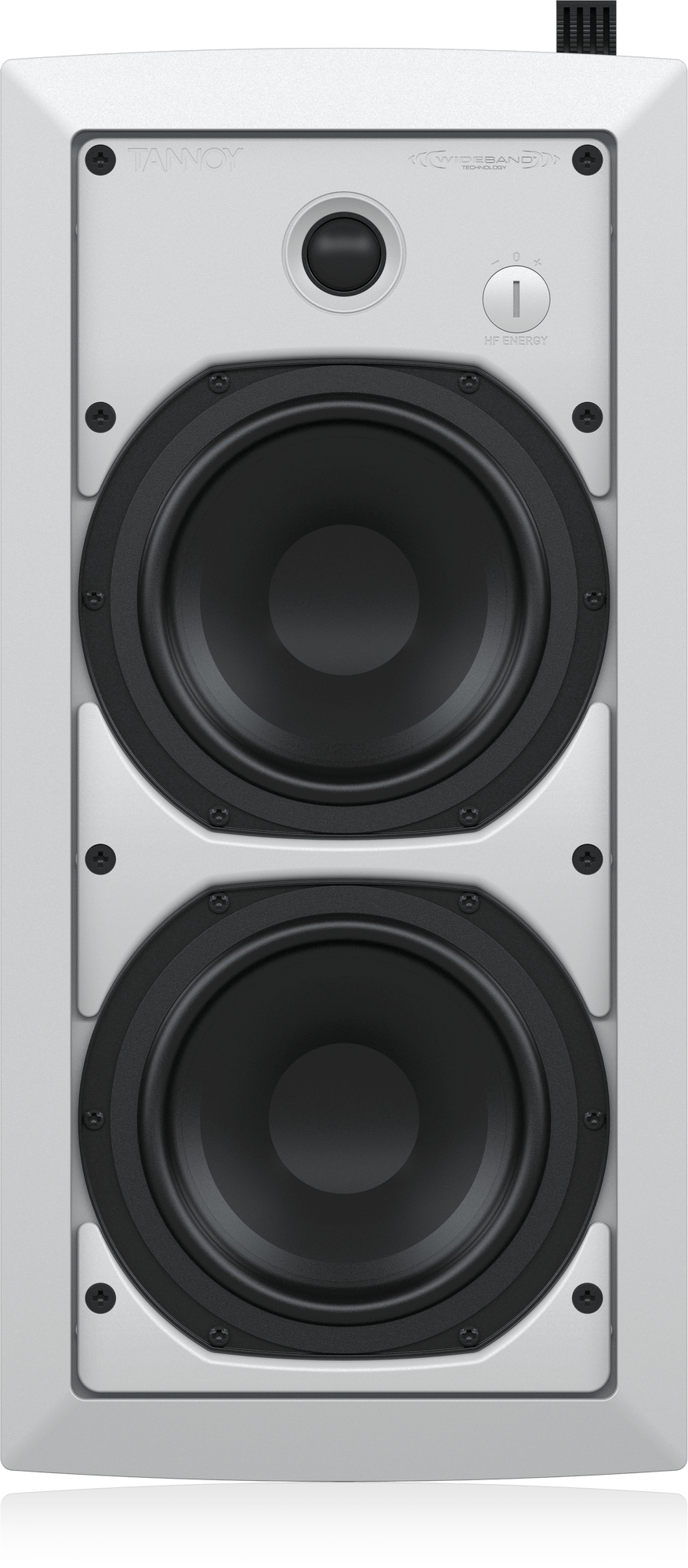

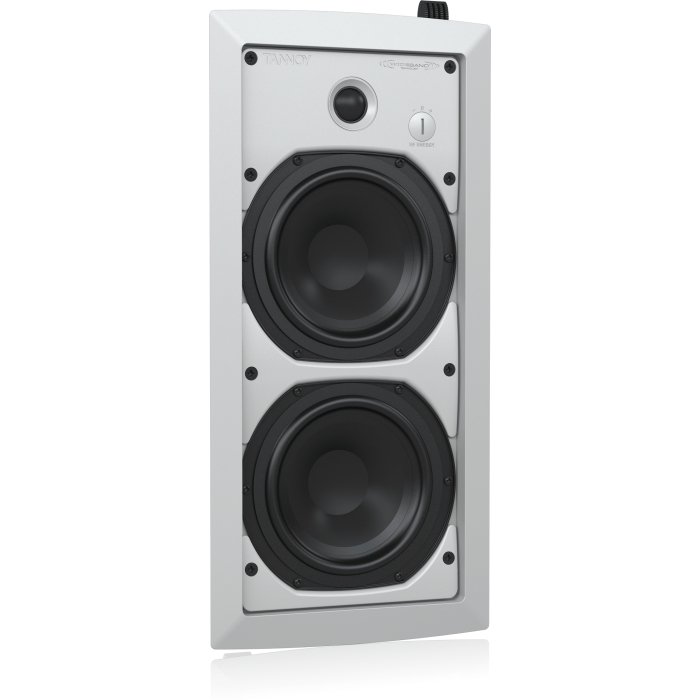

iW 62DS-WH Wall Mount Loudspeaker

Designed to excel in a wide variety of sound reinforcement applications, the full range iW 62DS-WH is a compact 320-Watt wall mount loudspeaker that provides inspiring acoustic performance with exceptional clarity and articulation. The iW 62DS-WH is ideally suited for paging systems, boardrooms, offices, business music systems, reception rooms, houses of worship, retail outlets, shopping malls, and bars.

Features

• 3 way compact wall mount loudspeaker for multi-zone music and AV systems
• 25 mm titanium diaphragm high frequency unit delivers exceptional clarity and articulation throughout the high frequency range
• 2 x 6″ bass drivers provide exceptional low frequency performance
• 80 Watts continuous, 320 Watts peak power handling delivers exceptional dynamics and realism
• Highly efficient 92 dB/Watt sensitivity
• WideBand* tweeter technology to enhance reproduction of wide band digital audio formats
• Robust construction and performance allows use within commercial environments
• Ideal for paging systems, boardrooms, offices, business music systems, reception rooms, houses of worship, retail outlets, shopping malls, and bars

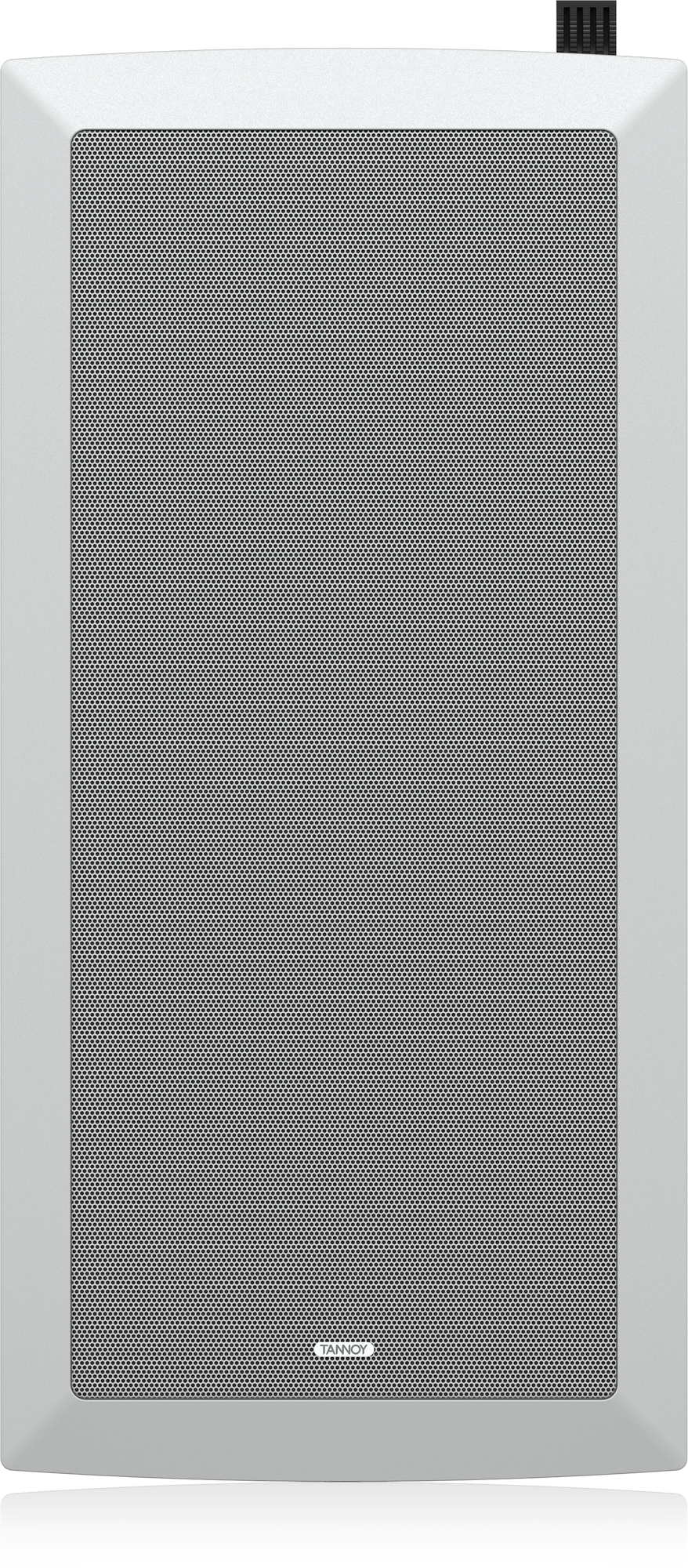

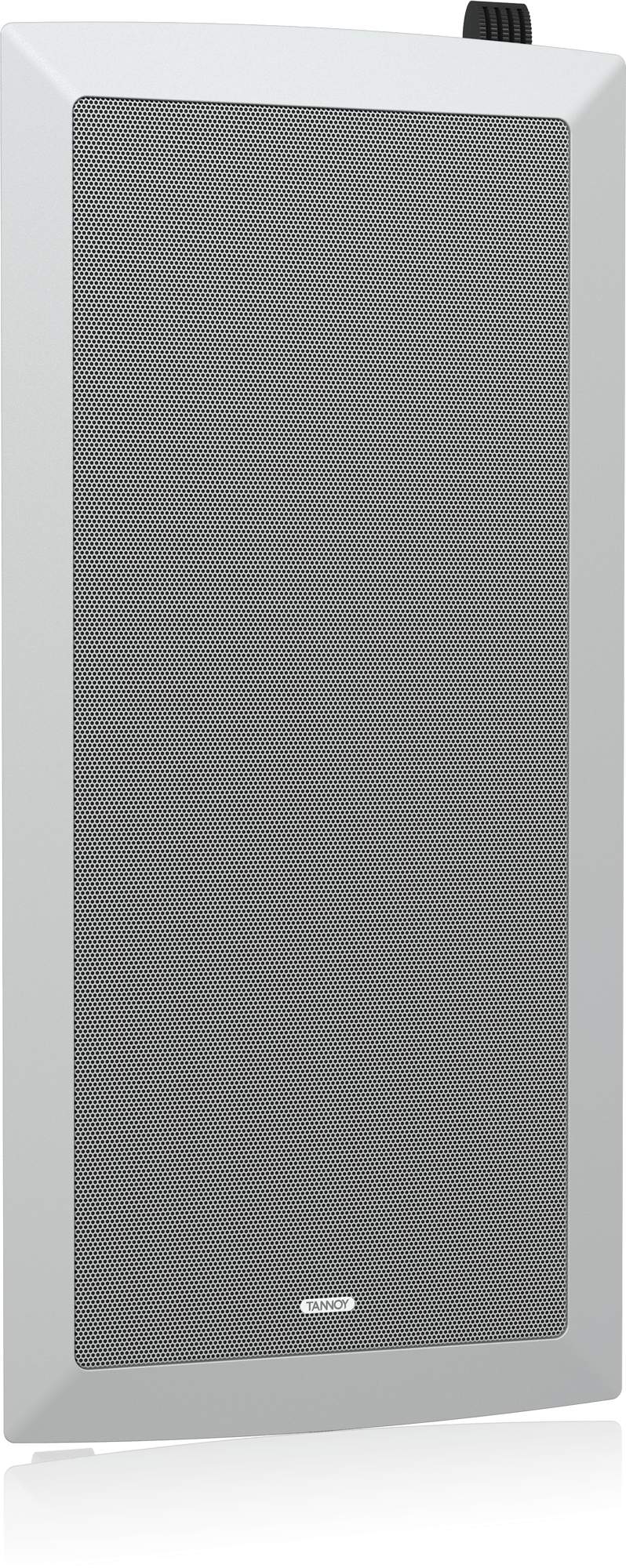

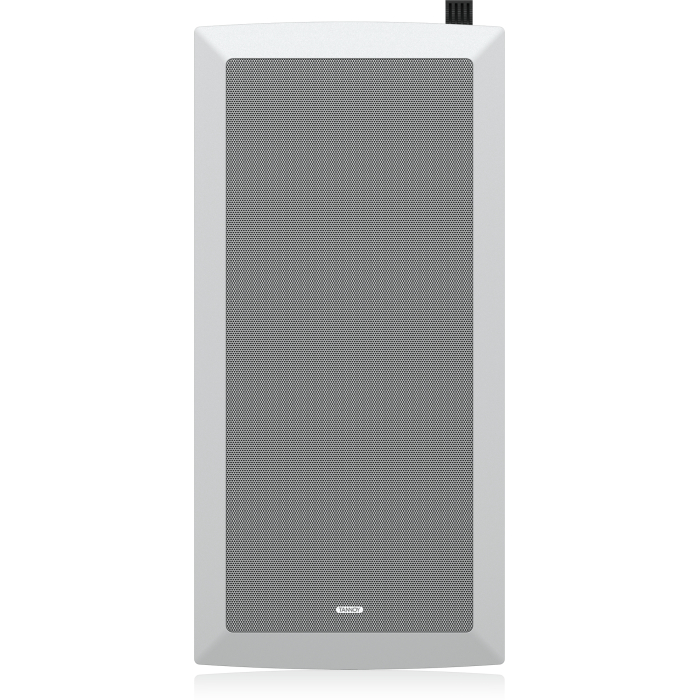

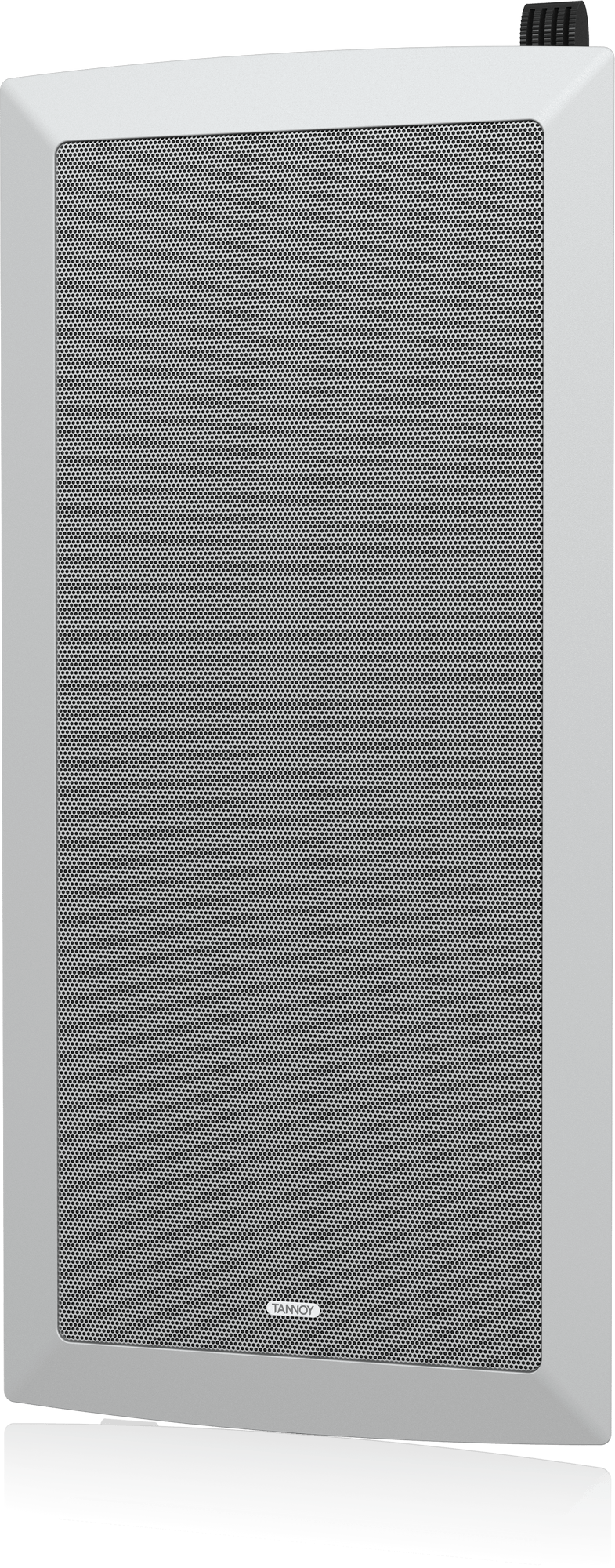

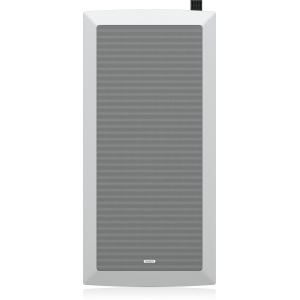

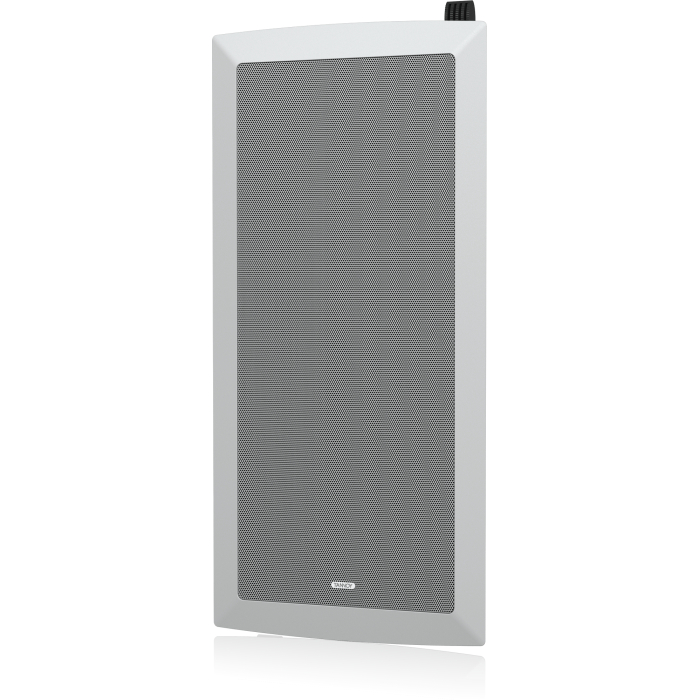

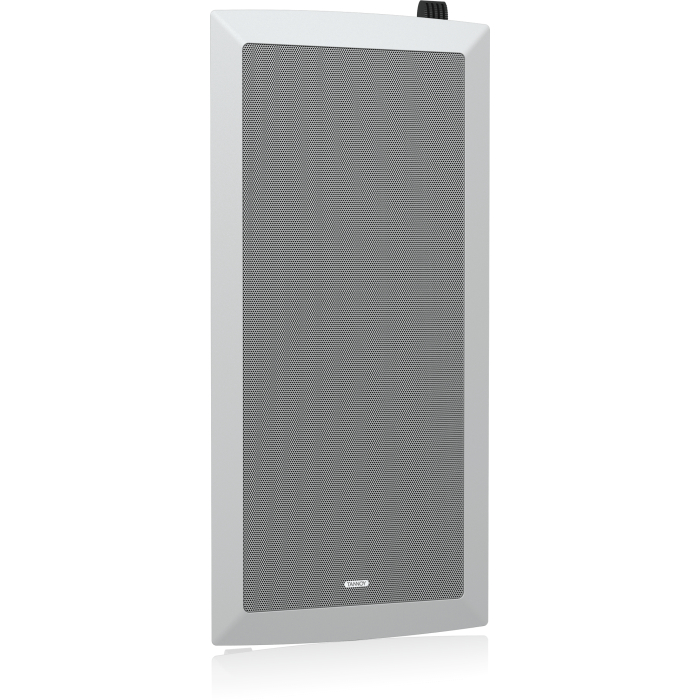

• Weather resistant steel mesh grille to protect driver
• Semi matt white finish fits unobtrusively in any environment
• Both baffle and grille may be painted to match décor
• Innovative self-aligning clamping system for easy installation into standard stud partition wall

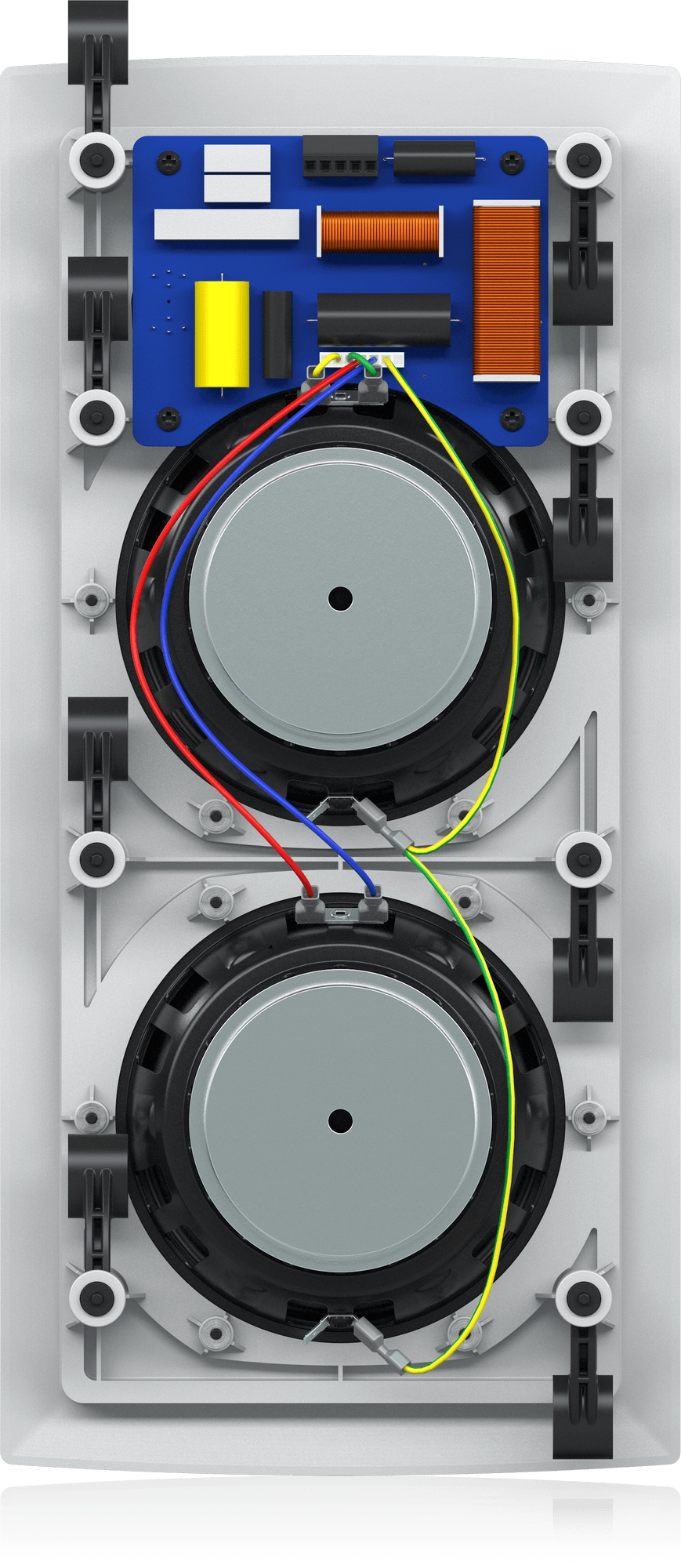

• Bi-wireable to improve signal transmission and integrity
• Dynamic high frequency protection
• Tannoy – Over 90 years of British sound heritage and innovation

Specifications

Performance	Details
System Type	In-wall loudspeaker
Frequency Response	70Hz – 51kHz (+/-3dB)
Low Frequency Alignment	34Hz (-6dB)
Recommended Amplifier Power	20 – 210W @ 8 Ohms
Power Handling	Average: 105W, Programme: 210W, Peak: 420W
Sensitivity	Anechoic: 92dB, Half space: 95dB
Maximum SPL	Average: 112dB, Peak: 118dB
Impedance	8 Ohms

Drive Units	Details
Dispersion	90 degrees
Driver Complement	SuperTweeter™: 25mm (1.00”) titanium dome, Dual Concentric™: 165mm (6.50”), Bass driver: 165mm (6.50”)

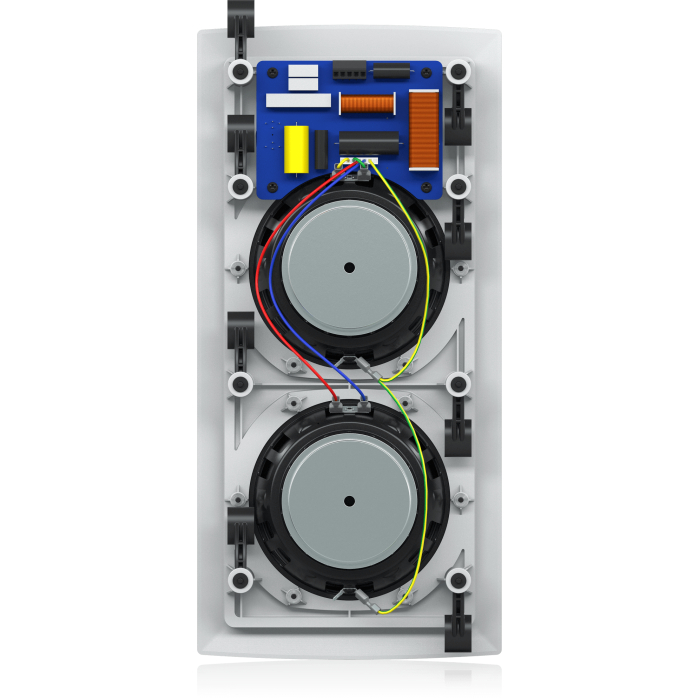

Crossover	Details
Frequency	750Hz, 1.8kHz, 16kHz
Type	Passive

Optional THP 60 Transformer	Details
Maximum SPL	107dB
Wattage Tap Selections	60, 30, 15, 7.5 Watts

Construction	Details
Finish	White – paintable
Connectors	Gold plated spring terminals
Dimensions (H x W)	Front Baffle: 473.5 x 227mm (18.64 x 8.94”), Maximum wall thickness: 25mm (1.00”)
Cut-out Dimensions (H x W)	426.10 x 187.60mm (16.76 x 7.39″)
Rec. in-wall Mounting Volume	30 litres (1.1 cu.ft.)
Mounting Depth	99mm (3.89”)
Weight (each)	5kg (11lbs)
Accessories	Pre-installation ring, Back can, Back can with 60 Watt transformer
