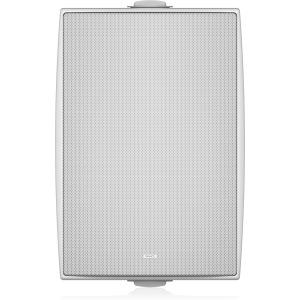

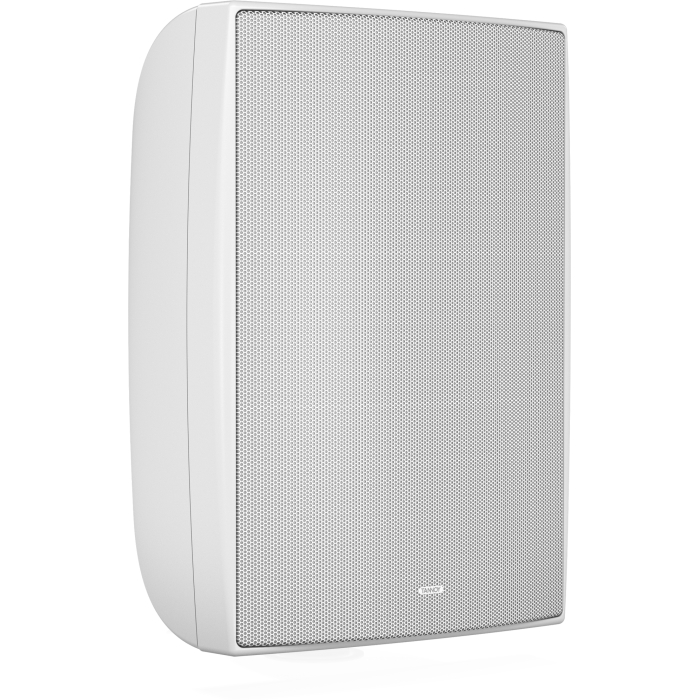

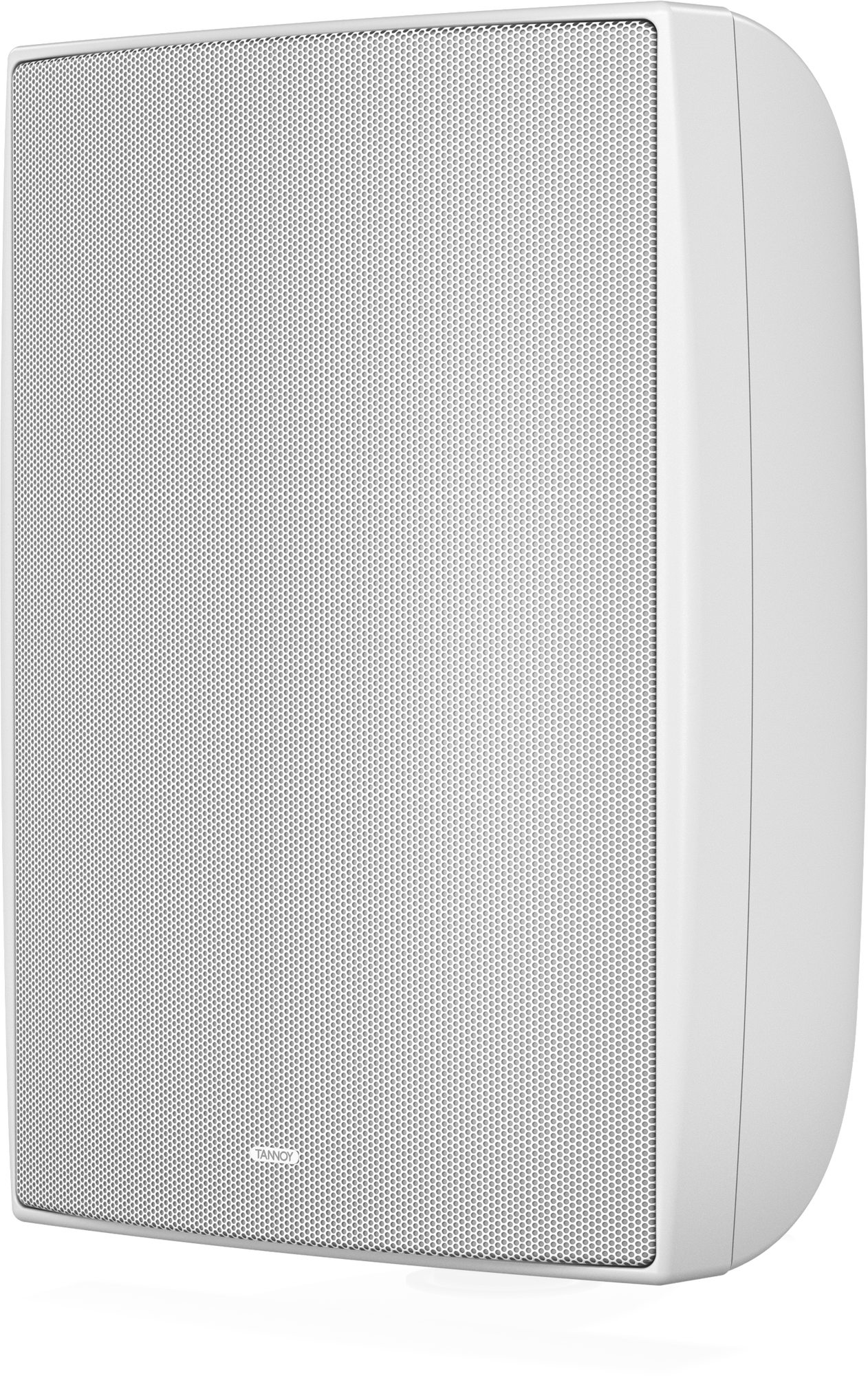

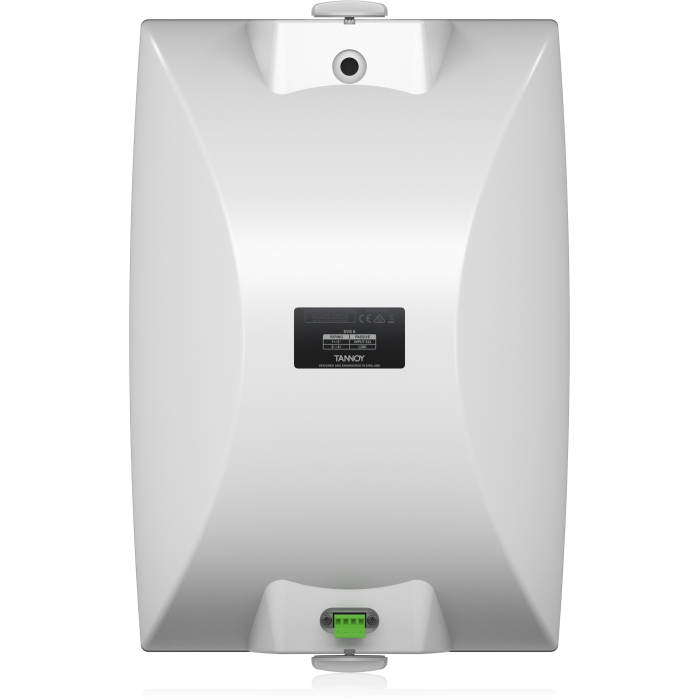

Tannoy DVS 8-WH 8″ Coaxial Surface-Mount Loudspeaker 280W – White

Tannoy

AED 1034.25 inc VAT.

In stock
Enquiry On Whatsapp
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: DVS 8-WH Categories: , Brand:

The DVS 8-WH is an ultra-compact 280-Watt surface mount loudspeaker designed for diverse sound reinforcement needs, delivering high acoustic performance and value. Ideal for background and foreground music in venues such as theme parks, hotels, restaurants, bars, retail stores, corporate AV setups, residential areas, and houses of worship.

Description

Designed to excel in a wide variety of sound reinforcement applications, the full range DVS 8-WH is an ultra-compact 280-Watt surface mount loudspeaker that provides both exceptional value and inspiring acoustic performance. The DVS 8-WH is ideally suited for stereo or mono background/foreground music applications in theme parks, hotels, restaurants and bars, retail stores, as well as corporate AV, residential developments, and houses of worship.

Key Features

  • Full range surface-mount loudspeaker for indoor and outdoor installation applications
  • 70 Watts continuous, 280 Watts peak power

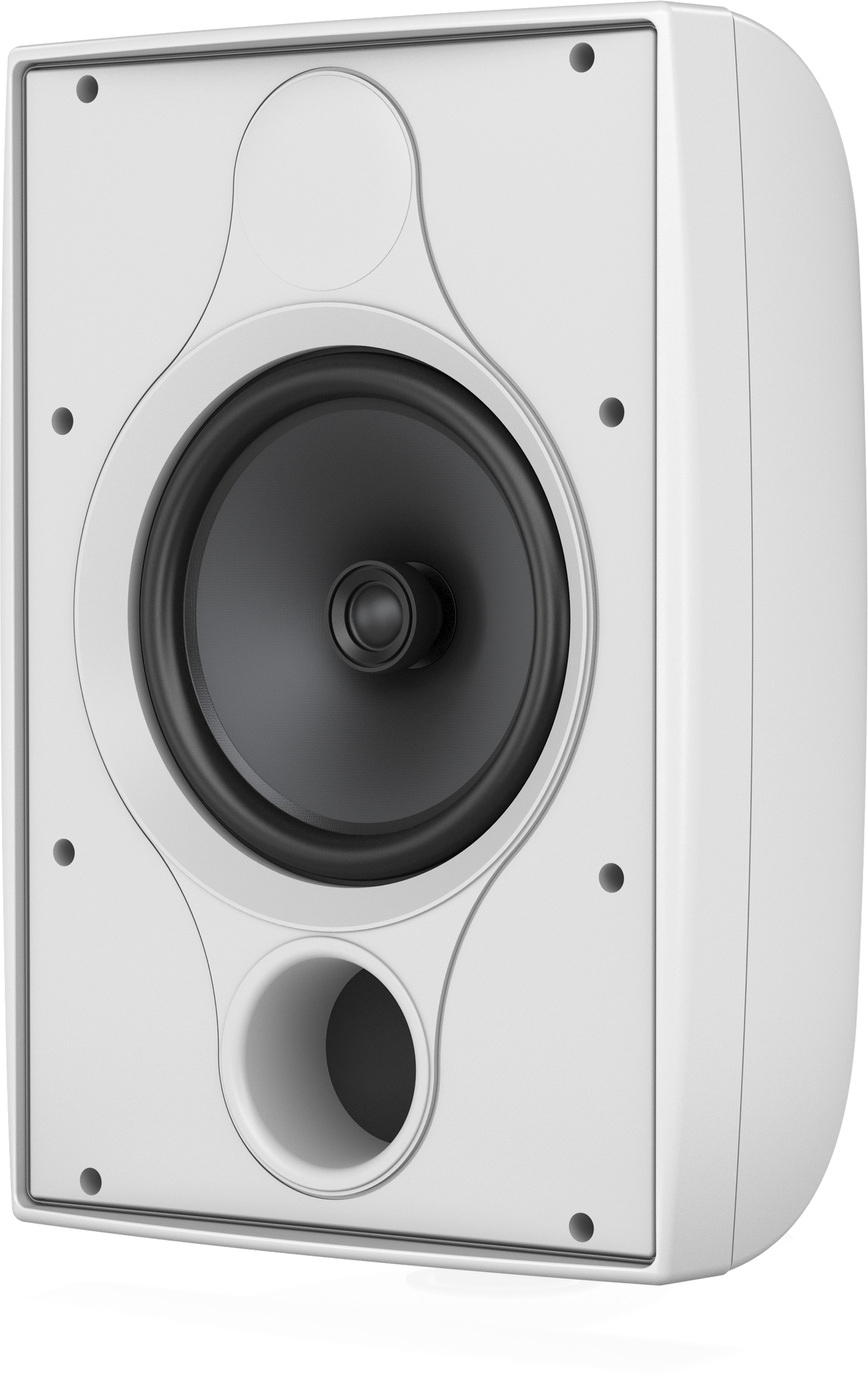

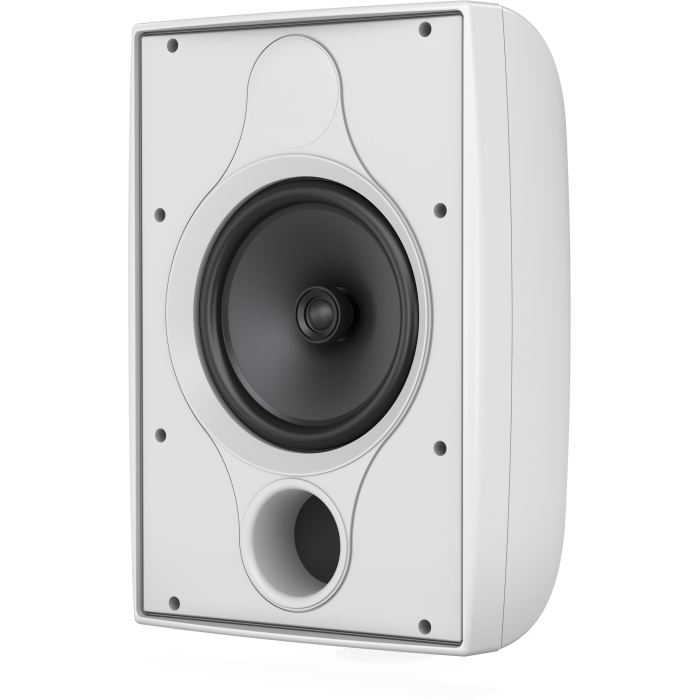

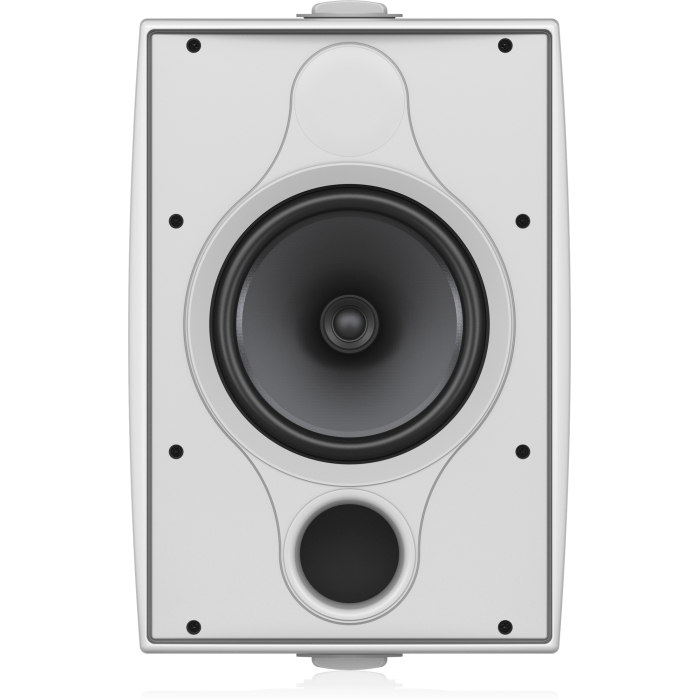

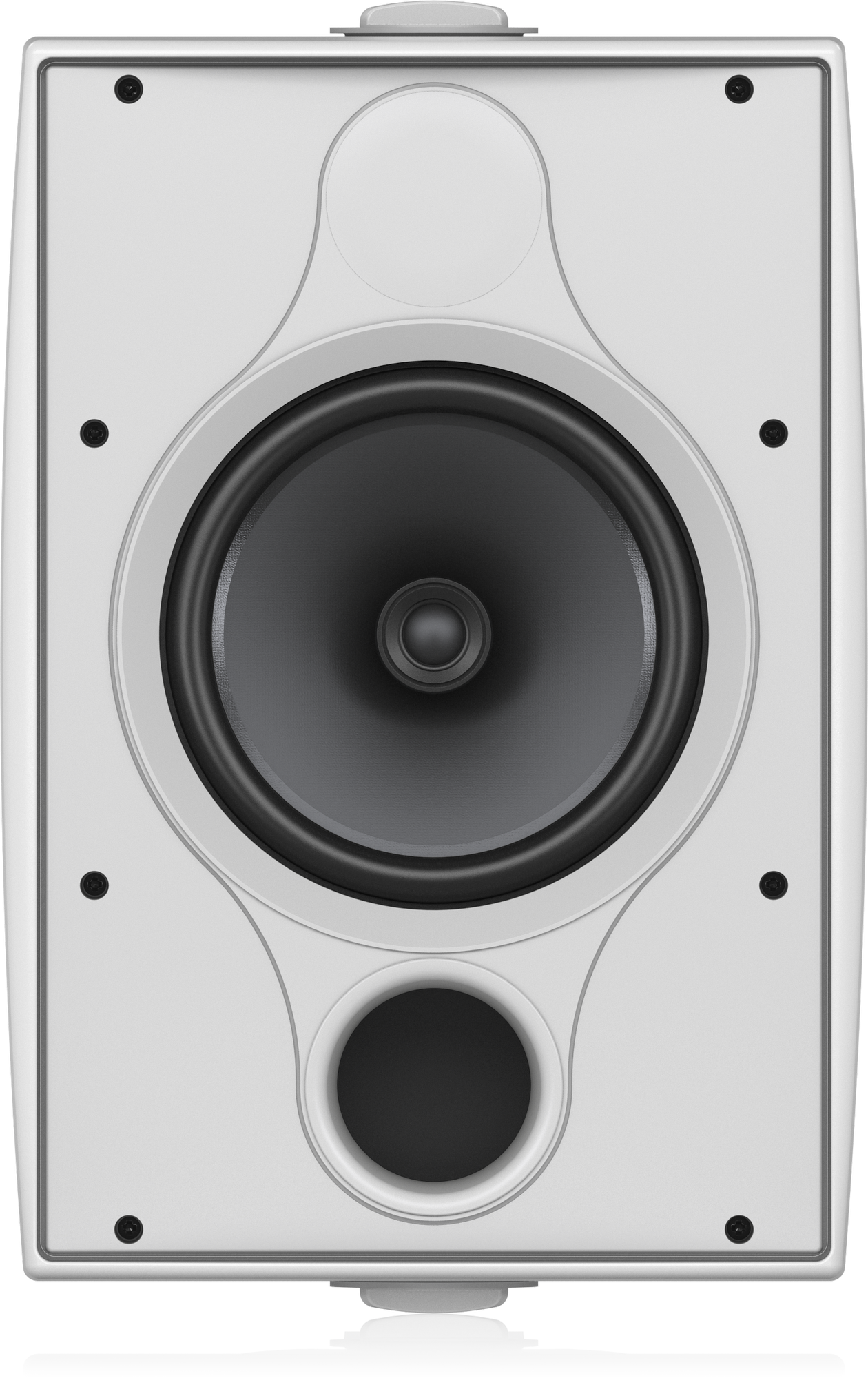

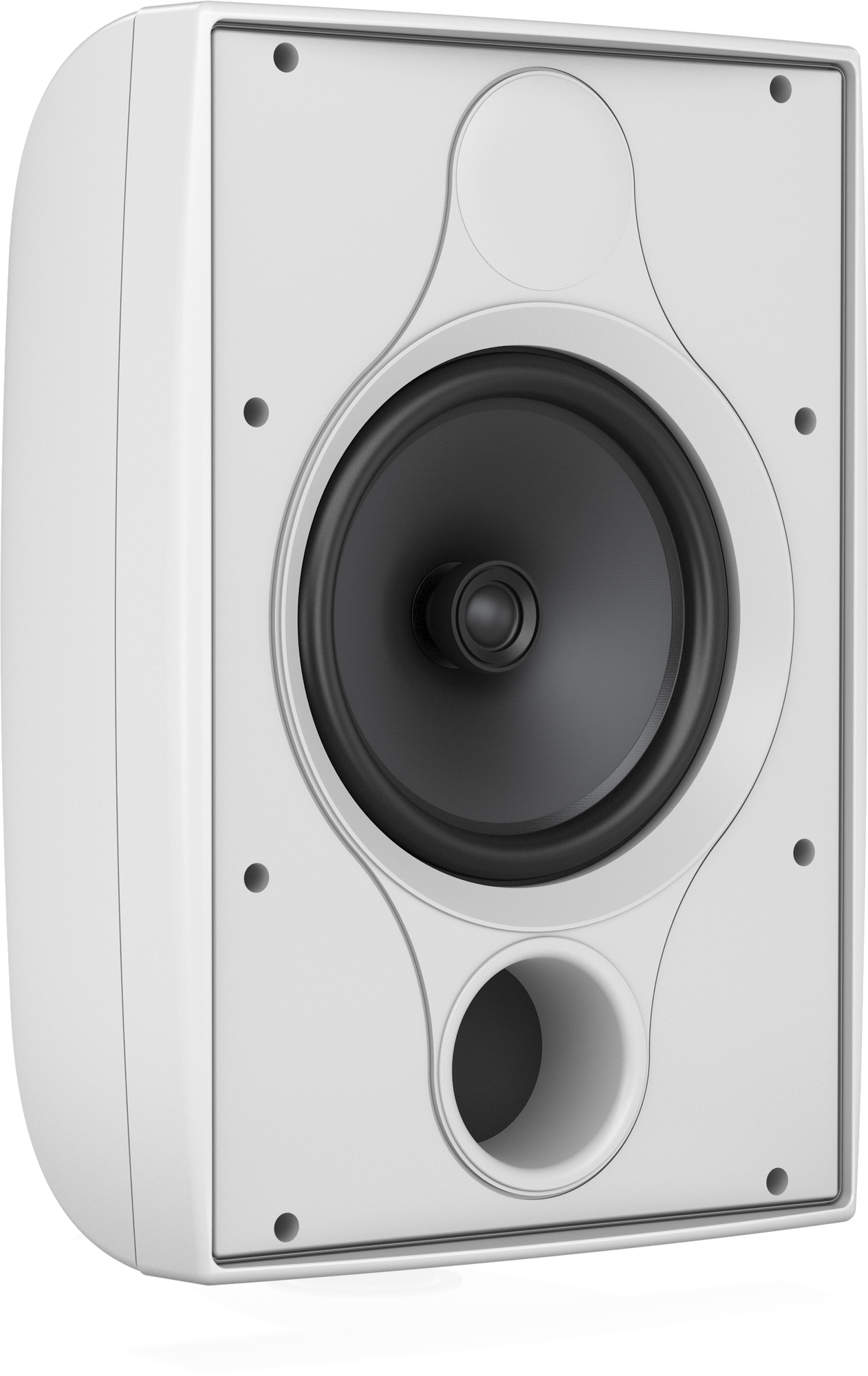

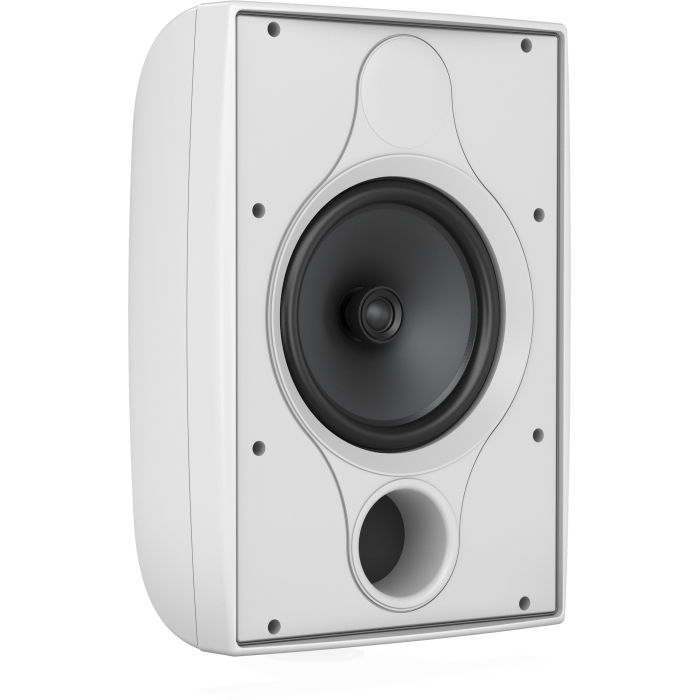

  • 8″ mineral loaded polypropylene driver with nitrile rubber surround for enhanced durability and long-term reliability
  • 0.75″ ferrofluid cooled soft dome neodymium high frequency driver
  • 80° constant directivity dispersion for optimum coverage
  • UL 1480 certified for general signalling systems
  • UV and weather resistant UL 94 V-0 ABS enclosure
  • 6 Ohm direct input for low impedance applications
  • All components weather resistant to IP64 for outdoor use

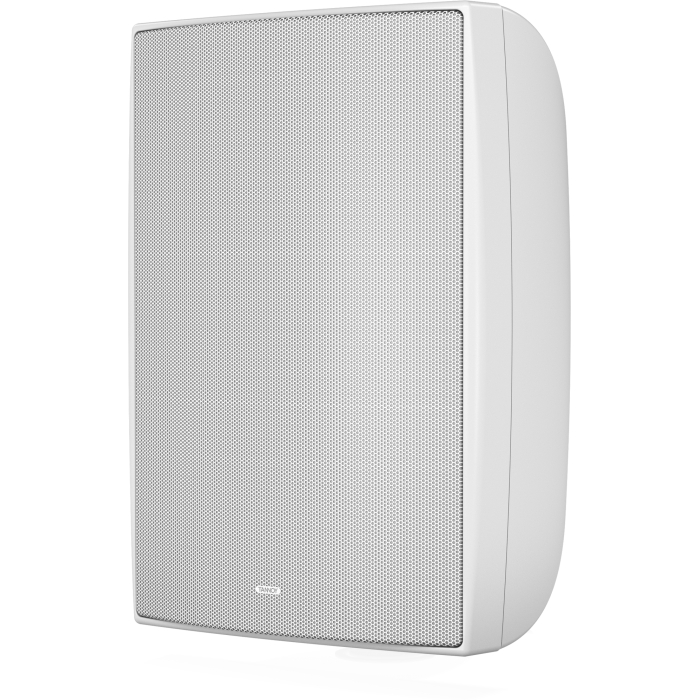

  • Stylish durable enclosure in a semi matt white paint finish fits unobtrusively in any environment

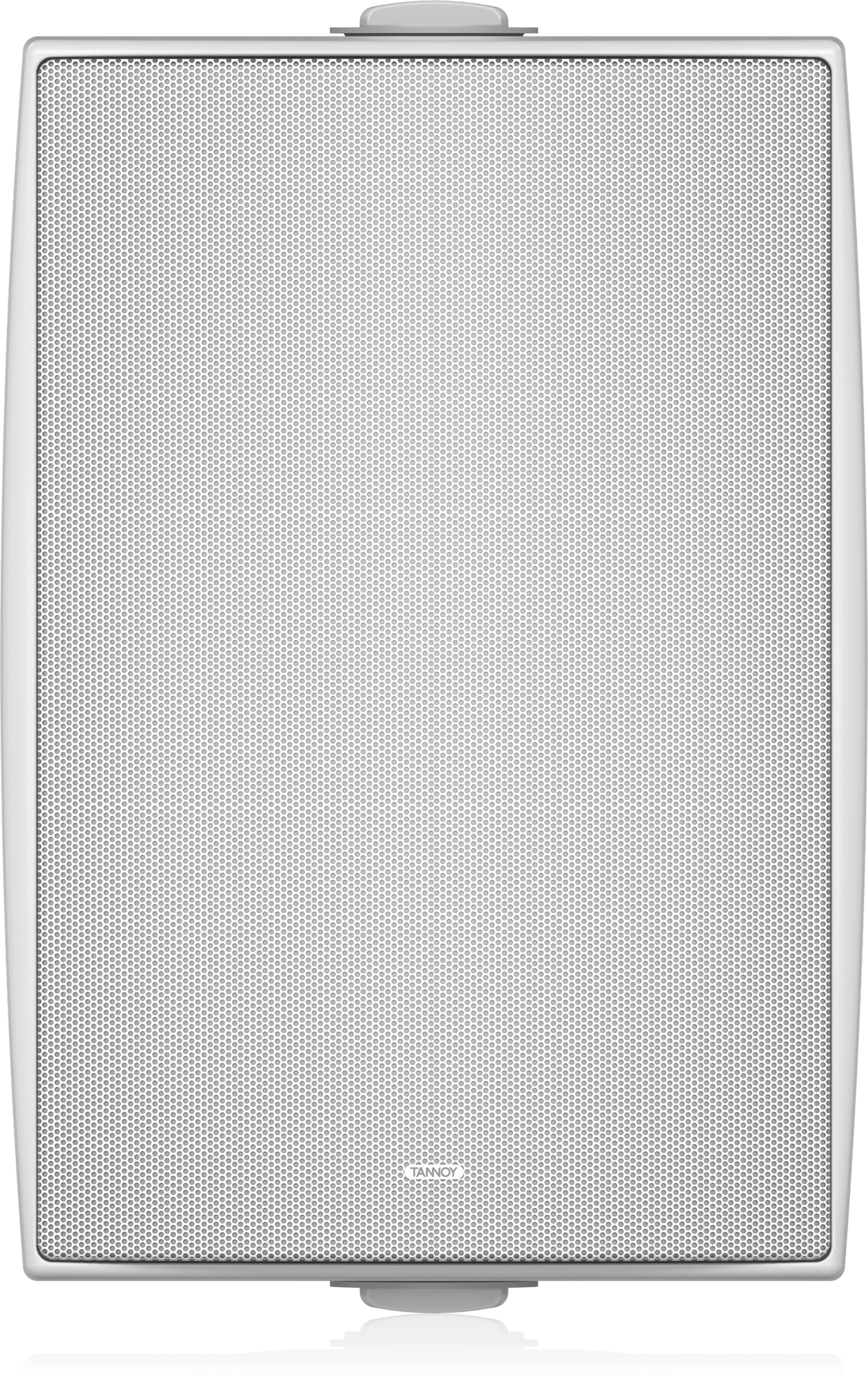

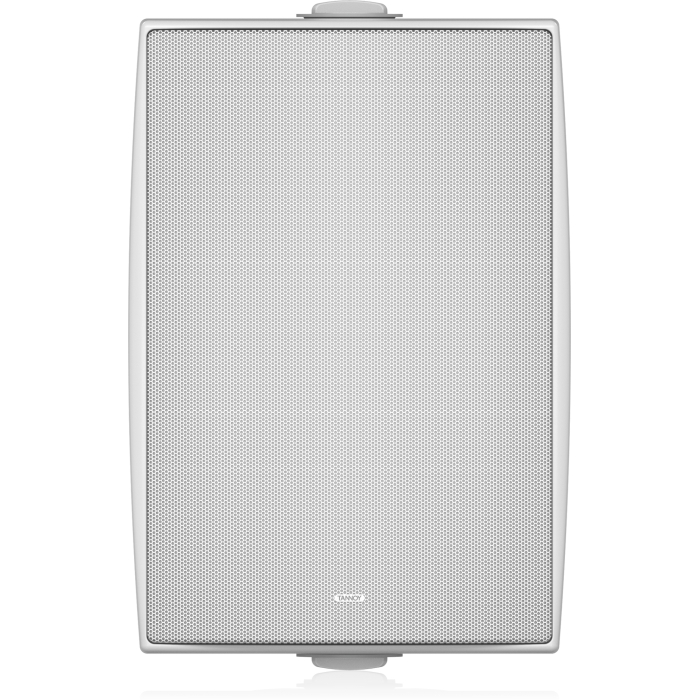

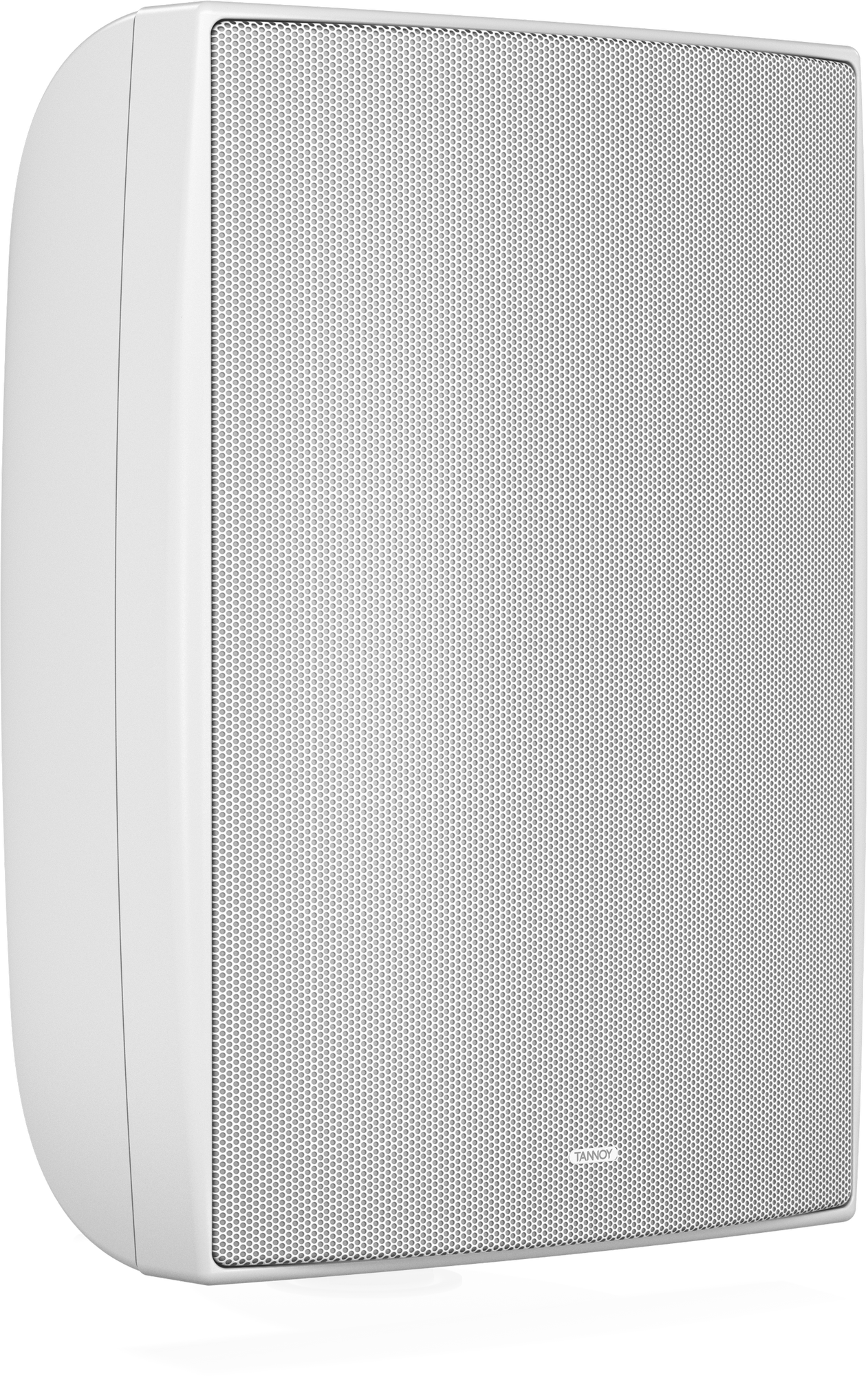

  • Painted perforated aluminium mesh grille with dust protection

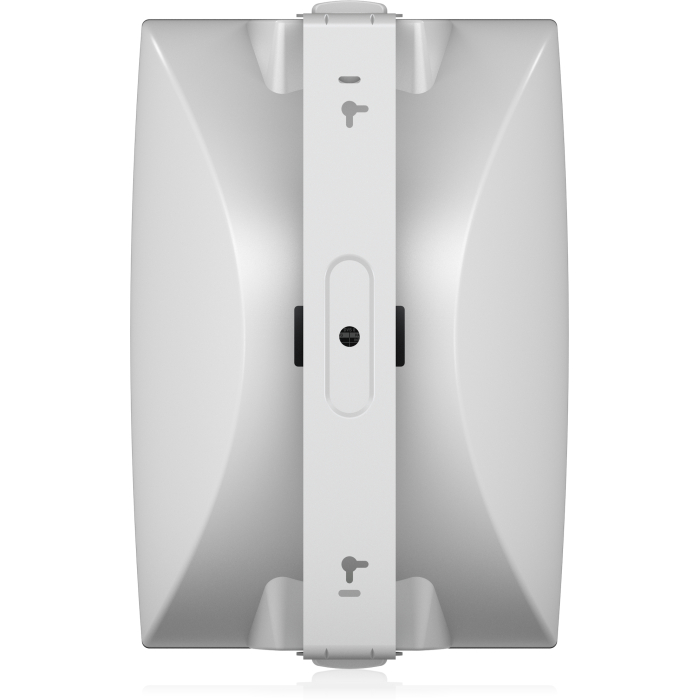

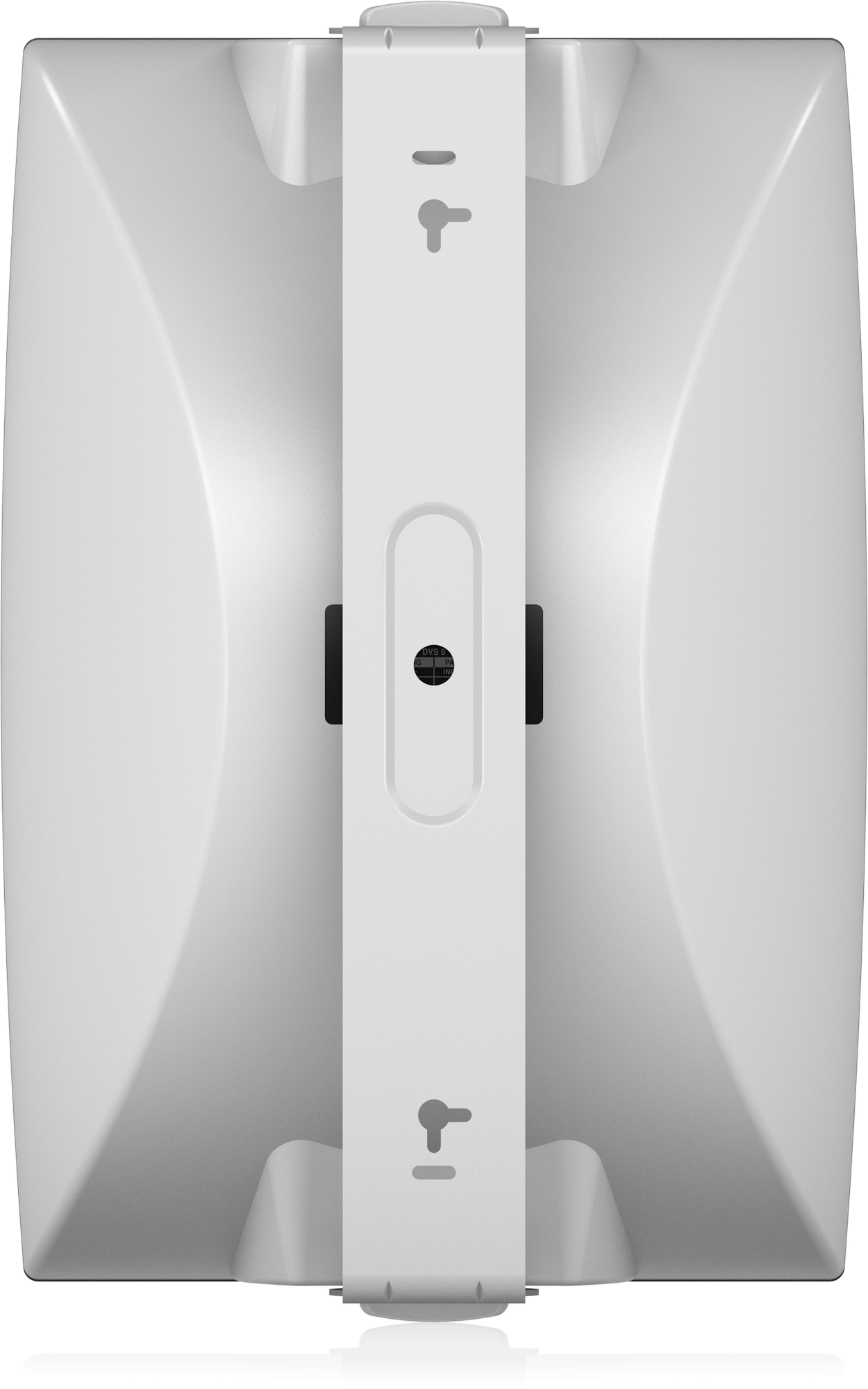

  • Yoke bracket included for ease of installation

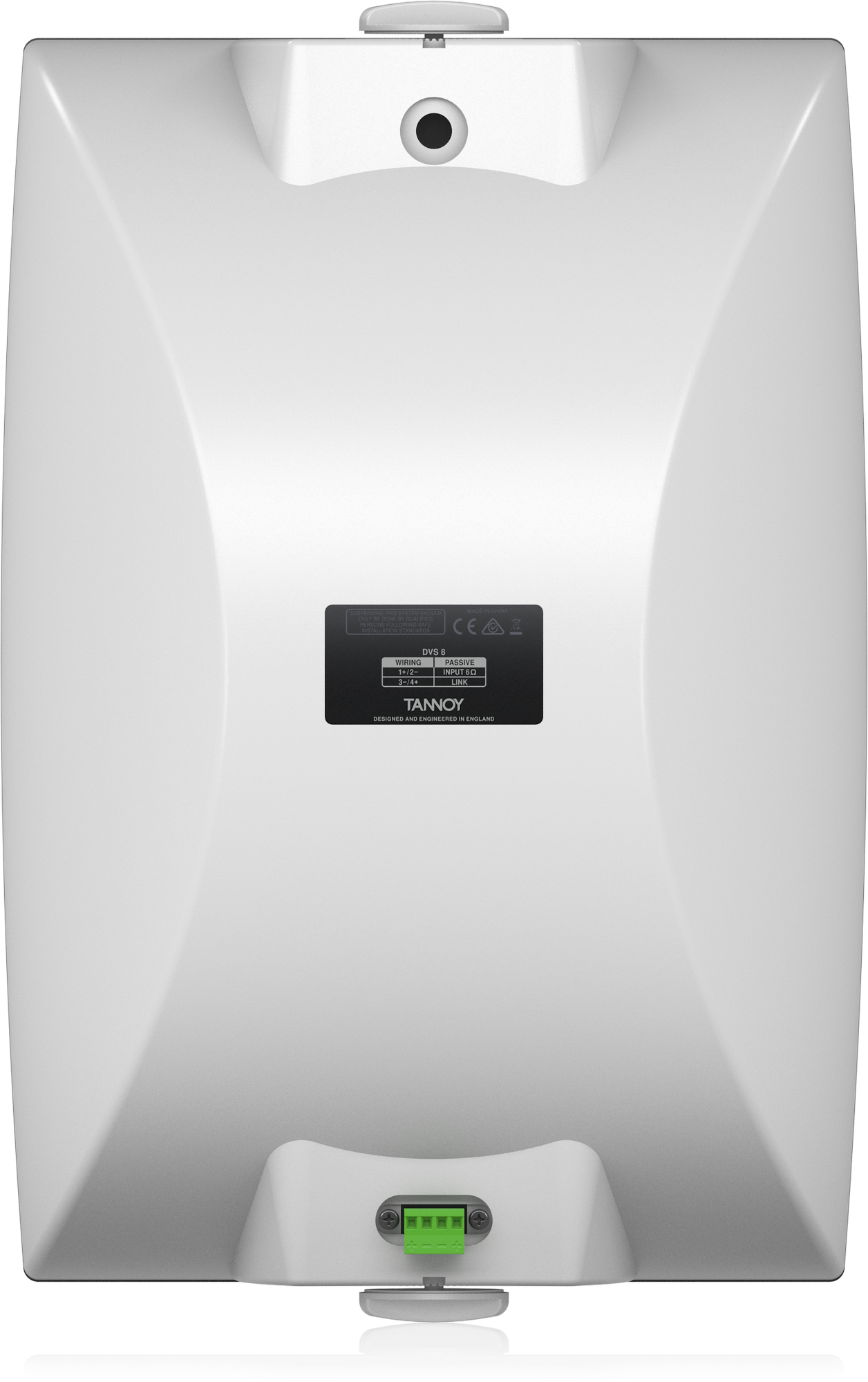

  • Phoenix connectors input and link output

Specifications

Specification Details
Frequency response (-3 dB) 75 Hz – 20 kHz
Frequency response (-10 dB) 60 Hz – 30 kHz
System sensitivity (1 W @ 1 m) 90 dB
Dispersion (-6 dB) 80 degrees conical
Transducers Coaxial
Low frequency 200 mm (8.00″) mineral loaded cone material
High frequency 20 mm (0.79″)
Crossover 3.4 kHz – 2nd order LF, 2nd order HF
Directivity (Q) 12.3 averaged 1 kHz to 10 kHz
Directivity (DI) 10.0 averaged 1 kHz to 10 kHz
Rated maximum SPL 108 dB (average) / 114 dB (peak)
Non Transformer Version
Specification Details
Maximum wire gauge for connector 2.5 mm CSA (AWG12)
Safety Agency Ratings UL-1480, CE
Power Handling
Specification Details
Average 70 W
Programme 140 W
Peak 280 W
Recommended amplifier power 140 W @ 6 Ohms
Nominal impedance 6 Ohms
Construction
Specification Details
Enclosure ABS
Grille Aluminium, painted
Connectors Euroblock type removable locking connector with screw terminals with “loop through” facility
Supplied accessories Yoke bracket
Packed quantity 2
Dimensions (H x W x D) 451.8 x 290.0 x 296.0 mm (17.79 x 11.42 x 11.65″)
