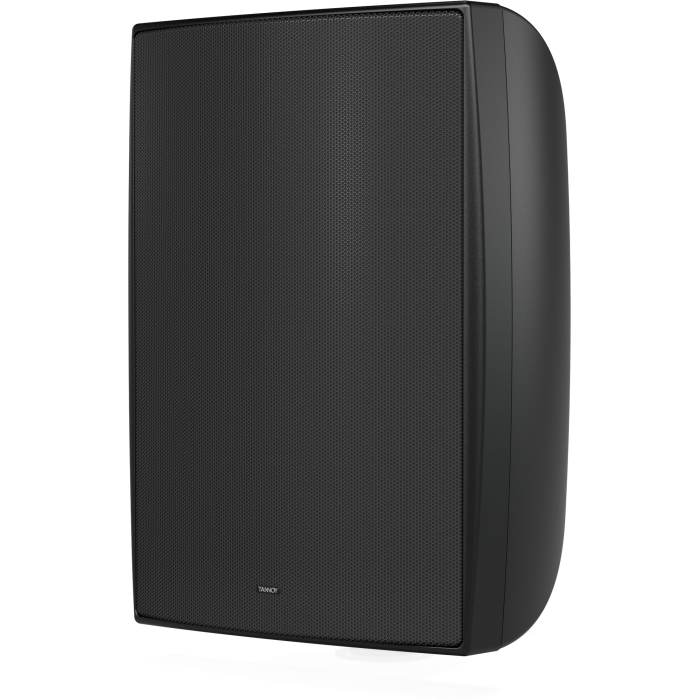

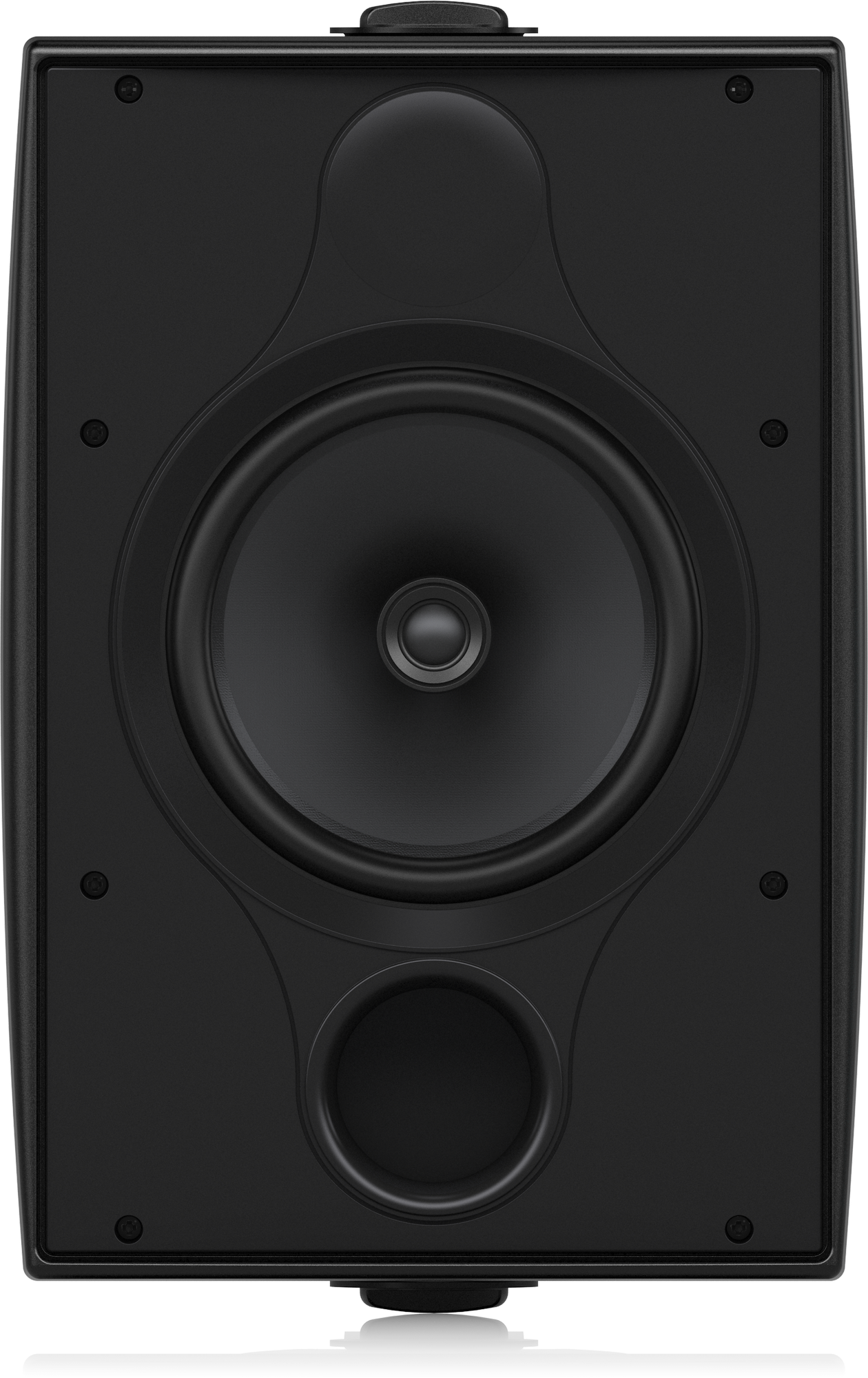

Tannoy DVS 8 Coaxial Surface-Mount Loudspeaker 8in 280W for Indoor Outdoor Use

Full Range DVS 8 Surface Mount Loudspeaker

Designed to excel in a wide variety of sound reinforcement applications, the full-range DVS 8 is an ultra-compact 280-Watt surface mount loudspeaker that provides both exceptional value and inspiring acoustic performance. The DVS 8 is ideally suited for stereo or mono background/foreground music applications in theme parks, hotels, restaurants and bars, retail stores, as well as corporate AV, residential developments, and houses of worship.

Key Features

• Full range surface-mount loudspeaker for indoor and outdoor installation applications
• 70 Watts continuous, 280 Watts peak power

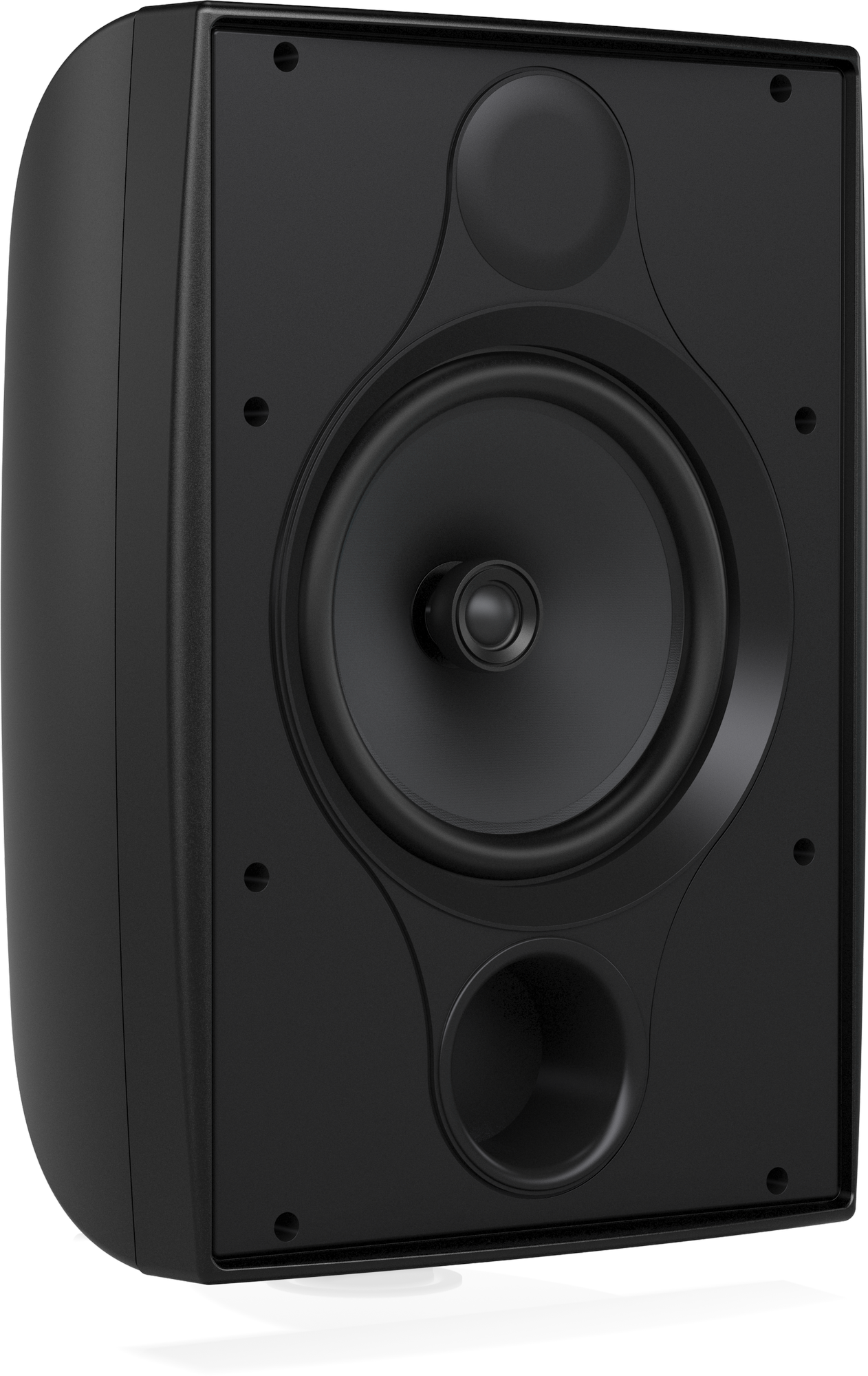

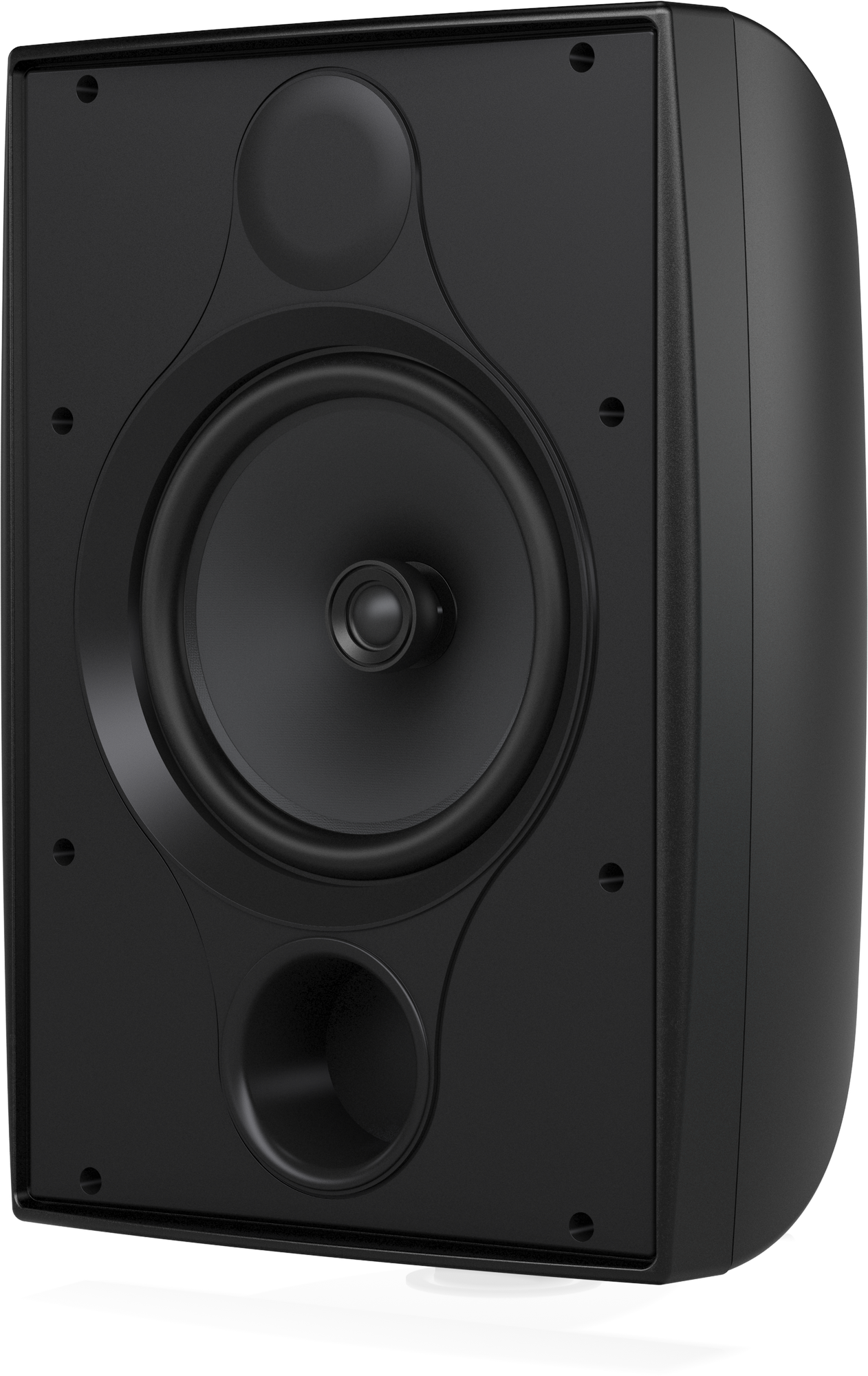

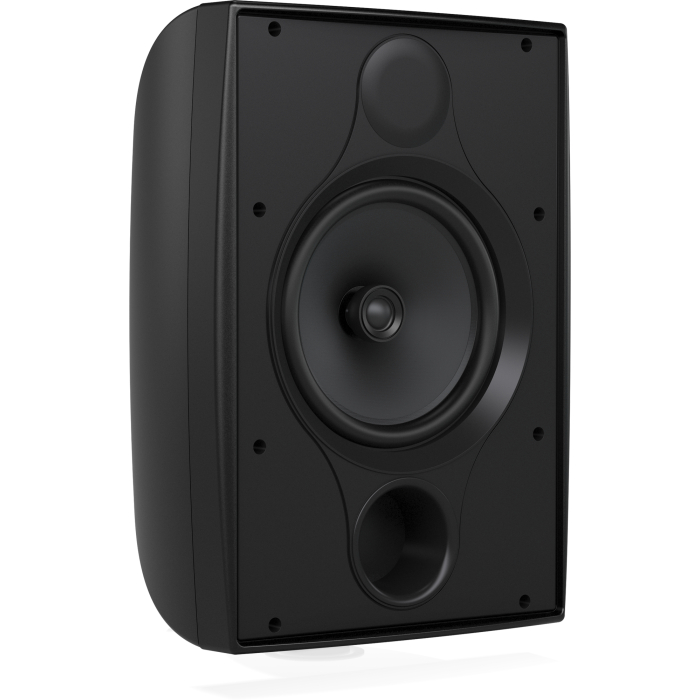

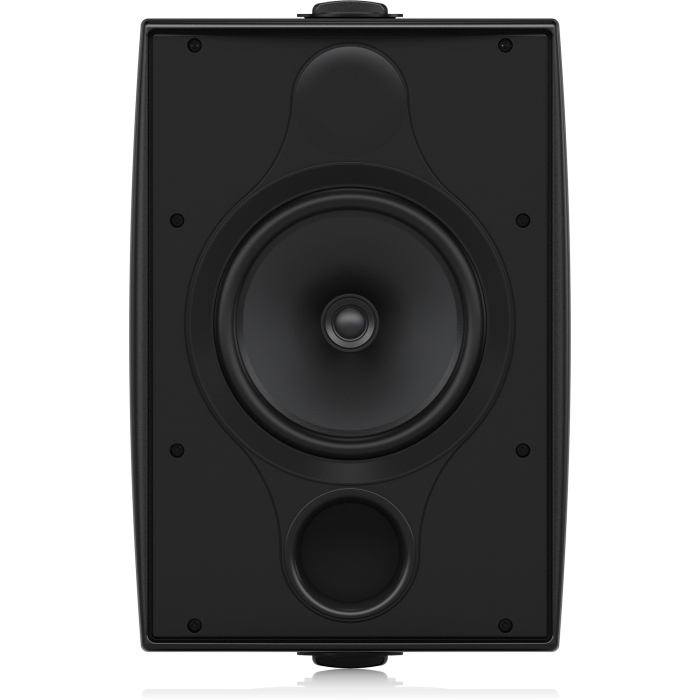

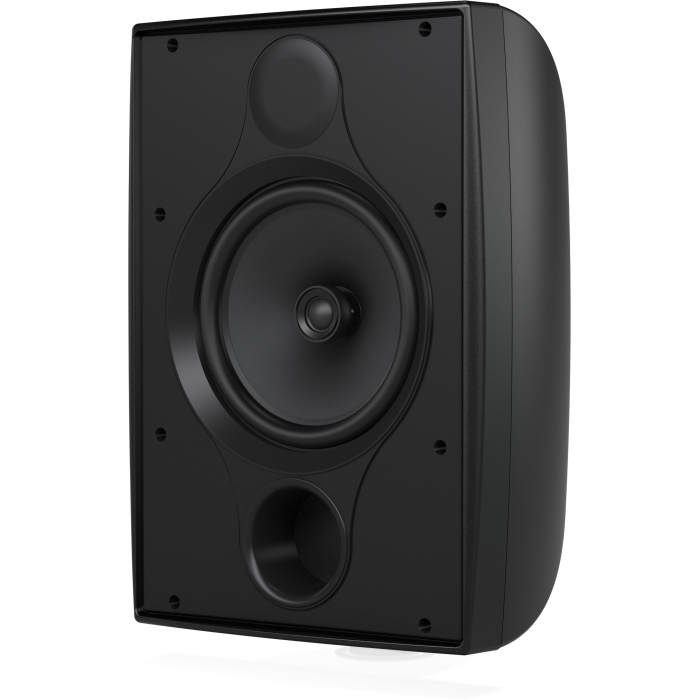

• 8″ mineral loaded polypropylene driver with nitrile rubber surround for enhanced durability and long-term reliability
• 0.75″ ferrofluid cooled soft dome neodymium high frequency driver
• 80° constant directivity dispersion for optimum coverage
• UL 1480 certified for general signaling systems
• UV and weather resistant UL 94 V-0 ABS enclosure
• 6 Ohm direct input for low impedance applications
• All components weather resistant to IP64 for outdoor use
• Stylish durable enclosure in a semi-matt black paint finish fits unobtrusively in any environment

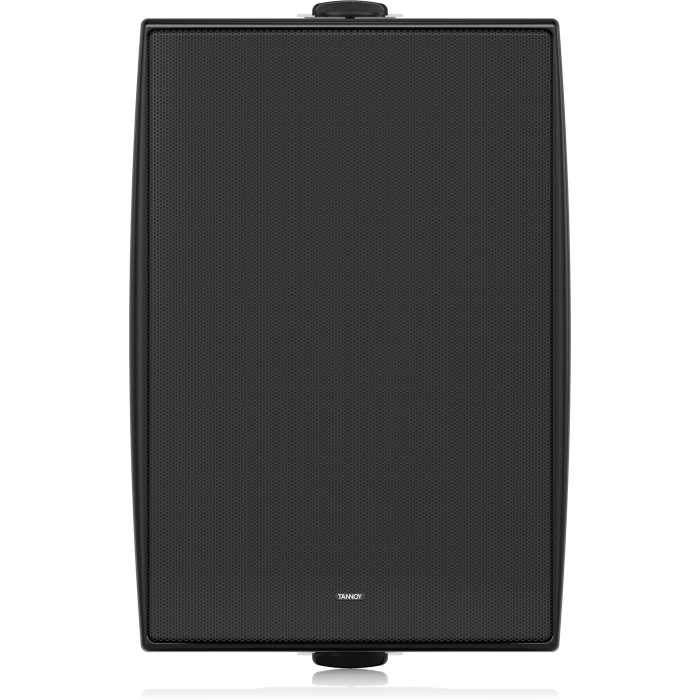

• Painted perforated aluminium mesh grille with dust protection

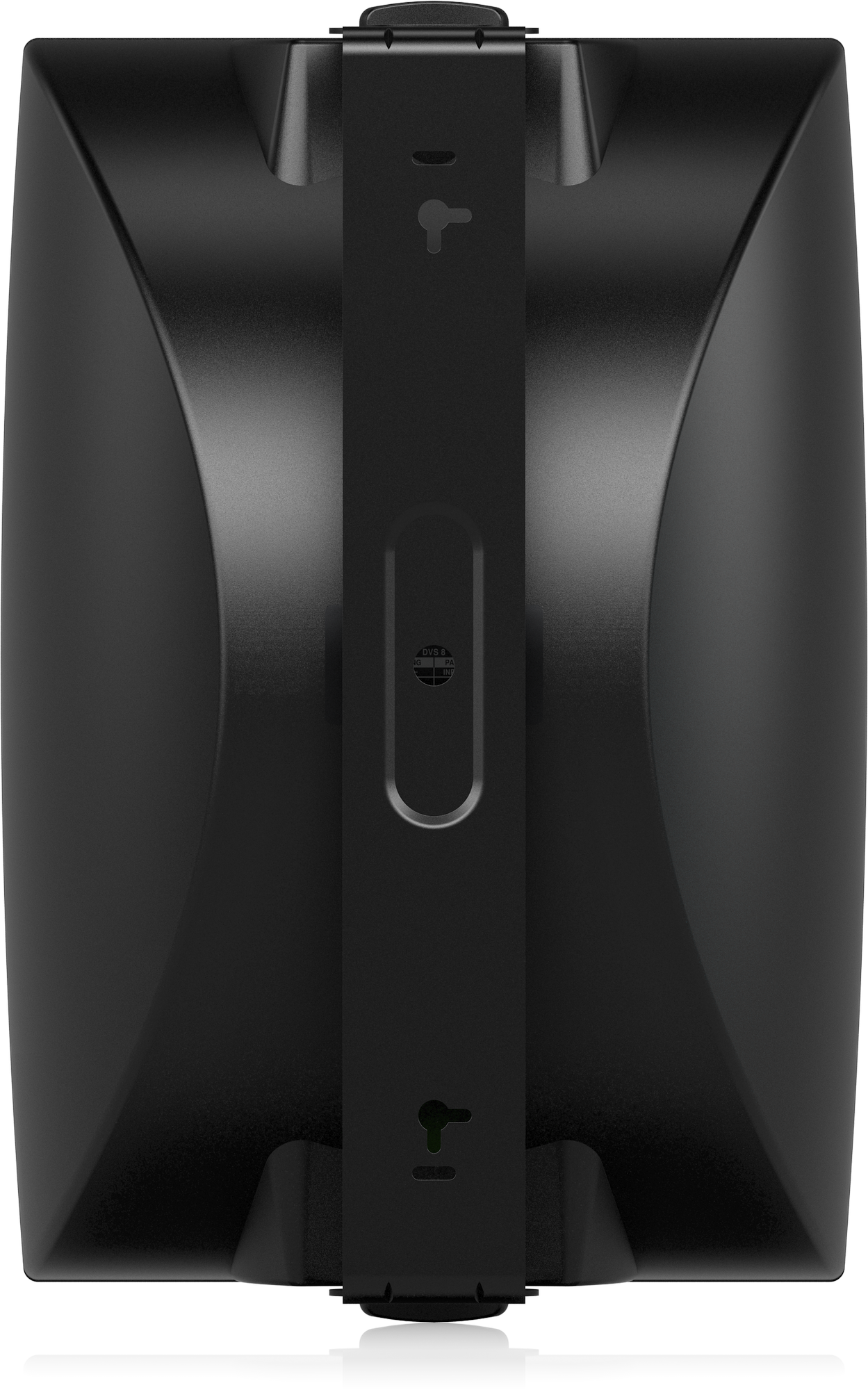

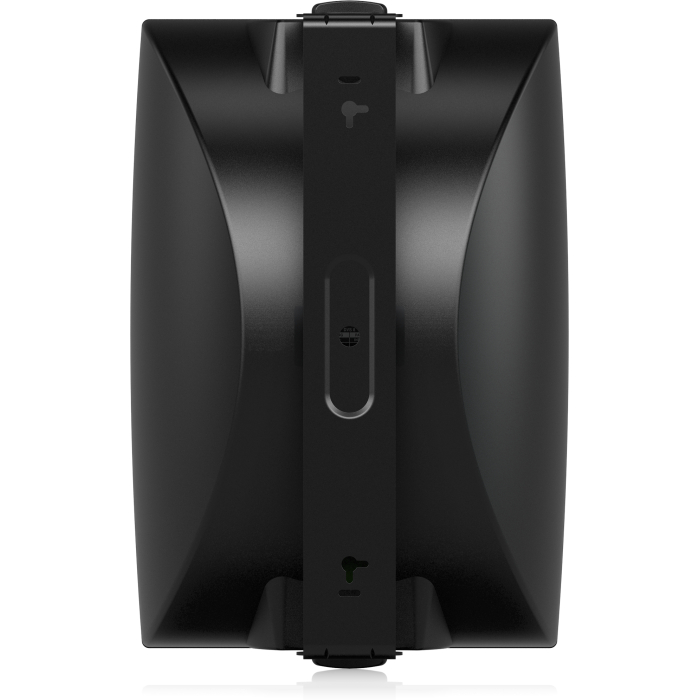

• Yoke bracket included for ease of installation

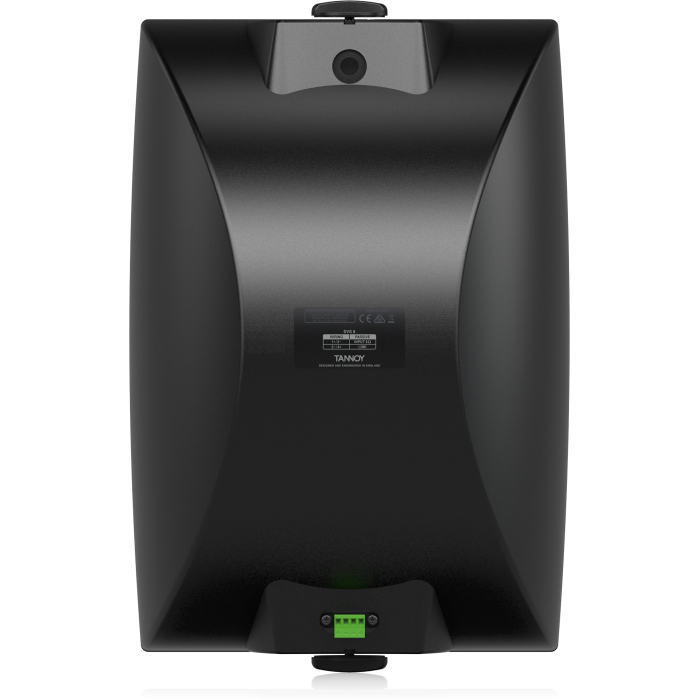

• Phoenix* connectors input and link output

Specifications

Specification	Details
Frequency response (-3 dB)	75 Hz – 20 kHz
Frequency response (-10 dB)	60 Hz – 30 kHz
System sensitivity (1 W @ 1 m)	90 dB
Dispersion (-6 dB)	80 degrees conical
Transducers	Coaxial
Low frequency	200 mm (8.00″) mineral loaded cone material
High frequency	20 mm (0.79″)
Crossover	3.4 kHz – 2nd order LF, 2nd order HF
Directivity (Q)	12.3 averaged 1 kHz to 10 kHz
Directivity (DI)	10.0 averaged 1 kHz to 10 kHz
Rated maximum SPL	108 dB (average) 114 dB (peak)

Non Transformer Version

Specification	Details
Maximum wire gauge for connector	2.5 mm CSA (AWG12)
Safety Agency Ratings	UL-1480, CE

Power Handling

Specification	Details
Average	70 W
Programme	140 W
Peak	280 W
Recommended amplifier power	140 W @ 6 Ohms
Nominal impedance	6 Ohms

Construction

Specification	Details
Enclosure	ABS
Grille	Aluminium, painted

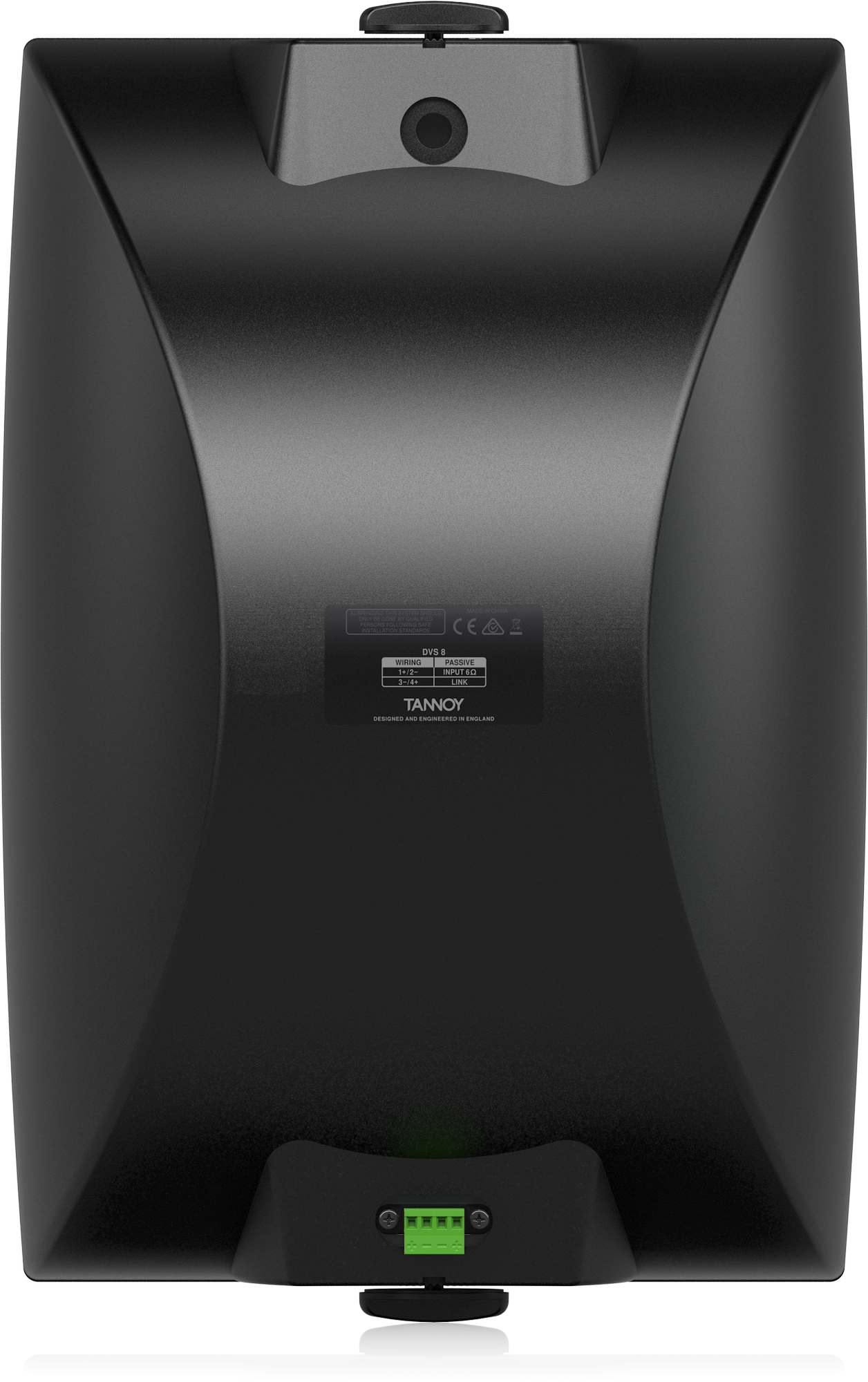

Connectors	Euroblock type removable locking connector with screw terminals with “loop through” facility
Supplied accessories	Yoke bracket
Packed quantity	2
Dimensions (H x W x D)	451.8 x 290.0 x 296.0 mm (17.79 x 11.42 x 11.65″)
