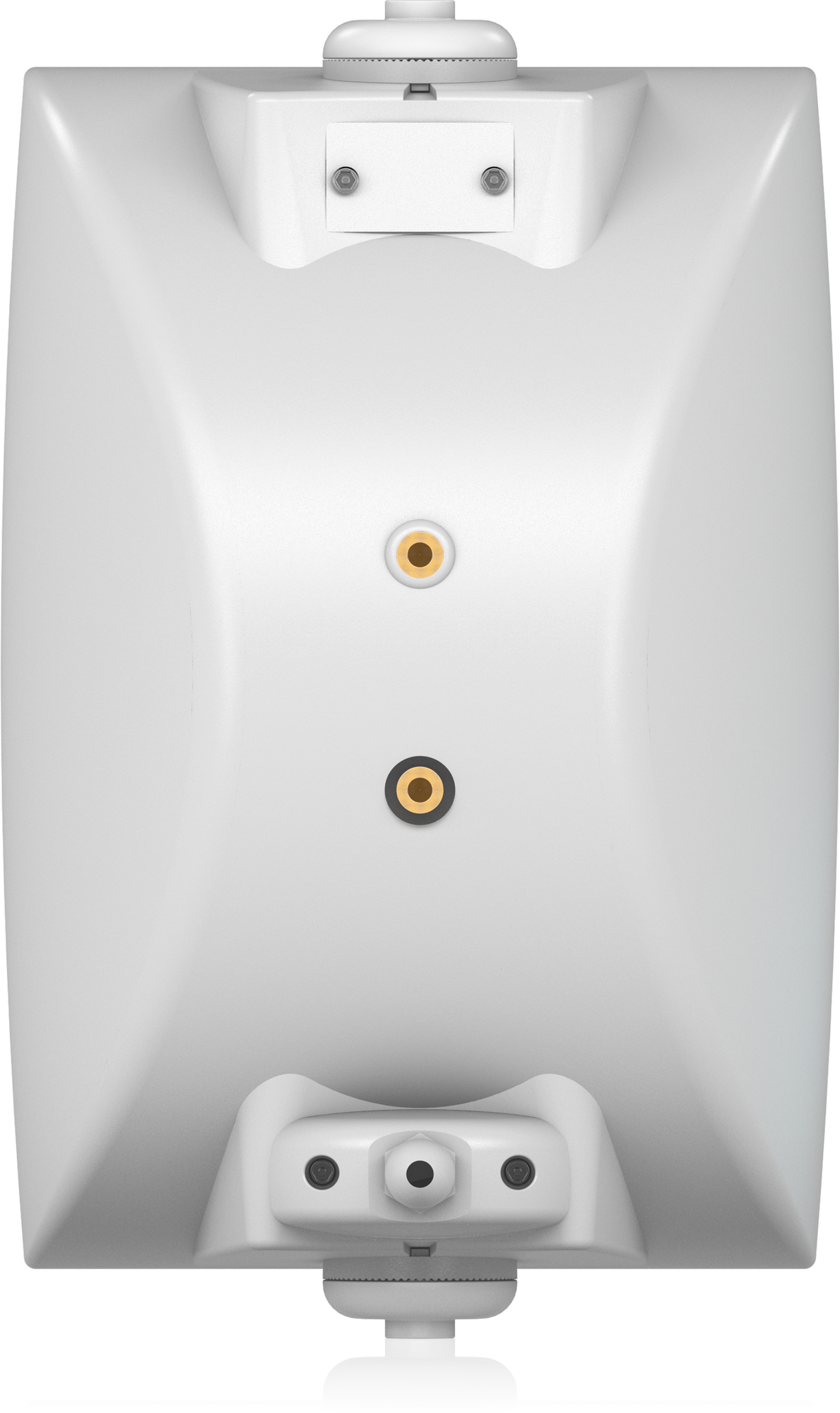

Tannoy DVS 6T 6″ Coaxial Surface-Mount Loudspeaker 240W (EN 54 Certified, White)

Tannoy

AED 883.05 inc VAT.

In stock
Enquiry On Whatsapp
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: DVS 6T (EN 54)-WH Categories: , Brand:

The DVS 6T (EN 54)-WH is a 240-watt surface mount loudspeaker designed for diverse sound reinforcement applications, ensuring excellent acoustic performance and value. This ultra-compact speaker is EN 54-24 certified for fire safety, making it ideal for theme parks, hotels, restaurants, retail spaces, corporate AV setups, residential areas, and houses of worship.

Description

DVS 6T (EN 54)-WH Surface Mount Loudspeaker

The DVS 6T (EN 54)-WH is an ultra-compact surface mount loudspeaker designed for superior sound reinforcement in diverse indoor and outdoor venues. Delivering up to 240 Watts of peak power, this 6-inch loudspeaker is ideal for background and foreground music applications in establishments such as theme parks, hotels, restaurants, bars, retail stores, corporate AV setups, residential areas, and even houses of worship. The EN 54-24 certification ensures it is suited for environments where fire safety is paramount.

Features

  • Full range surface-mount loudspeaker suitable for various installation scenarios
  • 60 Watts continuous power and 240 Watts peak power

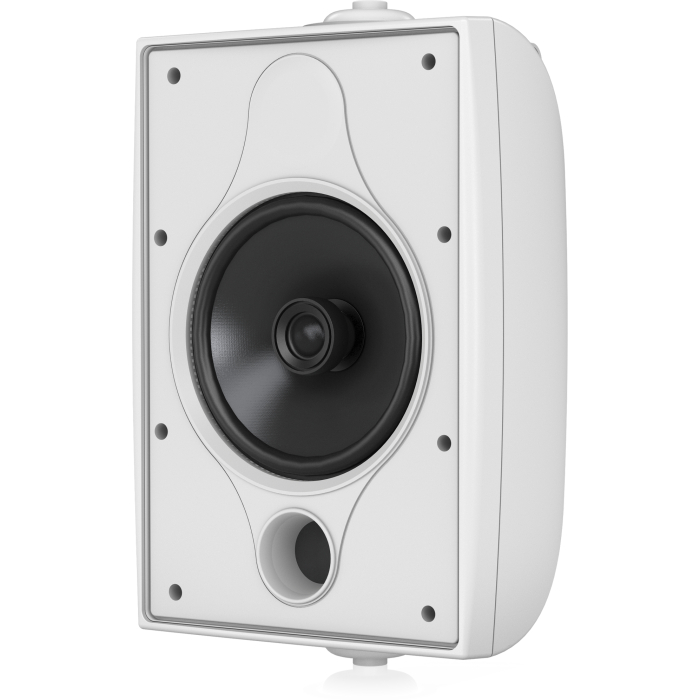

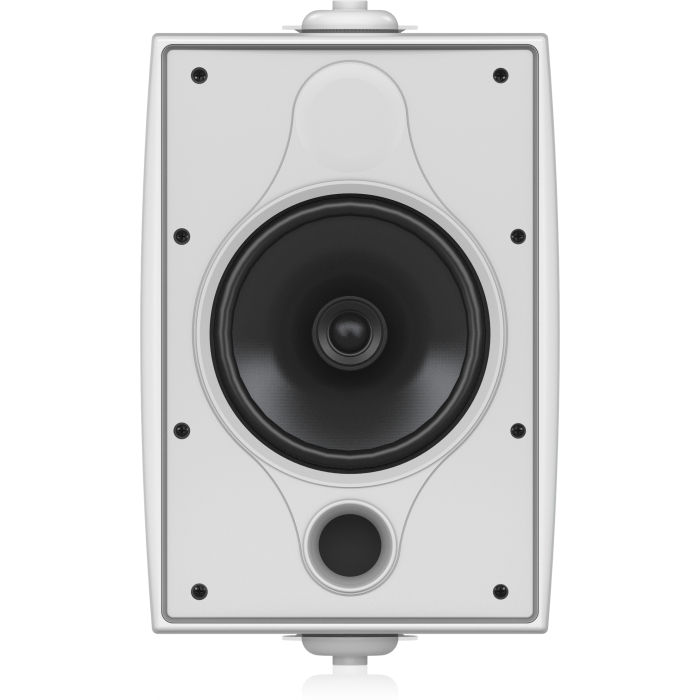

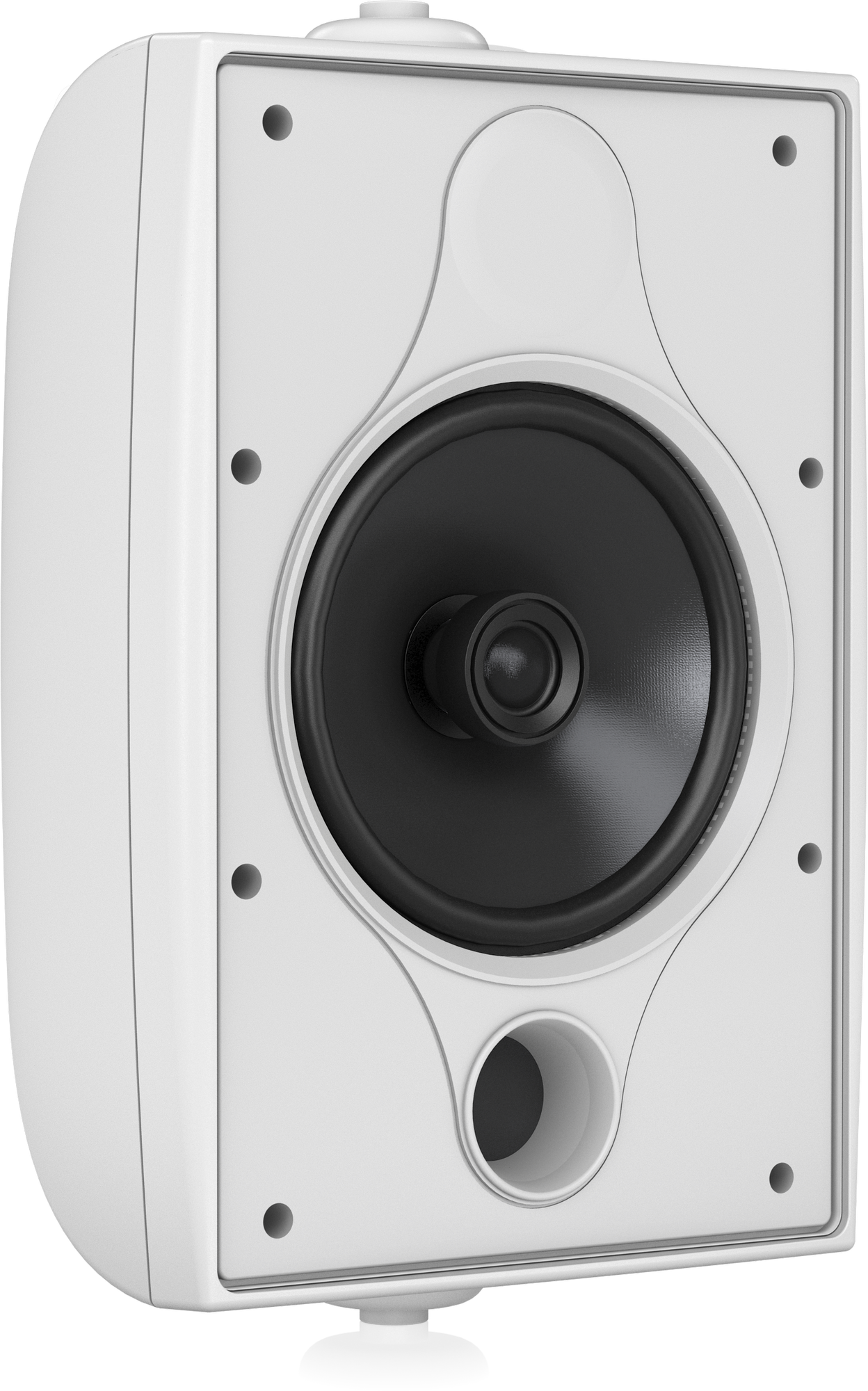

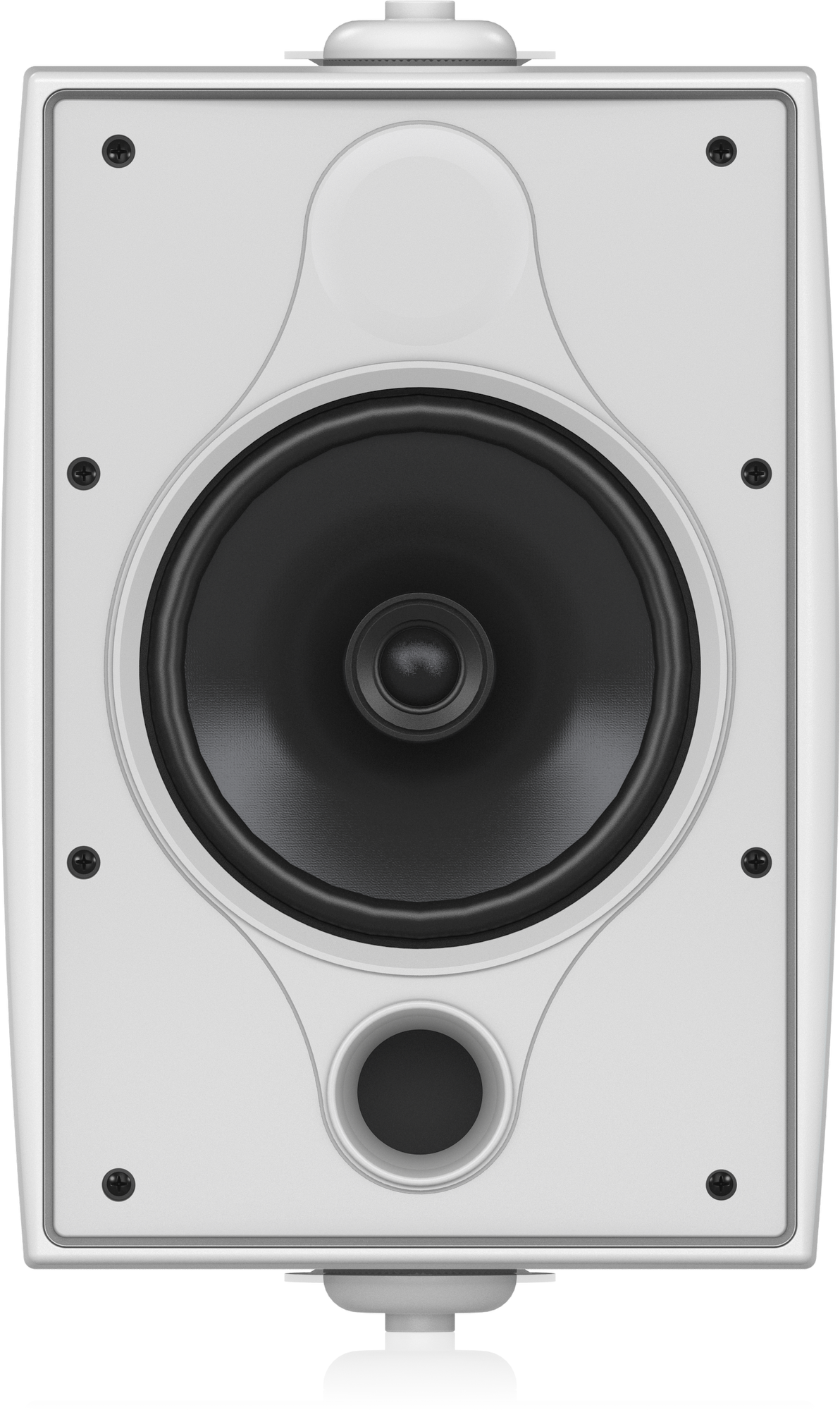

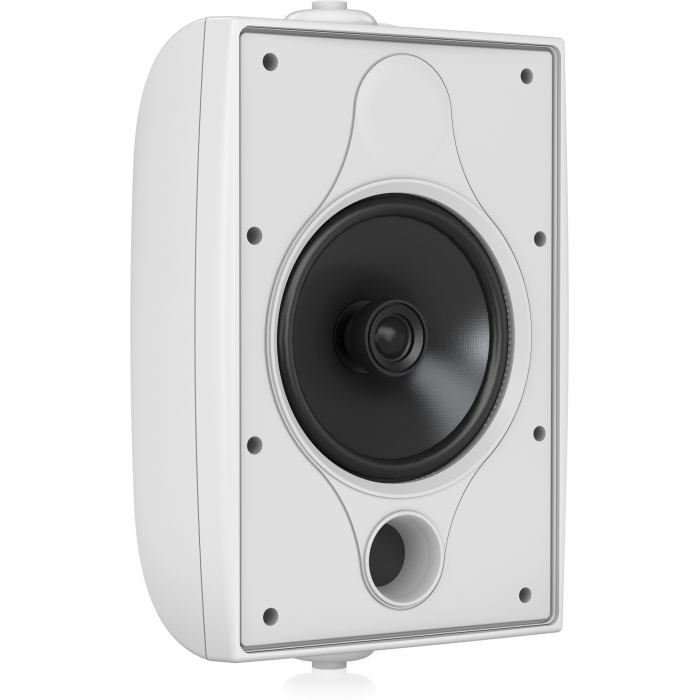

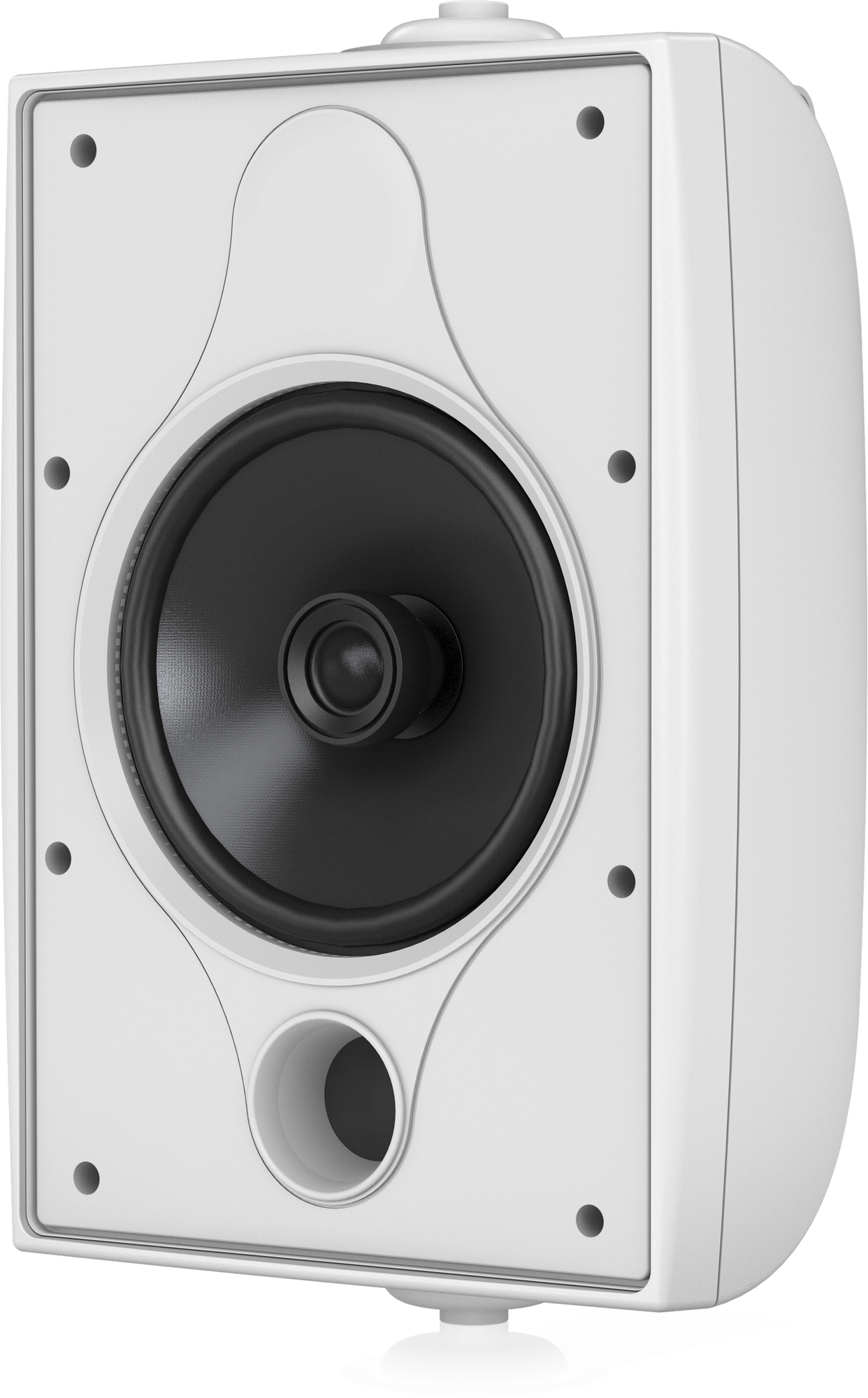

  • 6″ mineral loaded polypropylene driver with a nitrile rubber surround
  • 0.75″ ferrofluid cooled soft dome neodymium high frequency driver
  • 90° constant directivity dispersion for optimal coverage
  • EN 54-24 certified for fire detection and fire alarm systems
  • UV and weather resistant UL 94 V-0 ABS enclosure
  • Transformer taps for 70V and 100V line systems
  • Low insertion loss 60W line transformer with tamper-resistant tapping switch
  • Weather resistant components rated to IP64

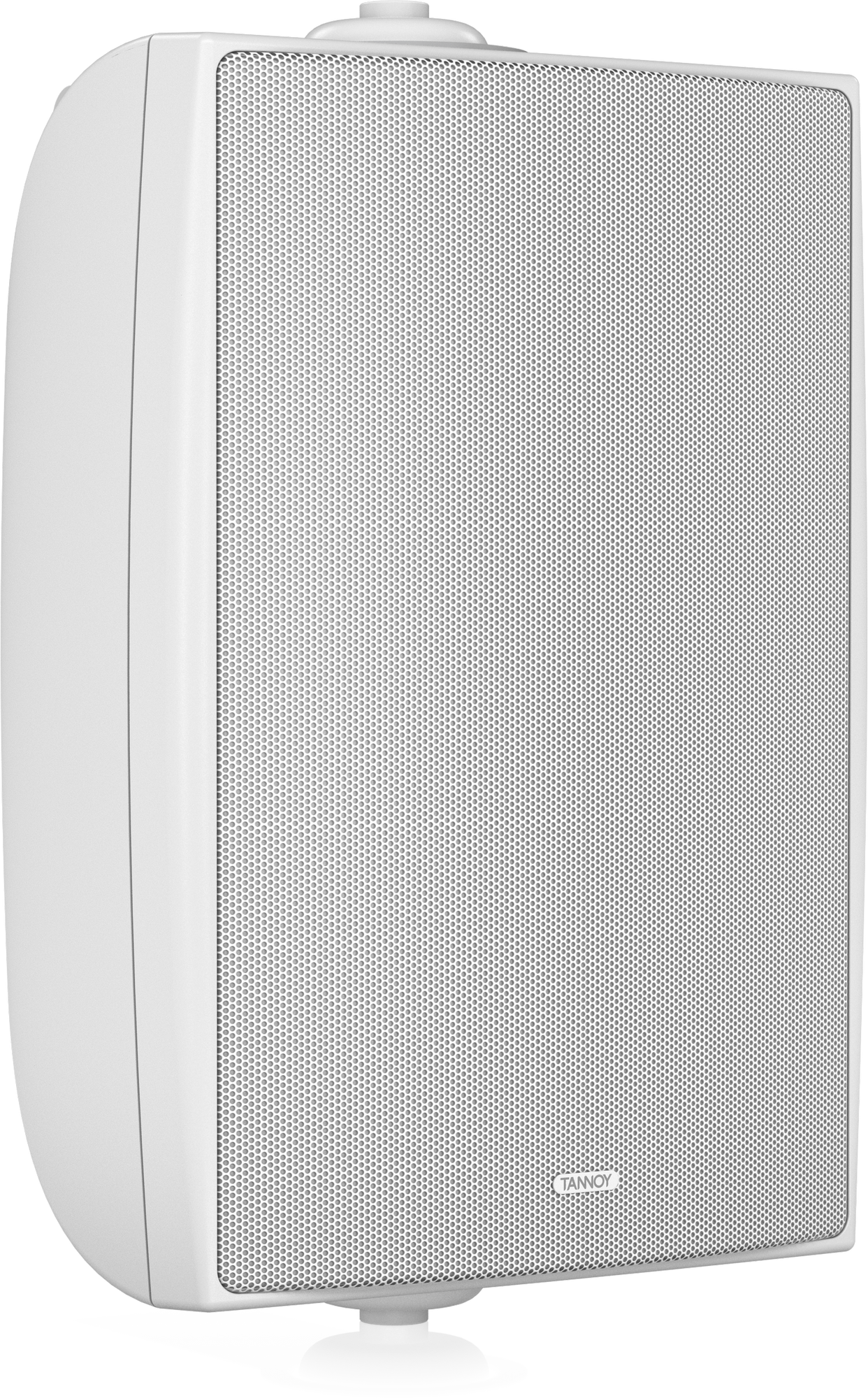

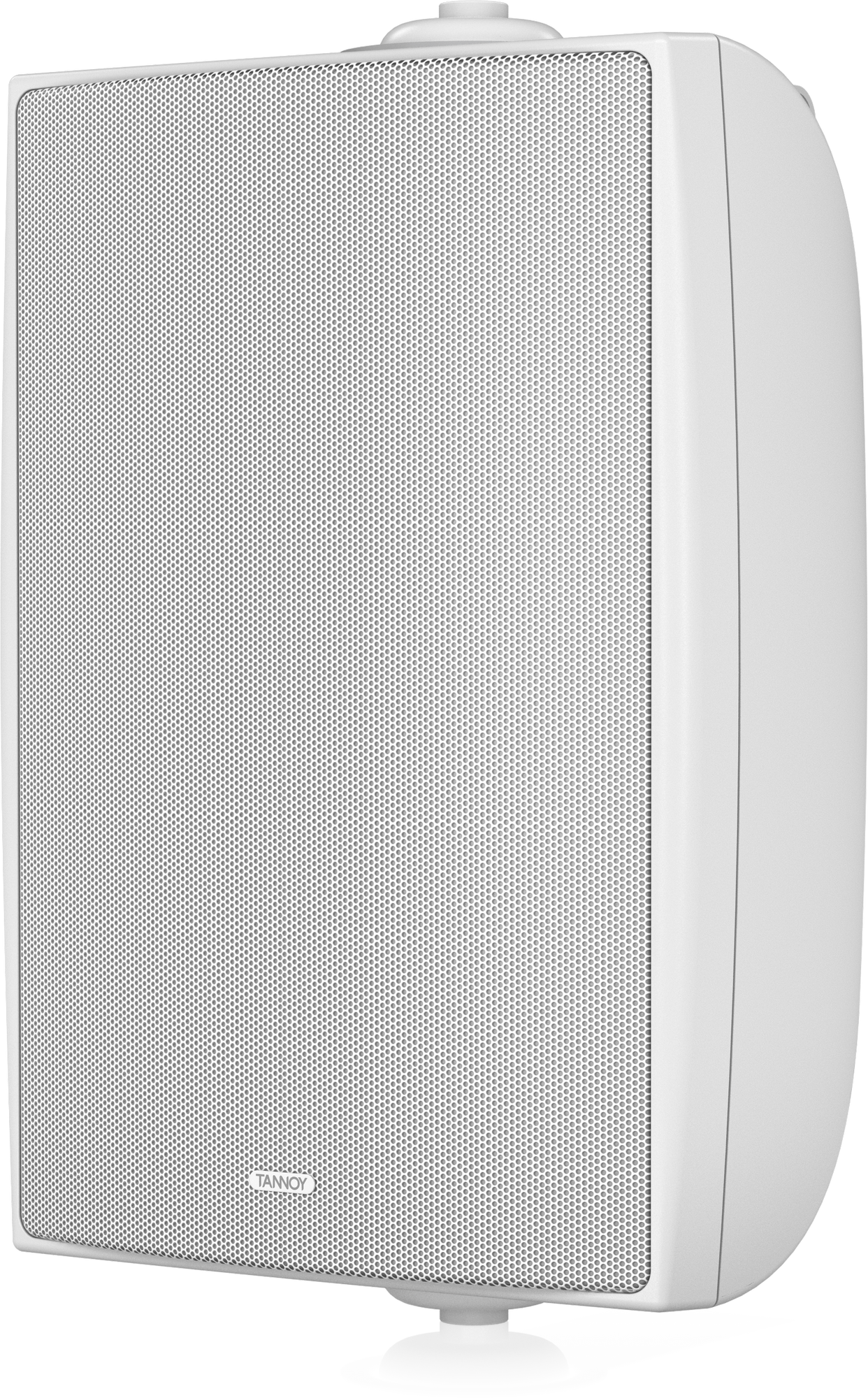

  • Semi-matt white painted enclosure fits seamlessly into any environment

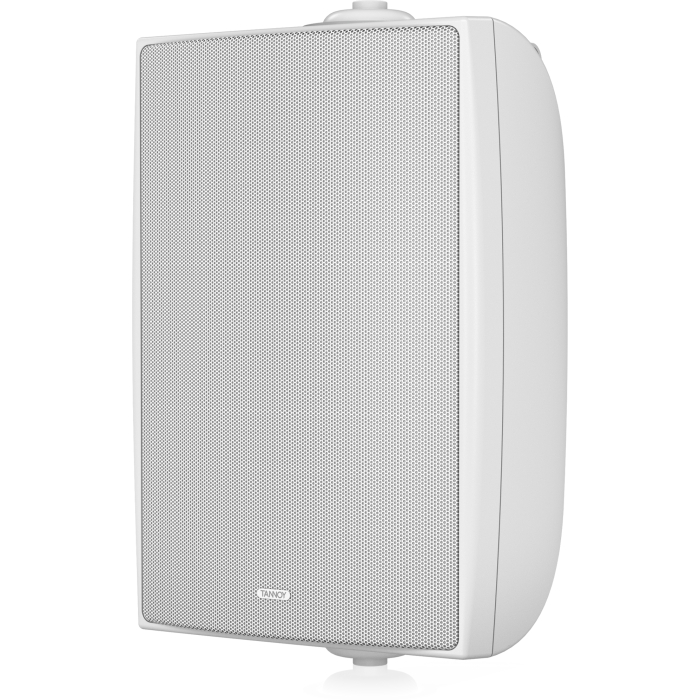

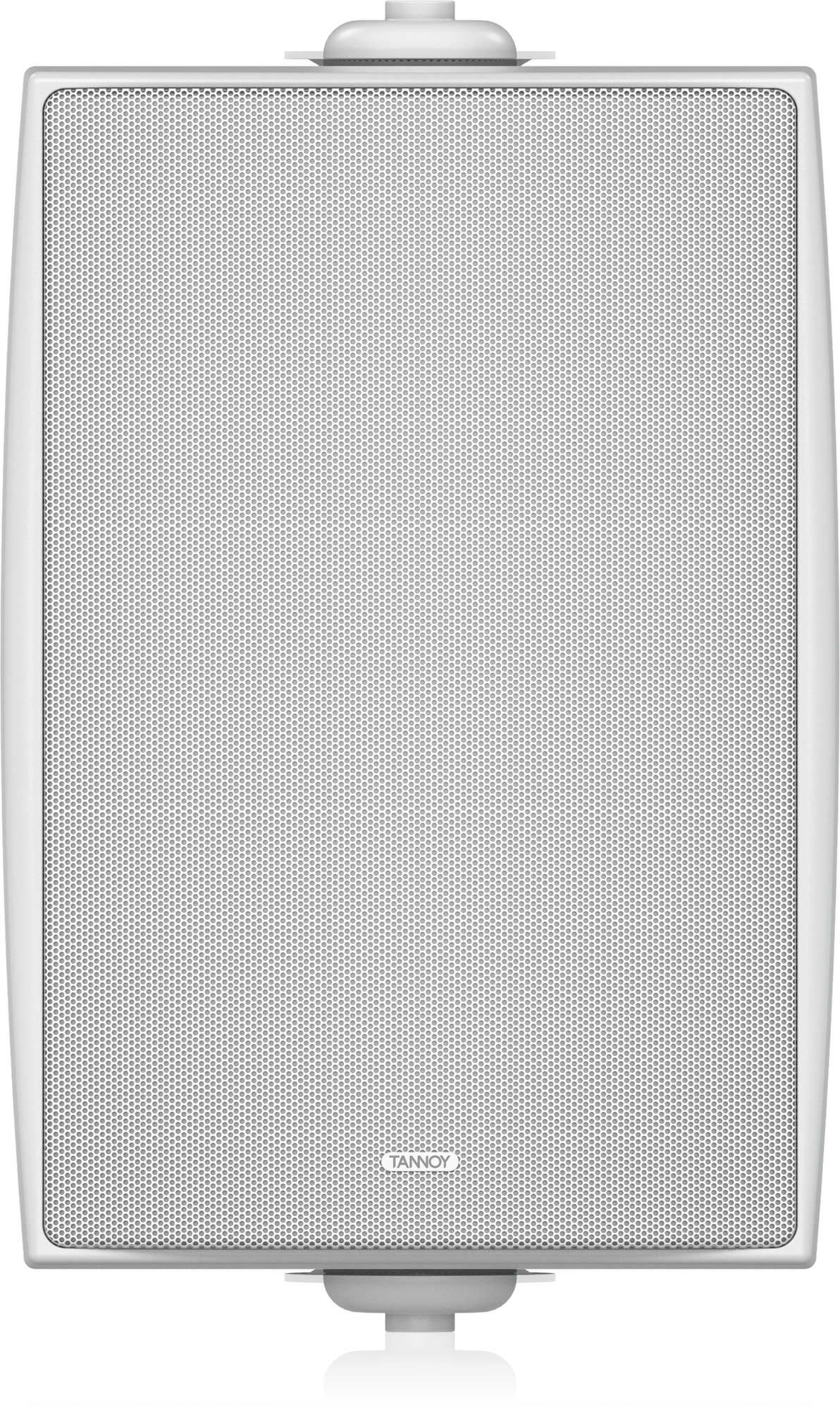

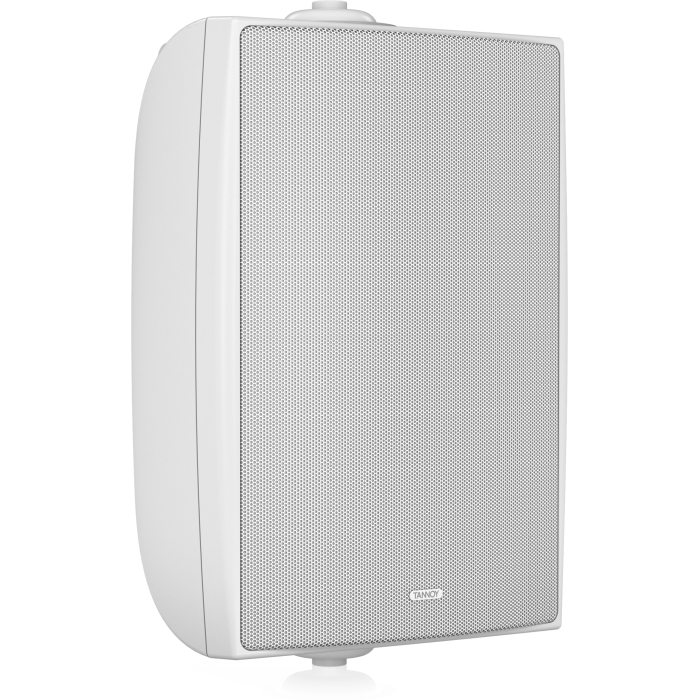

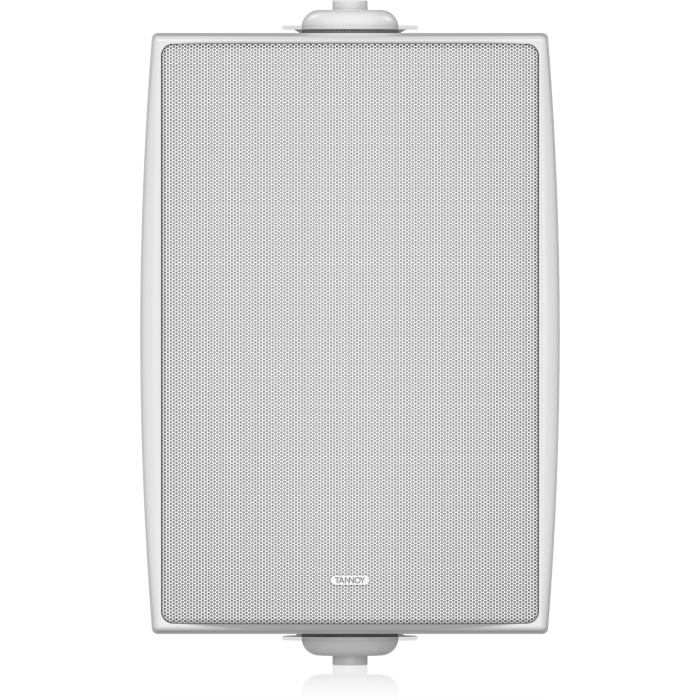

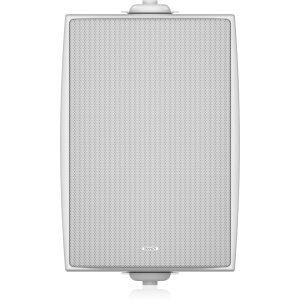

  • Perforated aluminium mesh grille with dust protection

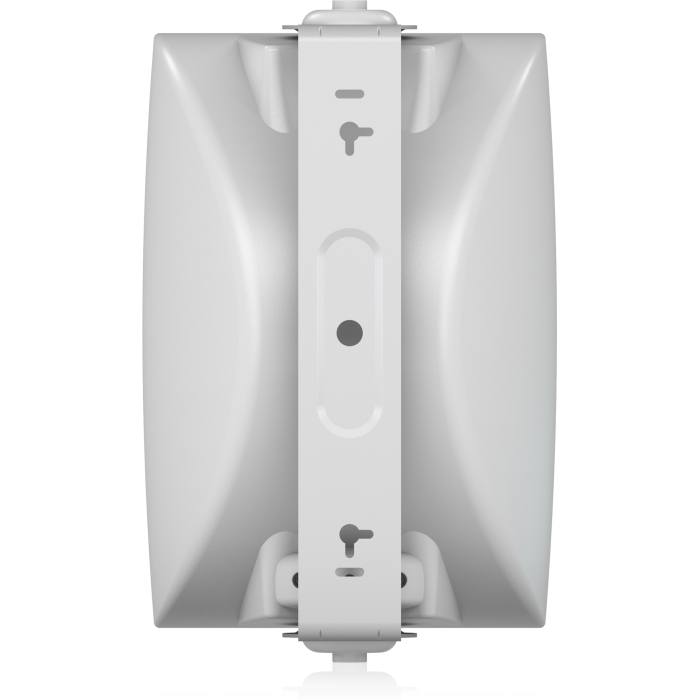

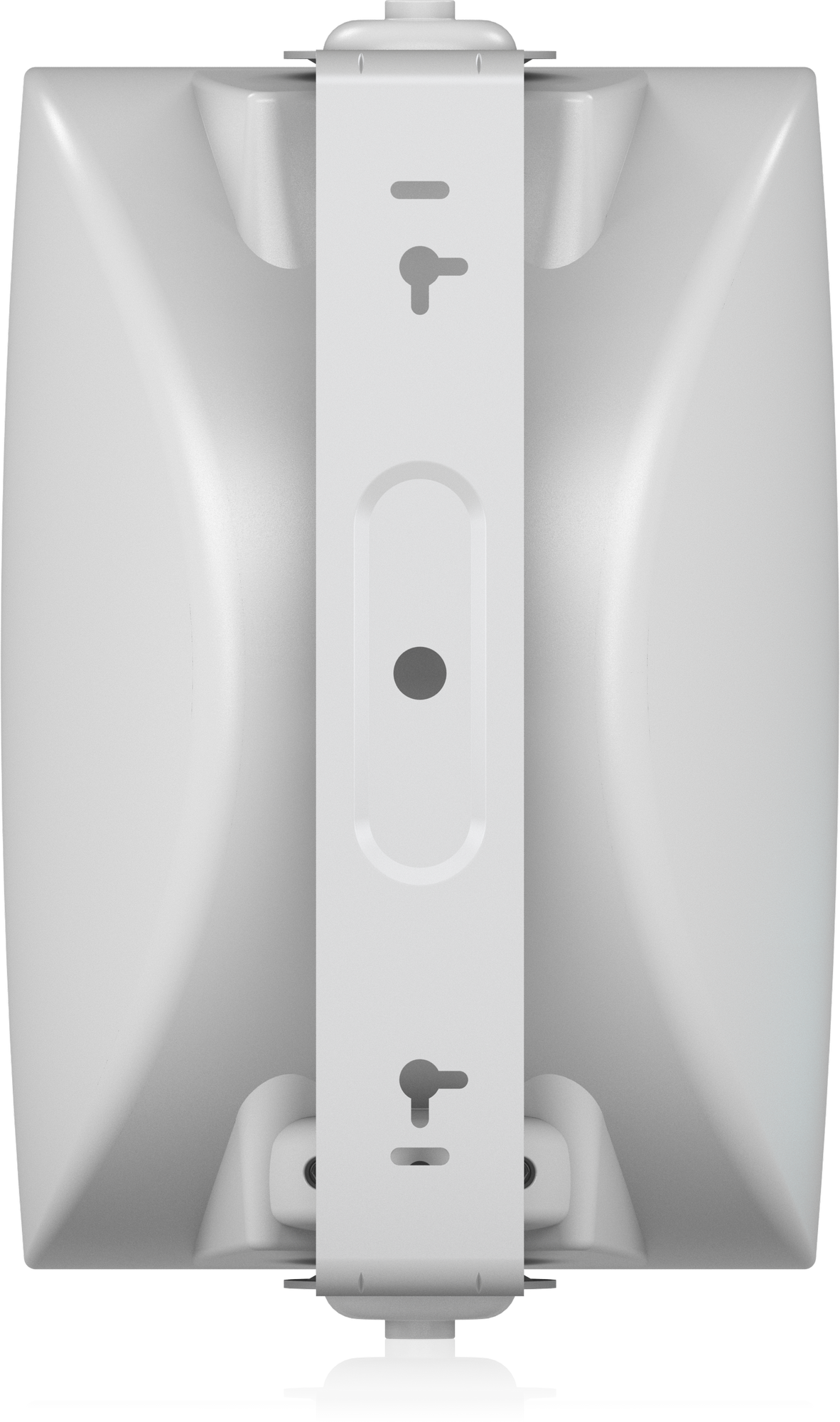

  • Includes yoke bracket for easy installation
  • Phoenix* connectors with ABS cover and EN 54 compliant strain relief mechanism

Specifications

Specification Details
Frequency response (-3 dB) 80 Hz – 20 kHz
Frequency response (-10 dB) 65 Hz – 30 kHz
Rated sensitivity (1W, Lo Z) 88 dB
Sensitivity as per EN54 (4 m, through transformer) 75.7 dB
Directivity factor (Q) 10.6 averaged 1 kHz to 10 kHz
Directivity index (DI) 9.6 averaged 1 kHz to 10 kHz
Average Power Handling 60 W
Programme Power Handling 120 W
Peak Power Handling 240 W
Recommended amplifier power 120 W @ 6 Ω
Nominal Impedance (Lo Z) 6 Ω
Maximum SPL as per EN54 (4 m, through transducer) 92 dB
Rated Maximum SPL (1 m, Lo Z) Average 105 dB
Rated Maximum SPL (1 m, Lo Z) Peak 111 dB
Transformer Taps (70 V) 60 W (70 Ω) / 30 W (165 Ω) / 15 W (280 Ω) / 7.5 W (580 Ω) / OFF & low impedance operation
Transformer Taps (100 V) 60 W (165 Ω) / 30 W (280 Ω) / 15 W (580 Ω) / OFF & low impedance operation
Crossover point 4.3 kHz – 2nd order LF, 2nd order HF
Coverage Angles (500 Hz) 360° horizontal, 288° vertical
Coverage Angles (1 kHz) 167° horizontal, 141° vertical
Coverage Angles (2 kHz) 99° horizontal, 109° vertical
Coverage Angles (4 kHz) 74° horizontal, 74° vertical
Low frequency transducer 150 mm (6″) mineral loaded cone material
High frequency transducer 19 mm (0.75″) coaxially mounted
Enclosure ABS
Grille Aluminium, painted
Transformer setting Rotary switch
Connectors Removable locking connector with screw terminals with “loop through” facility
Dimensions 341 x 212 x 217 mm (13.4 x 8.4 x 8.5″)
Net weight 4.8 kg (10.6 lbs)
Shipped weight 5.7 kg (12.5 lbs)
Included accessories Yoke bracket
Packed quantity 2
