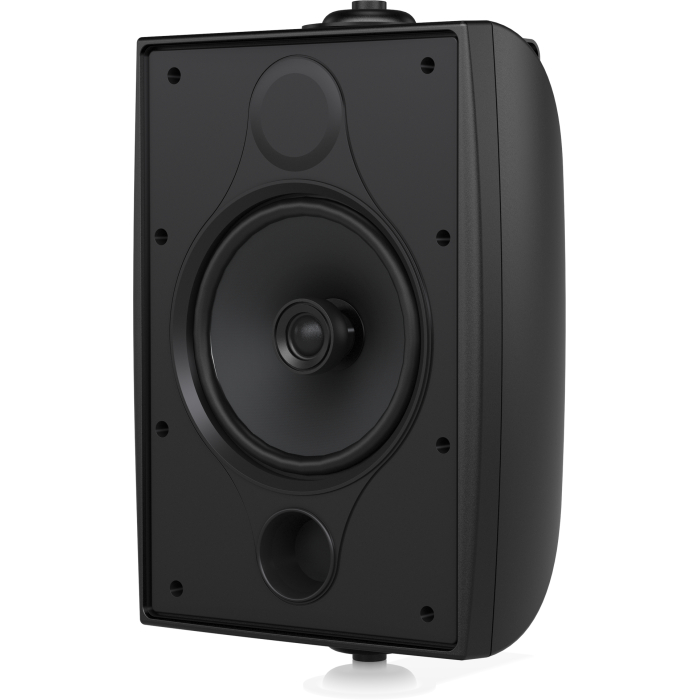

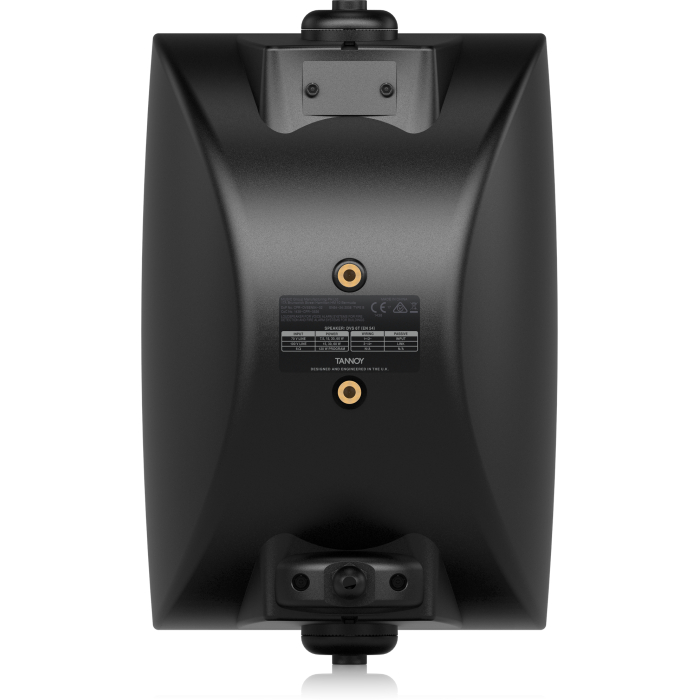

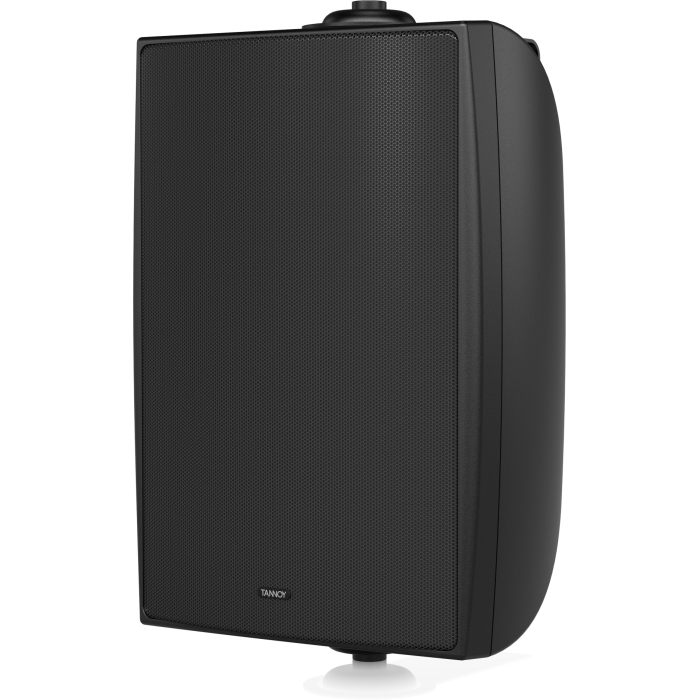

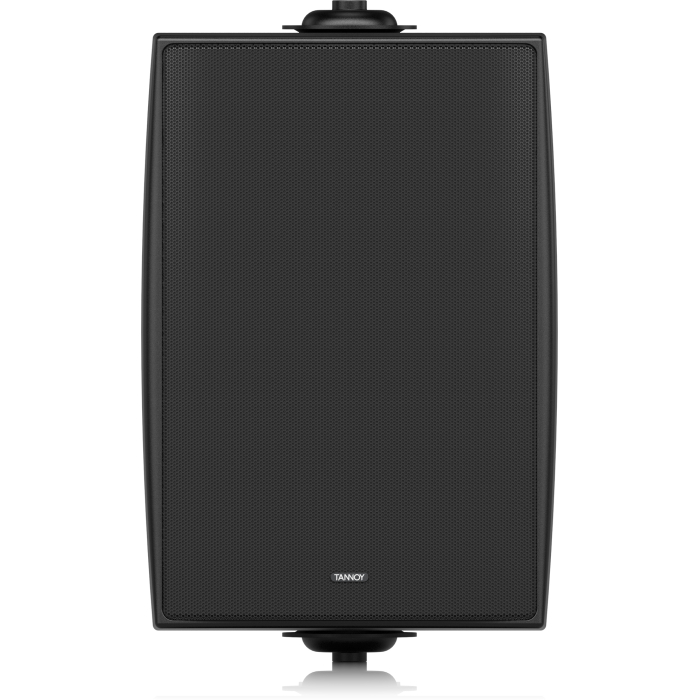

Tannoy DVS 6T 6″ Coaxial Loudspeaker 240W EN 54 Certified for Fire Safety

Tannoy

AED 883.05 inc VAT.

In stock
Enquiry On Whatsapp
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: DVS 6T (EN 54) Categories: , Brand:

The DVS 6T (EN 54) is an ultra-compact, 240-Watt surface mount loudspeaker designed for versatile sound reinforcement in environments like theme parks, hotels, restaurants, retail stores, corporate AV setups, and houses of worship. It boasts excellent acoustic performance and is EN 54-24 certified for fire detection and alarm systems, ensuring safety and reliability.

Description

Designed to excel in a wide variety of sound reinforcement applications, the full range DVS 6T (EN 54) is an ultra-compact 240-Watt surface mount loudspeaker that provides both exceptional value and inspiring acoustic performance. The DVS 6T (EN 54) is ideally suited for stereo or mono background/foreground music applications in theme parks, hotels, restaurants and bars, retail stores, as well as corporate AV, residential developments, and houses of worship. EN 54-24 certification for fire detection and fire alarm systems makes the DVS 6T (EN 54) the perfect choice where safety is a top priority.

Features

  • Full range surface-mount loudspeaker for indoor and outdoor installation applications
  • 60 Watts continuous, 240 Watts peak power

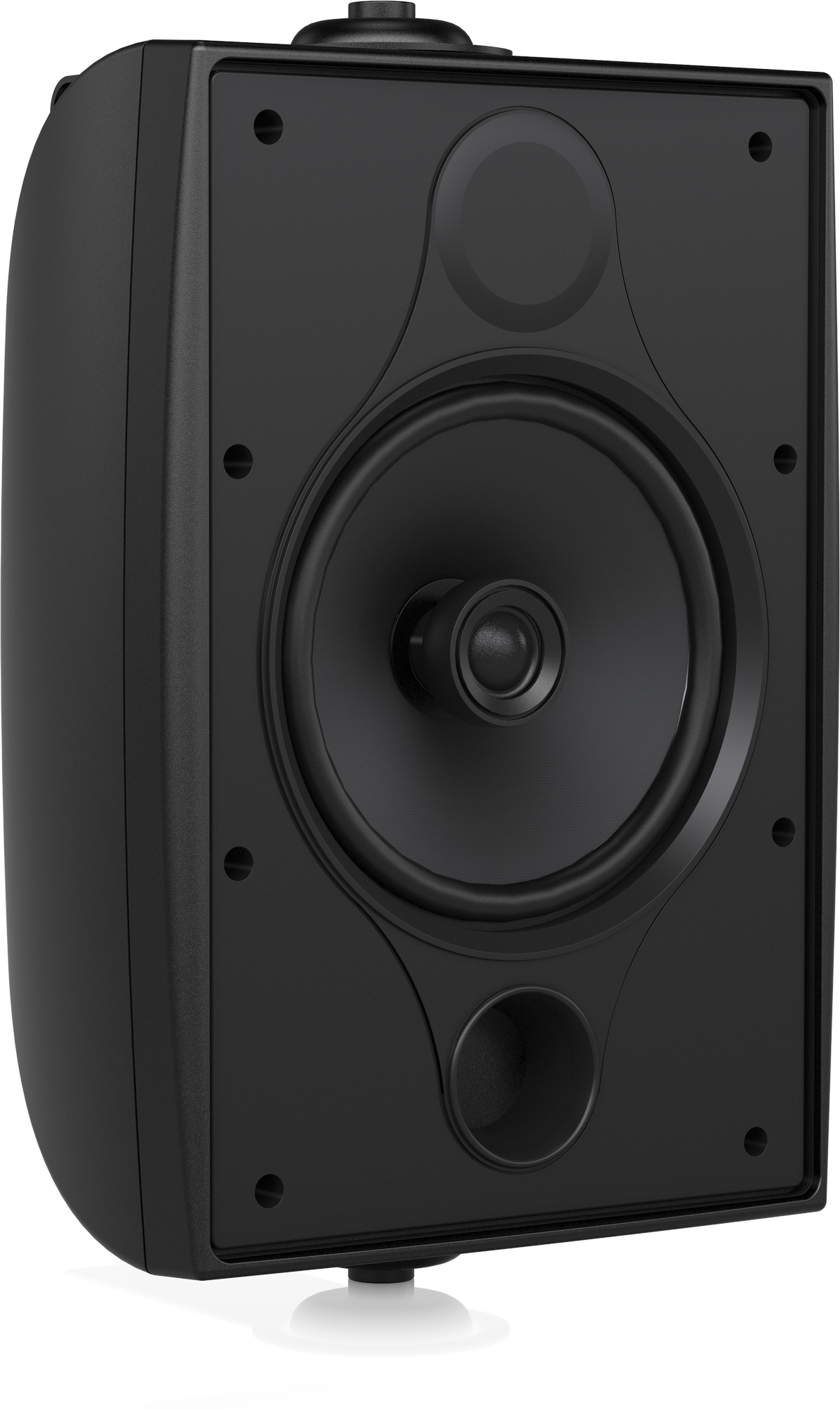

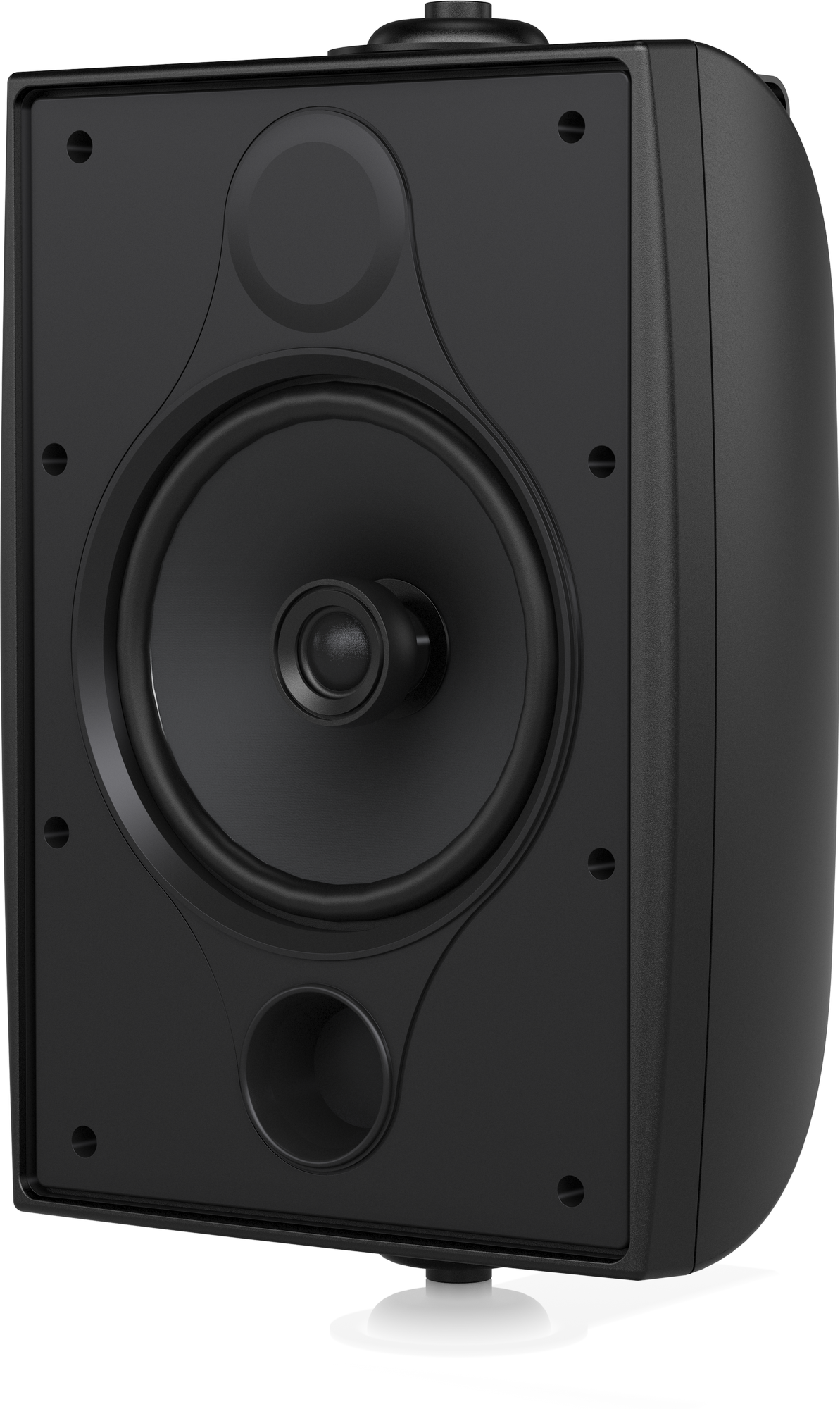

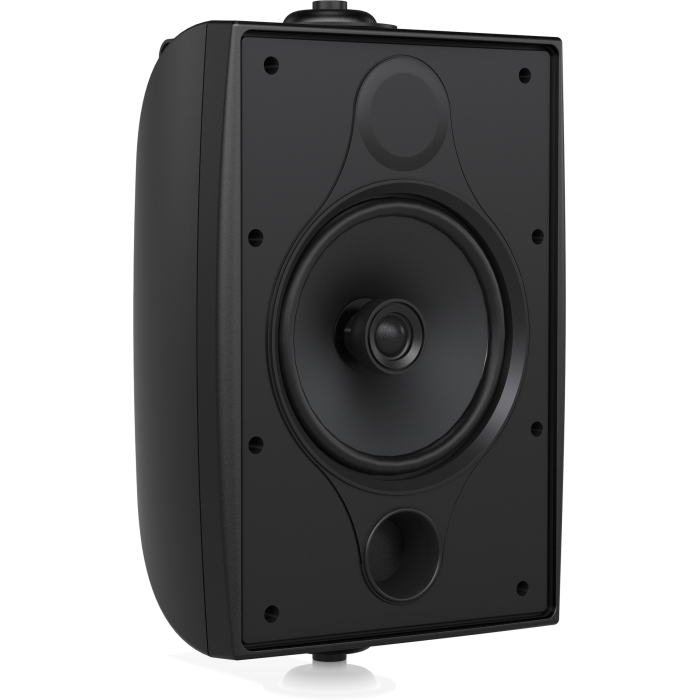

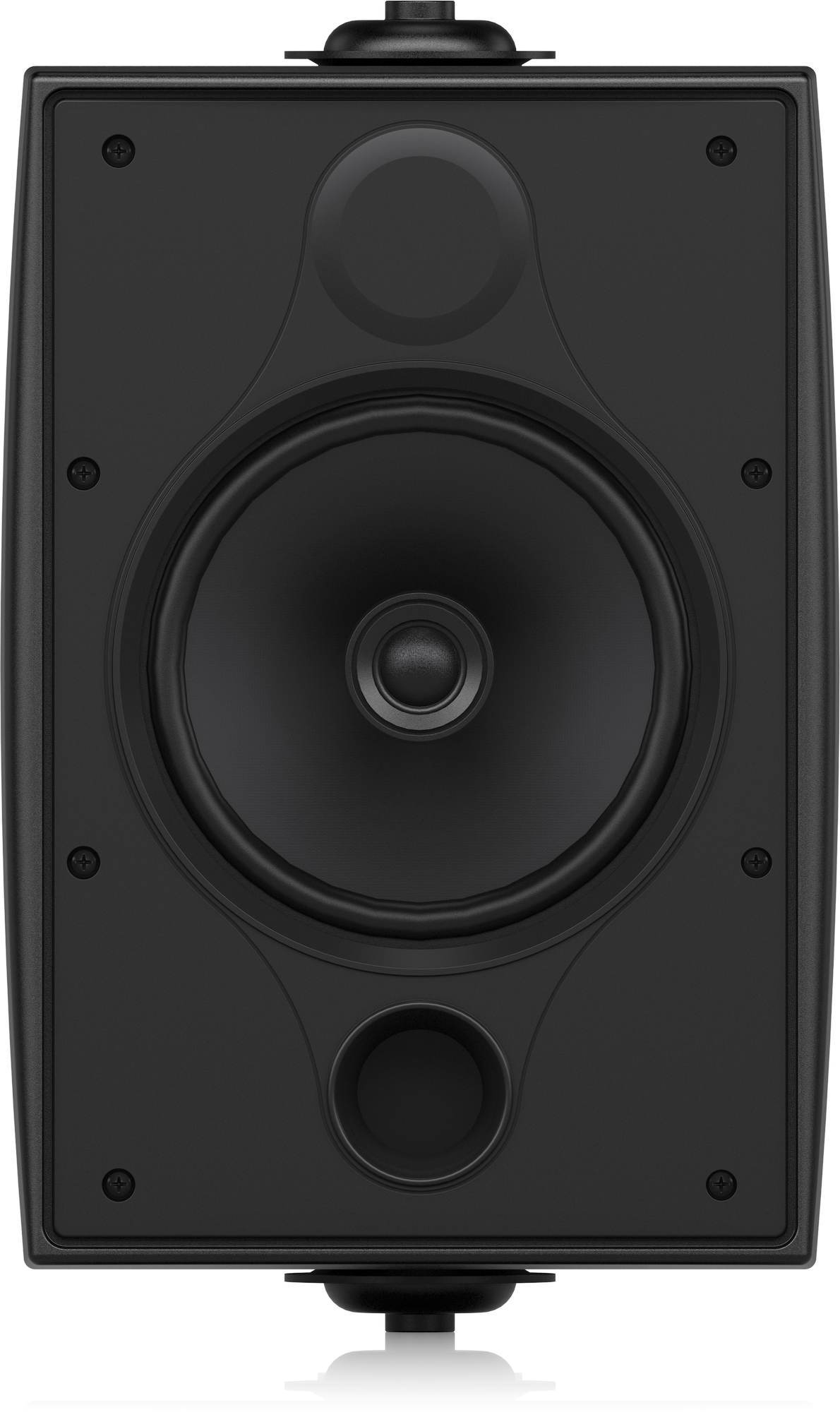

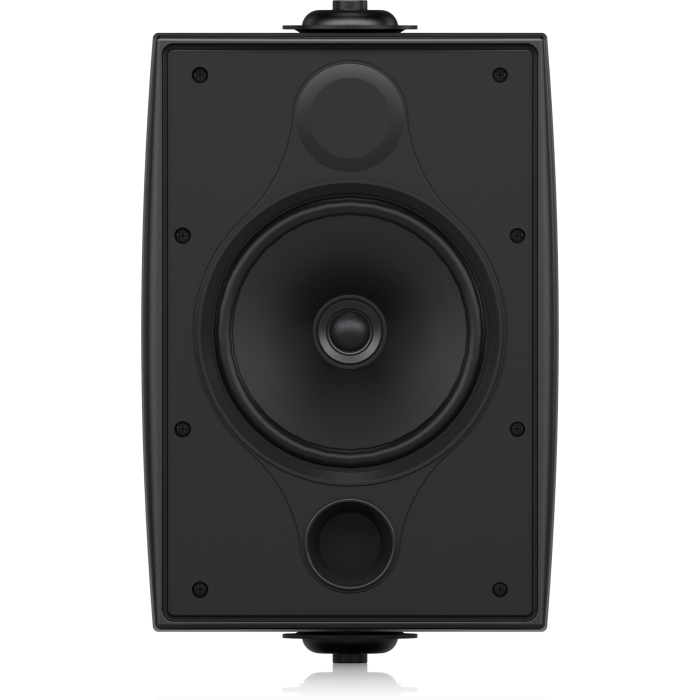

  • 6″ mineral loaded polypropylene driver with nitrile rubber surround for enhanced durability and long-term reliability
  • 0.75″ ferrofluid cooled soft dome neodymium high frequency driver
  • 90° constant directivity dispersion for optimum coverage
  • EN 54-24 certified for fire detection and fire alarm systems
  • UV and weather resistant UL 94 V-0 ABS enclosure
  • Multiple transformer taps for 70 V and 100 V line systems
  • Low insertion loss 60 W line transformer with EN 54 compliant tamper-resistant tapping switch
  • All components weather resistant to IP64 for outdoor use
  • Stylish durable enclosure in a semi matt black paint finish fits unobtrusively in any environment

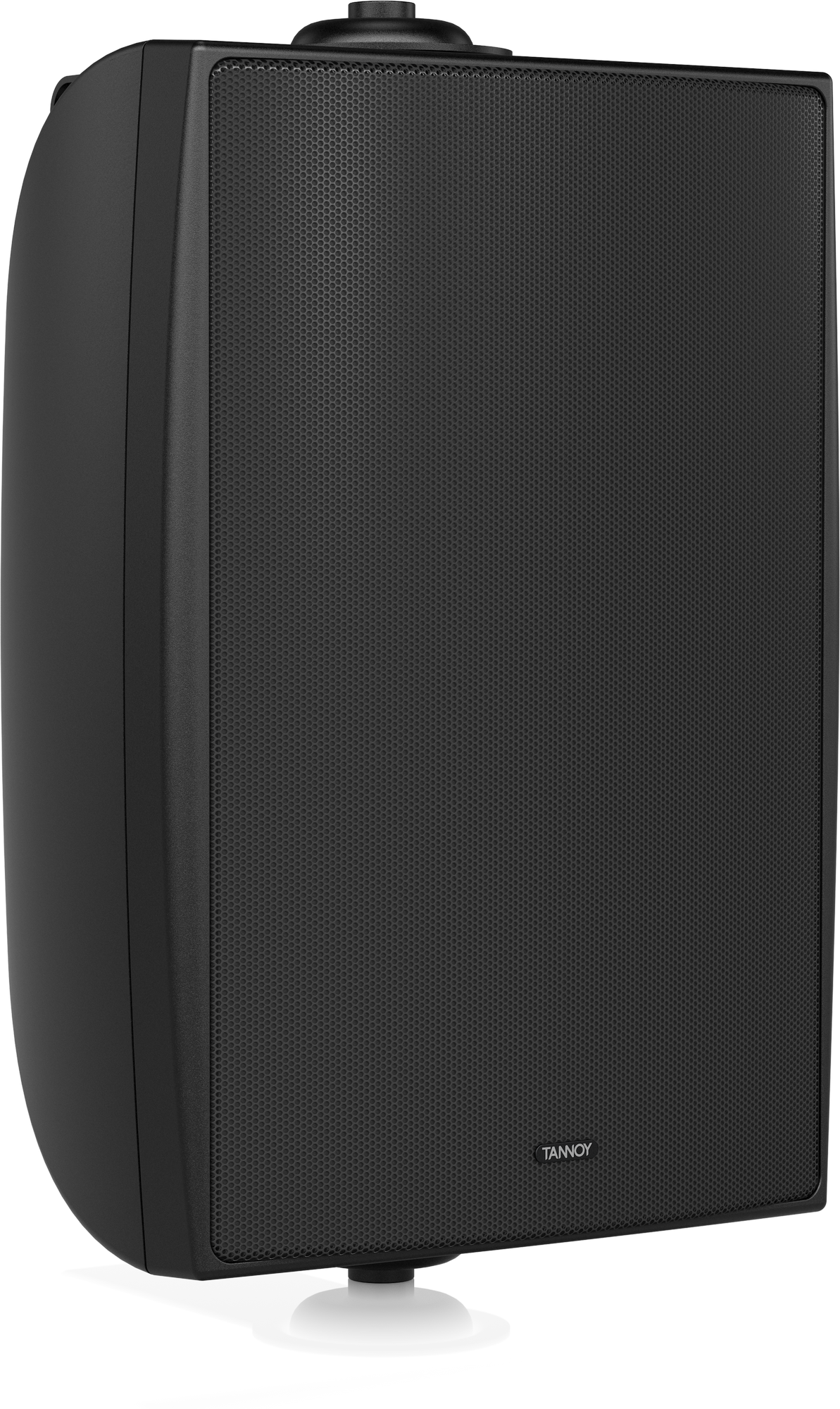

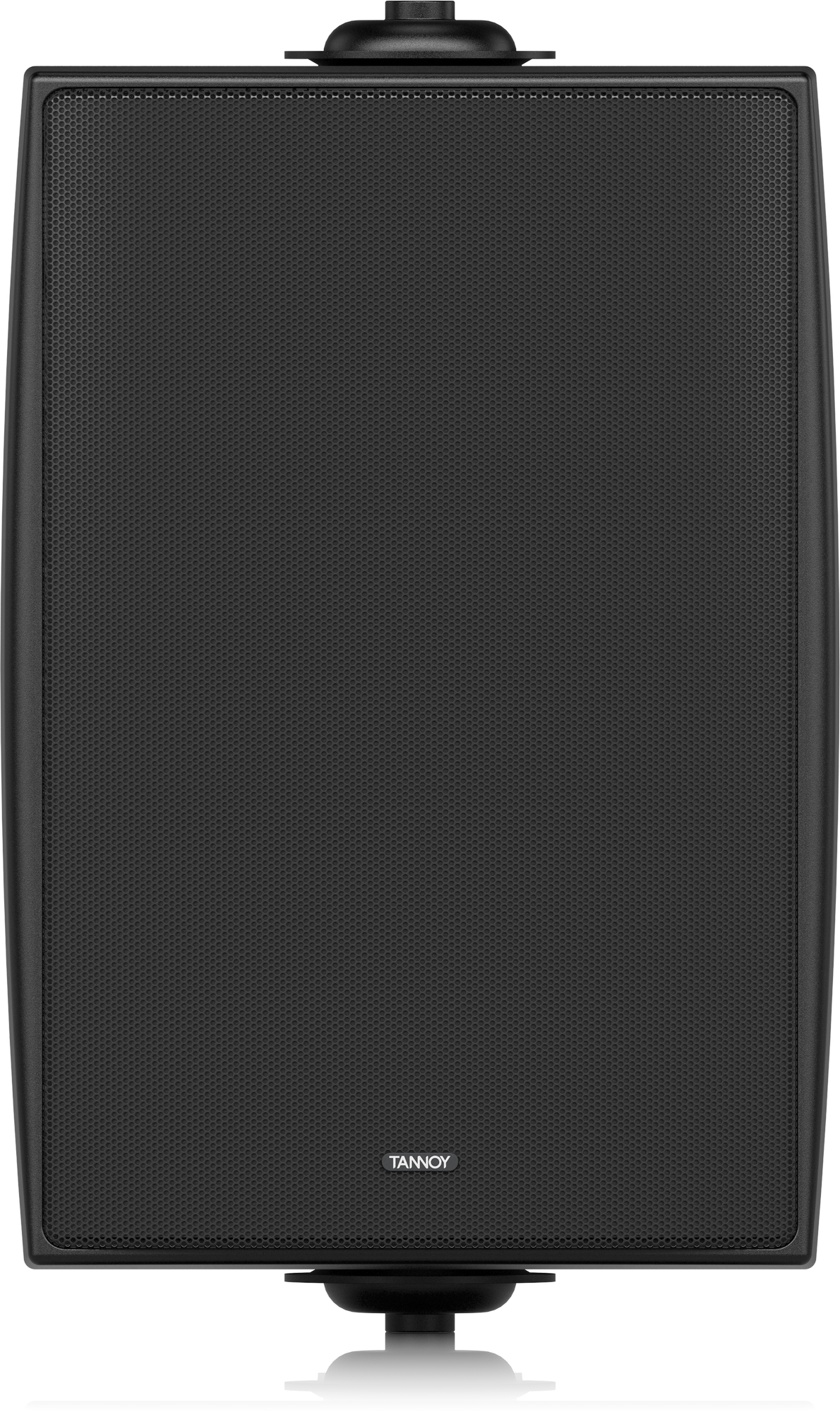

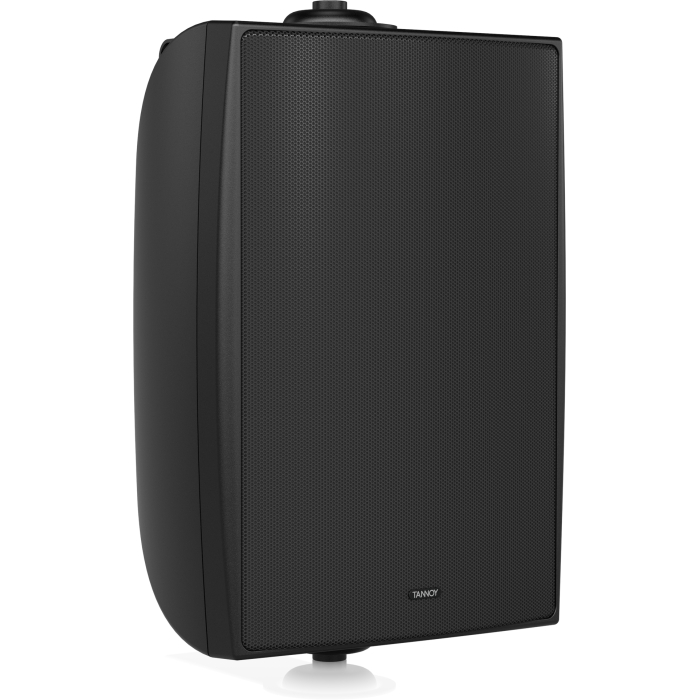

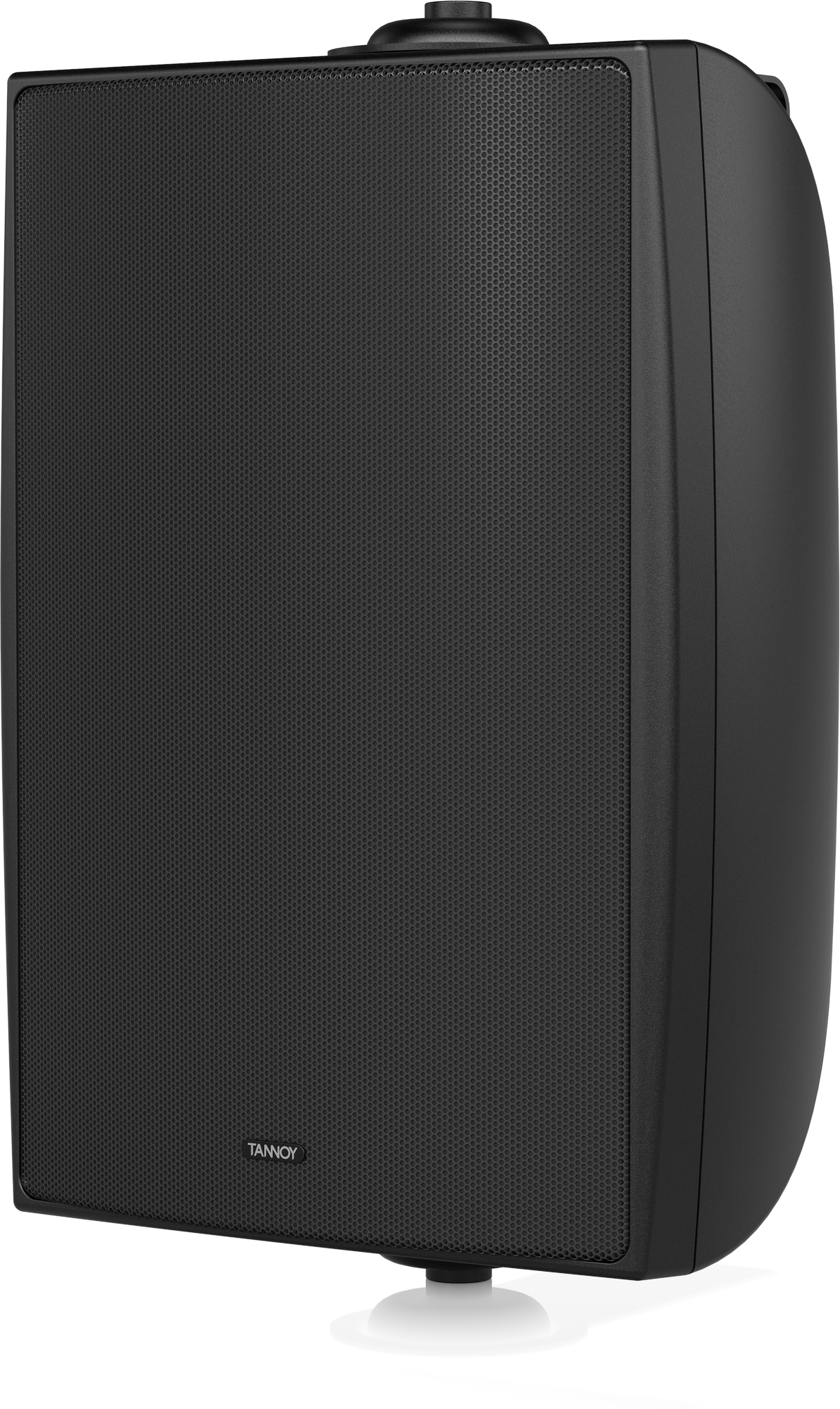

  • Painted perforated aluminium mesh grille with dust protection

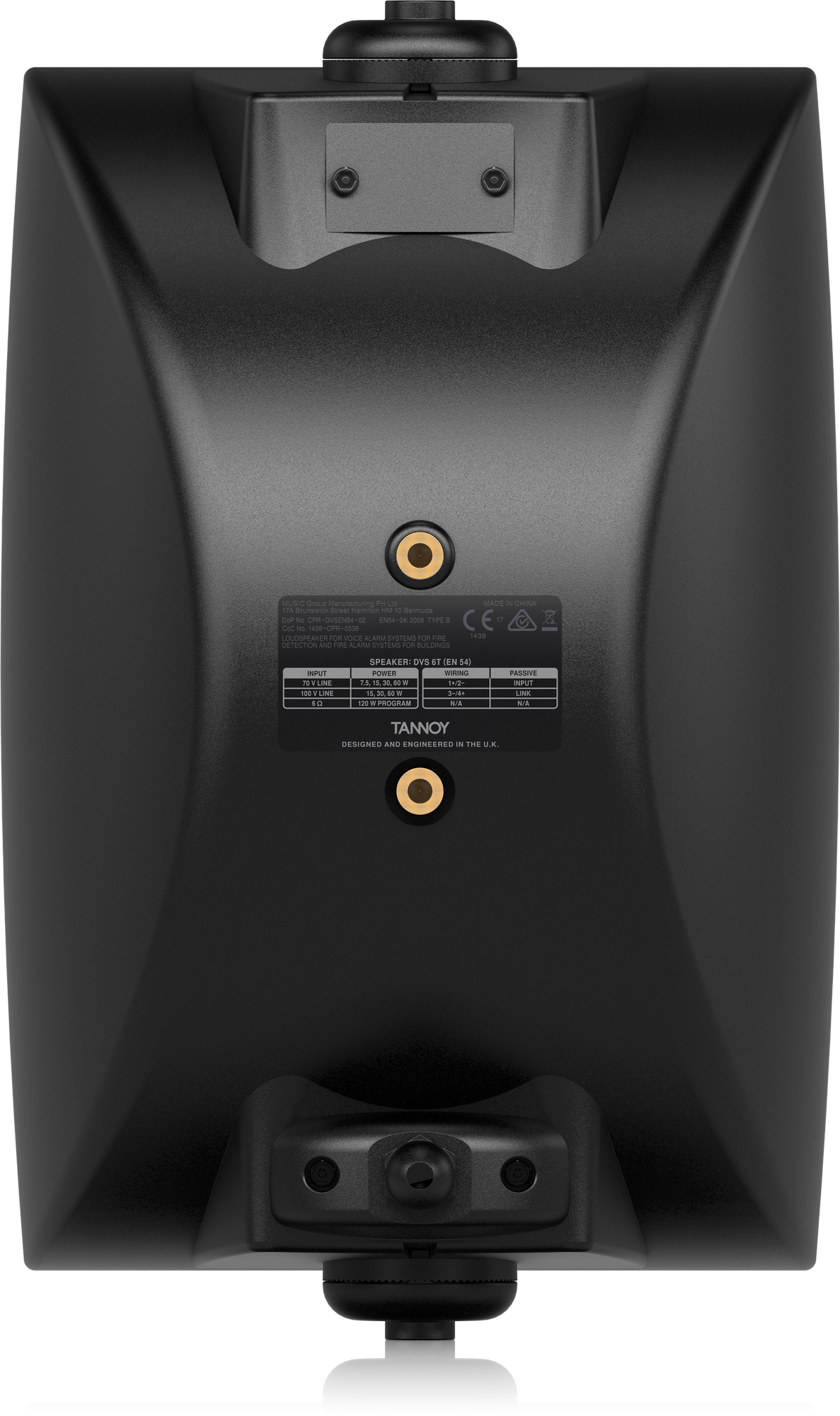

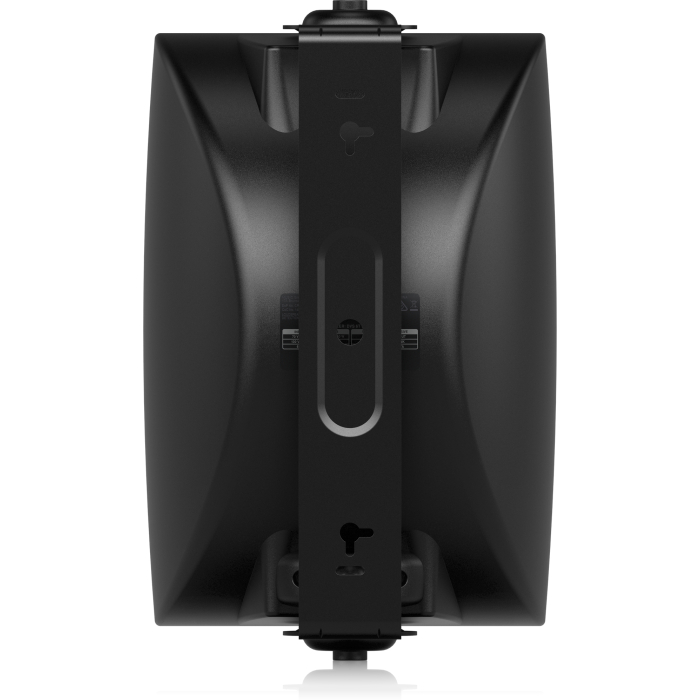

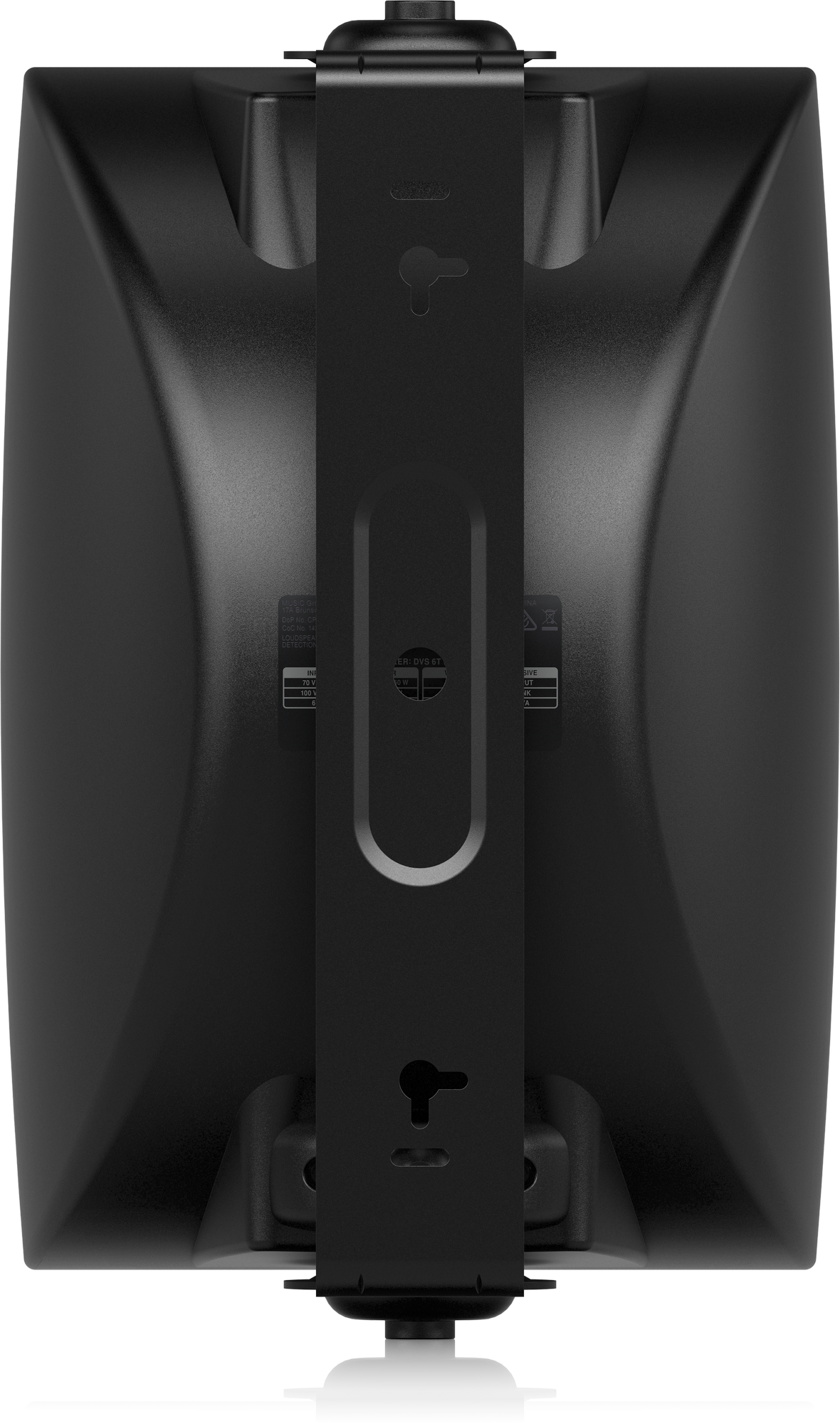

  • Yoke bracket included for ease of installation
  • Phoenix* connectors with ABS cover and EN 54 compliant strain relief clamping mechanism for fire rated cable

Specifications

Specification Details
Frequency response (-3 dB) 80 Hz – 20 kHz
Frequency response (-10 dB) 65 Hz – 30 kHz
Rated sensitivity (1 W, Lo Z) 88 dB
Sensitivity as per EN 54 75.7 dB
Directivity factor (Q) 10.6 averaged 1 kHz to 10 kHz
Directivity index (DI) 9.6 averaged 1 kHz to 10 kHz
Average Power Handling 60 W
Programme Power Handling 120 W
Peak Power Handling 240 W
Recommended amplifier power 120 W @ 6 Ω
Nominal Impedance (Lo Z) 6 Ω
Maximum SPL as per EN 54 92 dB
Rated Maximum SPL (1 m, Lo Z) Average 105 dB
Peak 111 dB
Transformer Taps (Via Front Rotary Switch)
70 V 60 W (70 Ω) / 30 W (165 Ω) / 15 W (280 Ω) / 7.5 W (580 Ω) / OFF & low impedance operation
100 V 60 W (165 Ω) / 30 W (280 Ω) / 15 W (580 Ω) / OFF & low impedance operation
Crossover point 4.3 kHz – 2nd order LF, 2nd order HF
Coverage Angles
500 Hz 360° horizontal, 288° vertical
1 kHz 167° horizontal, 141° vertical
2 kHz 99° horizontal, 109° vertical
4 kHz 74° horizontal, 74° vertical
Low frequency transducer 150 mm (6″) mineral loaded cone material
High frequency transducer 19 mm (0.75″) coaxially mounted
Enclosure material ABS
Grille material Aluminium, painted
Transformer setting Rotary switch
Connectors Removable locking connector with screw terminals with “loop through” facility
Dimensions 341 x 212 x 217 mm (13.4 x 8.4 x 8.5″)
Net weight 4.8 kg (10.6 lbs)
Shipped weight 5.7 kg (12.5 lbs)
Included accessories Yoke bracket
Packed quantity 2
