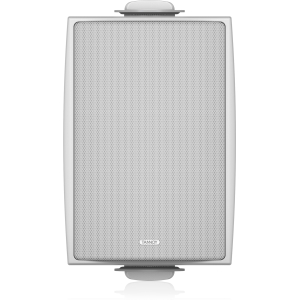

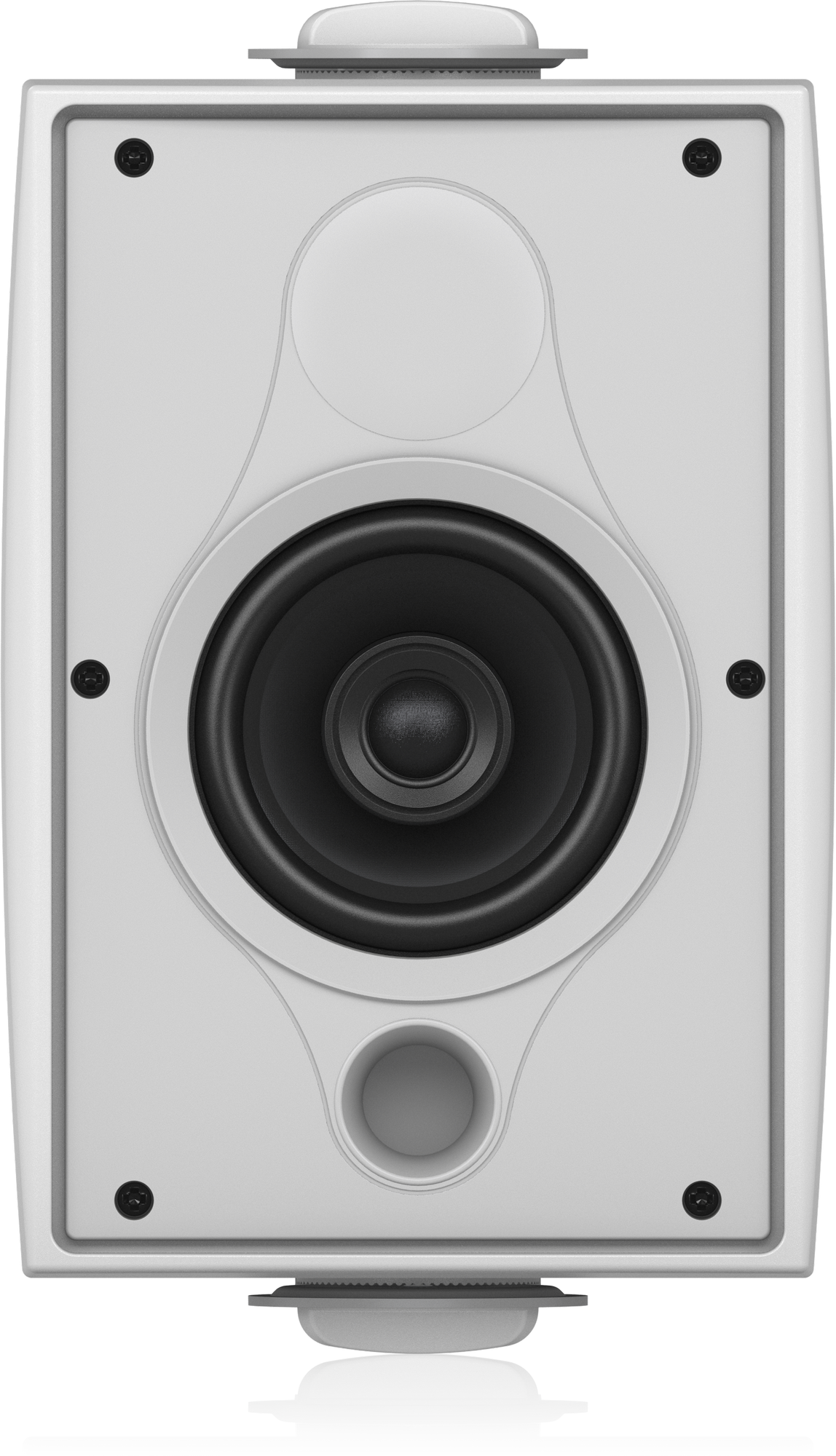

Tannoy DVS 4T-WH 4-Inch Coaxial Surface-Mount Loudspeaker 160W White

Tannoy

AED 666.75 inc VAT.

In stock
Enquiry On Whatsapp
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: DVS 4T-WH Categories: , Brand:

The DVS 4T-WH is a versatile 160-Watt surface mount loudspeaker tailored for diverse sound reinforcement uses, including music applications in theme parks, hotels, restaurants, bars, retail stores, corporate AV environments, residential areas, and houses of worship. This ultra-compact speaker excels in both stereo and mono configurations and boasts EN 54-24 certification, making it ideal for settings where fire safety is critical.

Description

DVS 4T-WH Surface Mount Loudspeaker

Designed to excel in a wide variety of sound reinforcement applications, the full range DVS 4T-WH is an ultra-compact 160-Watt surface mount loudspeaker that provides both exceptional value and inspiring acoustic performance. The DVS 4T-WH is ideally suited for stereo or mono background/foreground music applications in theme parks, hotels, restaurants and bars, retail stores, as well as corporate AV, residential developments, and houses of worship. EN 54-24 certification for fire detection and fire alarm systems makes the DVS 4T (EN 54)-WH the perfect choice where safety is a top priority.

Features

  • Full range surface-mount loudspeaker for indoor and outdoor installation applications
  • 40 Watts continuous, 160 Watts peak power

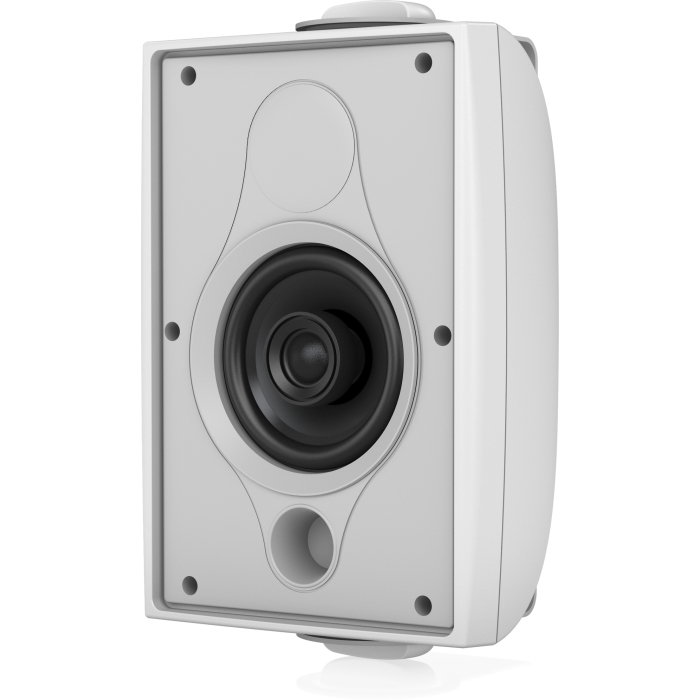

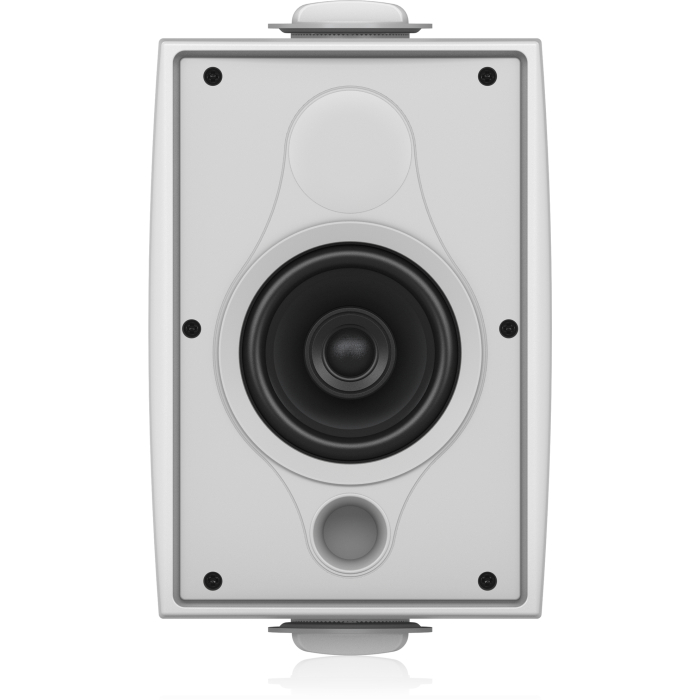

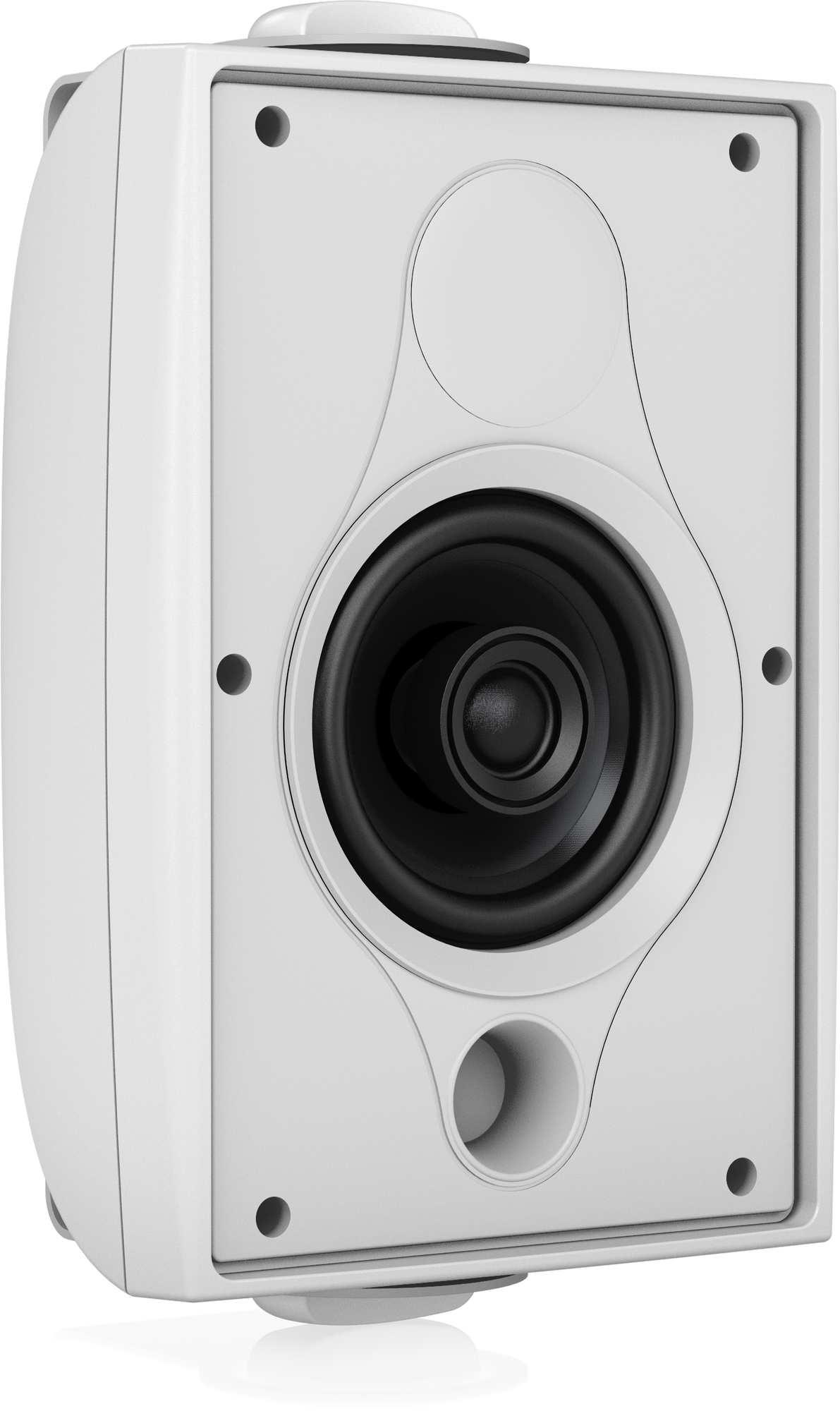

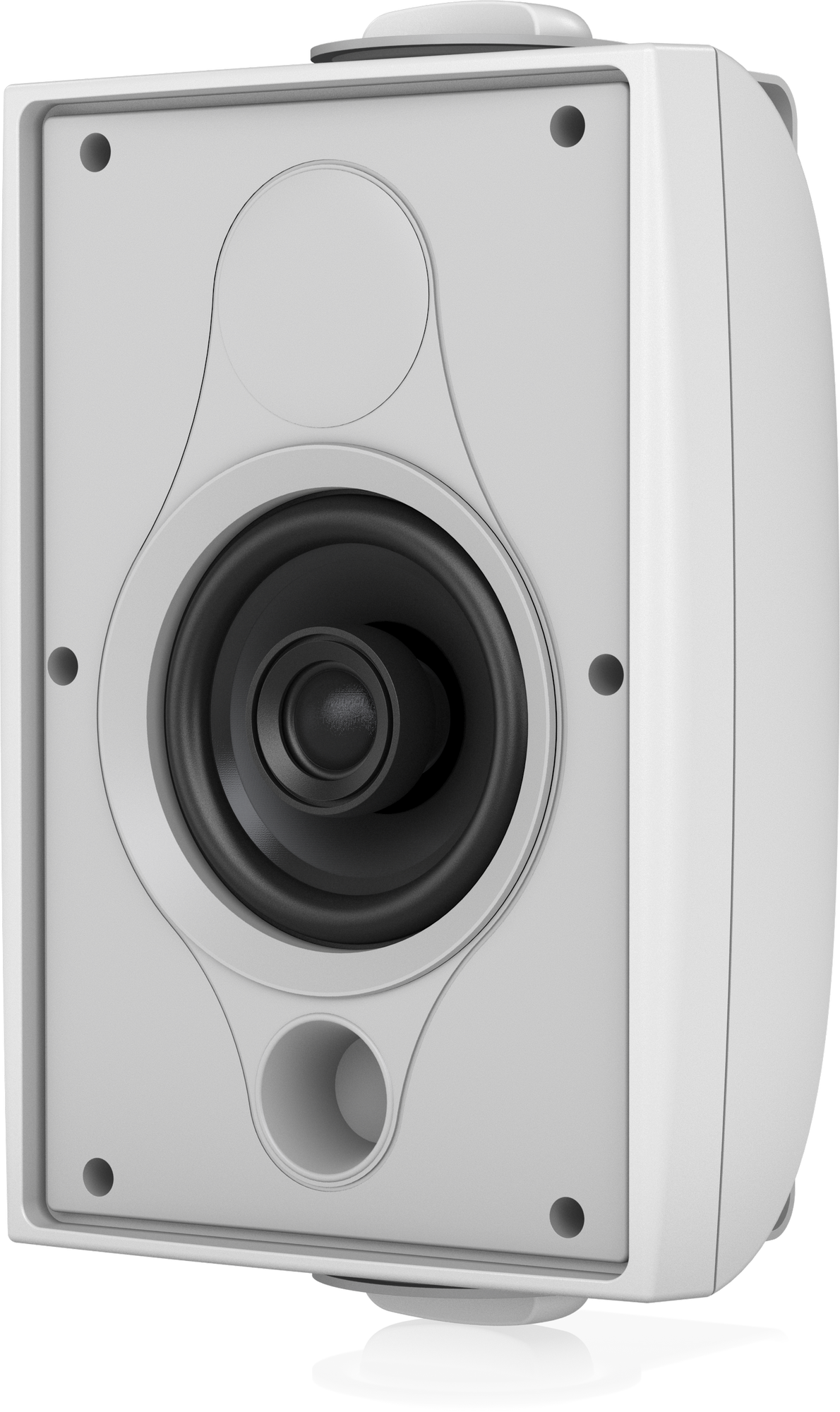

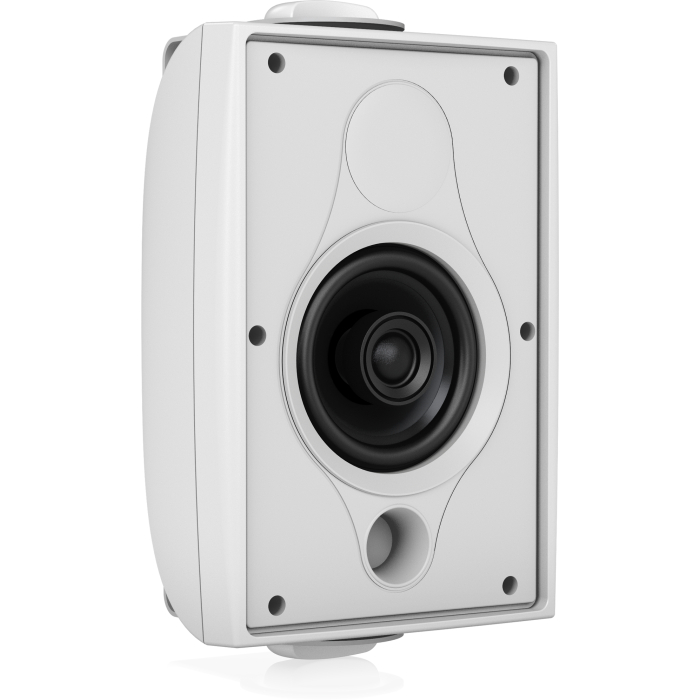

  • 4″ mineral loaded polypropylene driver with nitrile rubber surround for enhanced durability and long-term reliability
  • 0.75″ ferrofluid cooled soft dome neodymium high frequency driver
  • 110° constant directivity dispersion for optimum coverage
  • UL 1480 certified for general signalling systems
  • UV and weather-resistant UL 94 V-0 ABS enclosure
  • Multiple transformer taps for 70 V and 100 V line systems
  • Low insertion loss 30 W line transformer with easily accessible tapping switch
  • All components weather resistant to IP64 for outdoor use

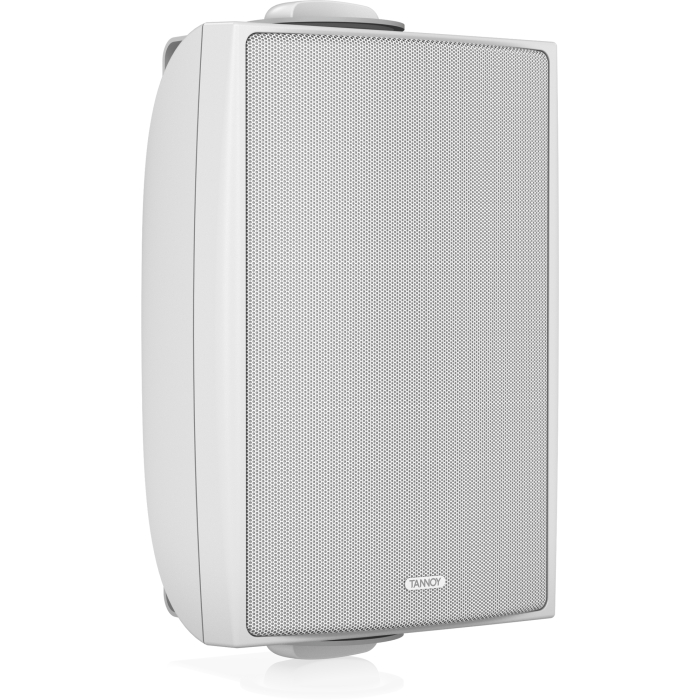

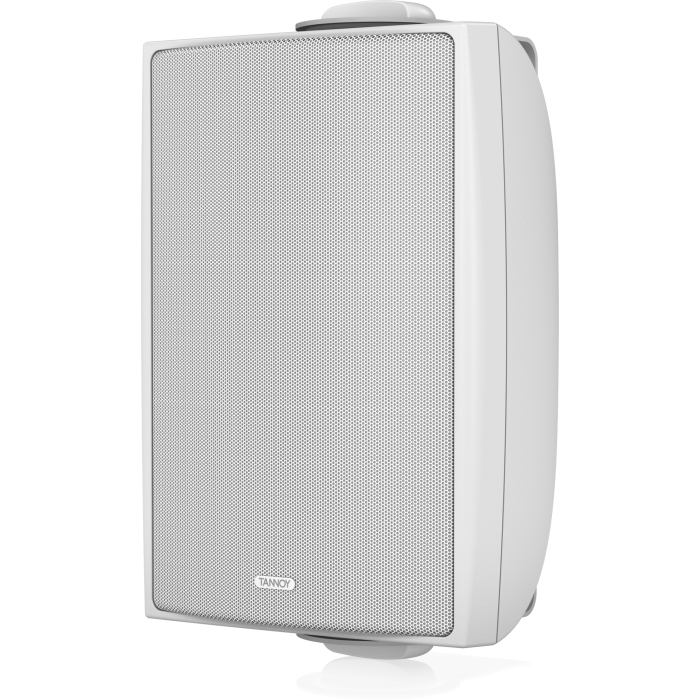

  • Stylish durable enclosure in a semi matt white paint finish fits unobtrusively in any environment

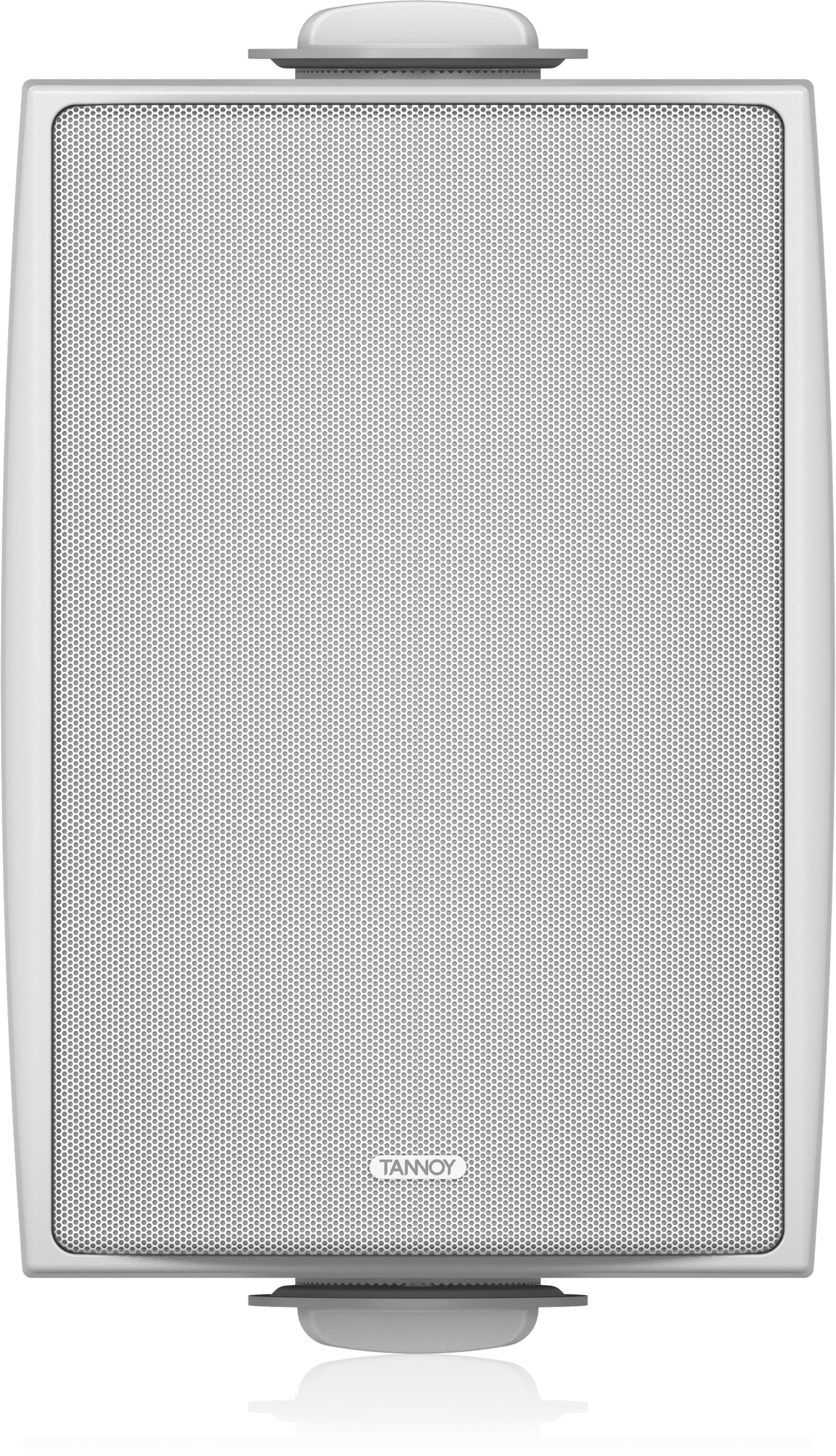

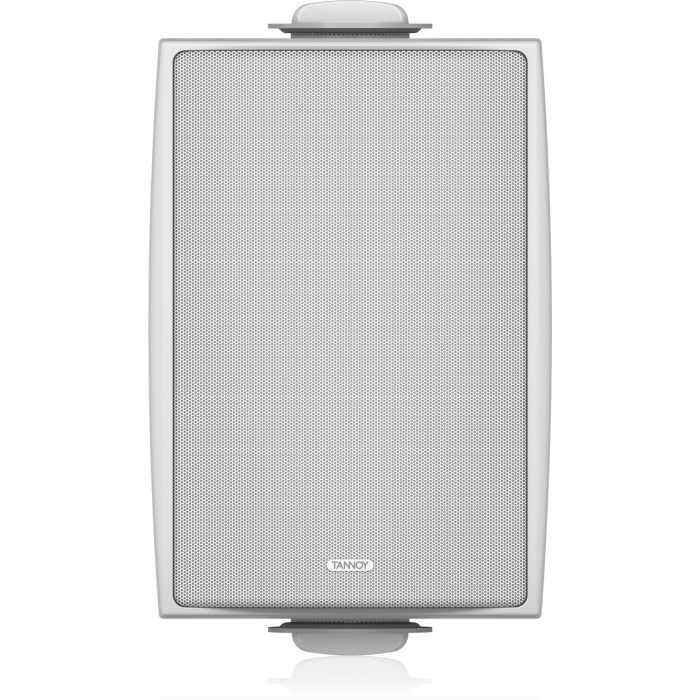

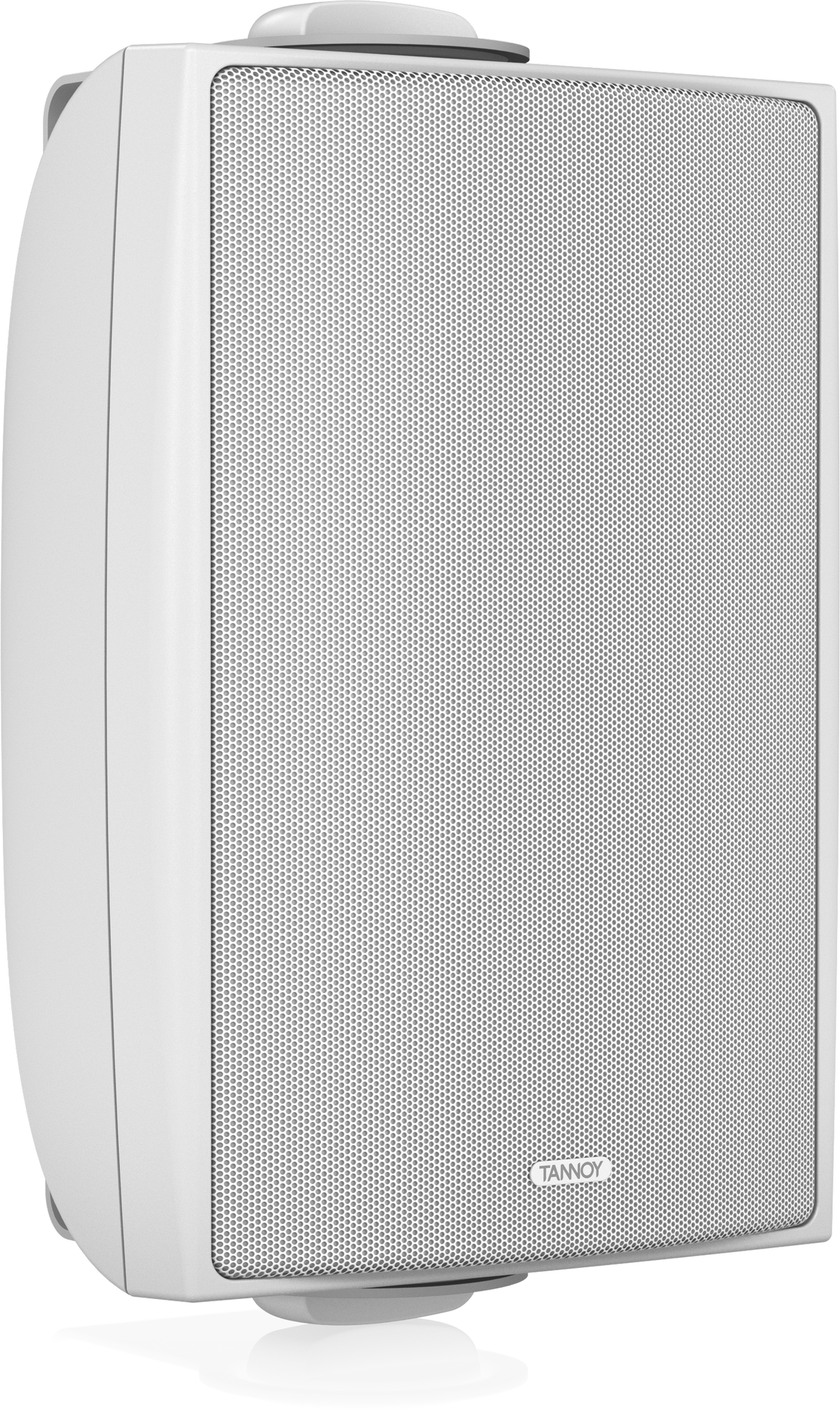

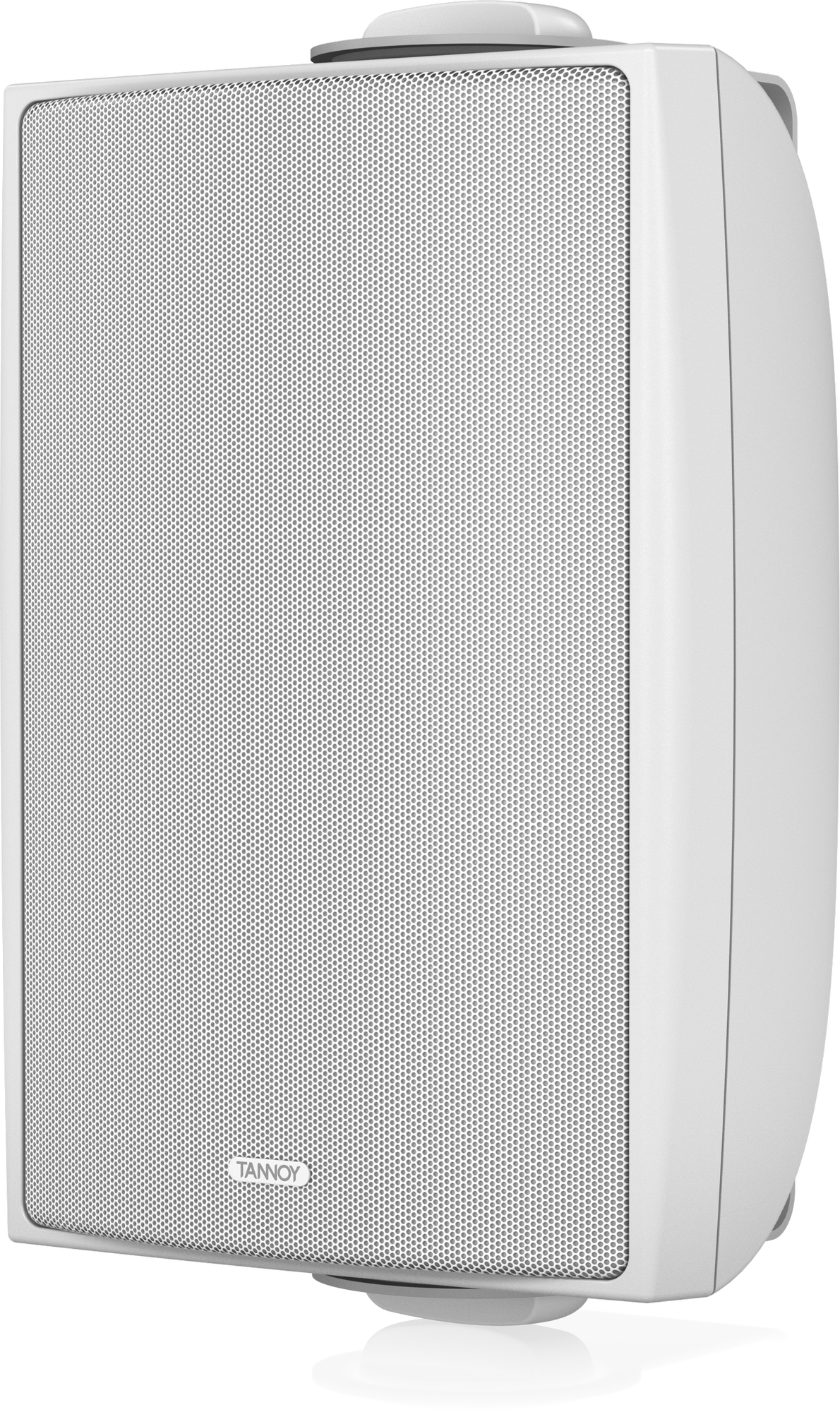

  • Painted perforated aluminium mesh grille with dust protection

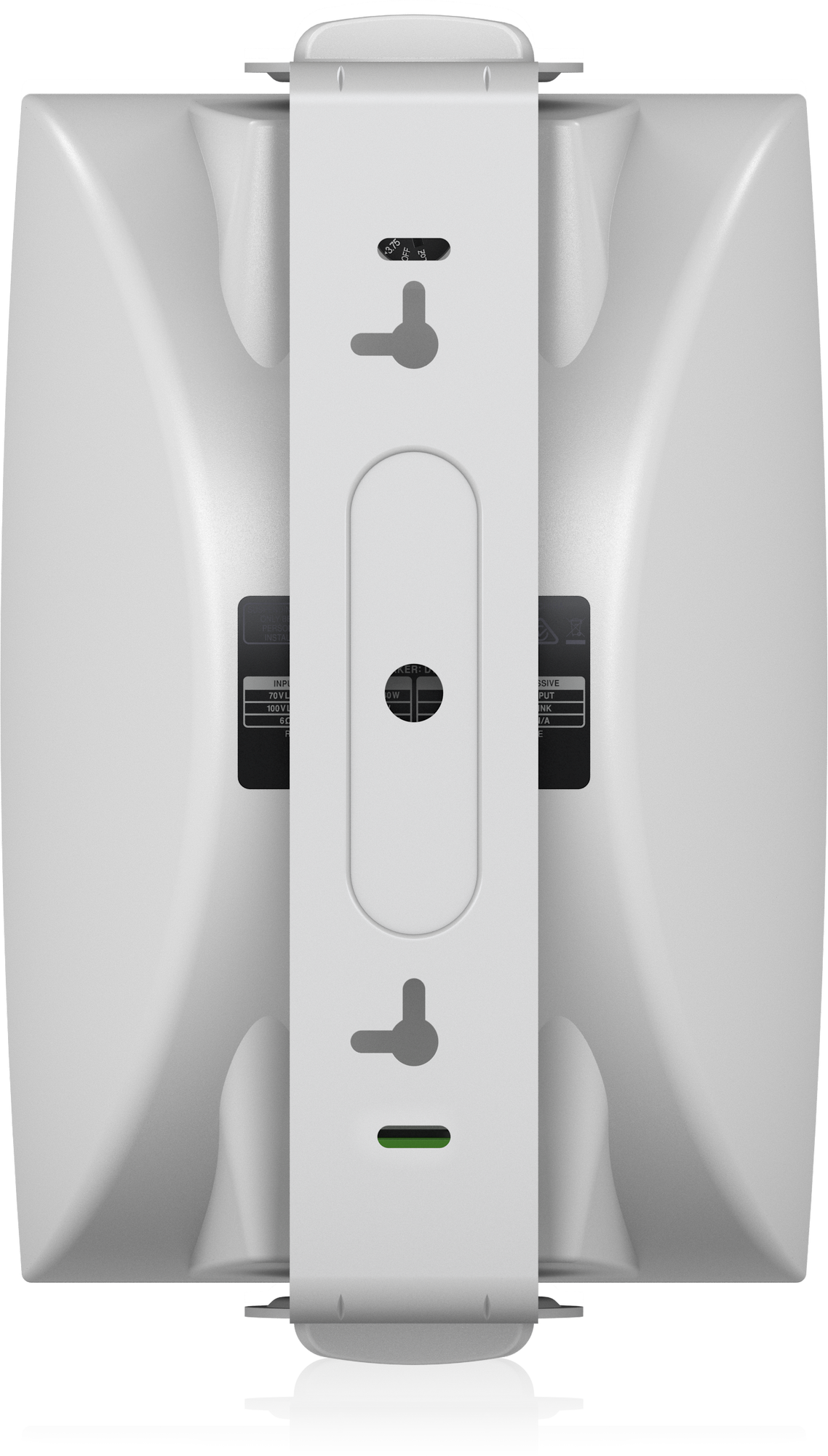

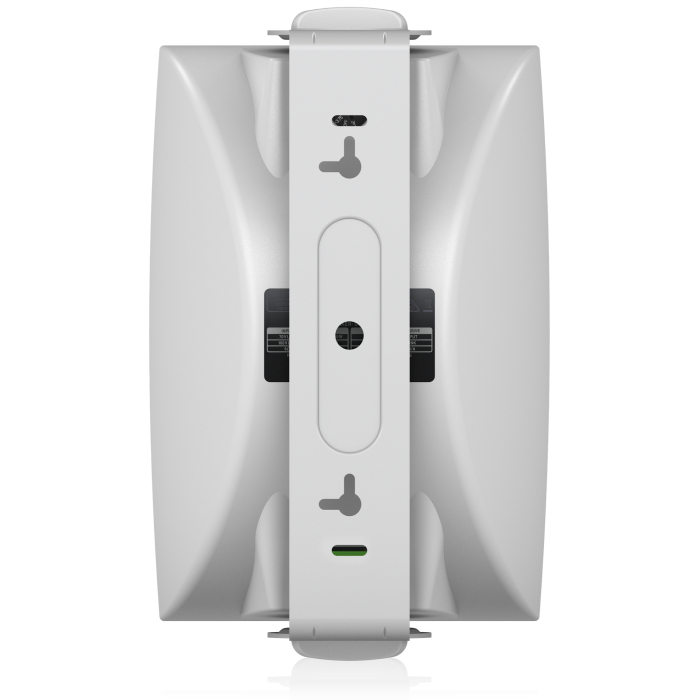

  • Yoke bracket included for ease of installation

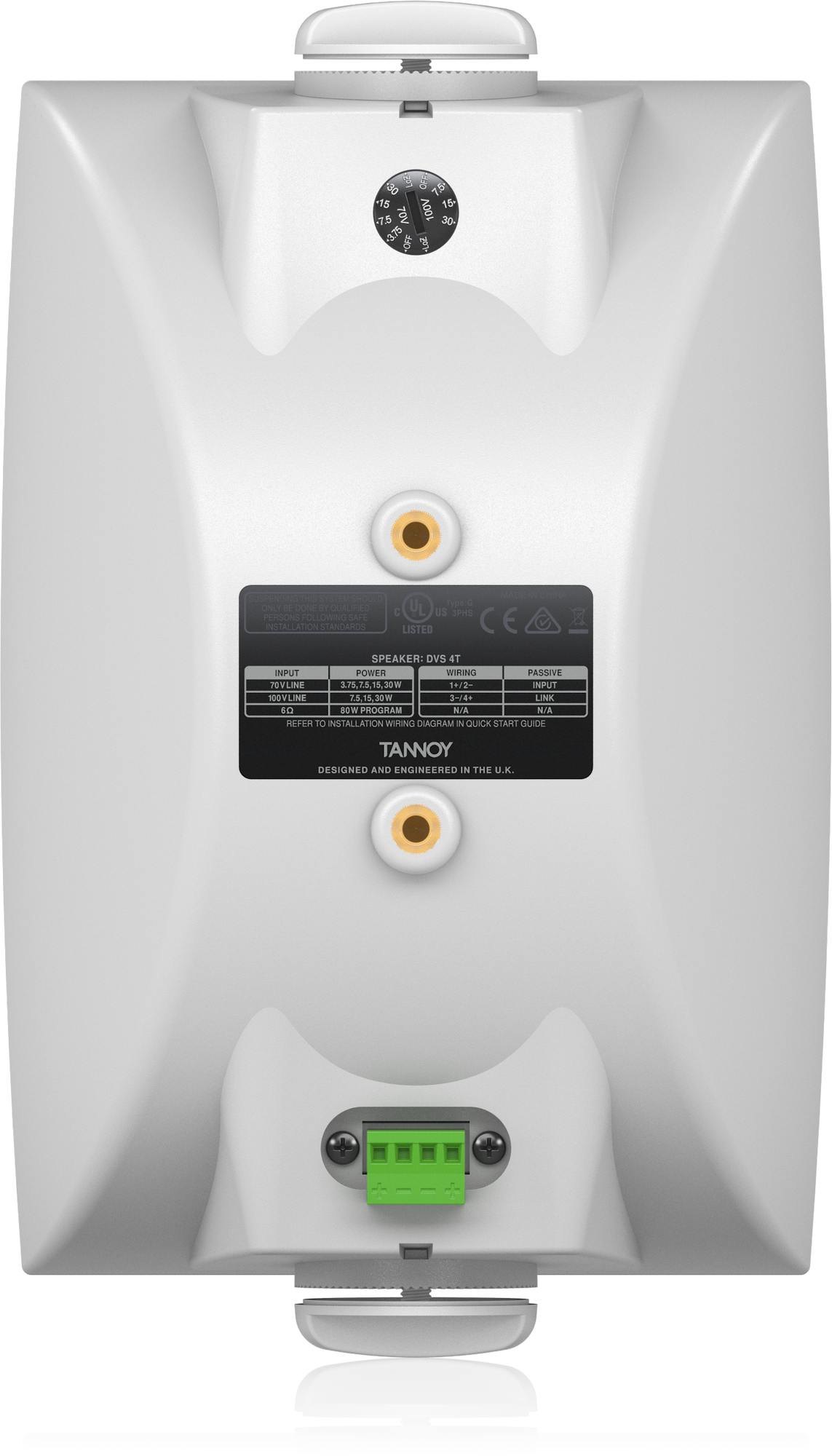

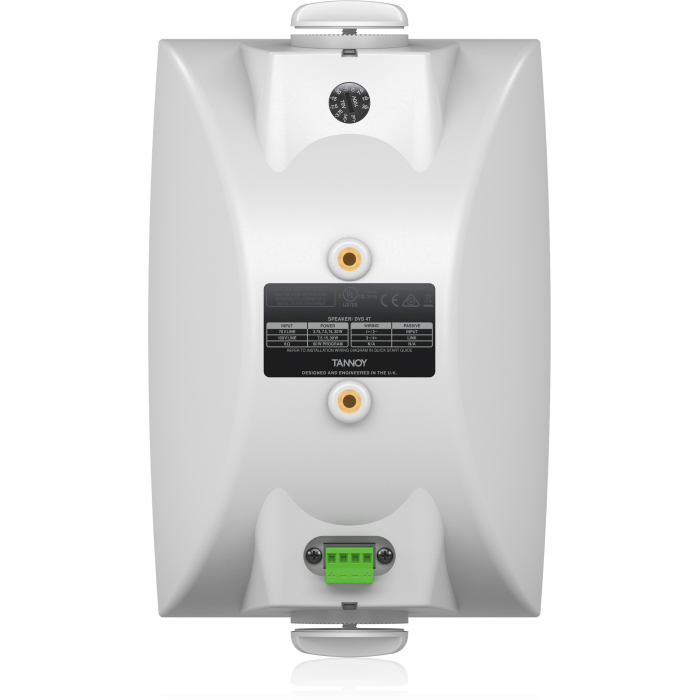

  • Phoenix connectors input and link output

Specifications

Specification Details
Frequency response (-3 dB) 75 Hz – 20 kHz
Frequency response (-10 dB) 60 Hz – 30 kHz
System sensitivity (1 W @ 1 m) 84 dB
Dispersion (-6 dB) 110 degrees conical
Transducers Coaxial
Low frequency 100 mm (4.00″) mineral loaded cone material
High frequency 20 mm (0.79″)
Crossover 3.9 kHz – 2nd order LF, 2nd order HF
Directivity (Q) 6.5 averaged 1 kHz to 10 kHz
Directivity (DI) 5.3 averaged 1 kHz to 10 kHz
Rated maximum SPL 100 dB (average) 106 dB (peak)

Power Handling

Specification Details
Average 40 W
Programme 80 W
Peak 160 W
Recommended amplifier power 80 W @ 6 Ohms
Nominal impedance 6 Ohms

Construction

Specification Details
Enclosure ABS
Grille Aluminium, painted
Connectors Euroblock type removable locking connector with screw terminals with “loop through” facility
Supplied accessories Yoke bracket
Packed quantity 2
Dimensions (H x W x D) 277.0 x 170.4 x 165.6 mm (10.91 x 6.71 x 6.52″)
