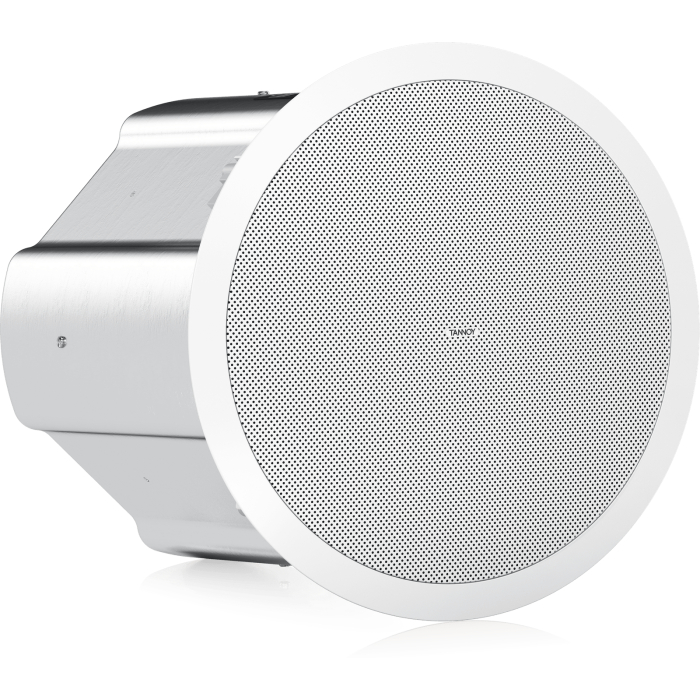

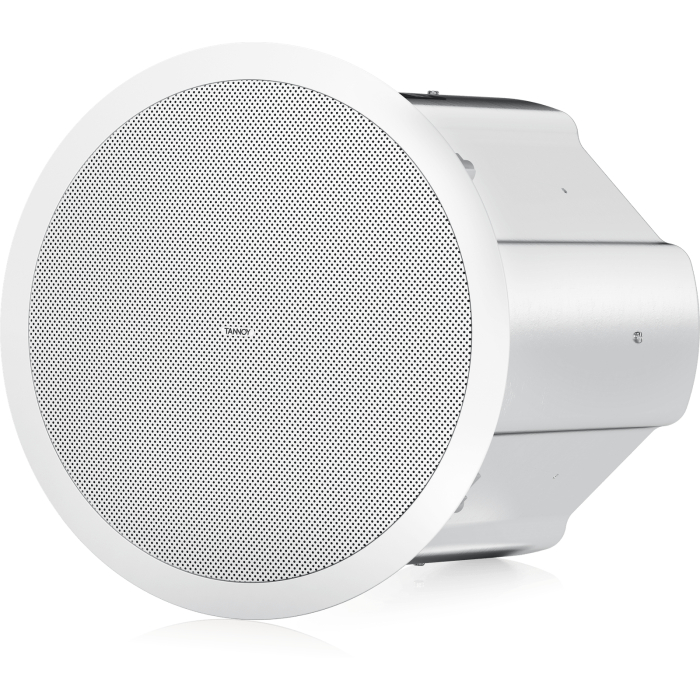

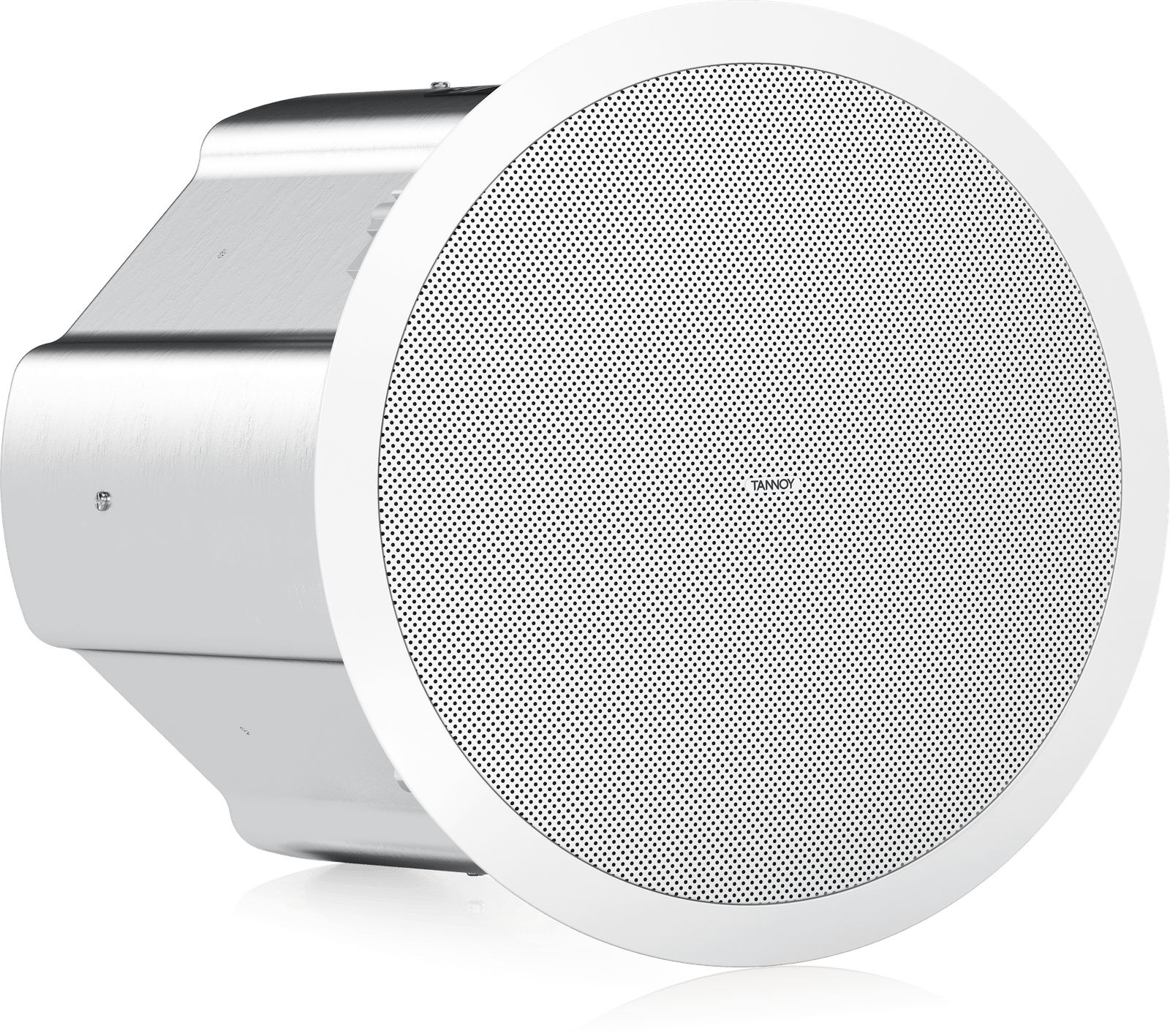

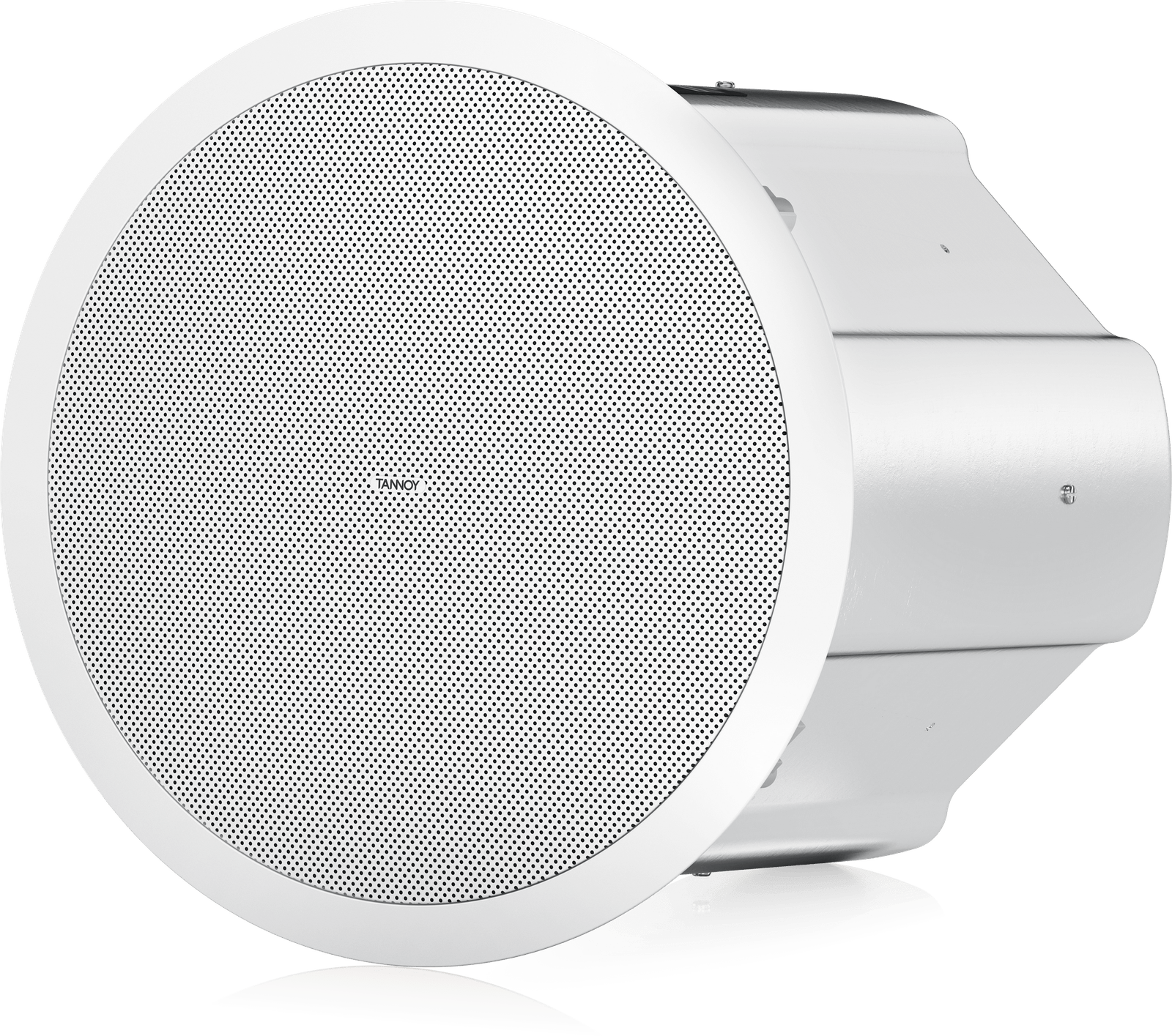

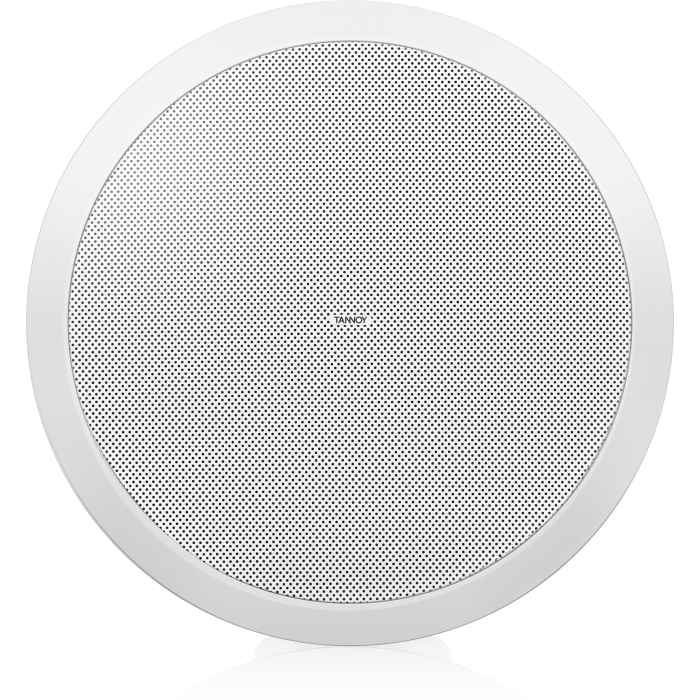

Tannoy CVS 801S LZ 8″ In-Ceiling Subwoofer Loudspeaker, Low Impedance

Tannoy

AED 1099.35 inc VAT.

The CVS 801S LZ is an 8 Ohm ceiling subwoofer designed to deliver exceptional audio in both background and foreground music systems, ideal for use in restaurants, hotels, houses of worship, and businesses. It features high power handling, extended bass output, and low distortion. The subwoofer is UL 1480 certified for fire-protected signaling and UL 2043 certified for air-handling spaces, ensuring it meets key safety standards.

In stock
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: CVS 801S LZ Categories: , Brand:

Description

CVS 801S LZ Ceiling Subwoofer

The CVS 801S LZ is a low impedance (8 Ohms) ceiling subwoofer engineered to provide superb audio performance in both background and foreground music sound systems. Ideally suited for a wide variety of applications, from restaurants and hotels to houses of worship and businesses of all types, the CVS 801S LZ offers the power handling, extended bass output and low distortion typically found in more expensive products. UL 1480 certification for fire-protected signalling systems and UL 2043 for air-handling spaces make the CVS 801S LZ the perfect choice where safety is a top priority.

Key Features

  • 100 Watts continuous, 400 Watts peak power
  • 8″ polypropylene long-excursion driver with butyl rubber surround
  • Extended deep bass output
  • UL 1480 certified for fire-protected signalling systems
  • UL 2043 certified for air-handling spaces
  • UV and weather resistant UL 94 V-0 ABS front with plated steel fire can enclosure

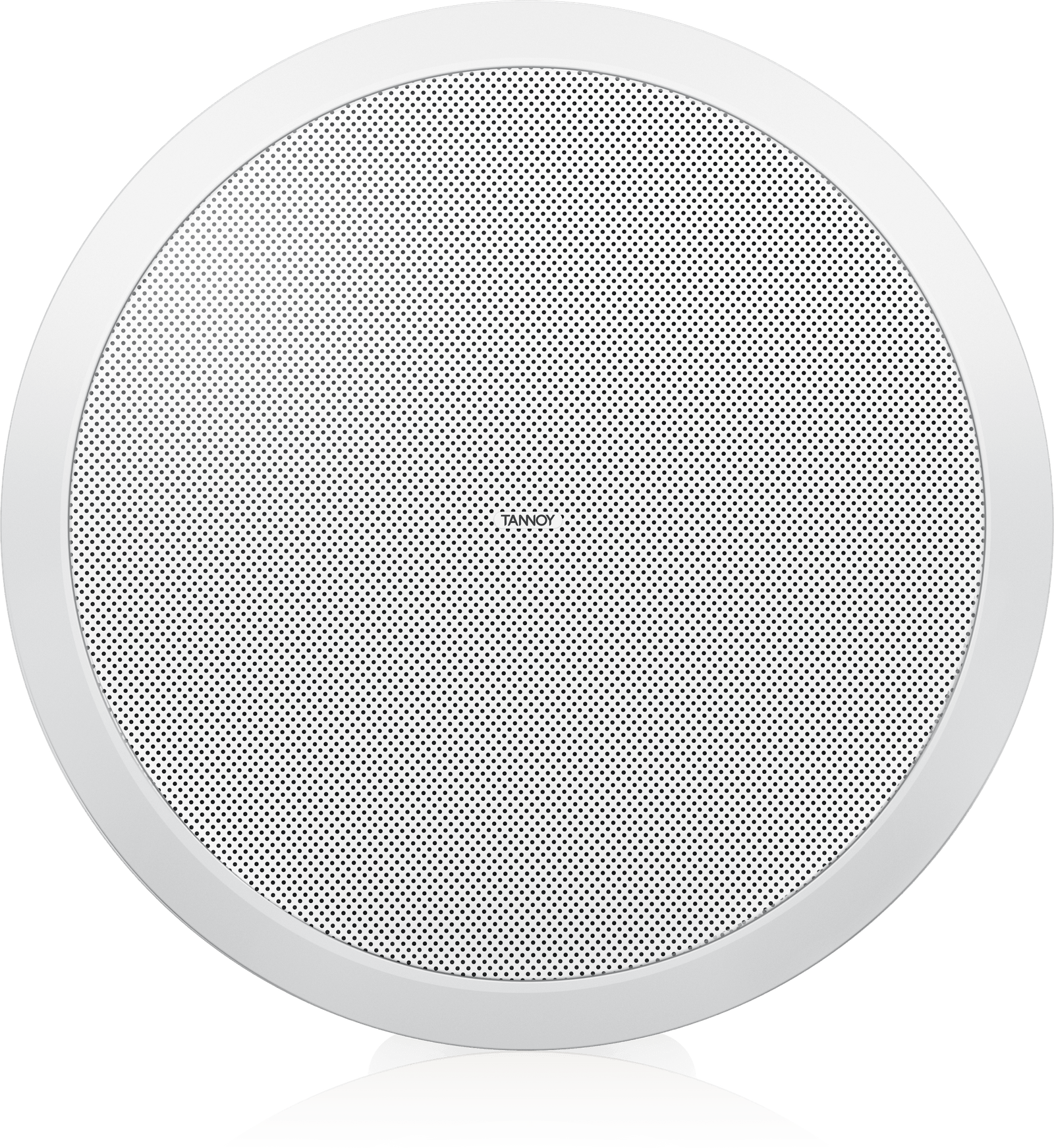

  • Powder coated aluminium mesh grille with dust protection
  • Acoustic low-pass baffle design allows use without crossover
  • Semi matt white finish fits unobtrusively in any environment

Specifications

Specification Details
Frequency Response (+3dB, -3 dB) 66 Hz-200 Hz
Frequency Response (-10 dB) 53 Hz-200 Hz
Sensitivity at 1m/1W 92 dB
Power Handling (LoZ) 100 W Average, 200 W Programme, 400 W Peak
Recommended Amplifier Power 200 W @ 8 Ω
Nominal Impedance 8 Ω
Rated Maximum SPL 115 dB
Average SPL 112 dB
Peak SPL 118 dB
Low Frequency Transducer 200 mm (8″) Paper cone
Enclosure Blind mount (BM), Anodized steel

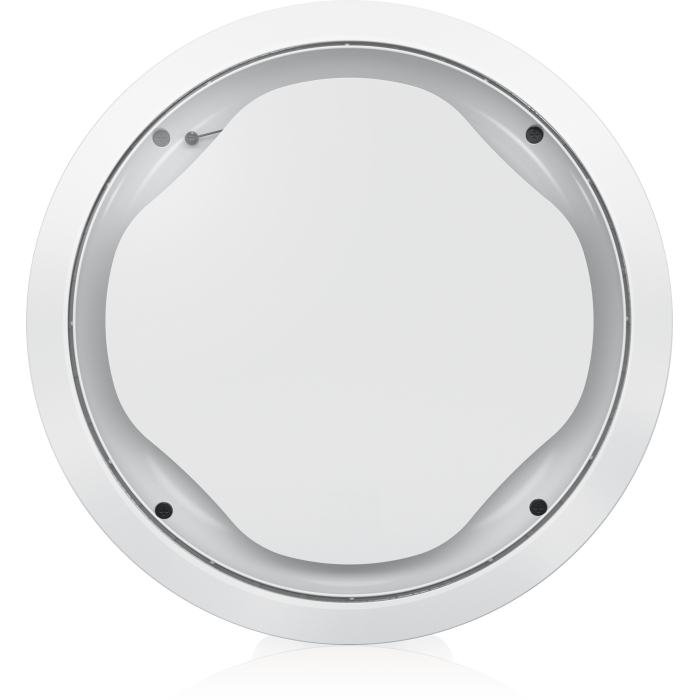

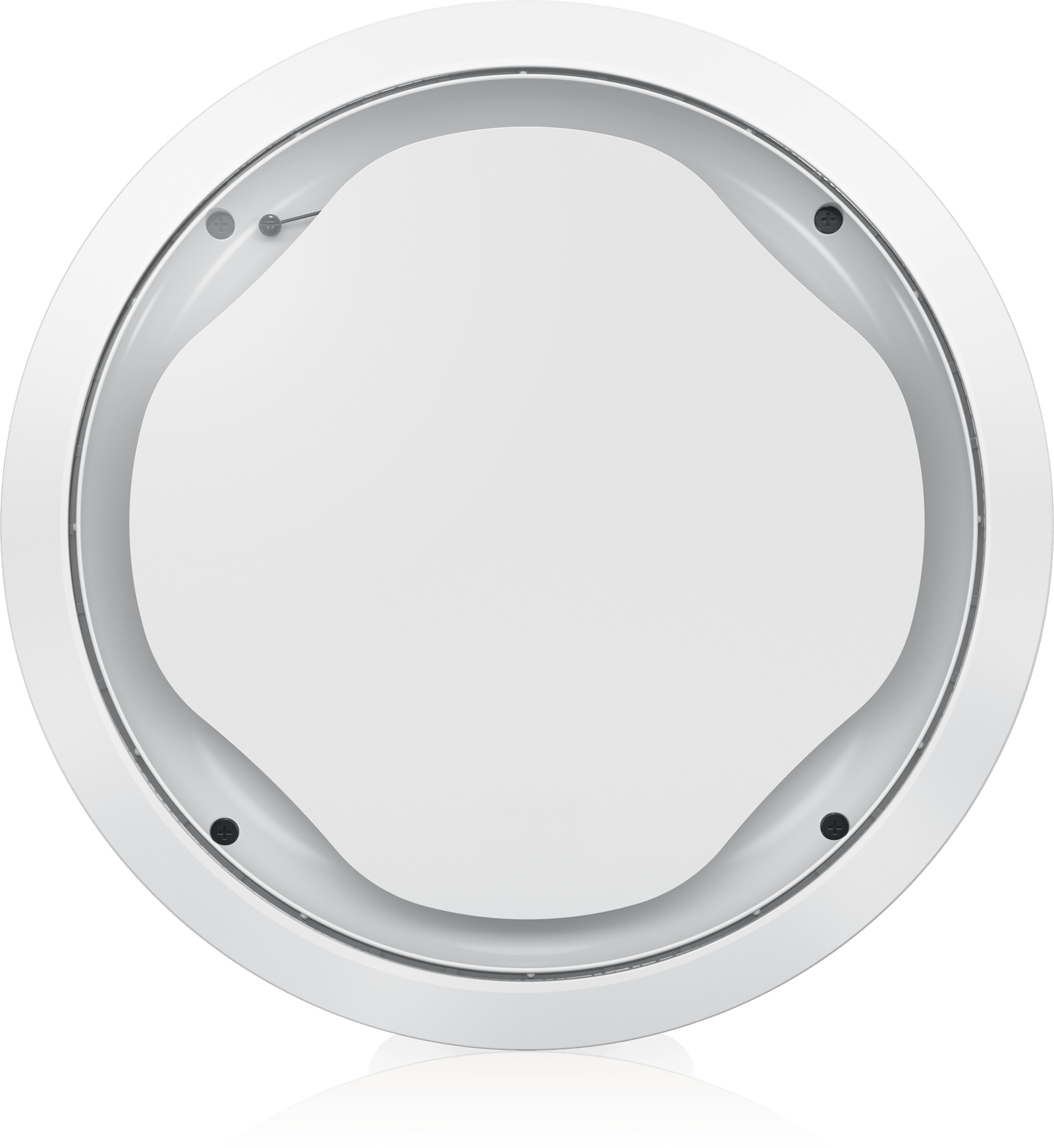

Baffle Reflex loaded UL 94V-0 rated ABS
Grille Aluminum, powder coated

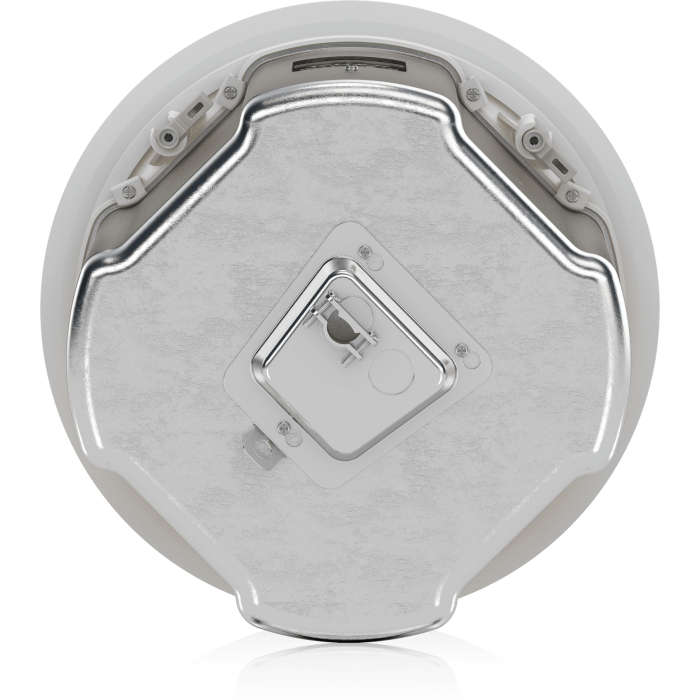

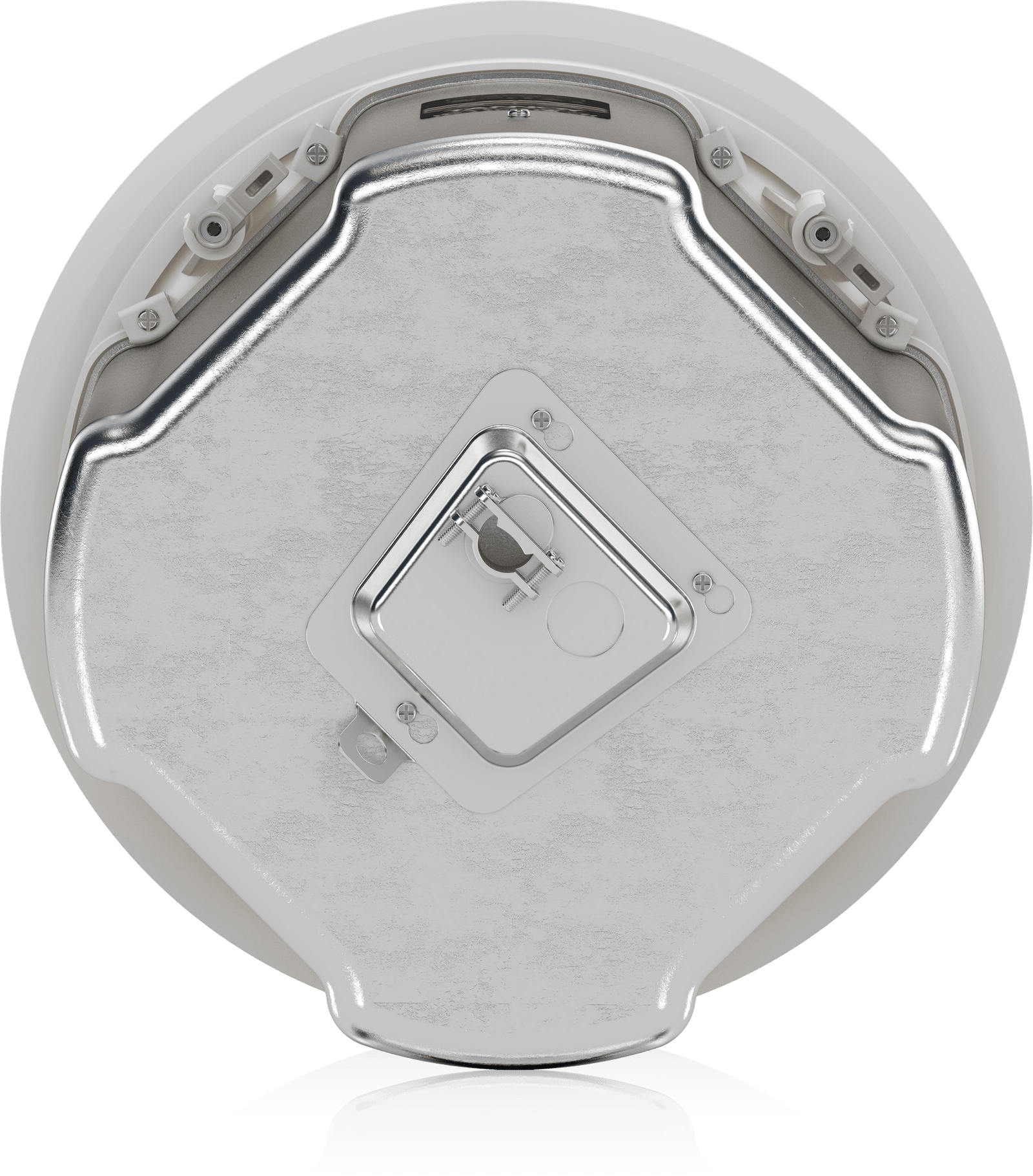

Safety Features Rear enclosure safety ring for load-bearing bond
Clamping Design Security toggle clamp
Connectors Euroblock-style connector with screw terminals
Bezel Diameter 305 mm (12″)
Rear Baffle to Rear Can 292.50 mm (11.52″)
Hole Cutout Diameter 273 mm (10.75″)
Net Weight 7 kg (15.4 lbs) ±10%
Included Accessories Metal grille, cable gland, flex conduit, C-ring, tile-bridge kit, paint mask, cutout template
Optional Accessories Mud ring, 48″ Tile rail
