Tannoy CVS 801 8-Inch Coaxial In-Ceiling Speaker 90W White

Tannoy

AED 642.60 inc VAT.

متوفر في المخزن
Enquiry On Whatsapp
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: CVS 801 Categories: , Brand:

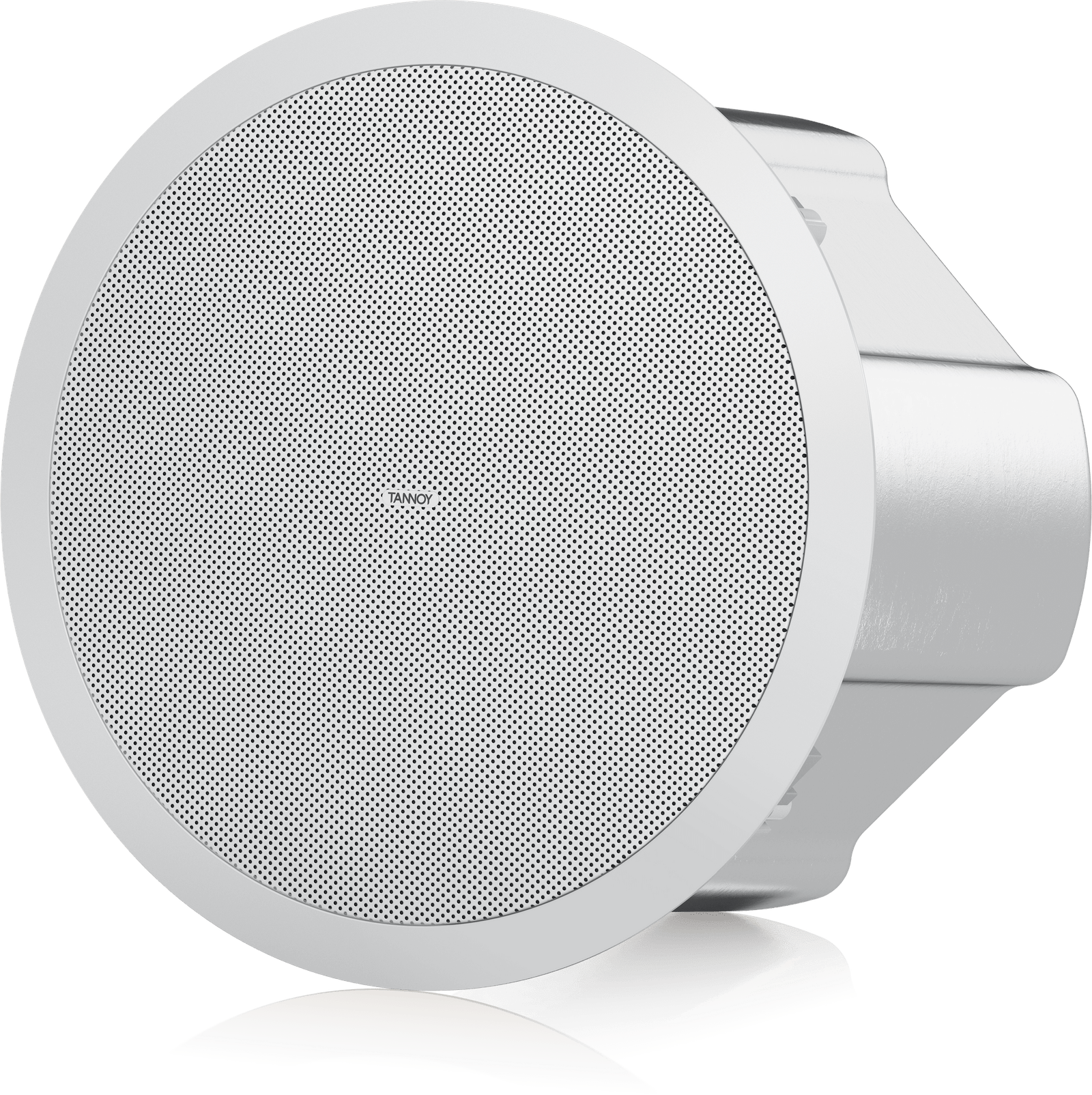

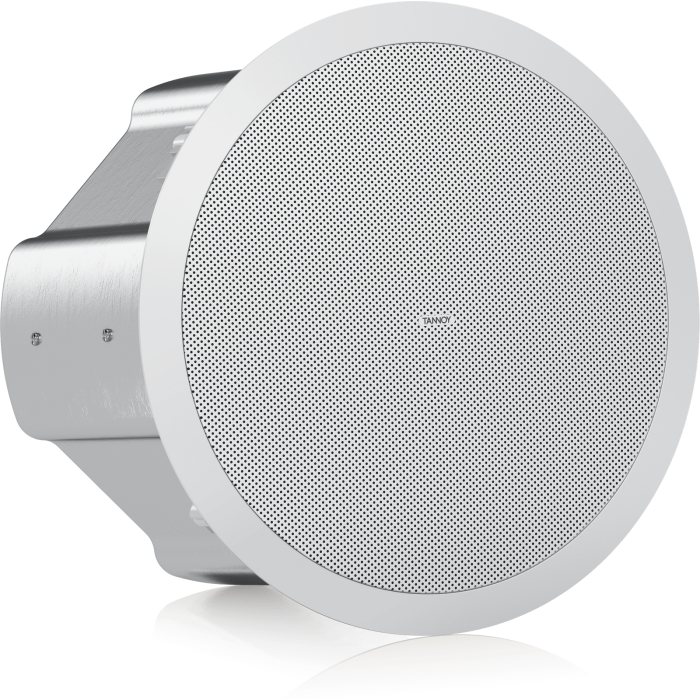

The CVS 801 is a coaxial ceiling loudspeaker designed to deliver excellent audio quality for both background and foreground music systems. Suitable for diverse settings such as restaurants, hotels, houses of worship, and businesses, it features robust power handling, a wide frequency response, and low distortion. Certified to EN 54-24 for fire alarm systems, UL 1480 for fire-protected signaling systems, and UL 2043 for air-handling spaces, the CVS 801 ensures safety and reliability.

Description

The CVS 801 is a coaxial ceiling loudspeaker engineered to provide superb audio performance in both background and foreground music sound systems. Ideally suited for a wide variety of applications, from restaurants and hotels to houses of worship and businesses of all types, the CVS 801 offers the power handling, wide frequency response and low distortion typically found in more expensive products. EN 54-24 certification for fire detection and fire alarm systems makes the CVS 801 the perfect choice where safety is a top priority. The loudspeaker is also UL 1480 certified for fire-protected signalling systems and UL 2043 certified for air-handling spaces.

Key Features

  • Coaxial full range ceiling loudspeaker for installation applications
  • 90 Watts continuous, 360 Watts peak power

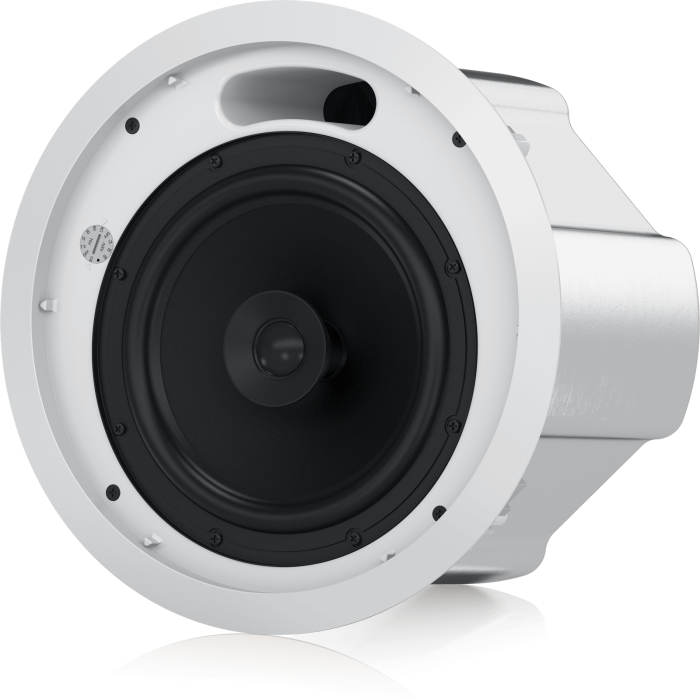

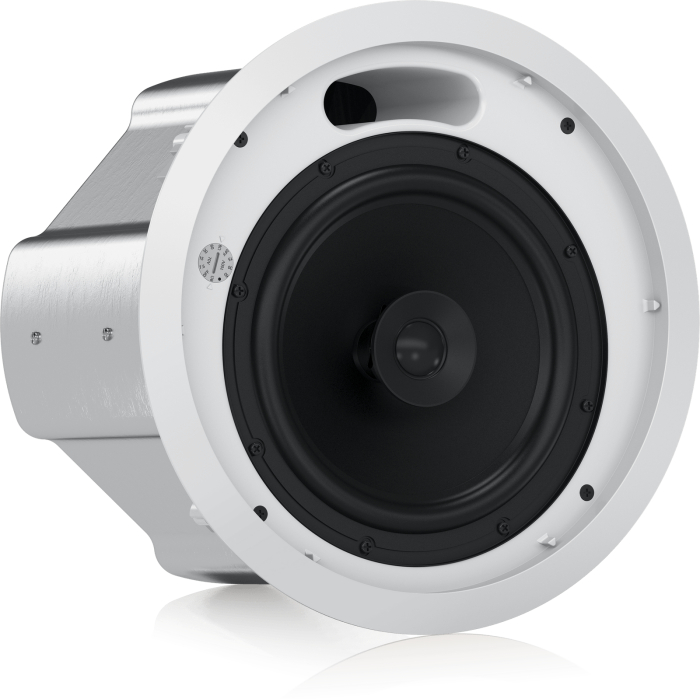

  • 8″ polypropylene driver with butyl rubber surround for enhanced durability and long-term reliability
  • 1″ ferrofluid cooled soft dome high frequency driver
  • Wide constant directivity dispersion for optimum coverage
  • EN54-24:2008 certified Type A
  • UL 1480 certified for fire-protected signalling systems
  • UL 2043 certified for air-handling spaces
  • UV and weather resistant UL 94-V0 and 94-5VB ABS front with plated steel fire can enclosure

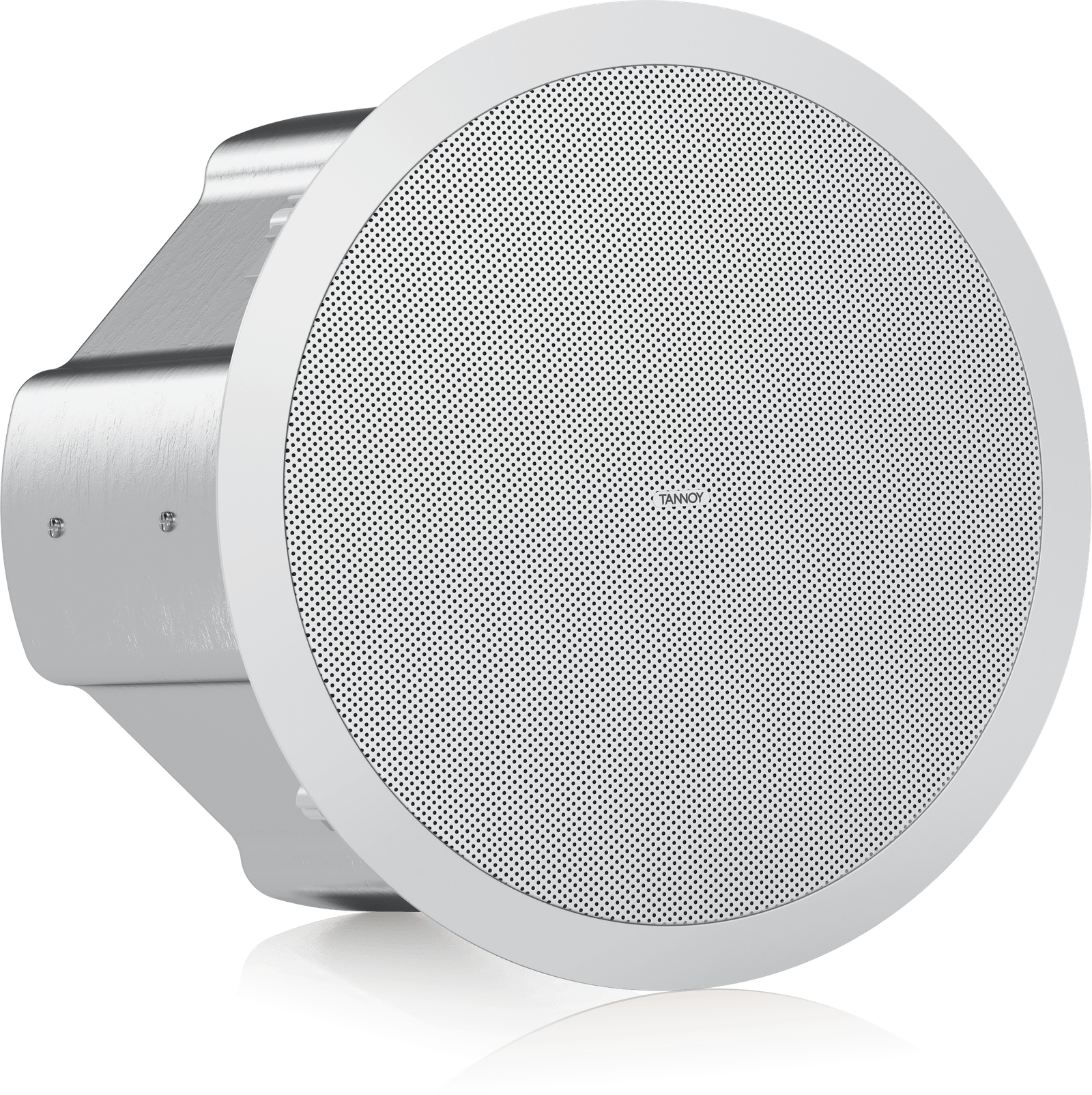

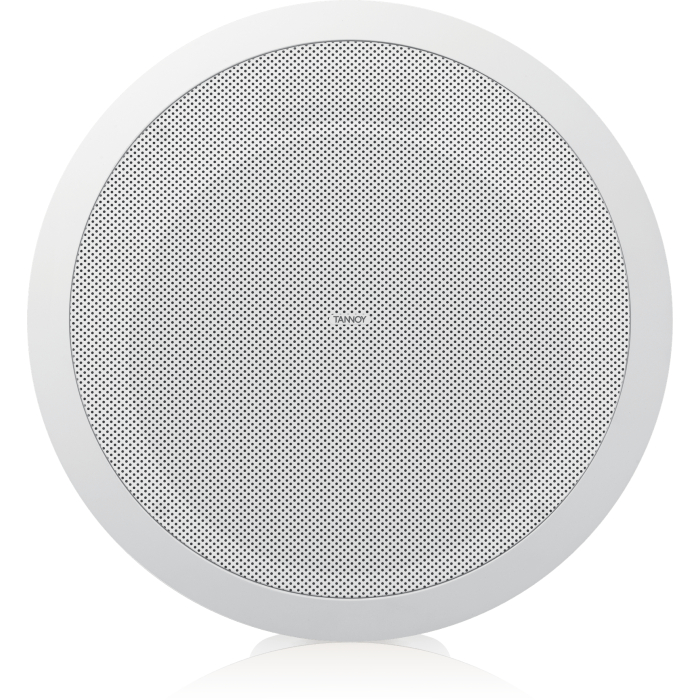

  • Powder coated aluminium mesh grille with dust protection
  • Multiple transformer taps for 70 V and 100 V line systems or 8 Ohm direct input
  • Low insertion loss 60 W line transformer with easily accessible tapping switch
  • Semi matt white finish fits unobtrusively in any environment
  • Mounting C-ring and ceiling tile rails included
  • Steel cover and strain relief clamping mechanism for fire rated cable

Specifications

Specification Details
Color White
Frequency response (+3dB, -3 dB) 88 Hz-20 kHz
Frequency response (-10 dB) 65 Hz-20 kHz
Sensitivity at 1m/1W 91 dB
Nominal coverage angle 100 Degree
Directivity factor (Q) 10.2 (averaged 1 kHz to 6 kHz)
Directivity index (DI) 10.1 (averaged 1 kHz to 6 kHz)
Power handling (LoZ) Average: 90 W
Programme: 180 W
Peak: 360 W
Recommended amplifier power: 180 W @ 8 Ohm
Nominal Impedance (Switch to LoZ): 8 Ohm
Rated maximum SPL (1 m, Switch to LoZ): 113 dB
Average: 110 dB
Peak: SPL 116 dB
Transformer taps 70 V: 60 W/ 30 W/ 15 W/ 7.5 W
100 V: 60 W/ 30 W/ 15 W

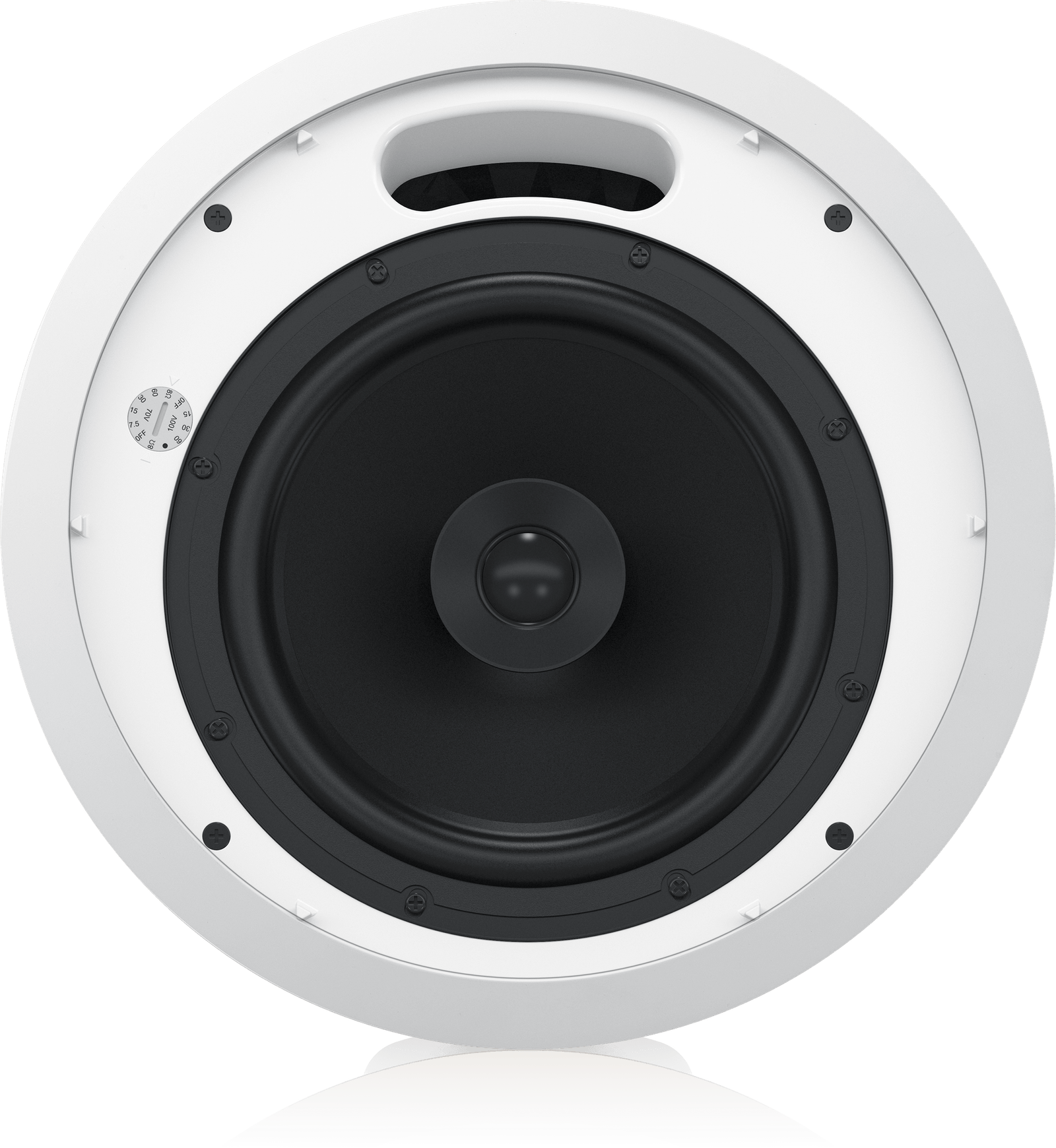

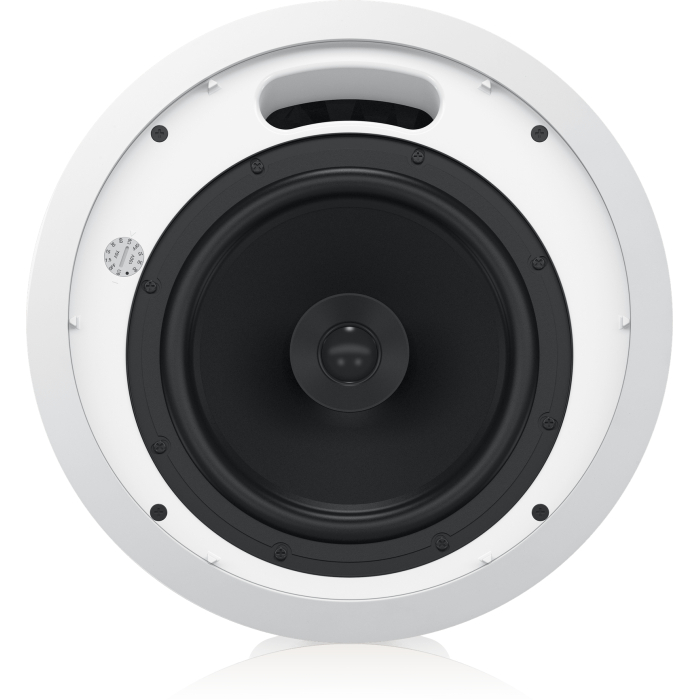

Transducers Low frequency: 8″ (200mm) PP cone
High frequency: 1″ (25mm) coaxially mounted
Enclosure Blind mount (BM)

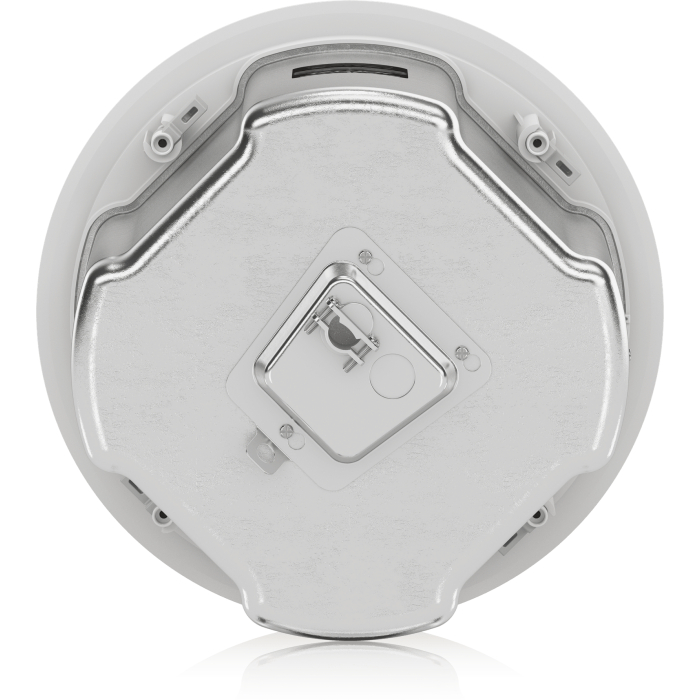

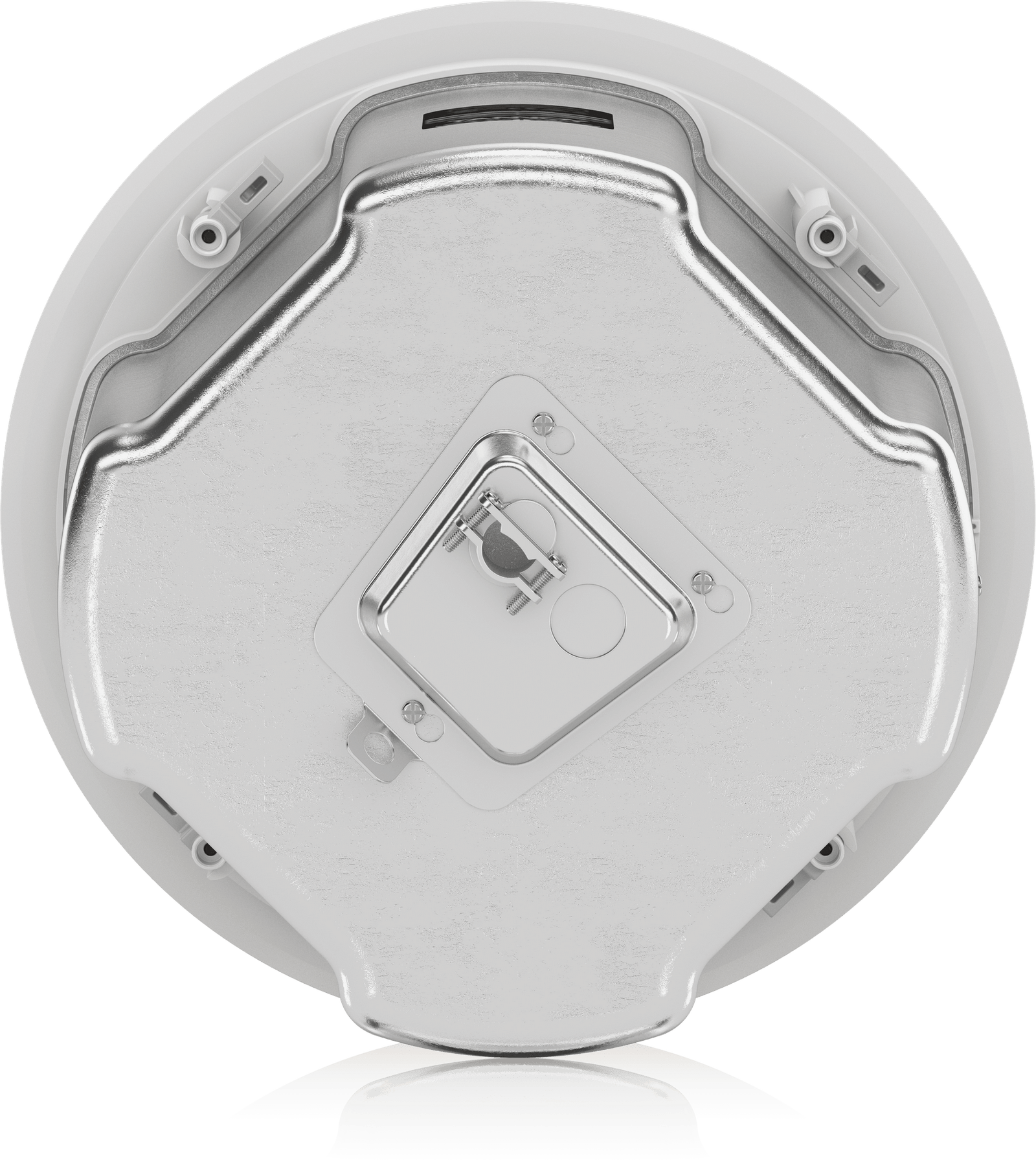

Back can Anodized steel
Baffle Reflex loaded UL 94V-0 rated ABS

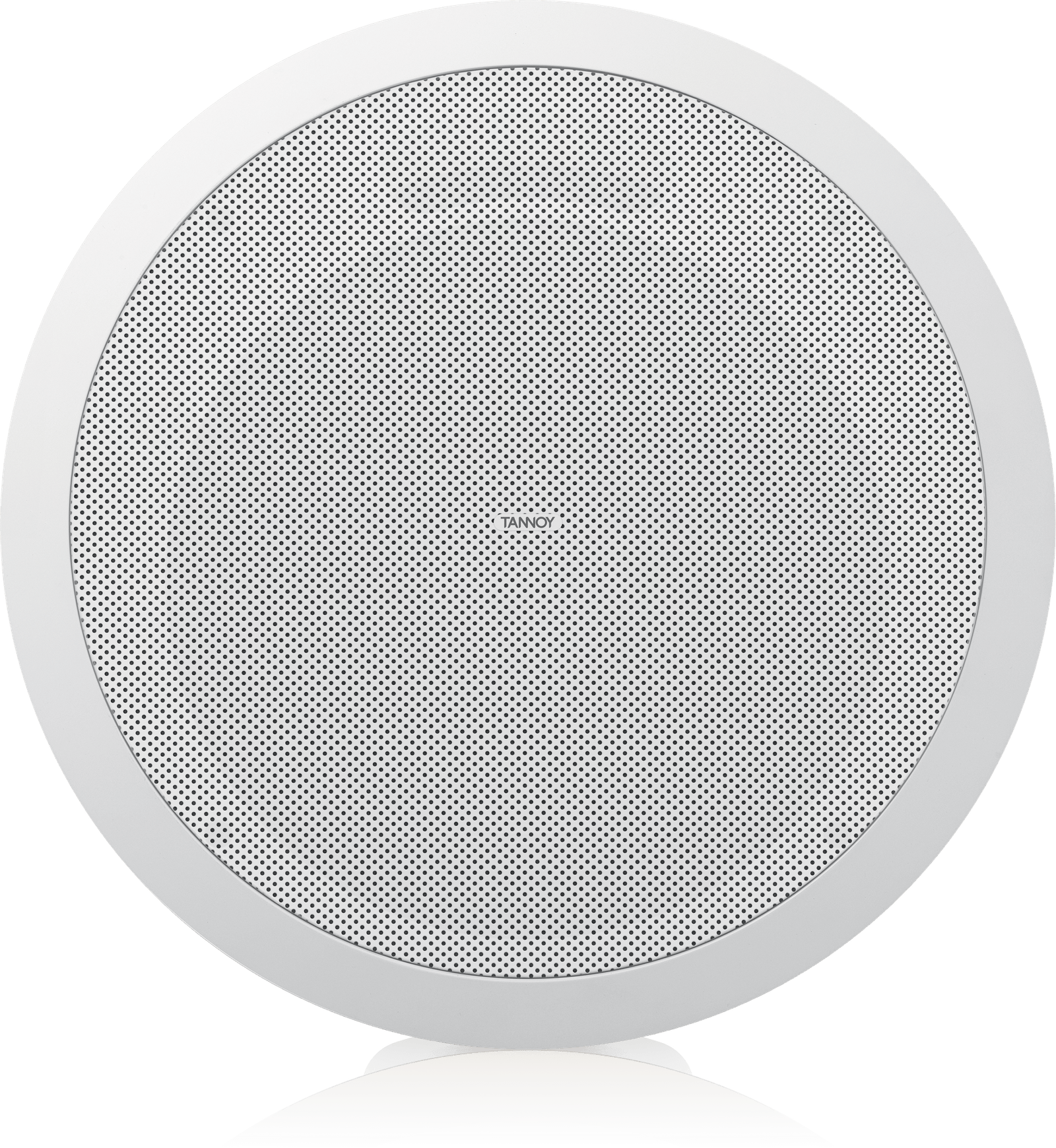

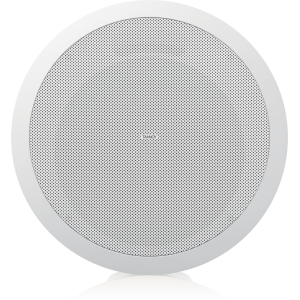

Grille Aluminum, powder coated
Safety Features Rear enclosure safety ring for load-bearing bond
Clamping Design Security toggle clamp
Connectors Euroblock-style connector with screw terminals (with input cover and cable gland supplied)
Dimensions Bezel diameter (grille max diameter): 12″ (305mm)
Rear face of baffle to rear of back can: 8.35″ (212mm)
Rear face of baffle to top of safety loop: 8.86″ (225mm)
Rear face of baffle to rear of flex conduit: 9.33″ (237mm)
Hole cutout diameter: 10.75″ (273mm)
Weight 11.77 lb (5.35kg) +/-10%
