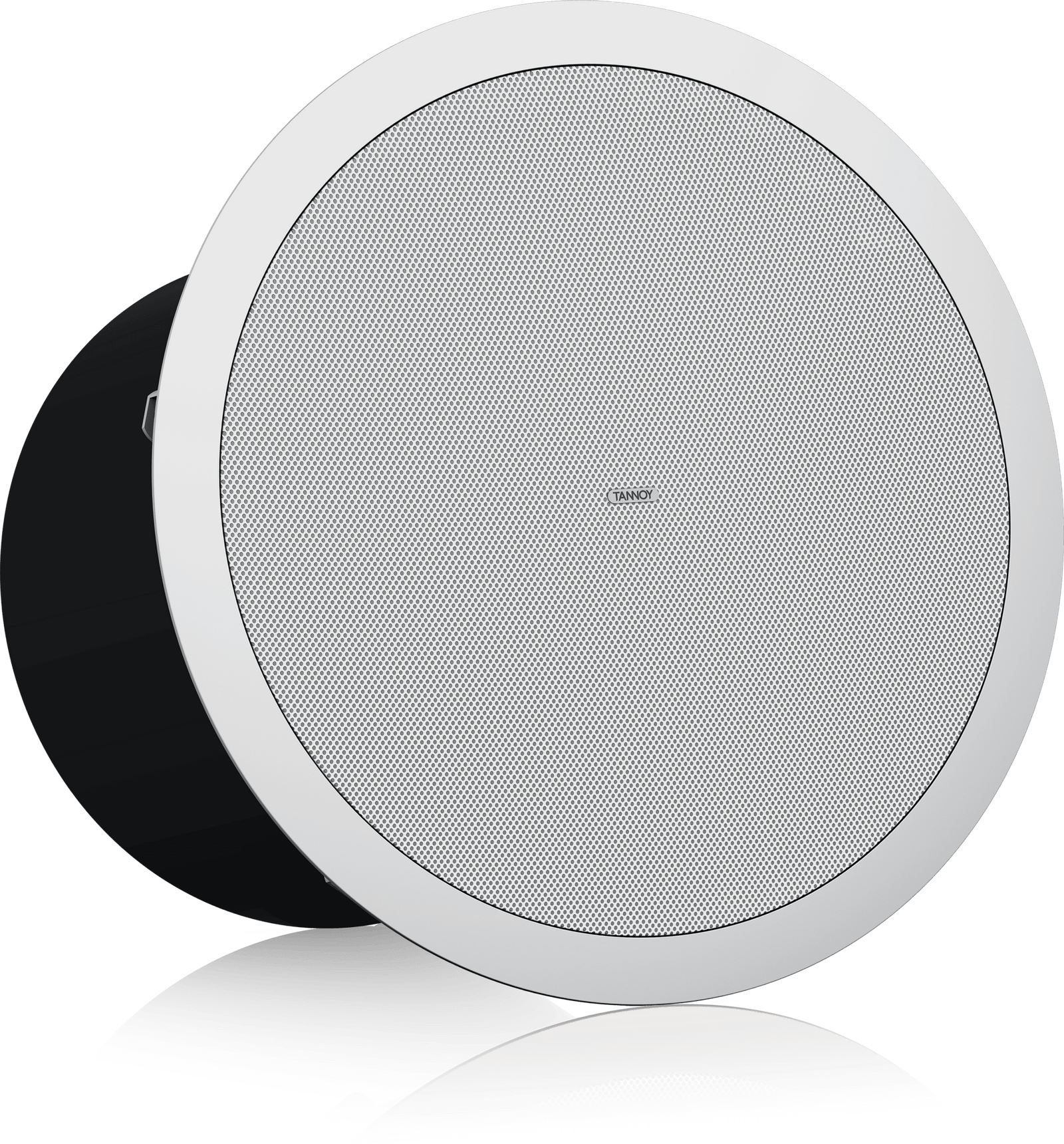

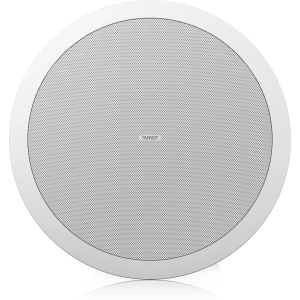

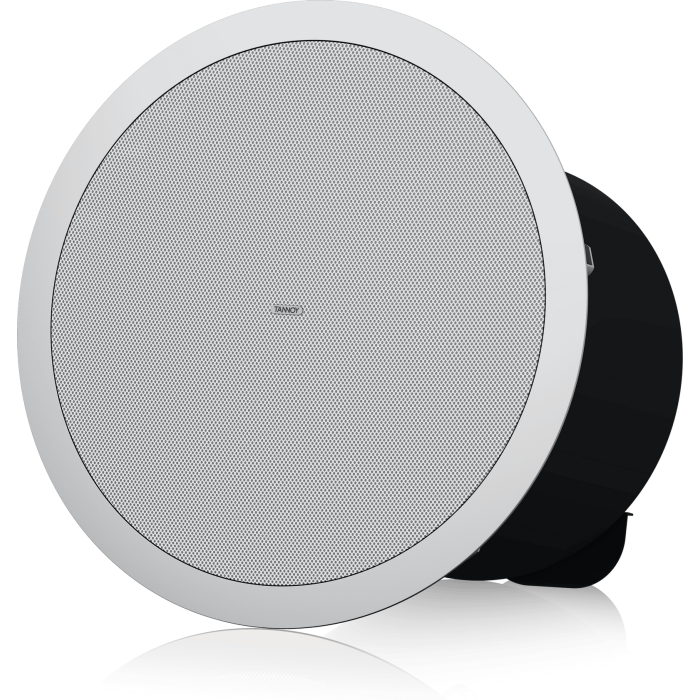

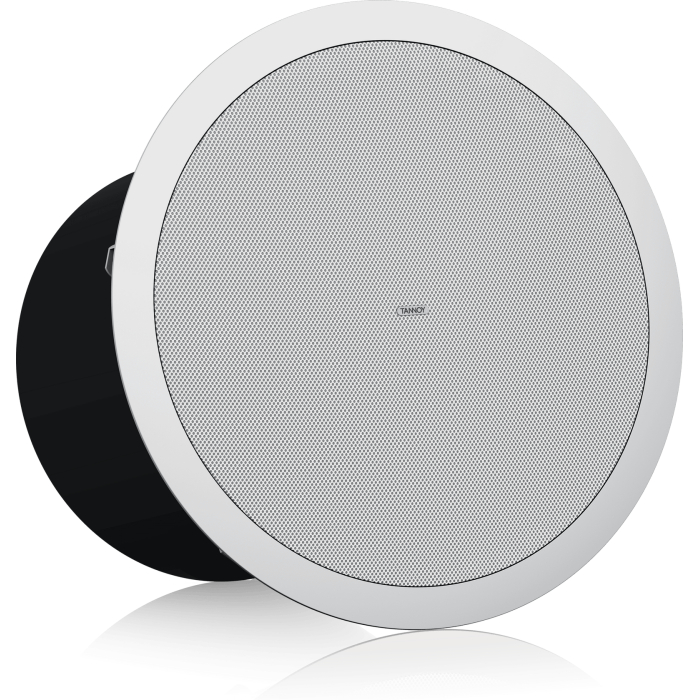

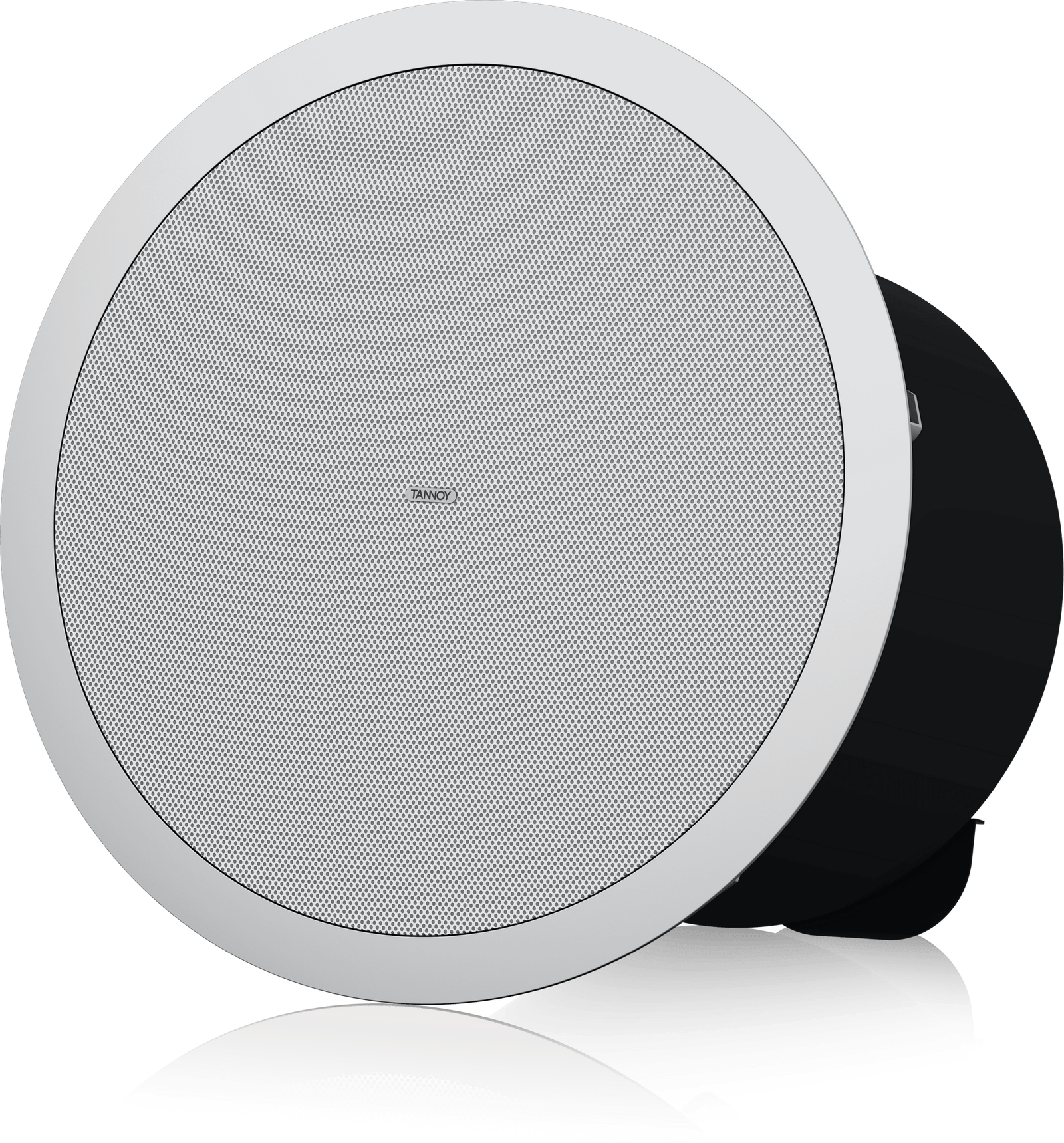

CVS 8 Coaxial Ceiling Loudspeaker

The CVS 8 is a compact 240-Watt ceiling loudspeaker engineered to provide superb audio performance in both background and foreground music sound systems. Ideally suited for a wide variety of applications, from restaurants and hotels to houses of worship and businesses of all types, the CVS 8 offers the power handling, wide frequency response, and low distortion more typically found in a studio reference monitor than a ceiling loudspeaker. The resulting sound is warm, with a nuanced and pristine clarity that envelops the listener without intruding.

Key Features

• Coaxial full range ceiling loudspeaker for installation applications
• 60 Watts continuous, 240 Watts peak power

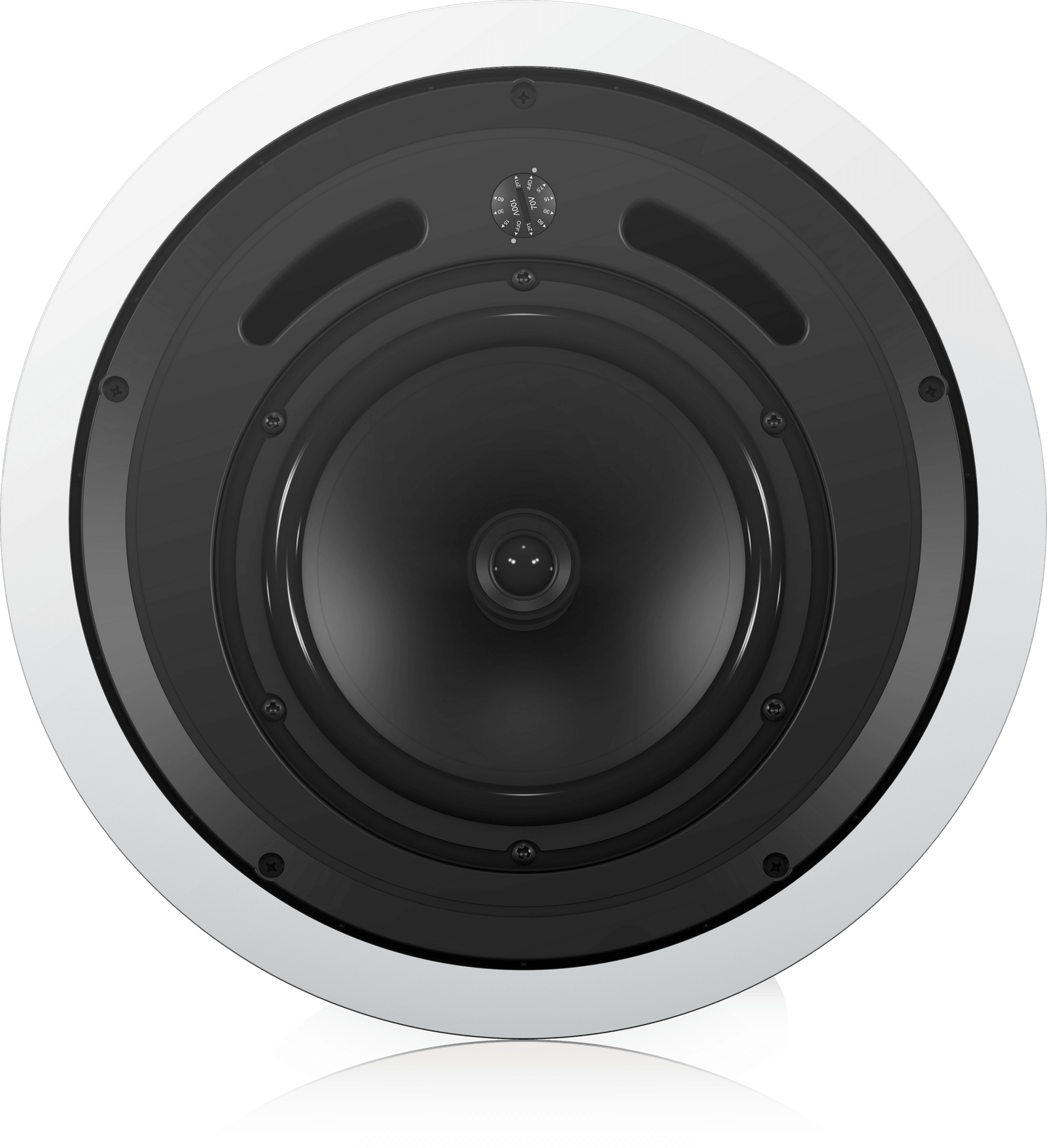

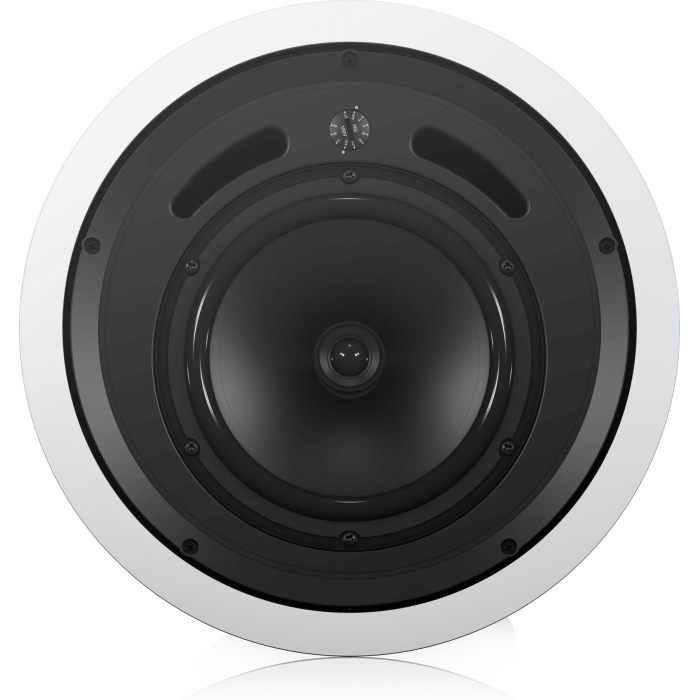

• 8″ mineral loaded polypropylene driver with nitrile rubber surround for enhanced durability and long-term reliability
• 0.75″ ferrofluid cooled soft dome neodymium high-frequency driver
• Wide constant directivity dispersion for optimum coverage
• UL 1480 certified for fire-protected signaling systems
• UL 2043 certified for air-handling spaces
• UV and weather resistant UL 94 V-0 ABS front with plated steel fire can enclosure
• Multiple transformer taps for 70 V and 100 V line systems or 6 Ohm direct input
• Low insertion loss 60 W line transformer with easily accessible tapping switch
• Semi-matt white finish fits unobtrusively in any environment
• Mounting C-ring and ceiling tile rails included

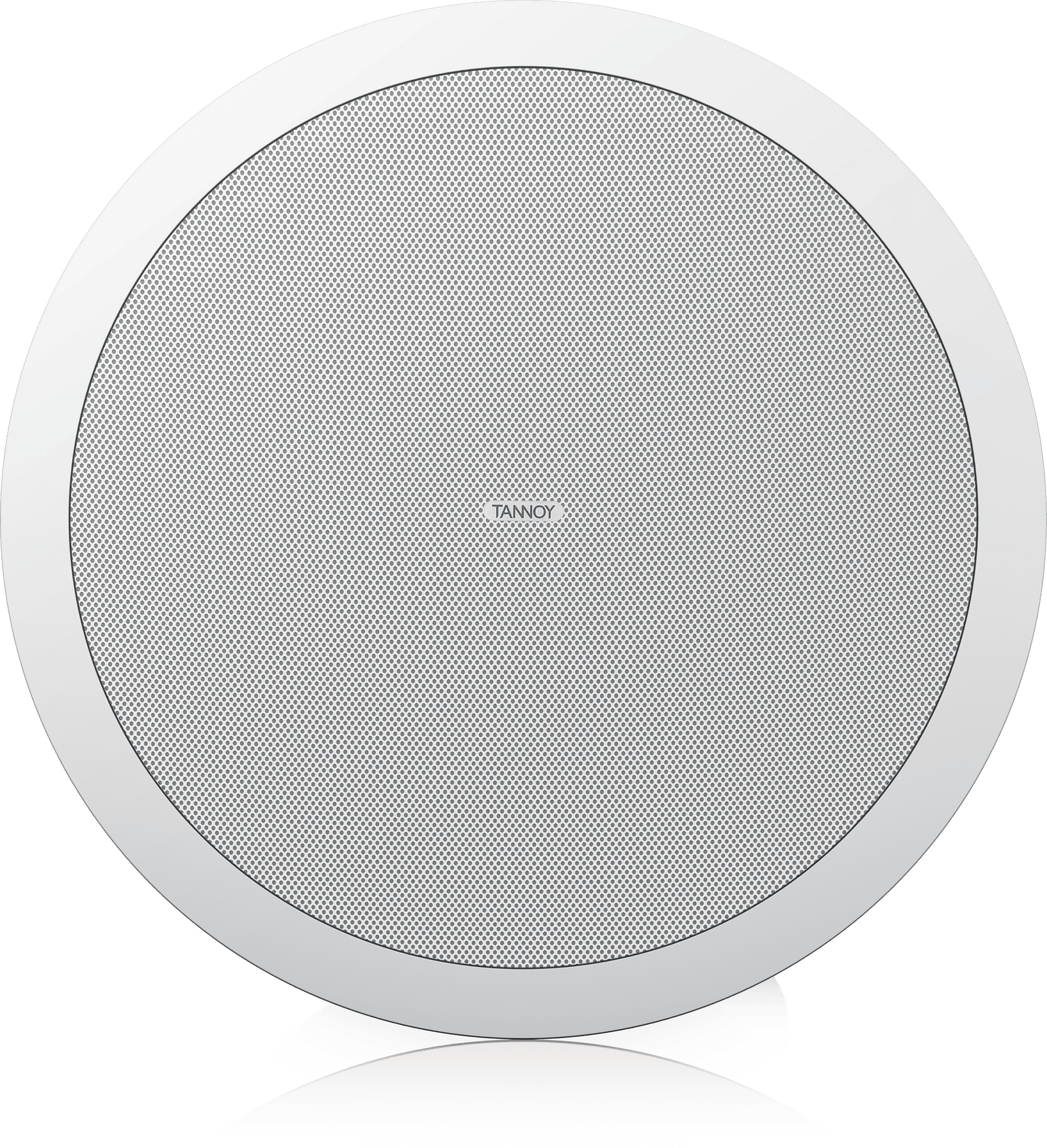

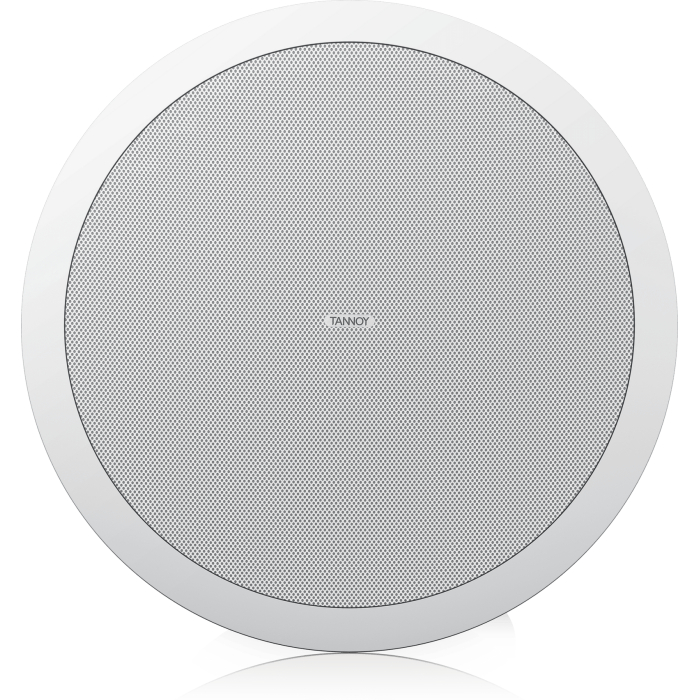

• Powder coated perforated steel mesh grille with dust protection

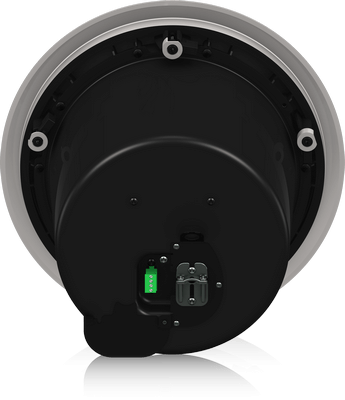

• Phoenix* connector with steel cover and strain relief clamping mechanism for fire-rated cable
