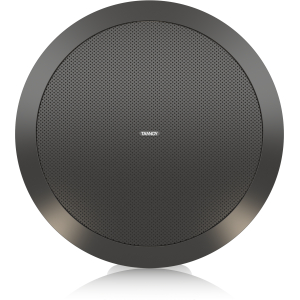

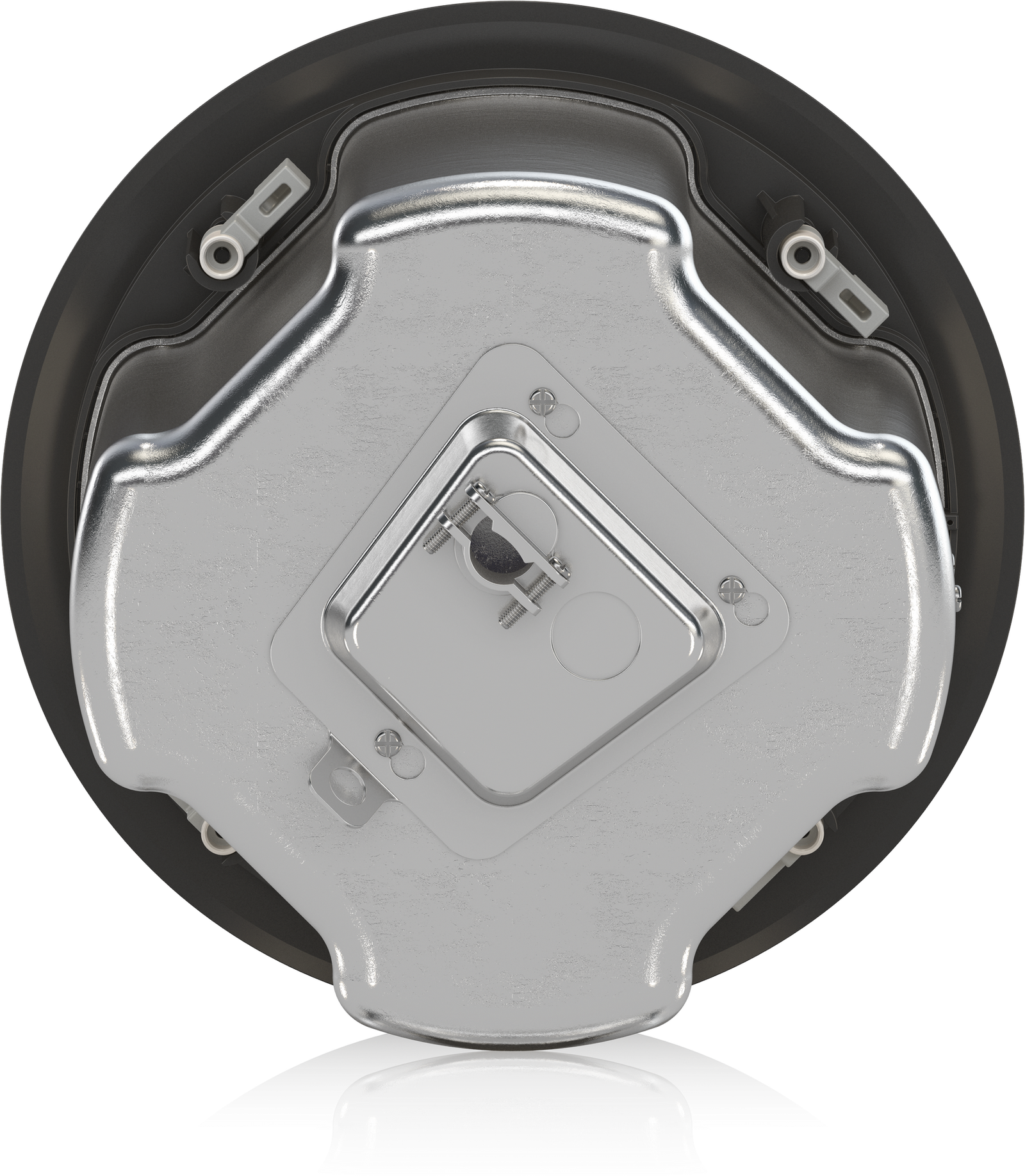

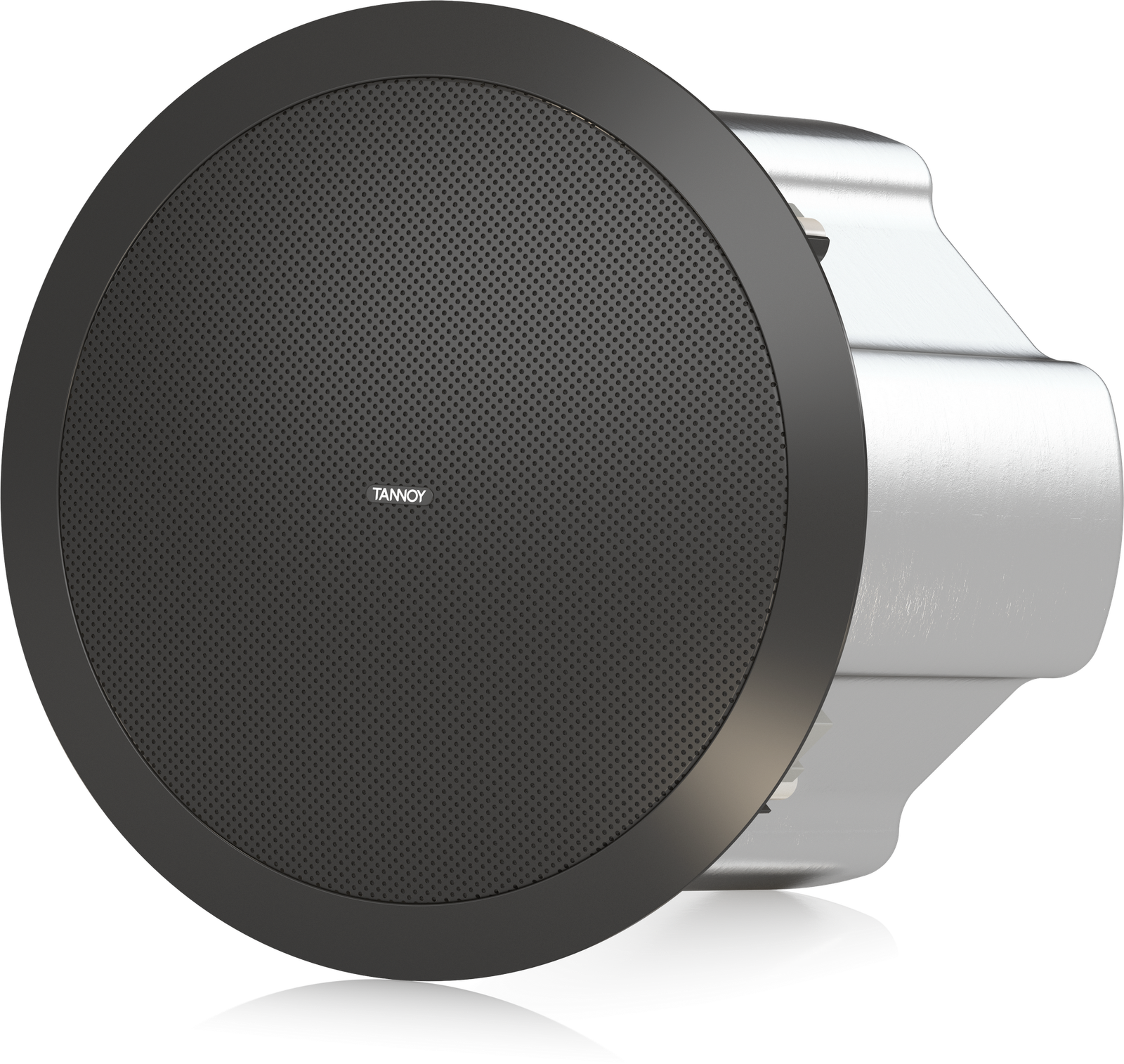

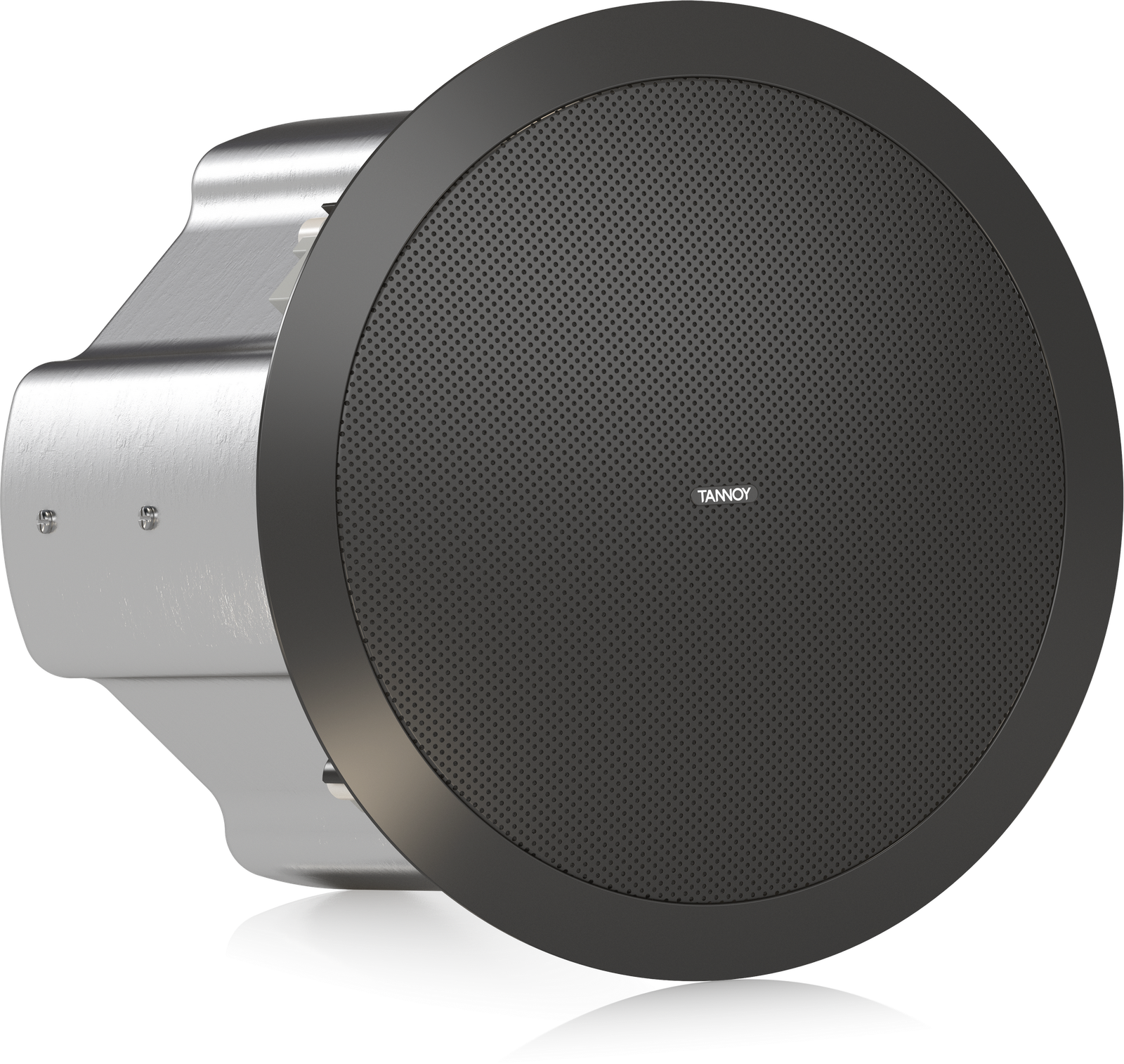

Tannoy CVS 601-BK 6.5″ Coaxial In-Ceiling Loudspeaker Black

Tannoy

AED 631.05 inc VAT.

The CVS 601-BK coaxial ceiling loudspeaker delivers excellent audio for both background and foreground music in diverse settings such as restaurants, hotels, places of worship, and various business environments. This model is certified EN 54-24 for fire detection systems, UL 1480 for fire-protected signaling, and UL 2043 for air-handling spaces, while offering high power handling, a broad frequency response, and minimal distortion.

In stock
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: CVS 601-BK Categories: , , Brand:

Description

CVS 601-BK Coaxial Ceiling Loudspeaker

The CVS 601-BK is a coaxial ceiling loudspeaker engineered to deliver excellent audio performance for both background and foreground music sound systems. This versatile loudspeaker is ideal for diverse environments such as restaurants, hotels, houses of worship, and various businesses. With its EN 54-24 certification for fire detection and alarm systems, UL 1480 certification for fire-protected signalling systems, and UL 2043 certification for air-handling spaces, the CVS 601-BK ensures both superior audio quality and safety compliance.

Key Features:

  • 50 Watts continuous and 200 Watts peak power handling

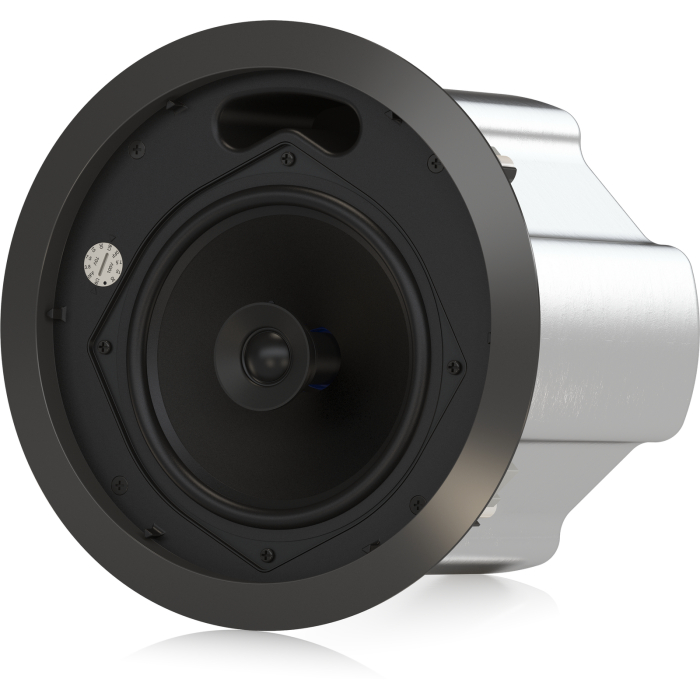

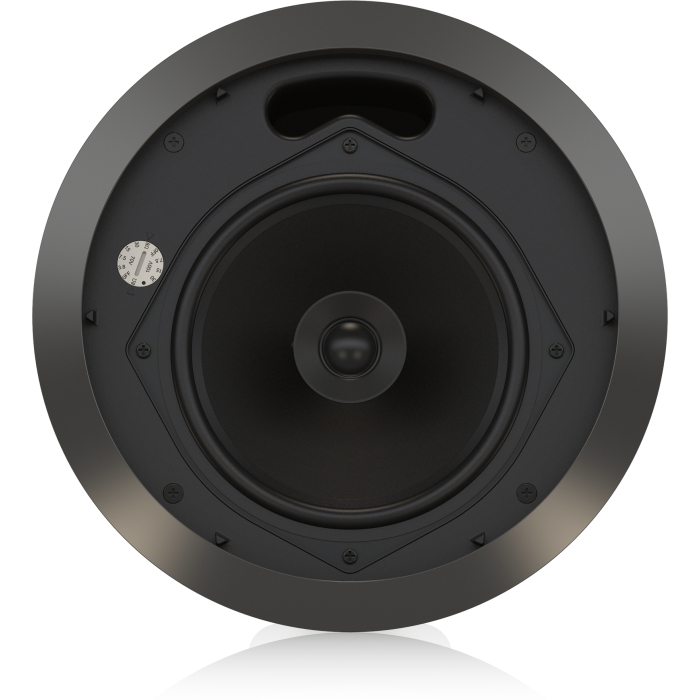

  • 6.5″ polypropylene driver with a durable butyl rubber surround
  • 0.75″ ferrofluid cooled soft dome high-frequency driver
  • Wide constant directivity dispersion for comprehensive coverage
  • Weather-resistant and UV-resistant UL 94-V0 and 94-5VB ABS front

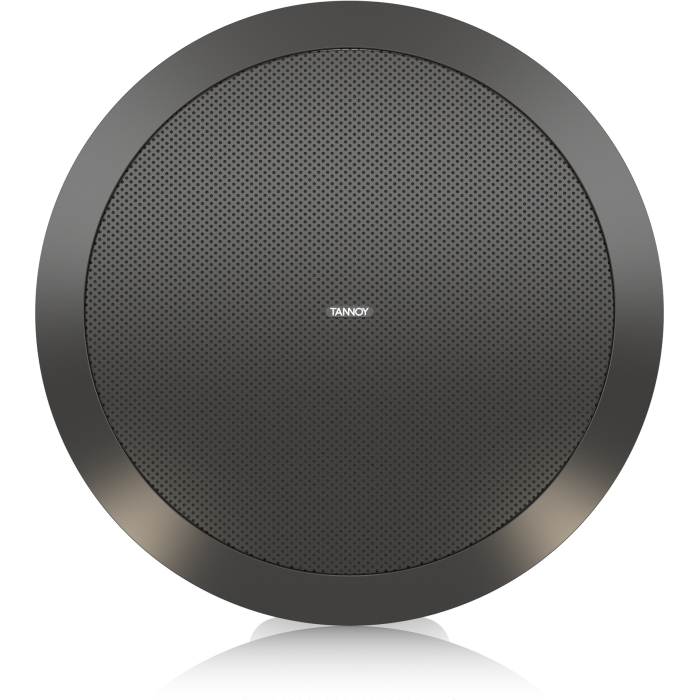

  • Powder-coated aluminum mesh grille for dust protection
  • Multiple transformer taps for 70 V and 100 V line systems or 8 Ohm direct input
  • Easy mounting with C-ring and ceiling tile rails included

Specifications:

Specification Details
Frequency Response (+3 dB, -3 dB) 105 Hz – 20 kHz
Frequency Response (-10 dB) 74 Hz – 20 kHz
Sensitivity at 1m/1W 90 dB
Nominal Coverage Angle 115°
Power Handling (LoZ) 50 W Average, 100 W Programme, 200 W Peak
Recommended Amplifier Power 100 W @ 8 Ω
Nominal Impedance (Switch to LoZ) 8 Ω
Rated Maximum SPL 110 dB (1 m, Switch to LoZ)
Transformer Taps (70 V) 30 W, 15 W, 7.5 W, 3.8 W
Transformer Taps (100 V) 30 W, 15 W, 7.5 W
Driver Configuration 165 mm (6.5″) PP cone, 20 mm (0.79″) HF driver
Dimensions Bezel Diameter: 254 mm, Depth: 208 mm
Weight 2.41 kg
Included Accessories Metal grille, cable gland, flex conduit, C-ring, tile-bridge kit, paint mask, cutout template
Optional Accessories Mud ring, 48″ Tile rail
Packed Quantity 1 pair
