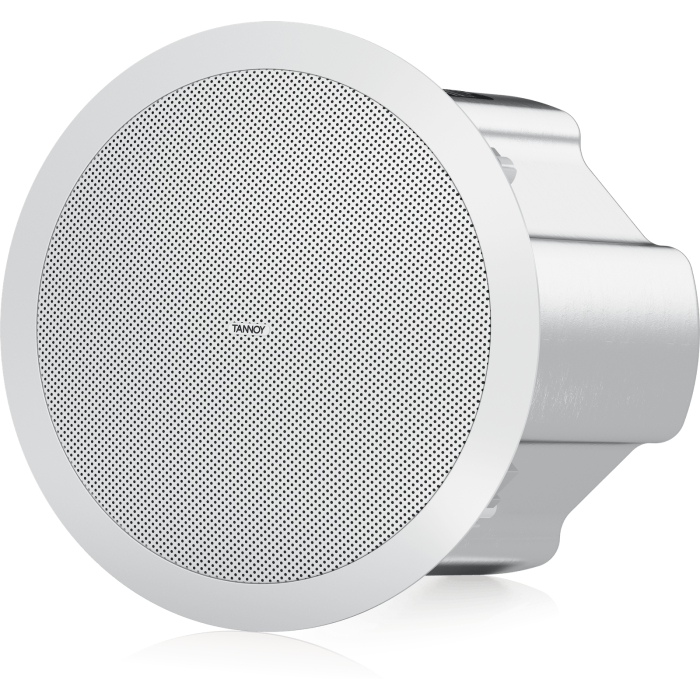

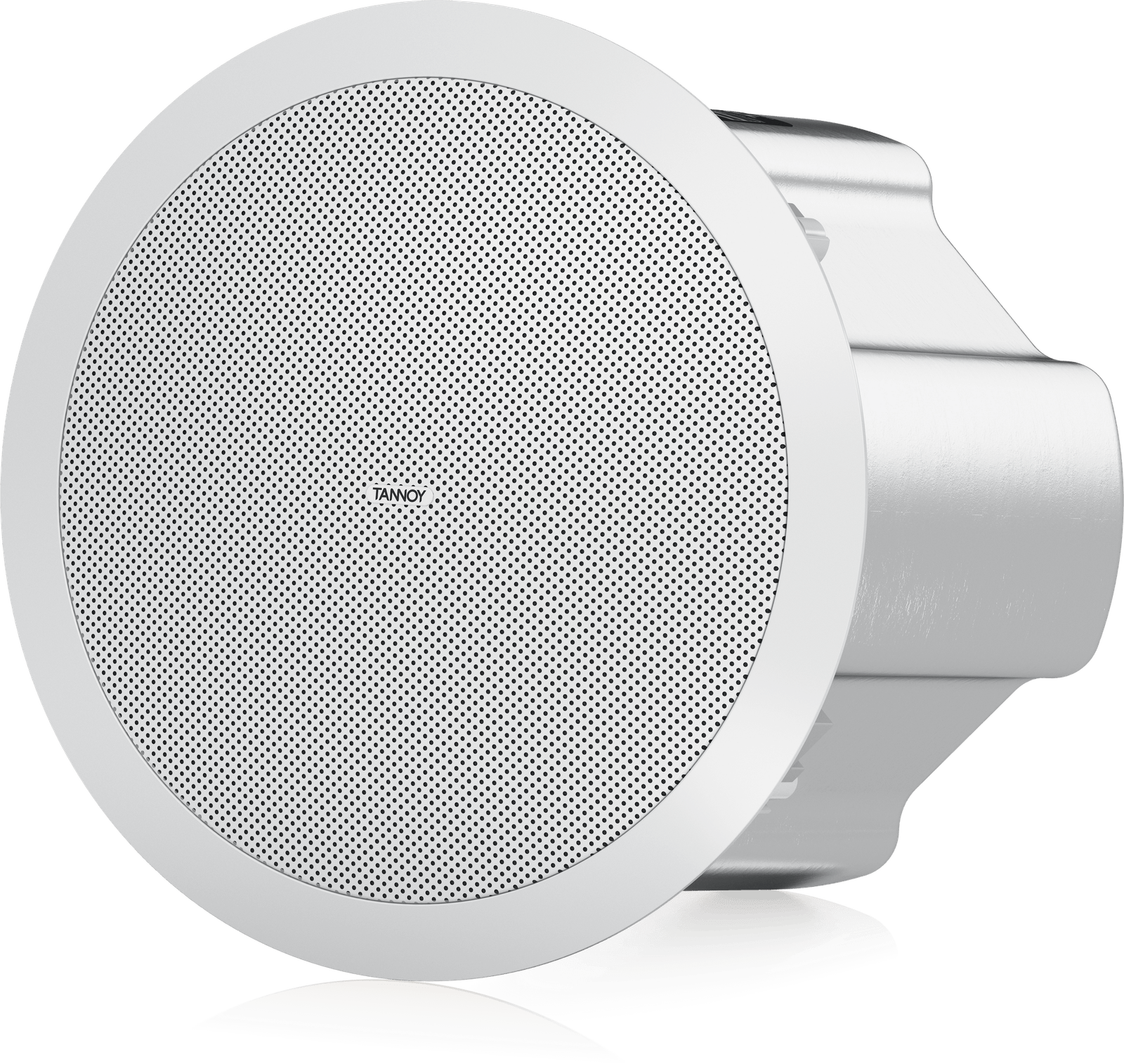

Tannoy CVS 601 6.5″ In-Ceiling Coaxial Loudspeaker

AED 631.05 inc VAT.

The CVS 601 is a coaxial ceiling loudspeaker designed for superior audio in diverse settings such as restaurants, hotels, houses of worship, and various businesses. It features exceptional power handling, a wide frequency response, and low distortion, typically associated with high-end products. The CVS 601 is EN 54-24 certified for fire systems, UL 1480 certified for fire-protected signaling, and UL 2043 certified for air-handling spaces, ensuring both high performance and safety.

In stock

Estimated Delivery: 2–3 business days across the UAE
Free Shipping & Returns : On all orders over AED 1000

Guaranteed Safe And Secure Checkout

Description

CVS 601 Coaxial Ceiling Loudspeaker

The CVS 601 is a state-of-the-art coaxial ceiling loudspeaker designed for optimal audio performance in both background and foreground music systems. This versatile loudspeaker is ideal for a range of environments including restaurants, hotels, houses of worship, and various business settings. With its robust power handling, extensive frequency response, and minimal distortion, the CVS 601 rivals higher-end products in quality. It is certified for both fire detection (EN 54-24) and fire-protected signaling systems (UL 1480), and is suitable for air-handling spaces (UL 2043).

Features

Coaxial full-range ceiling loudspeaker
50 Watts continuous, 200 Watts peak power

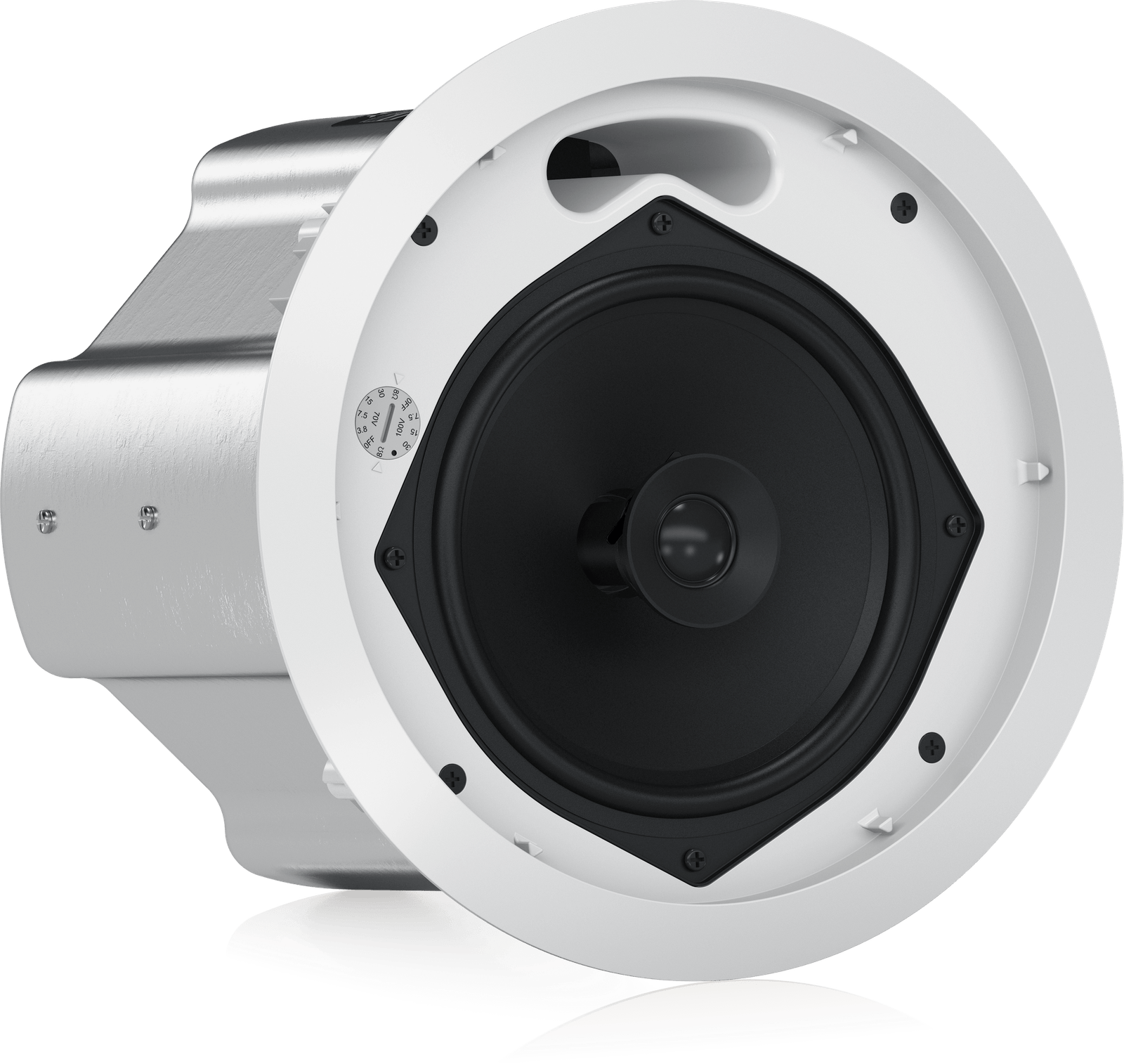

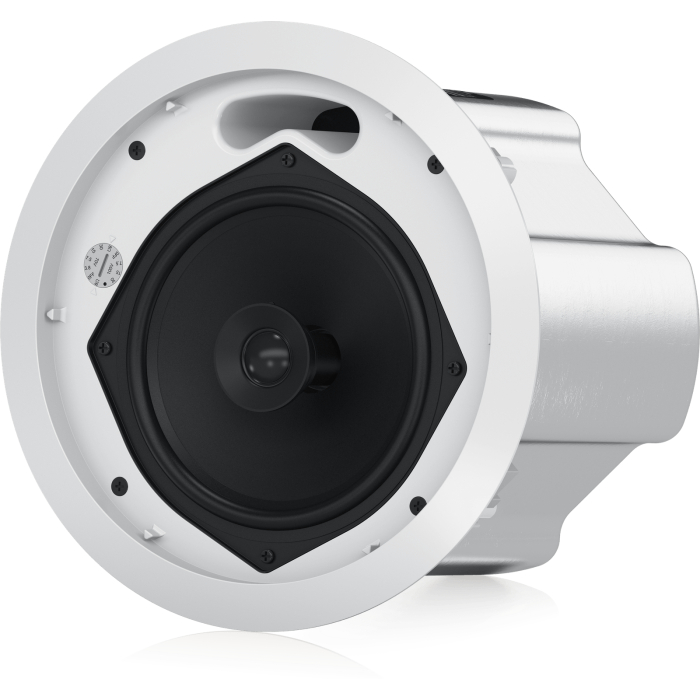

6.5″ polypropylene driver with butyl rubber surround
0.75″ ferrofluid cooled soft dome high frequency driver
Wide dispersion for optimal coverage
Fire and air-handling certified
Durable UV and weather-resistant construction

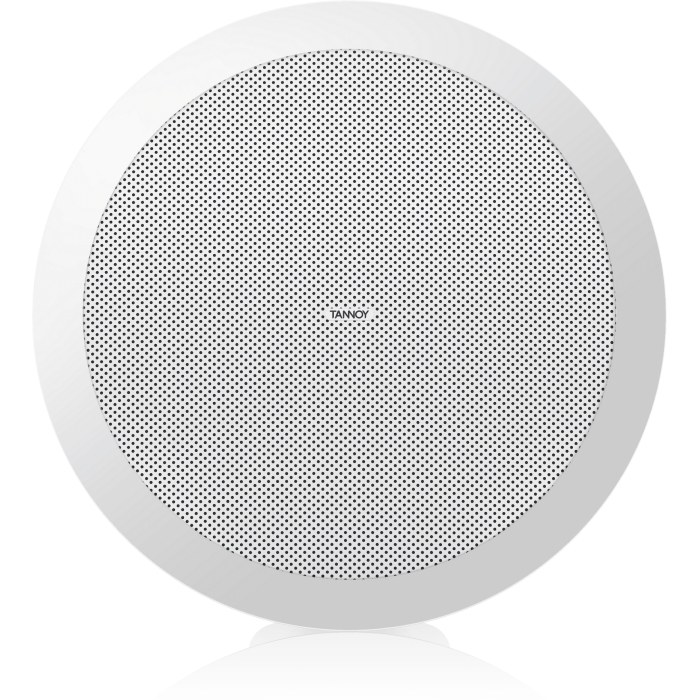

Powder-coated aluminum mesh grille
Multiple transformer taps for flexible installation
Low insertion loss 30W line transformer
Semi-matte white finish
Comes with mounting hardware

Specifications

Specification	Details
Color	White
Frequency Response (+3dB, -3dB)	105 Hz – 20 kHz
Frequency Response (-10dB)	74 Hz – 20 kHz
Sensitivity at 1m/1W	90 dB
Nominal Coverage Angle	115 Degrees
Directivity Factor (Q)	7.3
Directivity Index (DI)	8.6
Power Handling	50 W Average, 100 W Programme, 200 W Peak
Nominal Impedance	8 Ohm
Transformer Taps	70 V: 30 W/15 W/7.5 W/3.8 W, 100 V: 30 W/15 W/7.5 W
Transducers	6.5″ PP cone (Low Frequency), 0.79″ coaxially mounted (High Frequency)
Enclosure	Blind mount

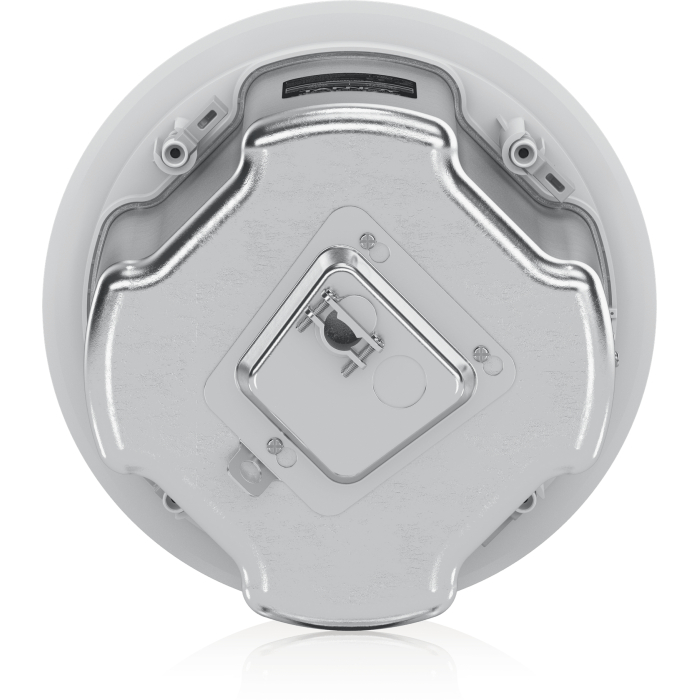

Back Can	Anodized steel
Baffle	Reflex loaded UL 94V-0 rated ABS
Grille	Aluminum, powder-coated
Safety Features	Rear enclosure safety ring
Clamping Design	Security toggle clamp
Connectors	Euroblock-style connector with screw terminals
Dimensions	Bezel diameter: 10″ (254mm), Depth: 8.19″ (208mm)
Weight	8.36 lb (3.8kg) +/- 10%
