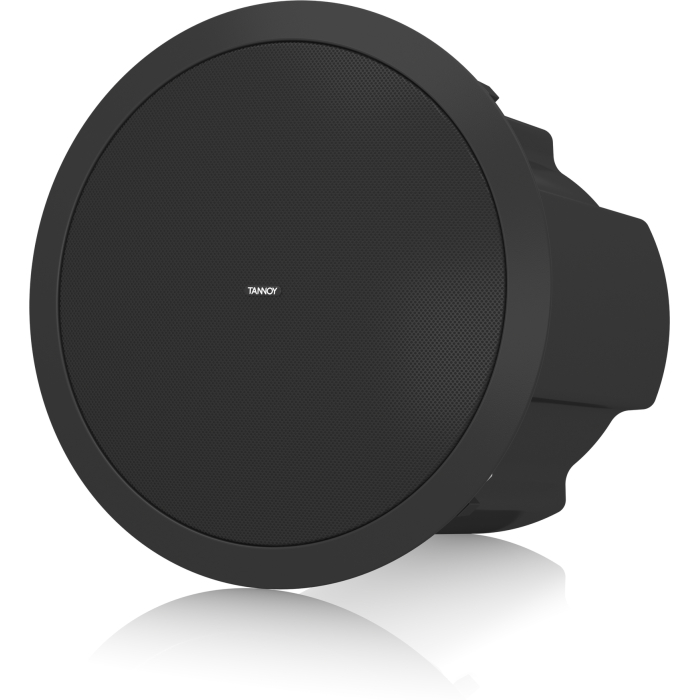

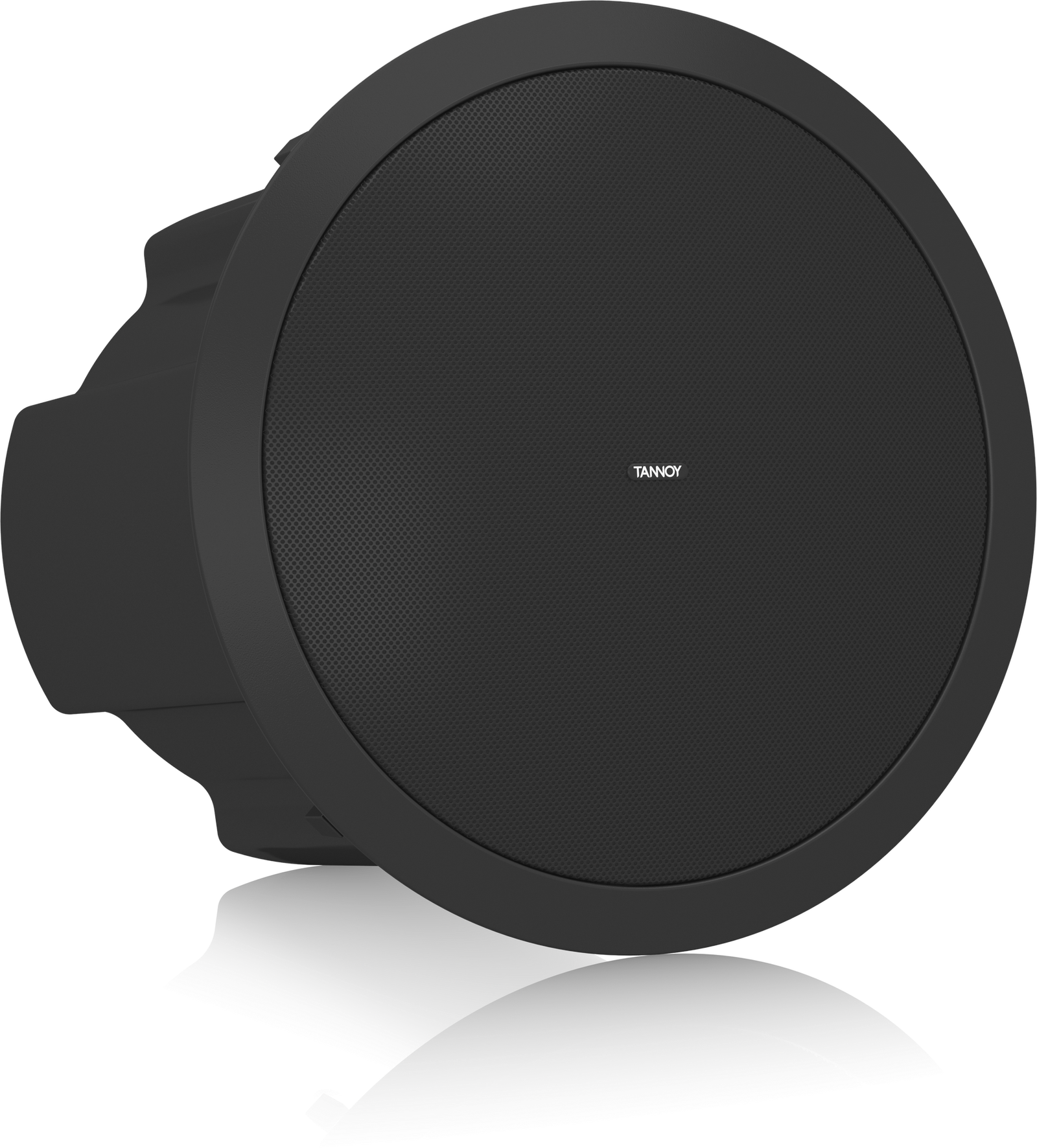

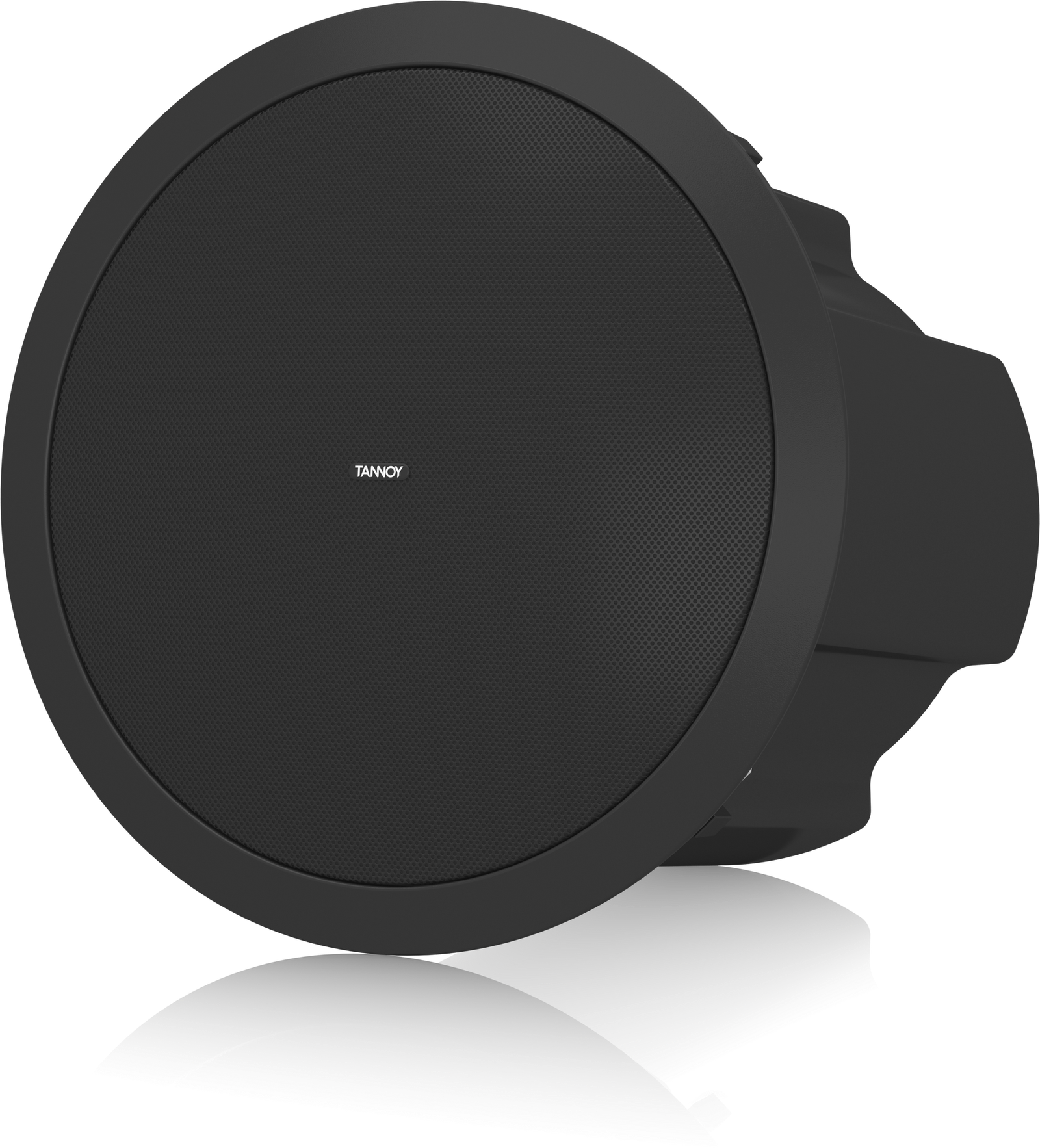

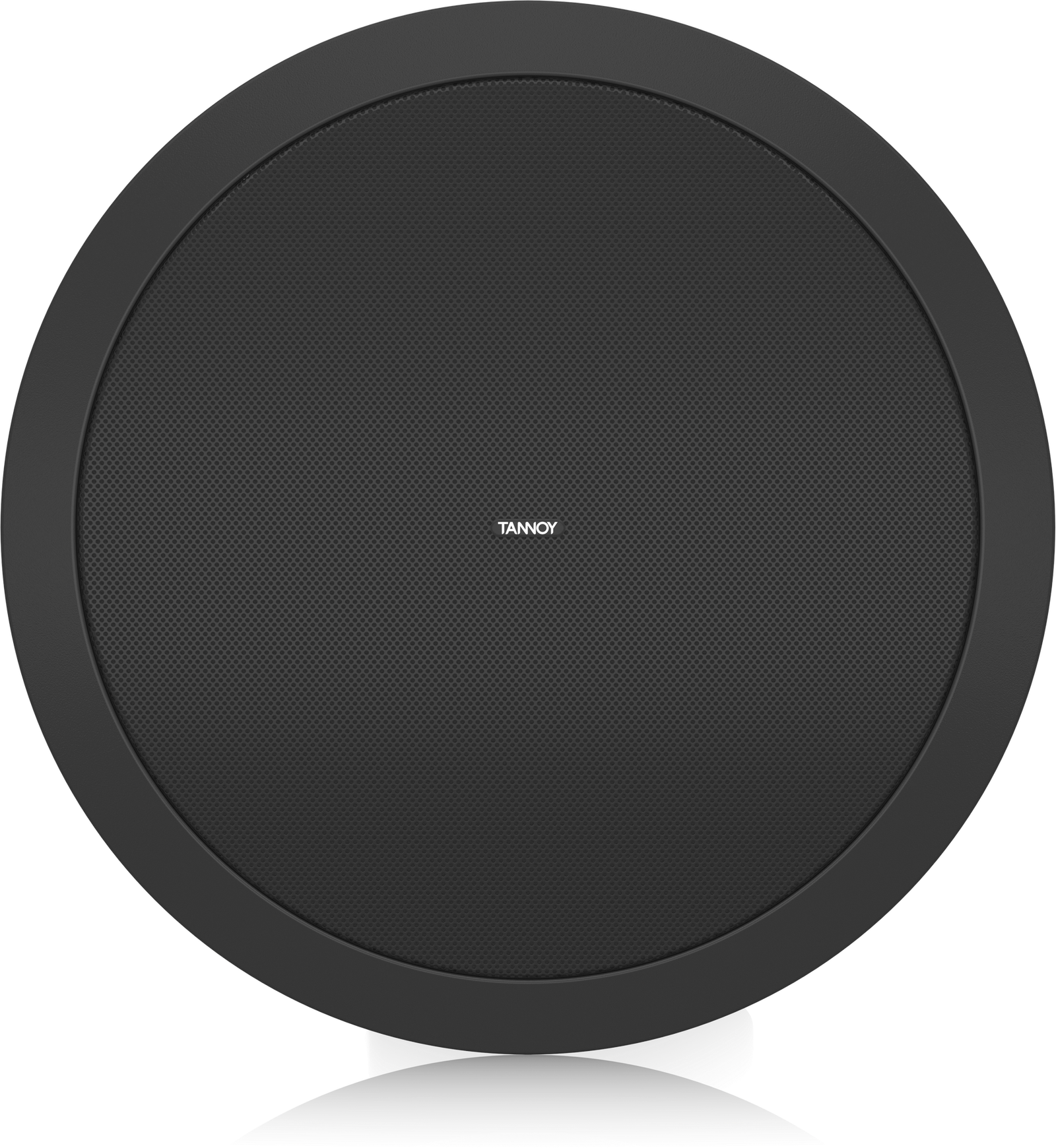

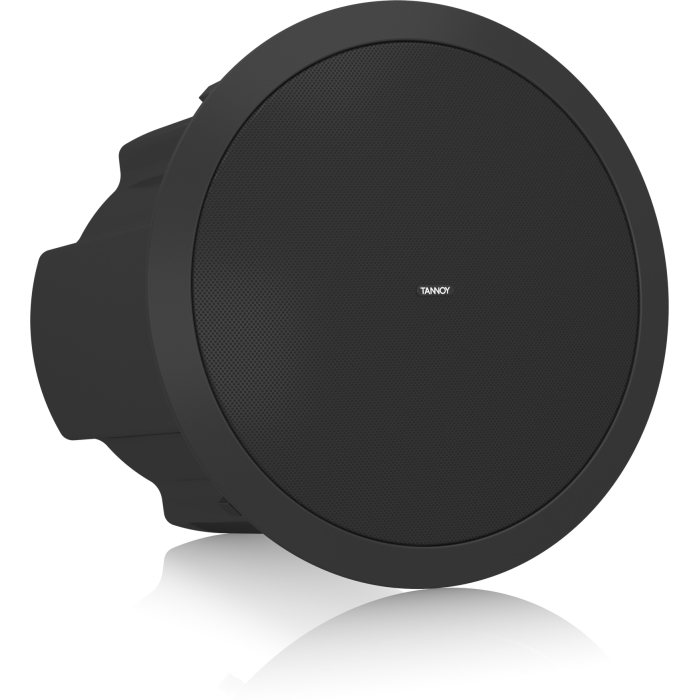

Tannoy 6″ Coaxial Ceiling Speaker CVS 6 BK Black 240W

Tannoy

AED 791.70 inc VAT.

In stock
Enquiry On Whatsapp
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: CVS 6 BK Categories: , , Brand:

The CVS 6 BK is a compact 240-Watt ceiling loudspeaker in semi-matt black, designed to deliver exceptional audio quality for both background and foreground music in diverse settings such as restaurants, hotels, houses of worship, and various businesses. It offers studio-reference monitor features with its wide frequency response, low distortion, and high power handling, producing warm, clear, and detailed sound.

Description

The CVS 6 BK is a compact, semi matt black 240-Watt ceiling loudspeaker engineered to provide superb audio performance in both background and foreground music sound systems. Ideally suited for a wide variety of applications, from restaurants and hotels to houses of worship and businesses of all types, the CVS 6 BK offers the power handling, wide frequency response and low distortion more typically found in a studio reference monitor than a ceiling loudspeaker. The resulting sound is warm, with a nuanced and pristine clarity that envelopes the listener – without intruding.

Key Features

  • Coaxial full range ceiling loudspeaker for installation applications
  • 60 Watts continuous, 240 Watts peak power

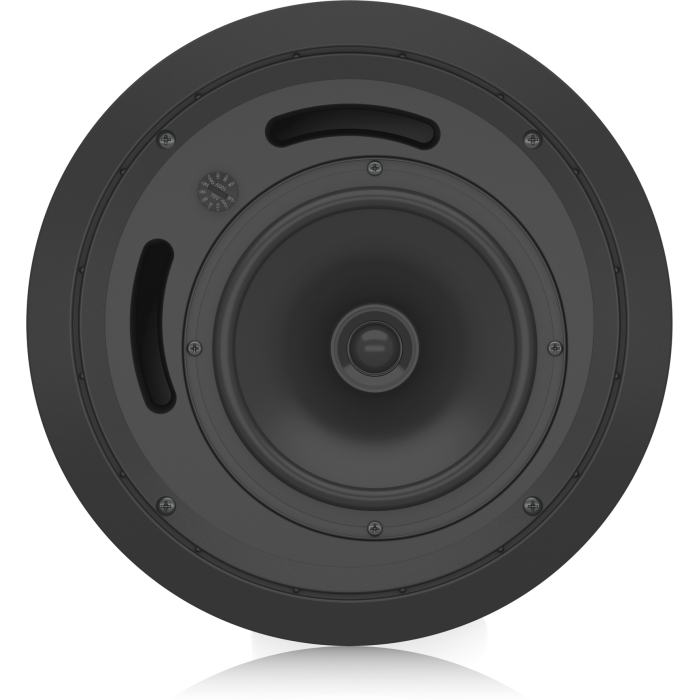

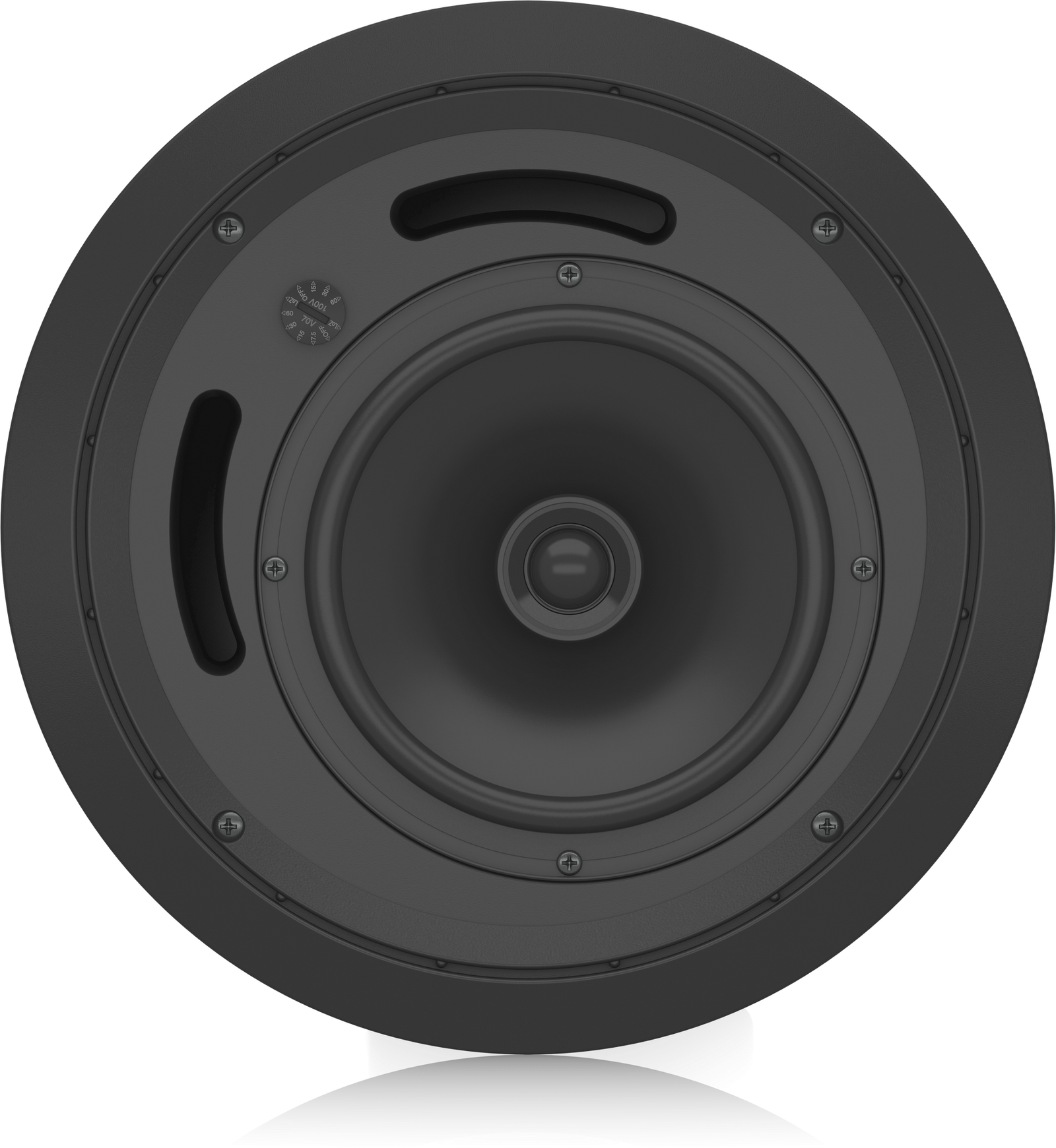

  • 6″ mineral loaded polypropylene driver with nitrile rubber surround for enhanced durability and long-term reliability
  • 0.75″ ferrofluid cooled soft dome neodymium high frequency driver
  • Wide constant directivity dispersion for optimum coverage
  • UL 1480 certified for fire-protected signalling systems
  • UL 2043 certified for air-handling spaces
  • UV and weather resistant UL 94 V-0 ABS front with plated steel fire can enclosure
  • Multiple transformer taps for 70 V and 100 V line systems or 6 Ohm direct input
  • Low insertion loss 60 W line transformer with easily accessible tapping switch
  • Semi matt black finish fits unobtrusively in any environment

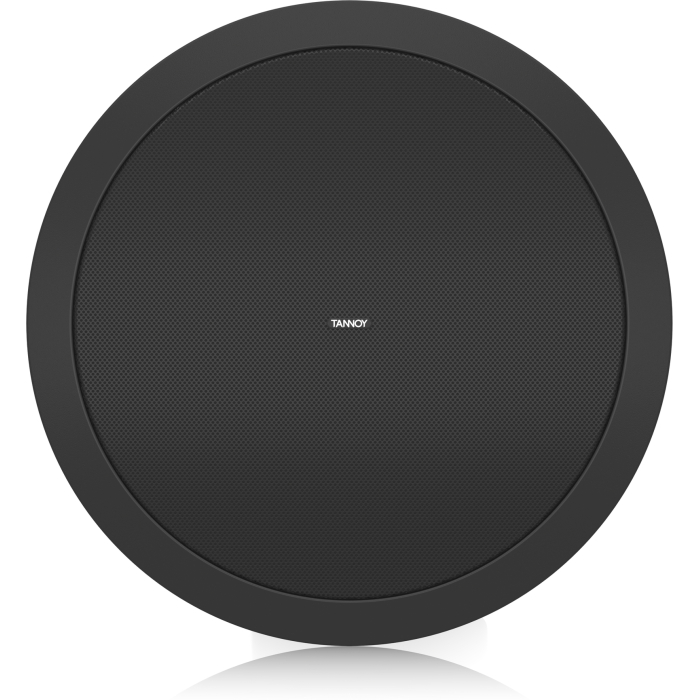

  • Powder coated perforated steel mesh grille with dust protection
  • Mounting C-ring and ceiling tile rails included
  • Phoenix* connector with steel cover and strain relief clamping mechanism for fire rated cable

Specifications

Specification Details
Frequency response 79Hz – 21kHz (-3dB)
60Hz – 24kHz (-10dB)
System Sensitivity 91dB (1W = 2.45V for 6 Ohm) (1W at 1m)
Nominal Coverage Angle 90 degrees conical
Coverage Angle 93 degrees (1kHz to 6kHz)
Directivity Factor (Q) 7.7 averaged 1kHz to 6kHz
Directivity Index (DI) 8 averaged 1kHz to 6kHz
Rated Maximum SPL 109 dB (average)
115 dB (peak)
Power Handling Average: 60W
Programme: 120W
Peak: 240W
Recommended Amplifier Power 120W at 6 Ohms
Nominal Impedance 6 Ohms
Transformer Taps (via front rotary switch):
70V: 60W / 30W / 15W / 7.5W / OFF & low impedance operation
100V: 60W / 30W / 15W / OFF & low impedance operation
Low Frequency 150mm (6.00″) mineral loaded polypropylene ICT
High Frequency 19mm (0.75″)
Cable Entry Options Cable clamp & squeeze connector for conduit up to 22 mm
Connectors Removable locking connector with screw terminals with “loop through” facility
Safety Agency Ratings UL-1480, UL-2043, CE
Hole Cutout Diameter 250 mm (9.84″)
Front of ceiling to rear of back can 246.5 mm (9.70″)
Front of ceiling to top of safety loop 258.5 mm (10.18″)
Enclosure Back can: Zinc plated steel
Baffle: Reflex loaded UL 94V-0 rated ABS
Grille: Steel, with weather resistant coating

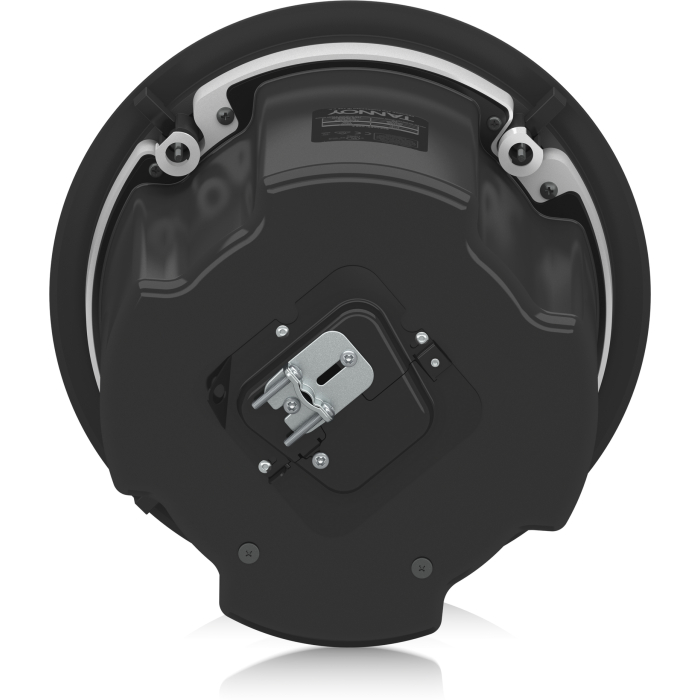

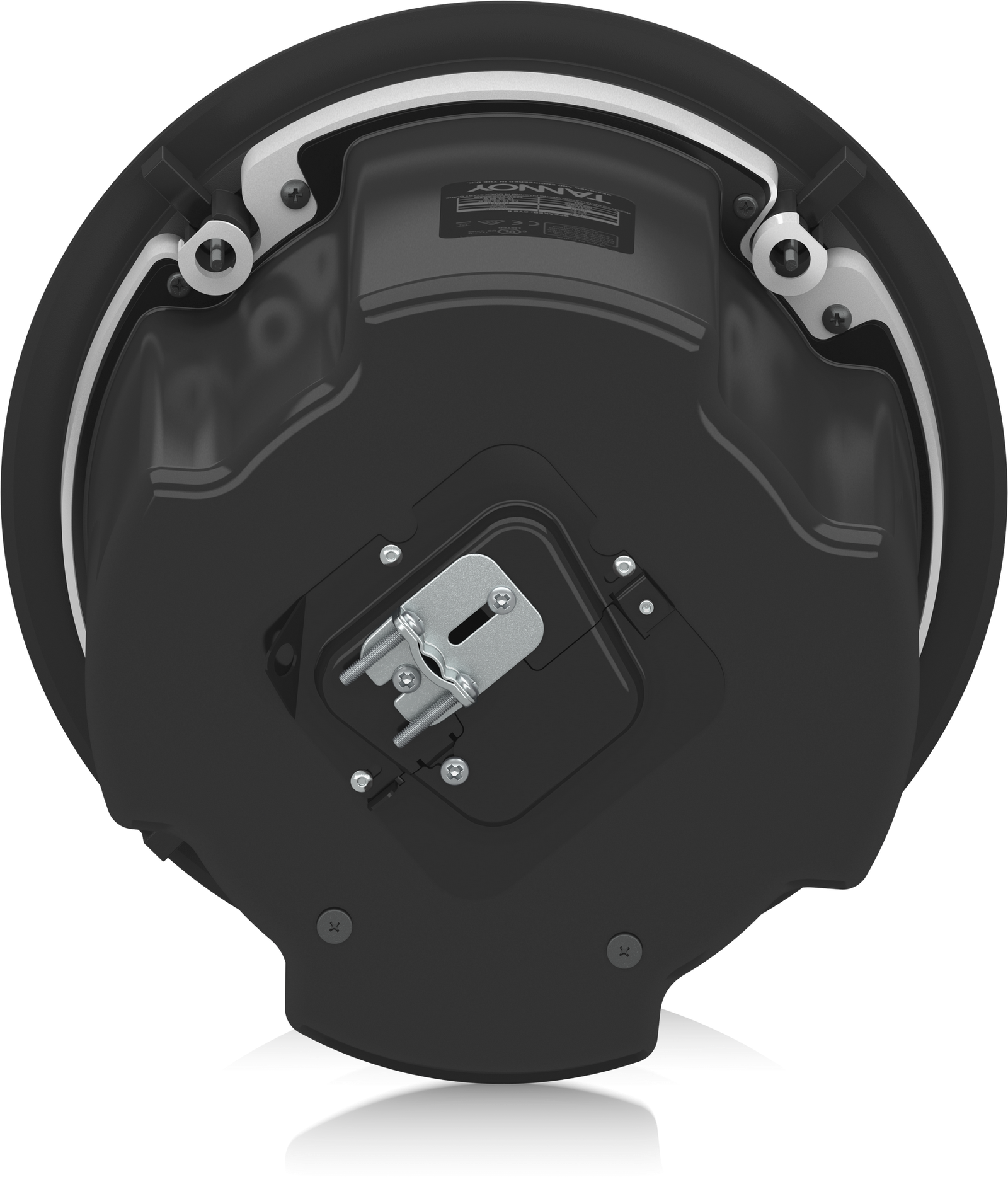

Safety Function Safety ring located at rear of enclosure for load bearing safety bond
Clamping Design Security toggle clamp
Dimensions (Dia.xL) 11 x 10.5″ (279.40 x 266.70 mm)
Weight 12.6 lbs (5.72 kg)
