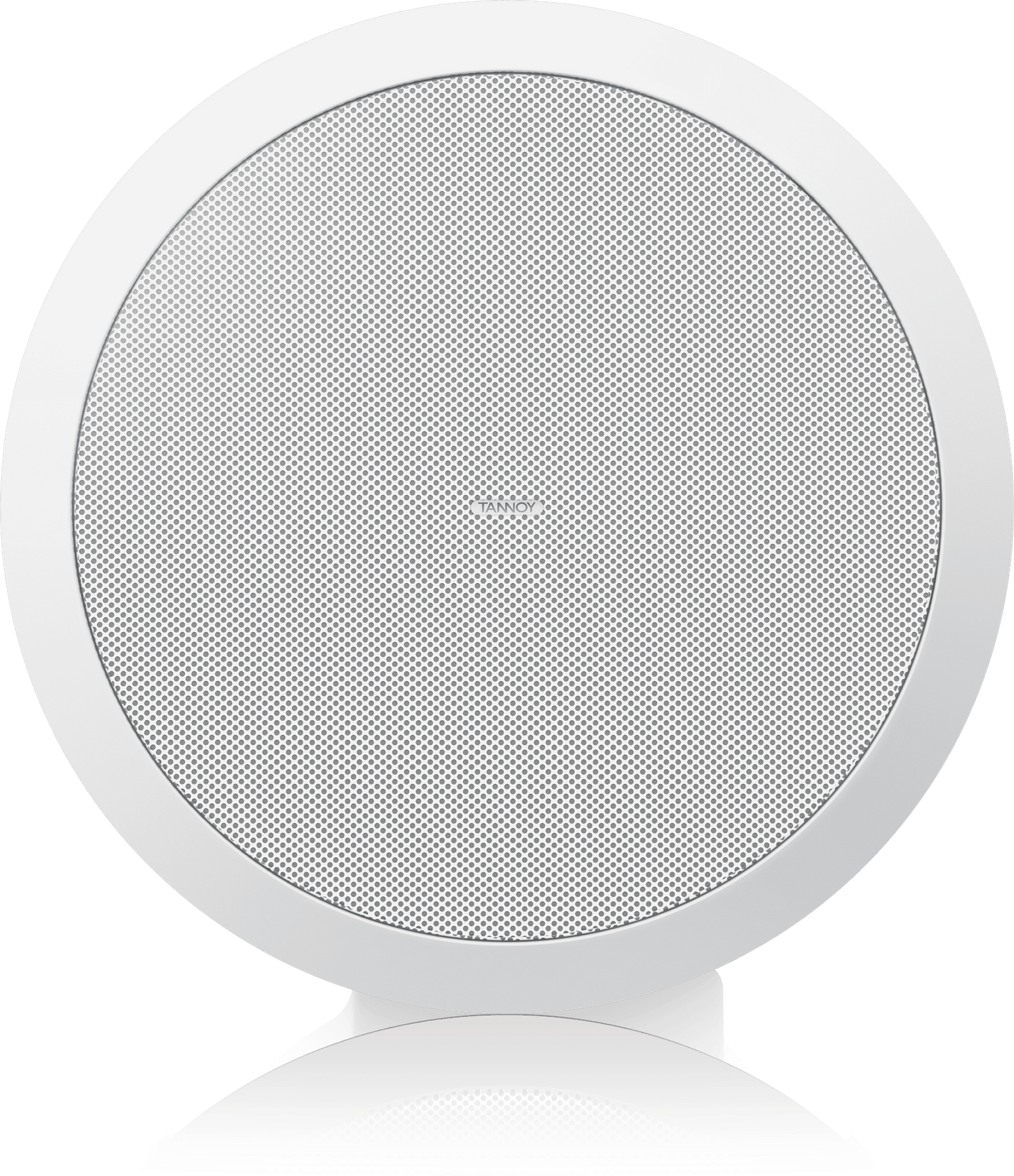

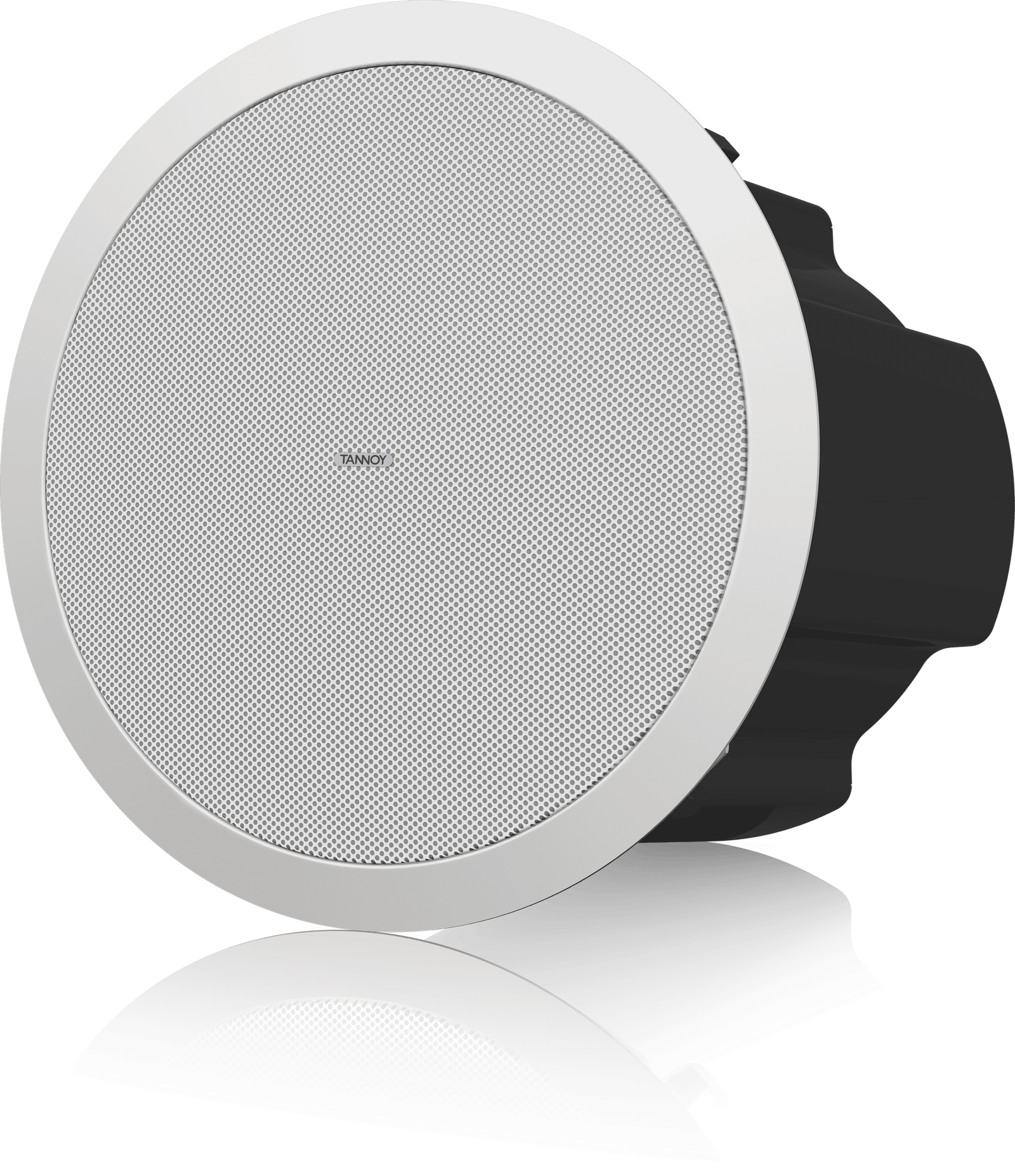

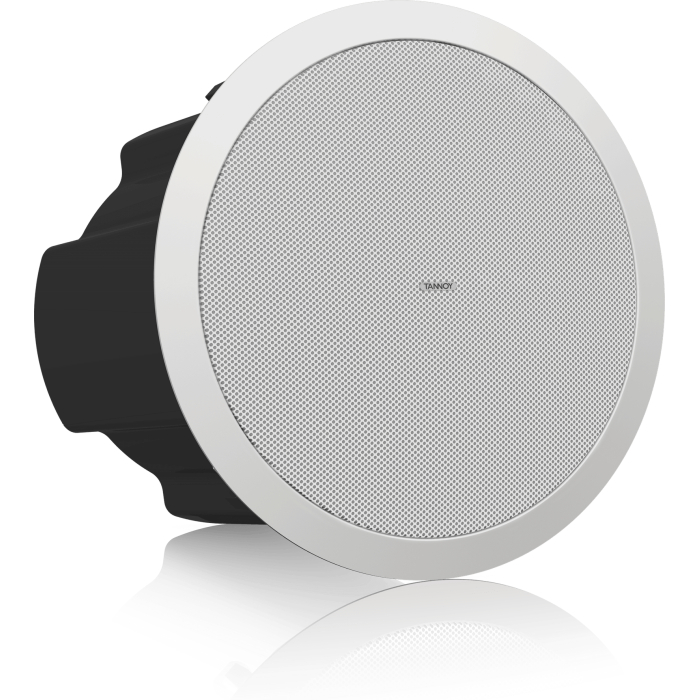

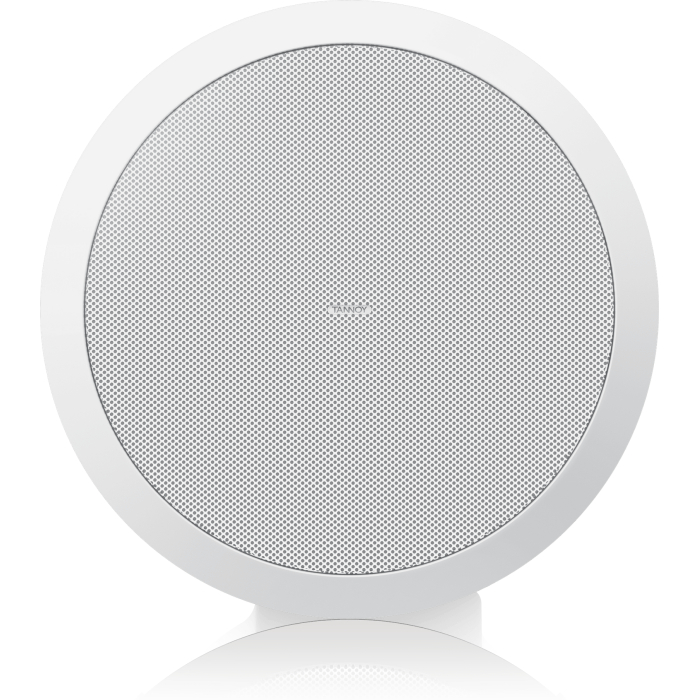

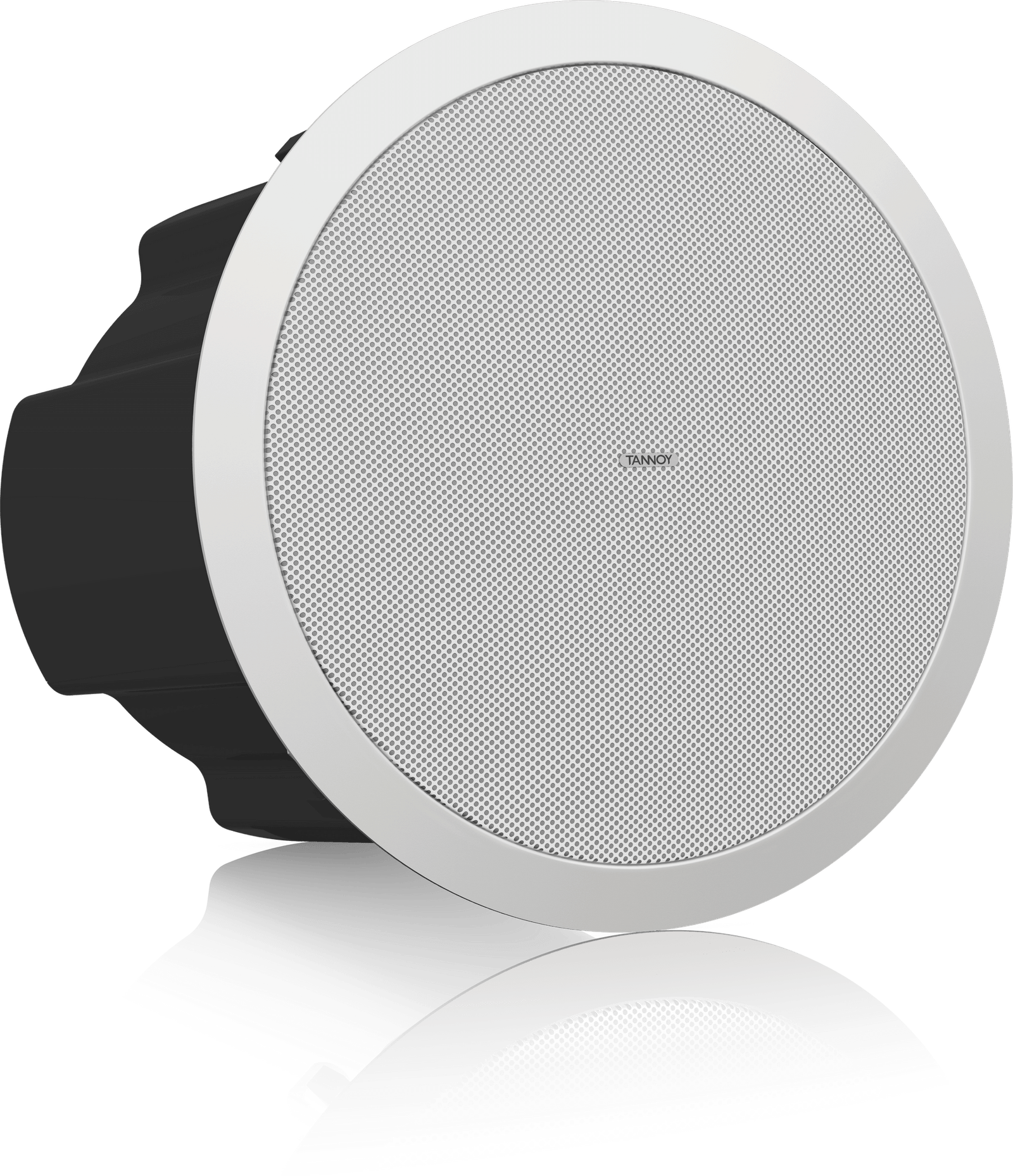

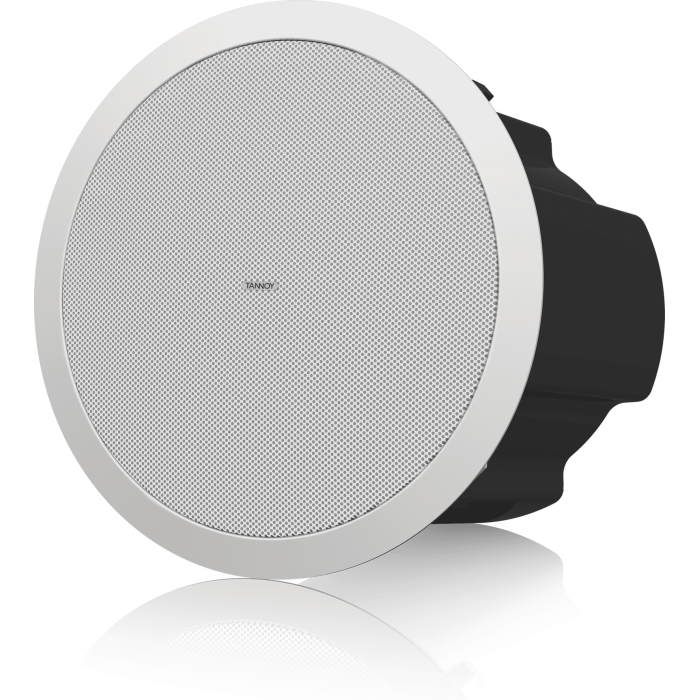

Tannoy CVS 6 6-Inch Coaxial Ceiling Loudspeaker

The CVS 6 is a compact 240-Watt ceiling loudspeaker engineered to provide superb audio performance in both background and foreground music sound systems. Ideally suited for a wide variety of applications, from restaurants and hotels to houses of worship and businesses of all types, the CVS 6 offers the power handling, wide frequency response and low distortion more typically found in a studio reference monitor than a ceiling loudspeaker. The resulting sound is warm, with a nuanced and pristine clarity that envelopes the listener – without intruding.

Features

• Coaxial full range ceiling loudspeaker for installation applications
• 60 Watts continuous, 240 Watts peak power

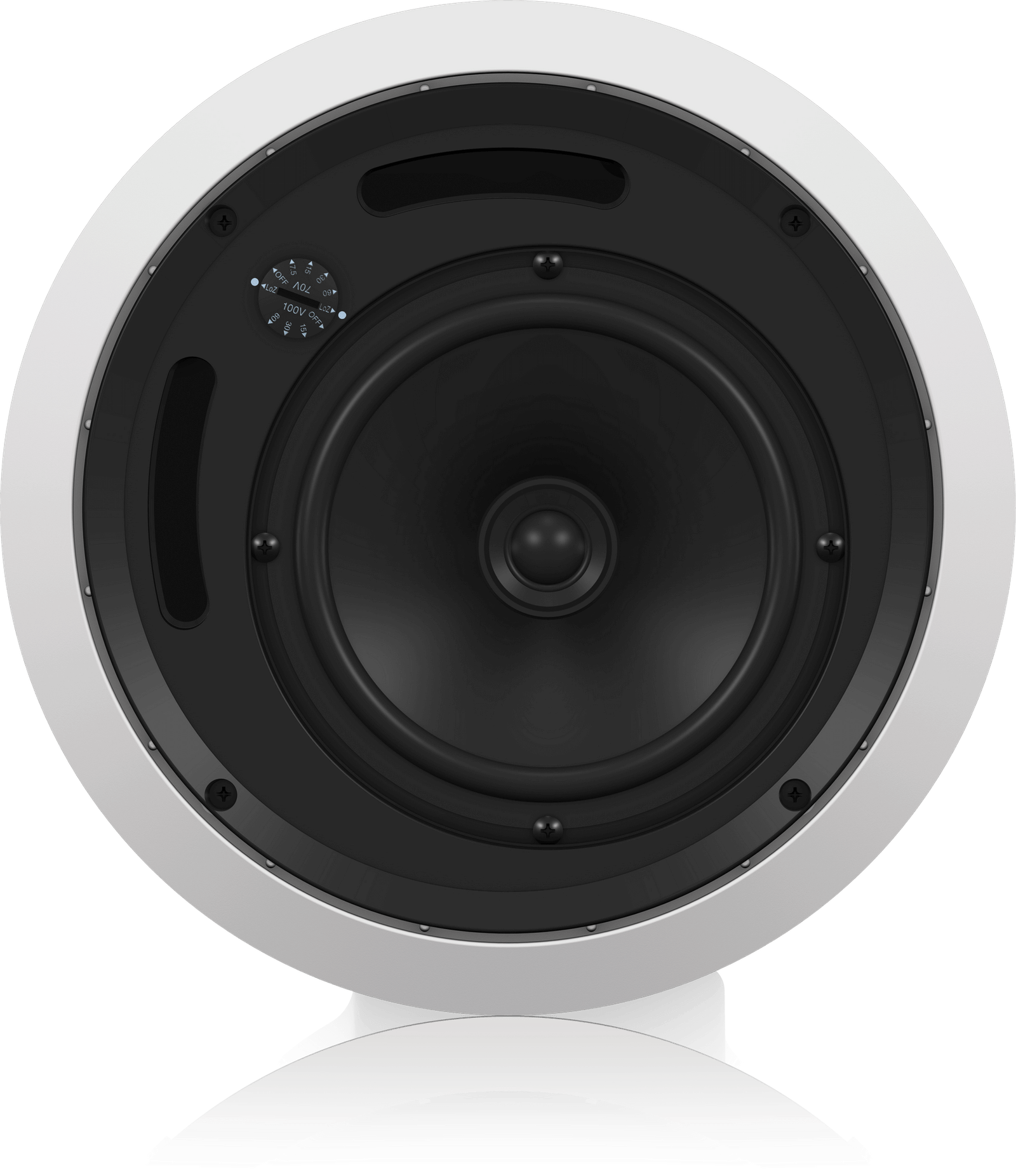

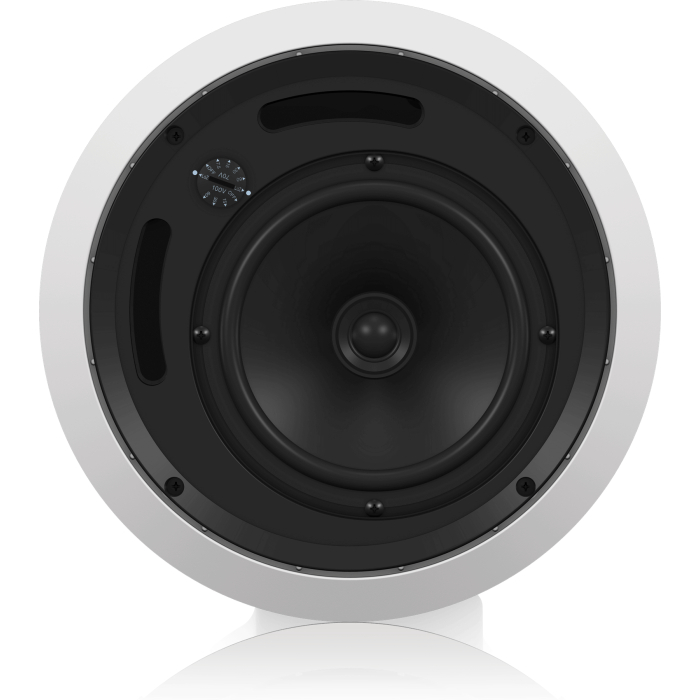

• 6″ mineral loaded polypropylene driver with nitrile rubber surround for enhanced durability and long-term reliability
• 0.75″ ferrofluid cooled soft dome neodymium high frequency driver
• Wide constant directivity dispersion for optimum coverage
• UL 1480 certified for fire-protected signalling systems
• UL 2043 certified for air-handling spaces
• UV and weather resistant UL 94 V-0 ABS front with plated steel fire can enclosure
• Multiple transformer taps for 70 V and 100 V line systems or 6 Ohm direct input
• Low insertion loss 60 W line transformer with easily accessible tapping switch
• Semi matt white finish fits unobtrusively in any environment
• Powder coated perforated steel mesh grille with dust protection
• Mounting C-ring and ceiling tile rails included
• Phoenix* connector with steel cover and strain relief clamping mechanism for fire rated cable

Specifications

Specification	Details
Frequency Response (-3 dB) (1)	79 Hz – 21 kHz
Frequency Range (-10 dB) (1)	60 Hz – 24 kHz
System Sensitivity (1 W @ 1 m) (2)	91 dB (1 W = 2.45 V for 6 Ohms)
Nominal Coverage Angle	90 degrees conical
Coverage Angle (1 kHz to 6 kHz)	93 degrees conical
Directivity Factor (Q)	7.7 averaged 1 kHz to 6 kHz
Directivity Index (DI)	8 averaged 1 kHz to 6 kHz
Rated Maximum SPL (2)	Average: 109 dB Peak: 115 dB
Power Handling (3)	Average: 60 W Programme: 120 W Peak: 240 W
Recommended Amplifier Power	120 W @ 6 Ohms
Nominal Impedance	6 Ohms
Transformer Taps	70 V: 60 W / 30 W / 15 W / 7.5 W / OFF & low impedance operation 100 V: 60 W / 30 W / 15 W / OFF & low impedance operation

Transducers

Specification	Details
Low Frequency	150 mm (6.00″) mineral loaded polypropylene ICT™
High Frequency	19 mm (0.75″)

Physical

Specification	Details

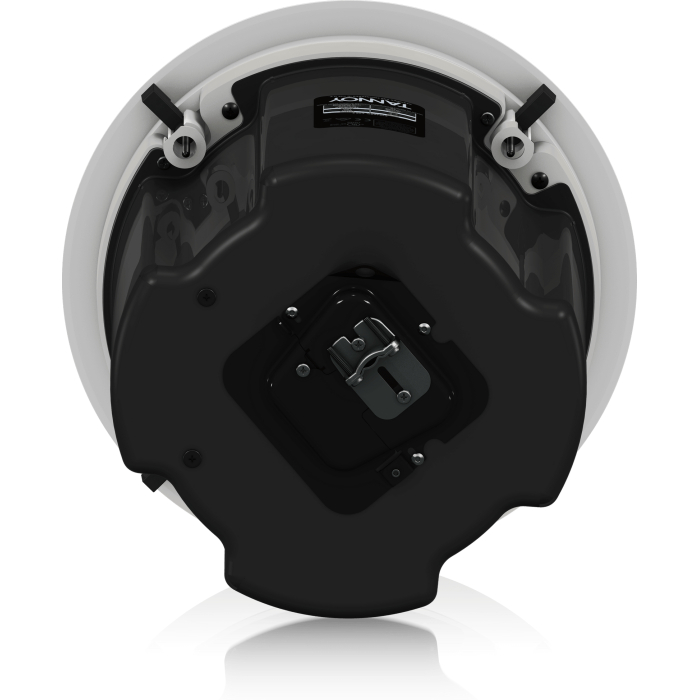

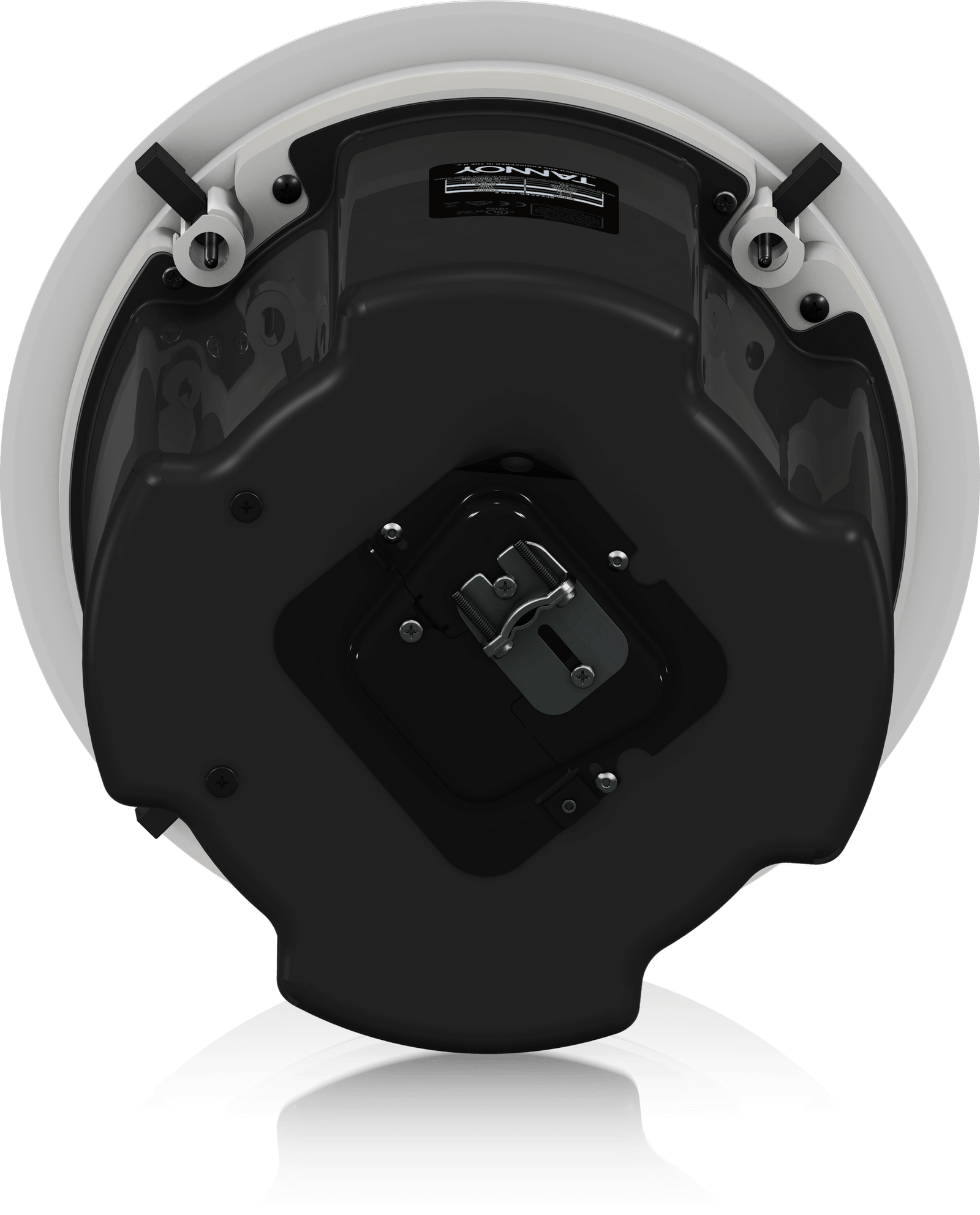

Enclosure	Back Can: Zinc plated steel Baffle: Reflex loaded UL 94 V-0 rated ABS Grille: Steel, with weather resistant coating
Safety Features	Safety ring located at rear of enclosure for load bearing safety bond
Clamping Design	Security toggle clamp

Back Can Options

Specification	Details
Cable Entry Options	Cable clamp & squeeze connector for conduit up to 22 mm
Connectors	Removable locking connector with screw terminals with “loop through” facility
Safety Agency Ratings	UL-1480, UL-2043, CE
Hole Cutout Diameter	250 mm (9.84″)
Dimensions Bezel diameter	279.5 mm (11.01″)
Front of ceiling to rear of back can	246.5 mm (9.70″)
Front of ceiling to top of safety loop	258.5 mm (10.18″)
Net Weight (ea)	5.7 kg (12.6 lbs)
Included Accessories	C Ring, tile bridge, paint mask, cutout template, grille
Optional Accessories	Plaster (mud) ring
