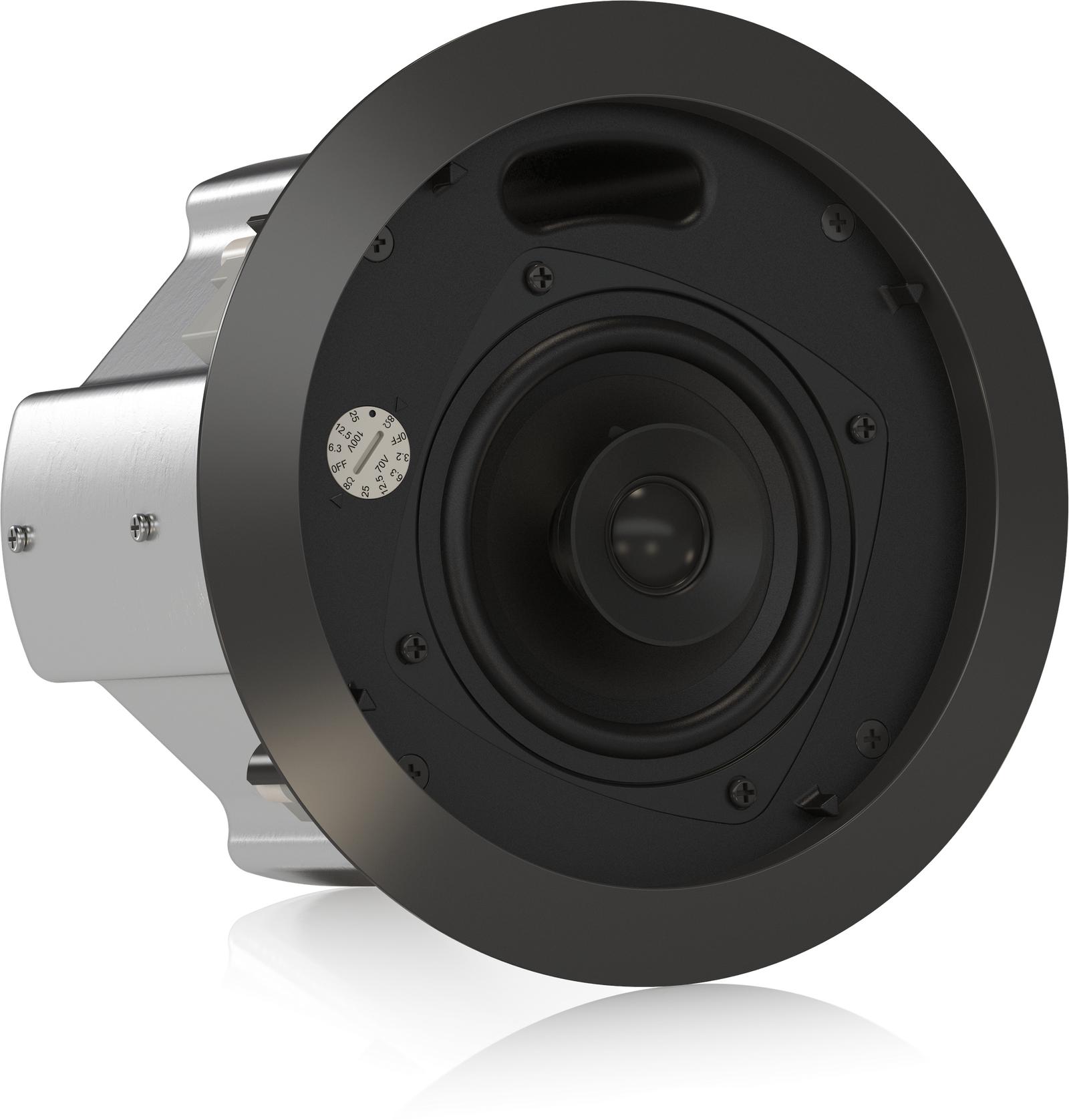

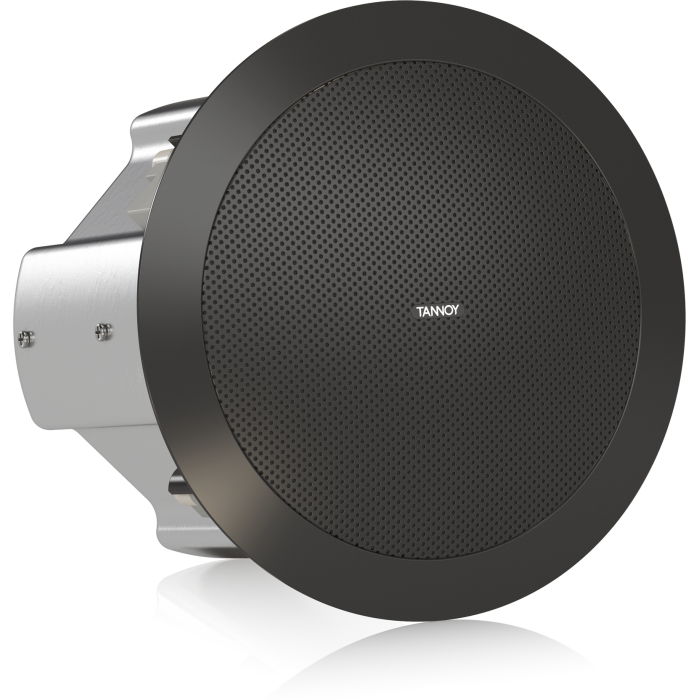

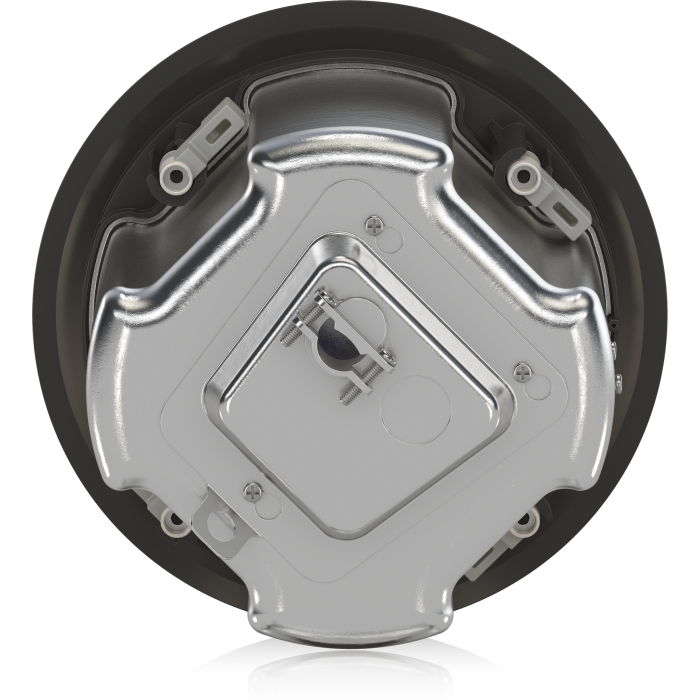

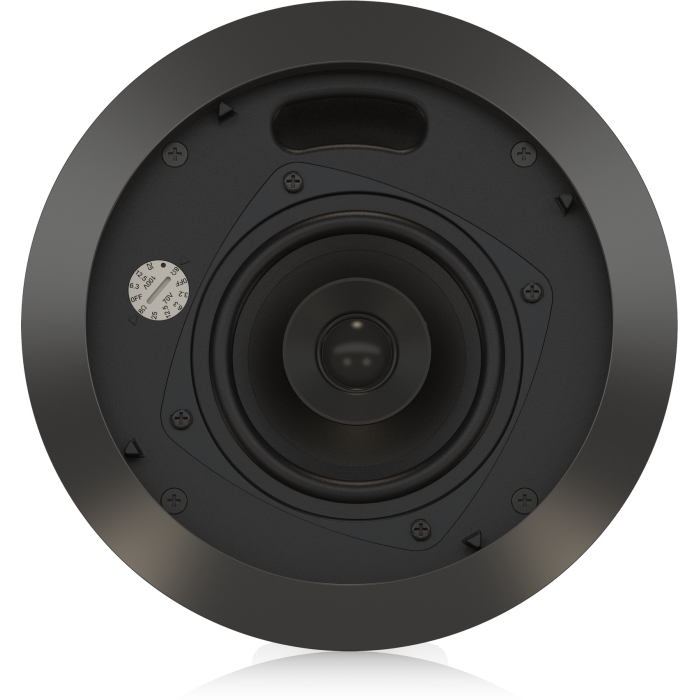

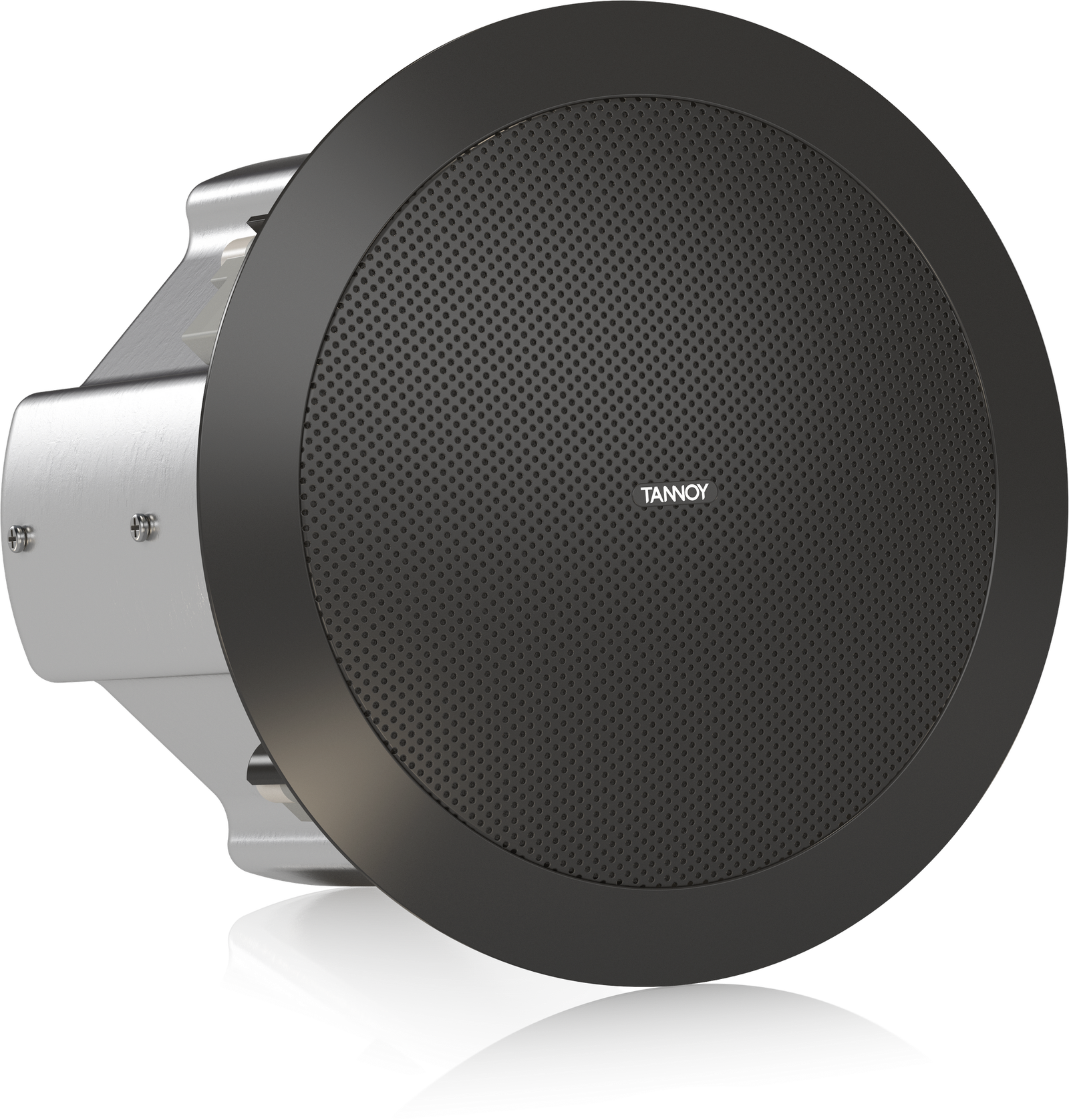

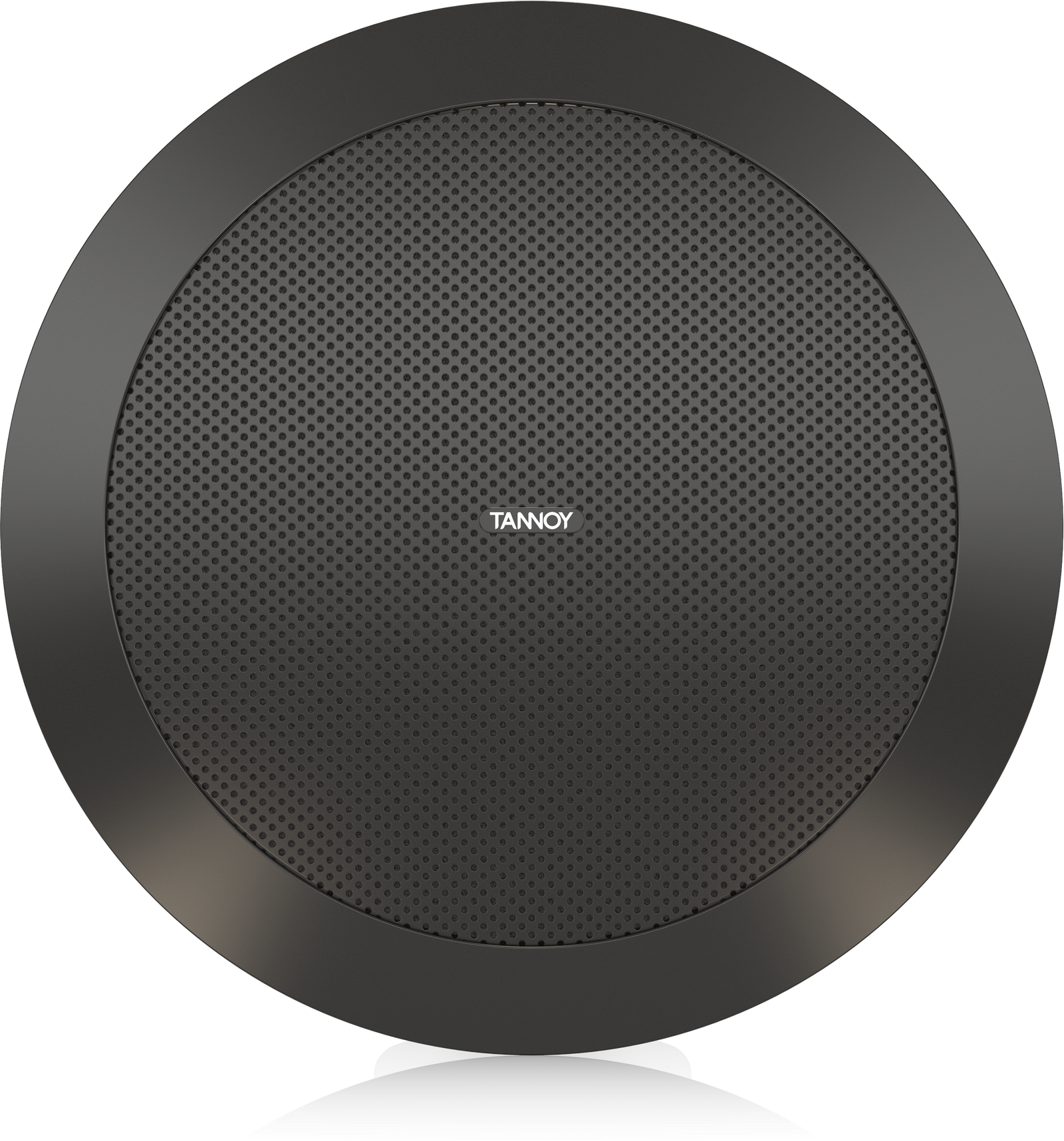

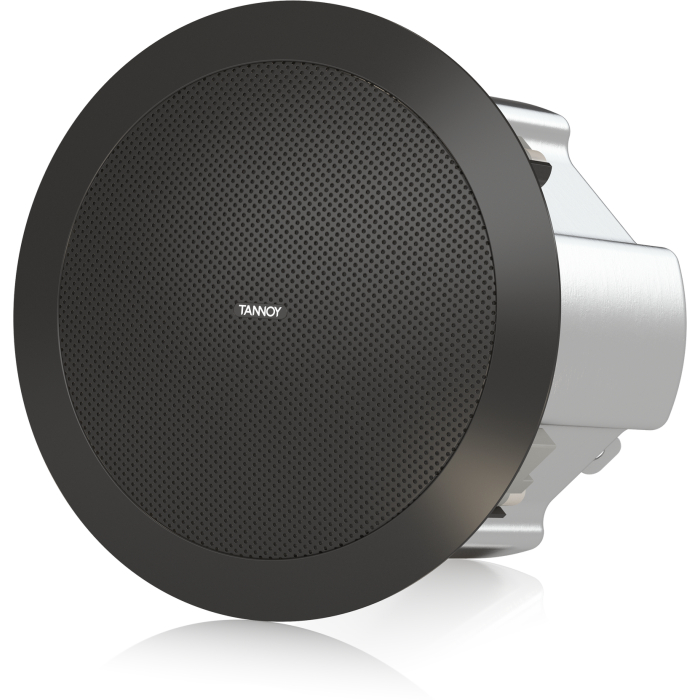

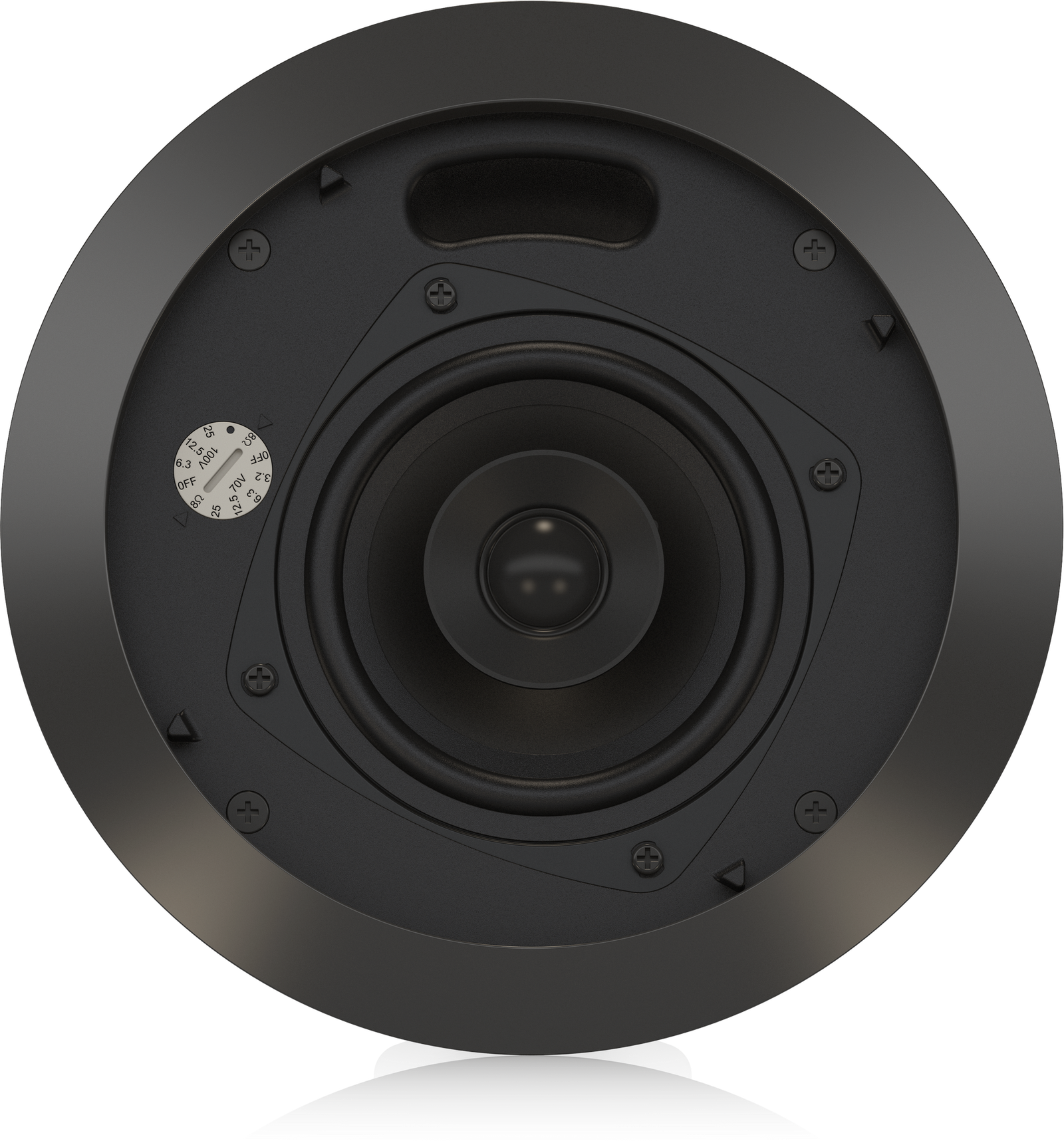

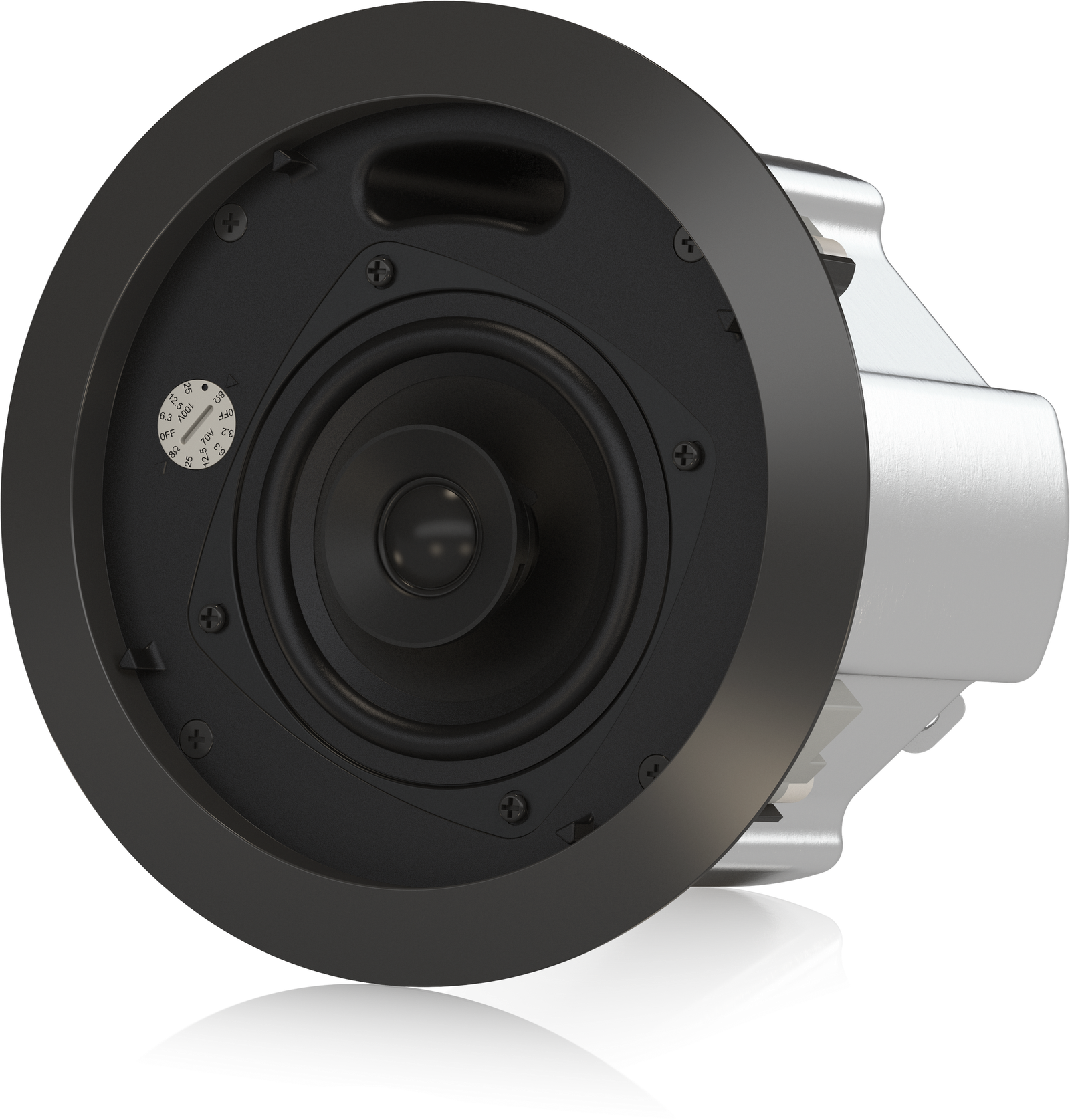

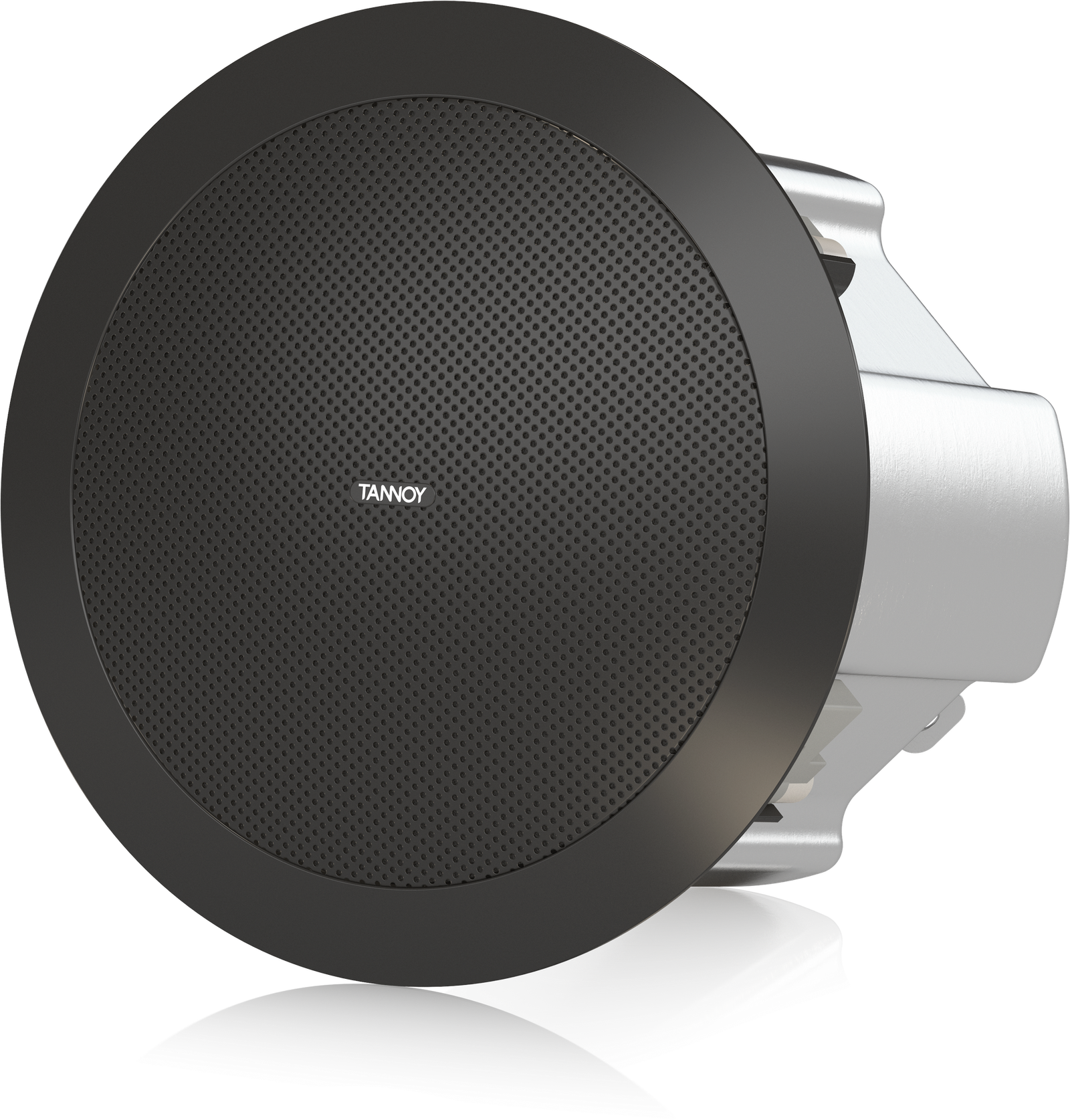

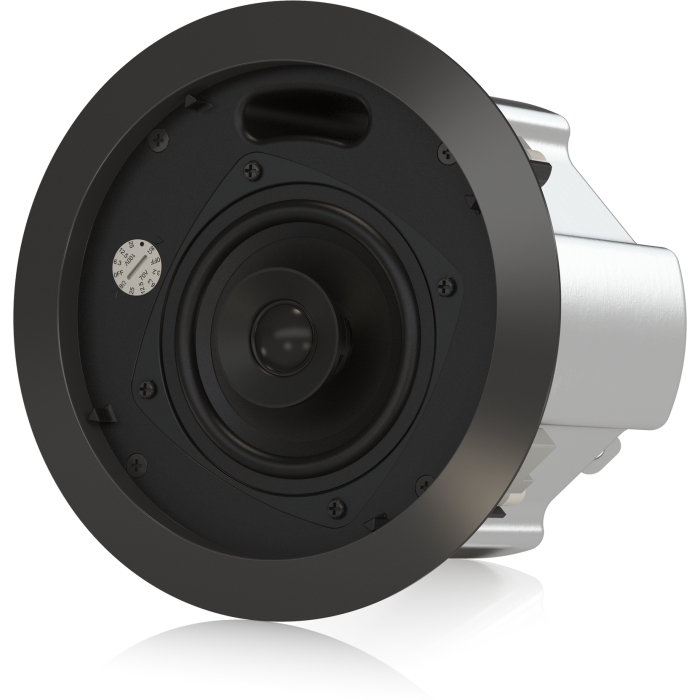

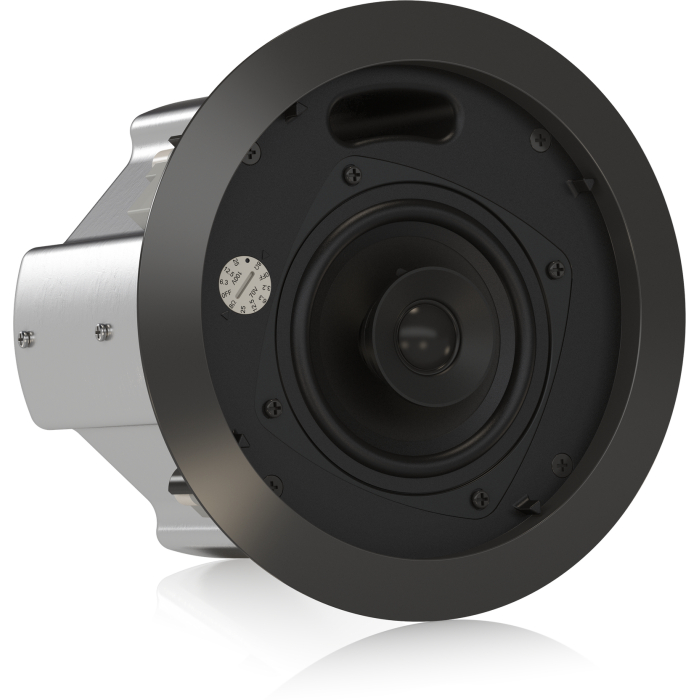

Tannoy CVS 401-BK 4″ Ceiling Speaker 30W Coaxial – Black
- Estimated Delivery: 2–3 business days across the UAE
- Free Shipping & Returns : On all orders over AED 1000
The CVS 401-BK coaxial ceiling loudspeaker delivers exceptional audio quality for background and foreground music in diverse settings, including restaurants, hotels, worship facilities, and businesses. Featuring robust power handling, wide frequency response, and low distortion, it is EN 54-24 certified for fire detection and UL 1480 and 2043 certified for fire-protected and air-handling spaces, ensuring high safety standards.
Description
CVS 401-BK Ceiling Loudspeaker
The CVS 401-BK is a versatile coaxial ceiling loudspeaker designed for both background and foreground music systems. Perfect for various settings, including restaurants, hotels, houses of worship, and diverse business environments, it ensures high-quality audio performance. The CVS 401-BK features exceptional power handling, a broad frequency response, and minimal distortion typically associated with premium products. Safety certifications like EN 54-24, UL 1480, and UL 2043 underscore its reliability in critical installations.
Features
- Coaxial full range ceiling loudspeaker for various applications
- 30 Watts continuous, 120 Watts peak power
- 4″ polypropylene driver with durable butyl rubber surround
- 0.75″ ferrofluid cooled soft dome high frequency driver
- Wide constant directivity dispersion for optimal coverage
- EN54-24:2008 certified Type A
- UL 1480 and UL 2043 certified
- UV and weather resistant front with plated steel fire can enclosure

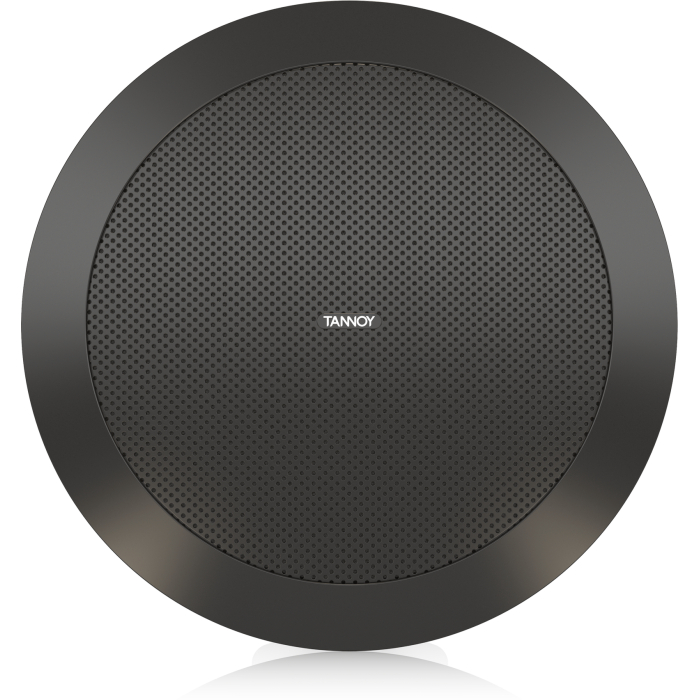

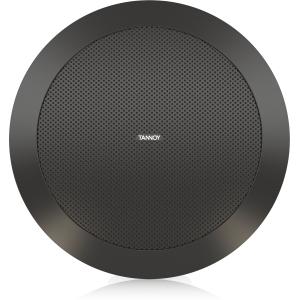

- Powder coated aluminium mesh grille with dust protection
- Multiple transformer taps for 70 V and 100 V line systems or 8 Ohm direct input
- Low insertion loss 25 W line transformer with tapping switch
- Semi matt black finish for discreet integration
- Mounting C-ring and ceiling tile rails included
- Steel cover for fire rated cable
Specifications
| Specification | Details |
|---|---|
| Frequency response (+3dB, -3dB) | 102 Hz-20 kHz |
| Frequency response (-10 dB) | 70 Hz-20 kHz |
| Sensitivity at 1m/1W | 84 dB |
| Nominal coverage angle | 120° |
| Directivity factor (Q) | 5.4 (averaged 1 kHz to 6 kHz) |
| Directivity index (DI) | 7.3 (averaged 1 kHz to 6 kHz) |
| Power Handling (LoZ) | 20 W (average), 60 W (program), 120 W (peak), recommended amplifier power: 60 W @ 8 Ω |
| Nominal Impedance (LoZ) | 8 Ω |
| Maximum SPL (LoZ) | 102 dB |
| Transformer Taps (70 V) | 25 W, 12.5 W, 6.3 W, 3.2 W |
| Transformer Taps (100 V) | 25 W, 12.5 W, 6.3 W |
| Low Frequency Driver | 100 mm (4″) PP cone |
| High Frequency Driver | 20 mm (0.79″) coaxially mounted |

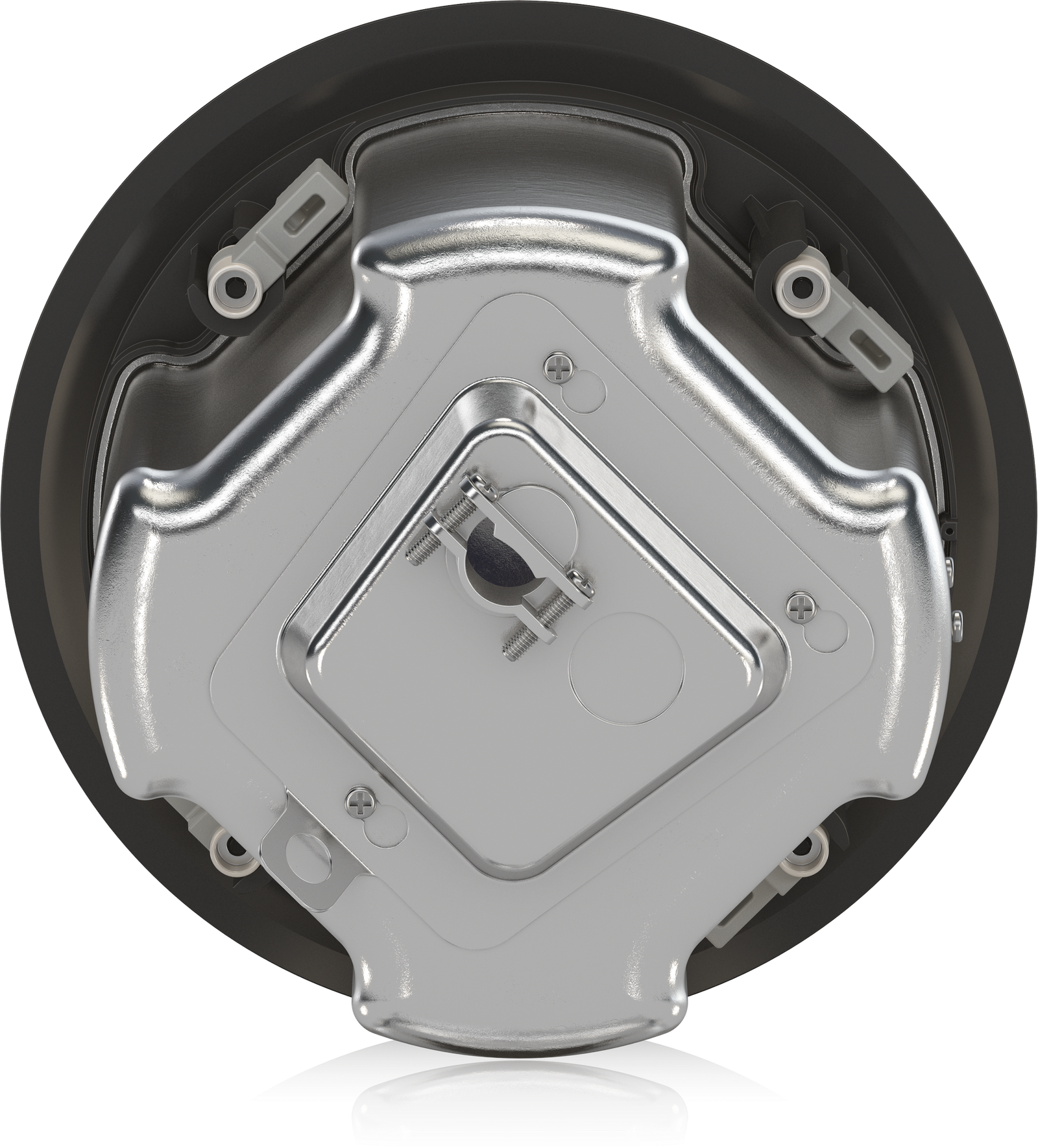

| Enclosure | Blind mount (BM), anodized steel back can, reflex loaded UL 94V-0 rated ABS baffle |
| Grille | Aluminum, powder coated |
| Safety Features | Rear enclosure safety ring for load-bearing bond |
| Clamping Design | Security toggle clamp |
| Connectors | Euroblock-style connector with screw terminals |
| Dimensions | Bezel diameter: 200 mm (8″) Rear face of baffle to rear of back can: 150 mm (5.91″) Rear face of baffle to top of safety loop: 163 mm (6.42″) Cutout diameter: φ172 mm (6.77″) Net weight: 2.77 kg (6.09 lbs) ±10% |
| Included Accessories | Metal grille, cable gland, flex conduit, C-ring, tile-bridge kit, paint mask, cutout template |
| Optional Accessories | Mud ring, 48″ Tile rail |
| Packed Quantity | 1 pair |
