Tannoy CVS 401 4-Inch Coaxial Ceiling Speaker 120W Peak
- Estimated Delivery: 2–3 business days across the UAE
- Free Shipping & Returns : On all orders over AED 1000
The CVS 401 is a high-performance coaxial ceiling loudspeaker designed for exceptional audio quality in diverse settings such as restaurants, hotels, places of worship, and various businesses. With its excellent power handling, wide frequency response, and low distortion, it offers sound quality on par with premium models. Certified with EN 54-24 for fire safety, UL 1480 for fire-protected signalling, and UL 2043 for air-handling spaces, the CVS 401 ensures compliance with essential safety standards.
Description
CVS 401 Coaxial Ceiling Loudspeaker
The CVS 401 is a coaxial ceiling loudspeaker engineered to provide superb audio performance in both background and foreground music sound systems. Ideally suited for a wide variety of applications, from restaurants and hotels to houses of worship and businesses of all types, the CVS 401 offers the power handling, wide frequency response and low distortion typically found in more expensive products. EN 54-24 certification for fire detection and fire alarm systems makes the CVS 401 the perfect choice where safety is a top priority. The loudspeaker is also UL 1480 certified for fire-protected signalling systems and UL 2043 certified for air-handling spaces.
Features
- Coaxial full range ceiling loudspeaker for installation applications
- 30 Watts continuous, 120 Watts peak power

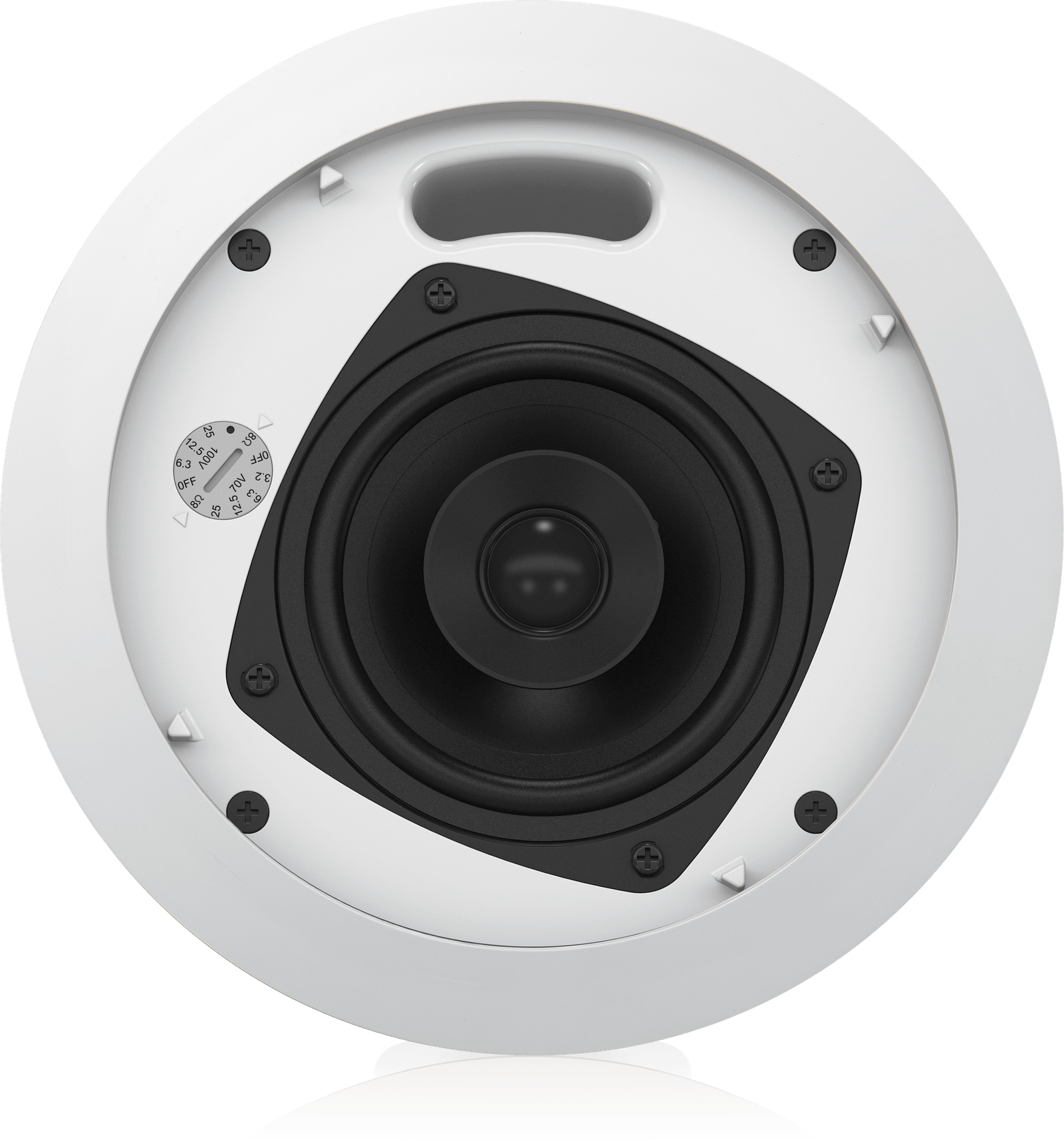

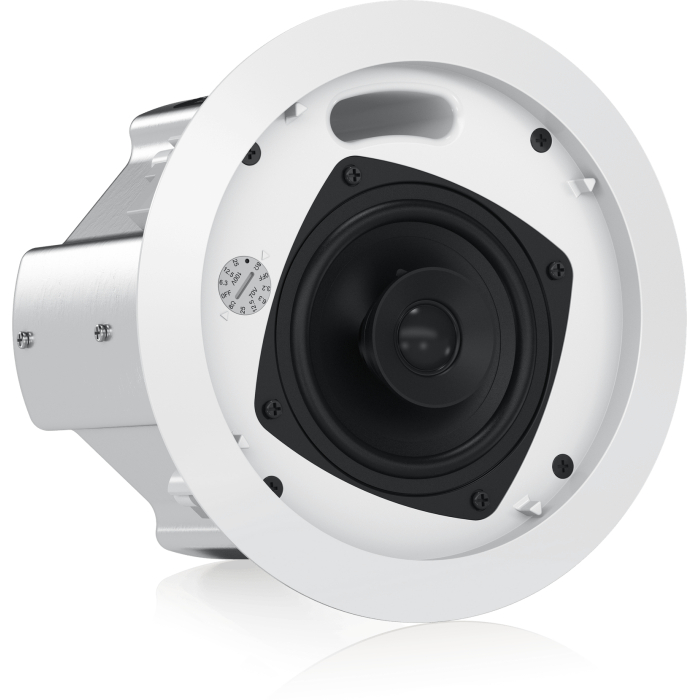

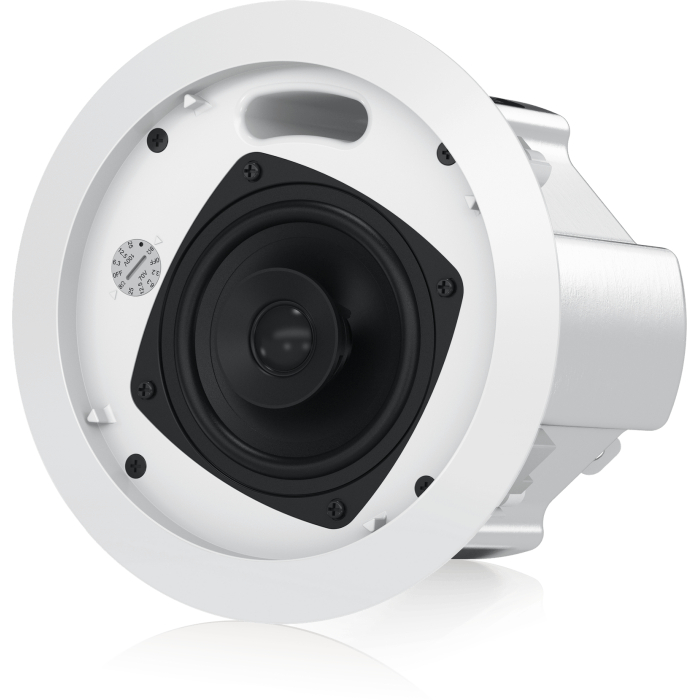

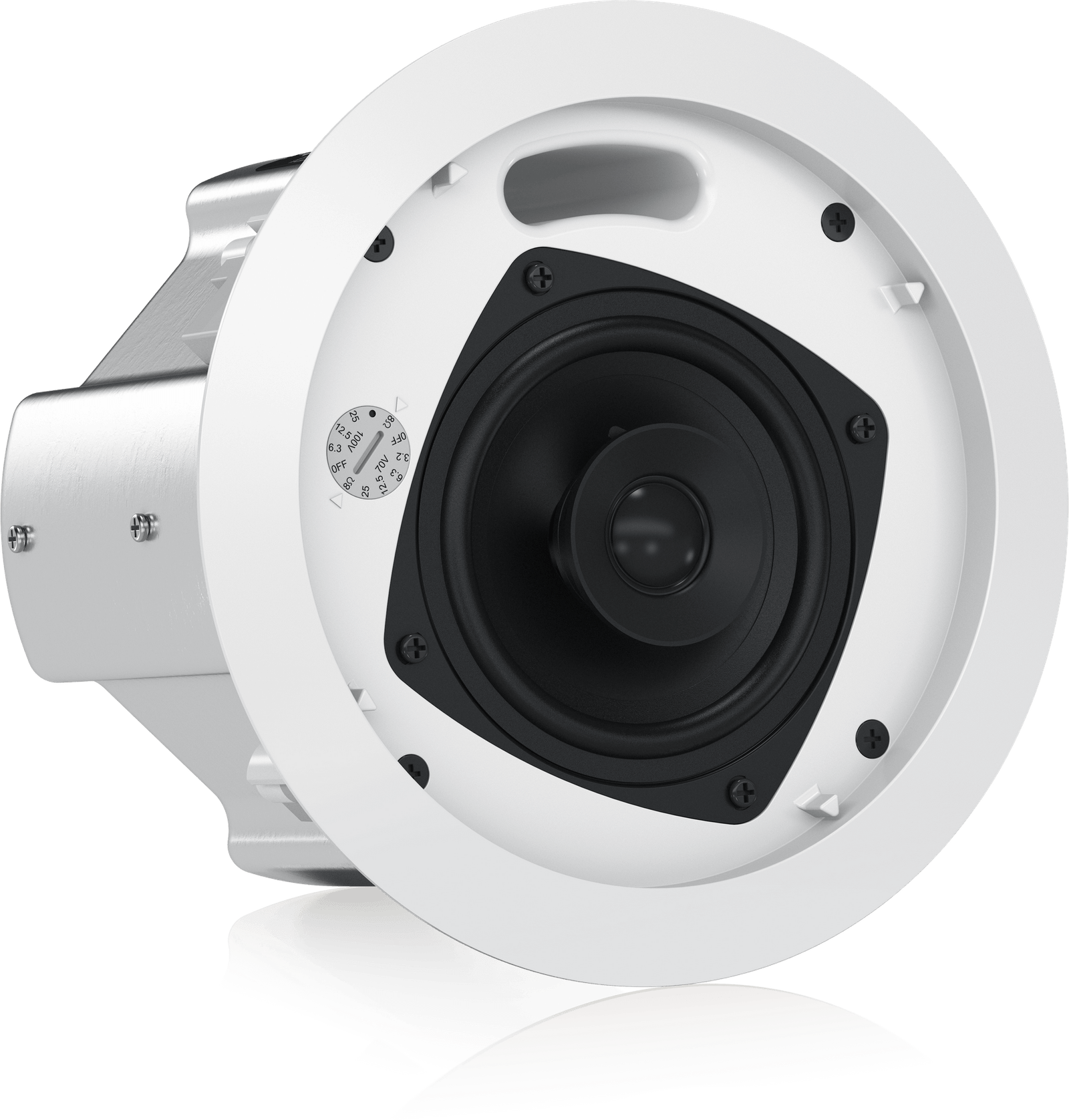

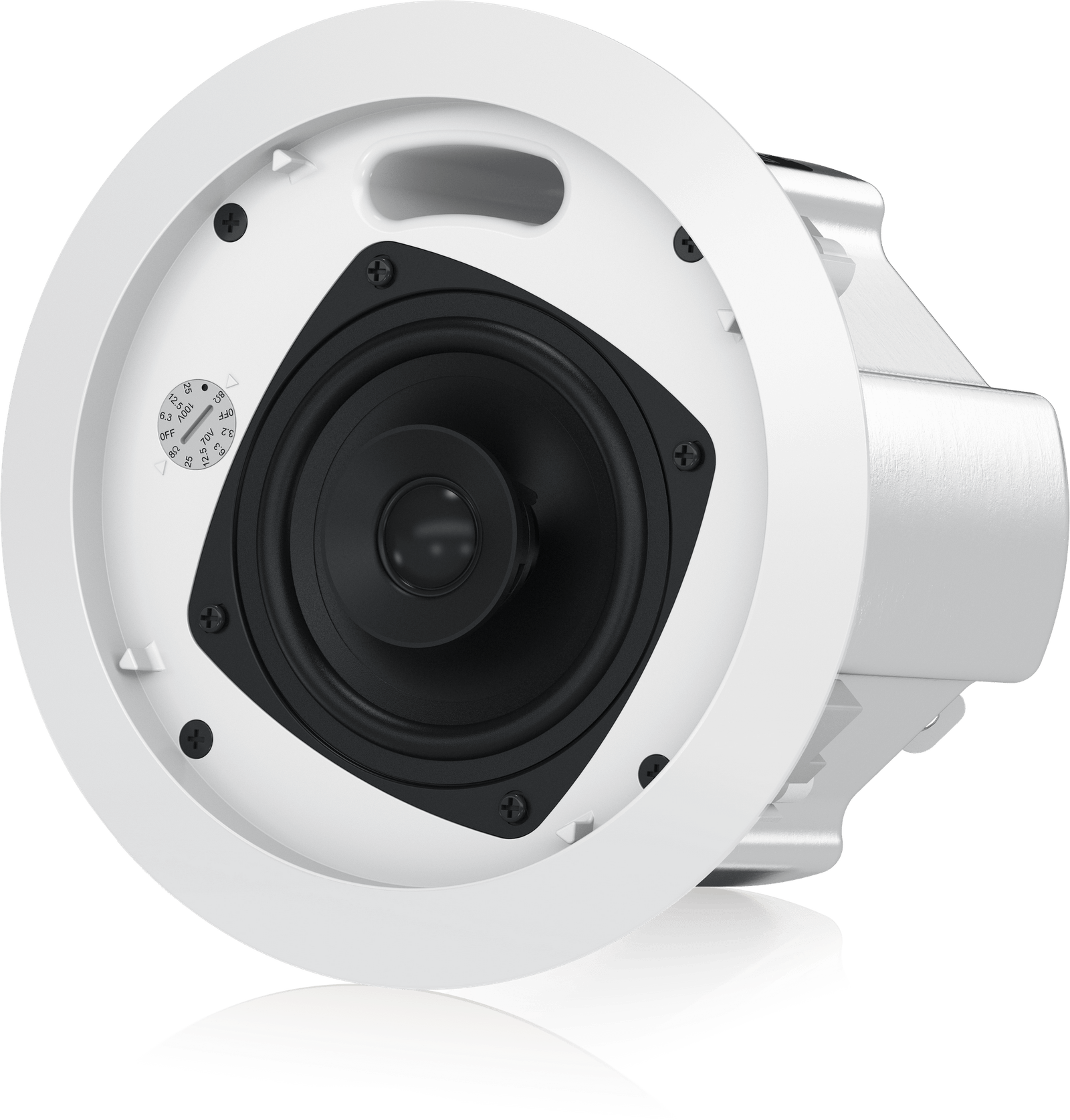

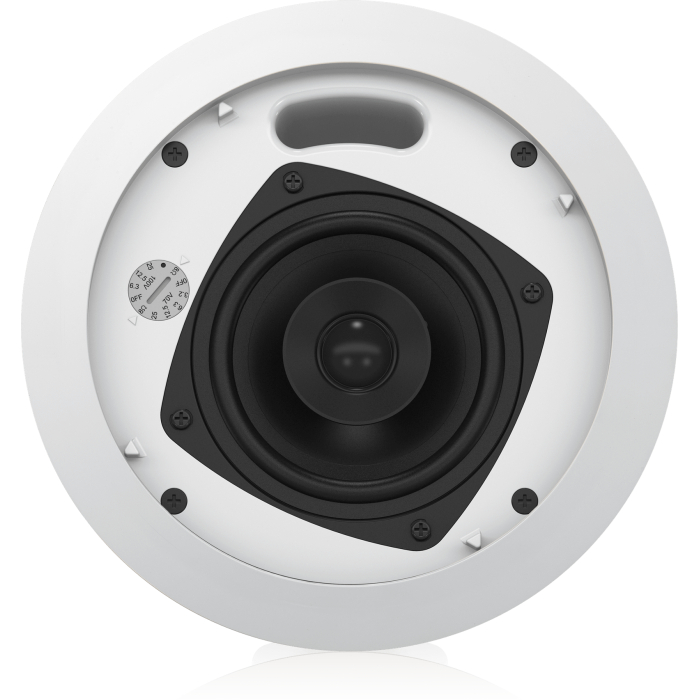

- 4″ polypropylene driver with butyl rubber surround for enhanced durability and long-term reliability
- 0.75″ ferrofluid cooled soft dome high frequency driver
- Wide constant directivity dispersion for optimum coverage
- EN54-24:2008 certified Type A
- UL 1480 certified for fire-protected signalling systems
- UL 2043 certified for air-handling spaces
- UV and weather resistant UL 94-V0 and 94-5VB ABS front with plated steel fire can enclosure

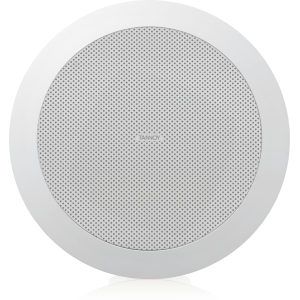

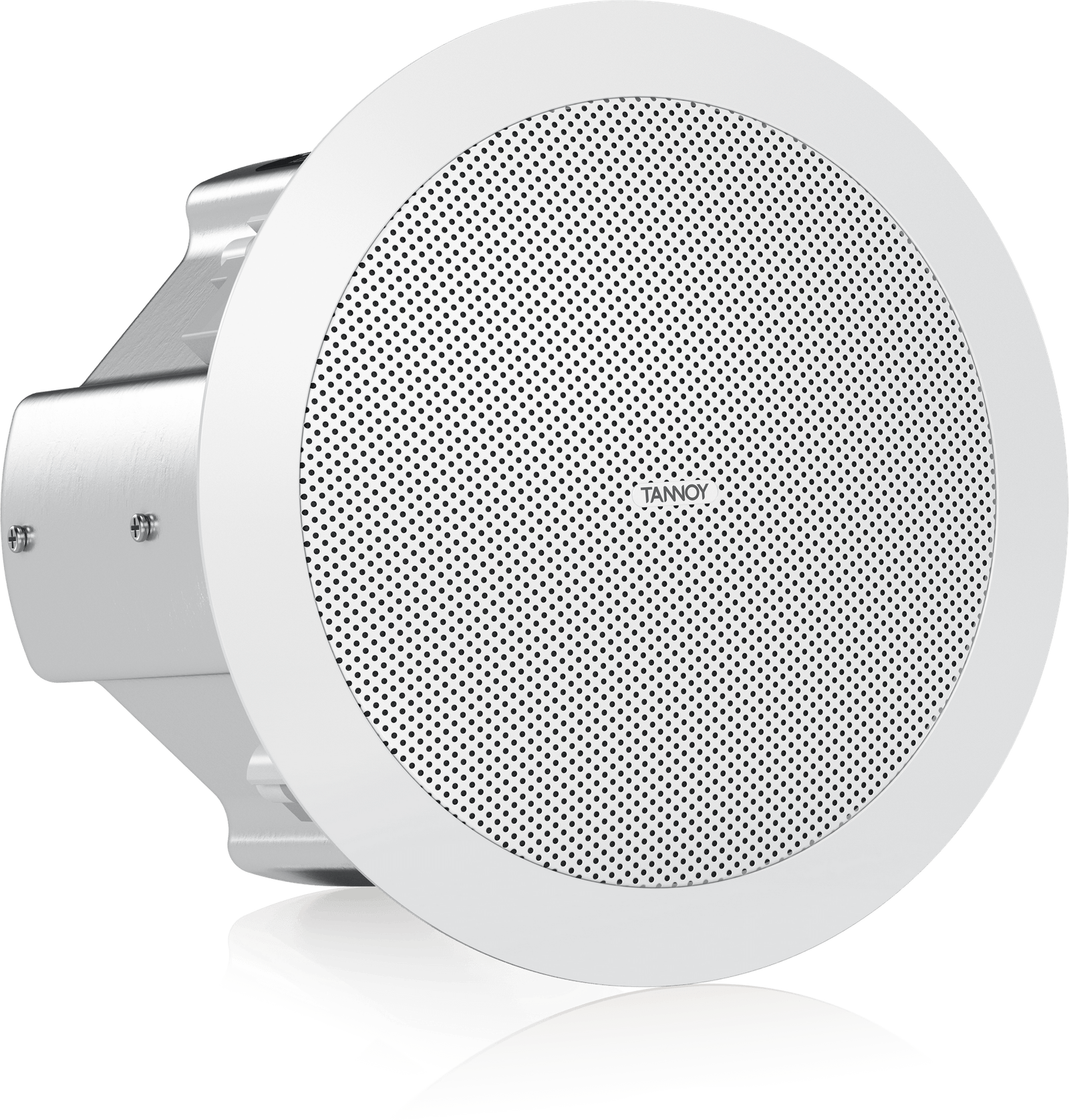

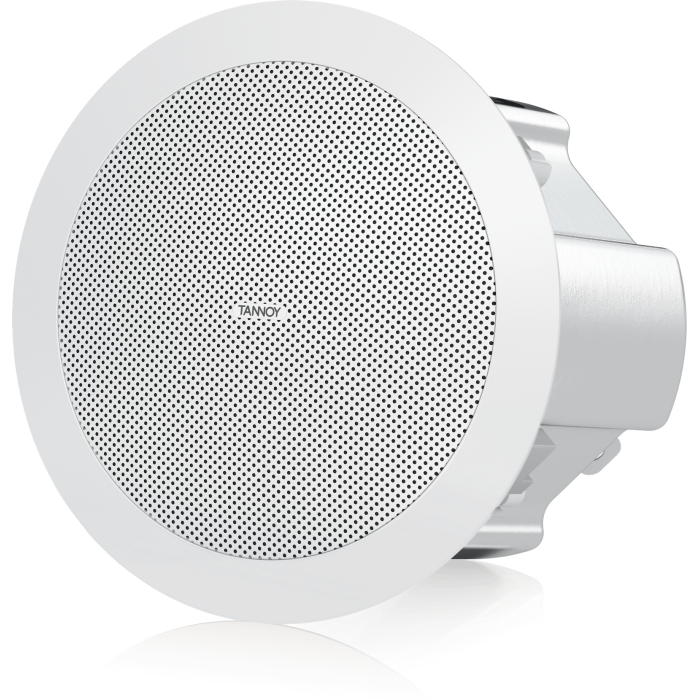

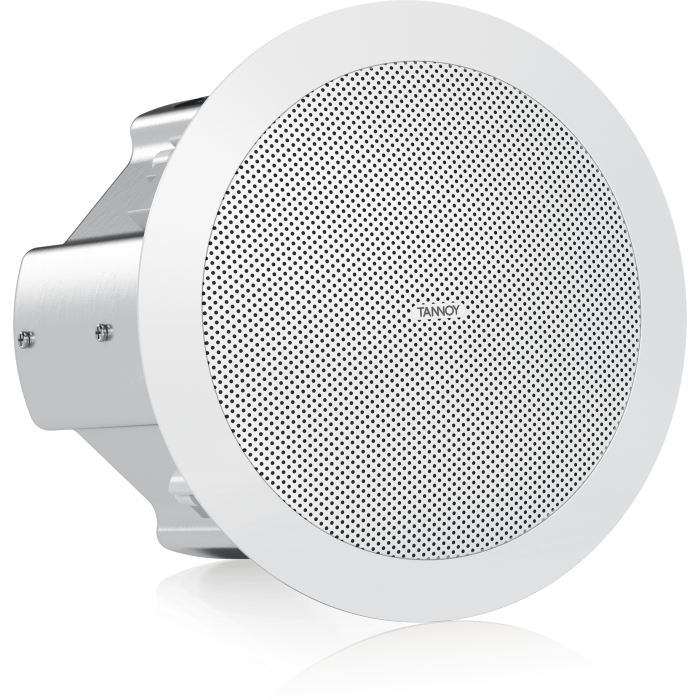

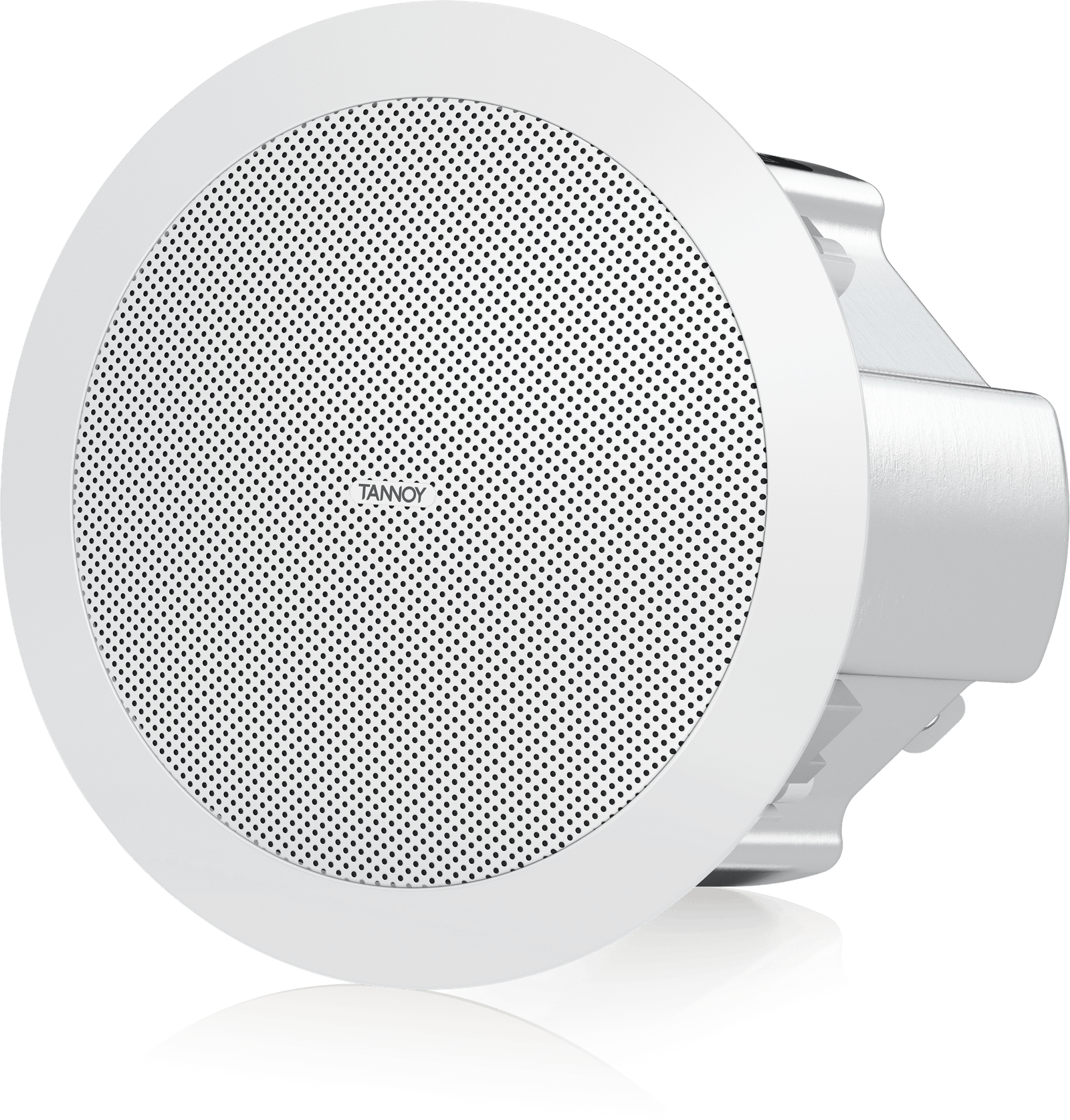

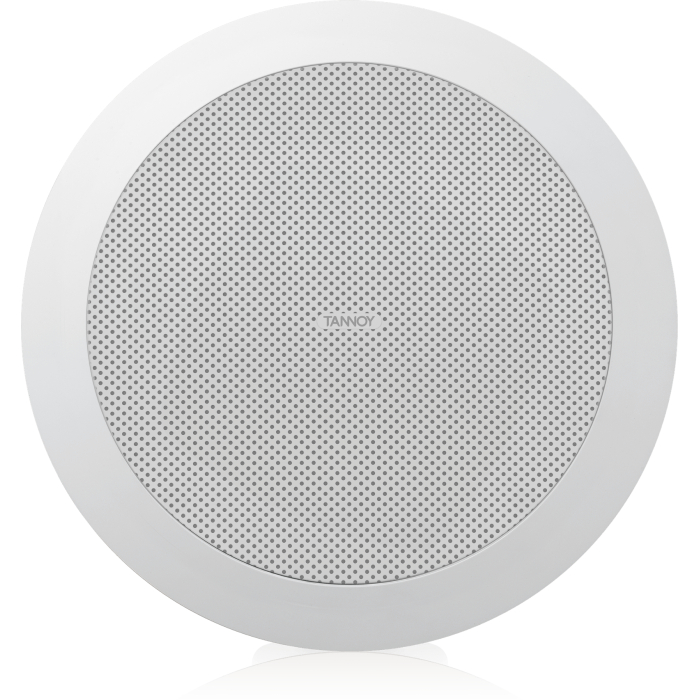

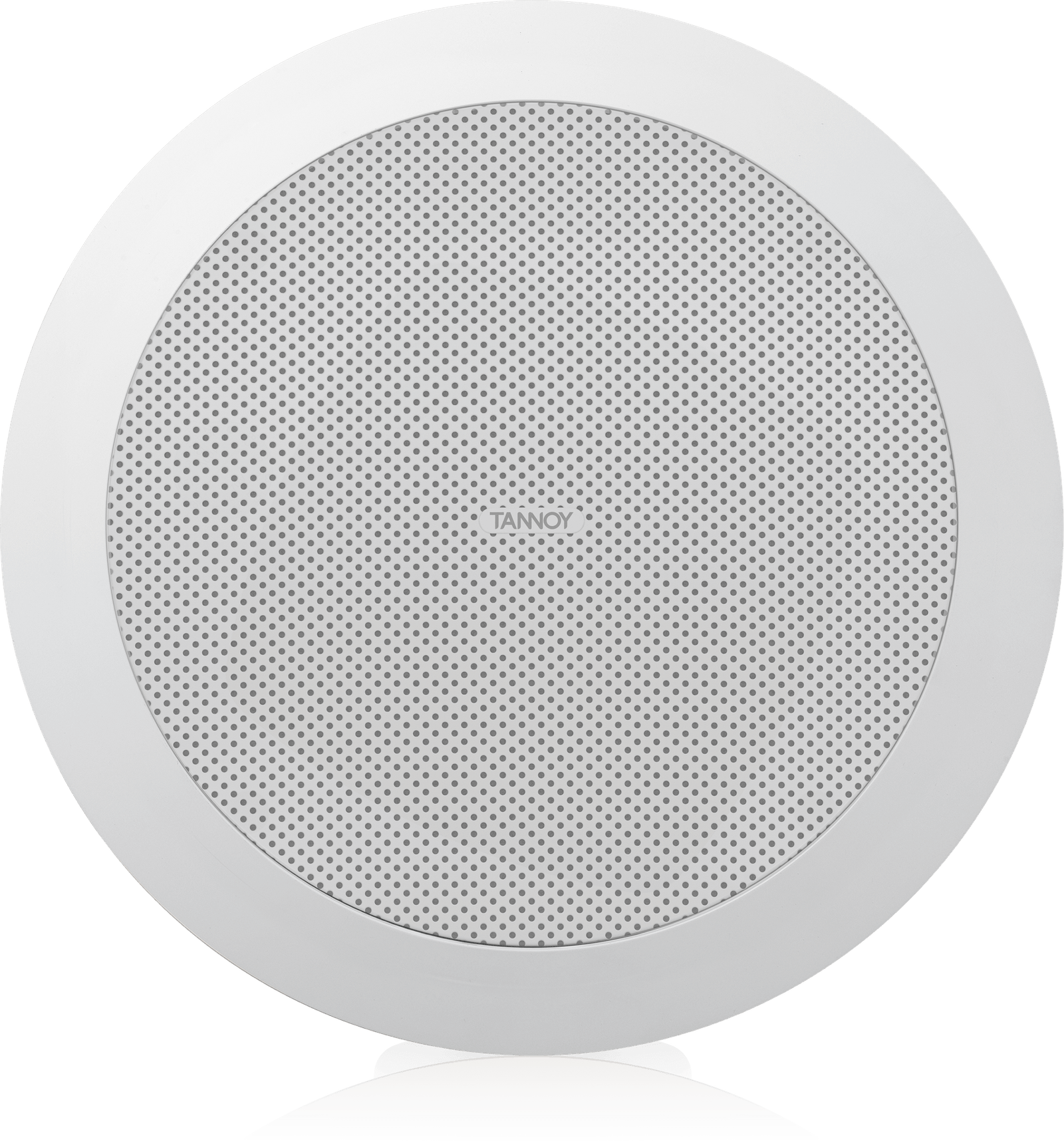

- Powder coated aluminium mesh grille with dust protection
- Multiple transformer taps for 70 V and 100 V line systems or 8 Ohm direct input
- Low insertion loss 25 W line transformer with easily accessible tapping switch
- Semi matt white finish fits unobtrusively in any environment
- Mounting C-ring and ceiling tile rails included

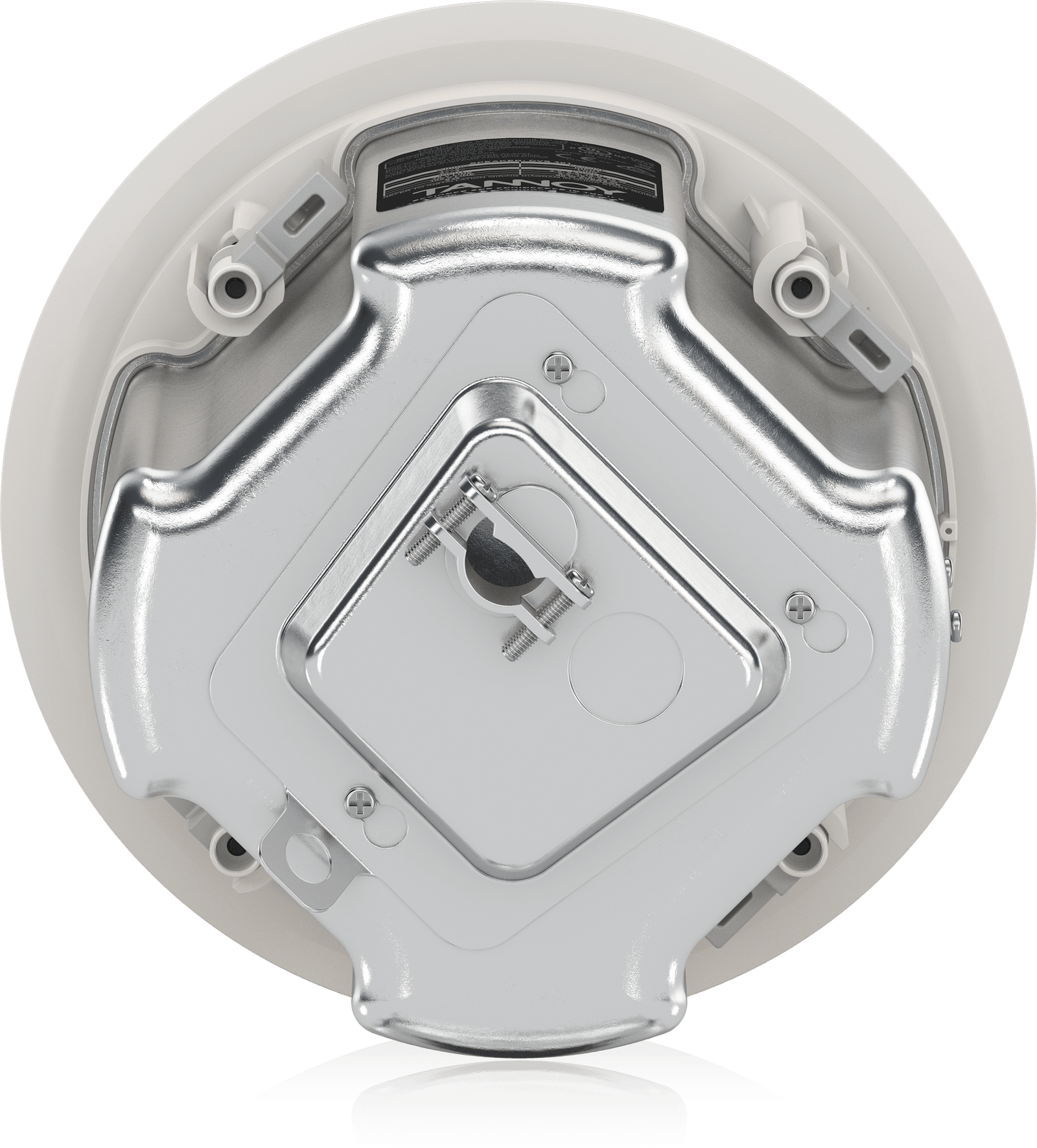

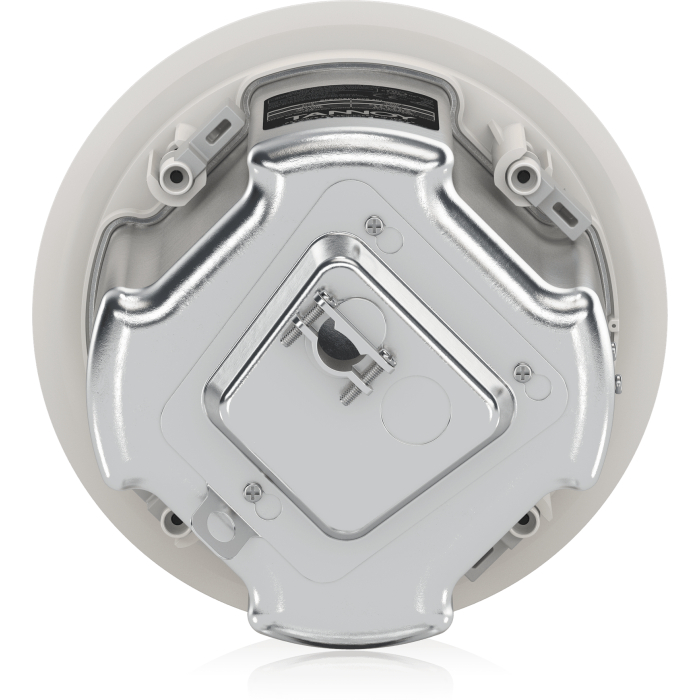

- Steel cover and strain relief clamping mechanism for fire rated cable
Key Specifications
| Specification | Details |
|---|---|
| Frequency Response | 102 Hz-20 kHz (+3dB, -3 dB), 70 Hz-20 kHz (-10 dB) |
| Sensitivity at 1m/1W | 84 dB |
| Nominal Coverage Angle | 120° |
| Directivity Factor (Q) | 5.4 (1 kHz to 6 kHz) |
| Directivity Index (DI) | 7.3 (1 kHz to 6 kHz) |
| Power Handling (LoZ) | 20 W (Average), 60 W (Program), 120 W (Peak) |
| Recommended Amplifier Power | 60 W @ 8 Ω |
| Nominal Impedance (LoZ) | 8 Ω |
| Rated Maximum SPL | 102 dB (1 m, LoZ) |
| Transformer Taps | 70 V: 25 W/12.5 W/6.3 W/3.2 W, 100 V: 25 W/12.5 W/6.3 W |
| Enclosure | Blind mount (Anodized steel back can) |
| Dimensions | Ø 200 mm x 150 mm (8″ x 5.91″) |
| Net Weight | 2.77 kg (6.09 lbs) ±10% |
| Included Accessories | Metal grille, cable gland, flex conduit, C-ring, tile-bridge kit, paint mask, cutout template |
| Packed Quantity | 1 pair |
