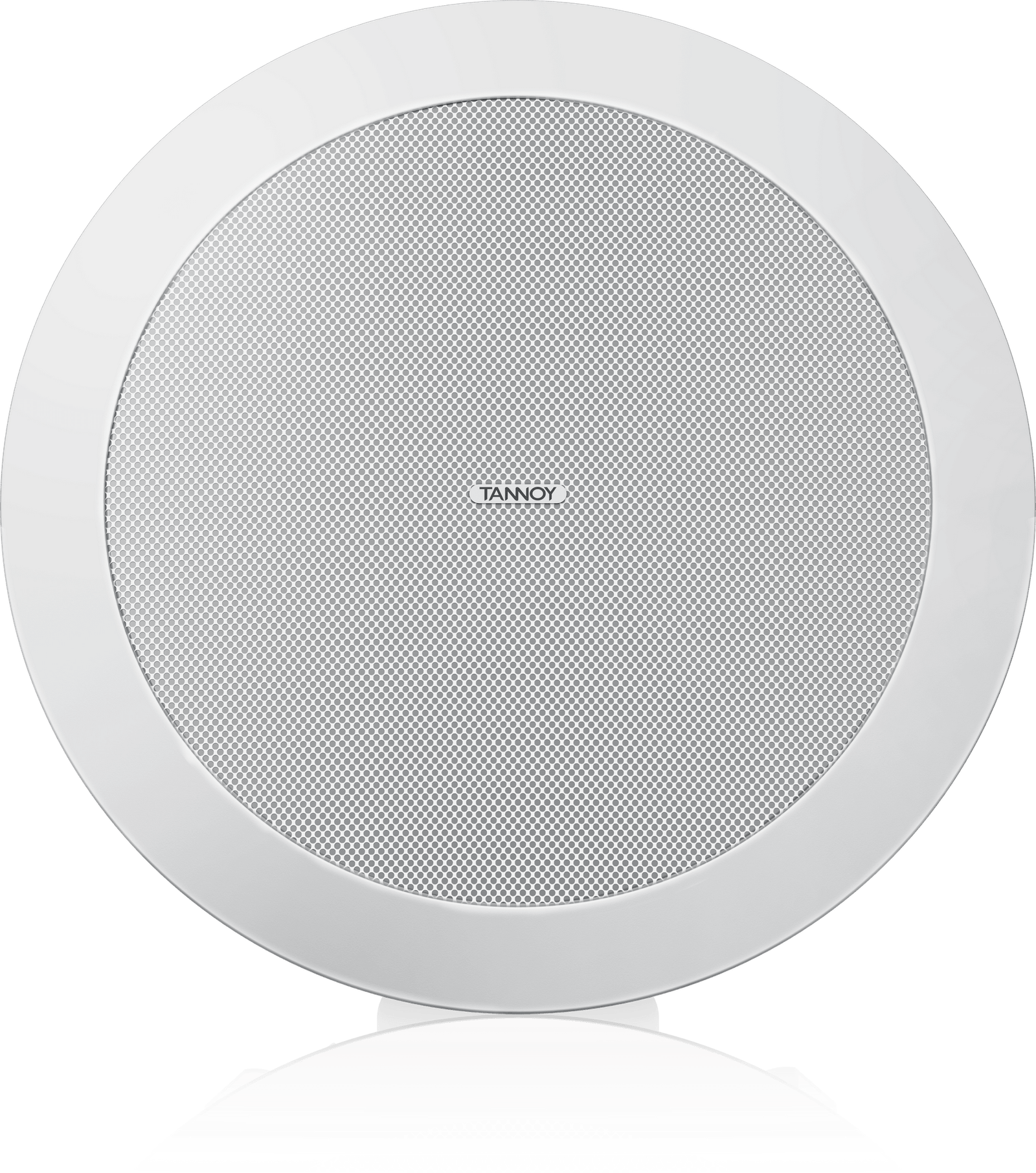

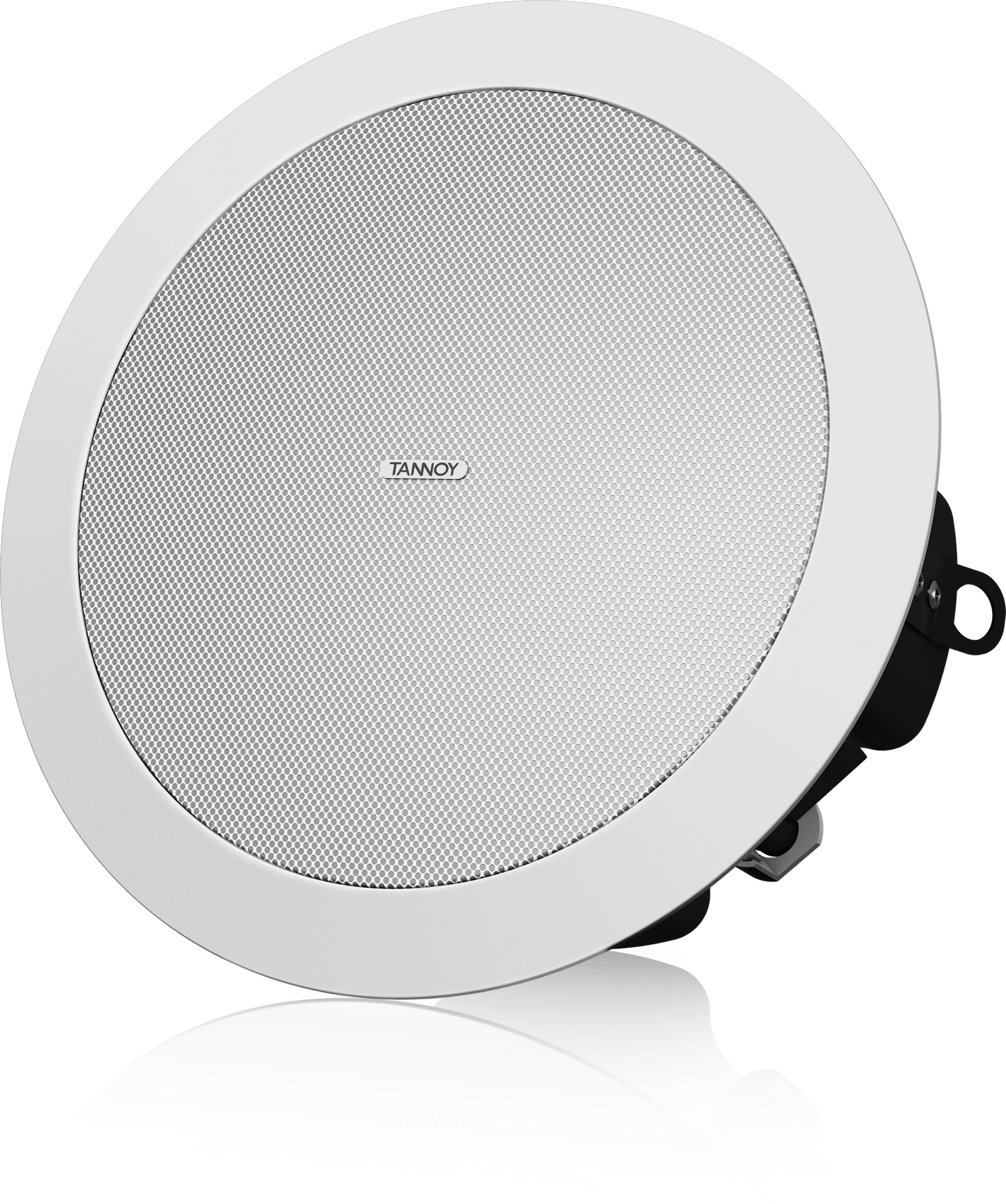

CVS 4 MICRO Ceiling Loudspeaker

The CVS 4 MICRO is a compact 160-Watt shallow back can ceiling loudspeaker engineered to provide superb audio performance in both background and foreground music sound systems. Ideally suited for a wide variety of applications, from restaurants and hotels to houses of worship and businesses of all types, the CVS 4 MICRO offers the power handling, wide frequency response and low distortion more typically found in a studio reference monitor than a ceiling loudspeaker. The resulting sound is warm, with a nuanced and pristine clarity that envelopes the listener – without intruding.

Features

• Coaxial full range low profile ceiling loudspeaker for installation applications
• 40 Watts continuous, 160 Watts peak power
• Shallow back can for limited cavity space
• 4″ mineral loaded polypropylene driver with nitrile rubber surround for enhanced durability and long-term reliability
• 0.75″ ferrofluid cooled soft dome neodymium high frequency driver
• Wide constant directivity dispersion for optimum coverage
• UL 1480 certified for fire-protected signalling systems
• UL 2043 certified for air-handling spaces
• UV and weather resistant UL 94 V-0 ABS front with plated steel fire can enclosure
• Multiple transformer taps for 70 V and 100 V line systems or 6 Ohm direct input
• Low insertion loss 15 W line transformer with easily accessible tapping switch
• Semi matt white finish fits unobtrusively in any environment
• Powder coated perforated steel mesh grille with dust protection
• Mounting C-ring and ceiling tile rails included
• Phoenix* connector with steel cover and strain relief clamping mechanism for fire rated cable

Specifications

System

Frequency response (-3 dB)*	110Hz – 19kHz
Frequency response (-10 dB)*	90Hz – 22kHz
System Sensitivity (1 W @ 1 m)**	87 dB (1 W = 2.45 V for 6 Ohms)
Nominal Coverage Angle	90 degrees conical
Coverage Angle (1 kHz to 6 kHz)	102 degrees
Directivity Factor (Q)	5.6 averaged 1 kHz to 6 kHz
Directivity Index (DI)	7.1 averaged 1 kHz to 6 kHz
Rated Maximum SPL	103 dB (average) 109 dB (peak)
Power Handling***	Average: 40 W Programme: 80 W Peak: 160 W
Recommended Amplifier Power	80 W @ 6 Ohms
Nominal Impedance	6 Ohms
Transformer Taps (via front rotary switch)	70 V: 15 W / 7.5 W / 3.75 W / 1.9 W / OFF & low impedance operation 100 V: 15 W / 7.5 W / 3.75 W / OFF & low impedance operation

Transducers

Low Frequency	100 mm (4.00″) mineral loaded cone material
High Frequency	19 mm (0.75″)

Physical

Enclosure	Back can: Zinc plated steel | Painted steel Baffle: Reflex loaded UL 94V-0 rated ABS Grille: Steel, with weather resistant coating
Safety Features	Safety ring located at rear of enclosure for load bearing safety bond
Clamping Design	Security toggle clamp

Back Can Options

Cable Entry Options	Cable clamp & squeeze connector for conduit up to 22 mm
Connectors	Removable locking connector with screw terminals with “loop through” facility
Safety Agency Ratings	UL-1480, UL-2043, CE
Hole Cutout Diameter	180 mm (7.08″)
Dimensions Bezel diameter	213.0 mm (8.39″)
Front of ceiling to rear of back can	202.5 mm (7.97″)
Front of ceiling to top of safety loop	214.9 mm (8.46″)
Optional Accessories	Plaster (mud) ring
