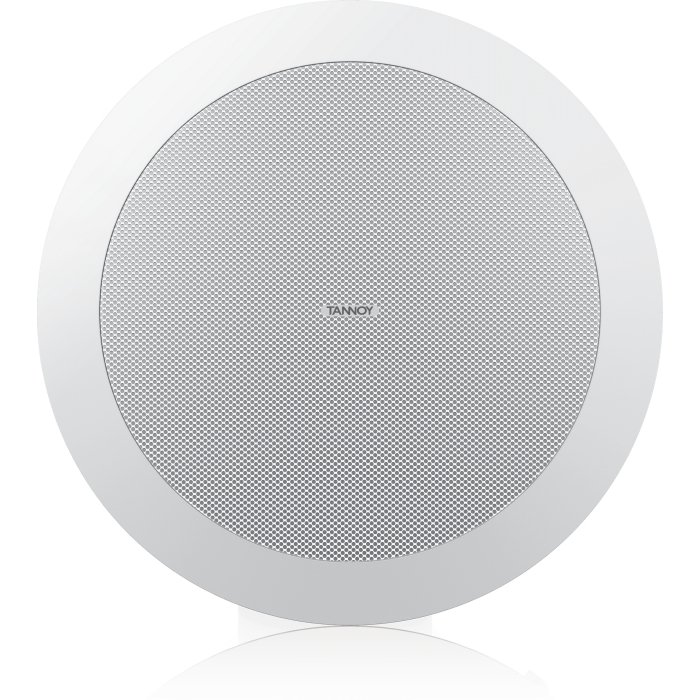

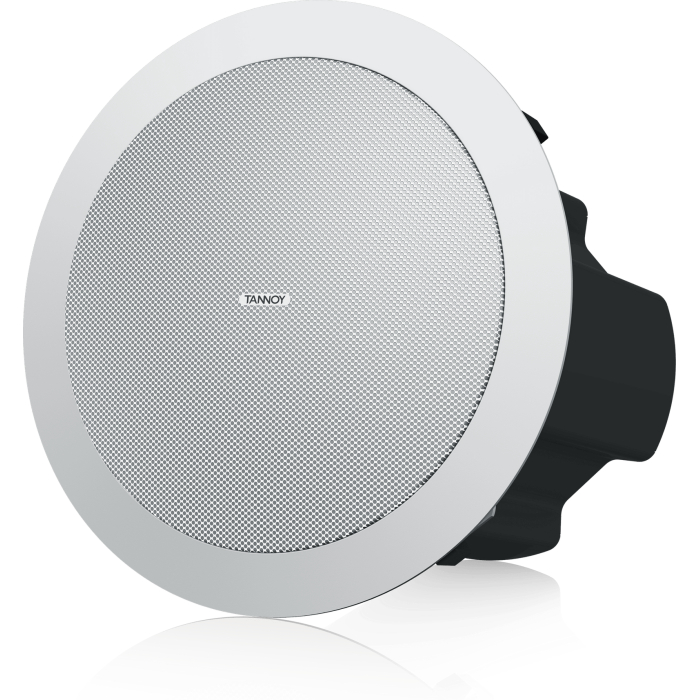

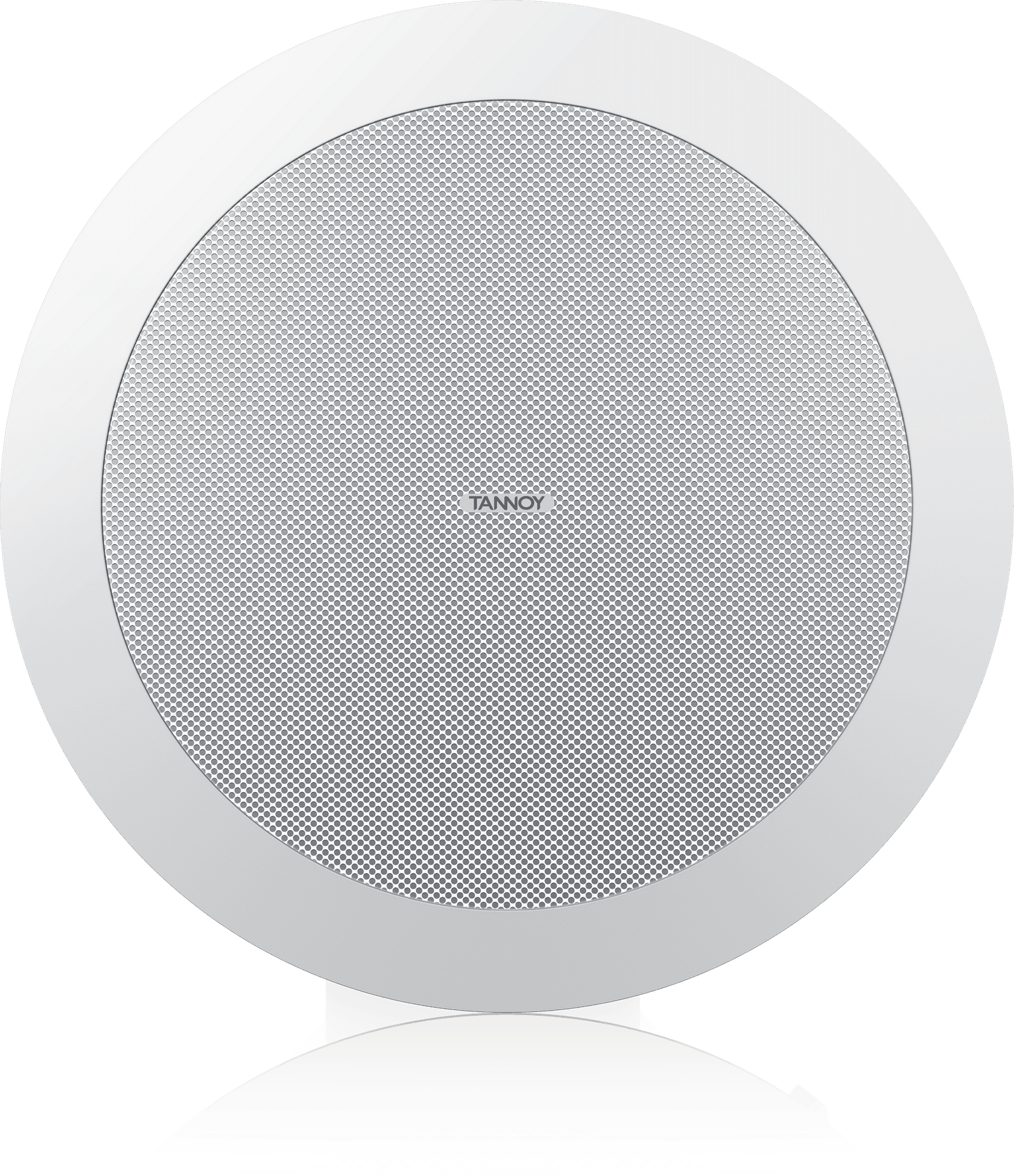

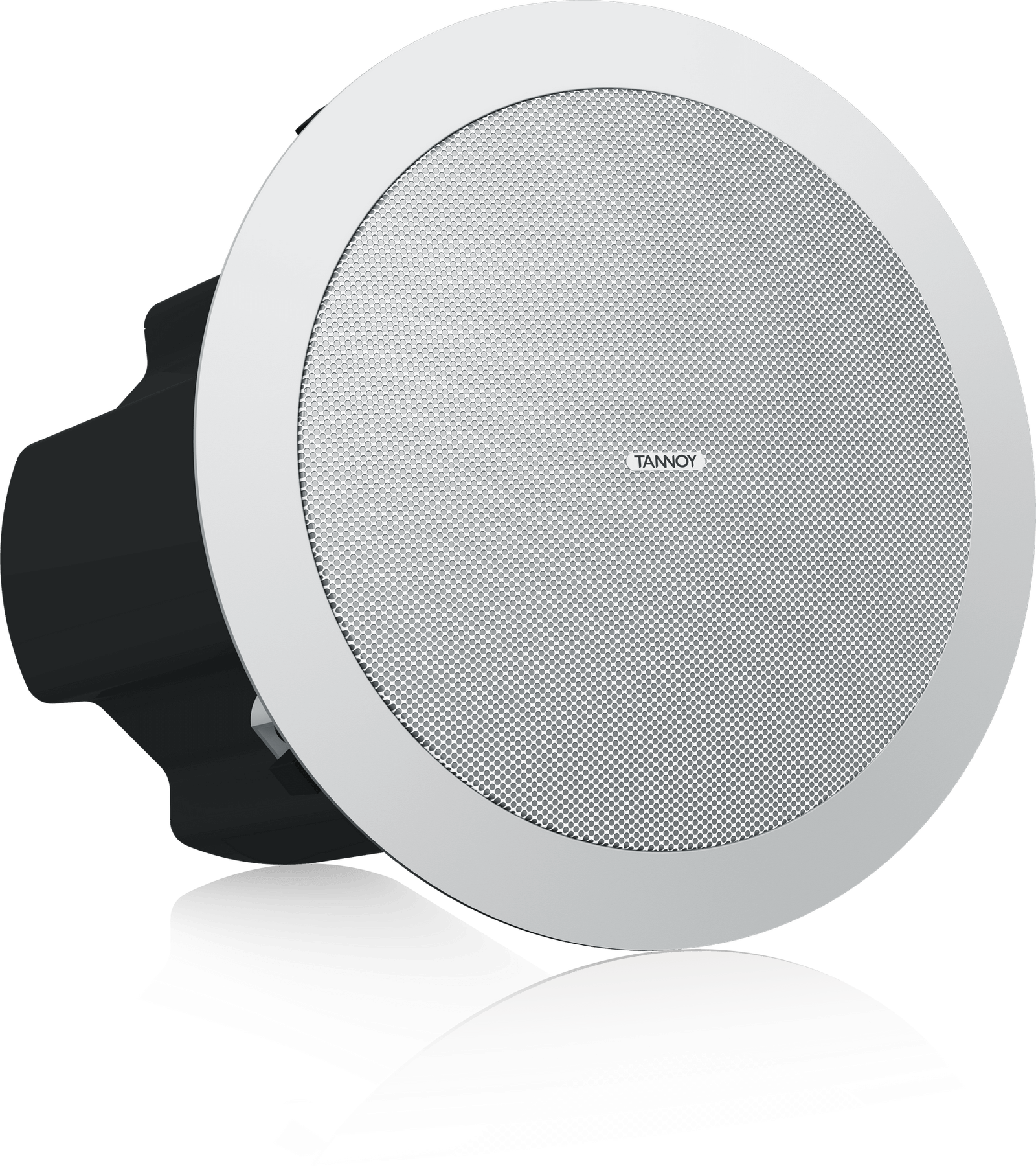

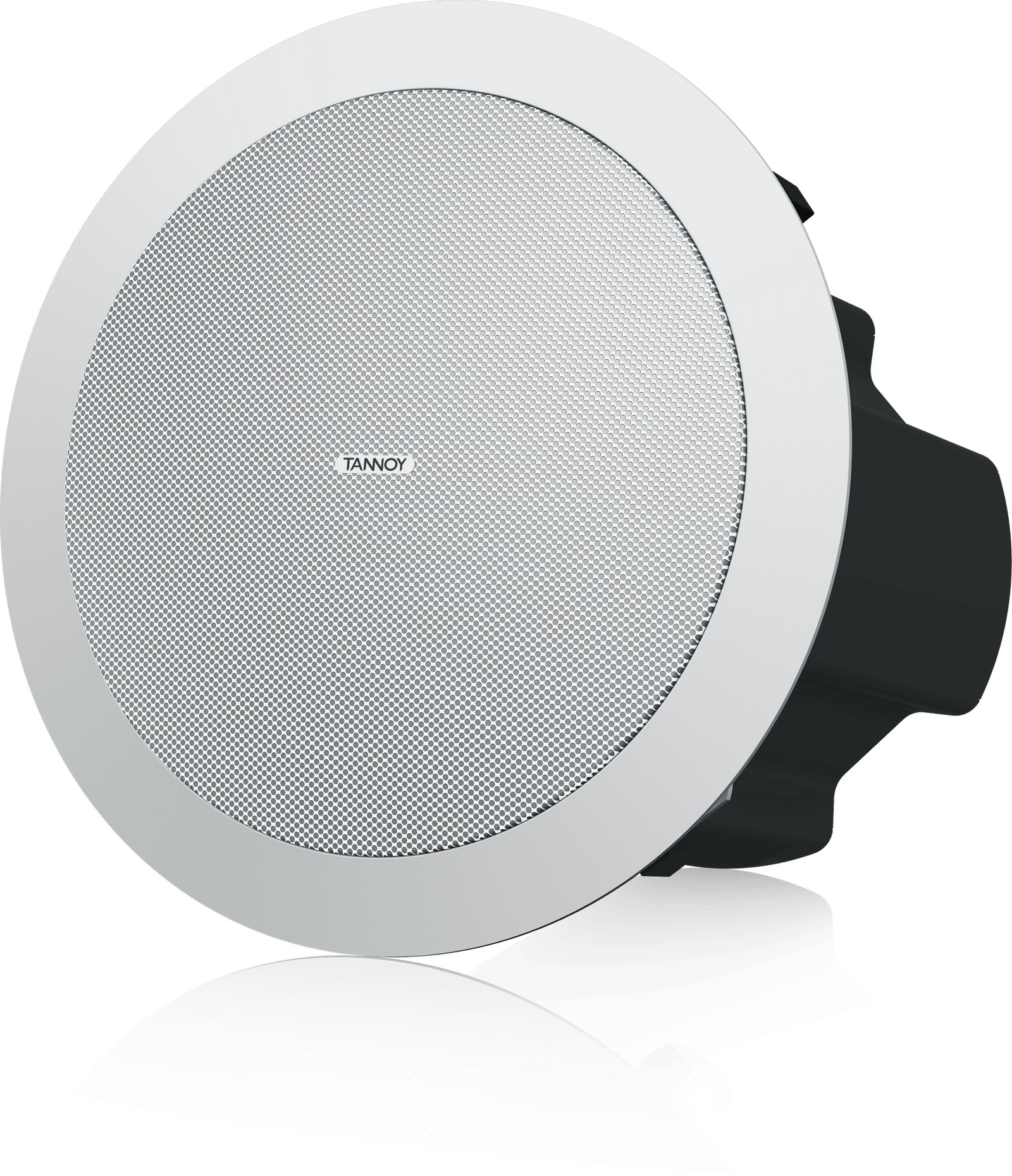

Tannoy CVS 4 Coaxial 4″ Ceiling Speaker 160W for Commercial Audio

CVS 4 – 160W Compact Ceiling Loudspeaker

The CVS 4 is a versatile and powerful 160-Watt ceiling loudspeaker designed for extraordinary audio performance in a wide range of settings, including restaurants, hotels, places of worship, and various businesses. Despite its compact size, the CVS 4 boasts impressive power handling, a broad frequency response, and minimal distortion. This ensures that the sound produced is not only warm and clear but brilliantly nuanced, much like what you’d expect from a studio monitor.

Key Features

• Coaxial full-range ceiling loudspeaker for installation applications
• 40 Watts continuous, 160 Watts peak power

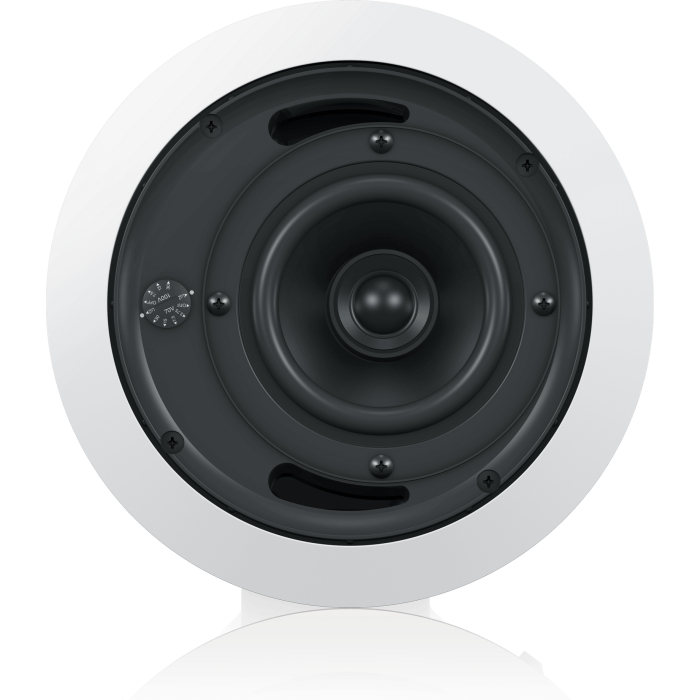

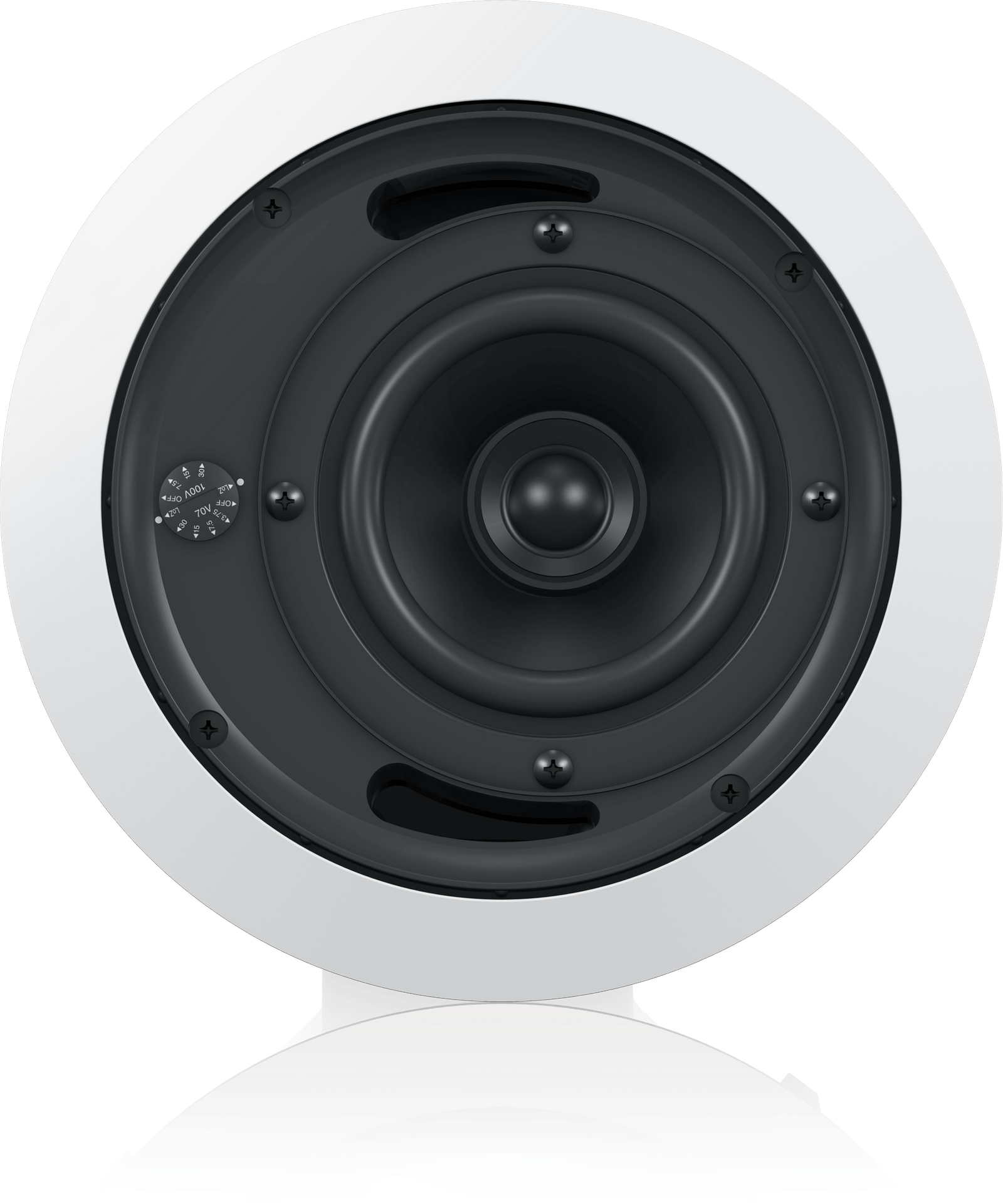

• 4″ mineral loaded polypropylene driver with nitrile rubber surround for enhanced durability and long-term reliability
• 0.75″ ferrofluid cooled soft dome neodymium high frequency driver
• Wide constant directivity dispersion for optimum coverage
• UL 1480 and UL 2043 certified for fire-protected signalling and air-handling spaces
• UV and weather resistant UL 94 V-0 ABS front with plated steel fire can enclosure
• Multiple transformer taps for 70 V and 100 V line systems or 6 Ohm direct input
• Low insertion loss 30 W line transformer with easily accessible tapping switch
• Semi matt white finish fits unobtrusively in any environment

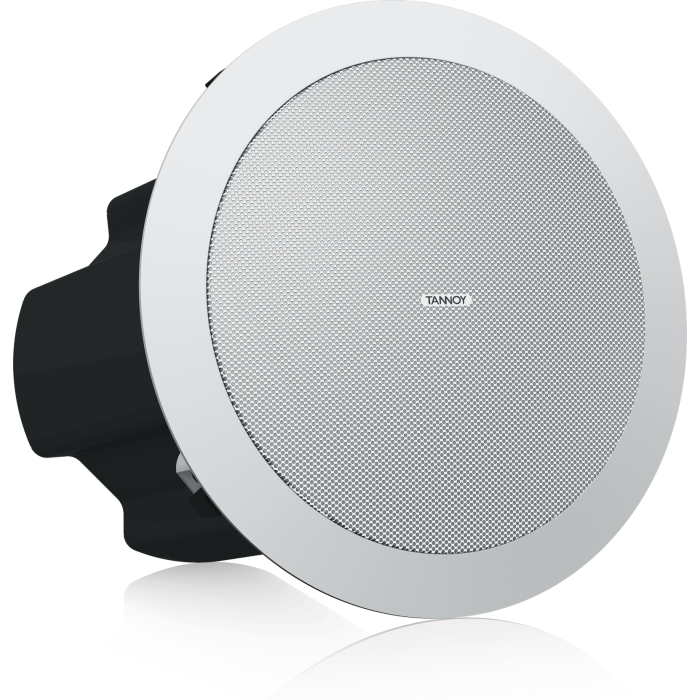

• Powder coated perforated steel mesh grille with dust protection
• Mounting C-ring and ceiling tile rails included
• Phoenix* connector with steel cover and strain relief clamping mechanism for fire-rated cable

Specifications

Specification	Details
Frequency response (-3 dB)	85 Hz – 19 kHz
Frequency response (-10 dB)	77 Hz – 22 kHz
System Sensitivity (1 W @ 1 m)	87 dB (1 W = 2.45 V for 6 Ohms)
Nominal Coverage Angle	90 degrees conical
Coverage Angle (1 kHz to 6 kHz)	102 degrees
Directivity Factor (Q)	5.6 averaged 1 kHz to 6 kHz
Directivity Index (DI)	7.1 averaged 1 kHz to 6 kHz
Rated Maximum SPL	103 dB (average) / 109 dB (peak)
Power Handling	Average: 40 W, Programme: 80 W, Peak: 160 W
Recommended Amplifier Power	80 W @ 6 Ohms
Nominal Impedance	6 Ohms
Transformer Taps	70 V: 30 W / 15 W / 7.5 W / 3.75 W / OFF & low impedance operation 100 V: 30 W / 15 W / 7.5 W / OFF & low impedance operation

Transducers

Low Frequency	100 mm (4.00″), mineral loaded cone material
High Frequency	19 mm (0.75″)

Physical

Enclosure	Back can: Zinc plated steel | Painted steel Baffle: Reflex loaded UL 94V-0 rated ABS Grille: Steel, with weather resistant coating
Safety Features	Safety ring located at rear of enclosure for load bearing safety bond
Clamping Design	Security toggle clamp

Back Can Options

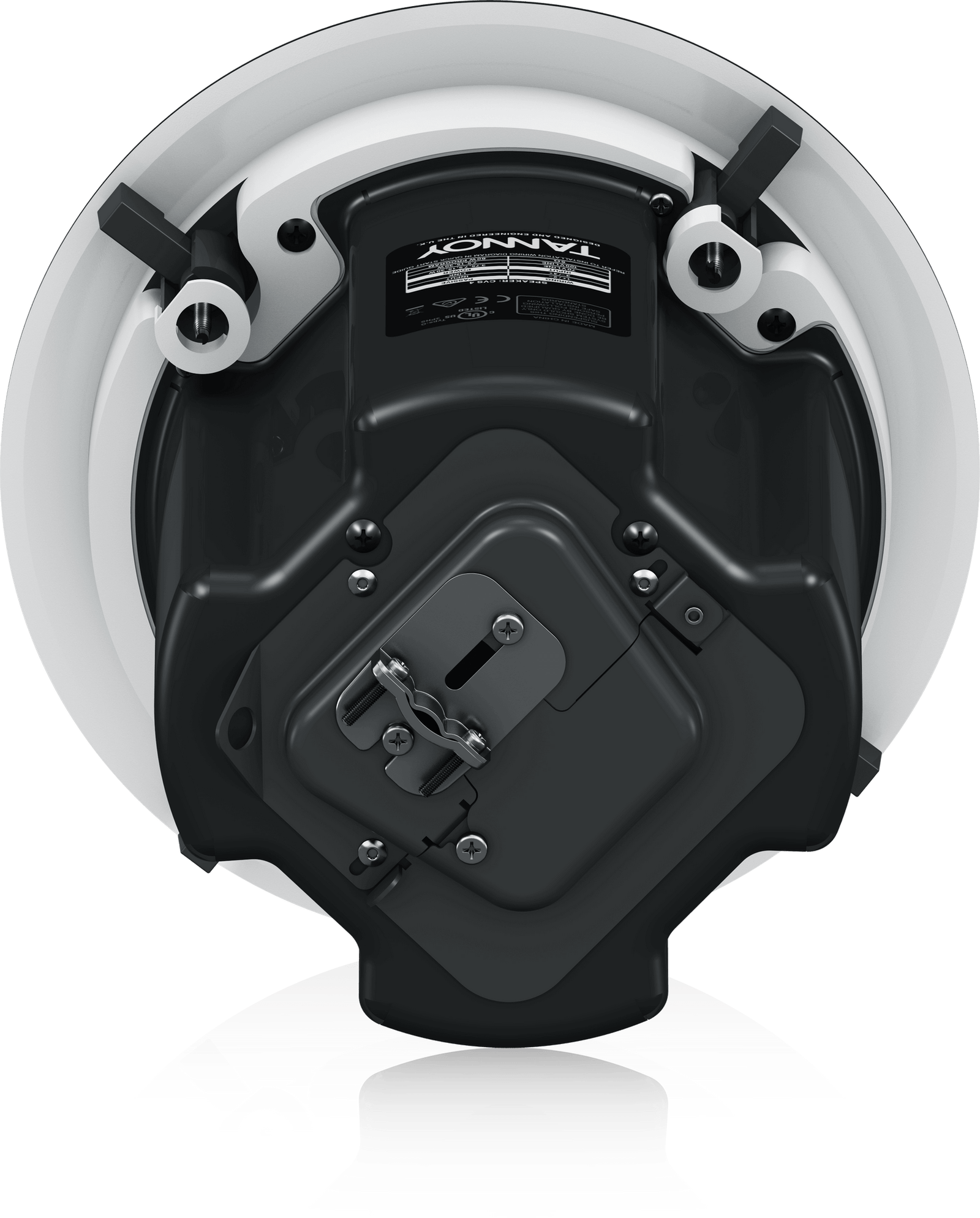

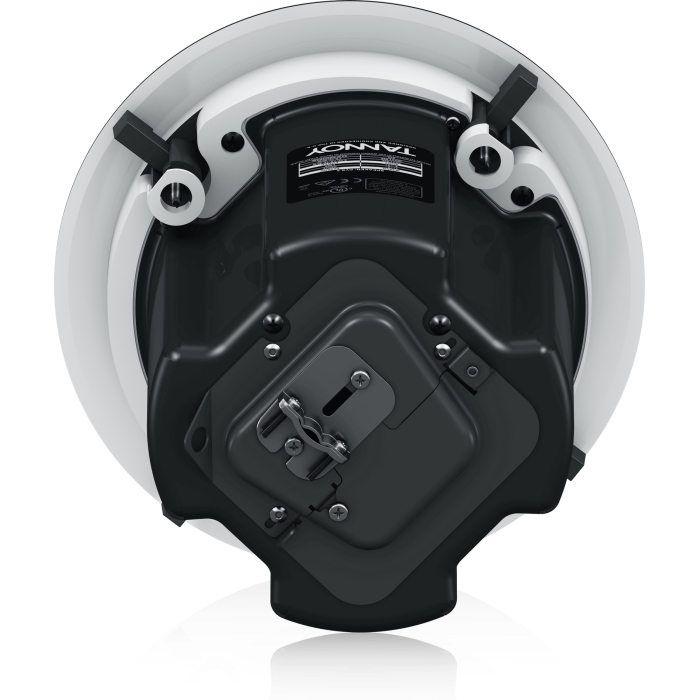

Cable Entry Options	Cable clamp & squeeze connector for conduit up to 22 mm
Connectors	Removable locking connector with screw terminals with “loop through” facility
Safety Agency Ratings	UL-1480, UL-2043, CE
Hole Cutout Diameter	180 mm (7.08″)
Bezel Dimensions	213.0 mm (8.39″)
Net Weight (each)	3.6 kg (7.9 lbs)
Included Accessories	C-Ring, tile bridge, paint mask, cutout template, grille
Optional Accessories	Plaster (mud) ring
