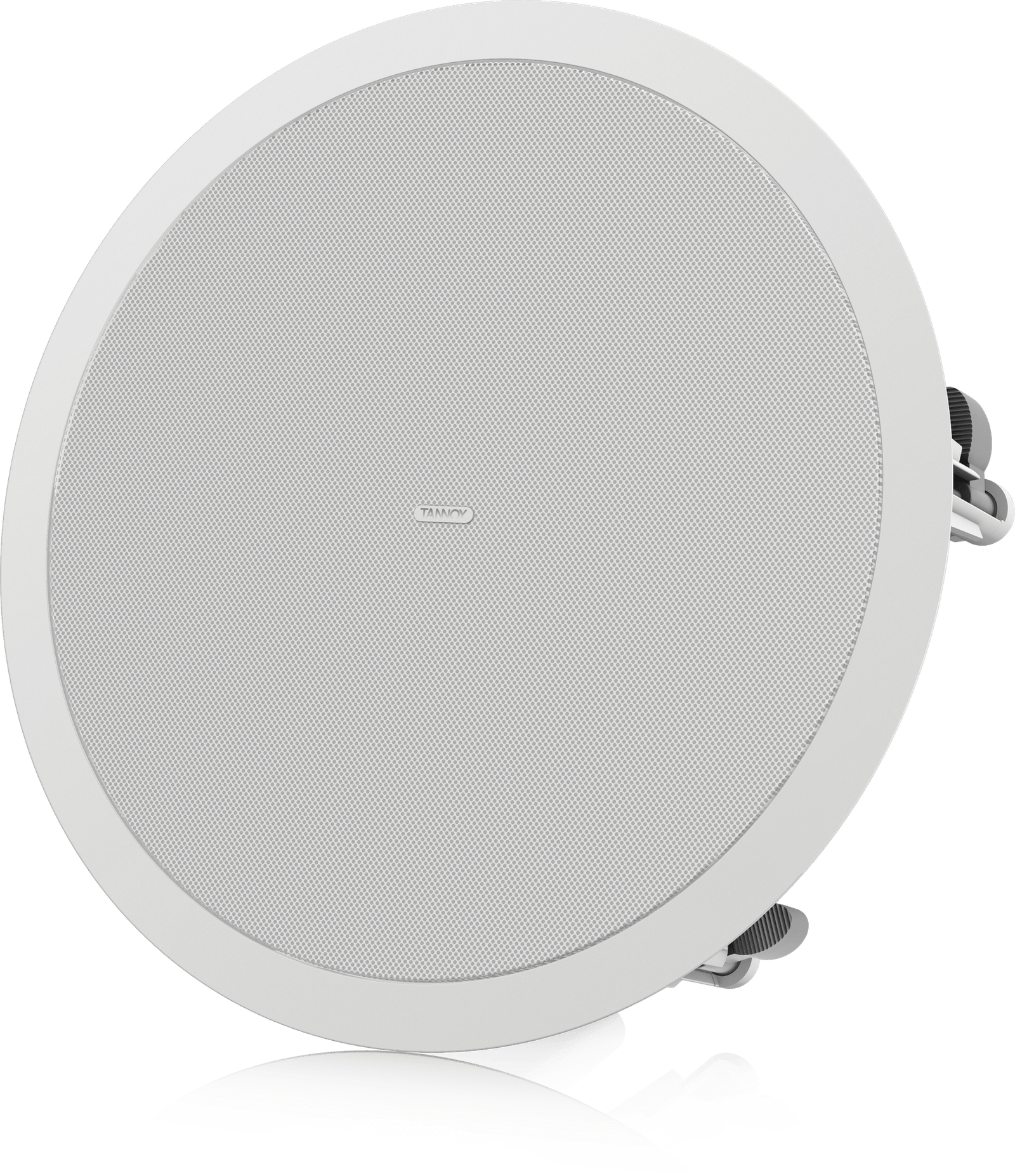

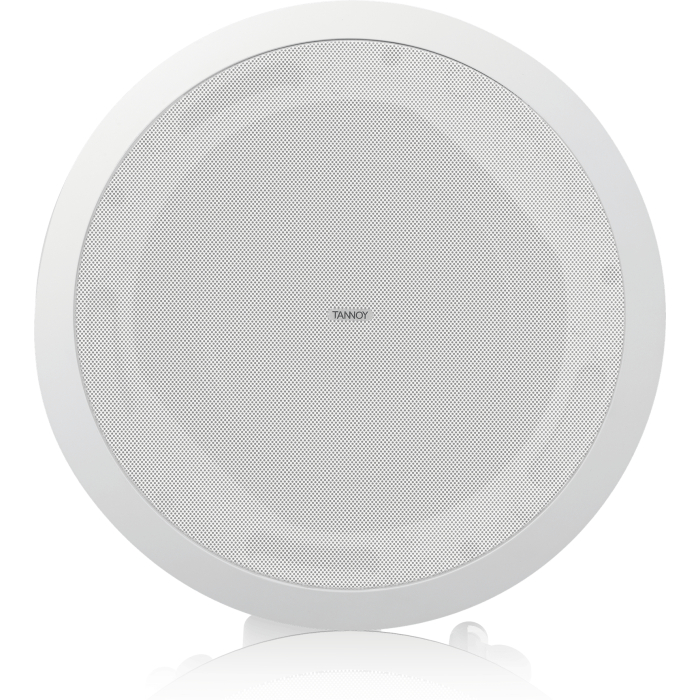

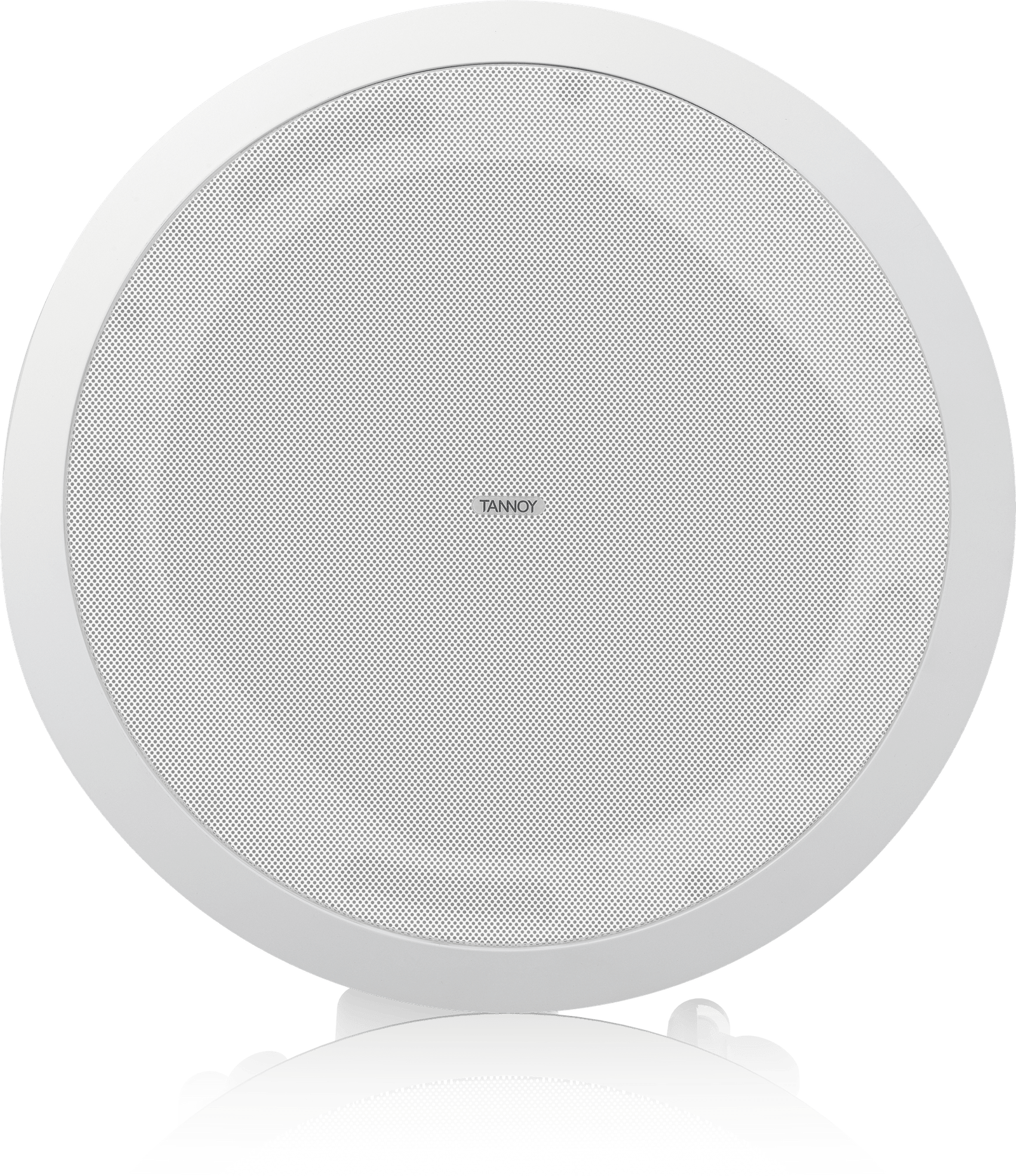

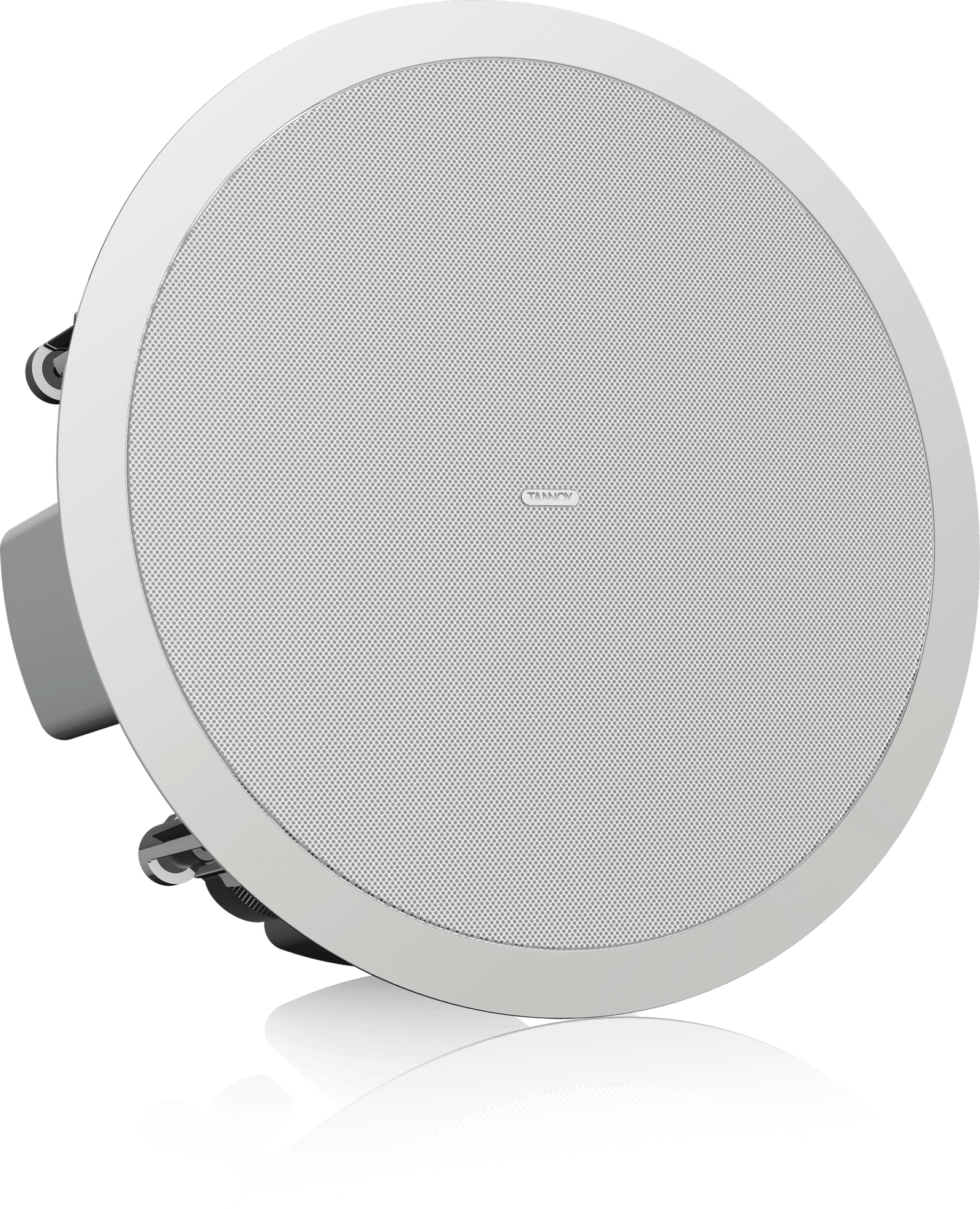

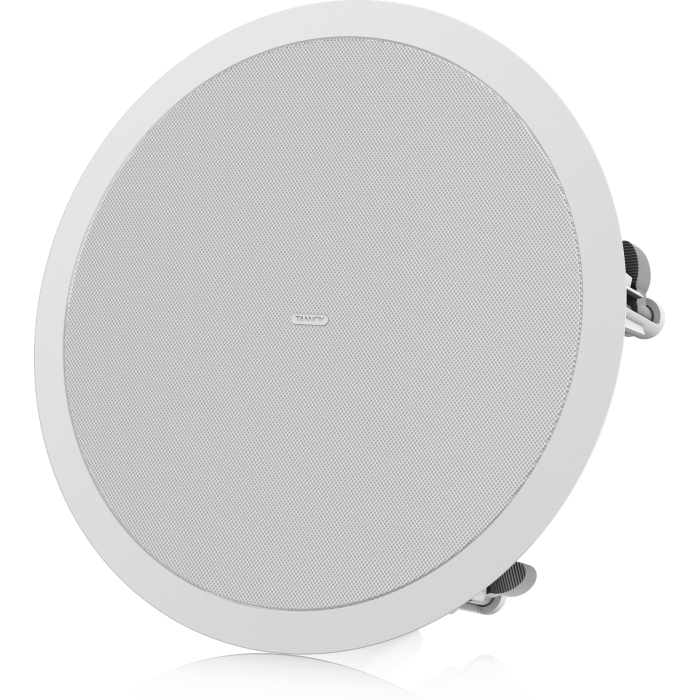

Tannoy CMS 803DC PI 8″ Ceiling Loudspeaker with Dual Concentric Driver 360W Peak

Tannoy

AED 1225.35 inc VAT.

In stock
Enquiry On Whatsapp
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: CMS 803DC PI Categories: , Brand:

The CMS 803DC PI is a 360-Watt high sensitivity loudspeaker featuring the innovative CMS 3.0 technology, equipped with an advanced 8″ Dual Concentric point source driver using Omnimagnet technology on a Torus Ogive Waveguide, ensuring wide and consistent broadband directivity, enhanced intelligibility, and a highly accurate, linear response.

Description

CMS 803DC PI Ceiling Loudspeaker

The CMS 803DC PI is a full bandwidth, high sensitivity loudspeaker designed for installation applications. Utilizing the advanced CMS 3.0 technology, it features an 8″ Dual Concentric driver with Omnimagnet technology and Torus Ogive Waveguide for superior sound quality and performance. Ideal for various environments, this speaker is suitable for general signaling systems and air-handling spaces, ensuring clear and intelligible audio output.

Features

  • 360 Watts peak power with 90 Watts continuous power handling
  • Proprietary 8″ Dual Concentric driver with Omnimagnet technology
  • Torus Ogive Waveguide for improved high frequency response and directivity
  • UL 1480 and UL 2043 certified
  • Multiple transformer taps for various line systems
  • Optimized for Lab Gruppen LUCIA amplifiers
  • Removable, paintable grille with optional designer grilles available
  • Self-aligning clamp mounting system with included C-ring and ceiling tile rails

Specifications

Specification Details
Frequency Response (-3dB) 47 Hz – 30 kHz
Frequency Range (-10dB) 41 Hz – 35 kHz with back can
System Sensitivity 92 dB (1 W = 4 V for 16 Ohms)
Nominal Coverage Angle 90 degrees conical
Power Handling Average: 90W, Program: 180W, Peak: 360W
Recommended Amplifier Power 180W @ 16 Ohms
Nominal Impedance 16 Ohms
Rated Maximum SPL Average: 112dB, Peak: 118dB
Transformer Taps 70V: 60W / 30W / 15W / 7.5W / OFF, 100V: 60W / 30W / 15W / OFF
Transducers 8″ Dual Concentric driver with 44 mm voice coil and 25 mm PEI dome
Enclosure Zinc plated steel
Grille Steel with weather resistant coating
Safety Features Safety ring located at rear for load bearing safety bond
Cable Entry Options Cable clamp & squeeze connector for conduit up to 22 mm
Dimensions Bezel Diameter: 319 mm, Speaker Depth: 125.6 mm, Cutout Diameter: 295 mm
Weight Speaker: 4.9 kg, Backcan: 6 kg
Included Accessories C Ring, Tile Bridge, Paint Mask, Cutout Template, Grille
