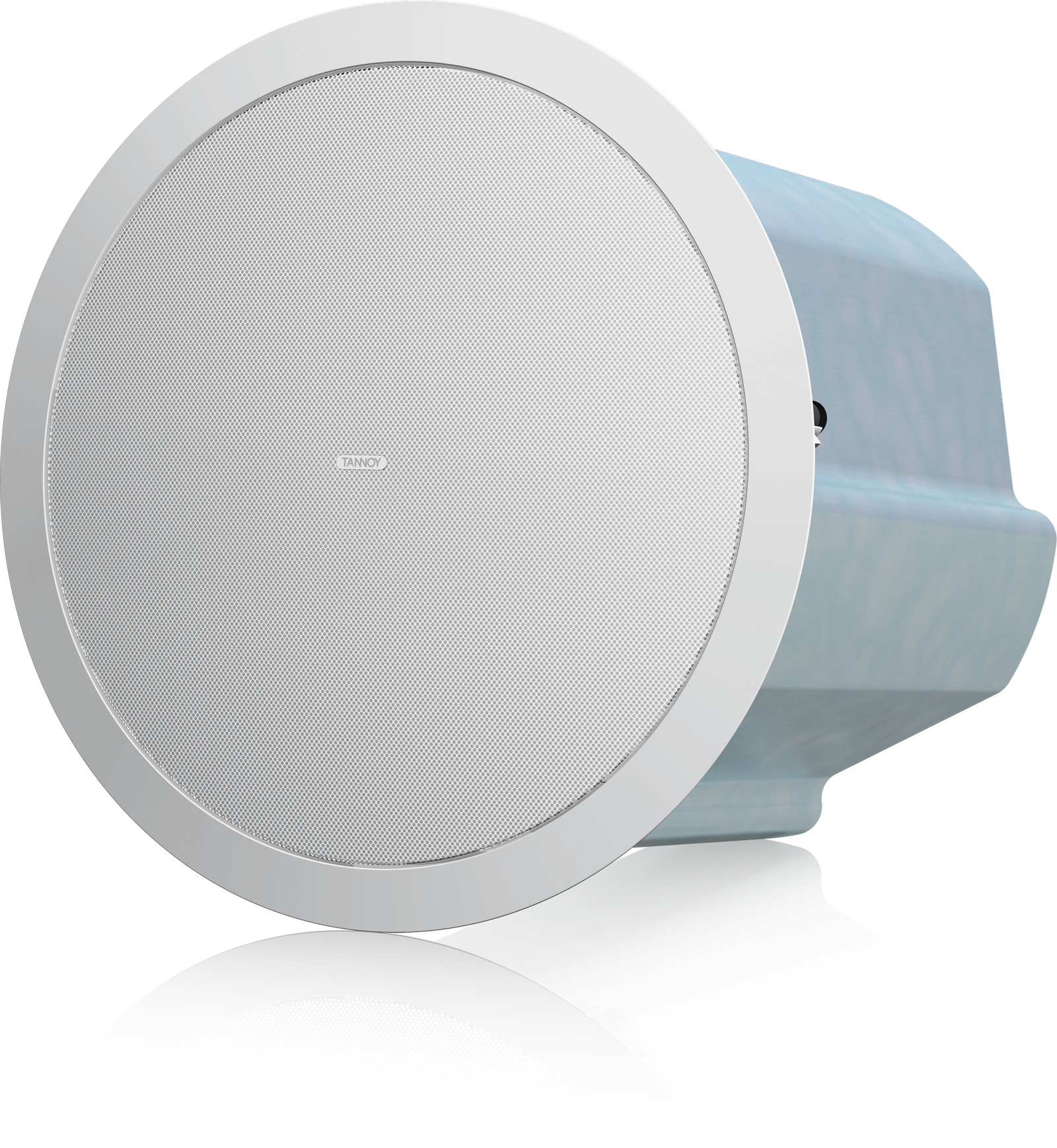

Tannoy CMS 801 SUB BM 8-Inch Ceiling Subwoofer 400W for Audio Installations

Tannoy

AED 1799.70 inc VAT.

In stock
Enquiry On Whatsapp
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: CMS 801 SUB BM Categories: , Brand:

The CMS 801 SUB BM is a compact 400-Watt subwoofer designed to enhance CMS ceiling monitor systems. Equipped with an 8-inch long excursion LF driver, it delivers dynamic low frequencies and premium audio quality, suitable for music and speech reinforcement. UL certified for reliability.

Description

The CMS 801 SUB BM is a compact 400-Watt subwoofer that complements the entire range of CMS ceiling monitor systems. Thanks to a powerful 8″ long excursion LF driver, the UL certified CMS 801 SUB BM delivers dynamic low frequency extension and premium grade audio for music and speech reinforcement applications.

Features

  • Compact ceiling subwoofer for installation applications
  • 100 Watts continuous, 400 Watts peak power

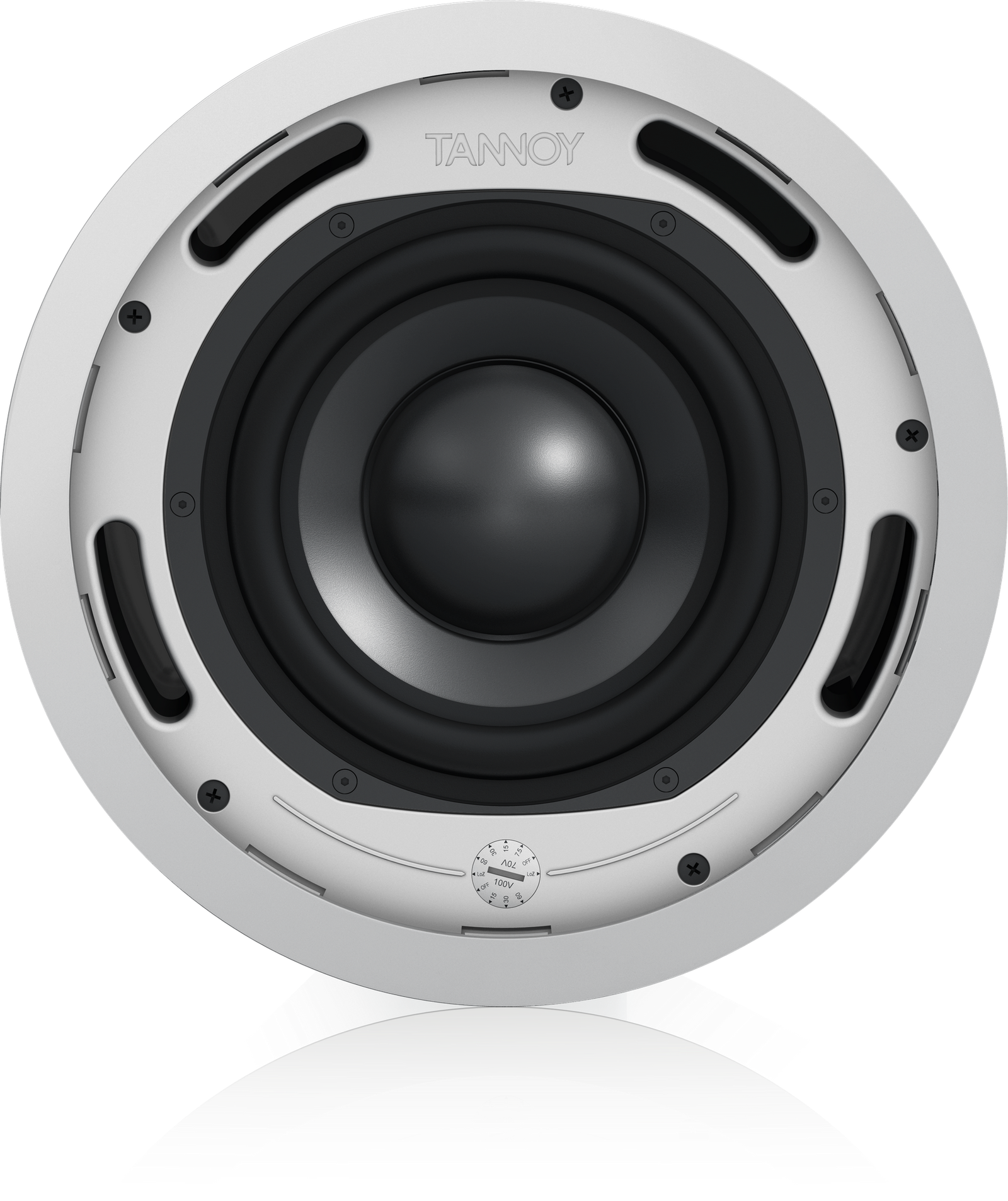

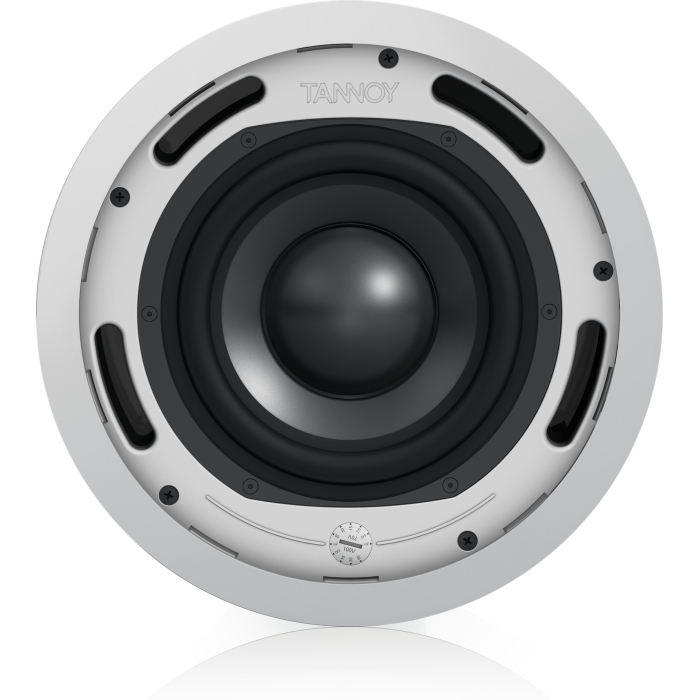

  • 8″ long excursion driver for greater low frequency response

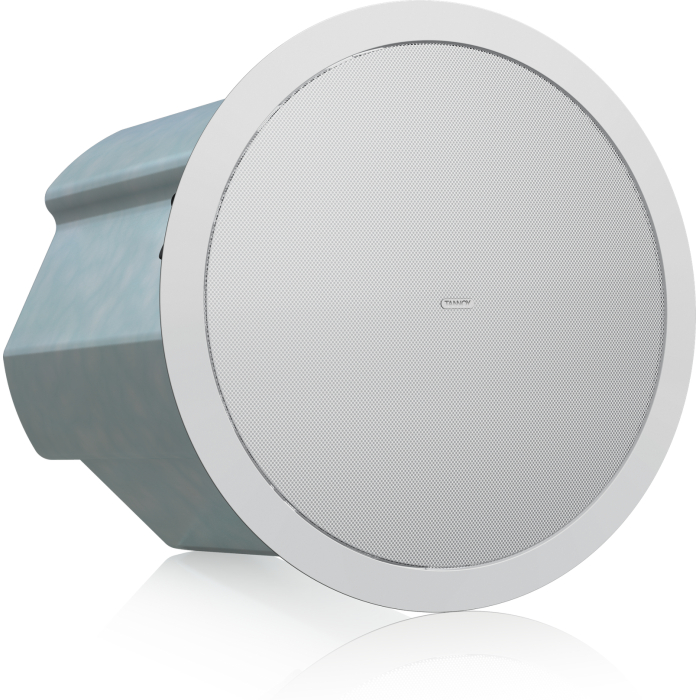

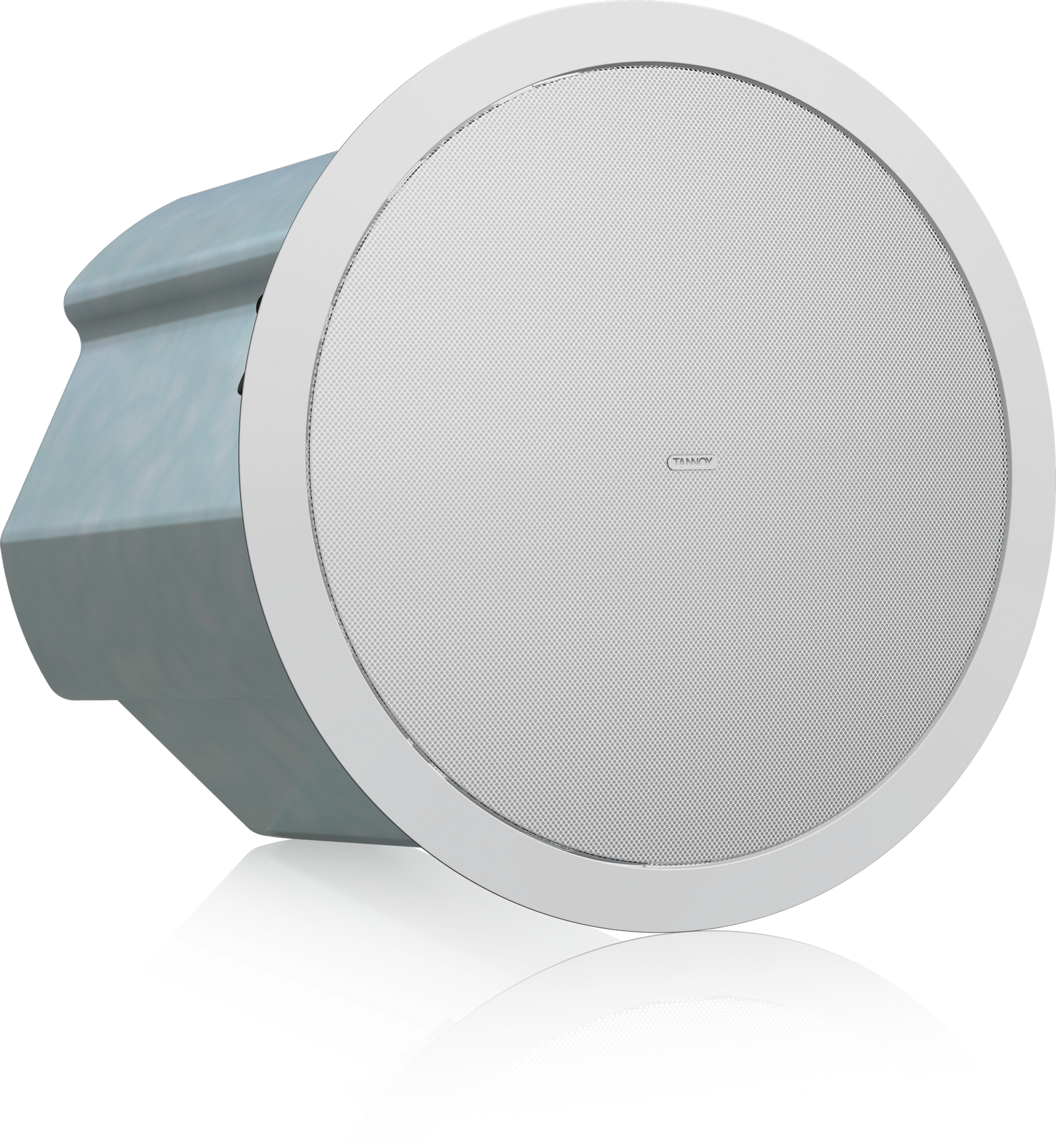

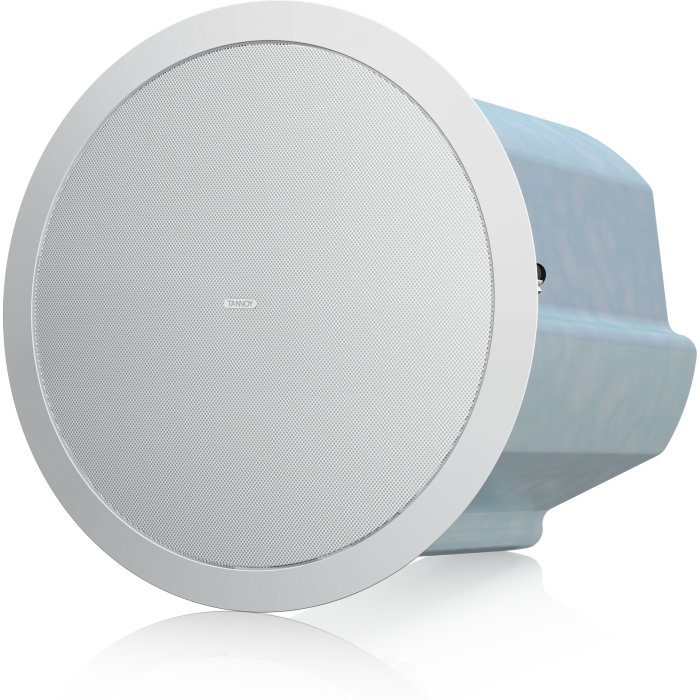

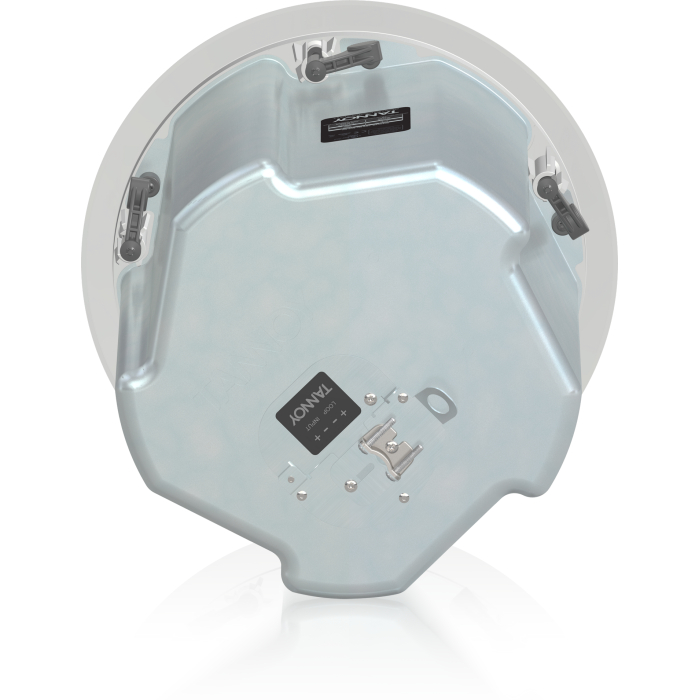

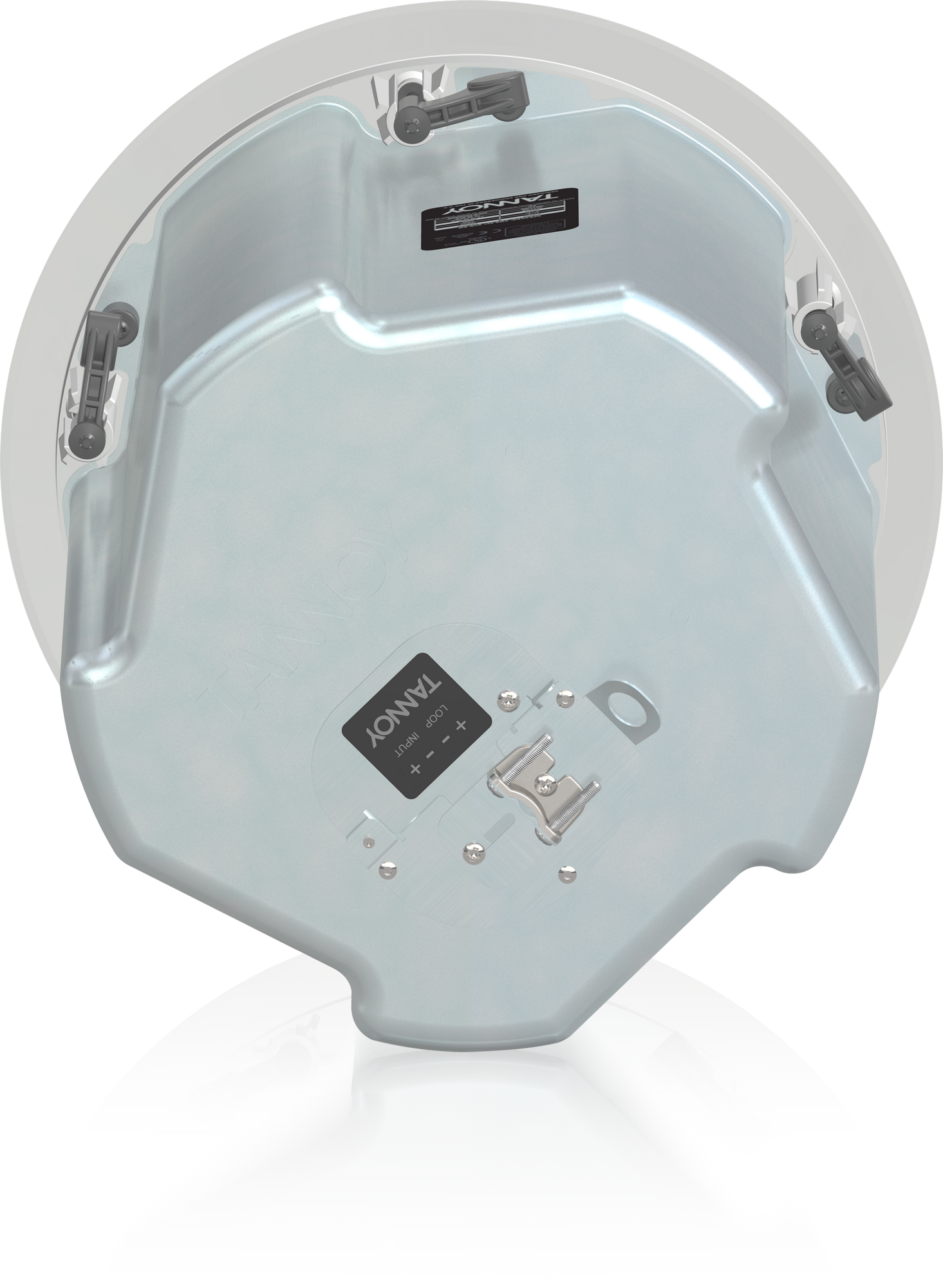

  • Blind mount version supplied with acoustically enhanced zinc plated steel back can
  • Integrated single unit construction for ease of installation
  • Multiple transformer taps for 70 V and 100 V line systems or 6 Ohm direct input
  • UL 1480 certified for general signalling systems
  • UL 2043 certified for air-handling spaces
  • Low insertion loss 60 W line transformer with easily accessible tapping switch
  • Semi matt white finish fits unobtrusively in any environment

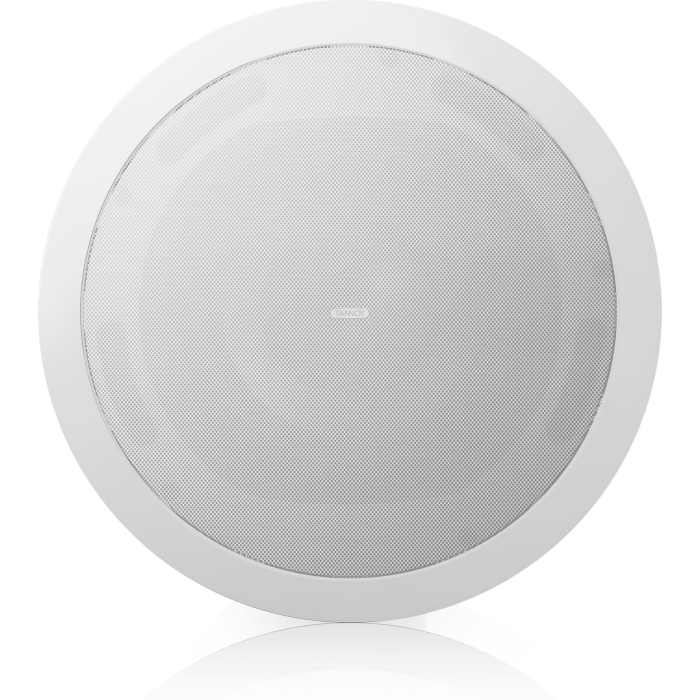

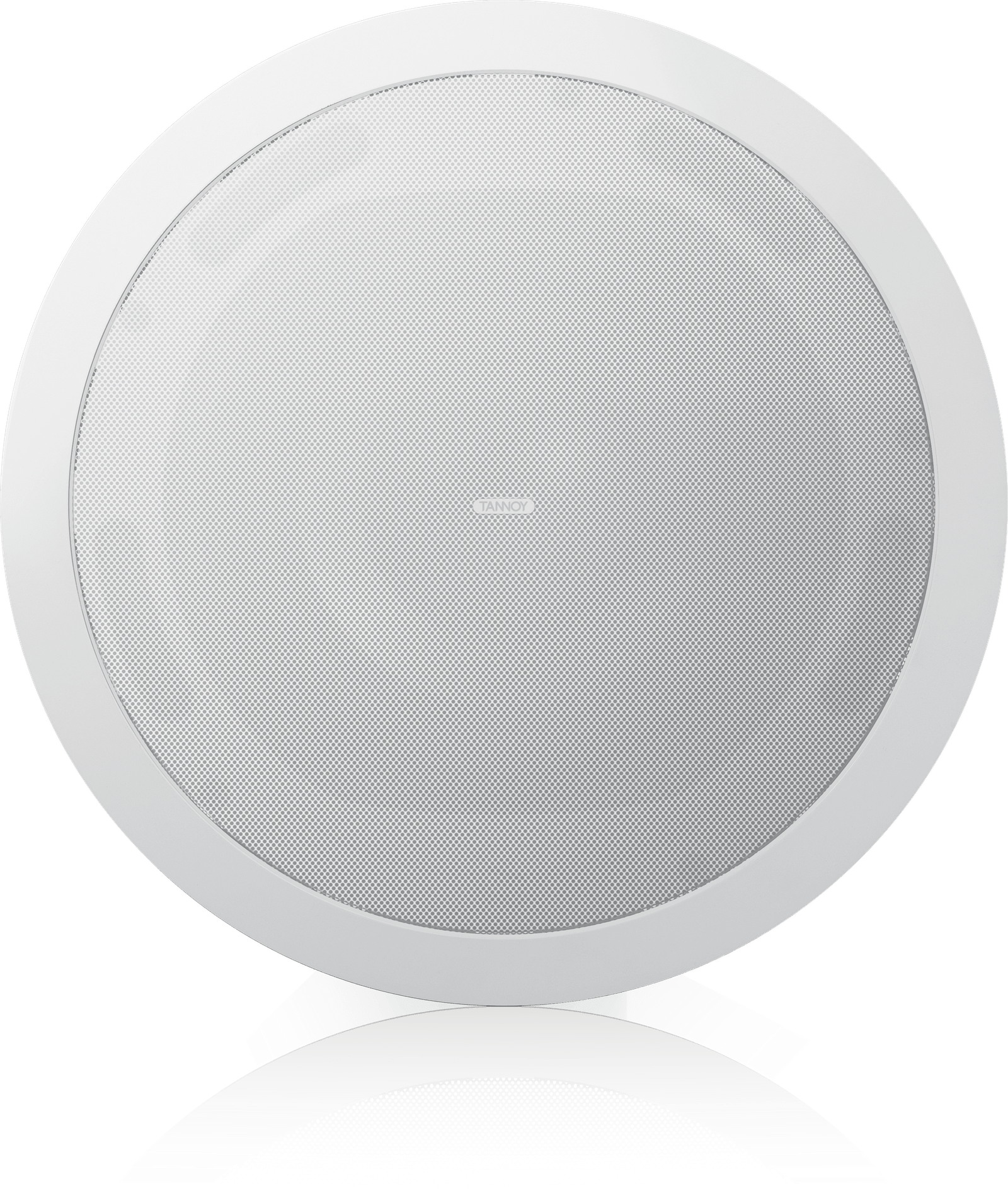

  • Powder coated UV resistant perforated steel mesh grille with dust protection
  • Removable grille for custom painting
  • Self-aligning 5 way clamp mounting system
  • Mounting C-ring and ceiling tile rails included

Specifications

Specification Details
Frequency response (-3 dB) (1) 58 Hz – 160 Hz
Frequency range (-10 dB) (1) 42 Hz – 300 Hz
System sensitivity (1 W @ 1 m) (2) 92 dB (1 W = 2.45 V for 8 Ohms)
Rated maximum SPL (2) 112 dB (average) 118 dB (peak)
With THP60 110 dB (average)
Low frequency / High frequency 1x 200 mm (8.00″) long throw woofer with multi fibre paper pulp cone
Bezel diameter 325 mm (12.80″)
Front of ceiling to rear of back can (BM) 310.5 mm (12.22″)
Front of ceiling to top of safety loop (BM) 327.8 mm (12.90″)
Included Accessories C Ring, tile bridge, paint mask, cutout template, grille
Optional Accessories Plaster (Mud) Ring
Model name CMS 801 SUB BM
Baffle / Grille Colour WHITE
Packed Quantity 2
Packed weight kg (lbs) 20.2 (44.44)
