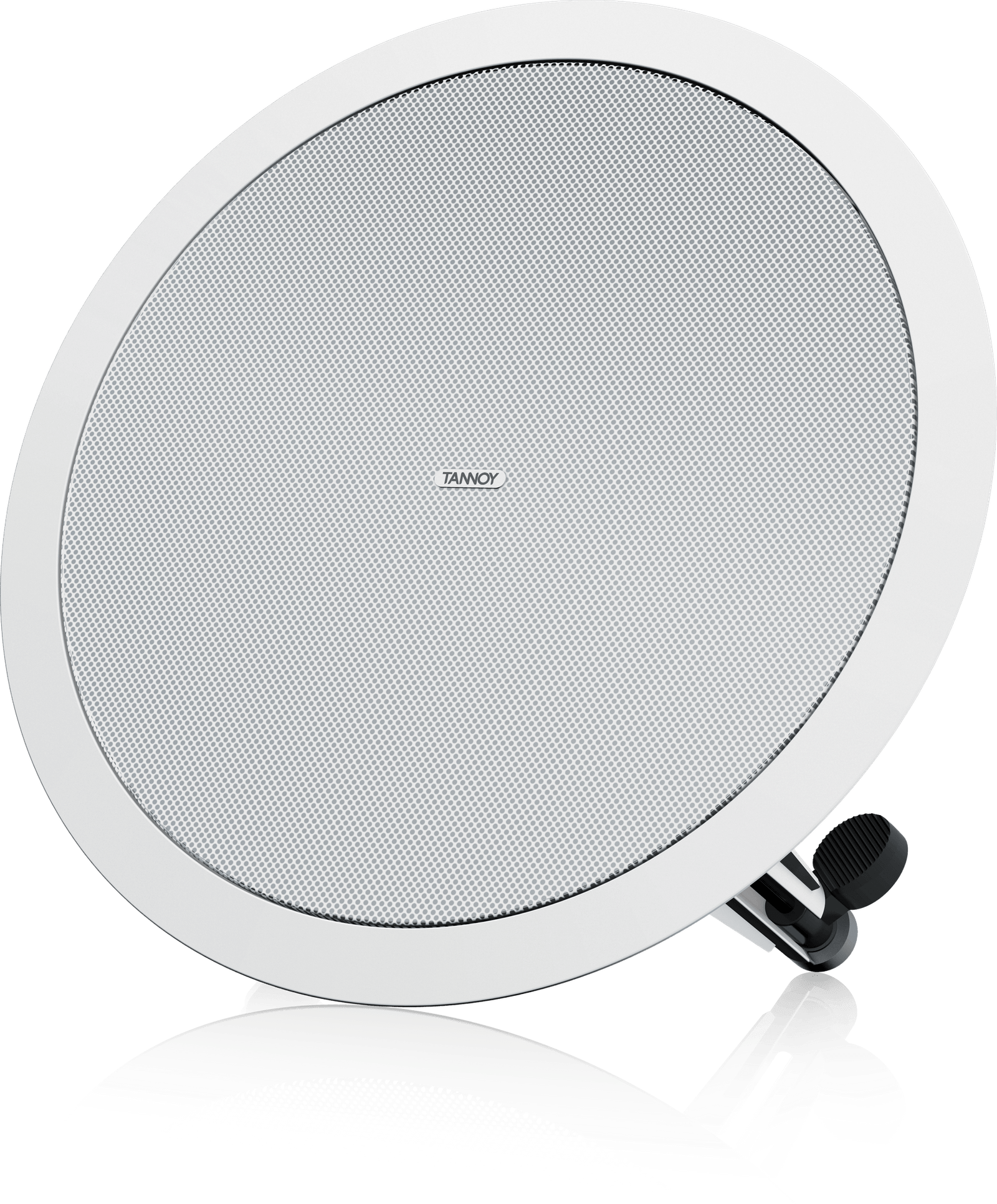

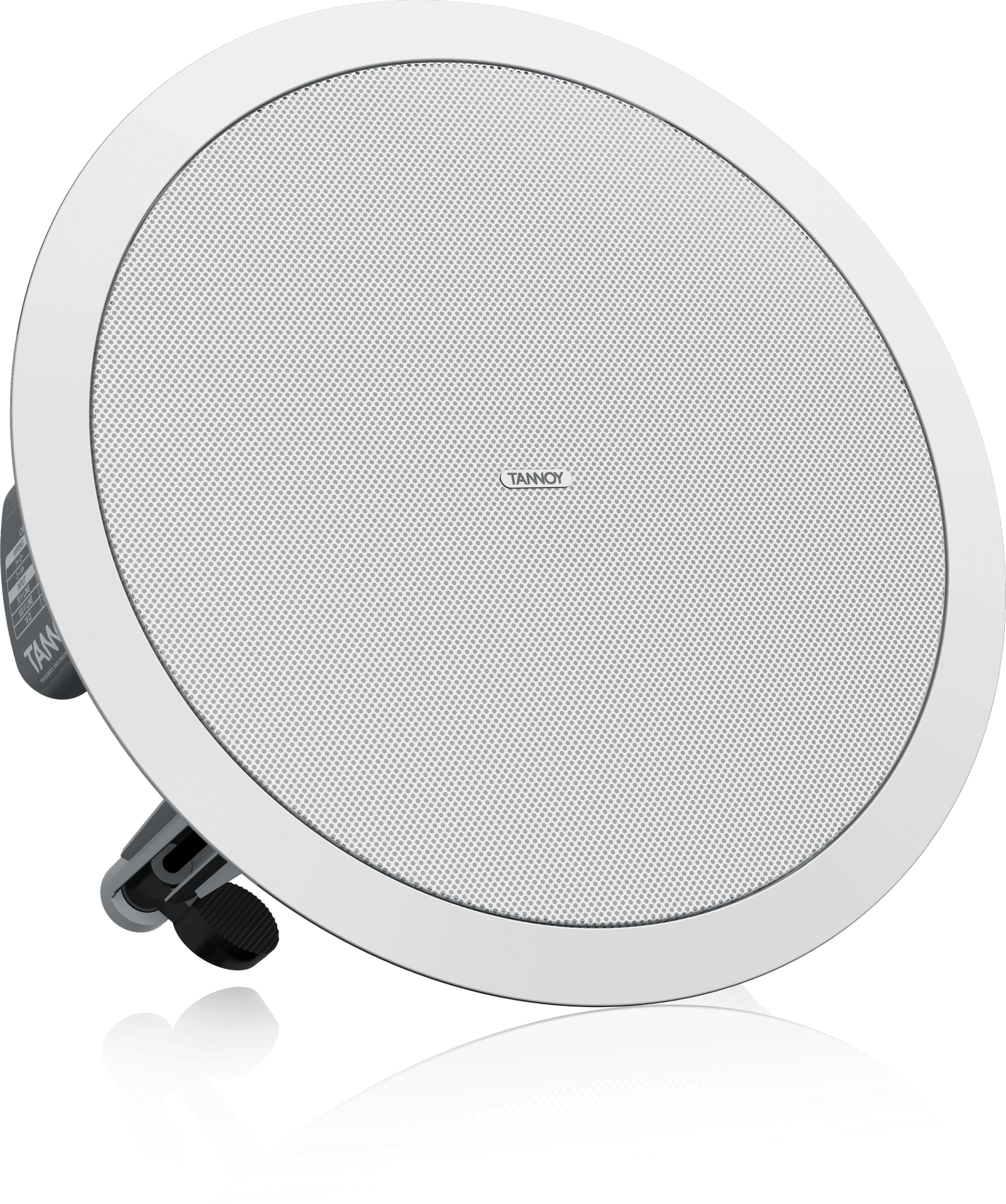

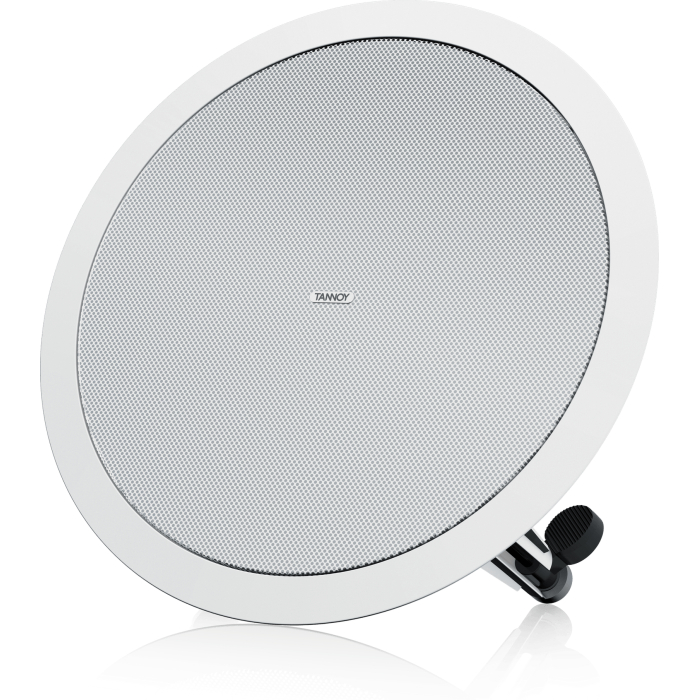

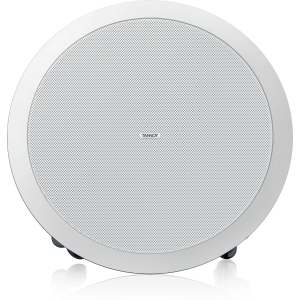

Tannoy CMS 603ICT PI 6-Inch Full Range Ceiling Loudspeaker with ICT Driver

Tannoy

AED 637.35 inc VAT.

The CMS 603ICT PI is a 240-Watt high sensitivity loudspeaker featuring CMS 3.0 technology with a 6" ICT point source driver, offering extended frequency range, consistent broadband directivity, and enhanced intelligibility, ideal for constant usage applications due to its exceptional long-term reliability and UL certification.

In stock
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: CMS 603ICT PI Categories: , Brand:

Description

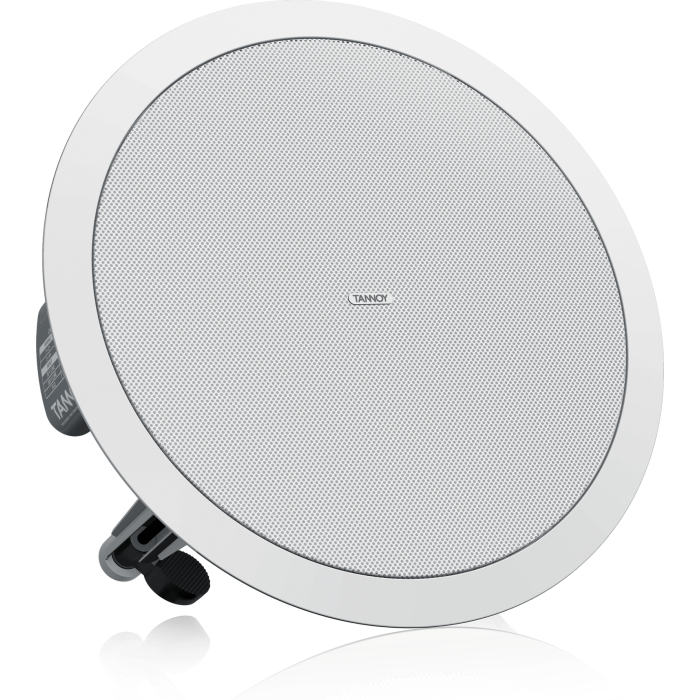

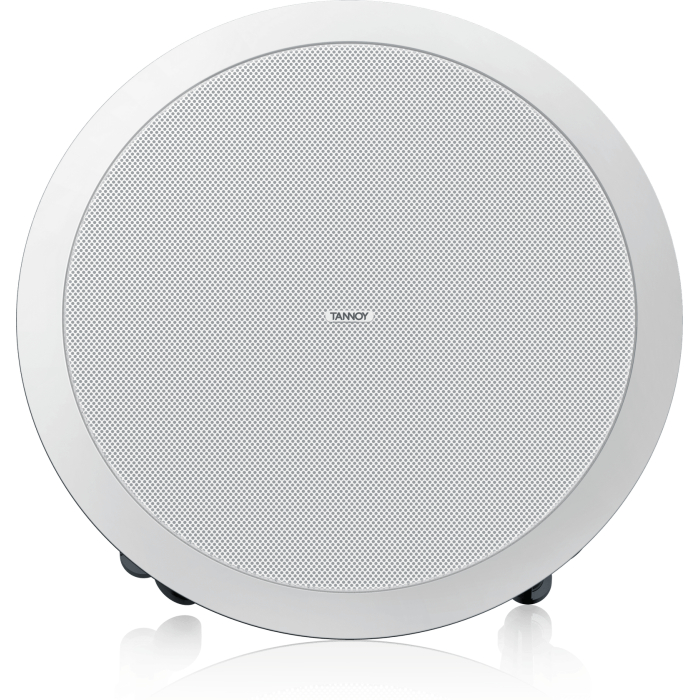

CMS 603ICT PI Ceiling Loudspeaker

The CMS 603ICT PI is a wide bandwidth 240-Watt high sensitivity loudspeaker that utilizes our third generation Ceiling Monitor System technology (CMS 3.0). Thanks to an all-new proprietary 6″ ICT (Inductive Coupling Technology) point source driver with an extended frequency range, the UL certified CMS 603ICT PI delivers consistent broadband directivity with enhanced intelligibility. ICT drivers provide exceptional long-term reliability – ideal for constant usage applications.

Features

  • Full range ceiling loudspeaker for installation applications
  • 60 Watts continuous, 240 Watts peak power

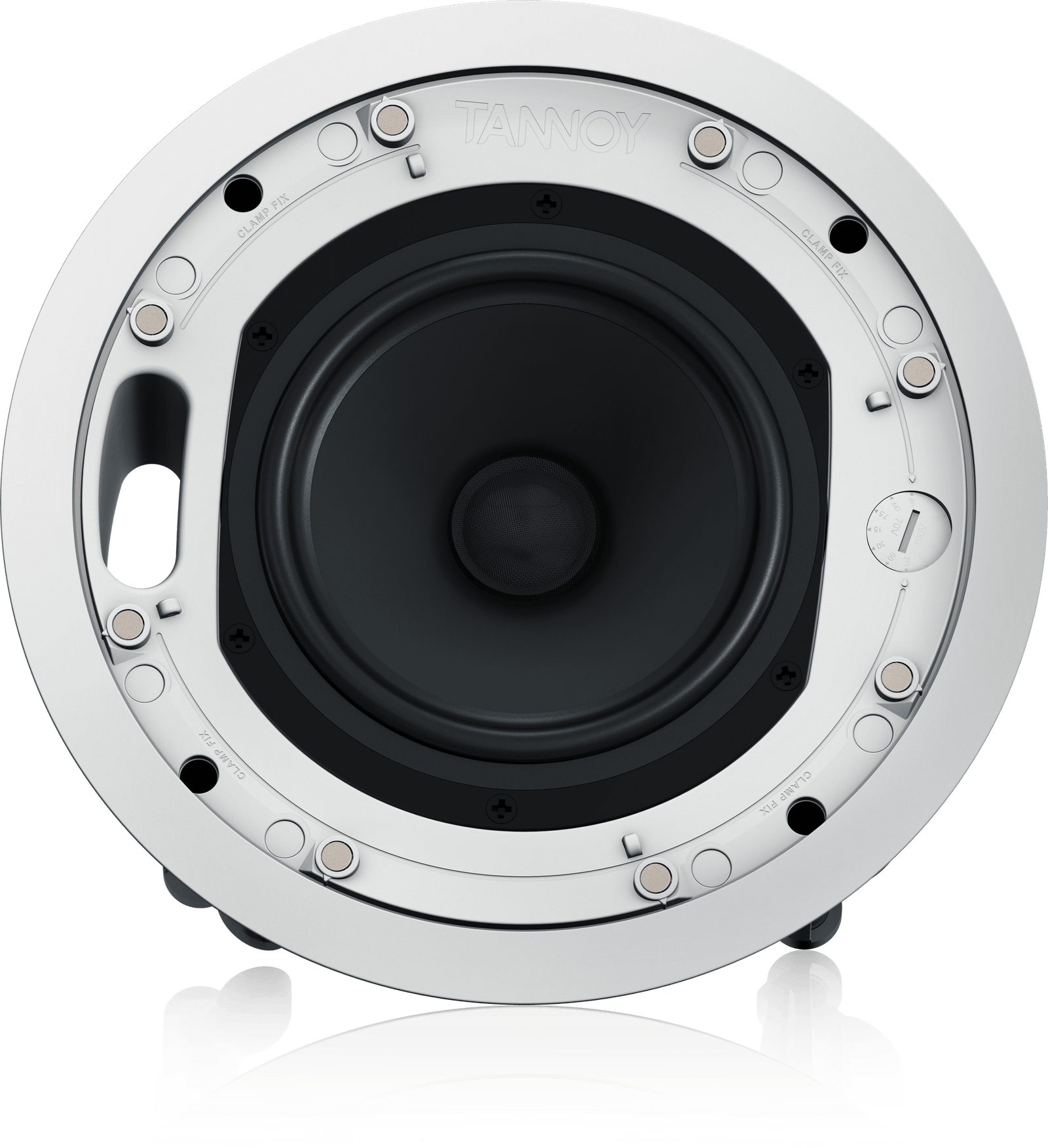

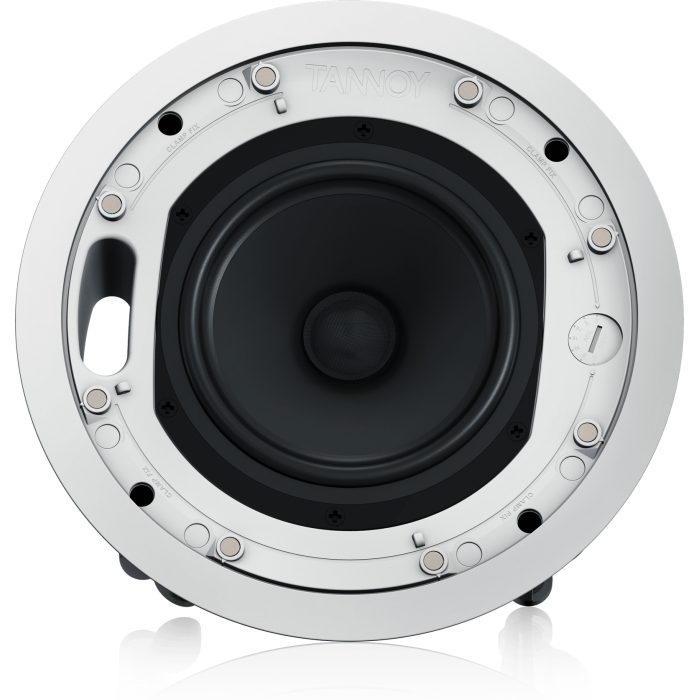

  • 6″ ICT (Inductive Coupling Technology) point source driver for extended frequency range
  • High durability design for constant heavy usage in demanding applications
  • UL 1480 certified for general signaling systems and UL 2043 certified for air-handling spaces
  • Multiple transformer taps for 70 V and 100 V line systems or 16 Ohm direct input

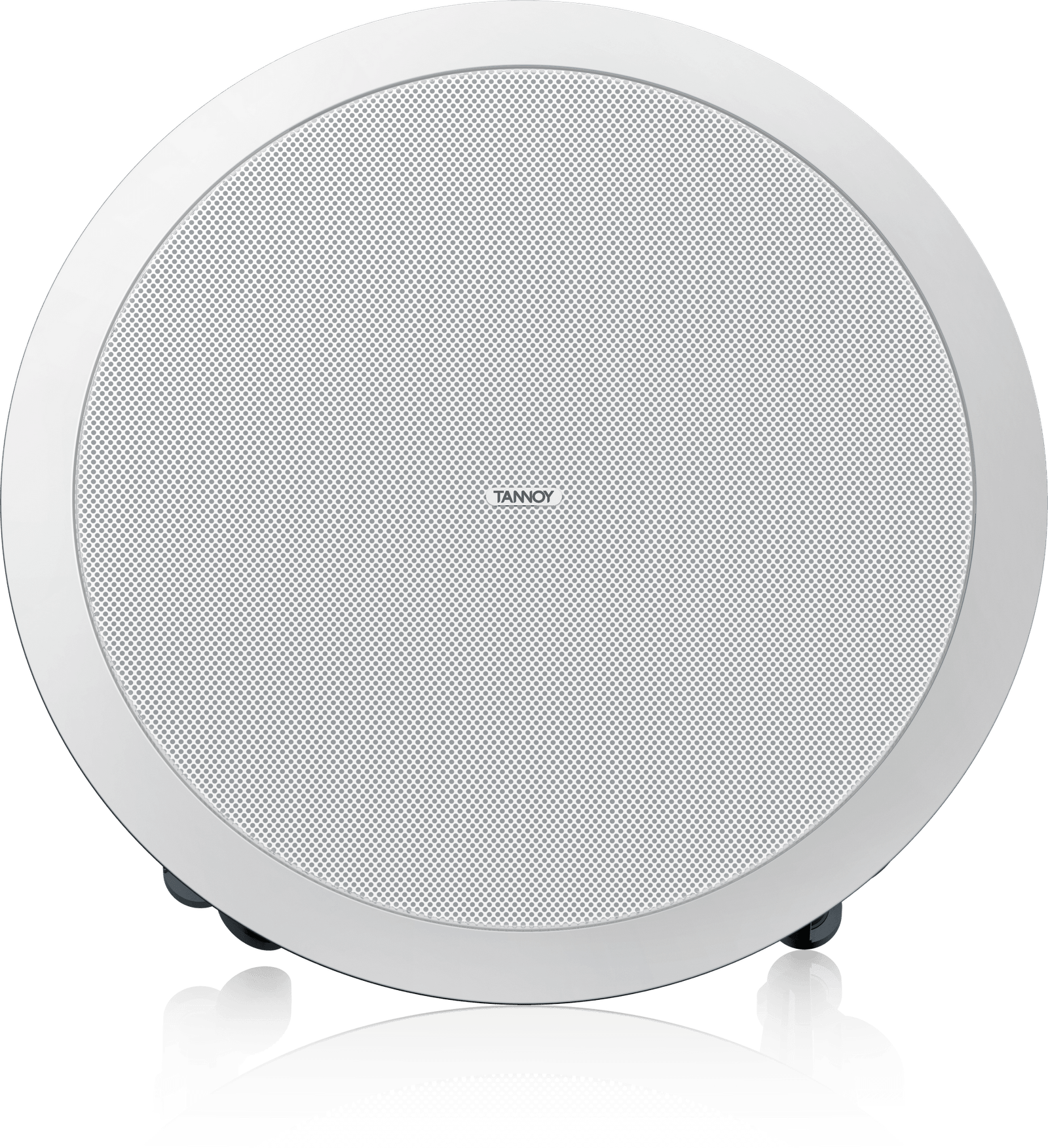

  • Semi-matt white finish fits unobtrusively in any environment
  • Powder-coated UV resistant perforated steel mesh grille with dust protection
  • Removable magnetic grille for easy custom painting
  • Optional ARCO designer grilles available

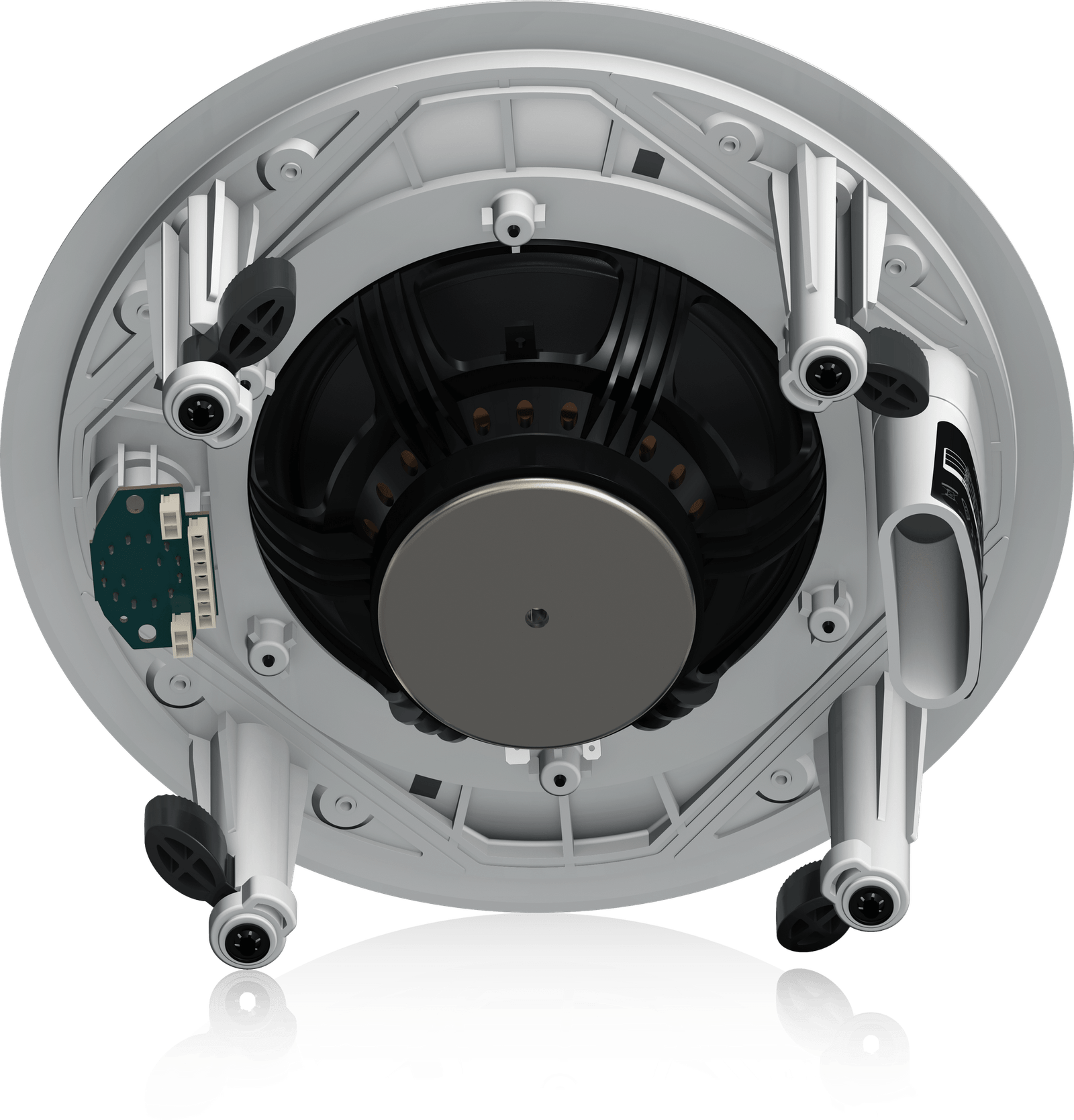

  • Self-aligning 4-way clamp mounting system with included C-ring and ceiling tile rails

Specifications

Performance

Frequency range (-10 dB) 46 Hz – 24 kHz
System sensitivity (1 W @ 1 m) 91 dB (1 W = 4 V for 16 Ohms)
Nominal Coverage Angle 90 degrees conical
Coverage Angle (1 kHz to 6 kHz) 92 degrees
Directivity Factor (Q) 7.1 averaged 1 kHz to 6 kHz
Directivity Index (DI) 7.9 averaged 1 kHz to 6 kHz
Recommended Amplifier Power 120 W @ 16 Ohms
Nominal Impedance (Lo, Z) 16 Ohms
Crossover 7 kHz inductively coupled

Transducers

Low Frequency 165 mm (6.50″) mineral loaded polypropylene
High Frequency ICT aluminium dome

Physical

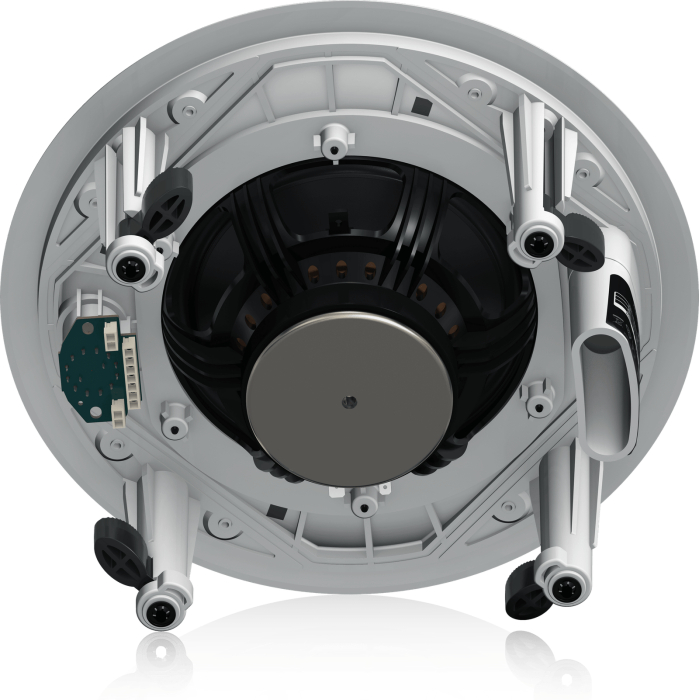

Safety Features Safety ring located at rear of enclosure for load bearing safety bond
CMS 603ICT LS UL 1480 UUMW certification for Life Safety applications
Clamping Design Security toggle clamp Min / Max clamping range 9.5 mm (0.37″) / 60 mm (2.36″), Recommended clamp torque: 1.5 Nm
Backcan Options Separate backcan for pre-installation
Cable Entry Options Cable clamp & squeeze connector for conduit up to 22 mm
Conduit Knockouts on PI Backcan 3 Sets of horizontal positions 19 / 22 / 28 mm (0.75″ / 0.87″ / 1.10″)
Connectors Removable locking connector with screw terminals with “loop through” facility
Compliance UL-1480, UL-2043, CE
Hole cutout diameter (all models) 253 mm (9.96″)
Included Accessories C-Ring, tile-bridge kit, paint mask, cut-out template, grille
Optional Accessories Plaster (mud) ring, Arco grille
Packed Quantity 2
